Engine Motor Mount Weld-In Kit fit for Chevy Engines Big Small Block BBC SBC 350 20811182

Description:

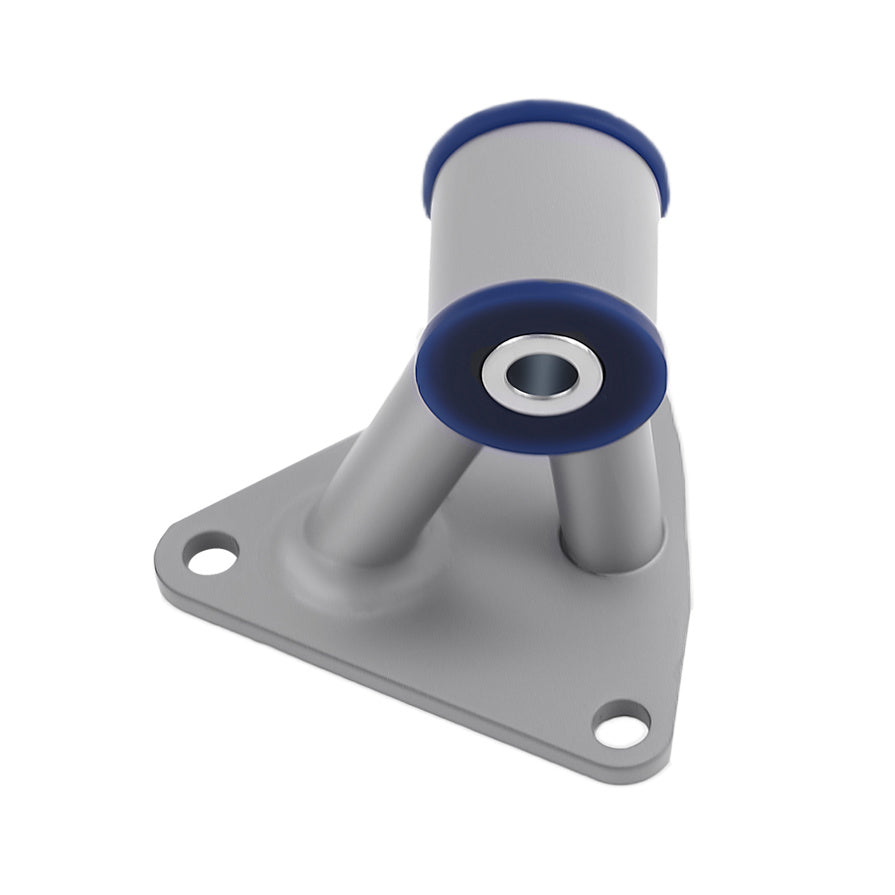

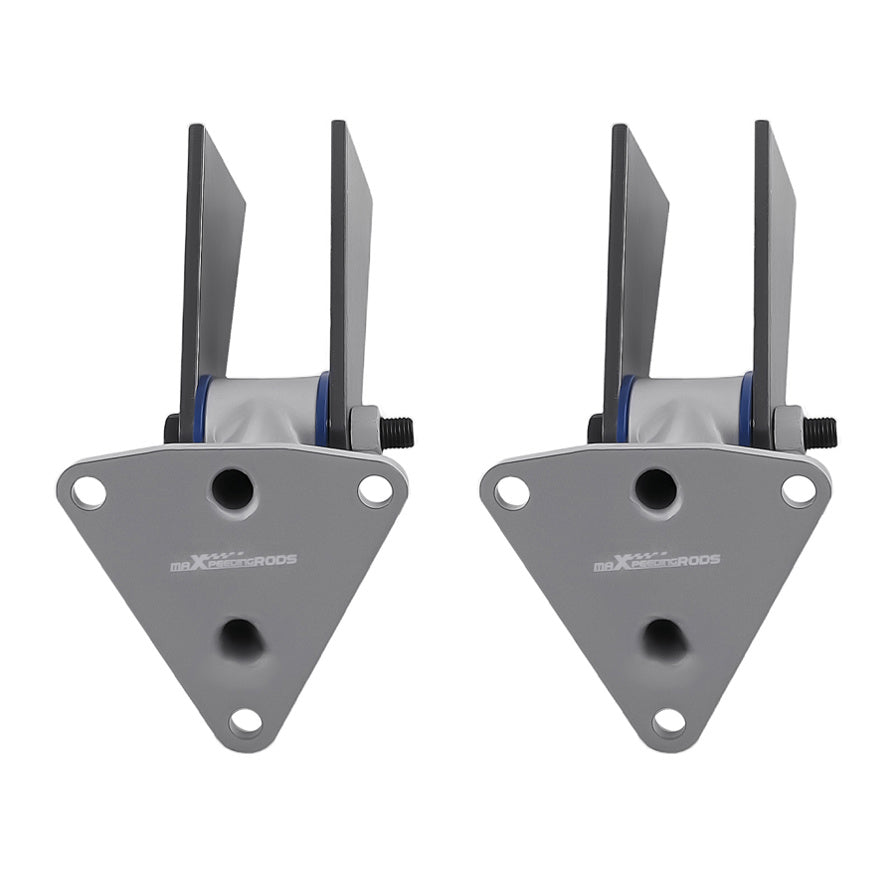

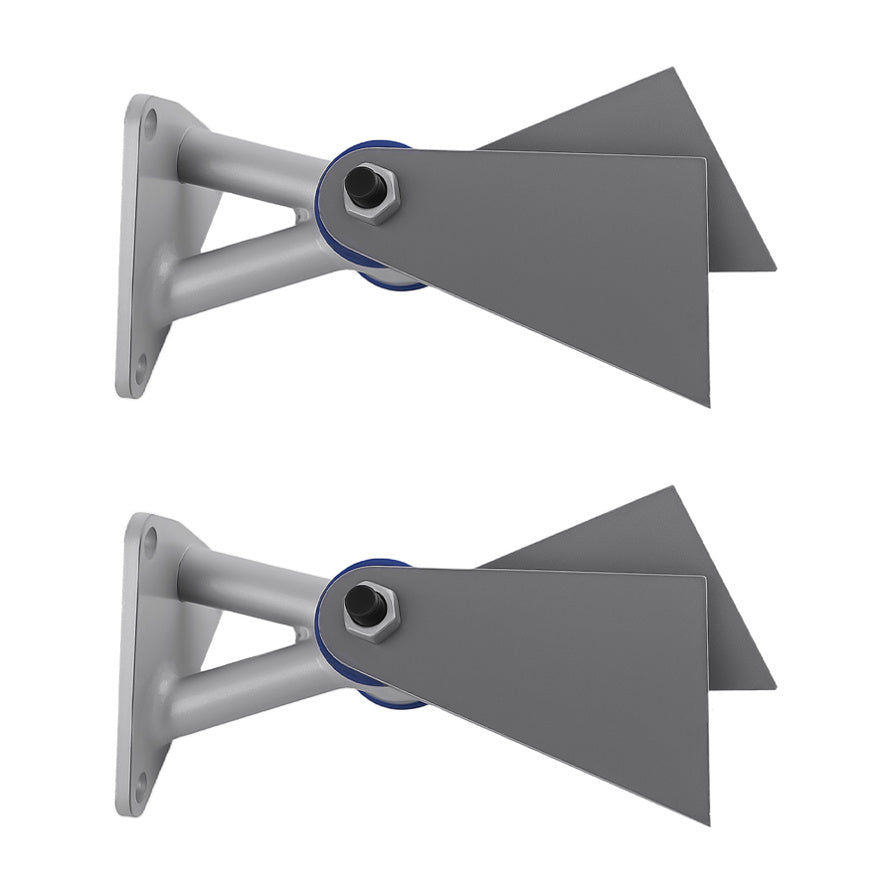

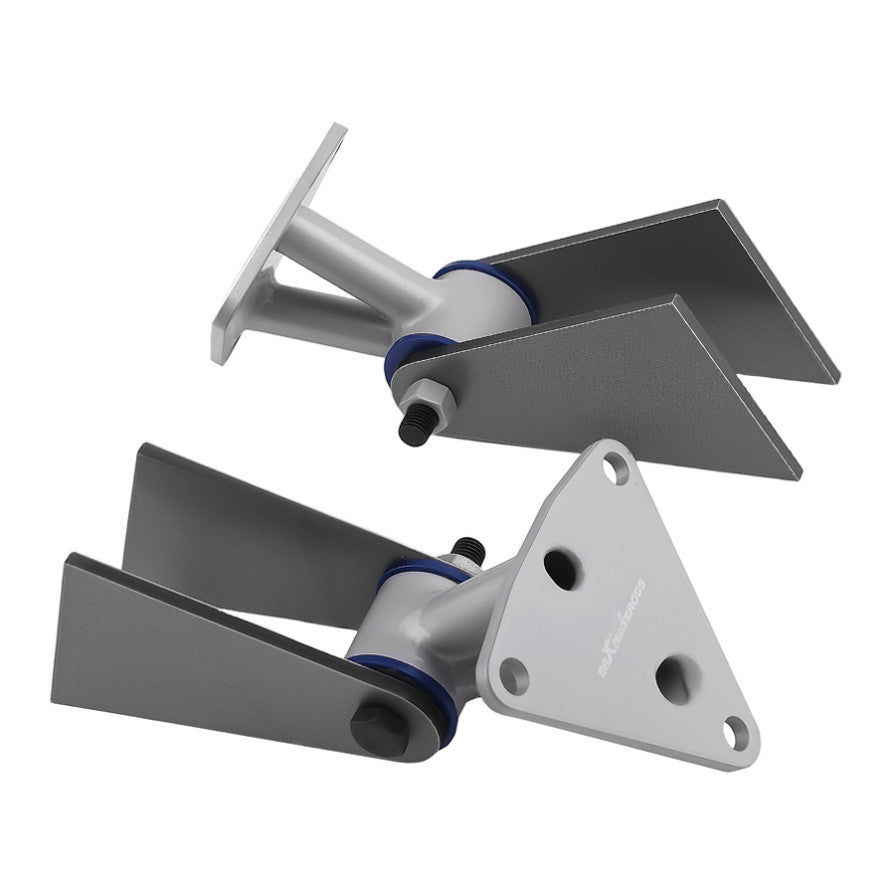

Universal engine bracket suitable for SBC, for BBC and 4.3L V6 engines

With polyurethane bushing, no vibration, long service life

The high weld seam on the 3 7/8" steel frame plate can be customized according to your specific chassis

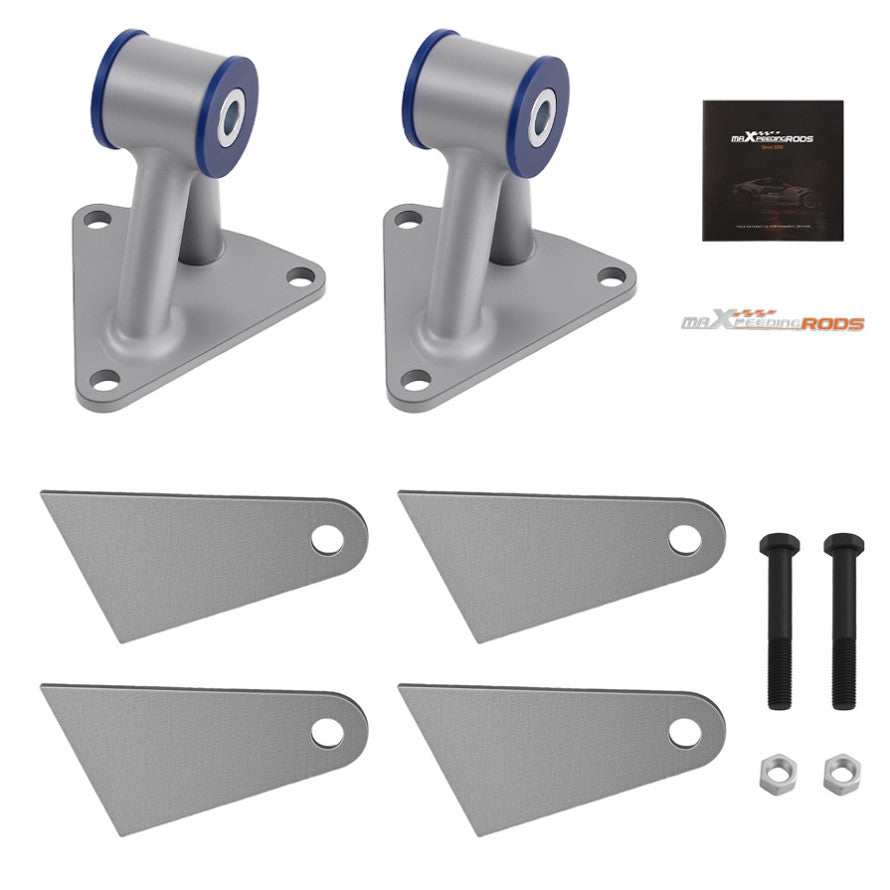

Includes hardware for mounting the engine to the frame plate

It is recommended to use motor mounting bolt kit 91303705 to install the mount to the engine

Application for: Fit For Chevy Small & Big Block

Condition: 100% Brand New

Quantity: Set of 2 (1 pair)

Hardware Included: Yes

Overall Height: 4.13"

Hole Diameter: 0.50"

Bushing Length: 1.81"

Base Length: 4.08"

Base Width: 4.28"

Material Thickness: 0.25"

Features:

-20 3/8" eye to eye measurement when bolted to Fit Chevy engine

-Each mount is 3.31" long to center of the bushing

-Three engine mount holes are 3.50" apart, center to center

-Frame brackets are 3 7/8" long

Notice:

-Black and Sliver color delivery randomly

-Please feel free to contact us for whatever we can help.
