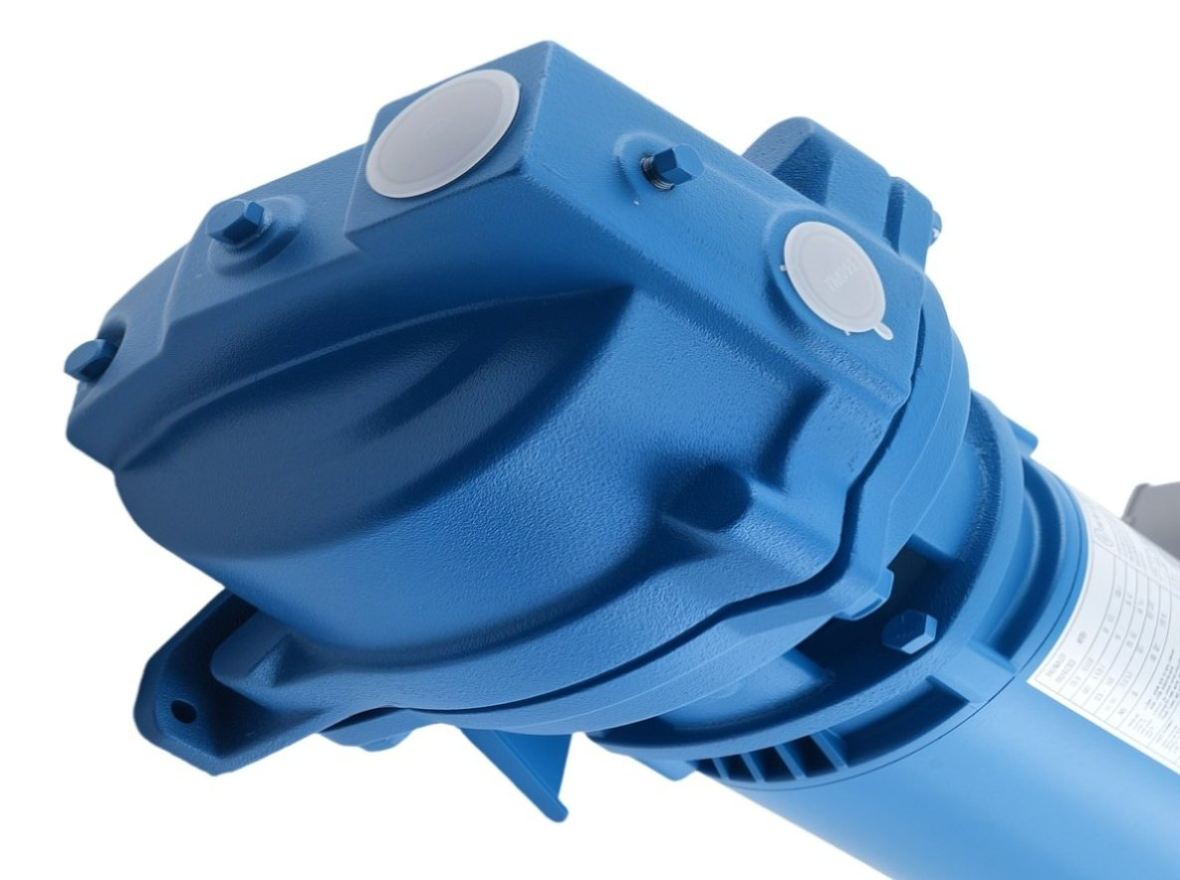

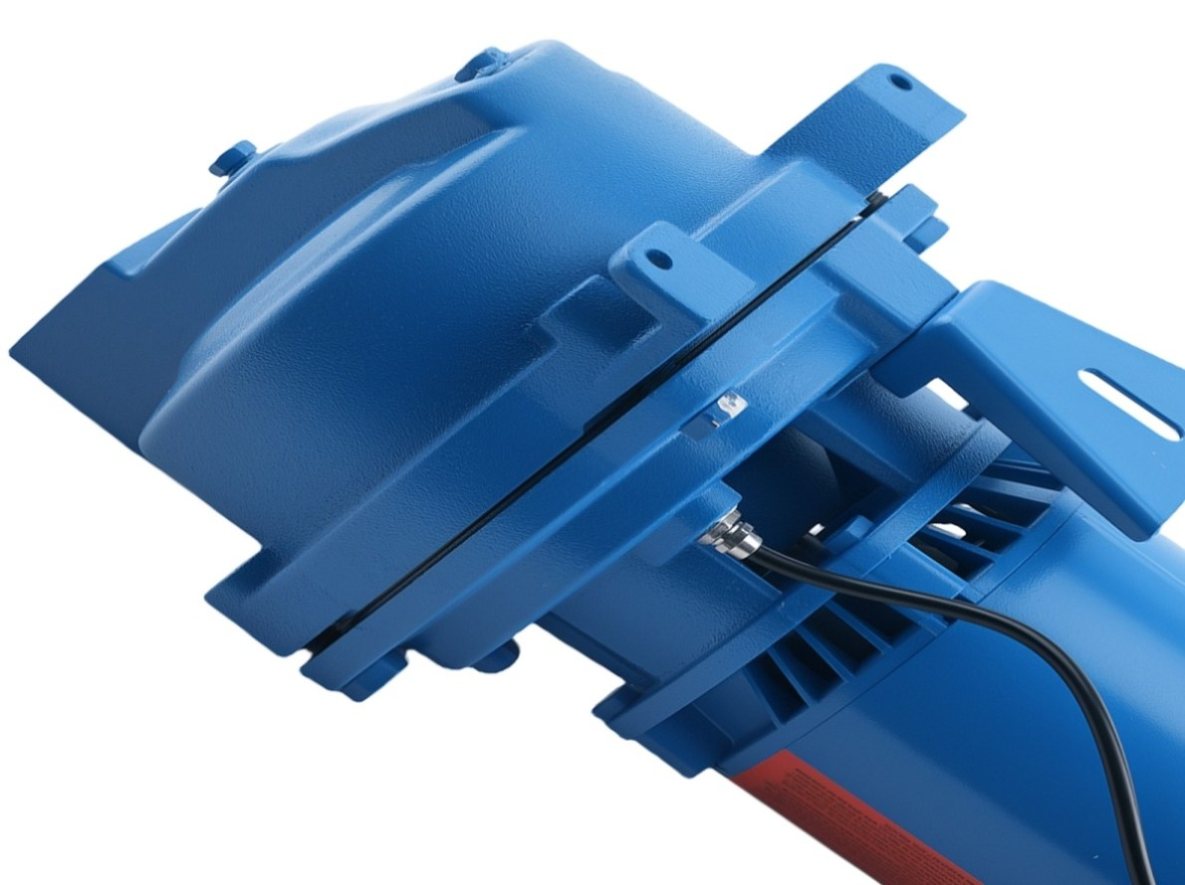

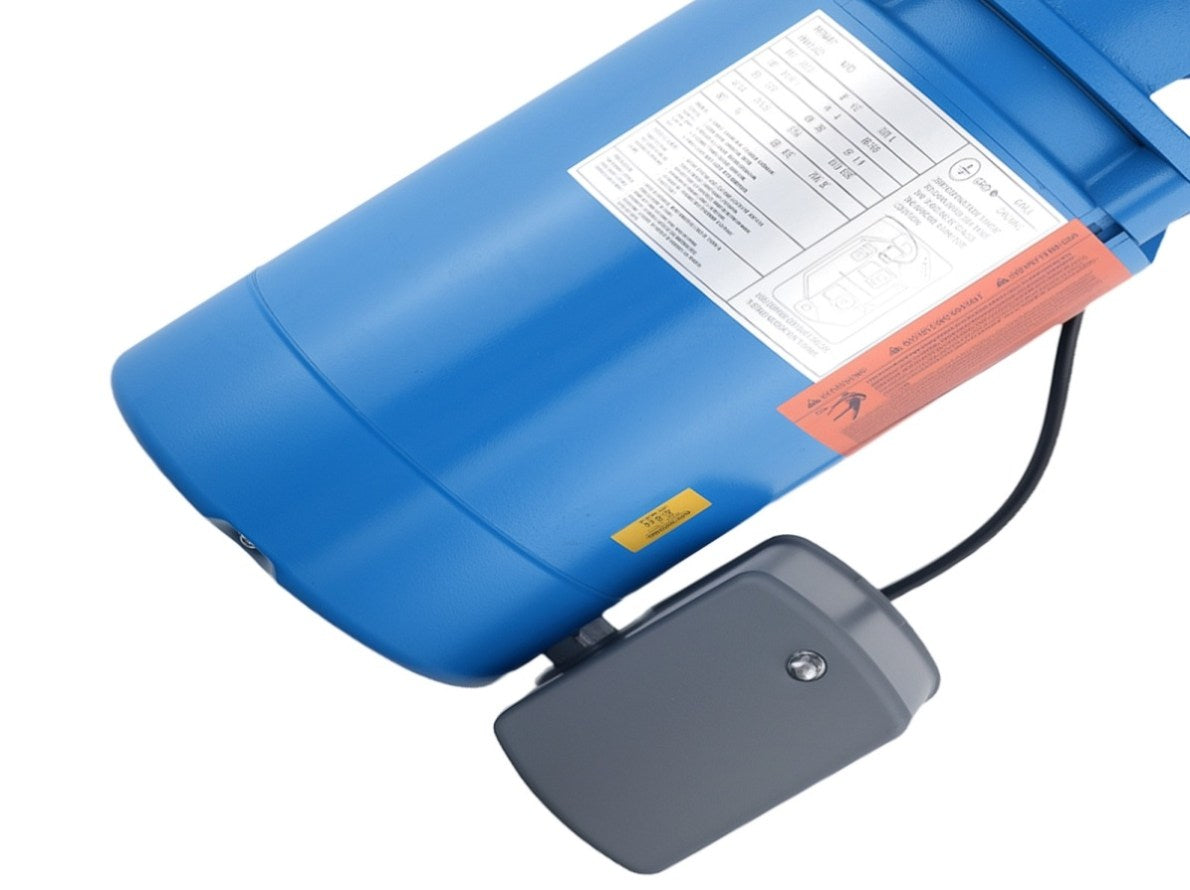

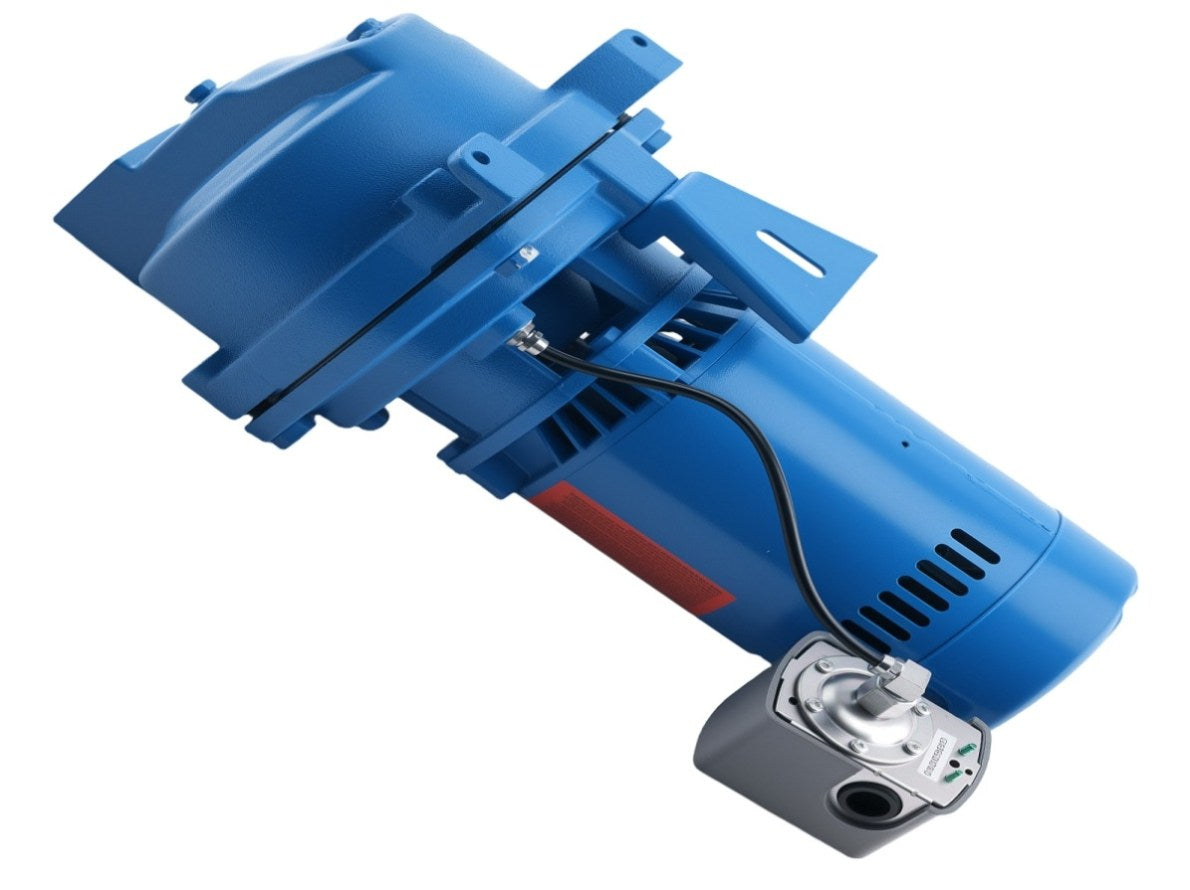

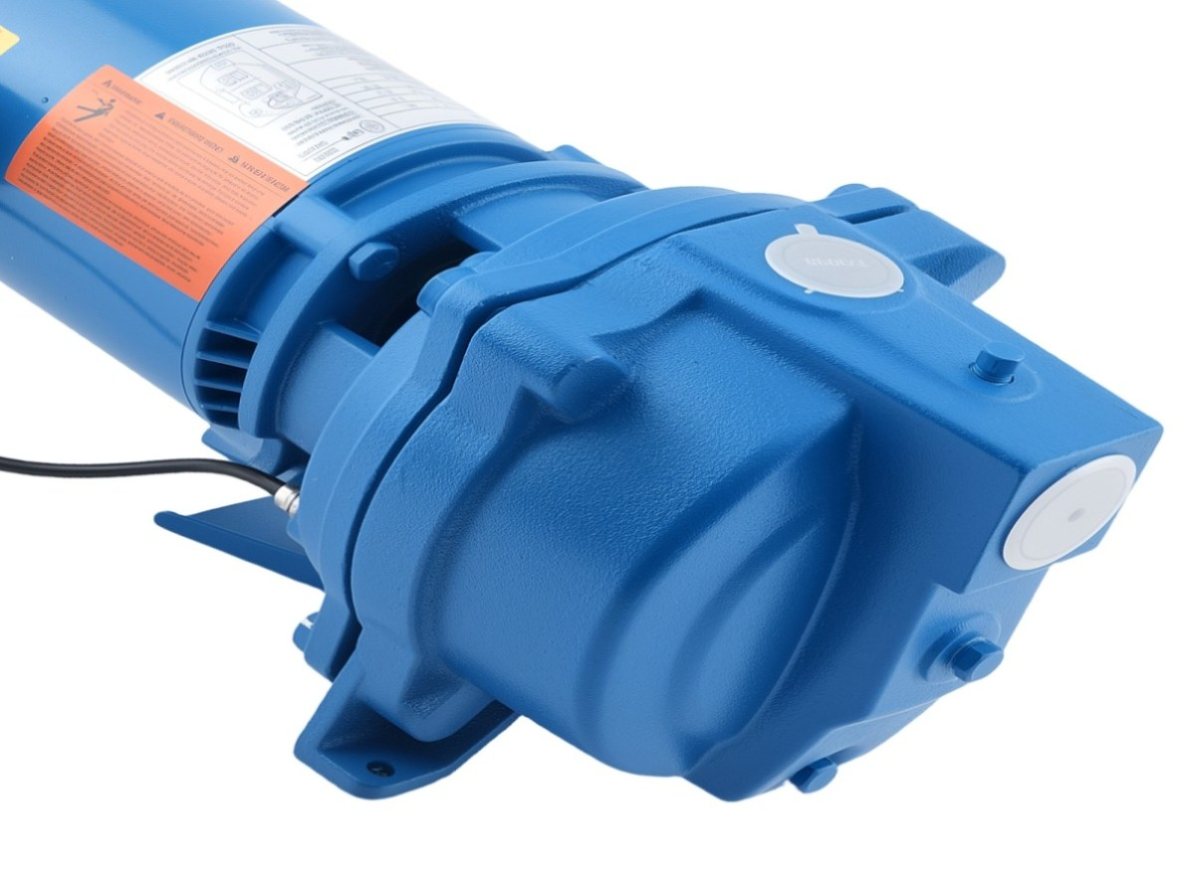

Electric Shadow Well Service Pump fit for J5S Water Booster Homes Self-Priming 66099251

Application:

Homes

Cottages

Booster service

OE/Part number:

J5S

Specification:

Centrifugal Pump Type: Self-Priming

Rated Power: 1/2HP

Voltage: 115/230 Volts

Suction: 1-1/4" NPT

Discharge: 1" NPT

Flow rate: 16.5 GPM

Phase: 1 Phase

Maximum Lifting Height: 25 Feet

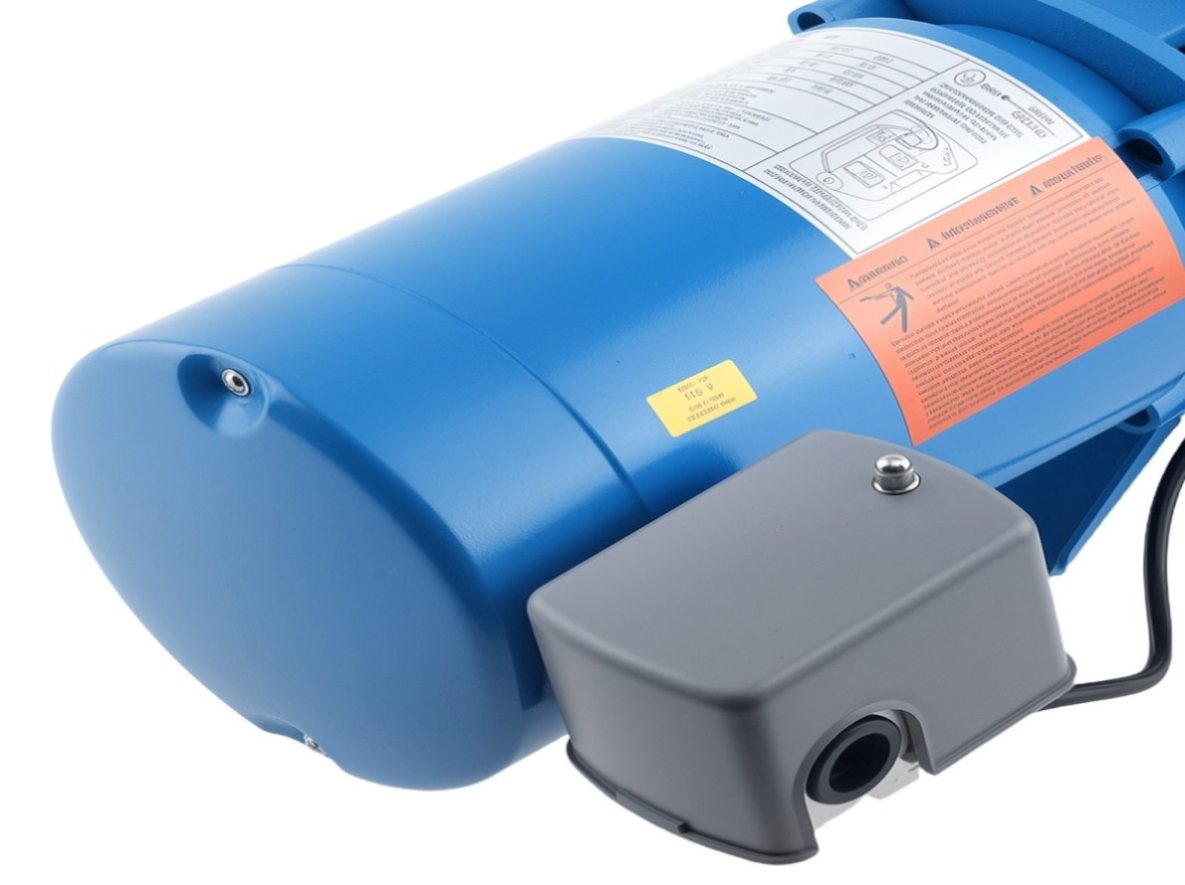

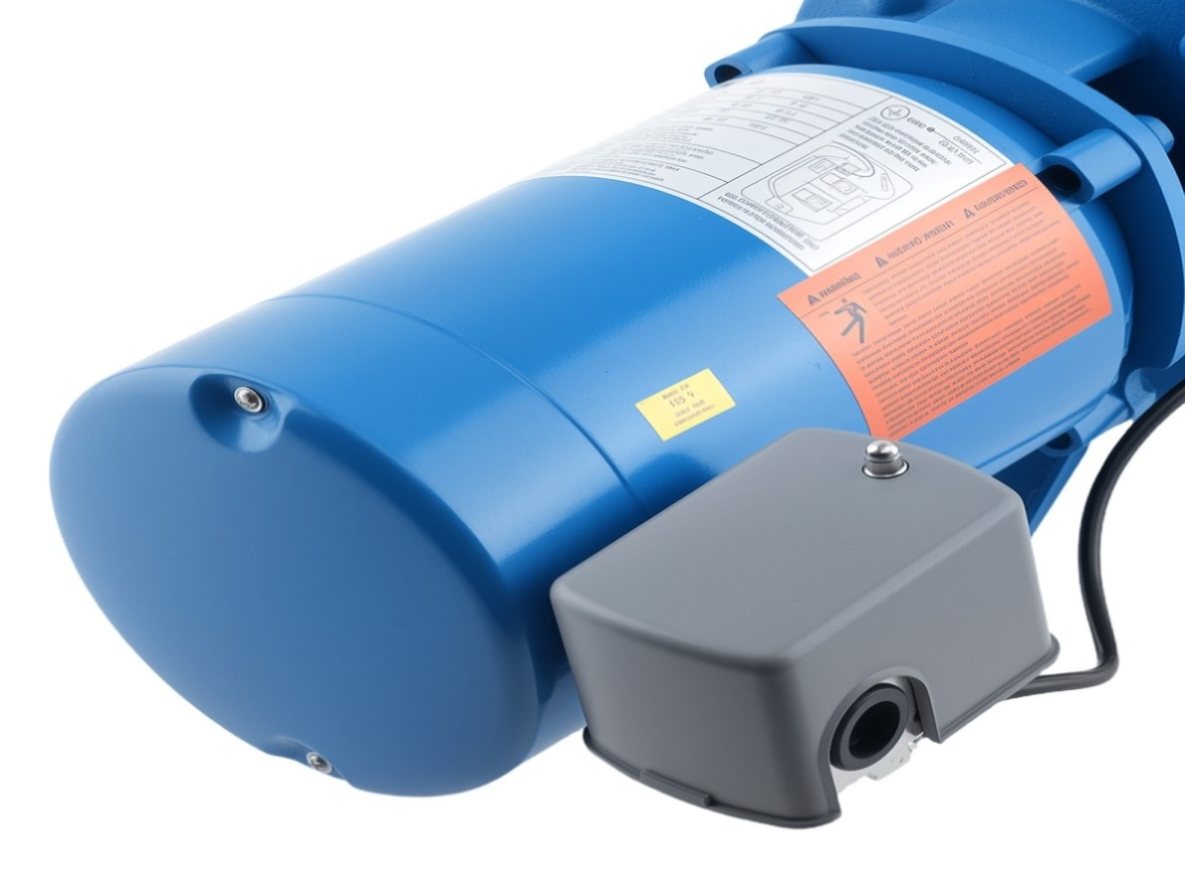

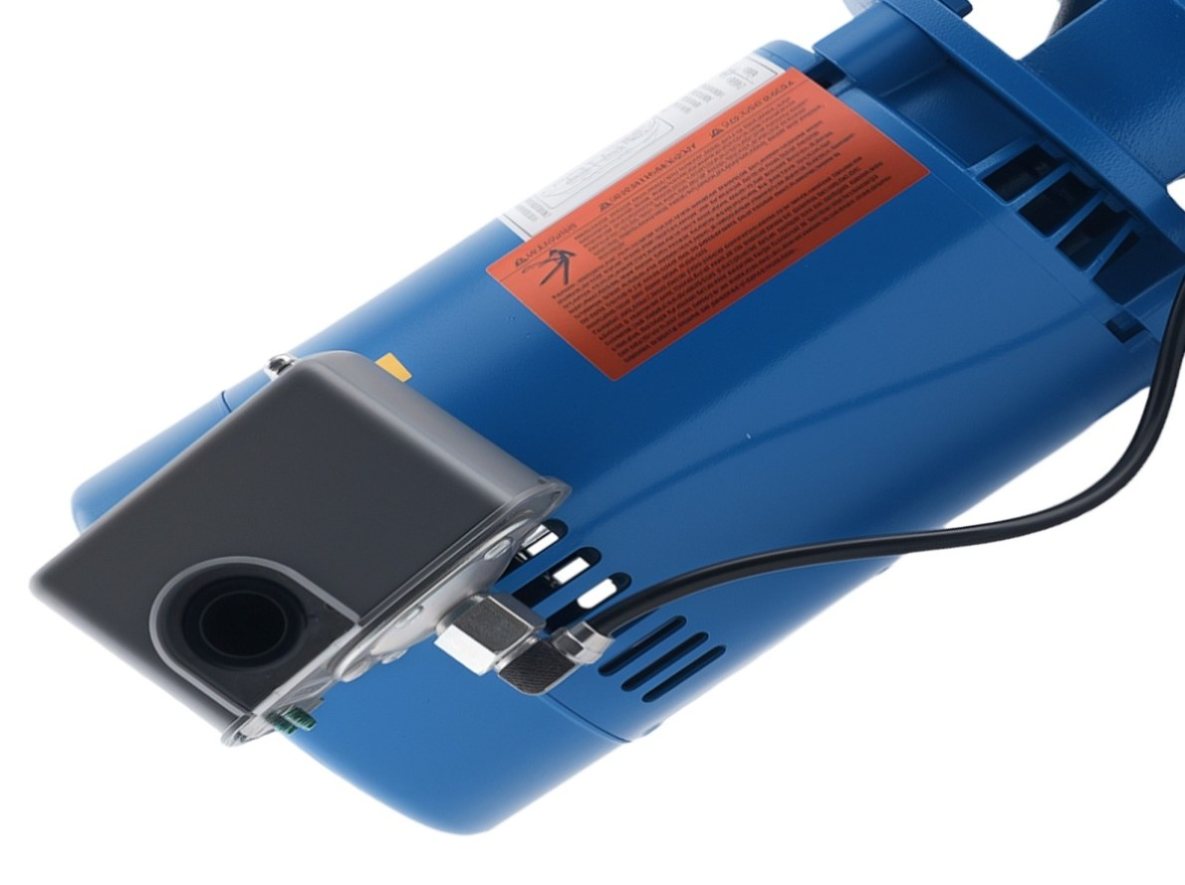

Pressure Switch: As4 preset (30-50 PSI)

Casing material: Cast iron

Package included:

RV Leveling Touchpad*1

Feature:

>> Service‑friendly back pull‑out construction enables pump disassembly fit for maintenance without disturbing connected piping.

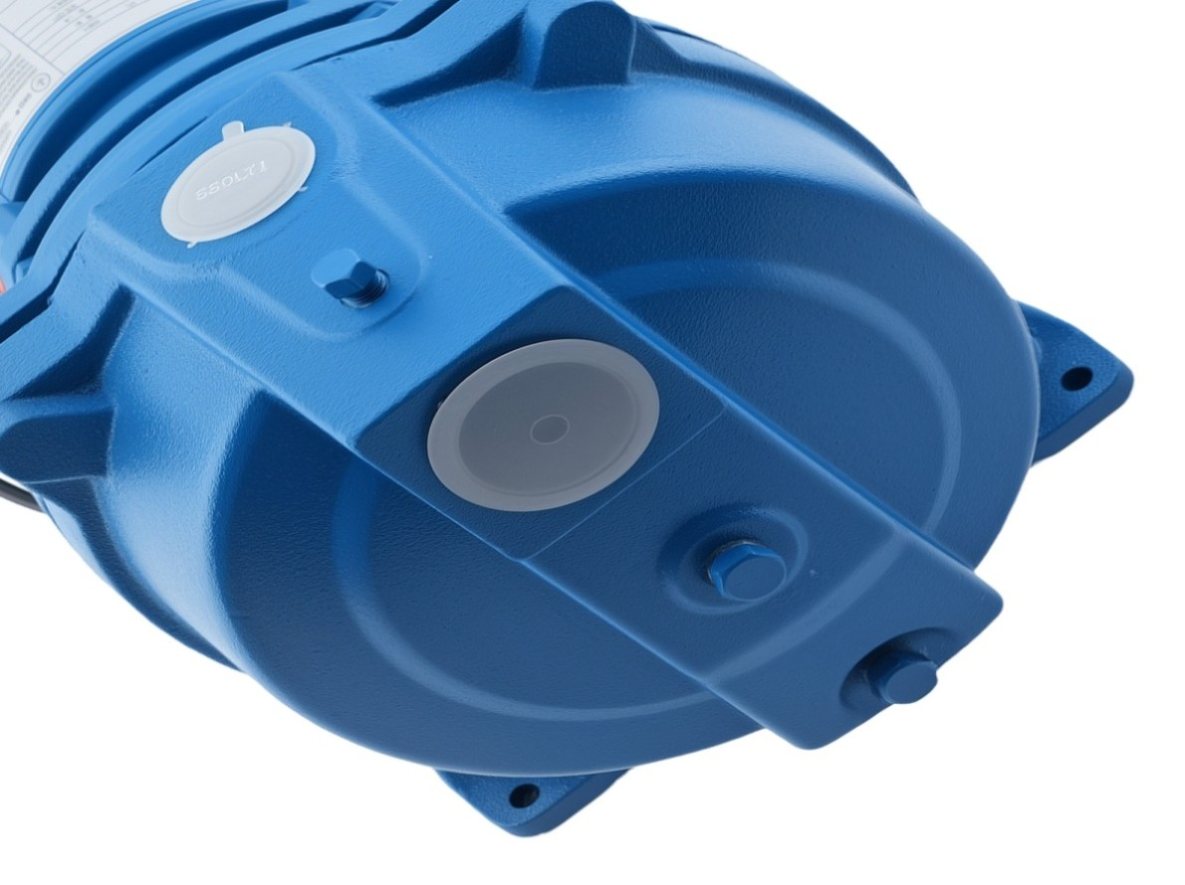

>> The motor is split into two compartments fit for convenient access to wiring and serviceable parts, while a nozzle clean‑out plug is provided in the pump casing.

>> All engineered‑plastic tubing and fittings are corrosion‑resistant, easily removable, and simple to clean.

>> Mechanical seal protection is ensured by a special diaphragm that retains water in the casing at all times, preventing dry‑run conditions.

>> The impeller is moulded from glass‑filled Noryl fit for excellent corrosion and abrasion resistance, and is FDA‑compliant fit for potable water applications.

>> A bolt‑down diffuser guarantees precise alignment with the impeller; it also features a stainless steel wear ring to sustain performance under abrasive service.

>> Rated fit for continuous operation. After initial priming, the pump automatically re‑primes even if air enters the system—resuming flow as soon as the water level rises above the foot valve.

>> Built‑in overload protection with automatic reset, plus a stainless steel shaft and clockwise rotation (viewed from the motor end).

>> Pressure switch factory‑set at 30–50 psi.
