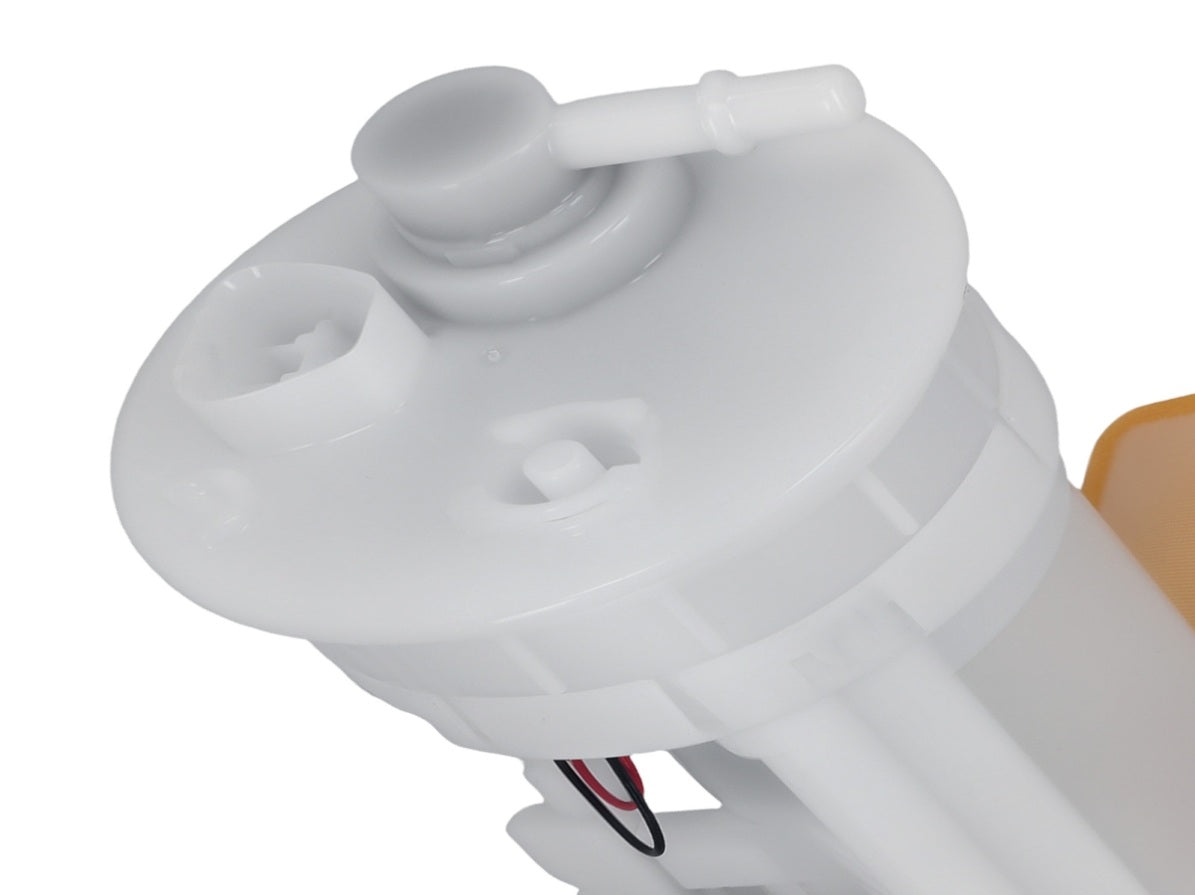

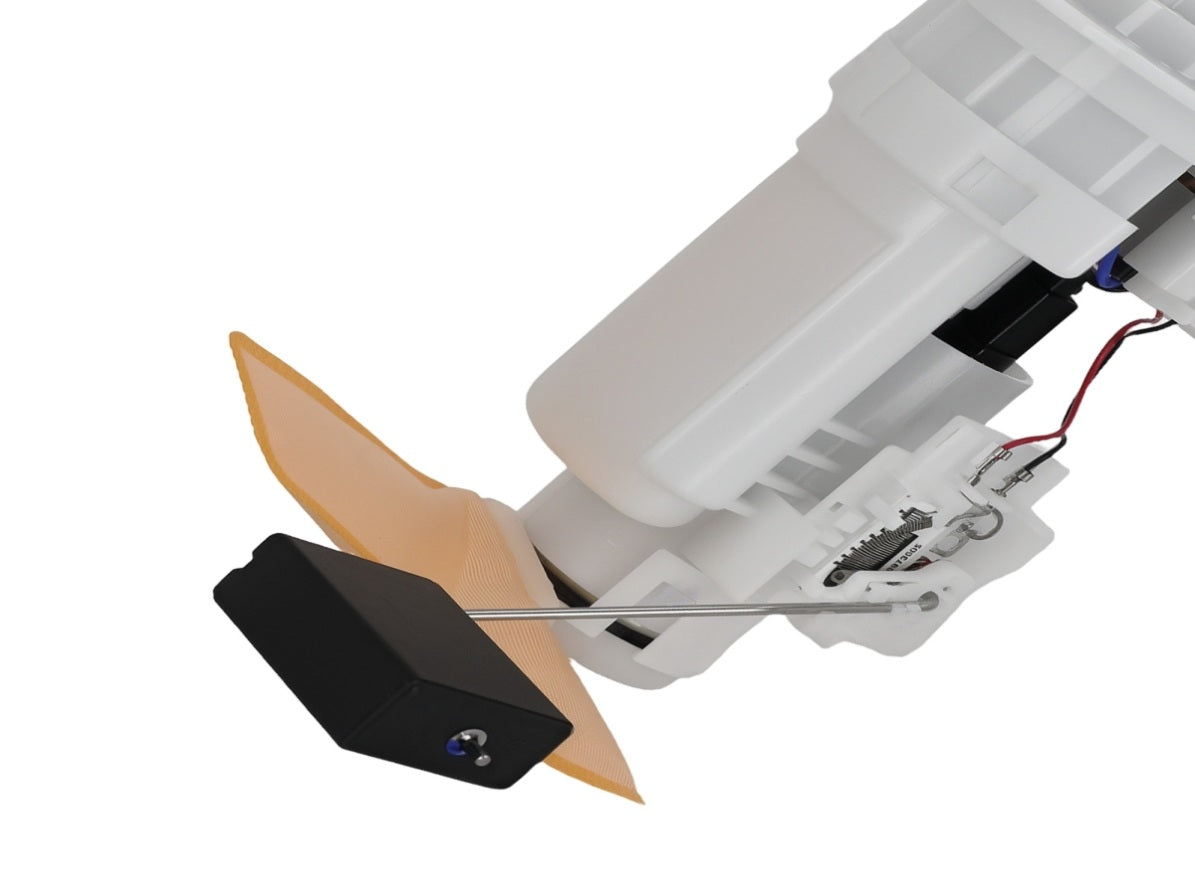

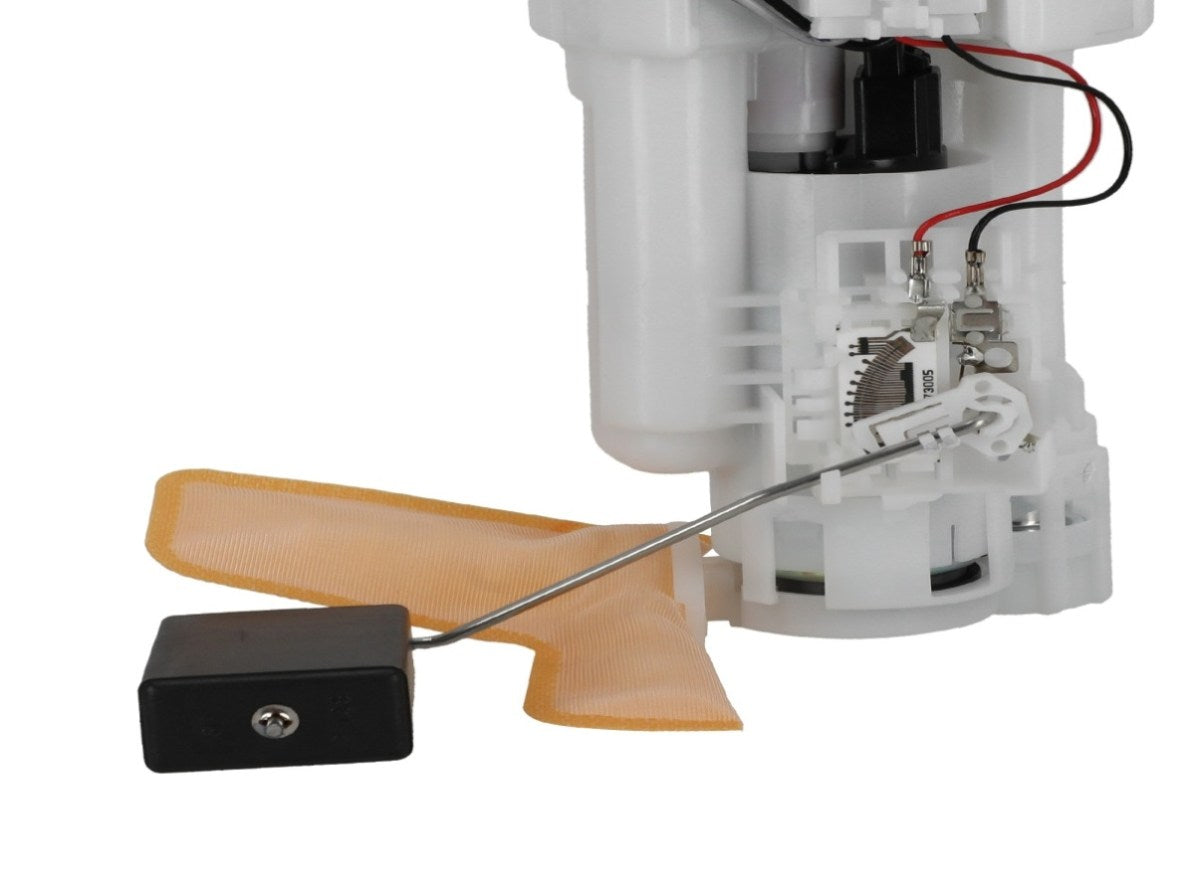

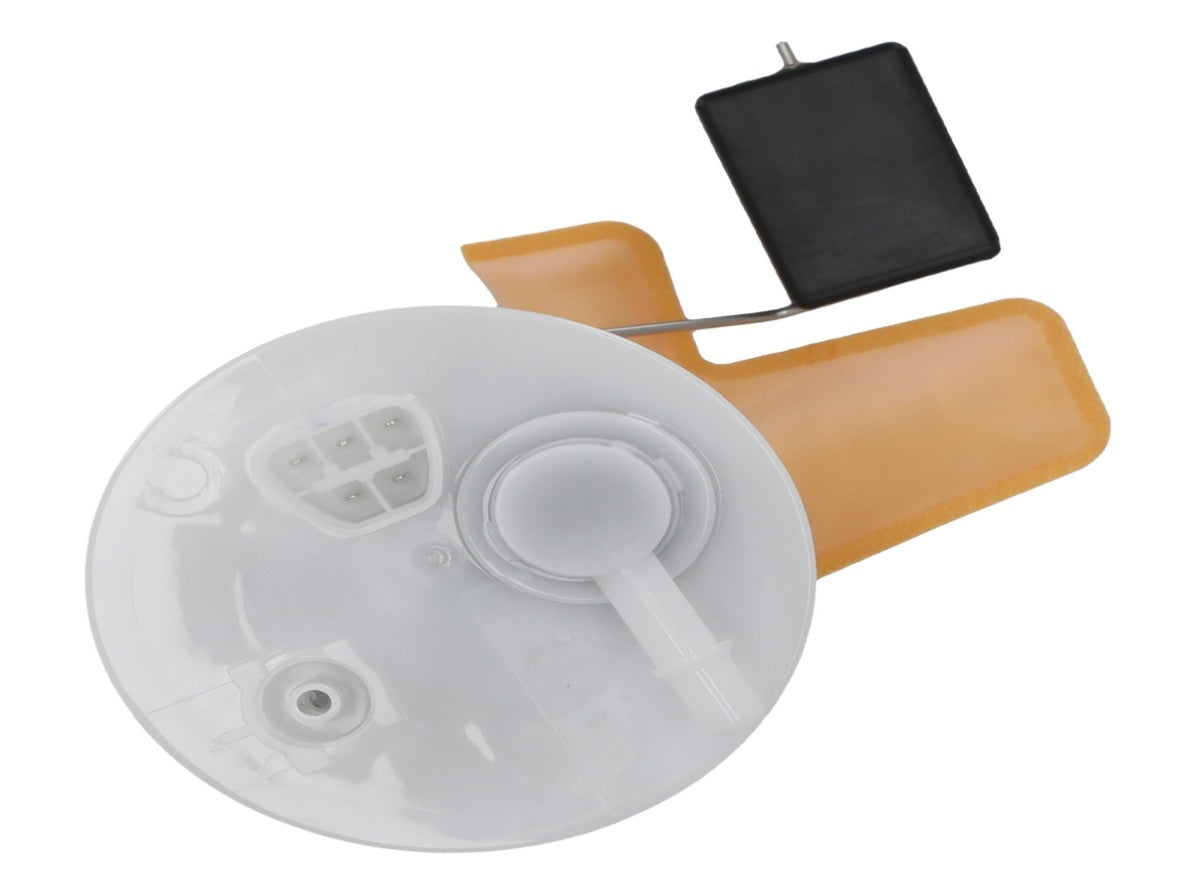

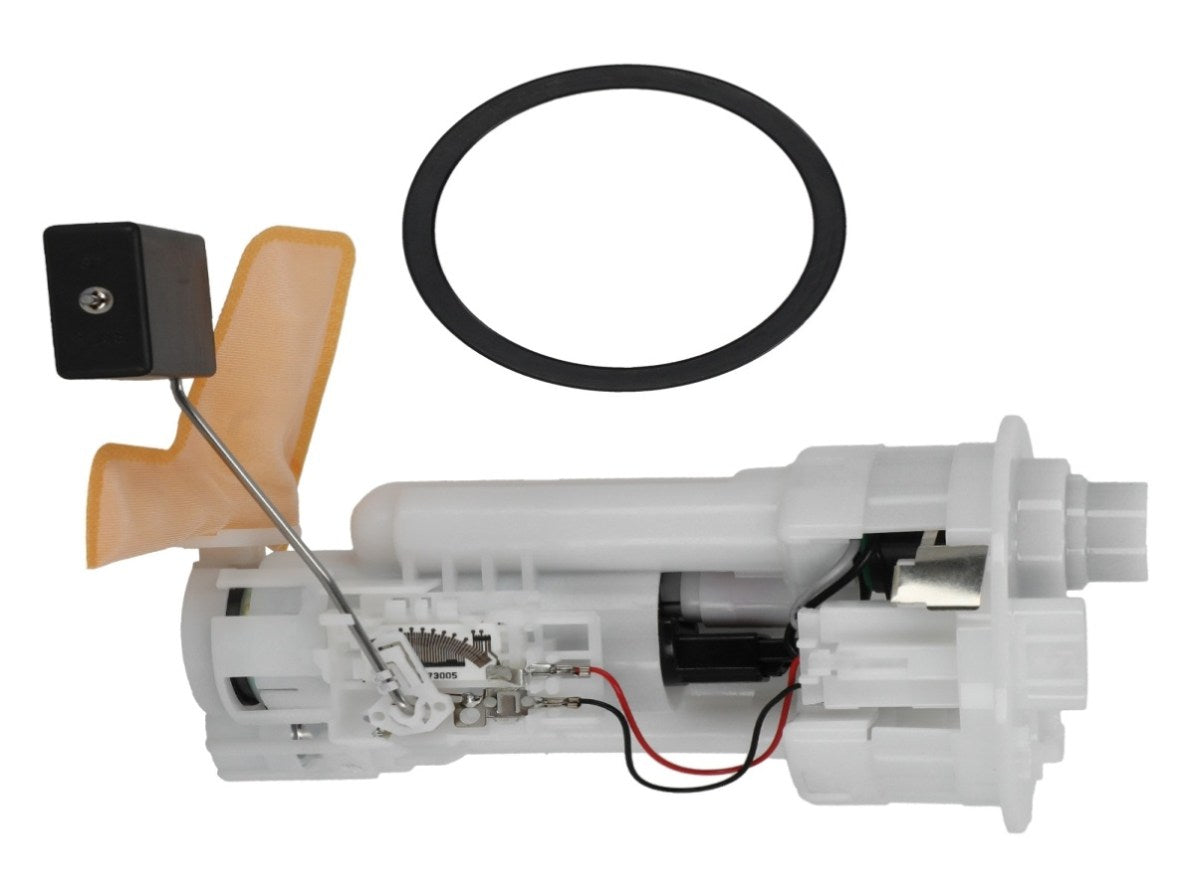

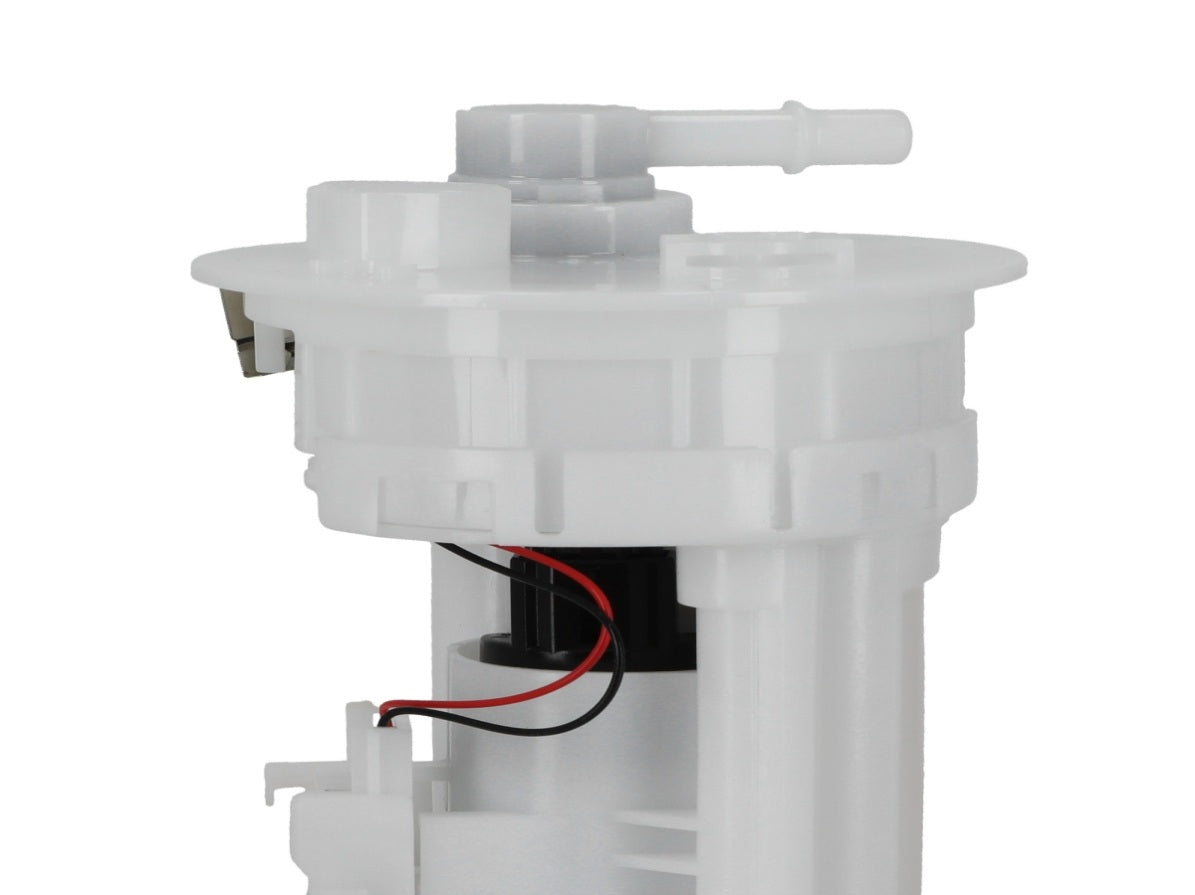

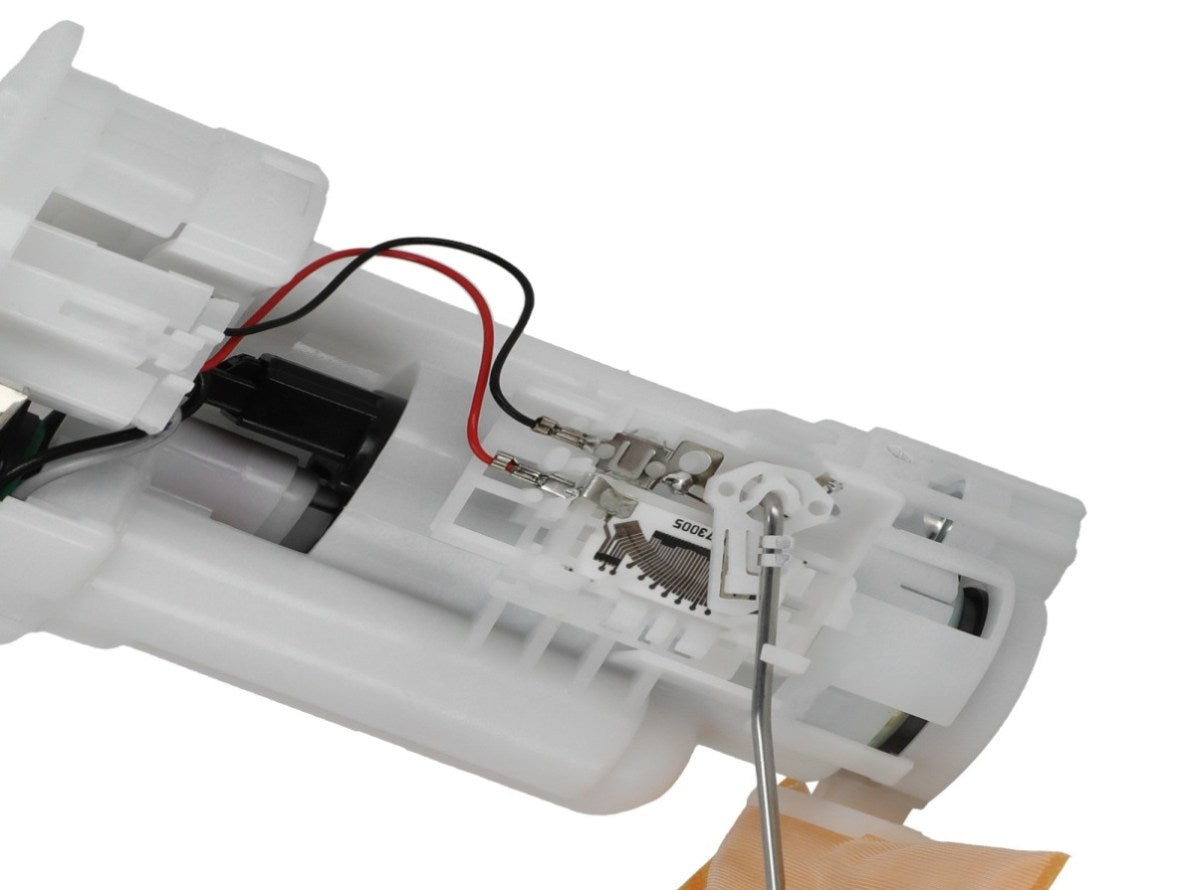

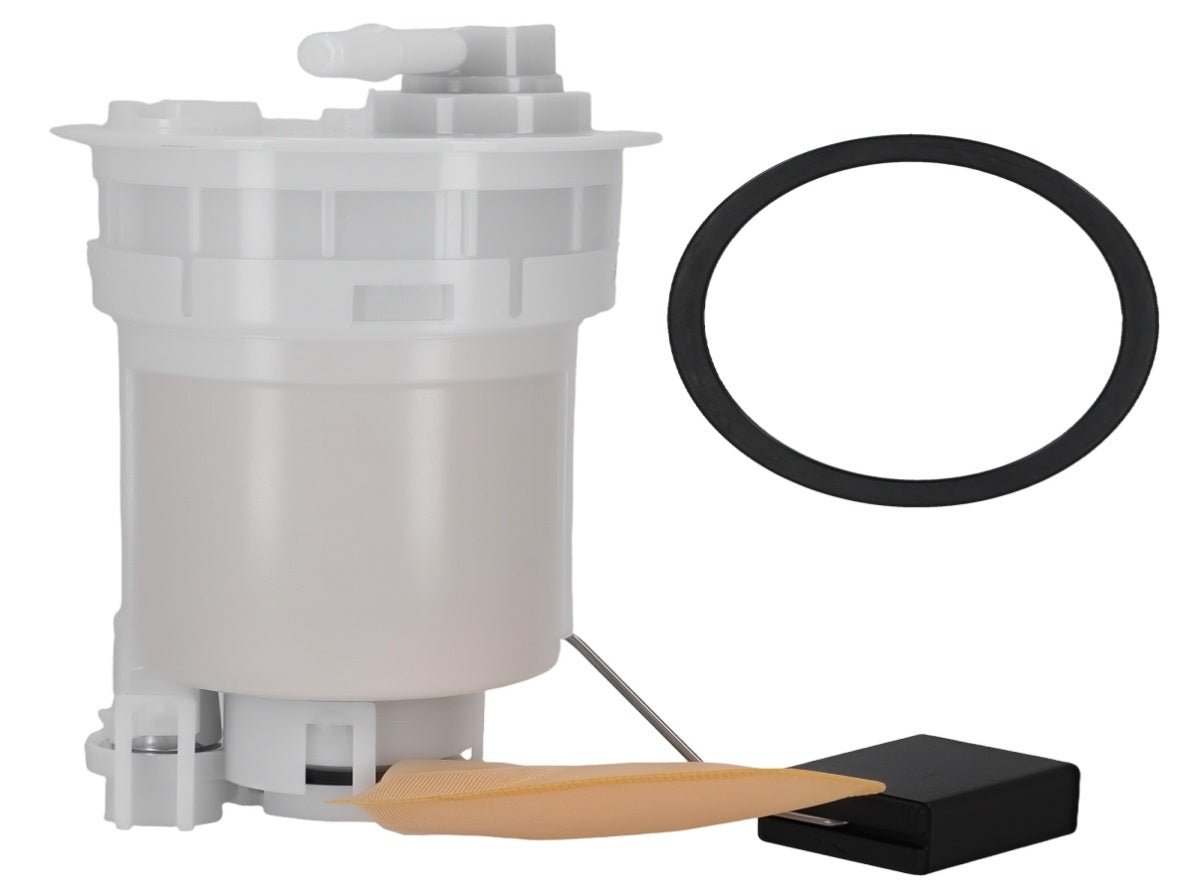

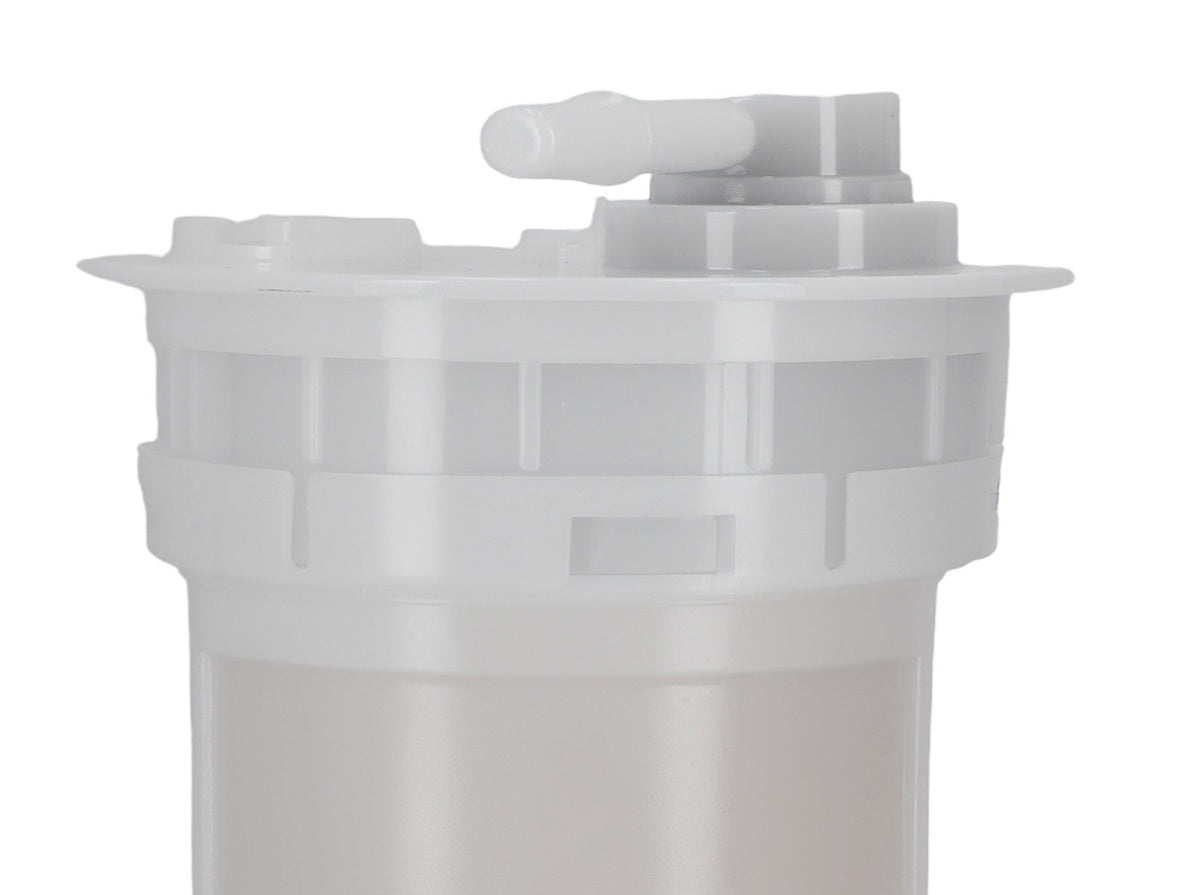

Electric Fuel Pump Sending Unit Assembly fit for Toyota Corolla 2000-2005 45891683
Application:
fit for Toyota Corolla L4 1.8L 2000-2005
OE/Part number:
7702002190, 77020-02190
7702012450, 77020-12450
7702012490, 77020-12490
7702013100, 77020-13100
7702412240, 77024-12240
7706001200, 77060-01200
770200D050, 77020-0D050
830GE
EFP-567M
GE413
Specification:
Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥25G/H
Pressure(MPa): 0.38±0.01
Inlet Type: /
Inlet Quantity: 0
Outlet Type: SAE J2044 2009
Outlet Quantity: 1
Material: Plastic(POM)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Internal Or External Strainer: External
Placement on Vehicle: Rear (Fuel Tank)
Package included:
1x Fuel Pump Module Assembly
