Electric Fuel Pump Assembly fit for Chevy Aveo/G3 1.6L 2009-2011 96802748 w/Sensor 75784778

Application

fit for Chevrolet Aveo L4 1.6L 2009-2011

fit for Chevrolet Aveo5 L4 1.6L 2009-2011

fit for Pontiac G3 L4 1.6L 2009-2010

fit for Pontiac G3 Wave L4 1.6L 2009

OE/Part number

95037382
95947690
96802748
C21112936TG
E3520902
E4003M
FG1309
MU1975
P77045M
SP6667M

Specification

Drive Type: Electrical

Fuel Type: Gasoline

Voltage(V): 12

Flow Rate(Gallons/Hour): ≥31.7

Pressure(MPa): 0.3

Weight(kg): 1.53

Outlet Type: SAE J2044 2009

Outlet Quantity: 1

Material: Plastic

Housing Material: Plastic

Fuel Sending Unit Included: Yes

Fuel Pressure Sensor Included: Yes

Fuel Level Sensor Included: Yes

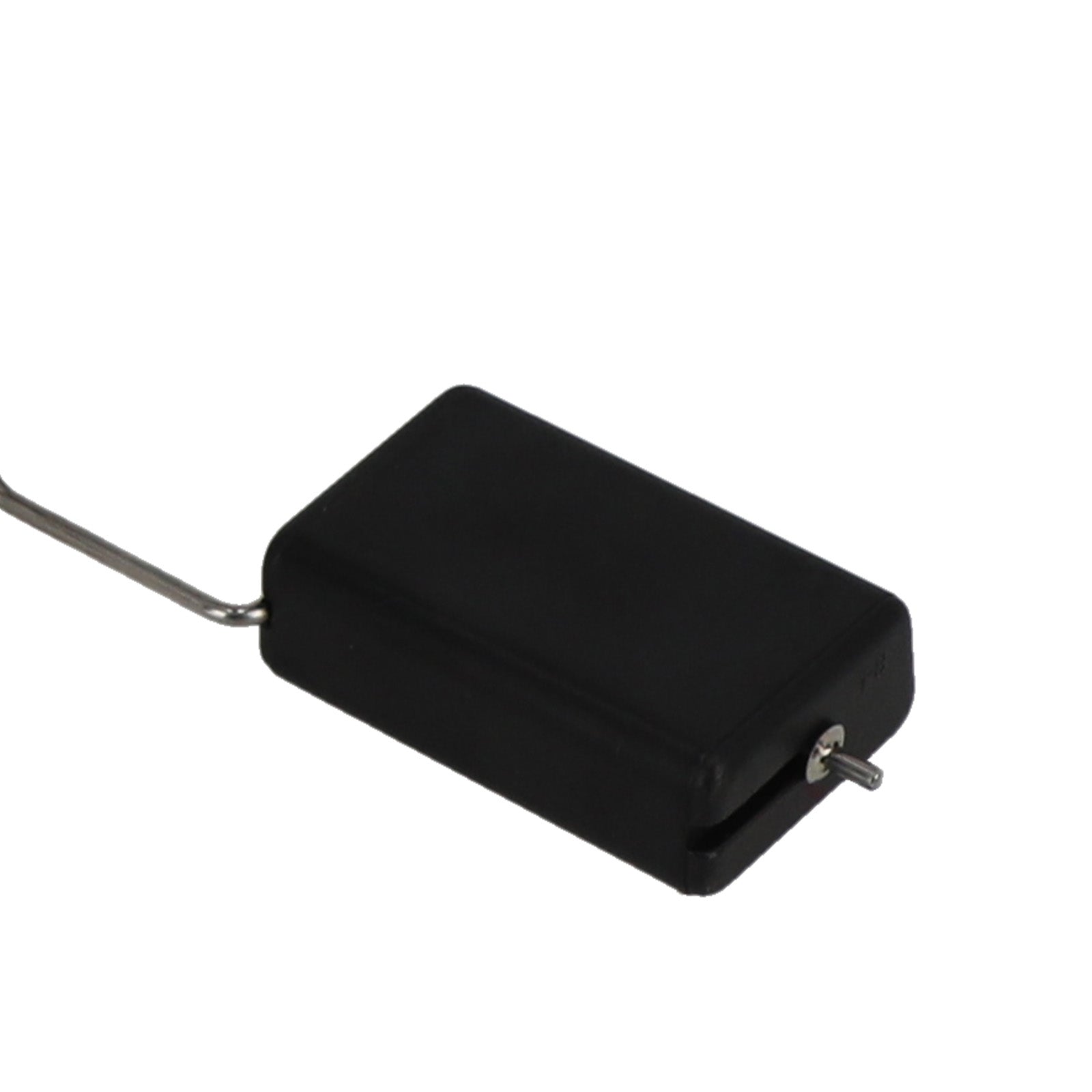

Float Included: Yes

Fuel Reservoir Included: Yes

Fuel Strainer Included: Yes

Seal Ring Included : Yes

Certifications:

CE

IATF16949

IOS14001

Package included

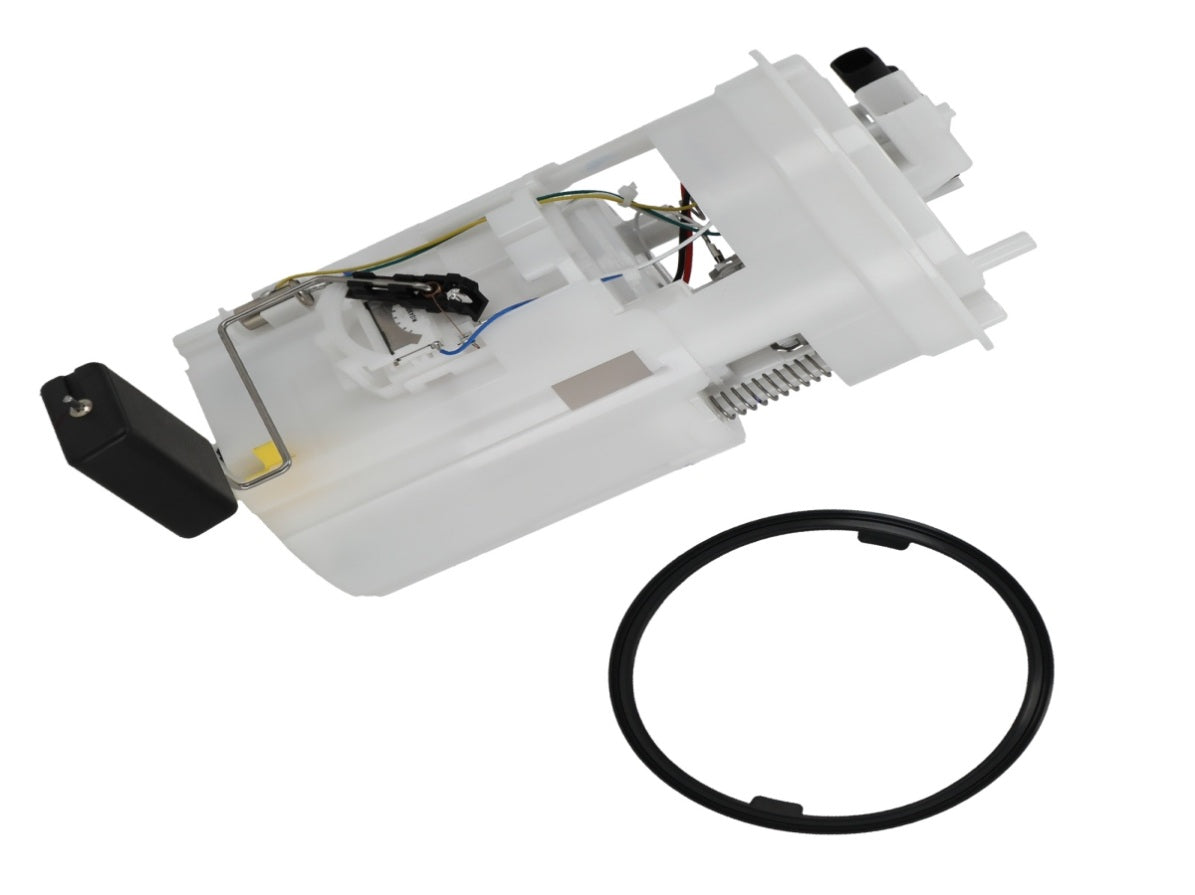

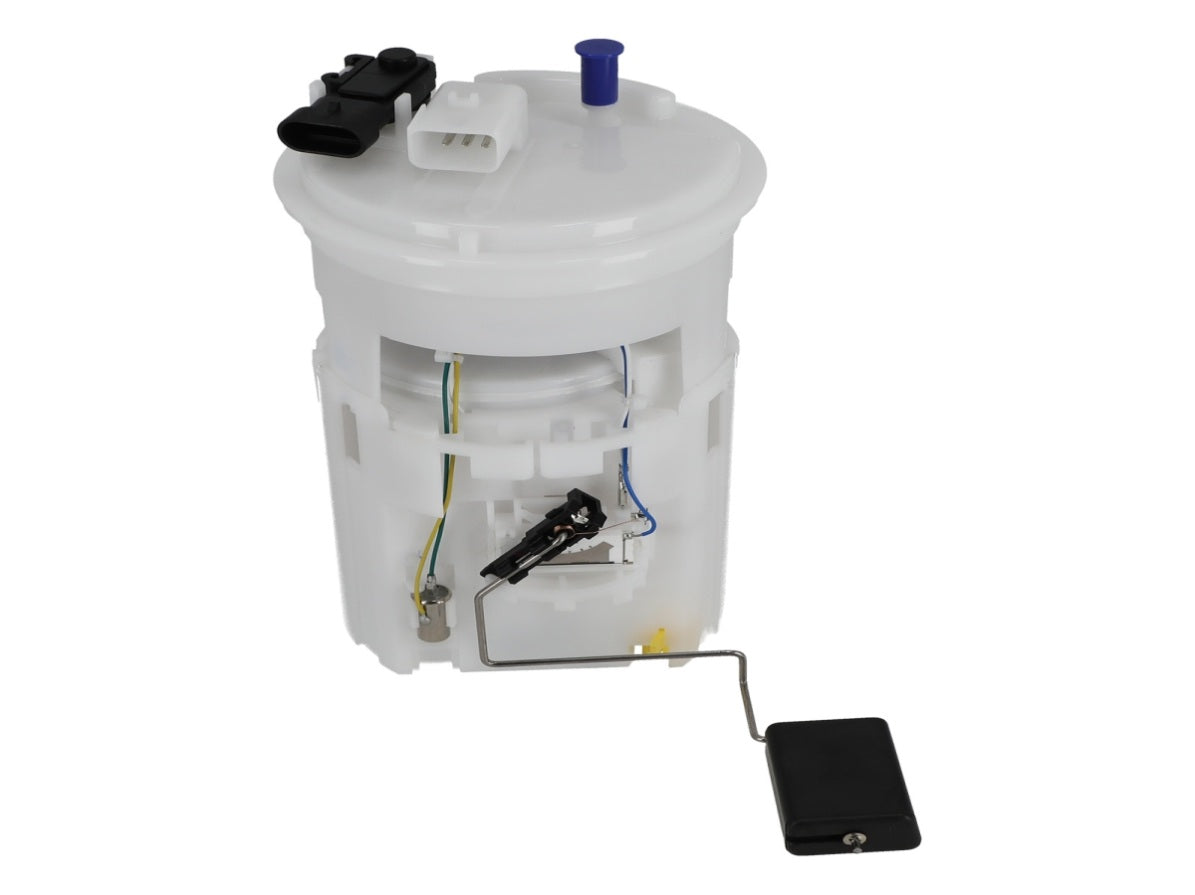

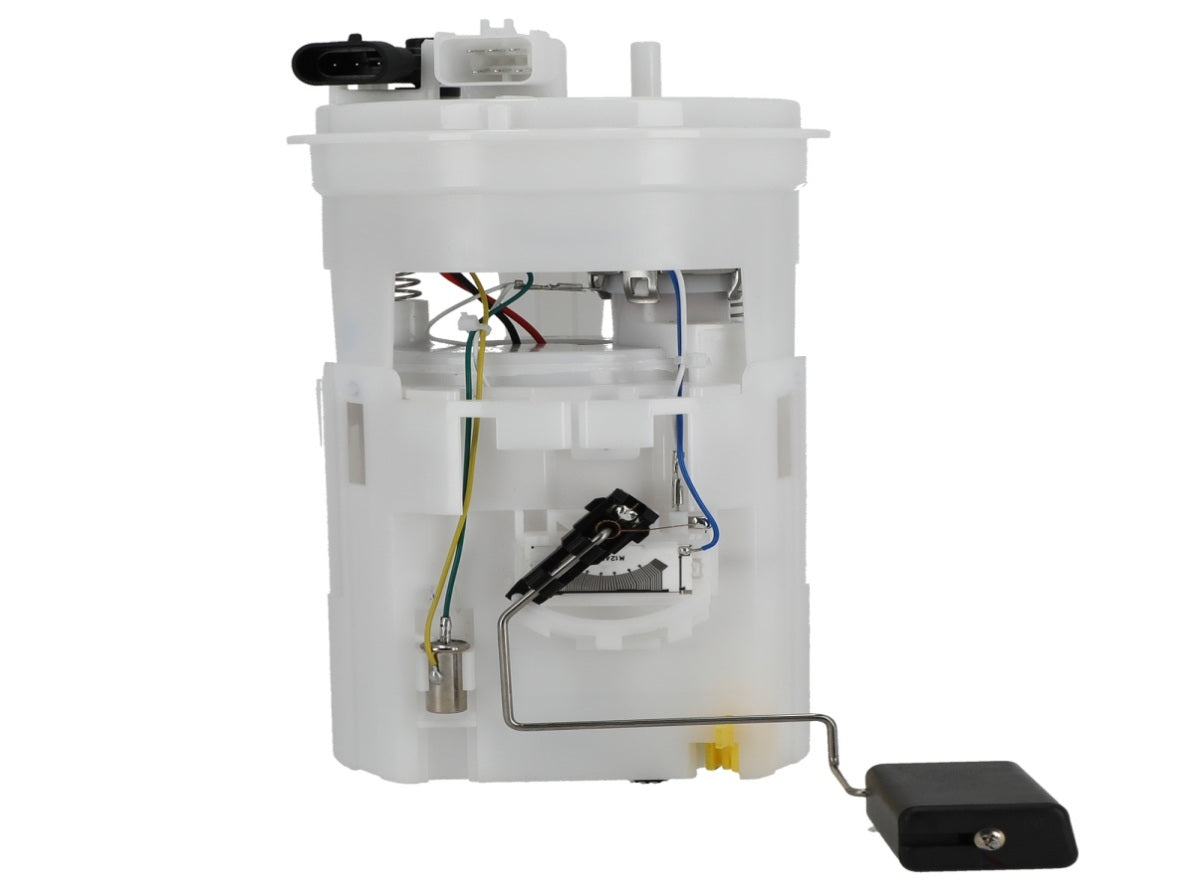

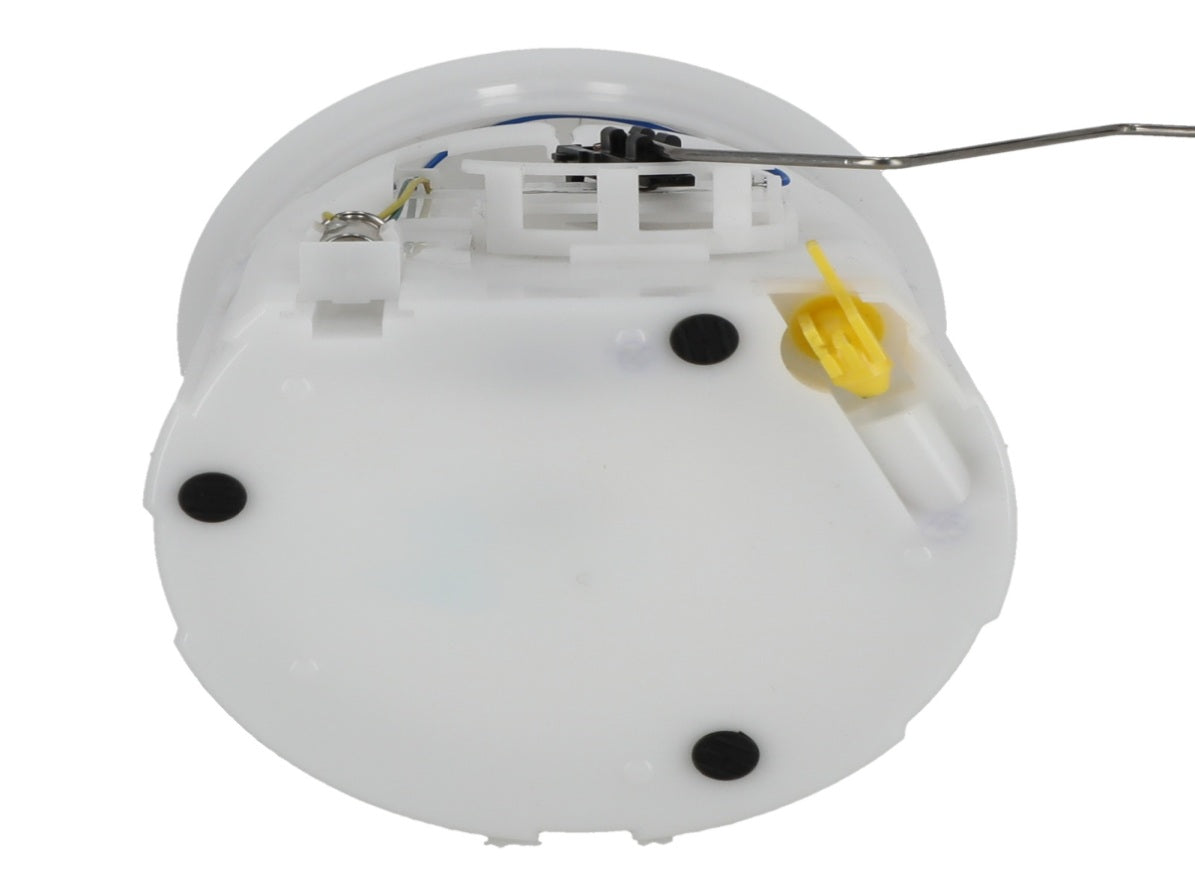

1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.High-precision automotive grade fuel tank pressure sensor

(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)

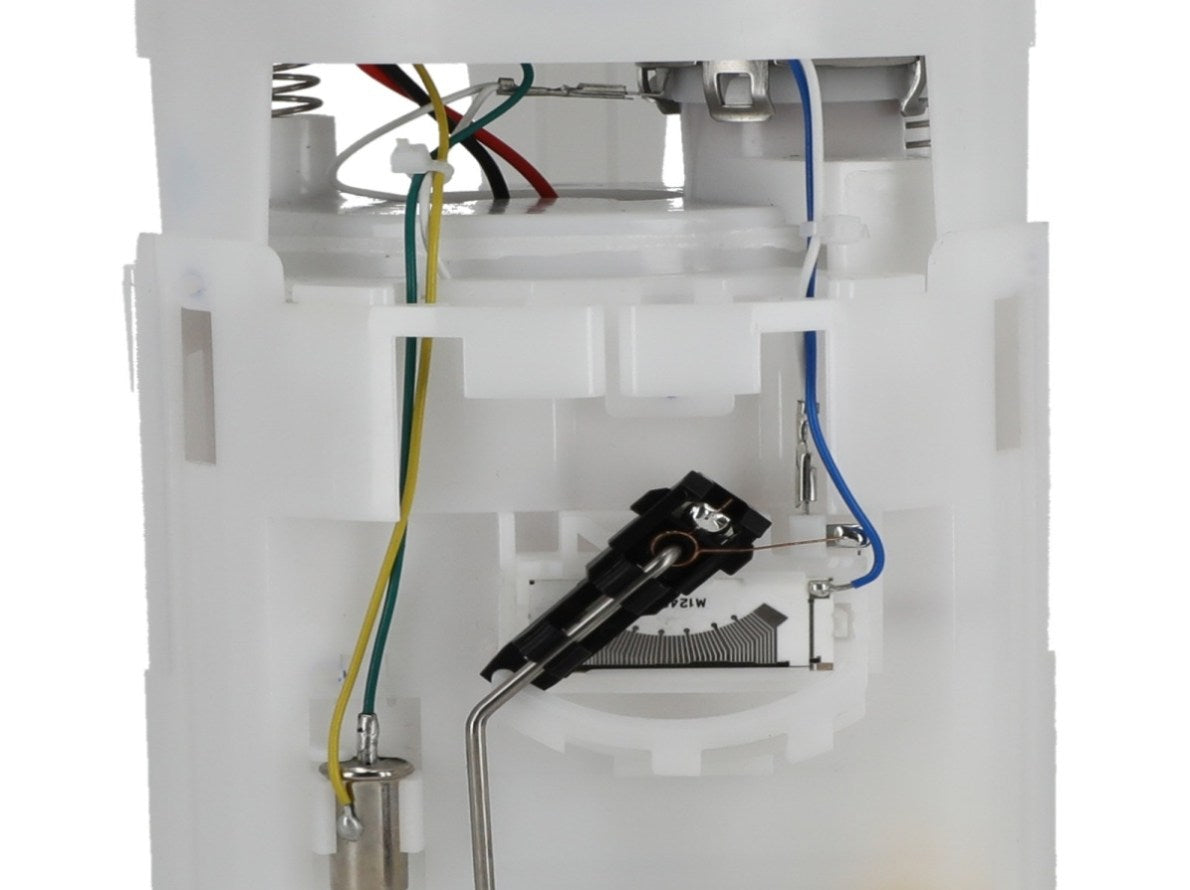

2.Dual-channel long-life level sensor

(Dual-channel dual-contact design, more stable and longer life.

HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level

display is more accurate.)

3.Low level design

(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)

4.High dust holding layer filter

(Nylon skeleton one-time injection molding process, low tempera ture resistance, low resistance, high toughness, long life.

Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)

5.Platform R&D

(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Note

1.Attached installation manual.

2.Professional Installation Is Highly Recommended.

3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
