Dual Crossover Hydraulic Relief Cushion Valve 3/8 NPT Ports 12 GPM DCRV45-06N 59030769
GT-59030769
8 In stock
$133.12
Dual Crossover Hydraulic Relief Cushion Valve Engineered for efficiency, this hydraulic relief cushion valve accommodates a maximum flow rate of 12 GPM; Port size is approximately 3/8” NPT, catering to a wide range of hydraulic systems; Its ability to handle substantial fluid flow rates enhances its adaptability and effectiveness. ...
customers are viewing this product
Dual Crossover Hydraulic Relief Cushion Valve
Engineered for efficiency, this hydraulic relief cushion valve accommodates a maximum flow rate of 12 GPM; Port size is approximately 3/8” NPT, catering to a wide range of hydraulic systems; Its ability to handle substantial fluid flow rates enhances its adaptability and effectiveness.
OEM Part Number
DCRV45-06N
Specifications
Port Size: 3/8” NPT
Max Flow Rate: 12 GPM
Adjustable Relief Range: 150-2600 PSI
Preset Relief Setting: 1300 PSI
Maximum Pressure Rating: 5000 PSI
Features
1. Performance Advantages: The double cross hydraulic pressure relief shock valve is designed with an adjustable relief range of 150-2600 PSI; With a preset relief setting of 1300 PSI and a maximum rated pressure of 5000 PSI, it ensures optimal functionality under diverse operational conditions, providing reliable control and preventing system overloads.
2. Quality Materials: Crafted from metal materials, this dual crossover hydraulic relief cushion valve is distinguished by its construction, ensuring long-lasting performance and reliability; Its robust design stands up to rigorous usage, promising extended service life and minimizing the need for frequent replacements or maintenance interventions.
3. Effortless Operation and Installation: The double cross hydraulic pressure relief shock valve exemplifies ease of use, effortlessly integrating between the control valve and motor or cylinder; For optimal efficiency, installation closer to the motor or cylinder is recommended to mitigate potential pressure drops.
4. Ideal Accessories: As an ideal accessory, this valve is applied to mitigate shock, impact, and overload in hydraulic circuits; It offers cross-pressure relief protection for reversible hydraulic motors and can function as a shock valve for double-acting cylinders.
Function
Provides crossover relief protection for reversible hydraulic motors or can be used as a cushion valve for a double acting cylinder.
Used to stop/minimize surges, shocks and overloads on hydraulic circuits.
Installation Recommendations
Installation position: It needs to be between the hydraulic control valve and the motor/cylinder;
It is recommended to install near the motor/cylinder to effectively avoid pressure loss in the pipeline and ensure the protection effect of the valve.
It is recommended to install near the motor/cylinder to effectively avoid pressure loss in the pipeline and ensure the protection effect of the valve.
Package Includes

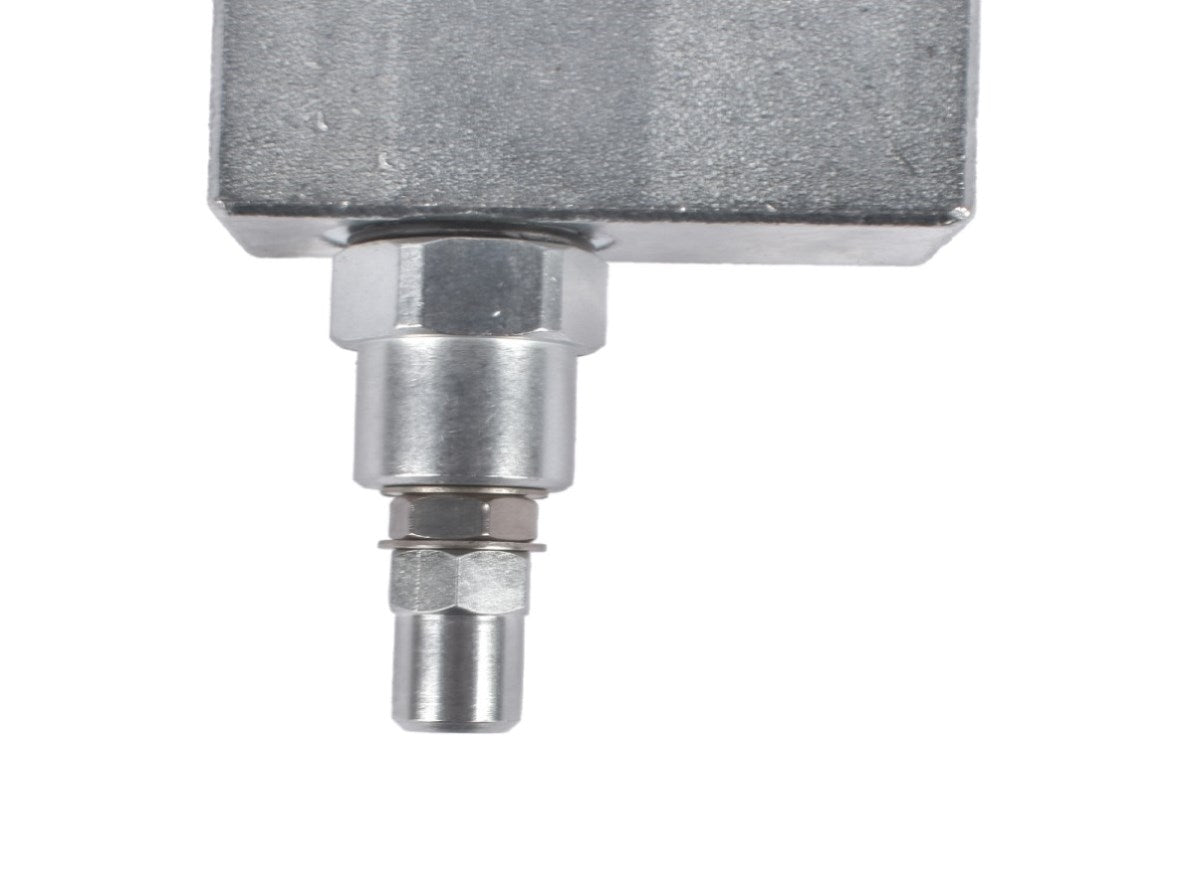

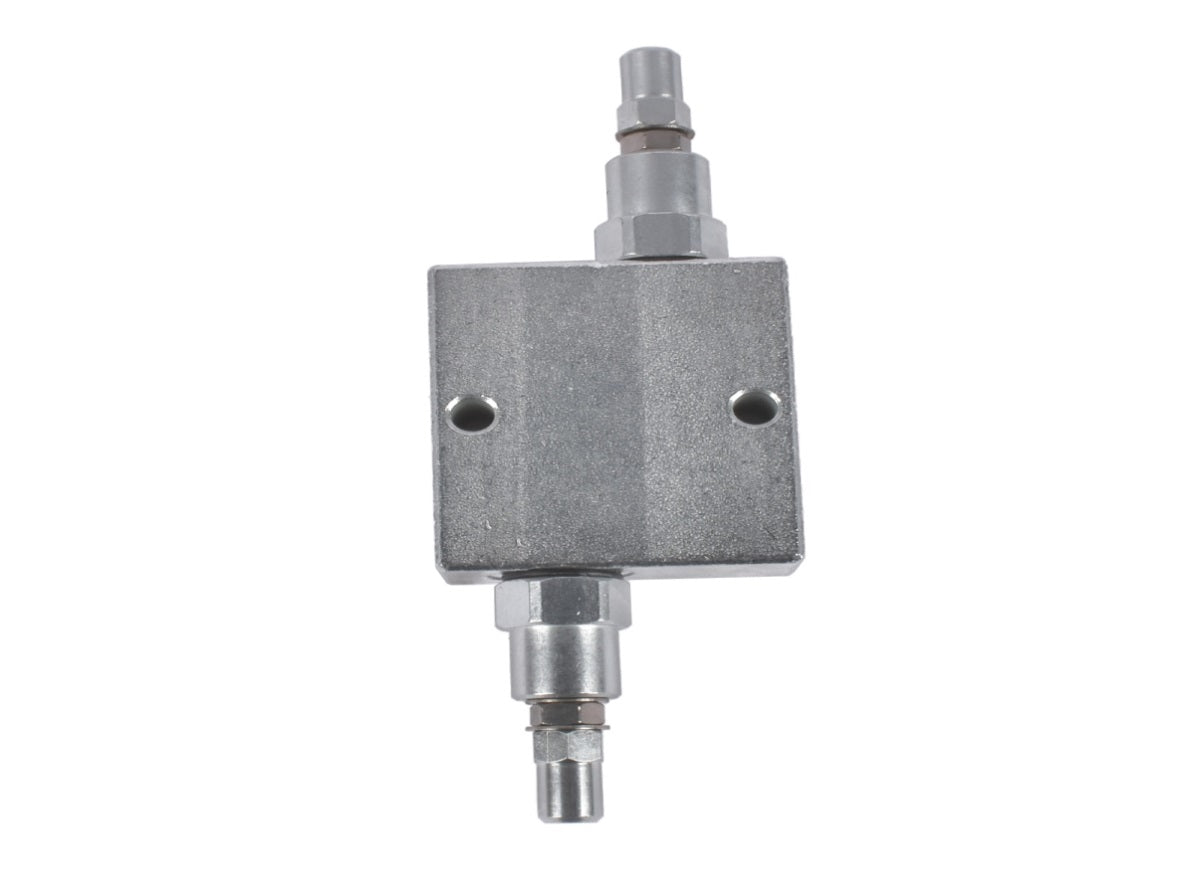

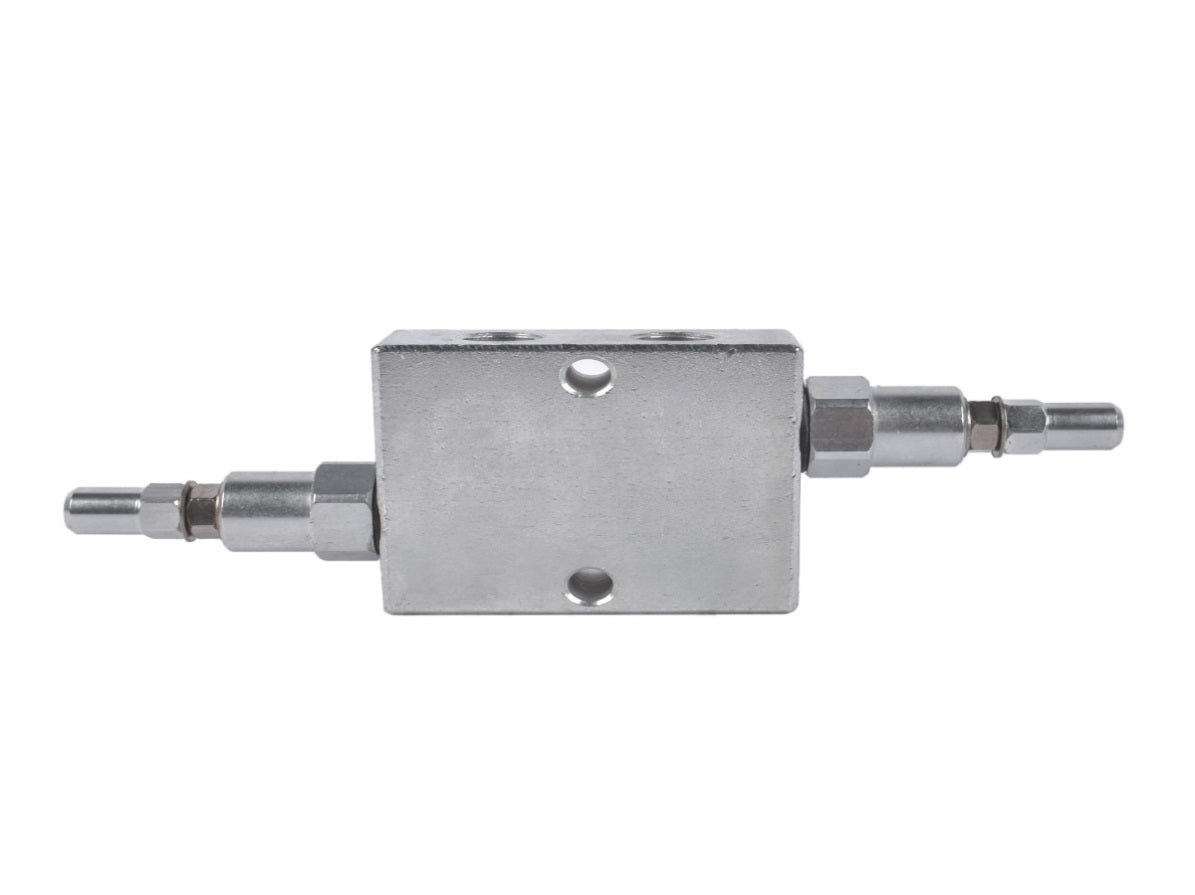

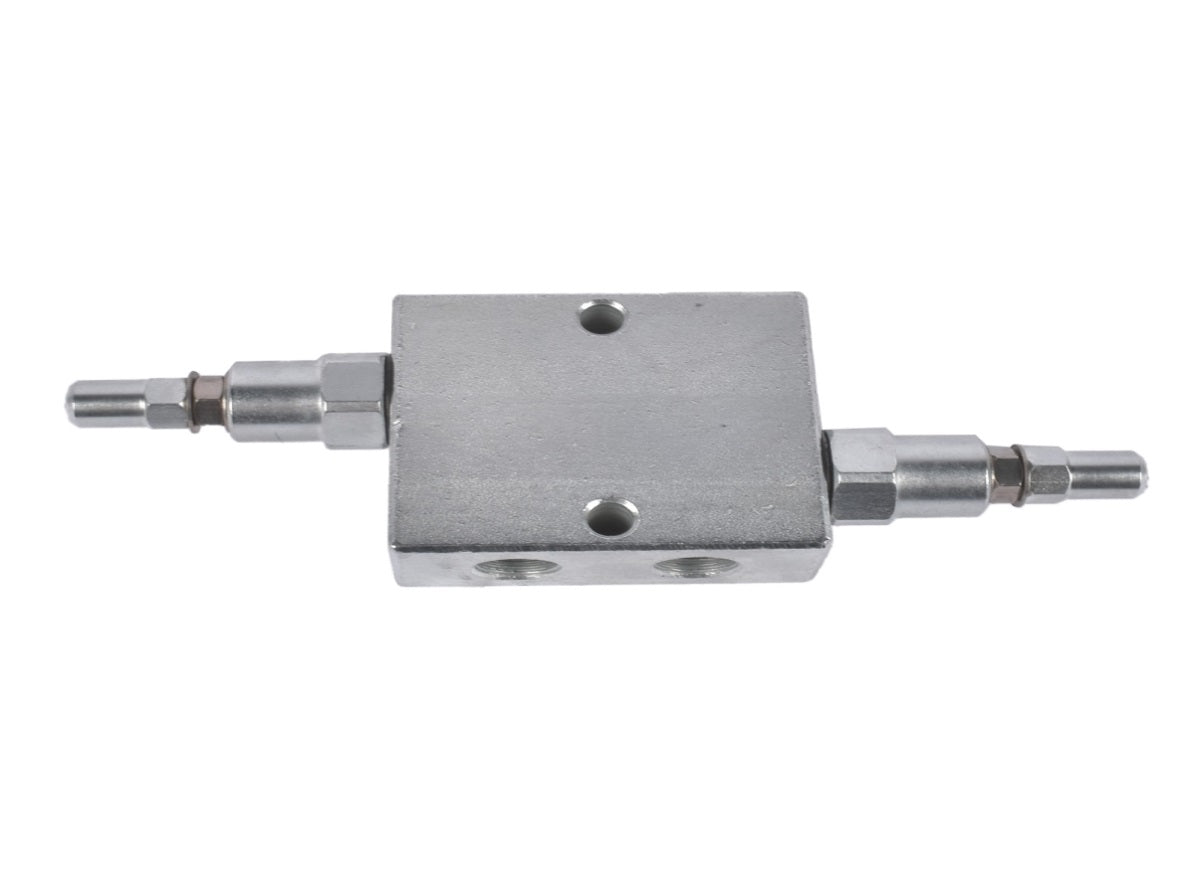

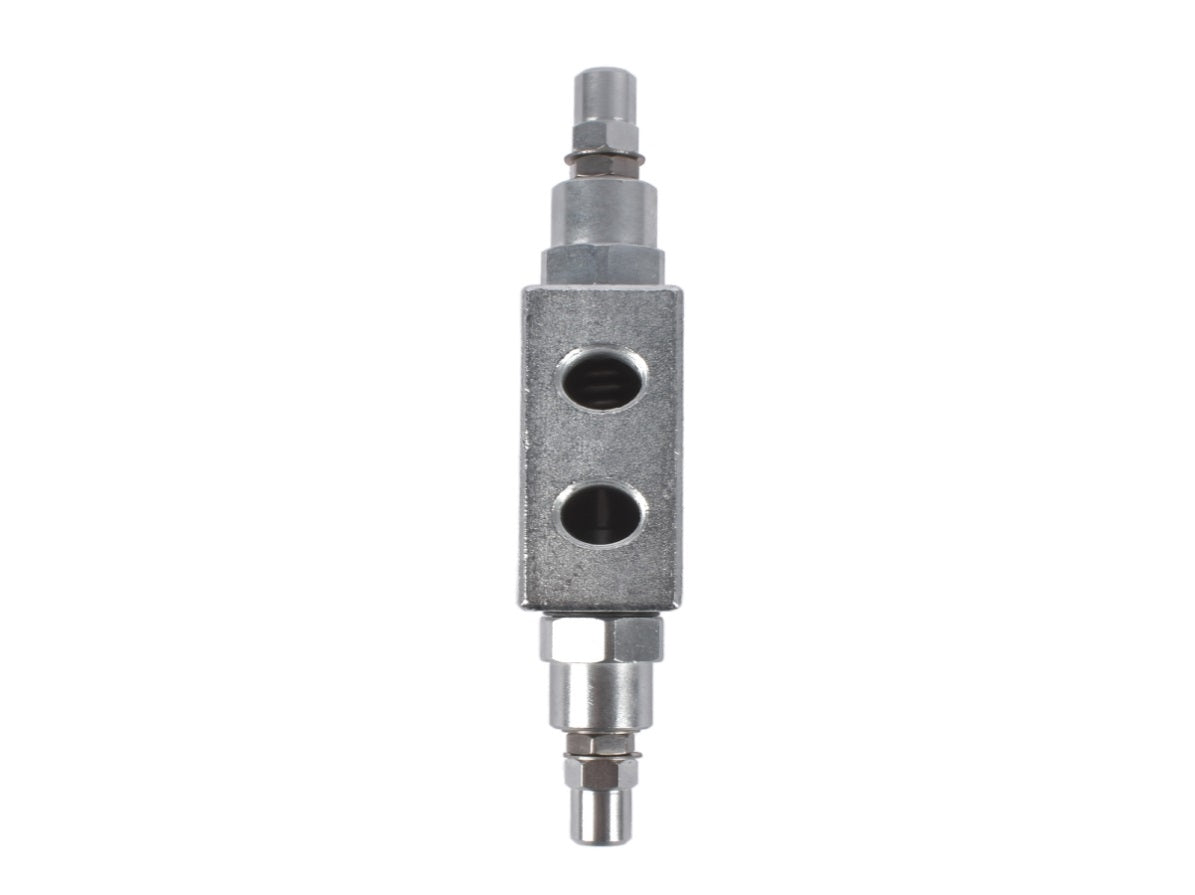

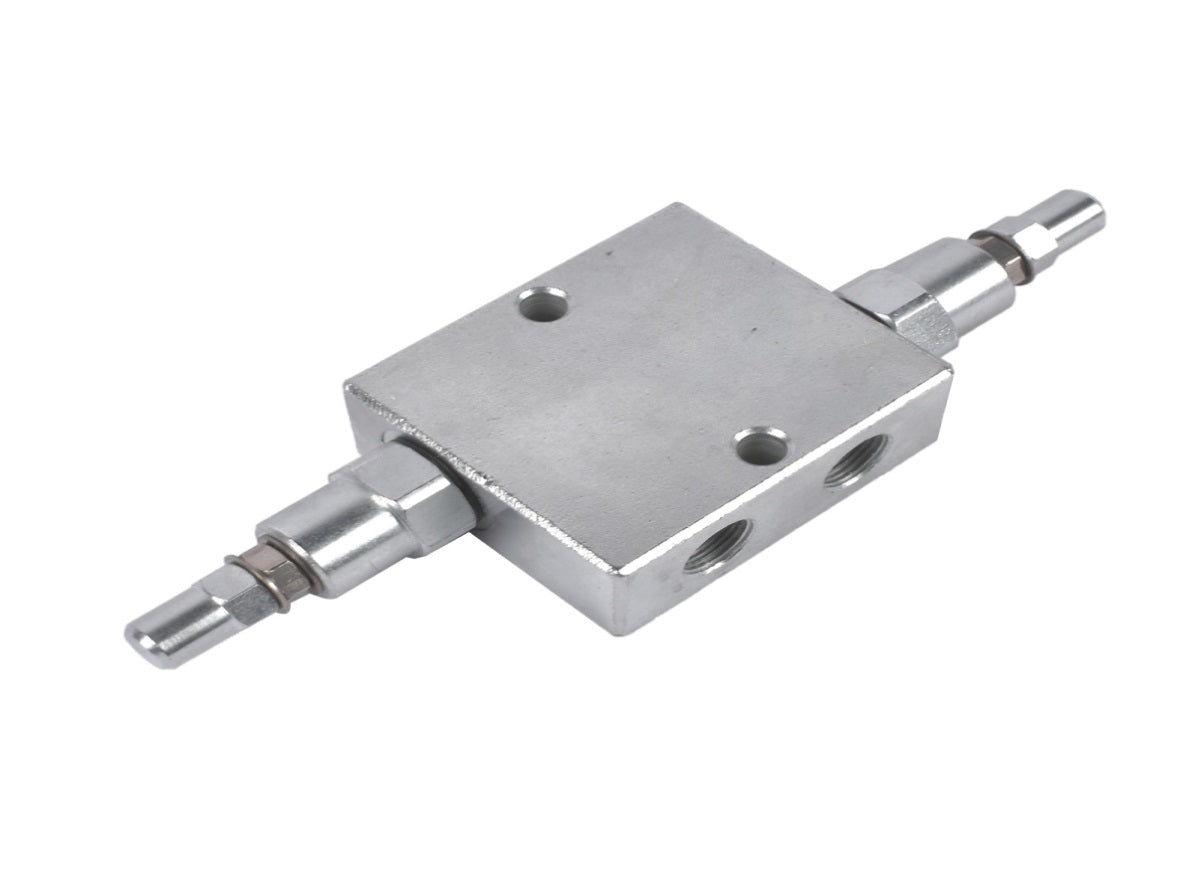

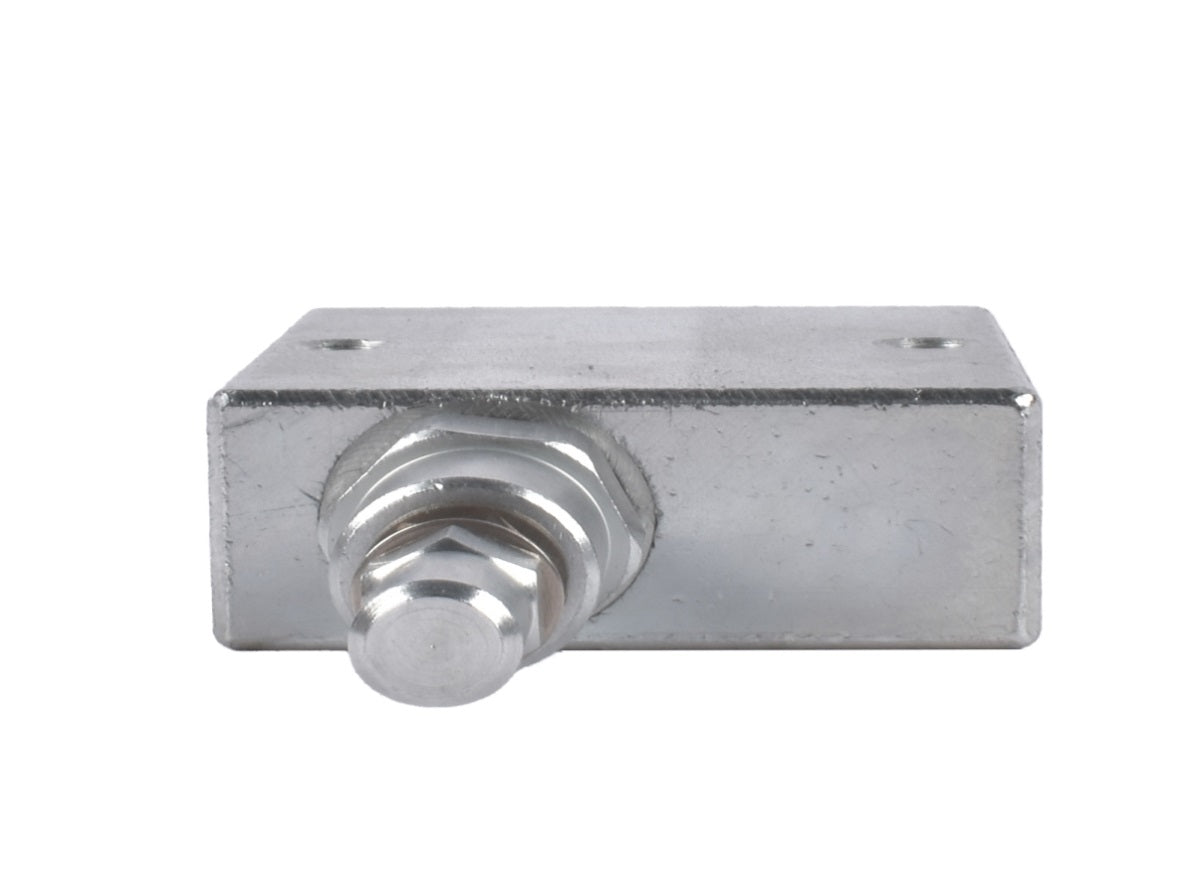

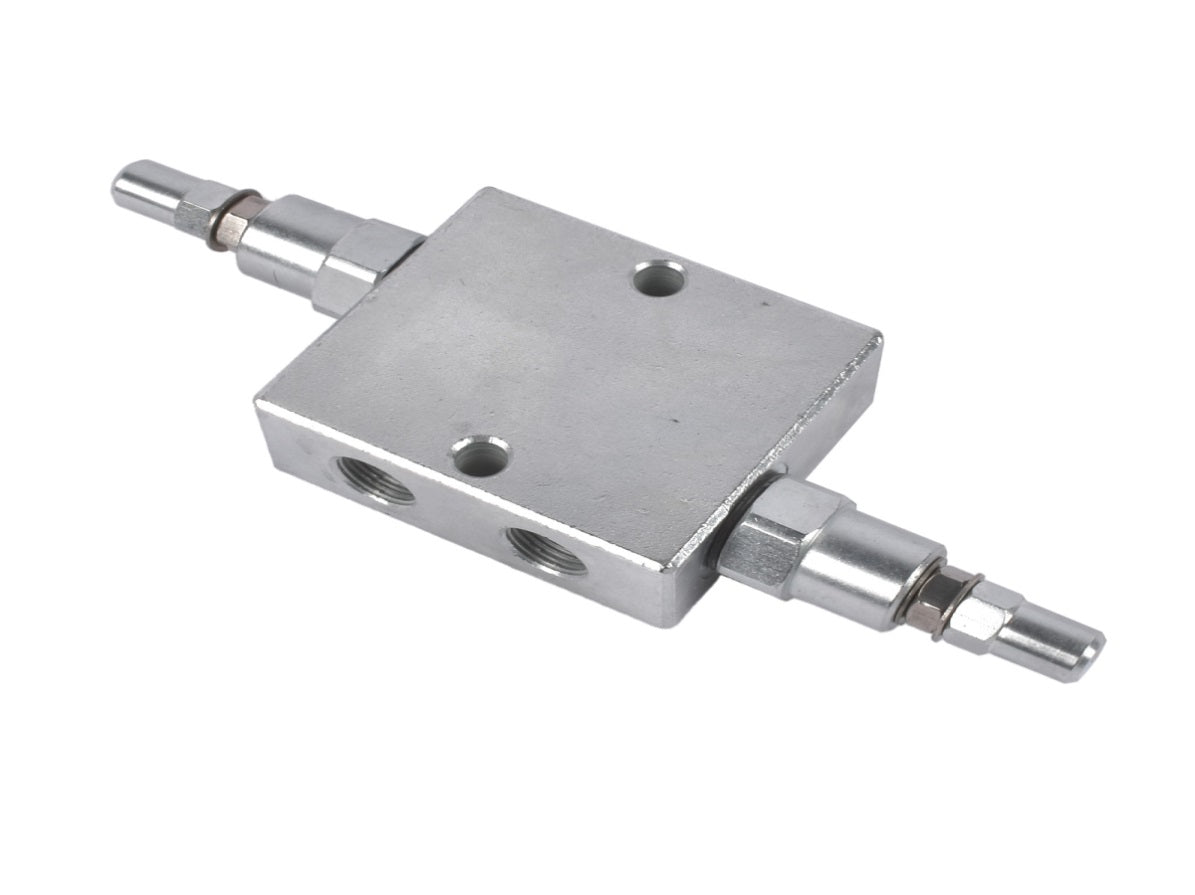

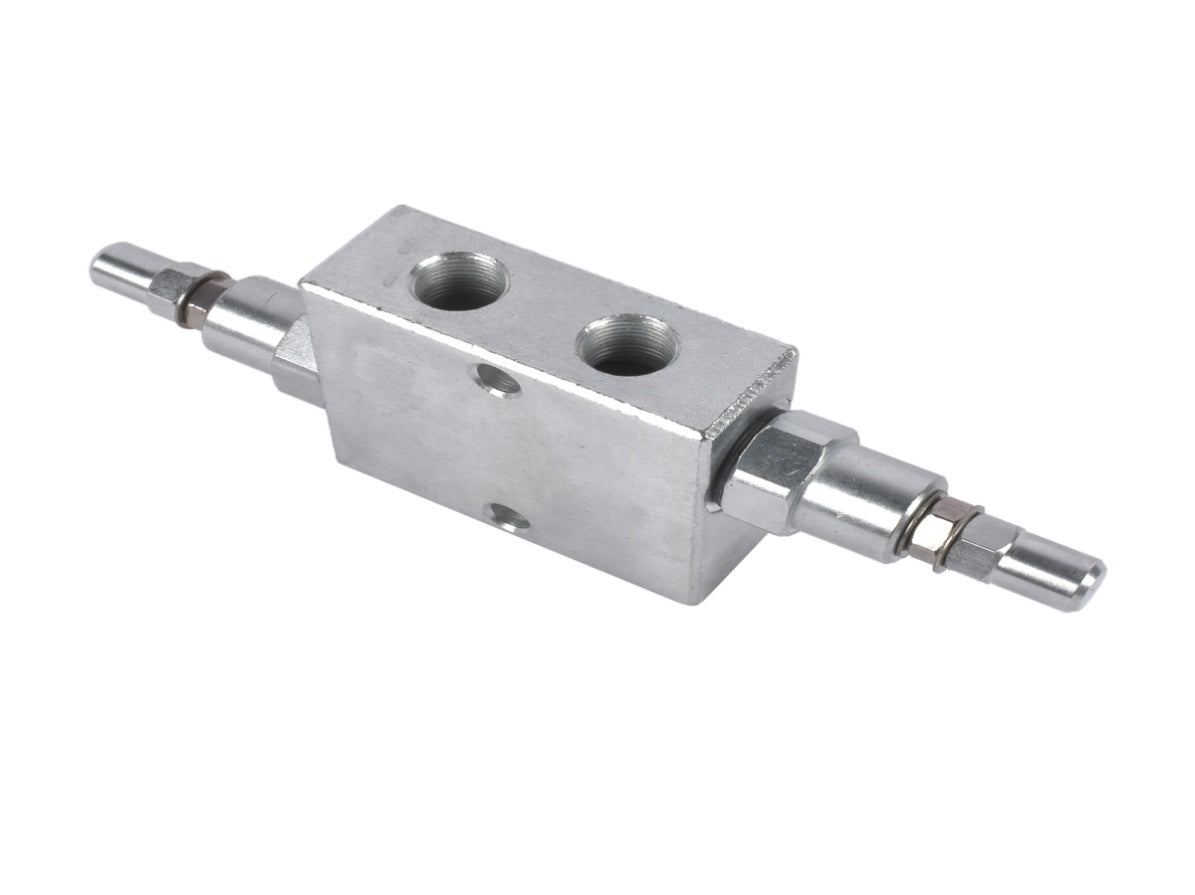

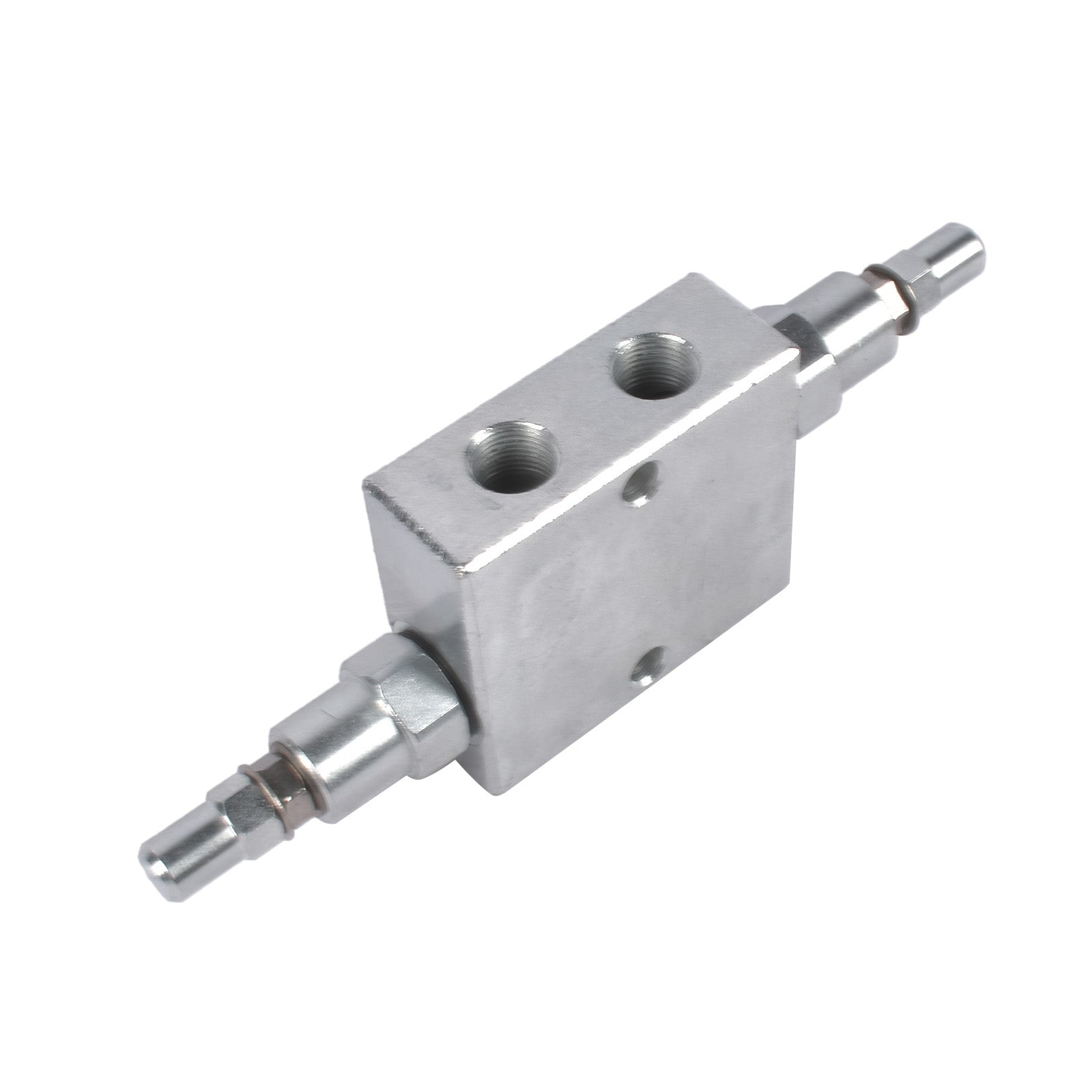

1* Hydraulic Relief Cushion Valve (As Pics Shown)
