Cylinder Piston Top End Kit fit for Honda TRX500FM/FE Foreman 500 4x4/S/ES 2005-2011 80230138

Application
fit for Honda TRX500FM/FE Fourtrax Foreman 4x4/S/ES 2005-2011
fit for Honda TRX500FPE/FPM Fourtrax Foreman 4x4/ES/EPS 2007-2011
fit for Honda TRX500TM Fourtrax Foreman 2x4 2005-2006

Part Number

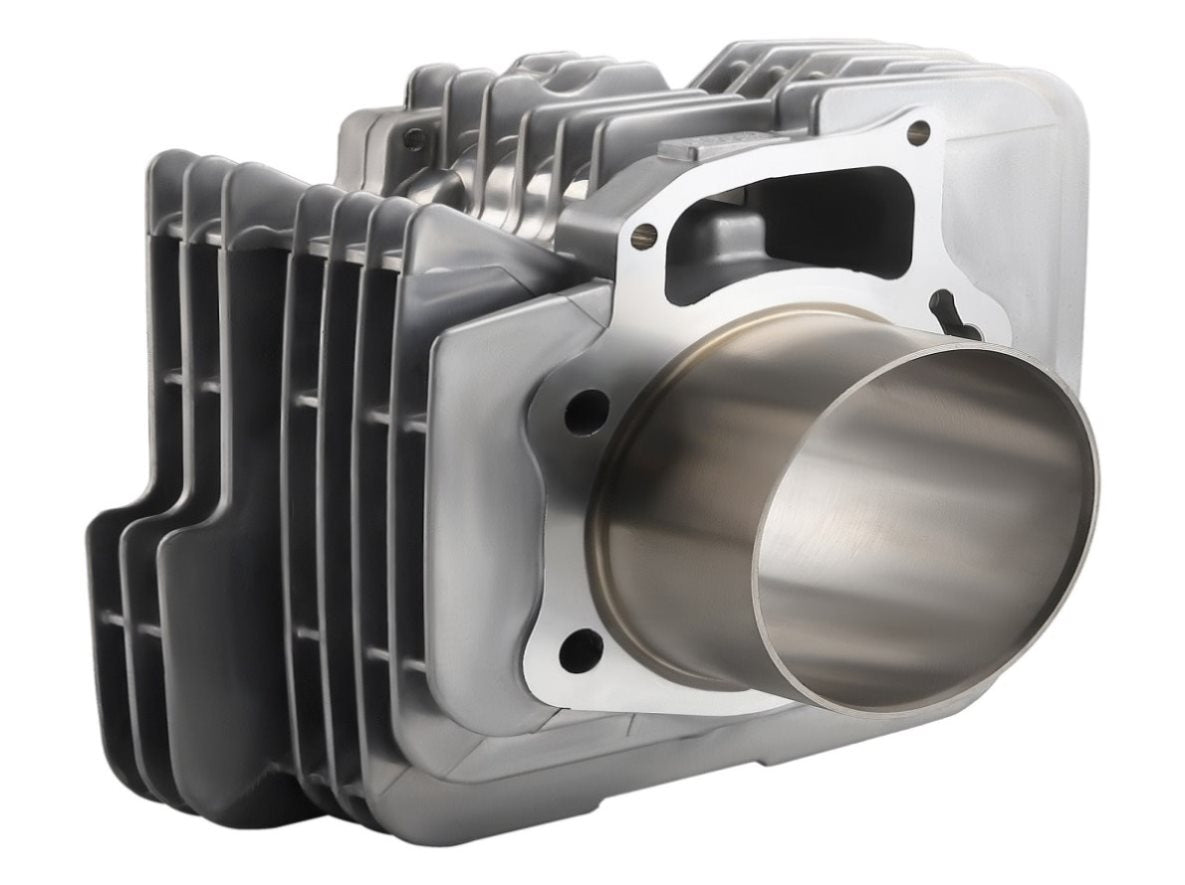

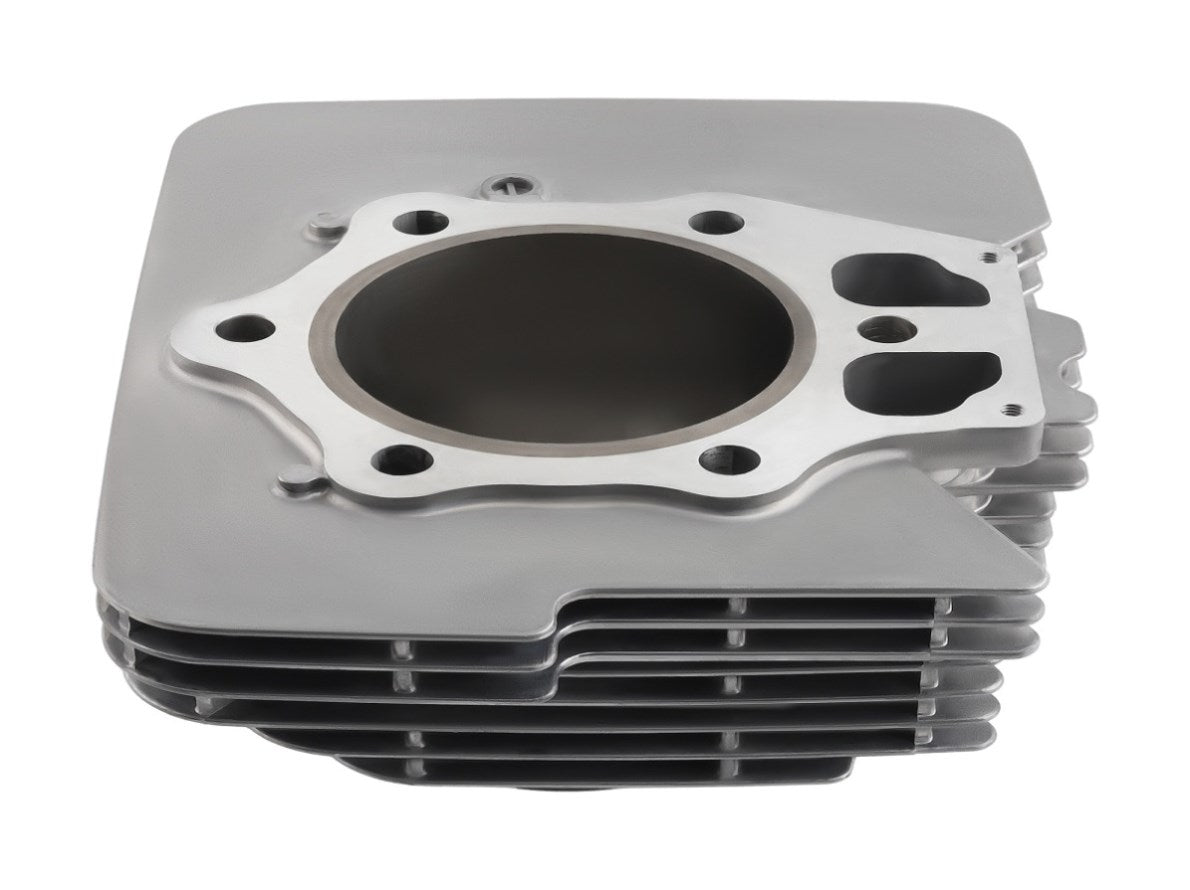

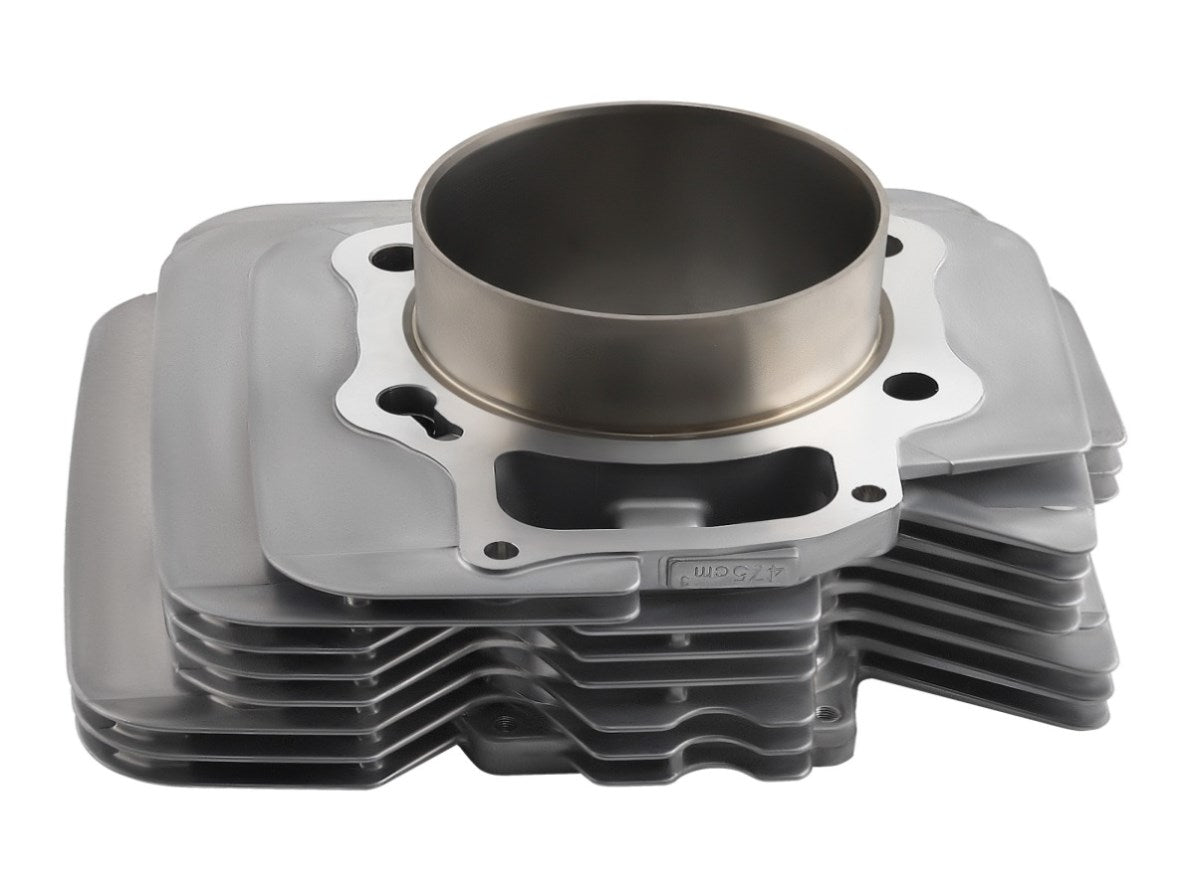

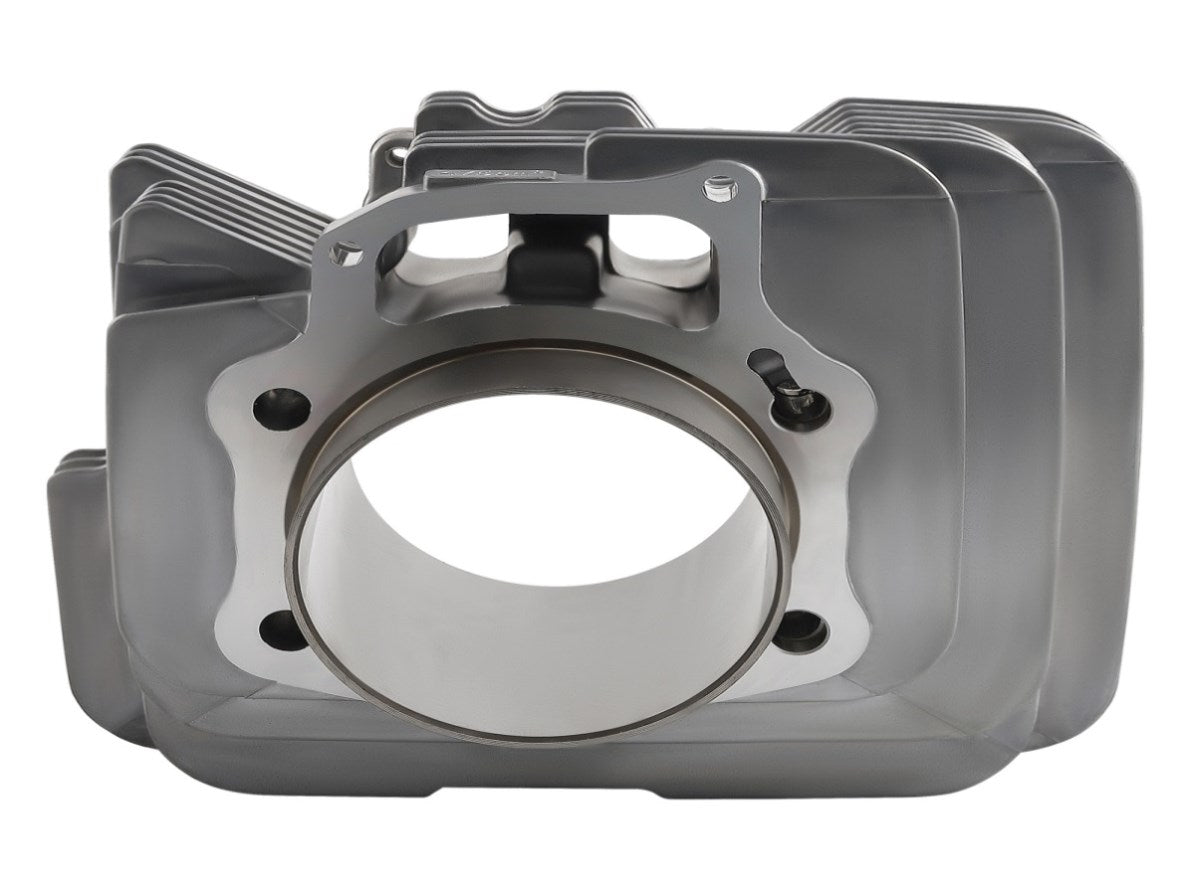

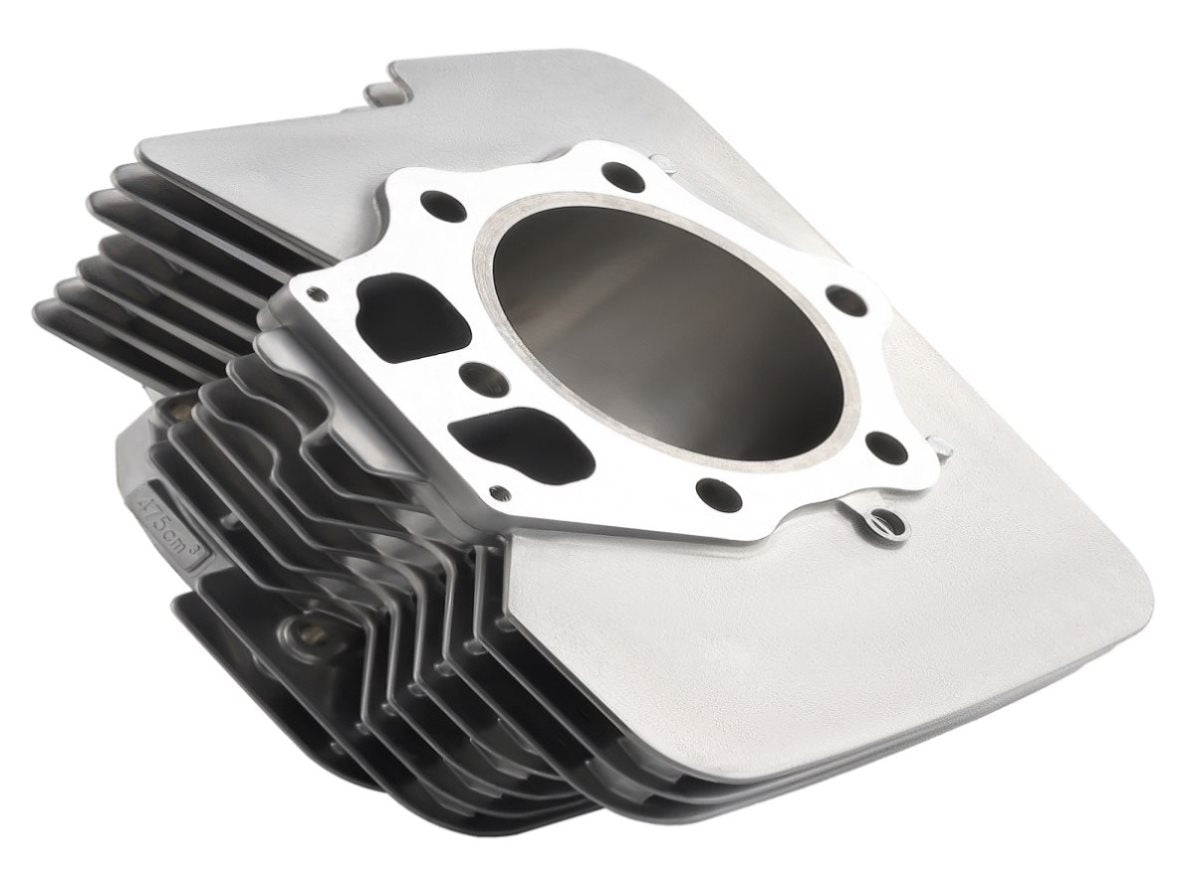

Cylinder: 12100-HP0-A00
Cylinder Base Gasket: 12191-HP0-A00
Cylinder Head Gasket: 12251-HP0-A00
Cylinder Head Cover Gasket: 12315-HP0-A00
Ring Set: 13010-HP0-A01
Pin, Piston: 13111-HN2-000

12100-HP0-A00, 12191-HP0-A00
12251-HP0-A00, 12315-HP0-A00
13010-HP0-A01, 13111-HN2-000
12100HP0A00, 12191HP0A00
12251HP0A00, 12315HP0A00
13010HP0A01, 13111HN2000

Specification
Material: Aluminum
Type: Cylinder Gasket Piston Rings Set
Vehicle Type: ATV
Actual Displacement: 475cc
Bore Size: 92mm
Piston Diameter: 91.96mm
Piston Height: 59.23mm
Piston Pin Diameter: 20mm
Piston Pin Height: 62mm
Internal Cylinder Coating: No
Piston: Cast Piston
Pistons Size: 92mm
Fitment Type: Direct Replacementa

Features
- Direct replacement, easier to install.
- Made of high quality Aluminum, impact-resistant, corrosion and wear resistance.
- Wear resistance and heat resistance, long service life.
- The Gaskets with great sealing performance, leakage prevention.
- Piston kit includes piston, rings, wrist pin, and circlips, spark plug.
- Cylinder Piston Gasket Kit standard bore size - 92.00mm.

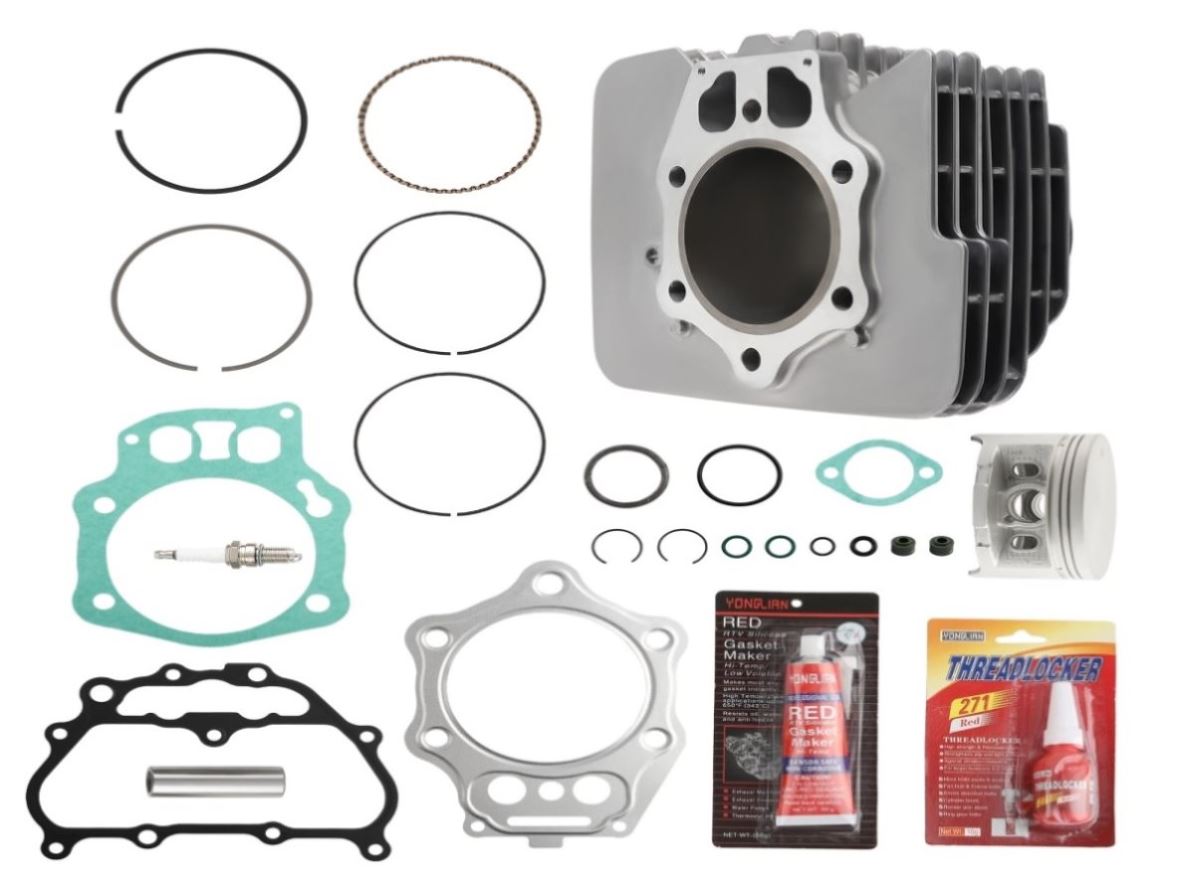

Package Included
1* Cylinder
1* Piston
1* Piston Ring Set
1* Wristpin
1* Circlip(2)
1* Cylinder Base Gasket
1* Cylinder Head Gasket
1* Cylinder Head Cover Gasket
1* Gasket Maker
1* Spark Plug
(As pictures shown)

Note:
- Please confirm the model number before purchase
- Not Included installation instructions
