Cylinder Piston Gaskets Top End Rebuild Kit fit for Kawasaki Bayou 300 KLF300C 89-05 80664975

Application:
fit for Kawasaki Bayou 300 KLF300B 2x4 1989-2004
fit for Kawasaki Bayou 300 KLF300C 4X4 1989-2005
fit for Kawasaki Prairie 300 KVF300B 1999-2002
fit for Kawasaki Prairie 300 KVF300A 1999-2002
fit for Kawasaki Lakota 300 KEF300A 1995-2000
fit for Kawasaki Lakota 300 KEF300B Sport 2001-2003

Part Number:
11005-1533, 11060-1652, 11005-1446
11009-1515, 11004-1340, 11004-1183
13002-1059, 13001-1430, 92033-1099
13001-1244, 13008-1111, 13008-1068
110051533, 110051446, 920331099
110091515, 110601652, 110041340
110041183, 130021059, 130011430
130011244, 130081111, 130081068

Specification:
Type: Complete Cylinder Piston Top End Rebuild Kit
Material: Aluminum
Displacement: 290cc
Bore Type: Standard Bore
Bore Size: 76mm
Stroke: 64mm
Pin Diameter: 18mm
Height of the Cylinder: 119mm
Internal Cylinder Coating: No
Piston: Cast Piston
Pistons Size:76 mm

Feature:
* If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, the Cylinder Piston Kit is exactly the right choice fit for you.
* The Piston is anodized fit for superior heat resistance and longer life.
* These gaskets are made of performance materials to increase durability and provide greater reliability.
​​* The Cylinder Piston Kit is fit for standard size 76mm x 64mm, 18mm steel piston pin. Includes all gaskets pictured to rebuild top end.

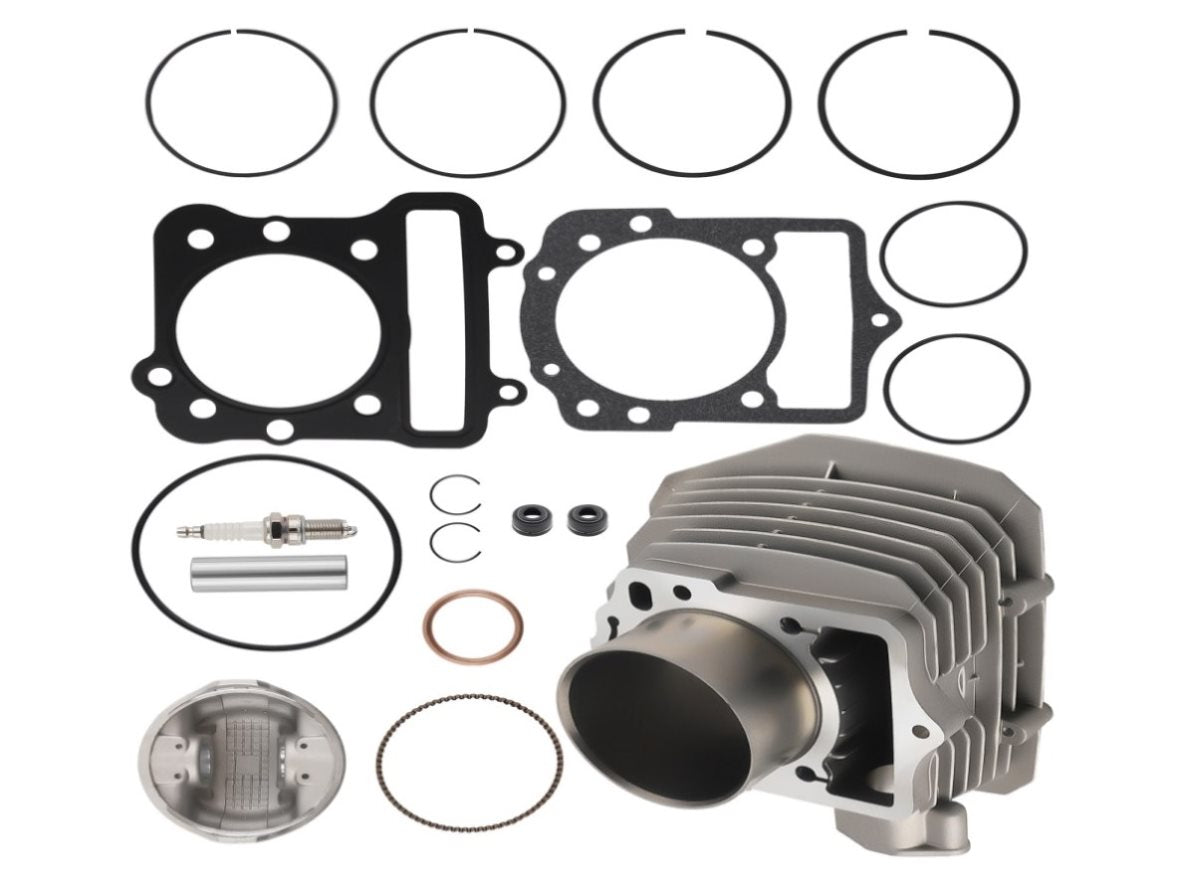

Package Included:

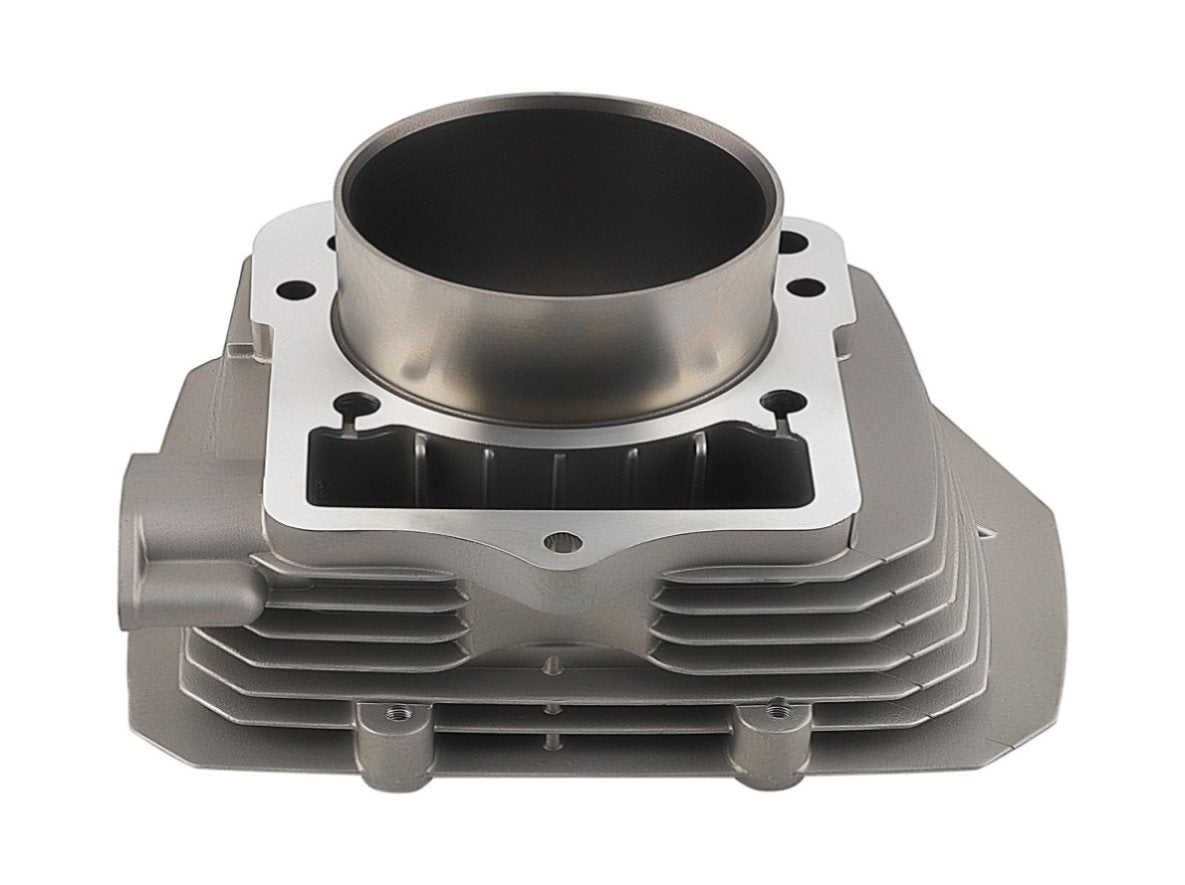

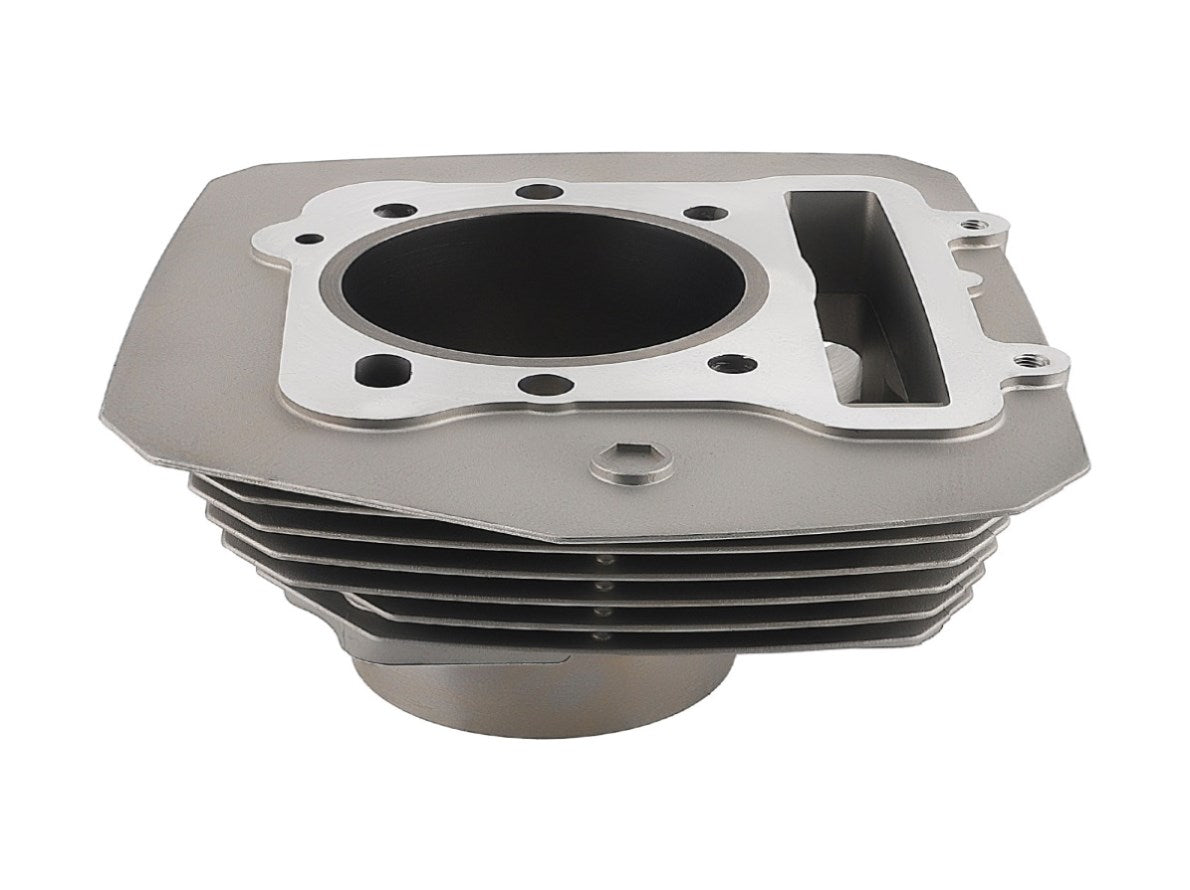

1x Cylinder
2x Gaskets

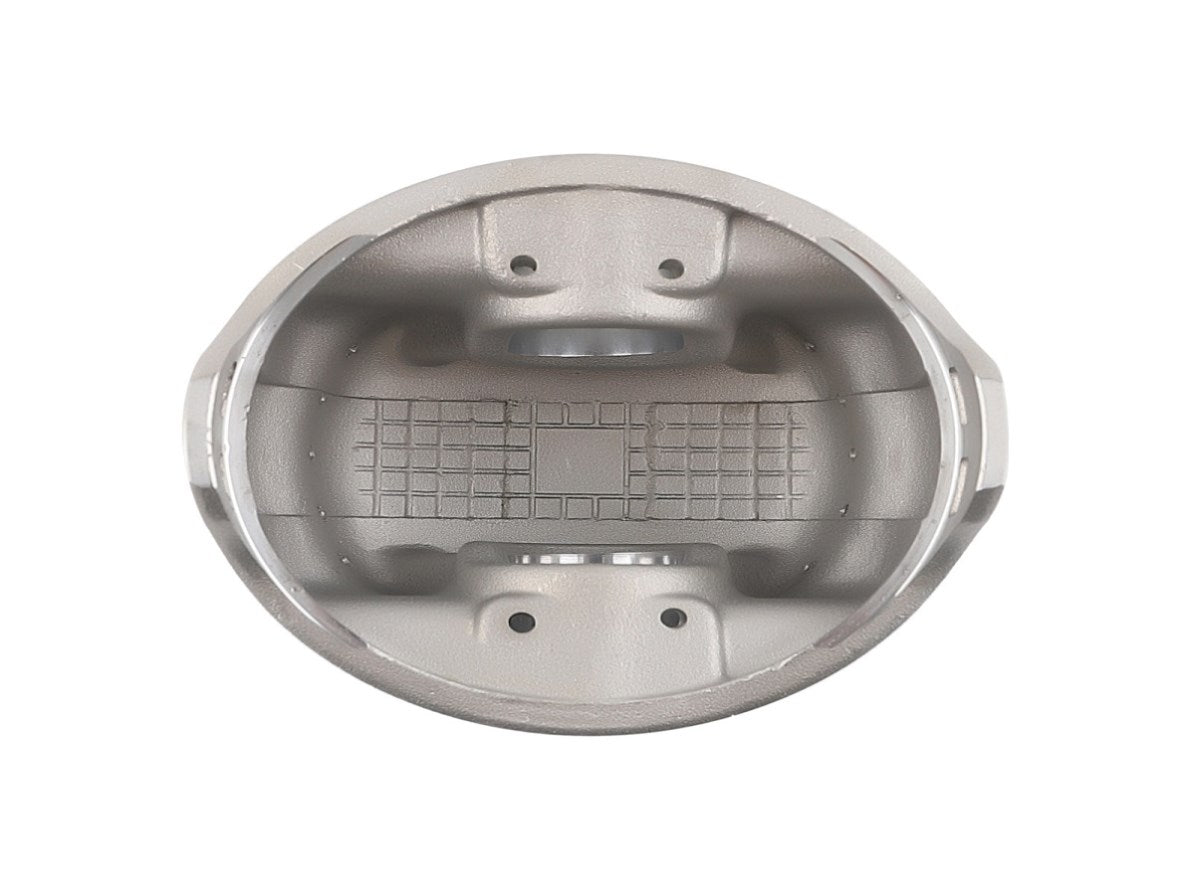

1x Piston

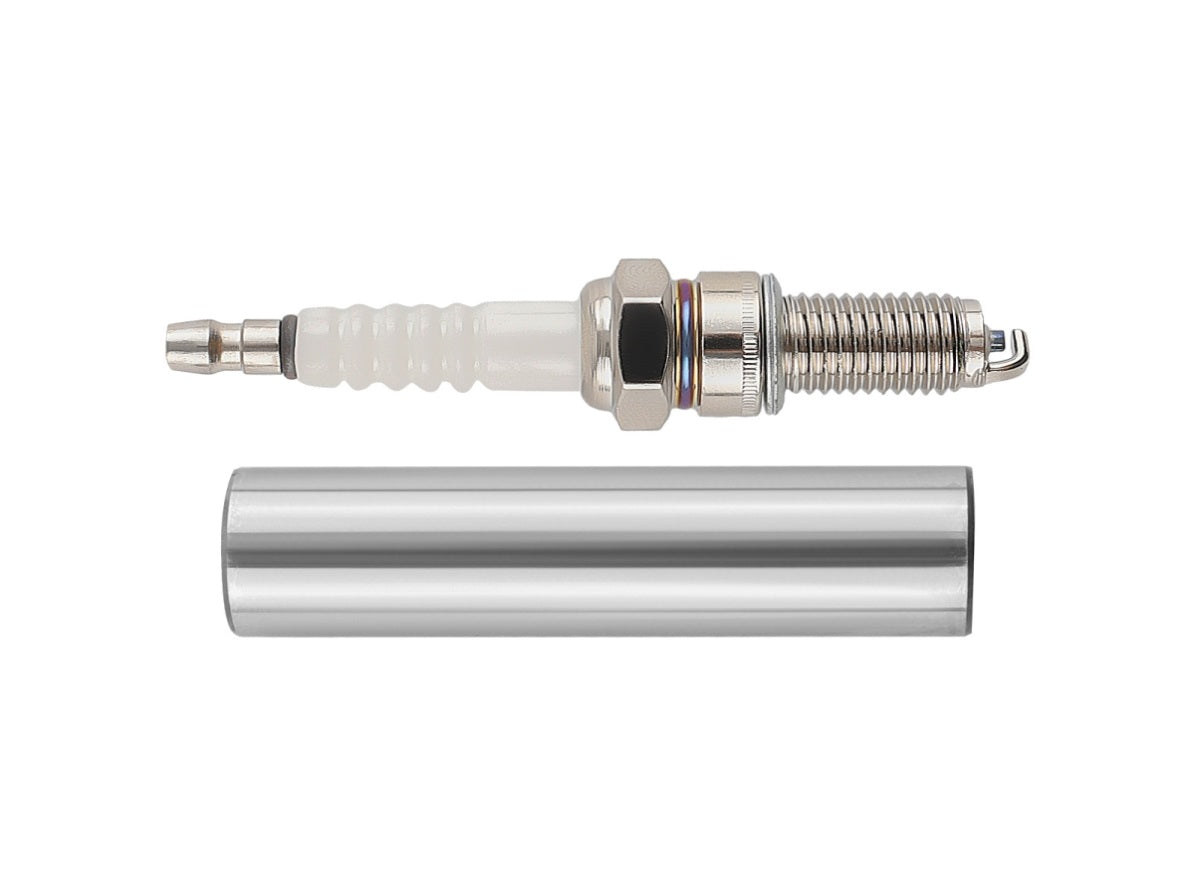

1x Piston Pin

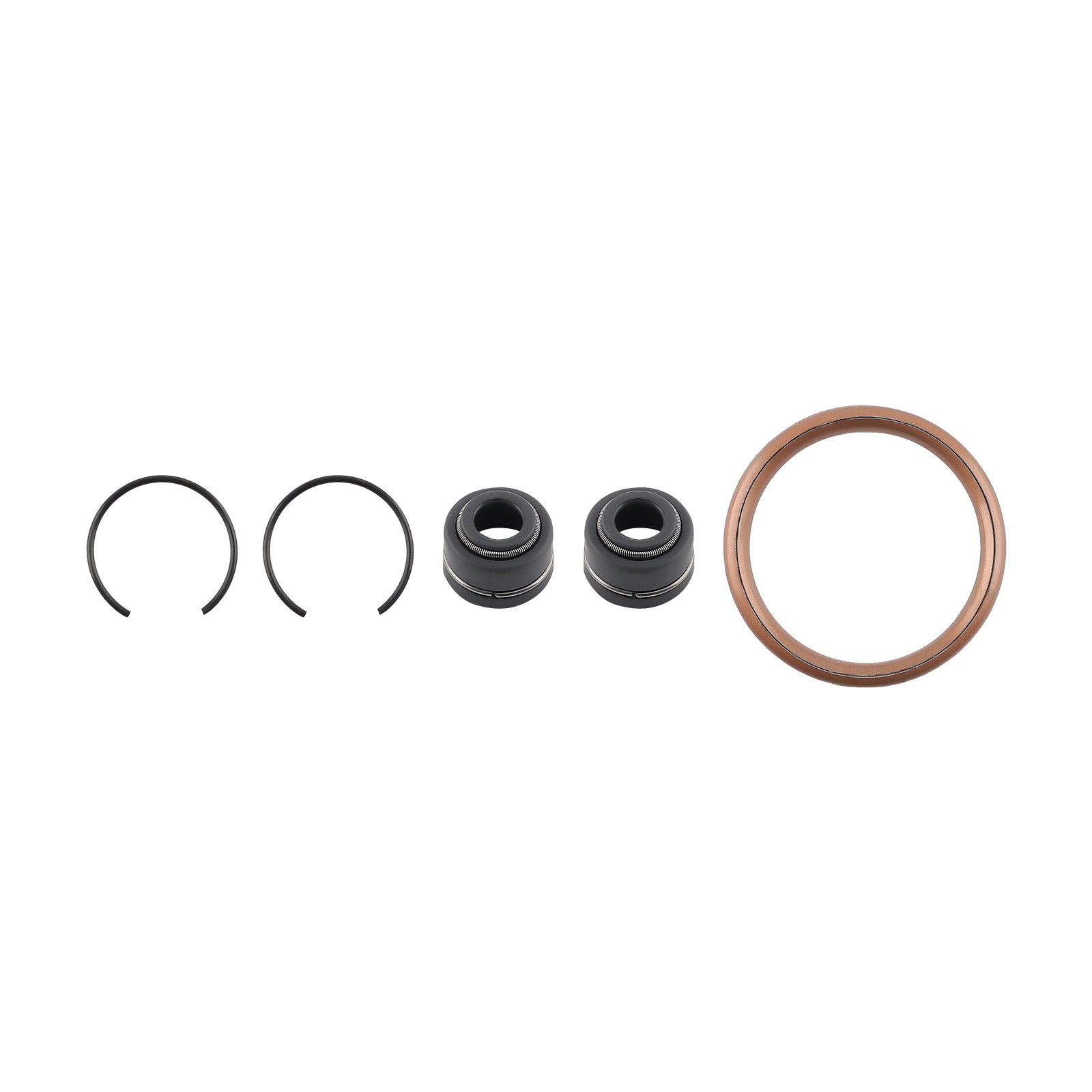

2x Circlips
5x Piston Rings
1x Spark Plugs
3x Cylinder O-Rings (different sizes)

Note:
- Please confirm the model number before purchase
- Not Included installation instructions
