Complete Water Pump Kit fit for Yamaha 2 Stroke 150-250HP 6E5-44352-00 18-3396 08744167

Application:

fit for Yamaha Engine Models4 Stroke 150 175 200 225 250 hp and 2 Stroke 150 175 200 225 hp

fit for the Following Yamaha 2 Stroke Outboards:150HP-150A '98-'2013, 150F '97-'13, 150J '01-'05

fit for the Following Yamaha 2 Stroke Outboards:175HP-175D '97-'05

fit for the Following Yamaha 2 Stroke Outboards:200HP-200A '03-'14, 200F '97-2012, 200H '03, 200J '01-'05, 225D '97-'09

fit for the Following Yamaha 2 Stroke Outboards:225HP-225F '02-'03, 225G '02-'03

fit for the Following Yamaha 2 Stroke Outboards:250HP-250A '97-'06, 250B '03, 250G '06-'13

fit for the Following Yamaha 4 Stroke Outboards:150HP - F150A 2004-2014, F150B 2015 & UP, F150D 2015 & UP

fit for the Following Yamaha 4 Stroke Outboards:175HP- F175A 2014 & UP

fit for the Following Yamaha 4 Stroke Outboards:200HP- F200A 2002-2011, F200C 2016 & UP, F200F 2013 & UP, F200G 2013 & UP

fit for the Following Yamaha 4 Stroke Outboards:225HP- F225A 2002-2011, F225B 2007 & UP

fit for the Following Yamaha 4 Stroke Outboards:250HP- F250A 2005-2006

OE/Part number:

61A-W0078-01-00,61A-W0078-A2-00,61A-W0078-A3-00,18-3395,61A-W0078-A2,61A-W0078-A3,18-3396,9-48618,61A-W0078-01,

Specification:

Type：Outboard water pump impeller service Kit

Material：Rubber+Stainless Steel+Plastic

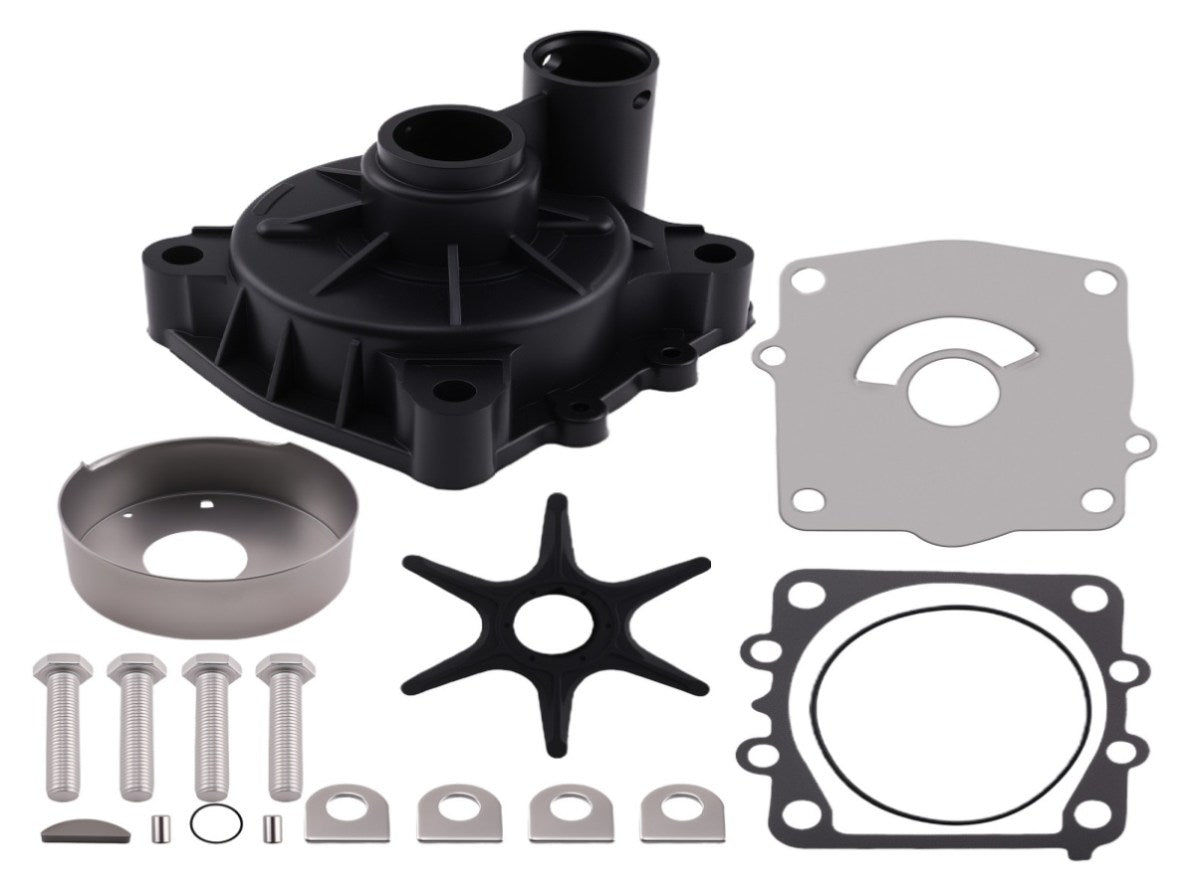

Package included:

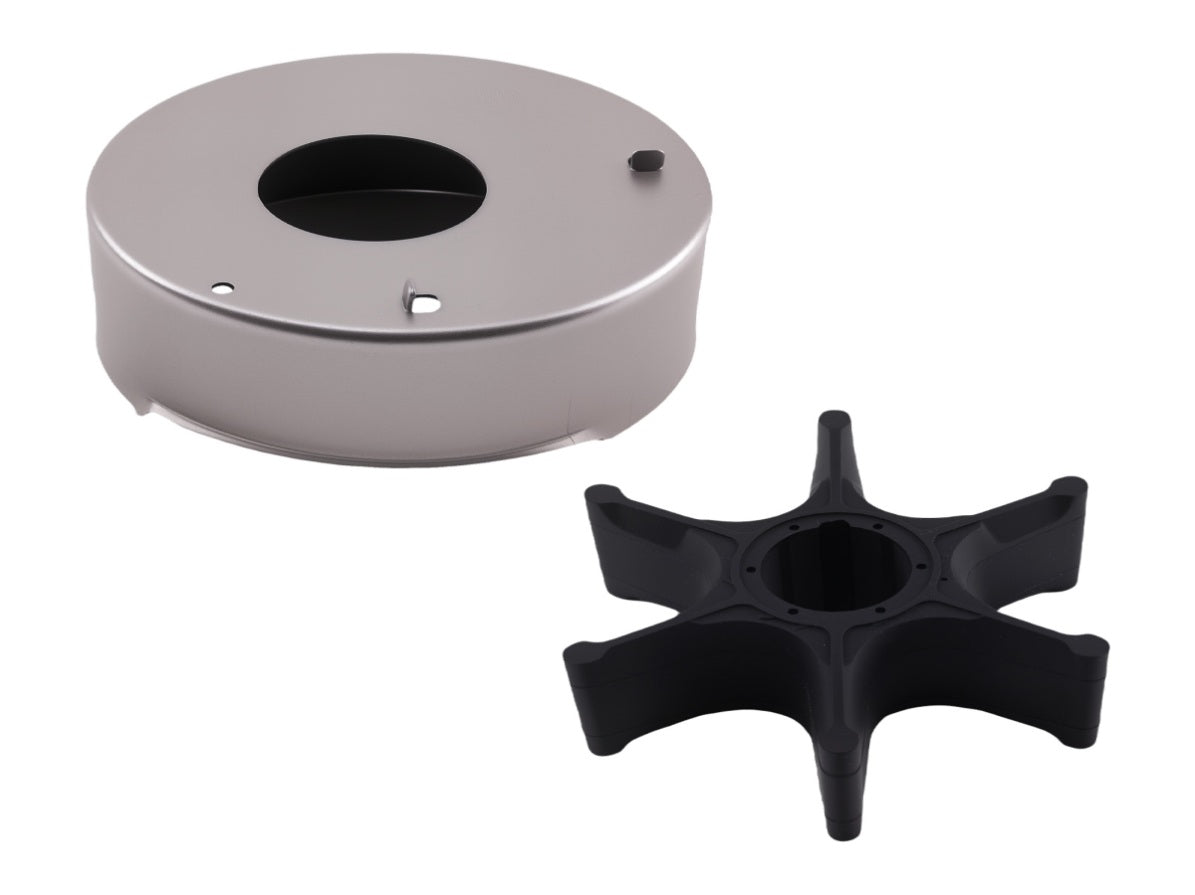

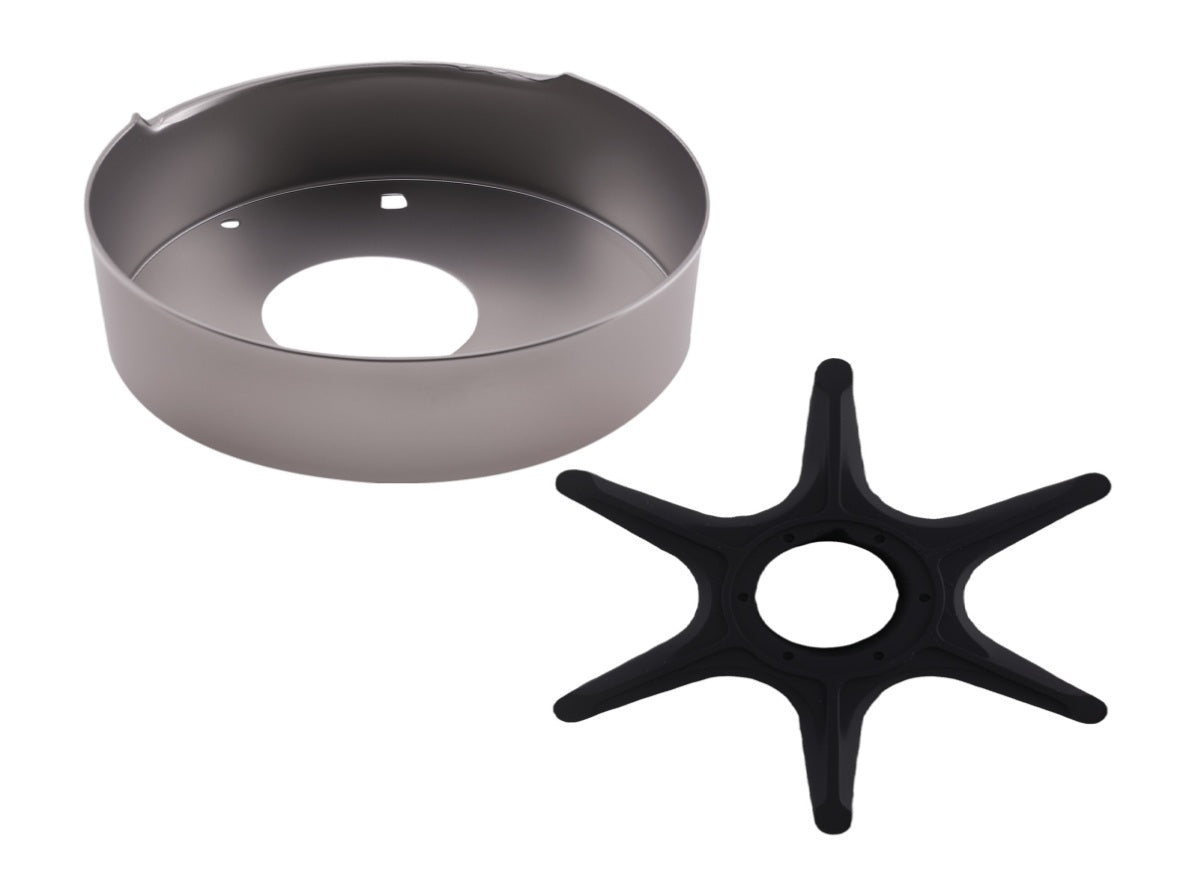

1*Water Pump Impeller 6E5-44352-00

1*Key, Impeller 90280-04M05-00

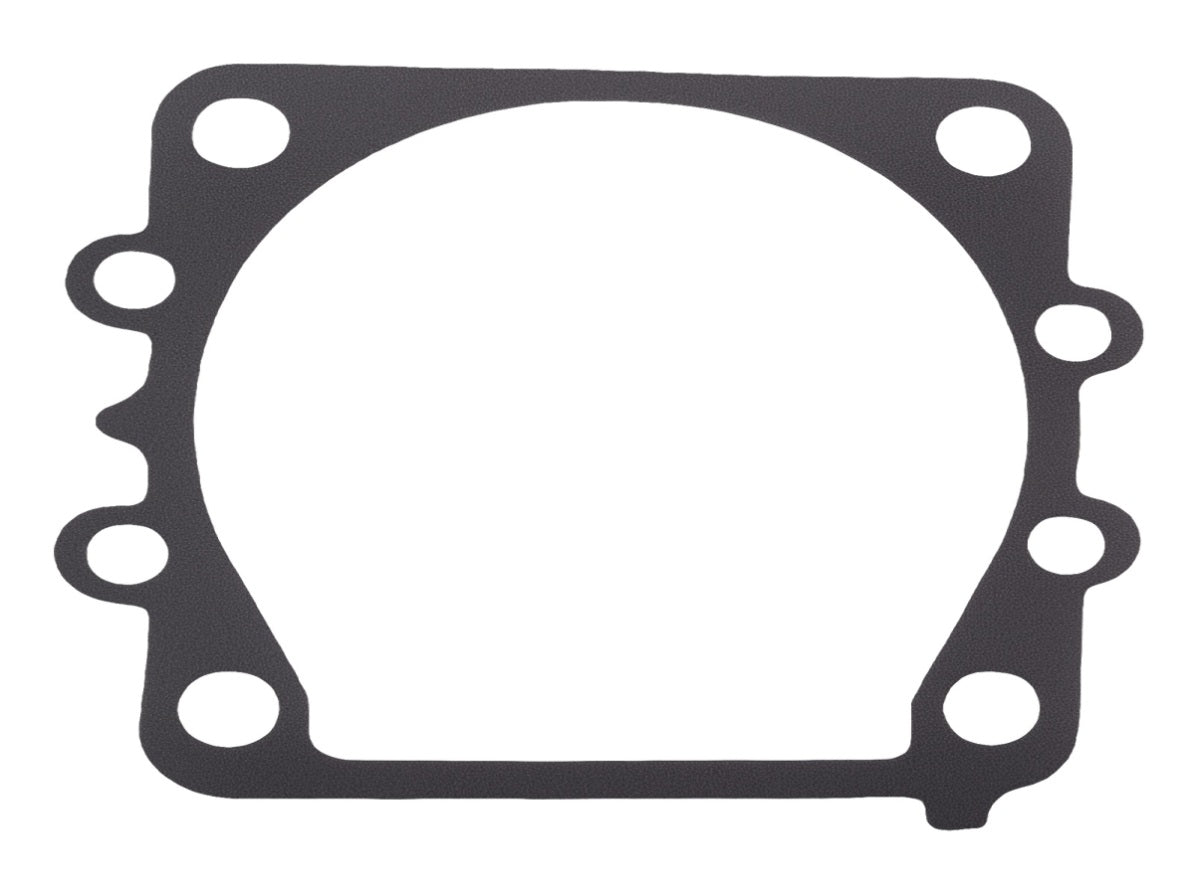

1*Gasket, Water Pump 6E5-44315-A0-00

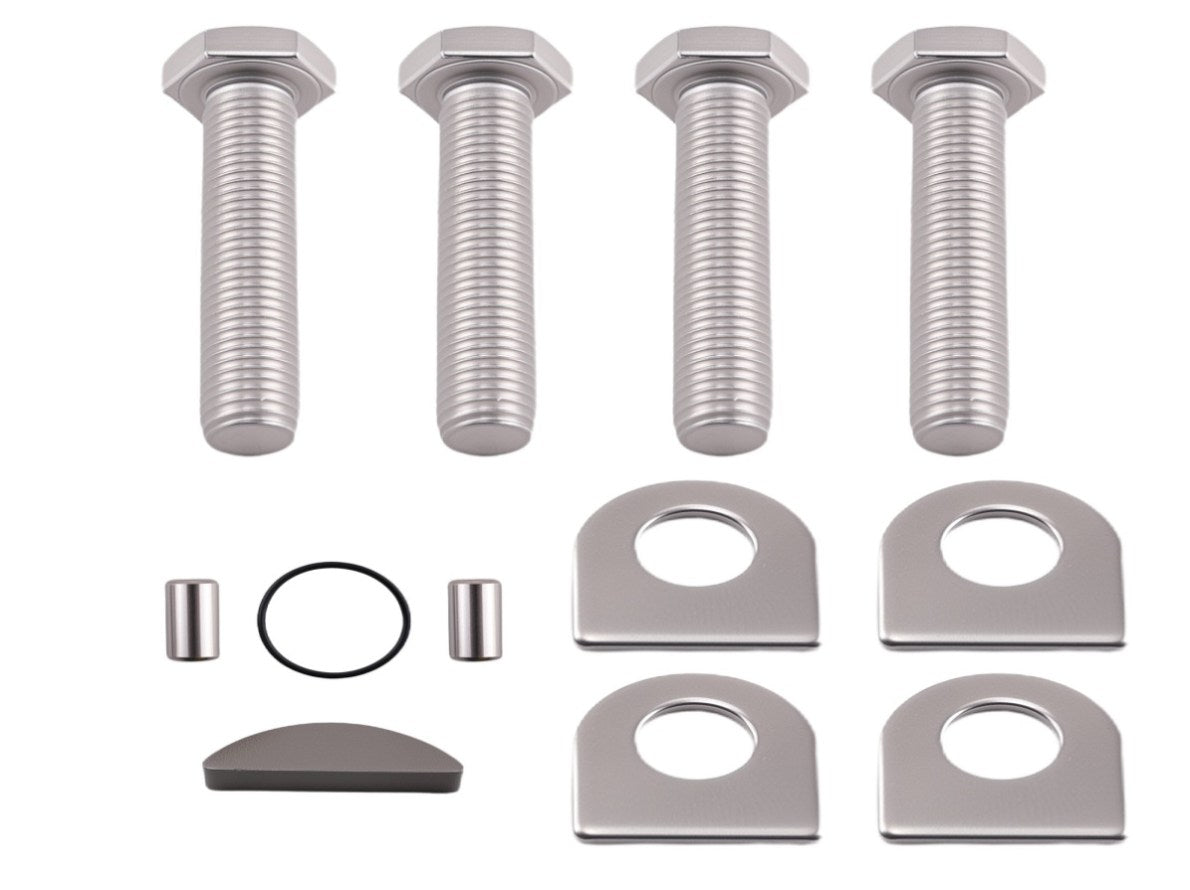

4*Bolt 97095-08045-00

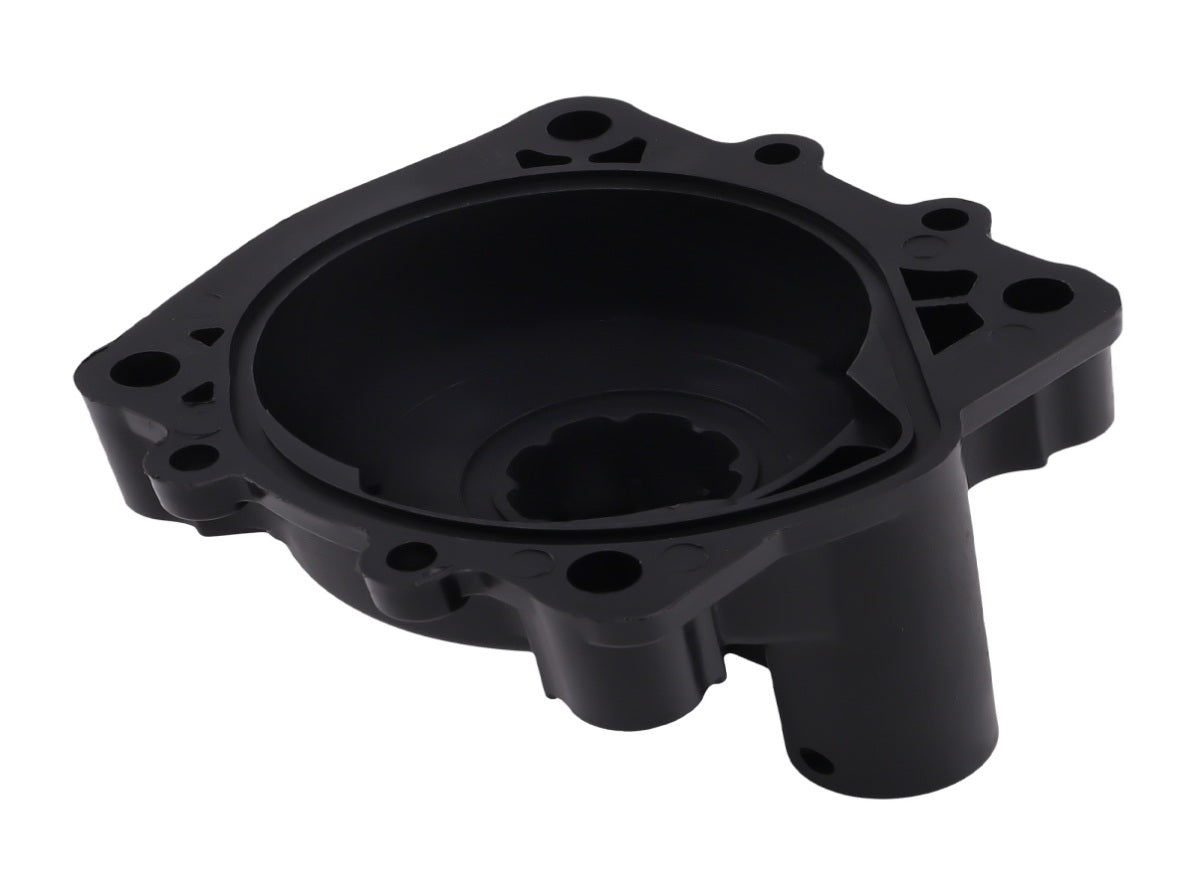

1* Housing, Water Pump 6E5-44311-00-00

1*Cup, Insert 61A-44322-00-00

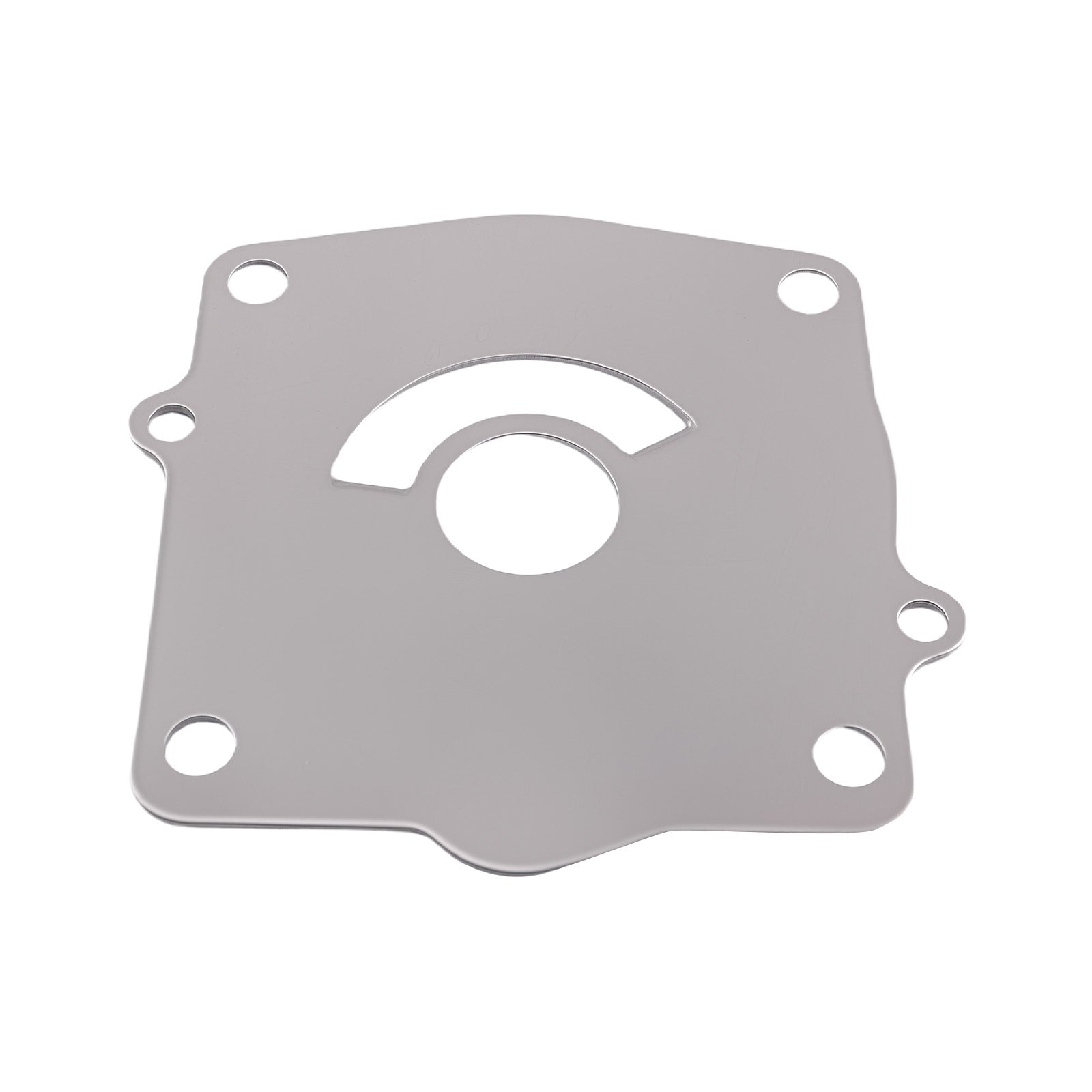

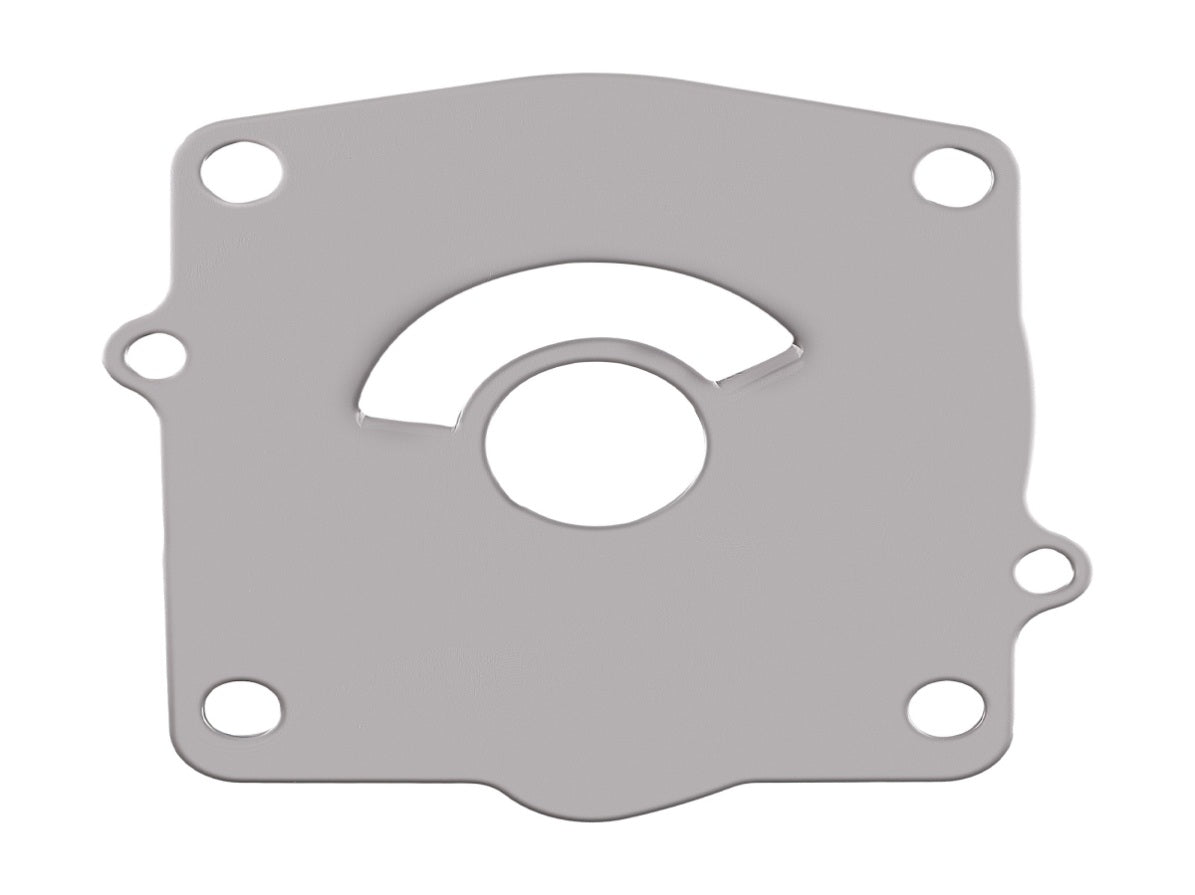

1*Plate, Wear 6G5-44323-01-00

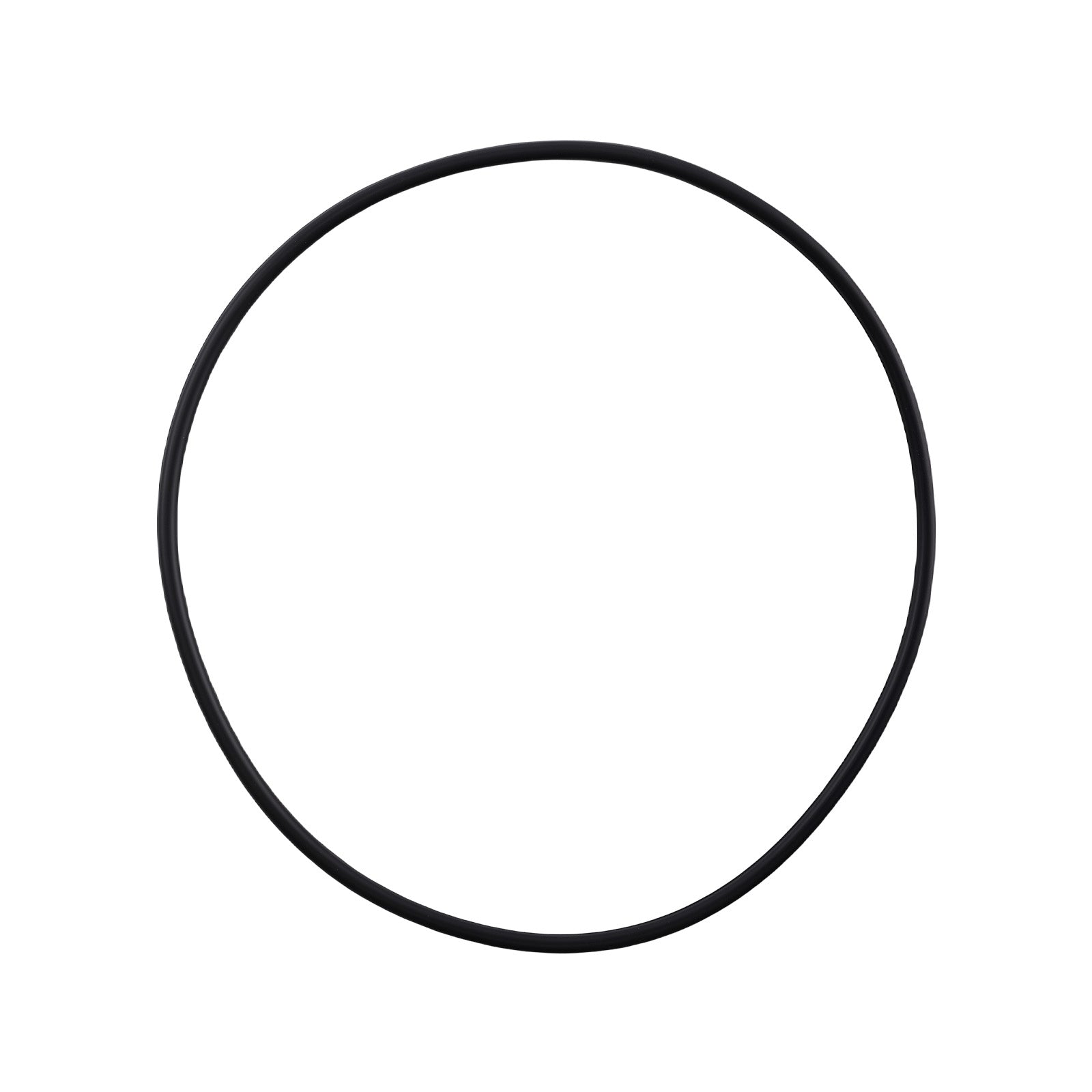

1* O-Ring (6G8) 93210-37M67-00

1*O-Ring 93210-86M38-00

2*Pin, Dowel 93606-12019-00

4 * Washer, Bolt 90209-08M02-00

(It same to the picture shown )

Feature：
1.This is a High Quality Aftermarket Parts
2.This product comes with best after-sales service.

Note：

1.Professional Installation Is Highly Recommended.
2.Even if your outboard engine is shown in the compatibility, pls also double check the fitment details and photos before ordering.
