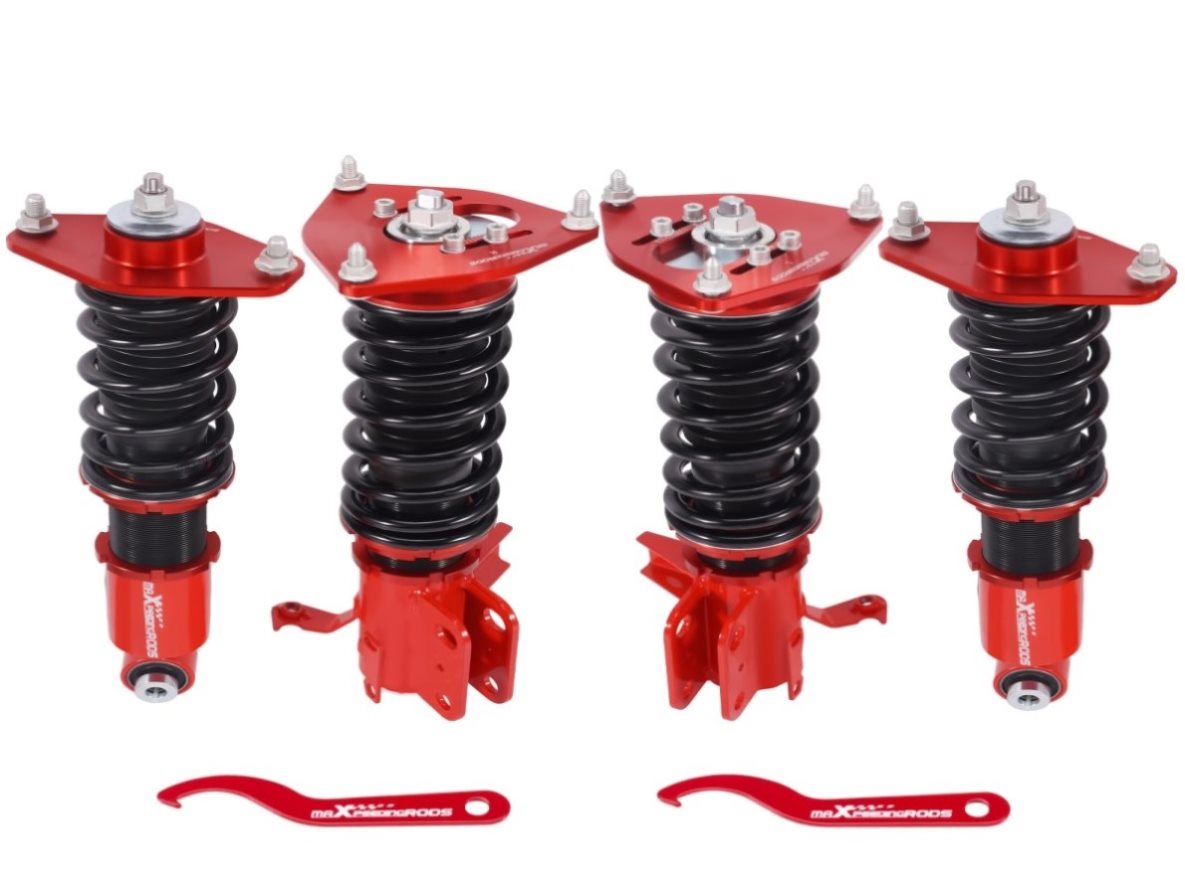

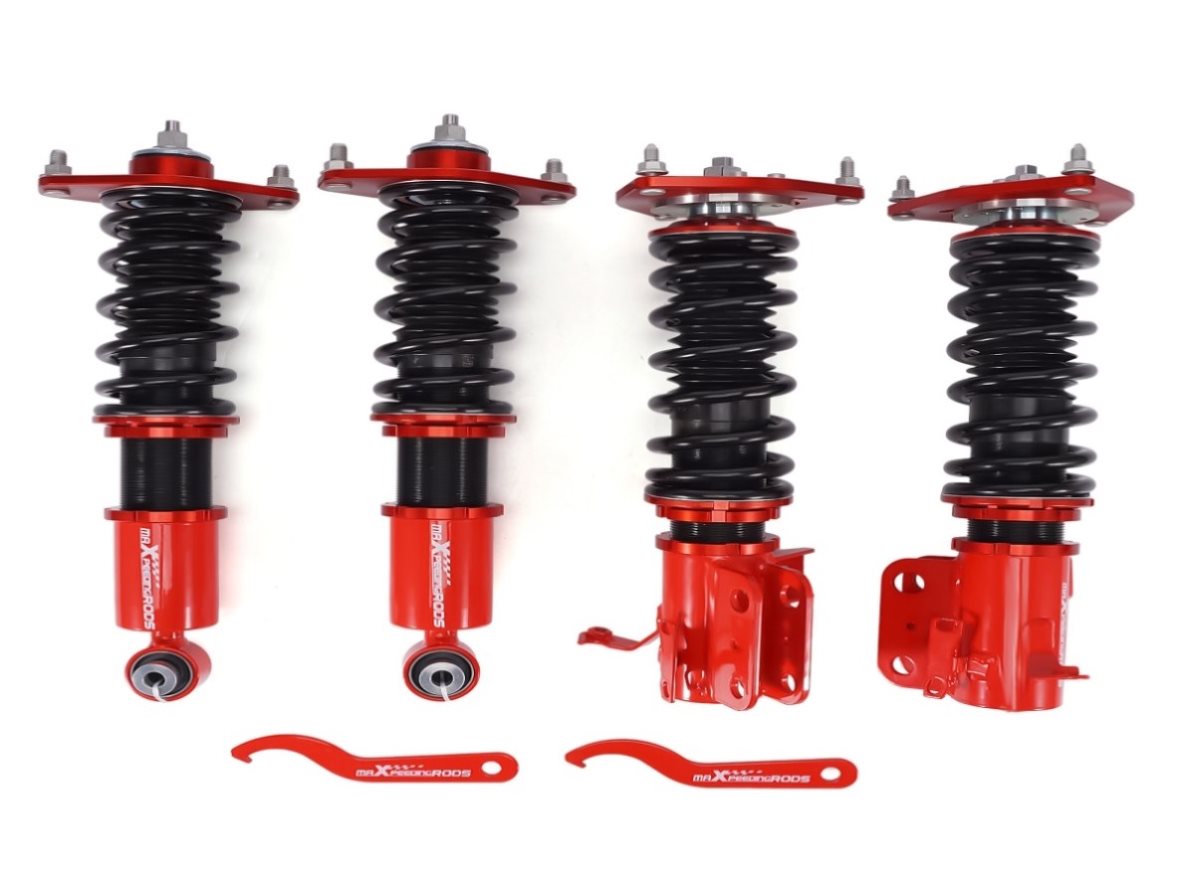

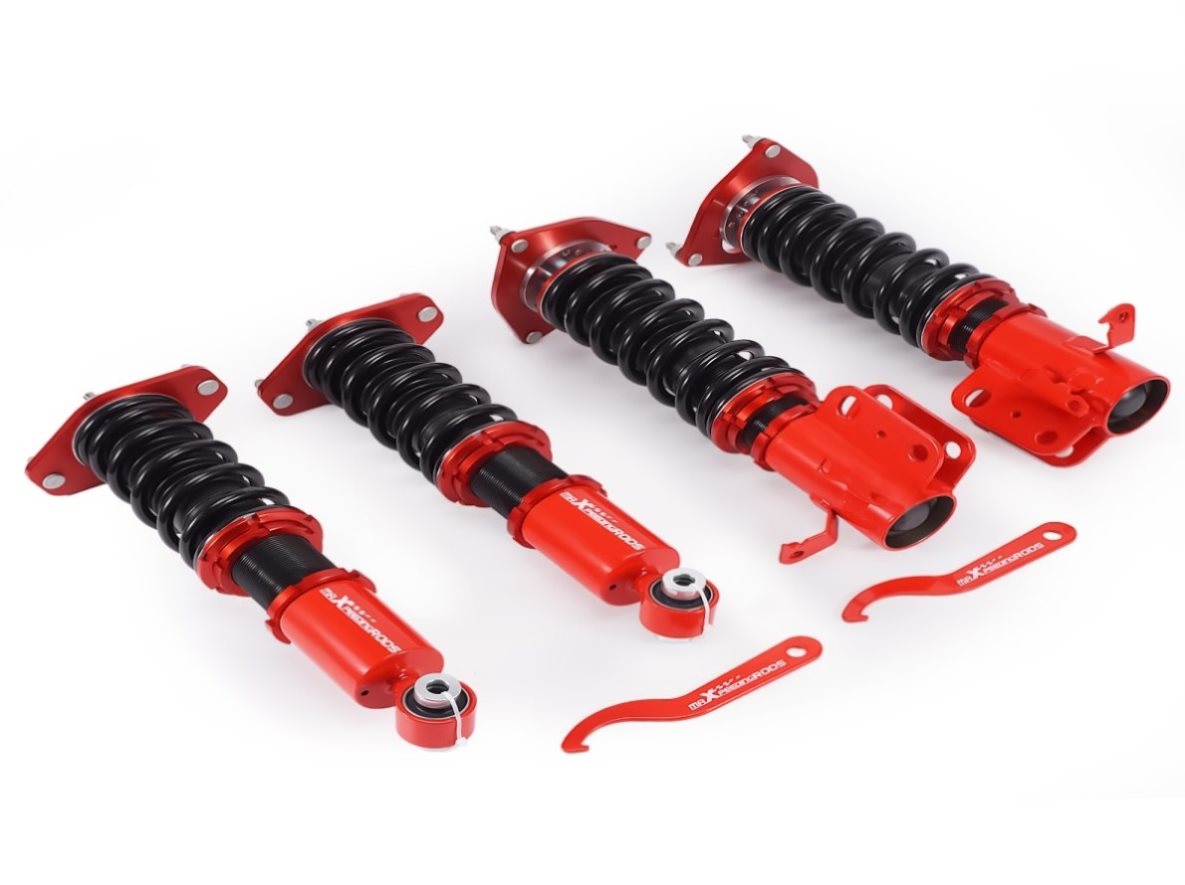

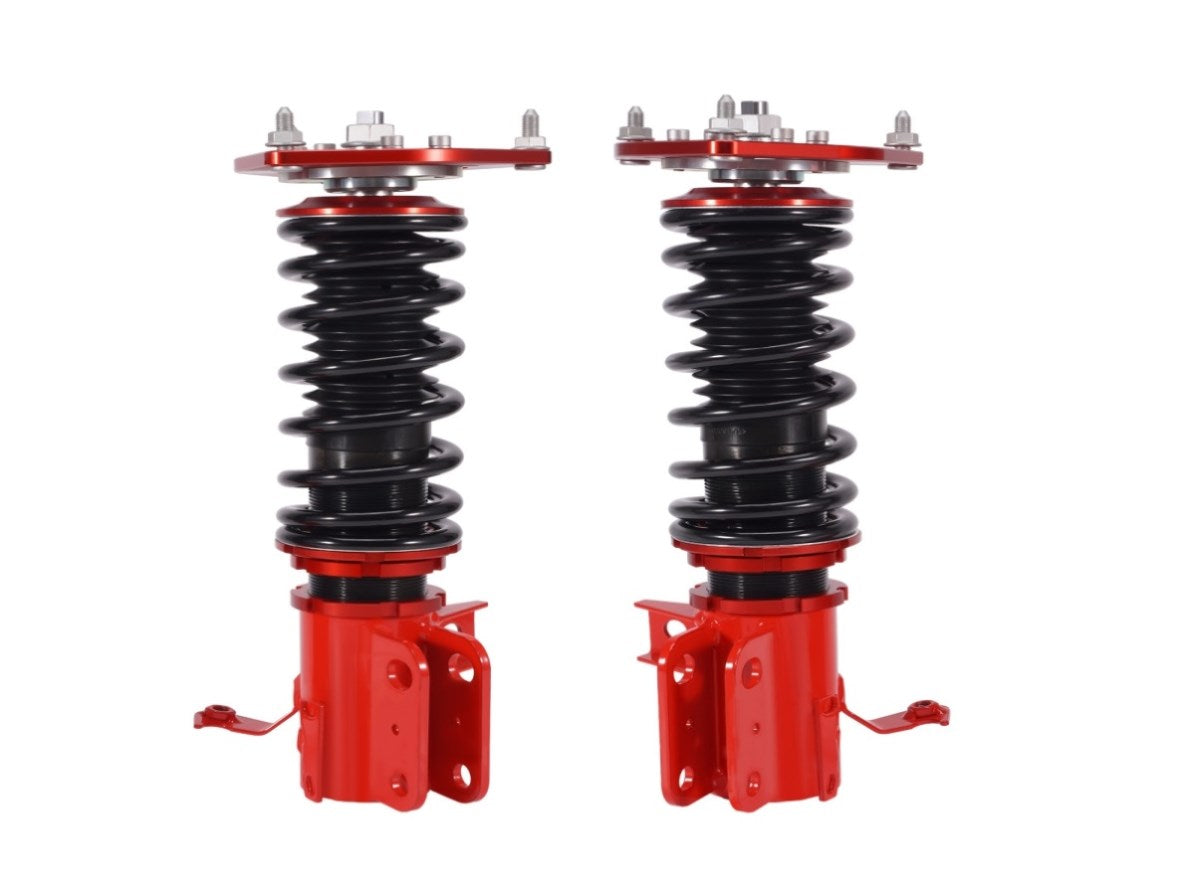

Coilovers Suspension Fit For Subaru BRZ Toyota 86 Scion FR-S 2012-2022 20921761
Application
Fit for Subaru BRZ First generation (ZN6/ZC6) 2012-2020
Fit for Scion FR-S 2012-2020
Fit for Toyota 86 2012-2020
Specification

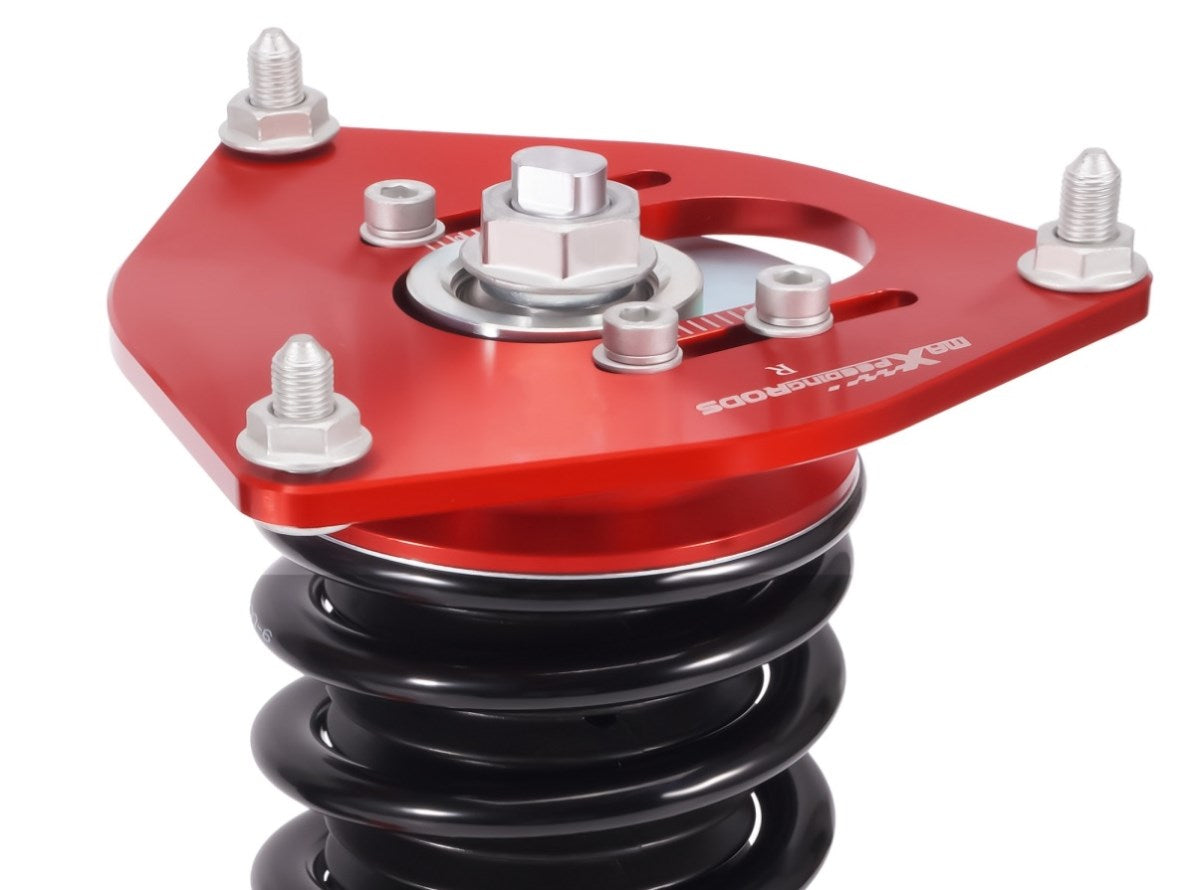

Front top mount: Pillow ball with camber plate
Rear top mount: Standard rubber
Damping adjustable: Not available
Camber adjustable: Available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 6 kg/mm (336 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 200 mm
Spring length Rear: 180 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring
Package included
2x front coil-overs
2x rear coil-overs
2x C spanners
Feature
1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
Notice
1.California Prop 65 Warning
2. Authority ID：MXR02FXSY
