Coilovers Struts Shocks Suspension Kit Fit For TOYOTA COROLLA 2009-2017 Adjustable Height 51455422
Key Features
Lower ride height between 1 and 3 inches, will not keep OE height
Independent Ride Height And Spring Tension Settings

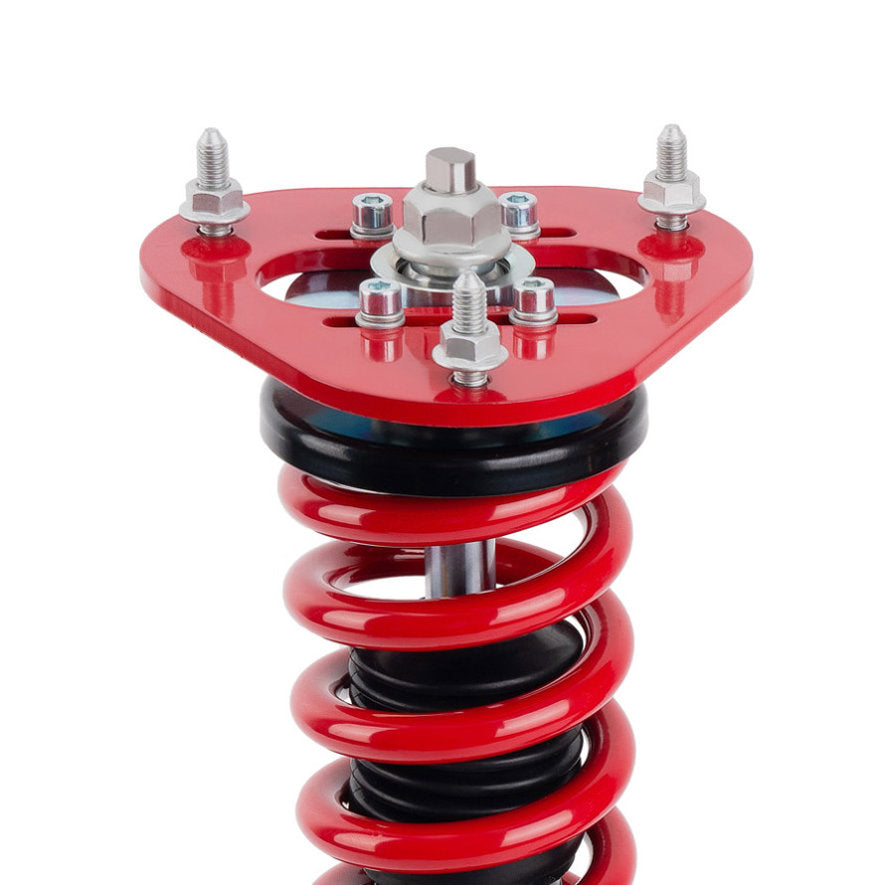

Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Anodized Shock Body With Anti-Corrosion Coating
CNC Billet Aluminum Parts/Hardware
Application
Fit For TOYOTA COROLLA (E140) AZE141L XRS 2009-2010
Fit For TOYOTA COROLLA (E140/E160) ZRE142L LE 2009-2013
Fit For TOYOTA COROLLA (E150/E170) ZRE172L all 2014-2019
Fit For TOYOTA MATRIX (E140) LE 2009-2014
Specification
- Front top mount: Pillow ball with camber plate
- Rear top mount: Standard rubber
- Damping adjustable: Not available
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Spring length Front: 200mm
- Spring length Rear: 160mm
- Spring Preload advised: 7-10 mm
- Color: Red body with red spring

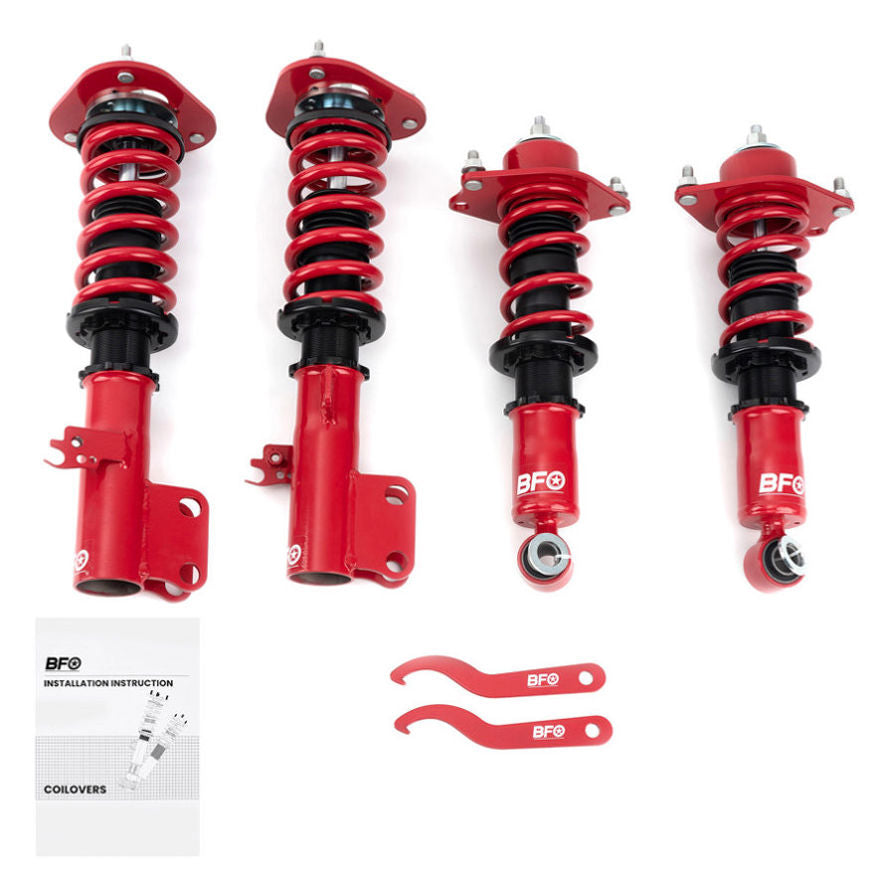

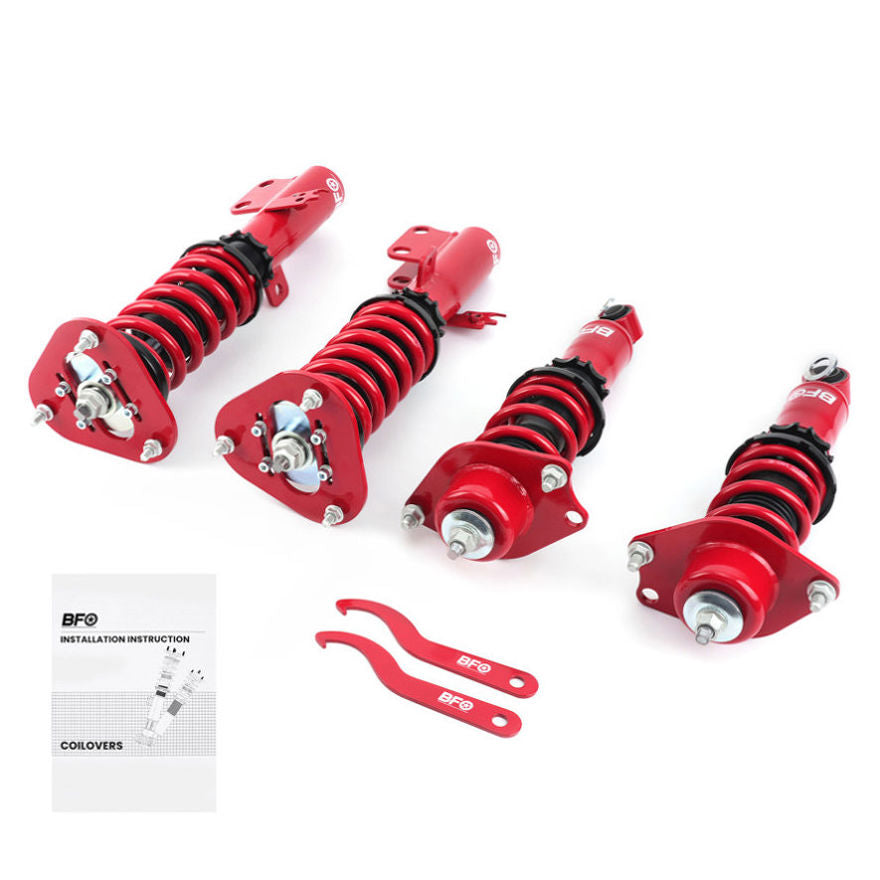

Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
