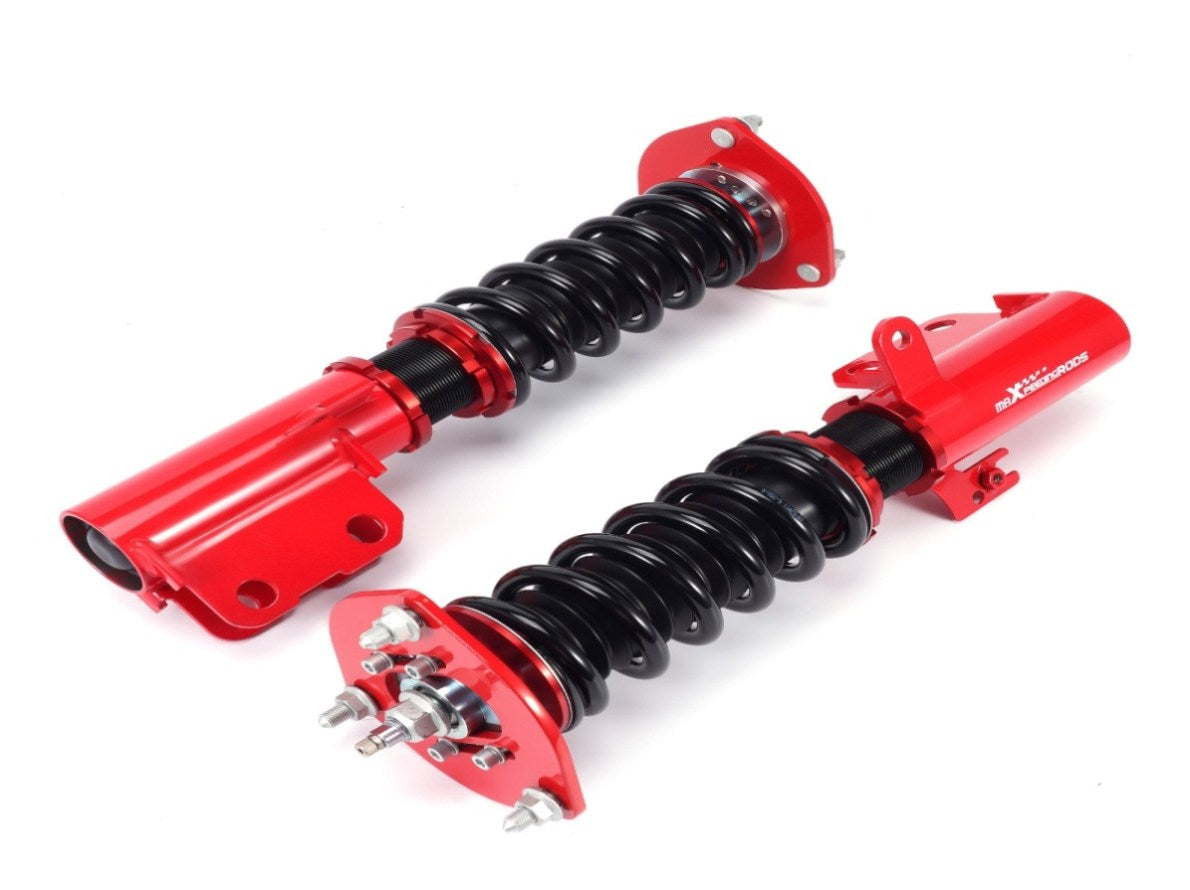

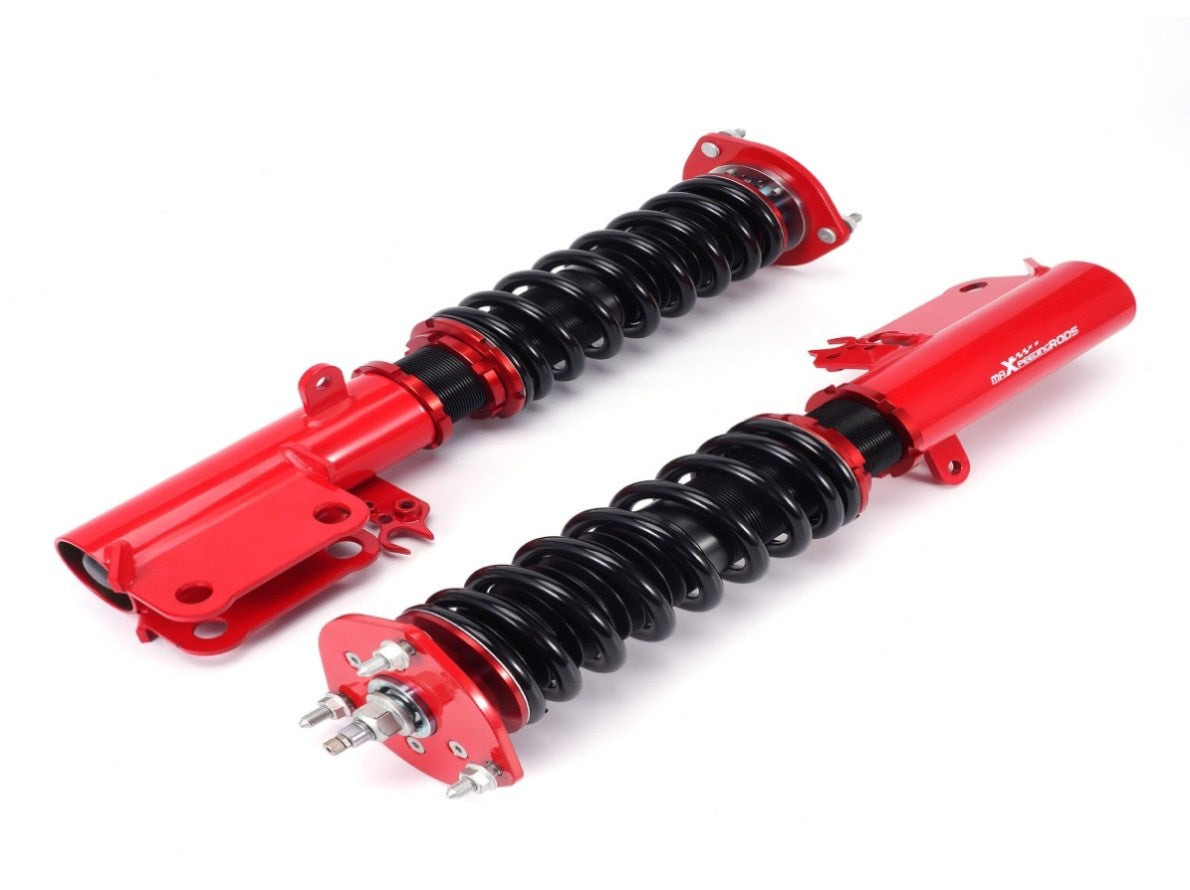

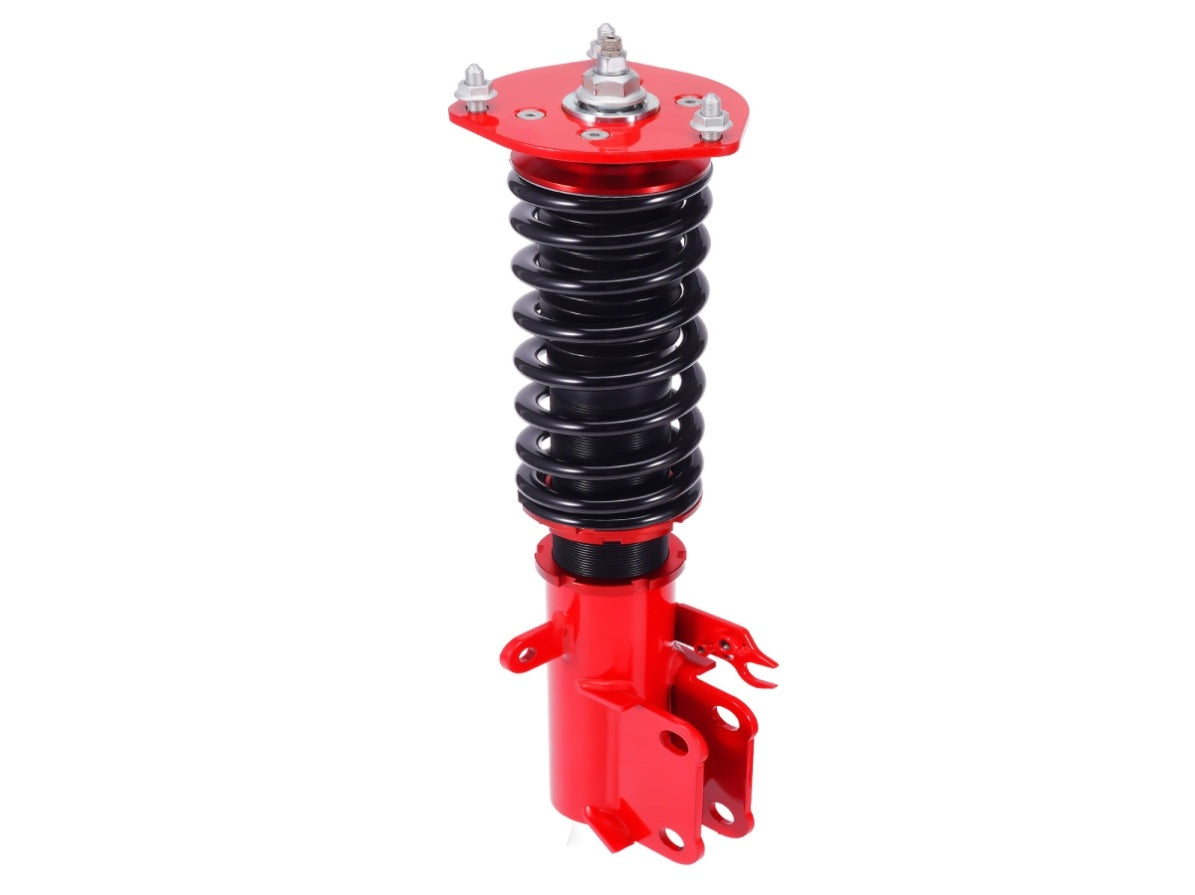

Coilovers Lowering Kit 24 Way Damping Adjustable fit for Toyota Camry L/LE/XLE 12-17 83105310

Features

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows fit for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

- Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize fit for various purposes and achieve desired ride comfort.

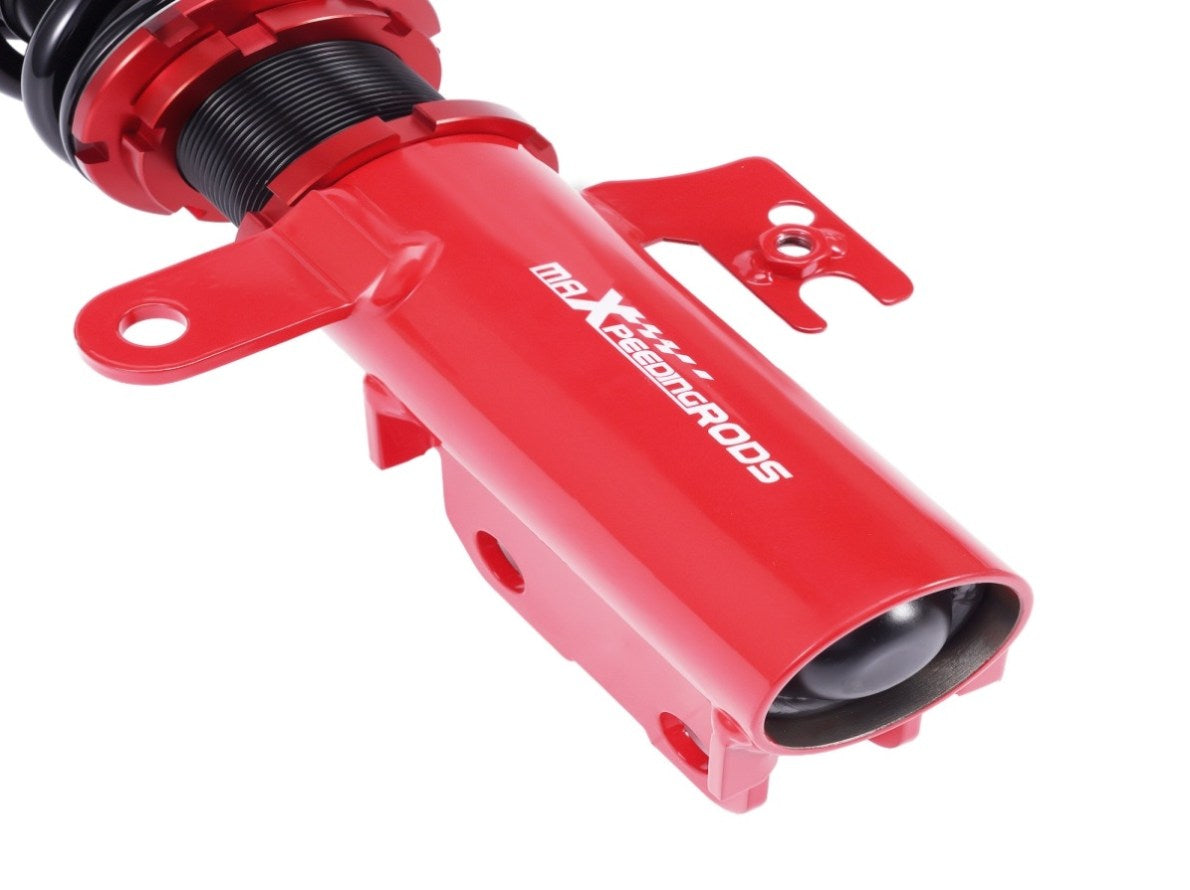

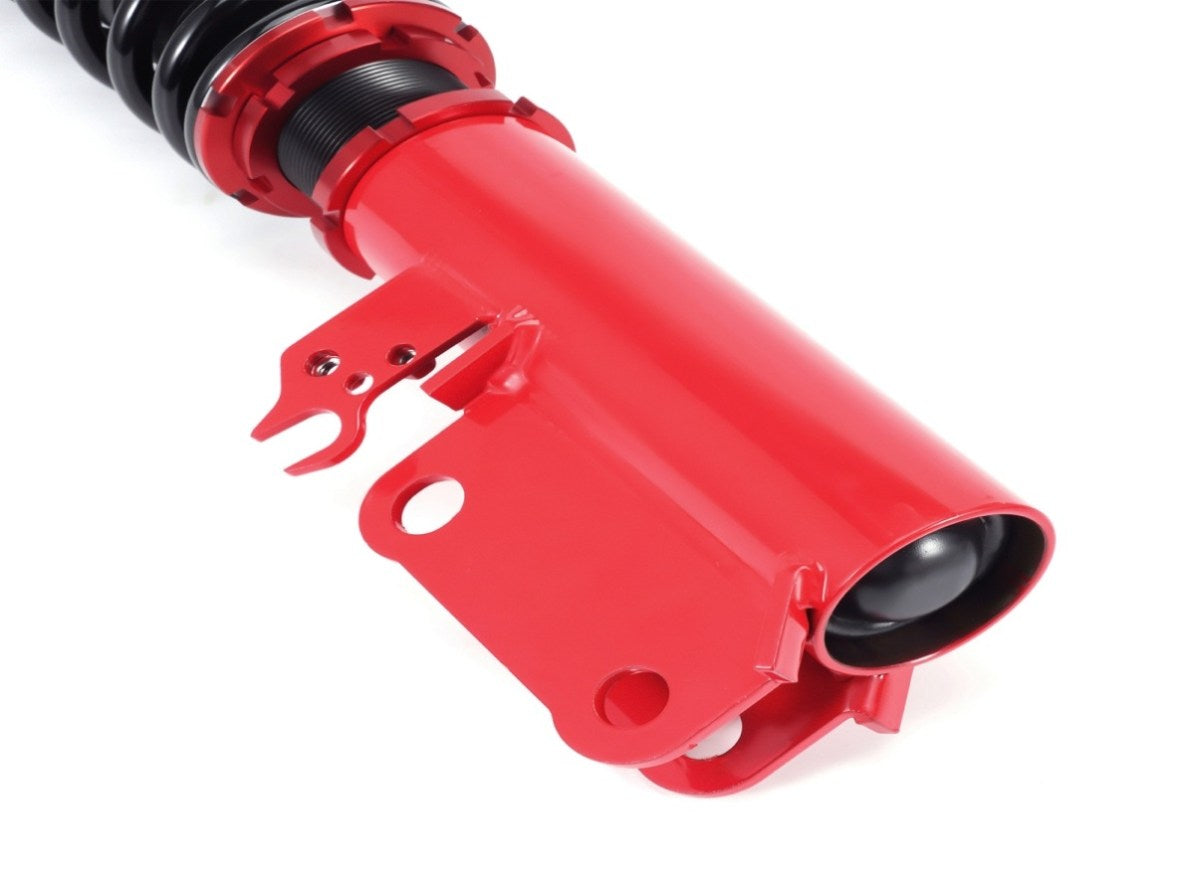

- 55mm Large Diameter Damper Body: Features high oil capacity fit for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components fit for durability and noise reduction, ensuring long-lasting performance and silent operation.

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.

Application

fit for Toyota Camry L/LE/XLE 2012-2017

Specifications

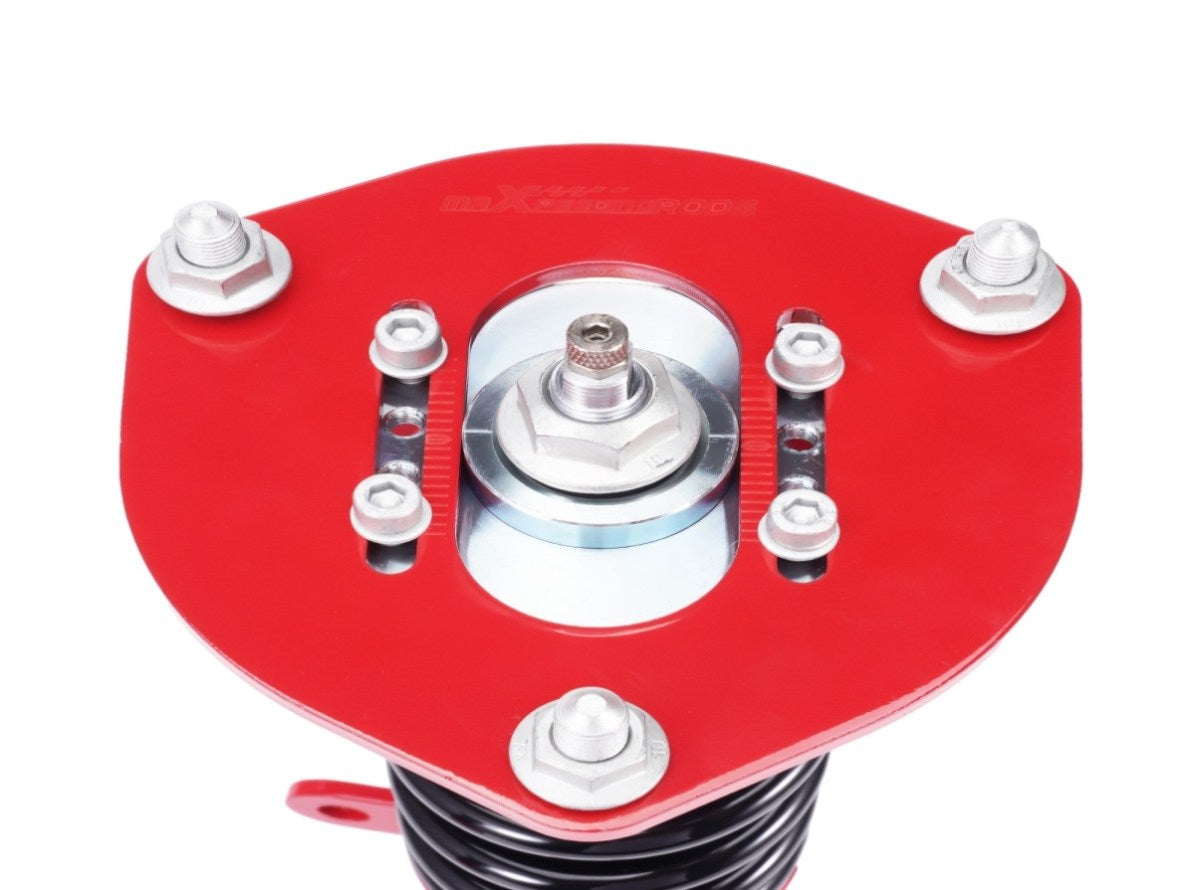

Front top mount: Pillow ball with camber plate
Rear top mount: Pillow Ball
Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62 mm
Spring length Front: 200 mm
Spring length Rear: 230 mm
Spring Preload advised: 7-10 mm
Damping rod diameter Front: Φ 22 mm
Damping rod diameter Rear: Φ 22 mm
Damping  thread Front:  M55×2 mm
Damping  thread Rear: M55×2 mm
Twin -tube Diameter Front: 55 mm
Twin -tube Diameter Rear: 55 mm
Rod End Thread Front: M14×1.5 mm
Rod End Thread Rear: M14×1.5 mm
Front Collapsed Length: 427 mm / 16.81"
Front Extended Length: 552 mm / 21.73"
Rear Collapsed Length: 515 mm / 20.28"
Rear Extended Length: 675 mm / 26.57"
Color: Red body with black spring

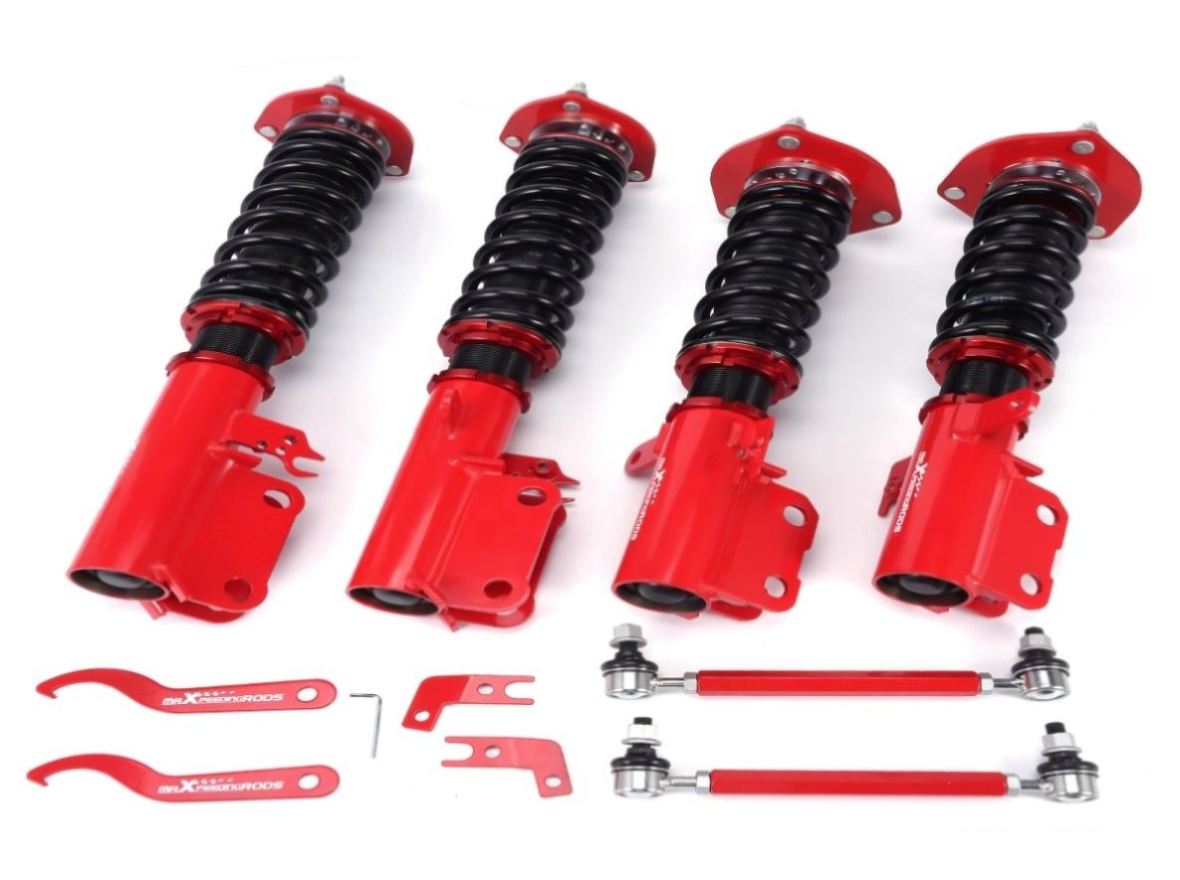

Package included

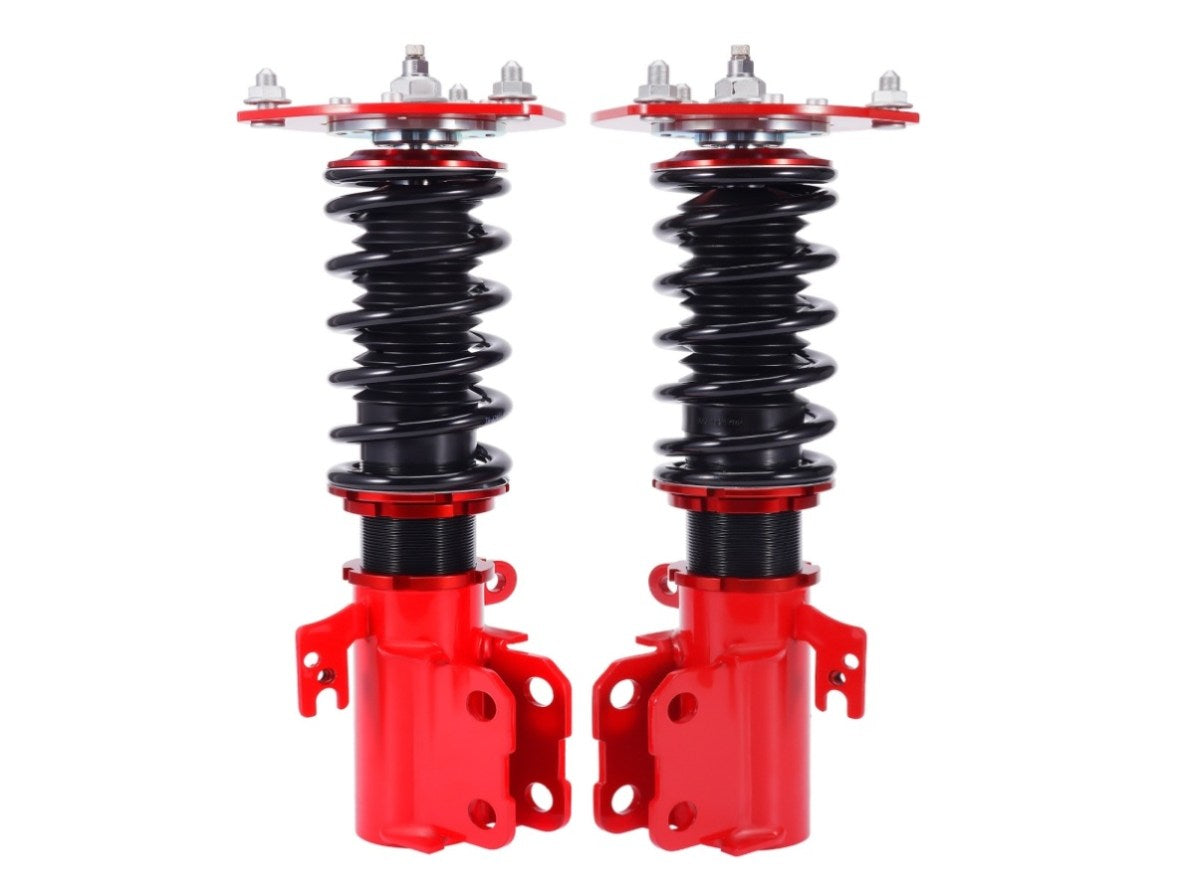

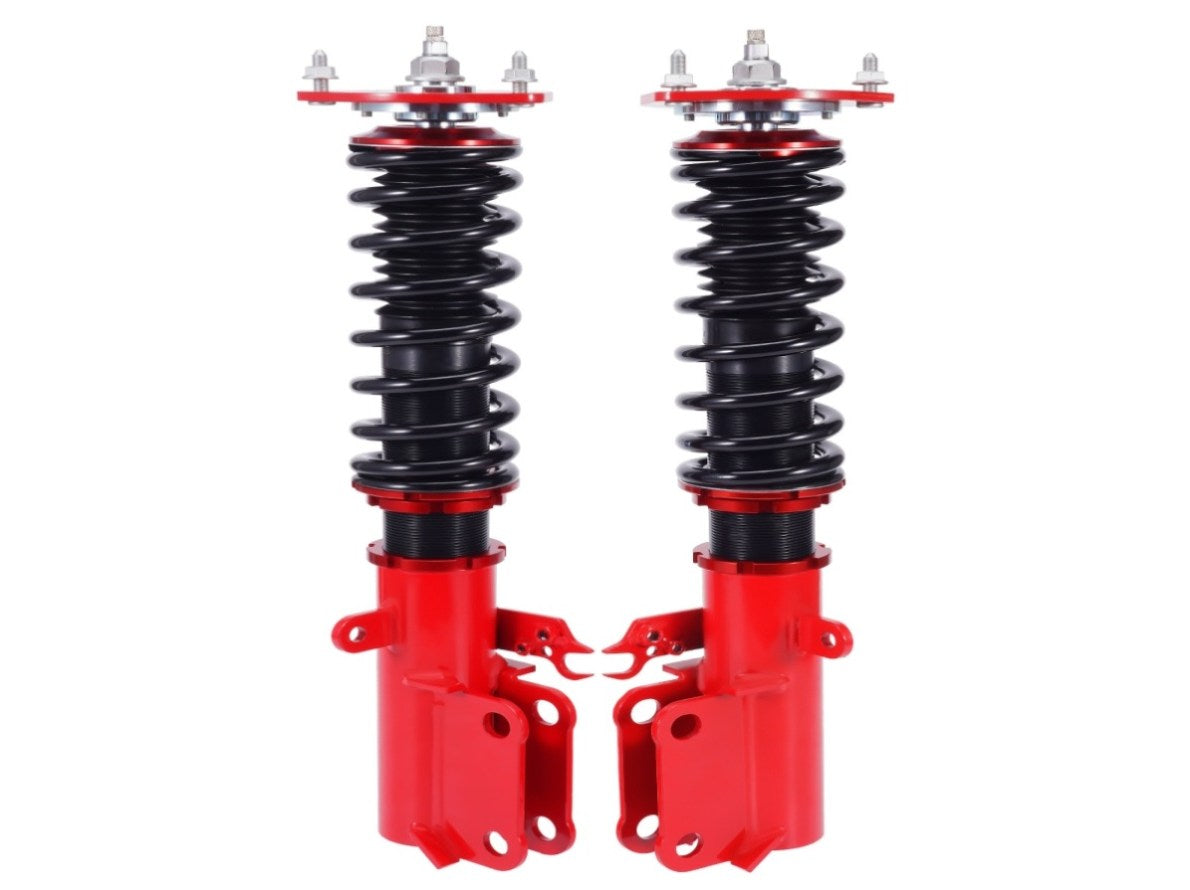

2x Front coil-overs
2x Rear coil-overs
2x Allen wrench
2x C spanners

★ 30-day Money Back & 12-Month Replacement Guarantee
