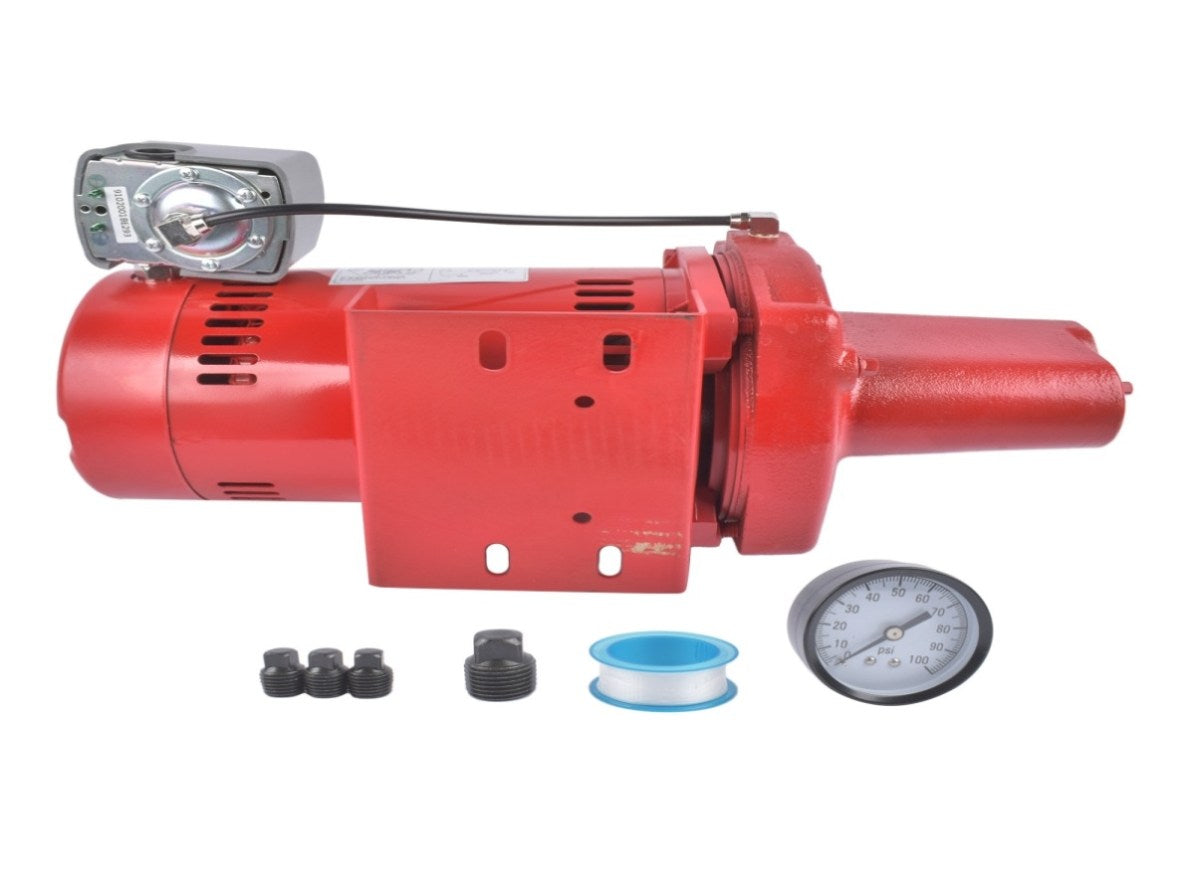

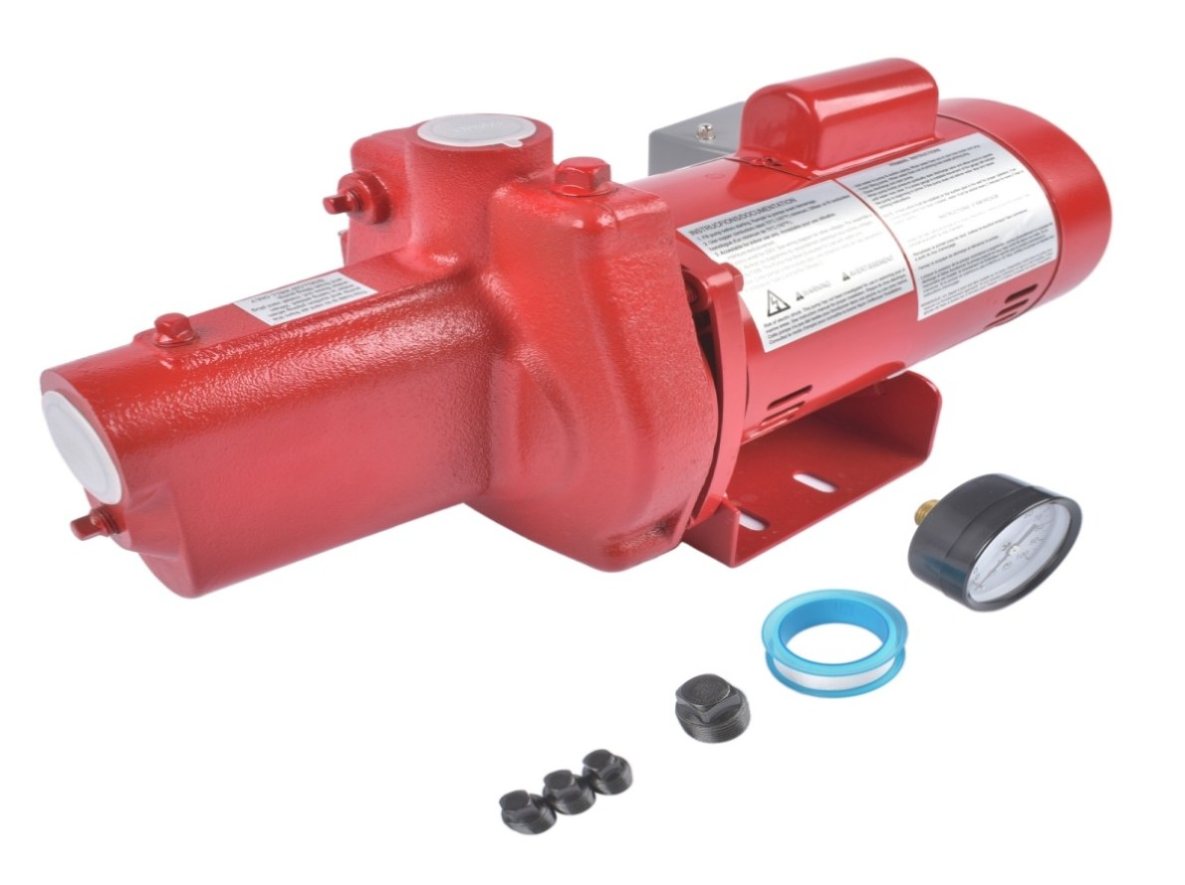

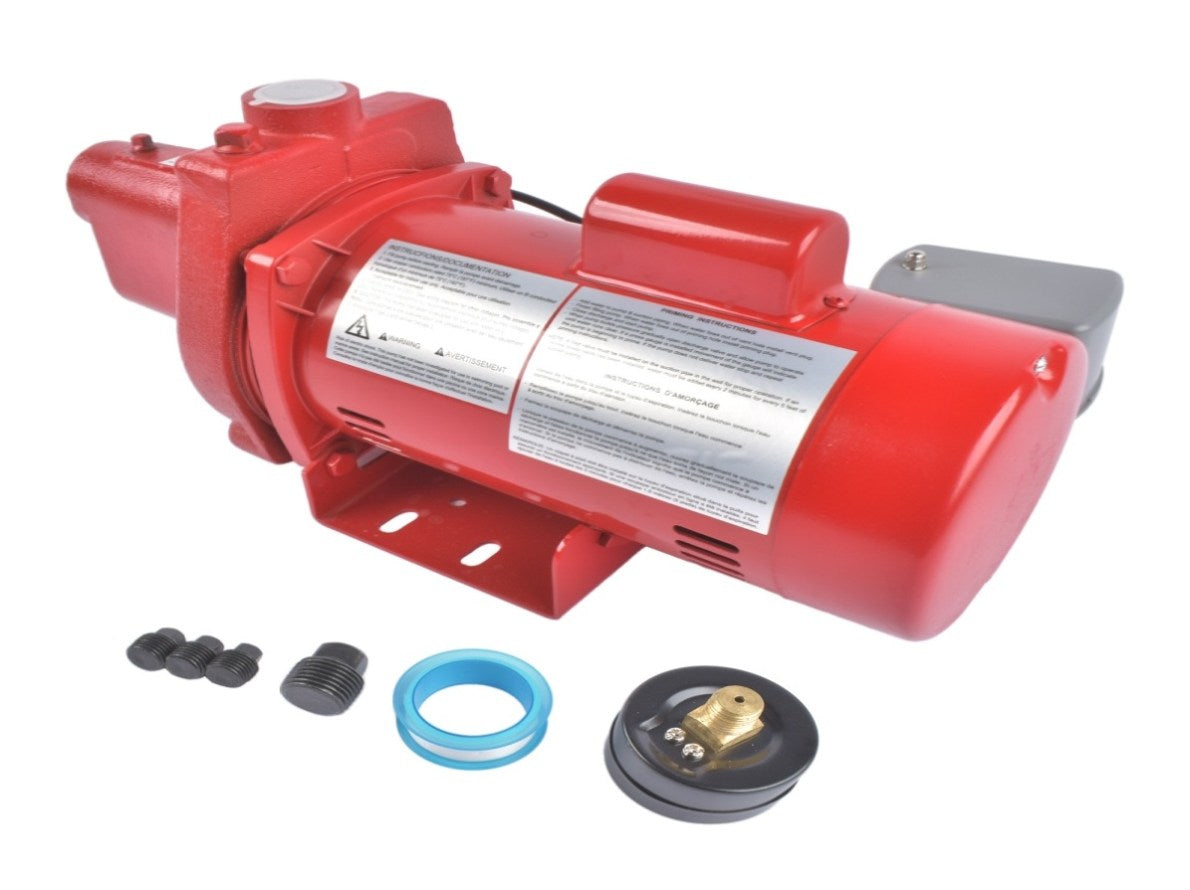

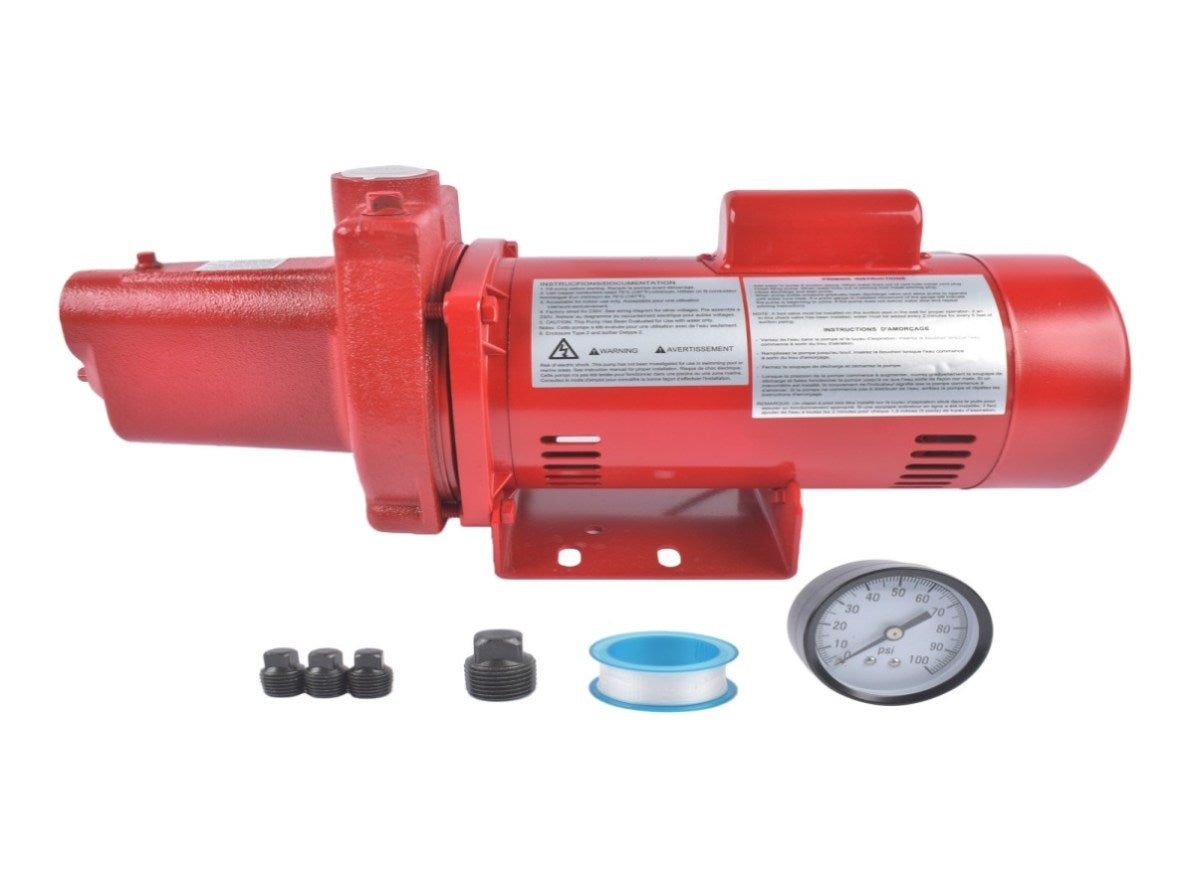

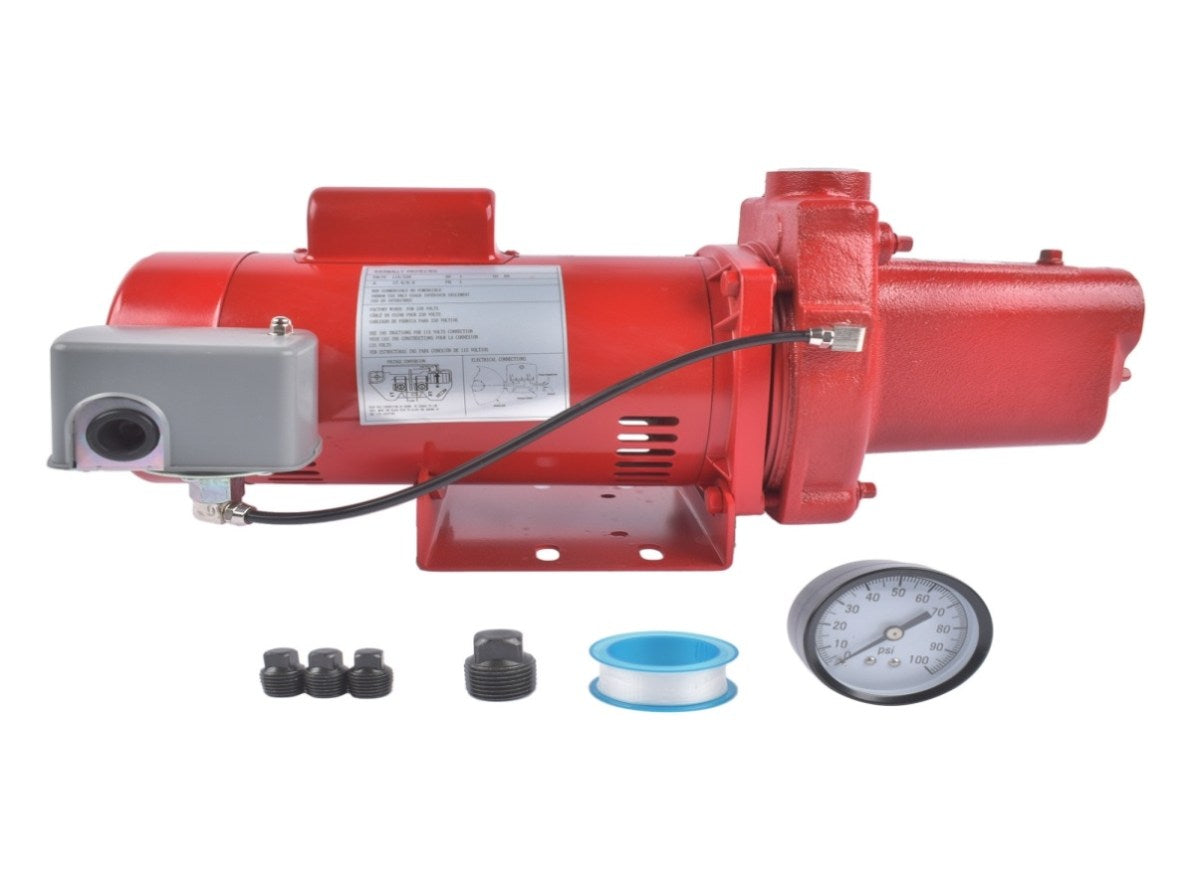

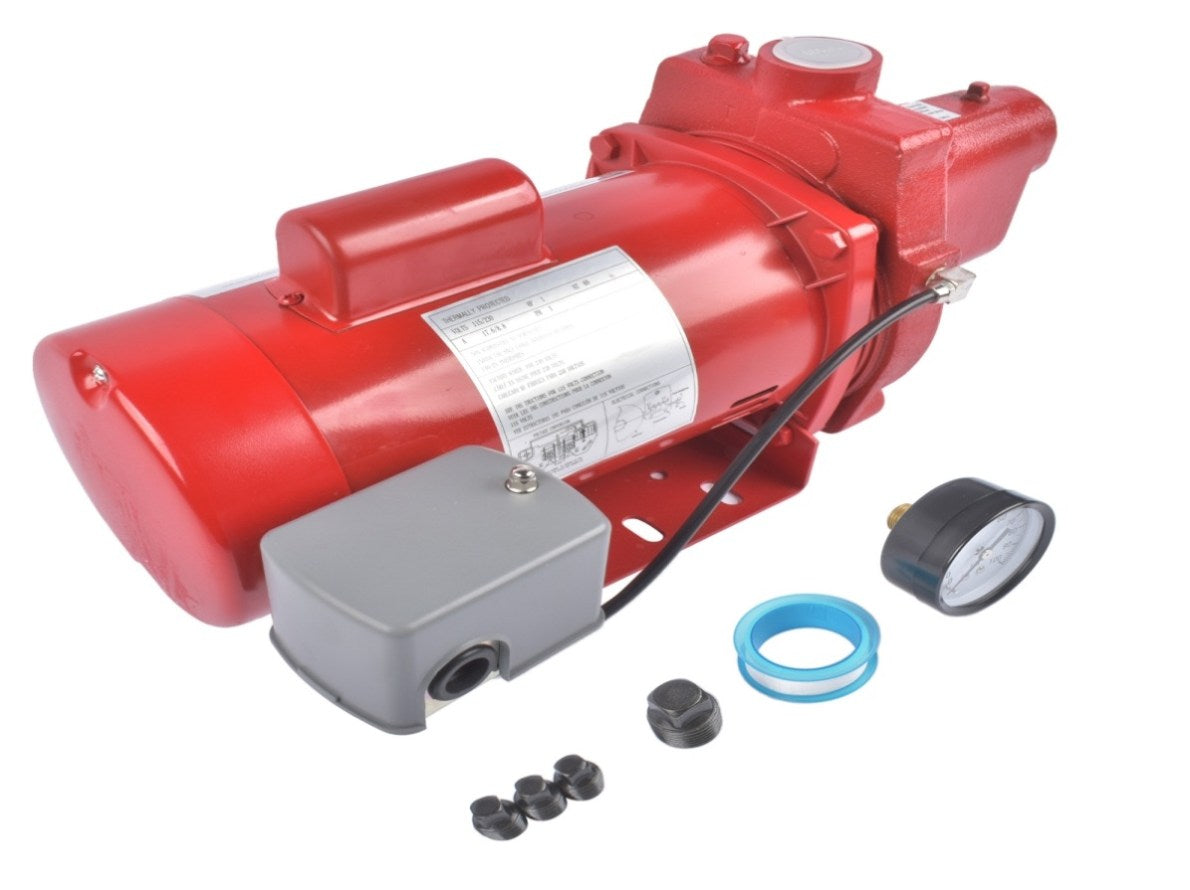

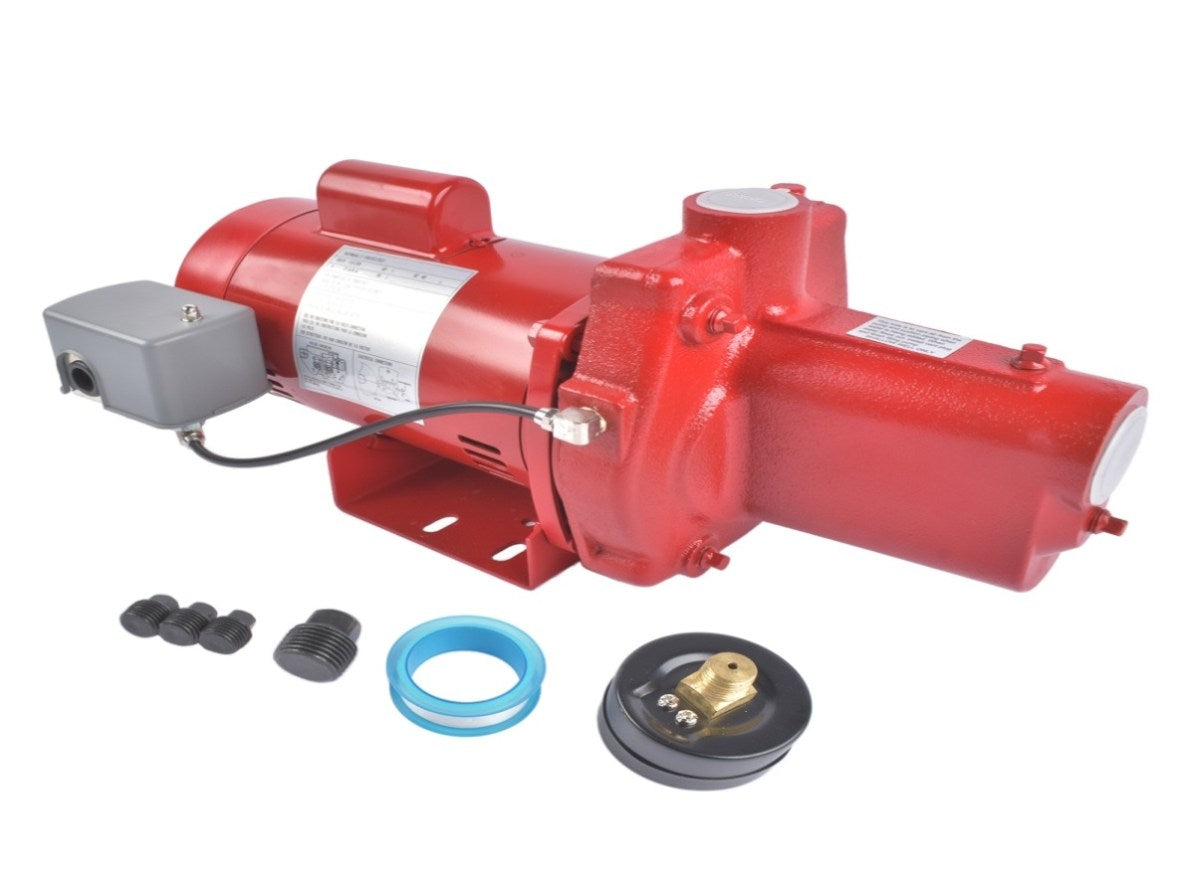

Cast Iron Shallow Well Jet Pump RJS-100-PREM, 1 HP 23 GPM 65 PSI 115/230 V 34610705
Specifications
Type: Shallow Well Jet Pump
Material: Cast Iron
Color: Red
Horsepower: 1 HP
Voltage: 115/230 V
Amperage: 17.6 Amps at 115 Volts; 8.8 Amps at 230 Volts
Maximum Pressure: 65 PSI
Maximum Head: 150 Ft
Wattage: 7200 Locked Rotor Watts
Intake: 1-1/4-inch FNPT
Discharge: 1-inch FNPT
Part Number
602208
RJS100PREM, RJS-100-PREM
Features
This pump is designed for shallow wells bringing fresh potable water into your home, farm, or cottage. It is capable of handling 115 or 230 Volts. At 30 PSI, this 1.0 HP pump delivers 23.2 GPM at a depth of 5-ft, 19.5 GPM at a depth of 10-ft., and 13.3 GPM at a depth of 25-ft.

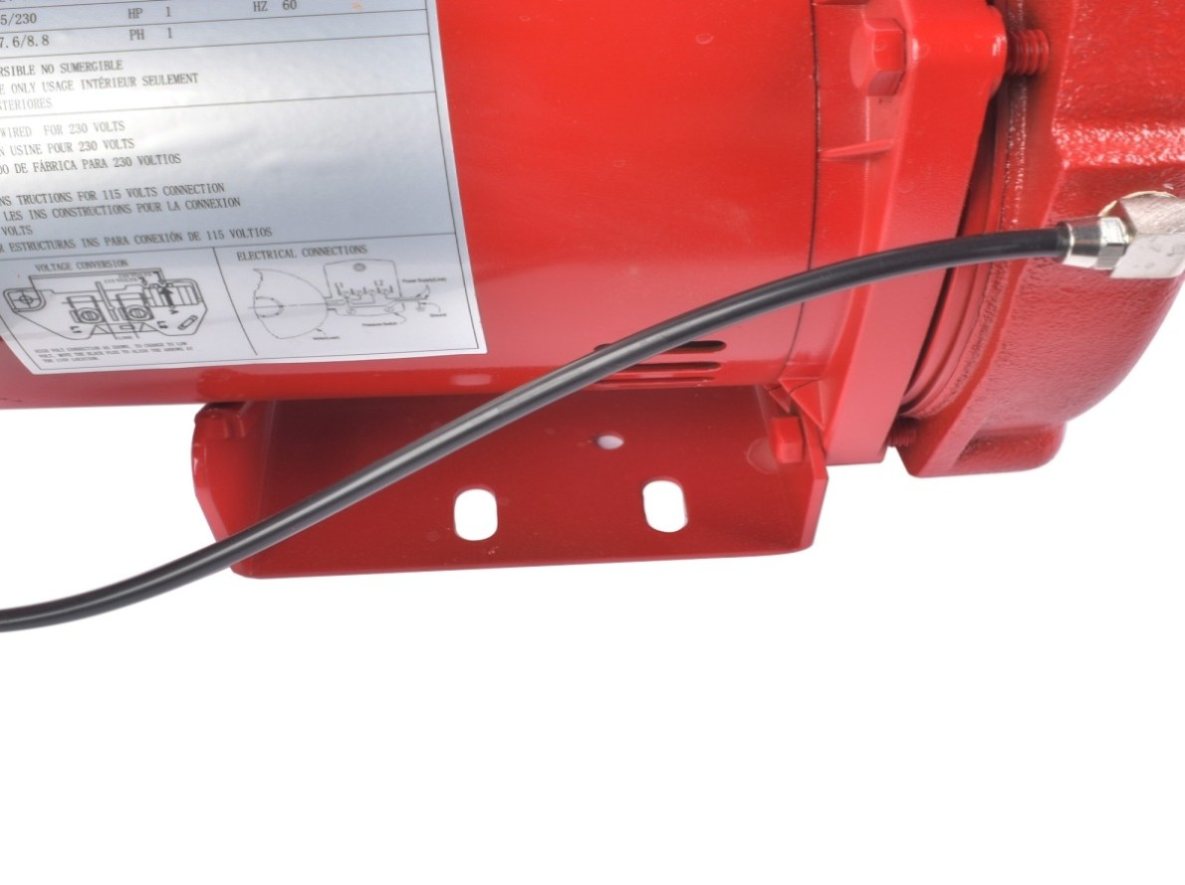

This pump is dual voltage which means it will work with both 115 Volt and 230 Volt power sources. The voltage selection indicator on the pump MUST MATCH the power source. The pump comes PRE-SET for 230 Volt operation. To use the pump for 115 Volt installation, the voltage indicator on the pump must be changed to 115 Volts.
