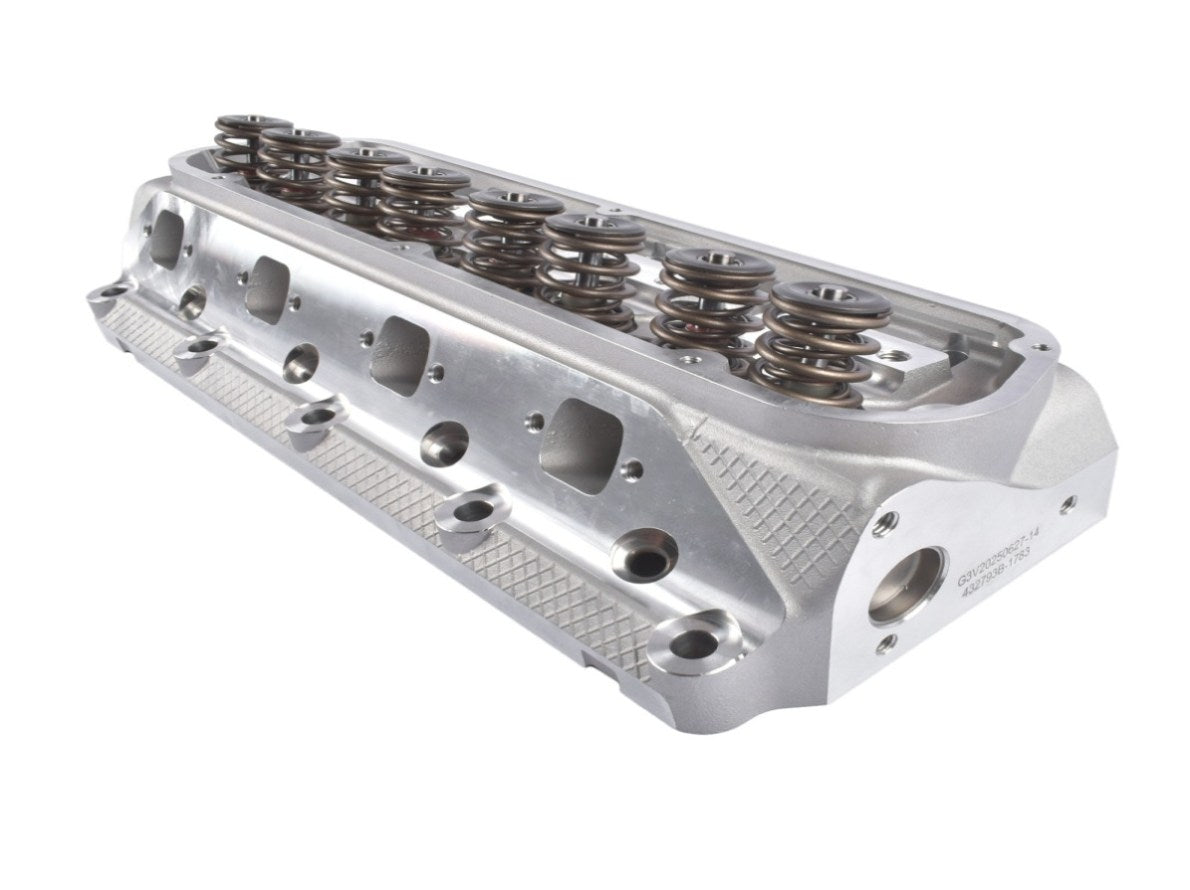

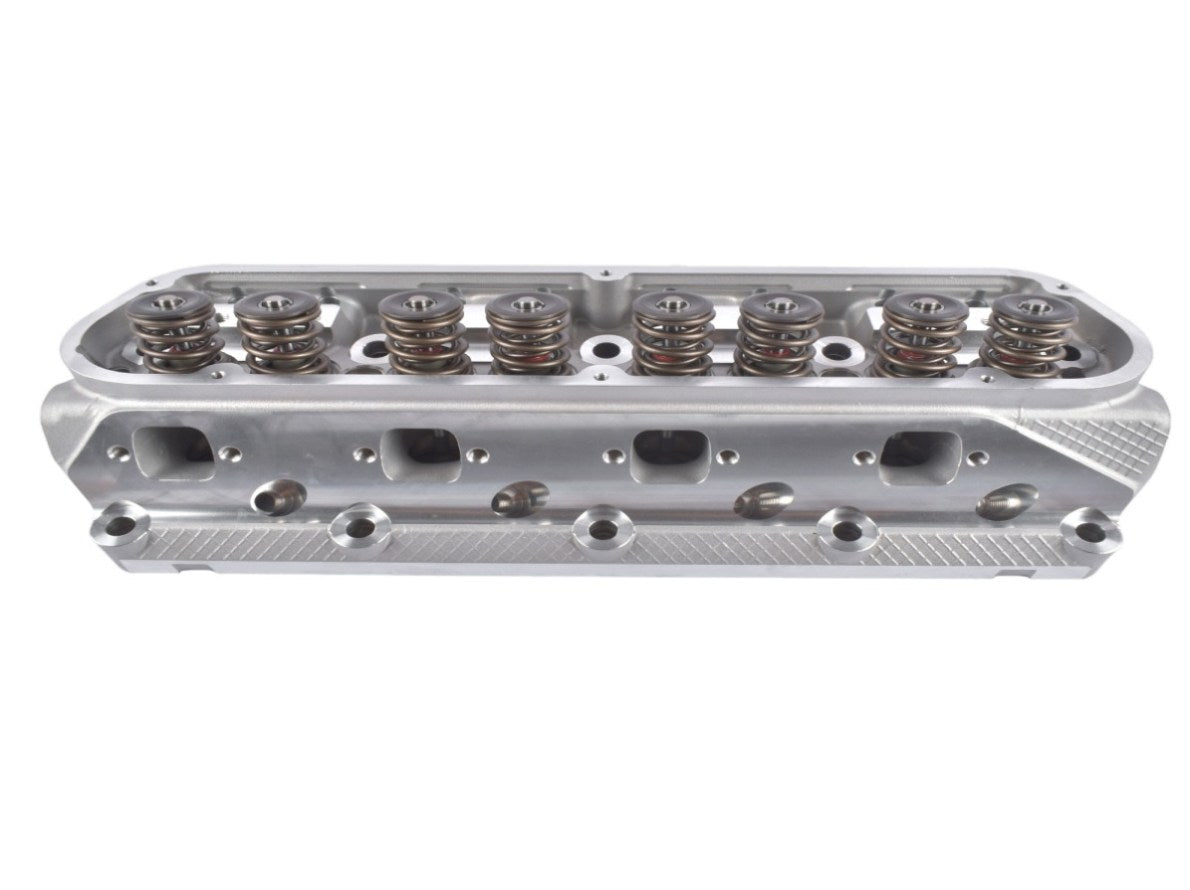

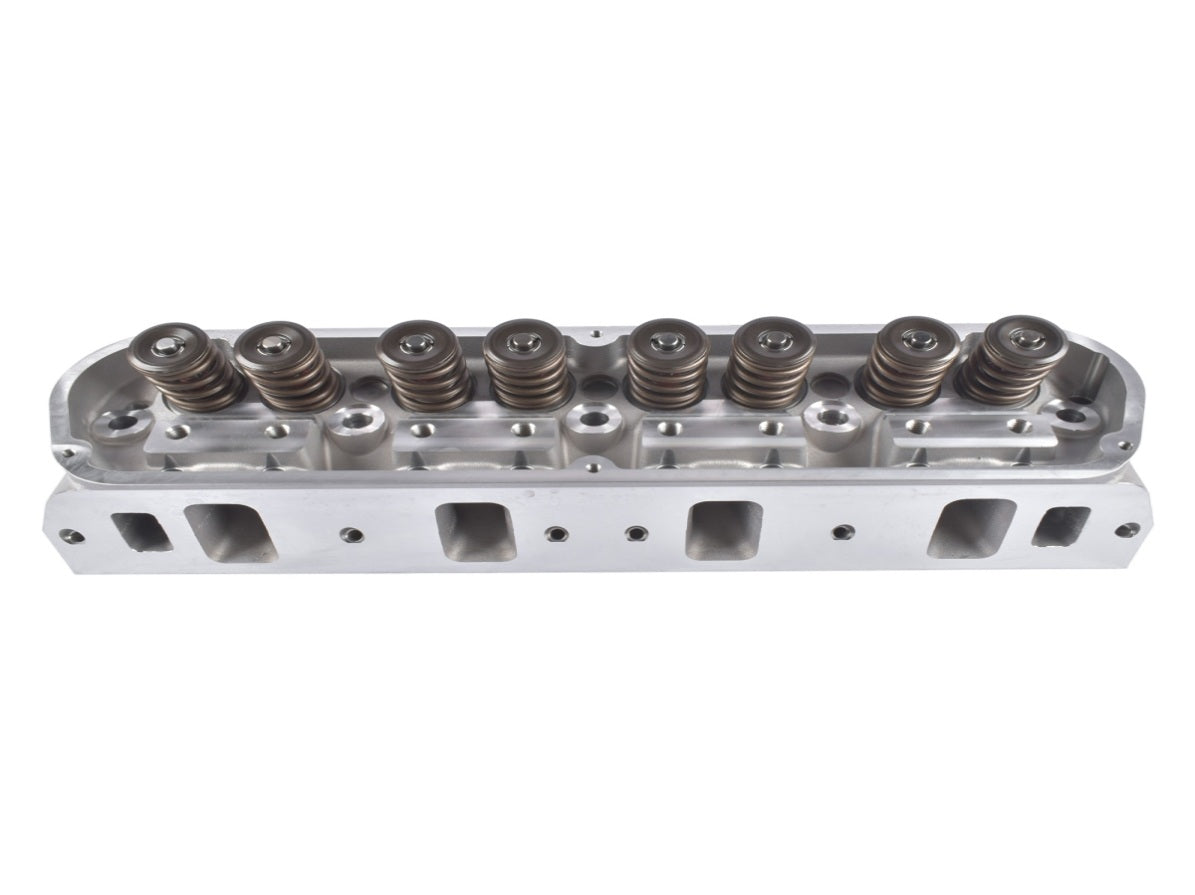

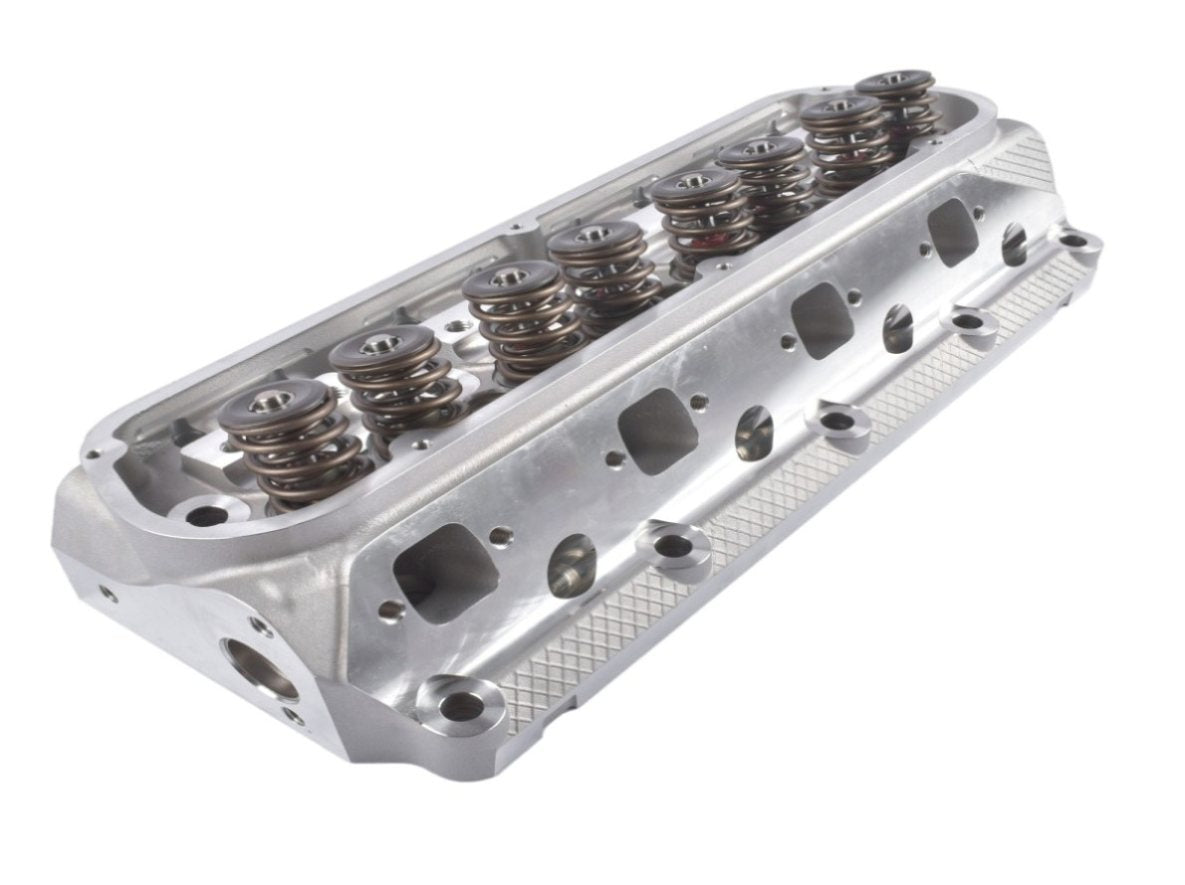

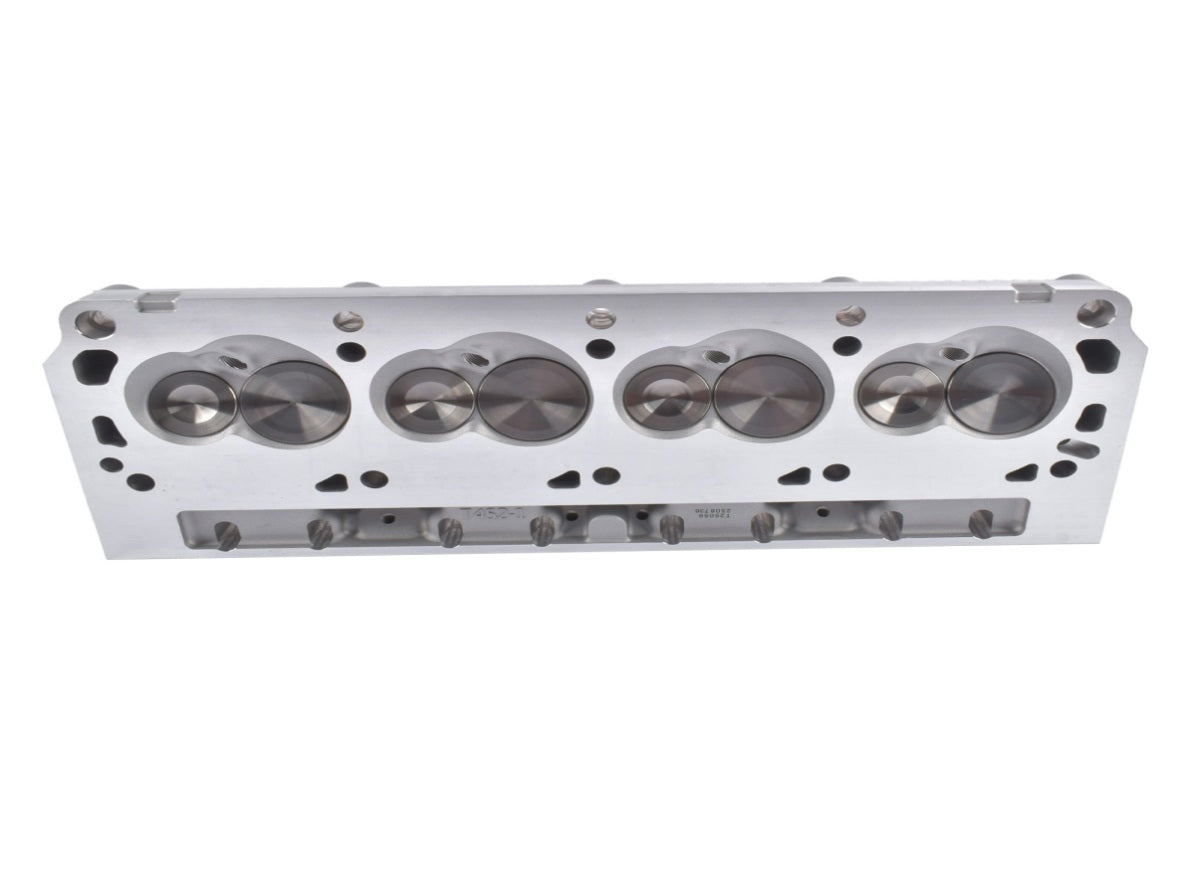

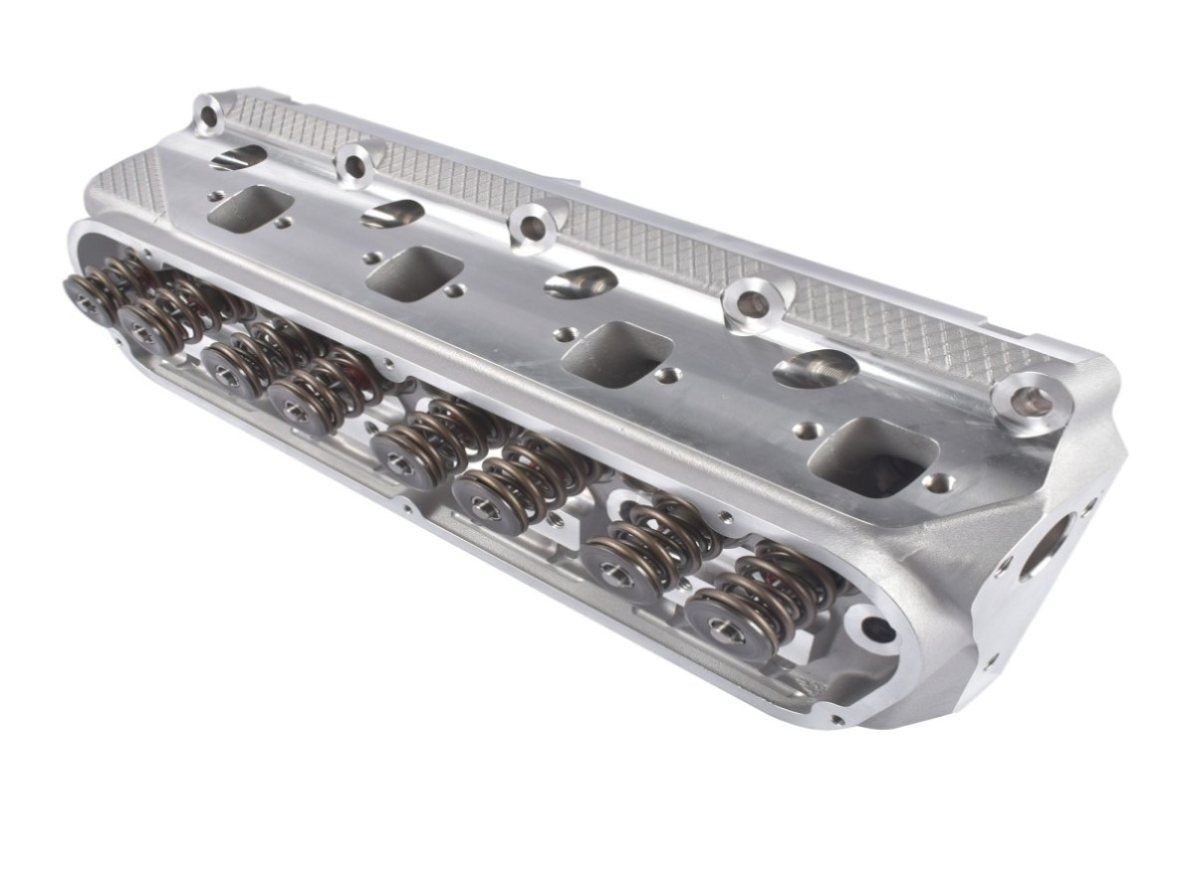

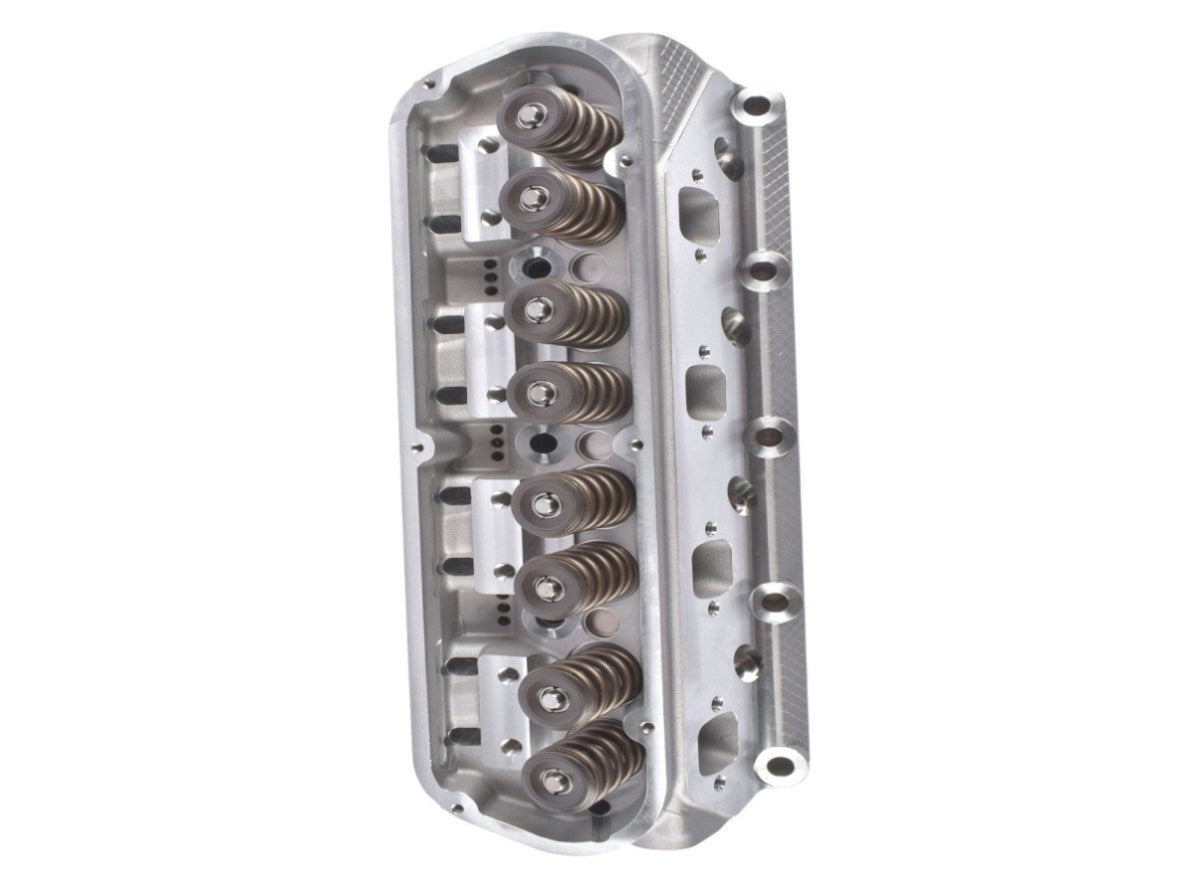

Cast Aluminum Cylinder Head Assembly 175-185cc 64cc 2.020/1.600in Replacement for Ford Small Block 52699493
GT-52699493
8 In stock
$645.84
Specifications Combustion Chamber Volume (cc):64Intake Runner Volume (cc):175cc-185ccExhaust Runner Volume (cc):64ccCylinder Head Material:Cast aluminumIntake Port Shape:RectangularIntake Valve Diameter (in.):2.020 in.Spark Plug Style:StraightExhaust Valve Diameter (in.):1.600 in.Maximum Valve Lift (in.):0.550 in.Outside Diameter of Outer Spring (in.):1.460 in.Retainer Material:Chromoly steelLock Style:7 degreeRocker Arm Nut Thread Size:3/8 in.-24Guideplate Pushrod Size:5/16 in.Valve Cover Mounting...
customers are viewing this product
Specifications

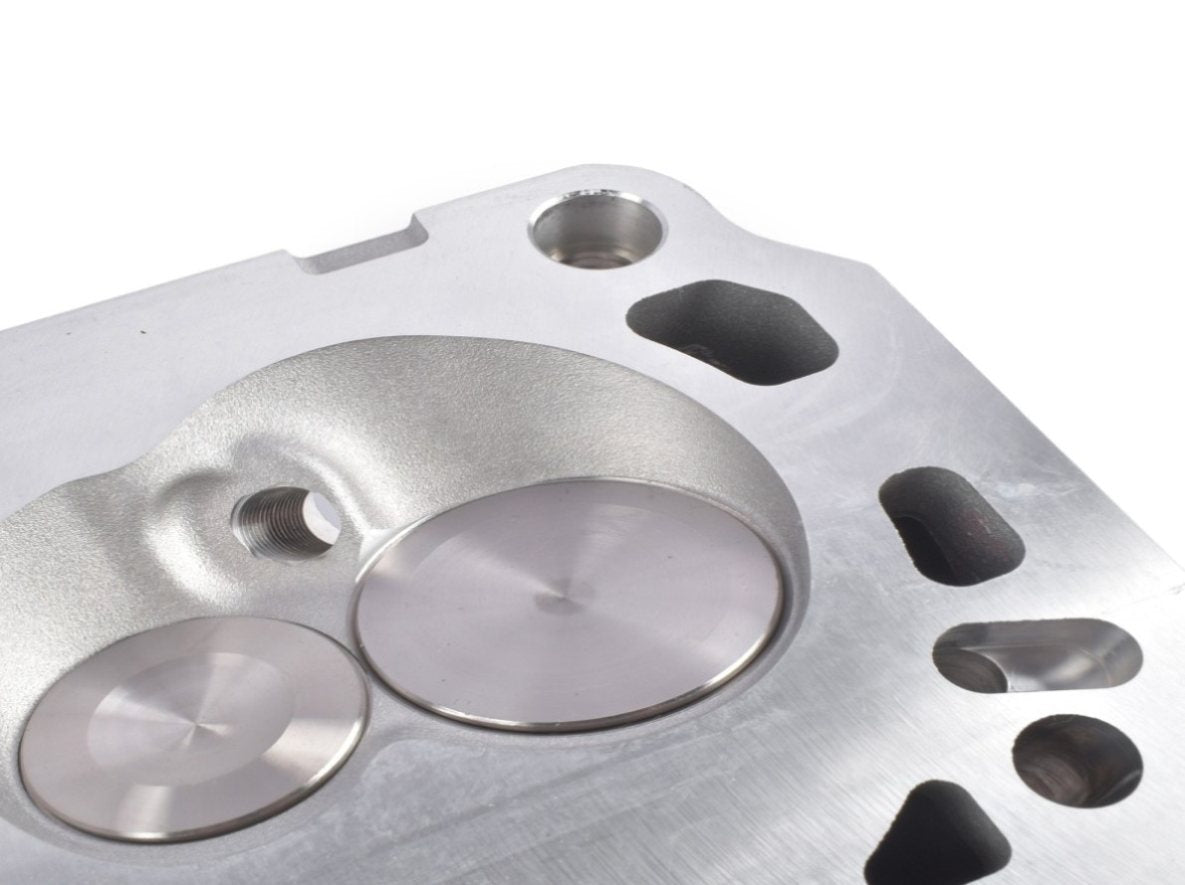

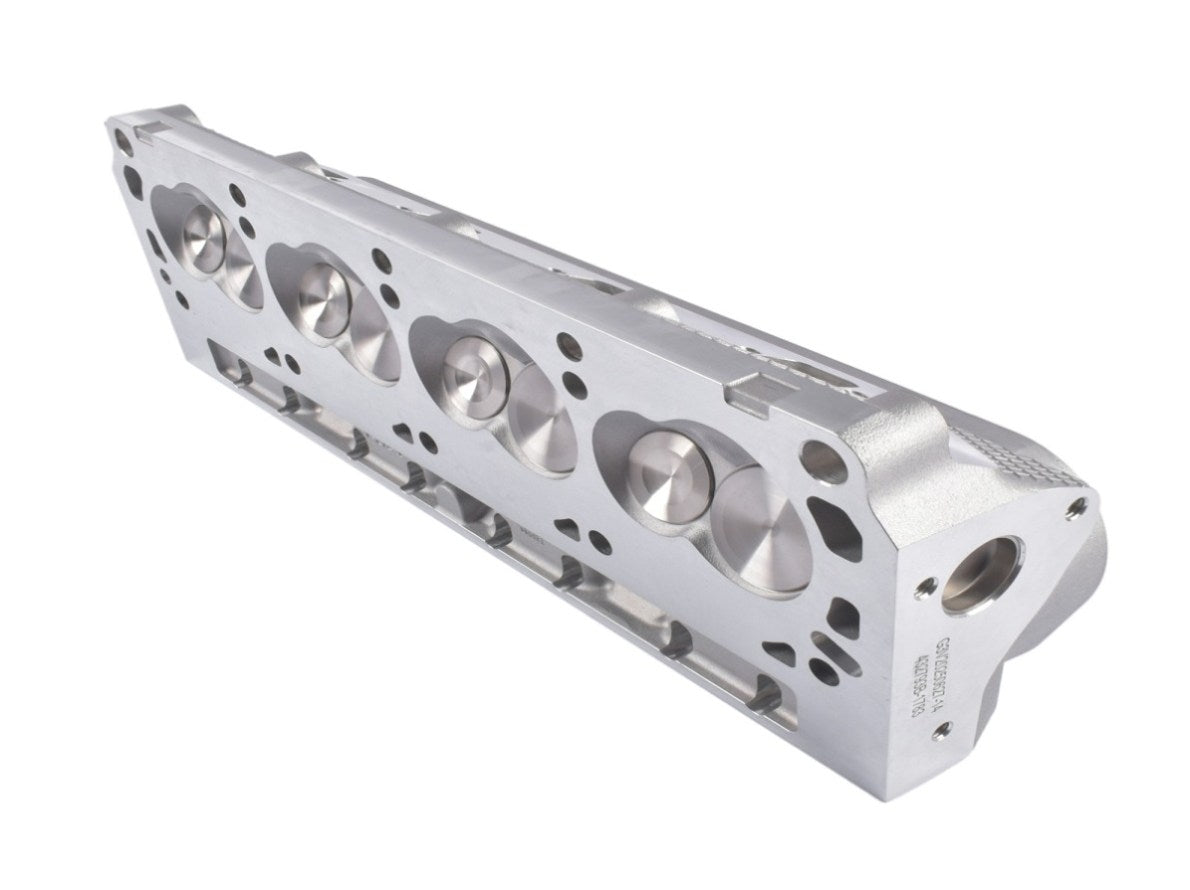

Combustion Chamber Volume (cc):64
Intake Runner Volume (cc):175cc-185cc
Exhaust Runner Volume (cc):64cc
Cylinder Head Material:Cast aluminum
Intake Port Shape:Rectangular
Intake Valve Diameter (in.):2.020 in.
Spark Plug Style:Straight
Exhaust Valve Diameter (in.):1.600 in.
Maximum Valve Lift (in.):0.550 in.

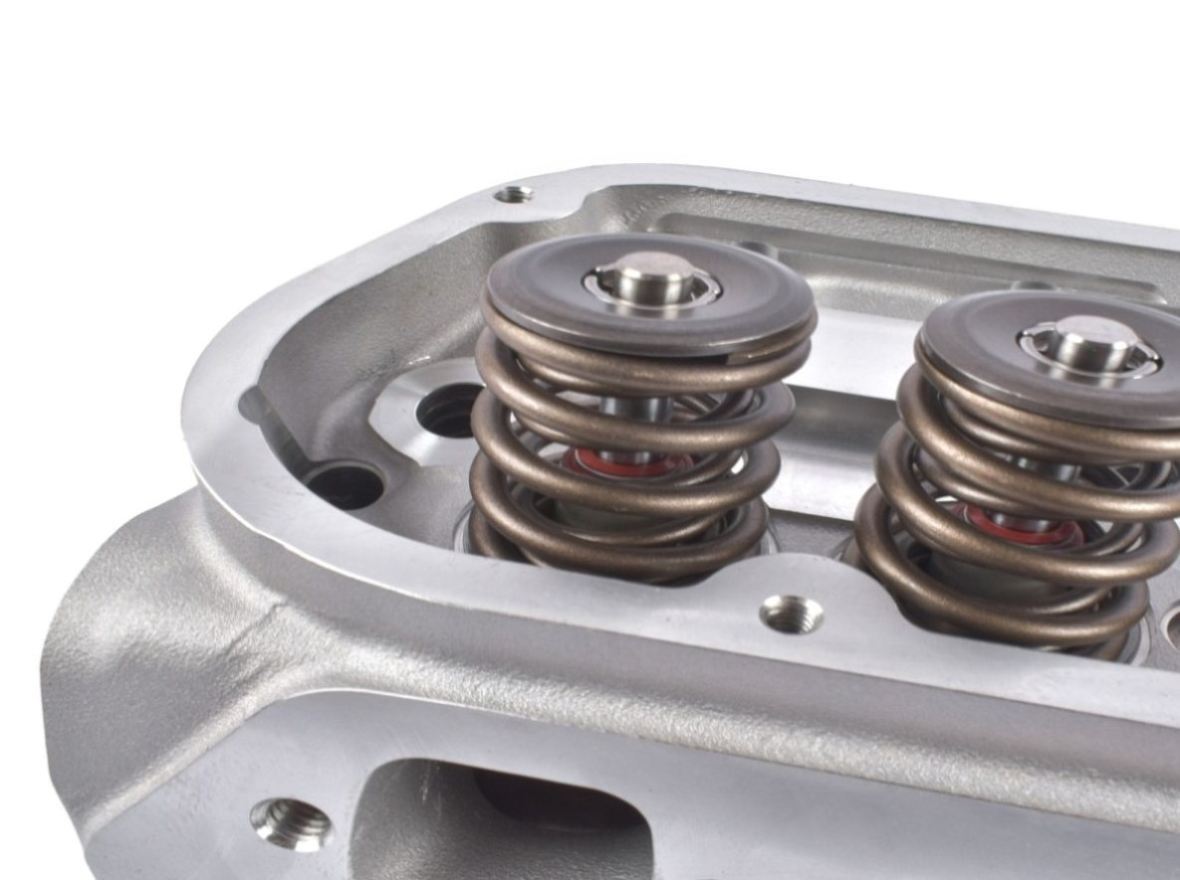

Outside Diameter of Outer Spring (in.):1.460 in.
Retainer Material:Chromoly steel
Lock Style:7 degree
Rocker Arm Nut Thread Size:3/8 in.-24
Guideplate Pushrod Size:5/16 in.
Valve Cover Mounting Style:Perimeter bolt
Intake Valve Angle:20
Exhaust Valve Angle:20
Valve Guide Material:Manganese bronze
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Intake valve material: 4Cr9Si2
Exhaust valve material: 21-4N
Intake Runner Volume (cc):175cc-185cc
Exhaust Runner Volume (cc):64cc
Cylinder Head Material:Cast aluminum
Intake Port Shape:Rectangular
Intake Valve Diameter (in.):2.020 in.
Spark Plug Style:Straight
Exhaust Valve Diameter (in.):1.600 in.
Maximum Valve Lift (in.):0.550 in.
Outside Diameter of Outer Spring (in.):1.460 in.
Retainer Material:Chromoly steel
Lock Style:7 degree
Rocker Arm Nut Thread Size:3/8 in.-24
Guideplate Pushrod Size:5/16 in.
Valve Cover Mounting Style:Perimeter bolt
Intake Valve Angle:20
Exhaust Valve Angle:20
Valve Guide Material:Manganese bronze
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Intake valve material: 4Cr9Si2
Exhaust valve material: 21-4N
-
Compatible EngineFor Ford 289, 302, 351W
