▸OEM Part Numbers

16100-KEN-B11, 16100KENB11

▸Application

Replacement for Honda Rebel 250 CMX250C 2007

Replacement for Honda Rebel 250 CMX250C 2008

Replacement for Honda Rebel 250 CMX250C 2009

Replacement for Honda Rebel 250 CMX250C 2012

▸Package Included

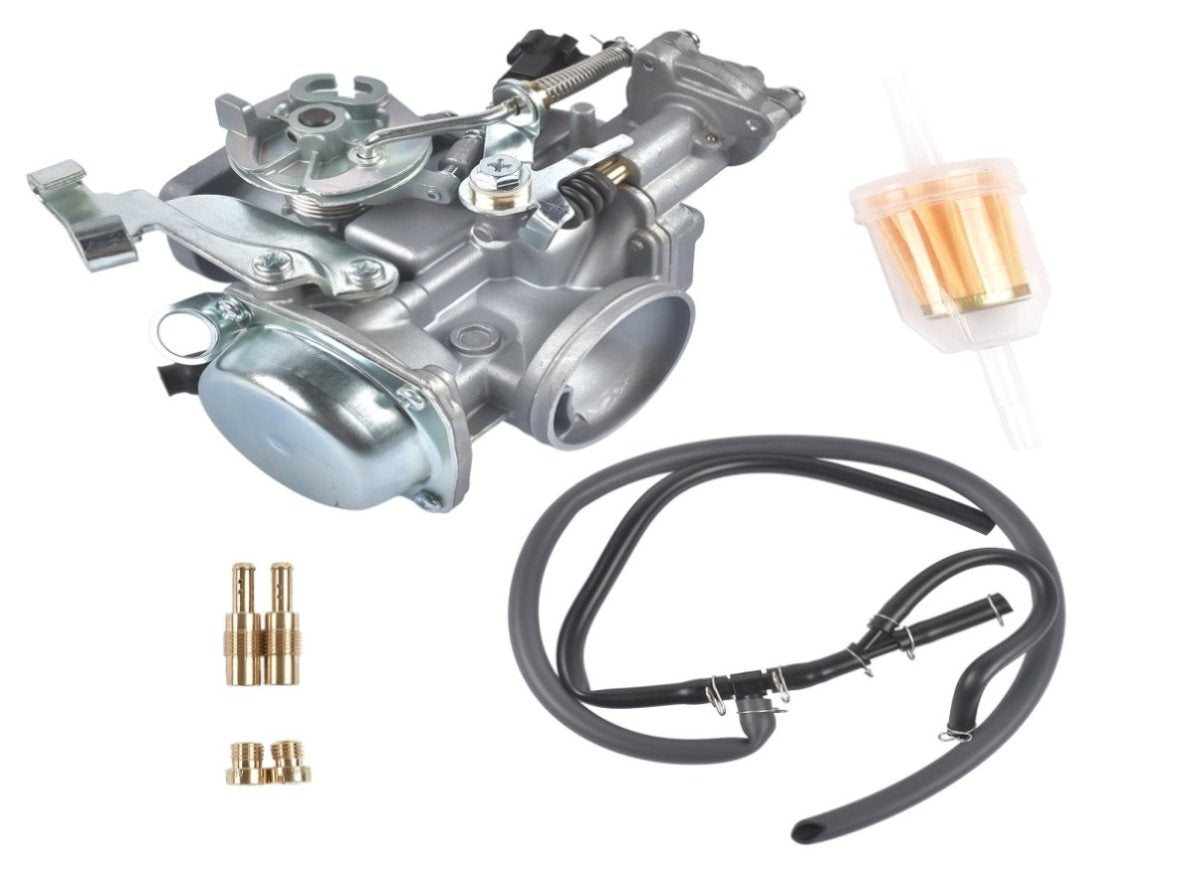

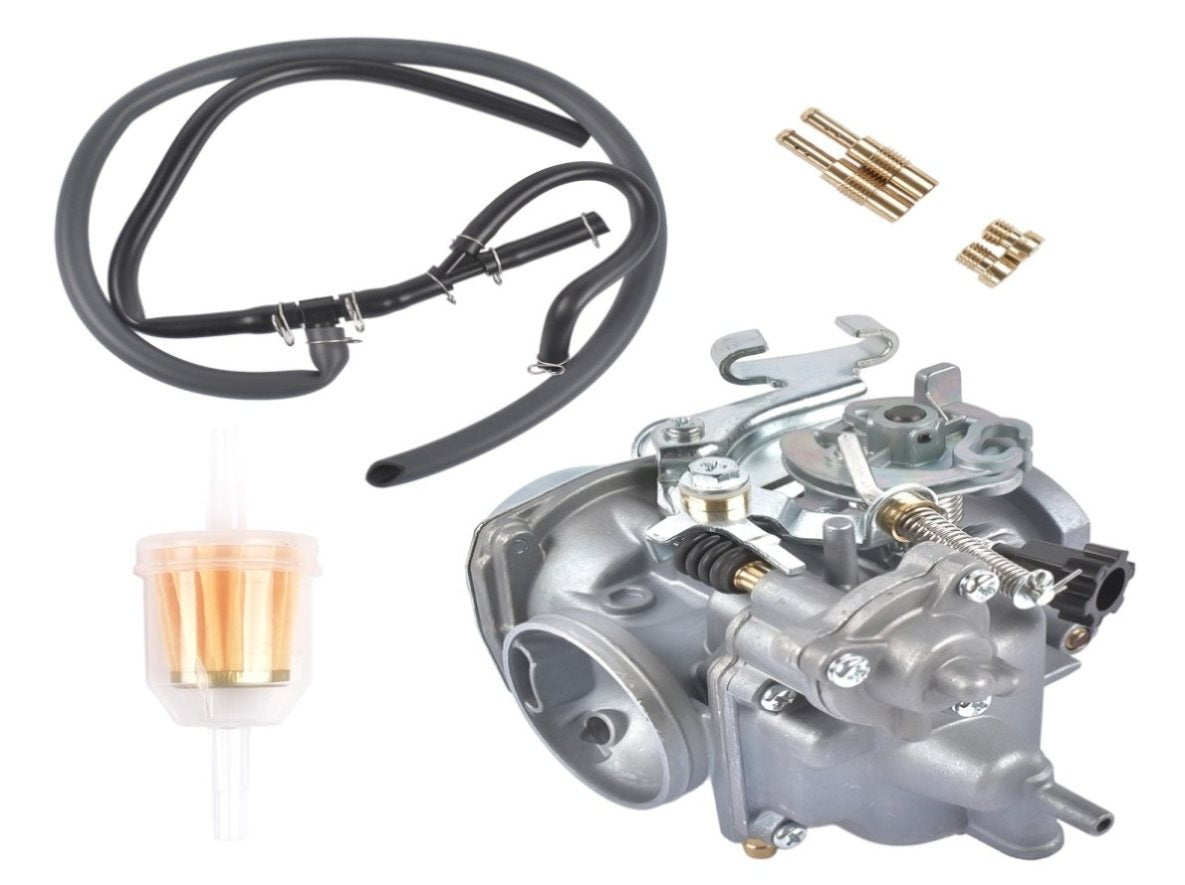

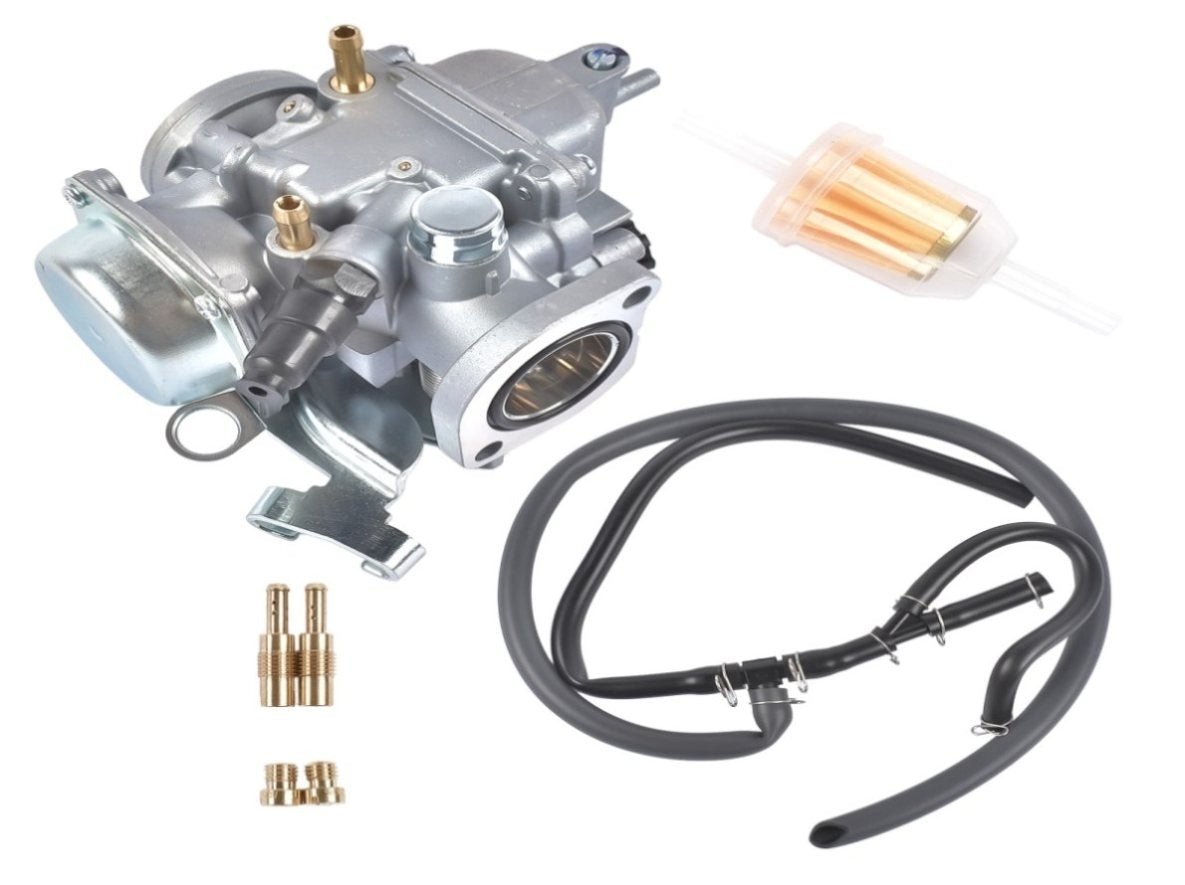

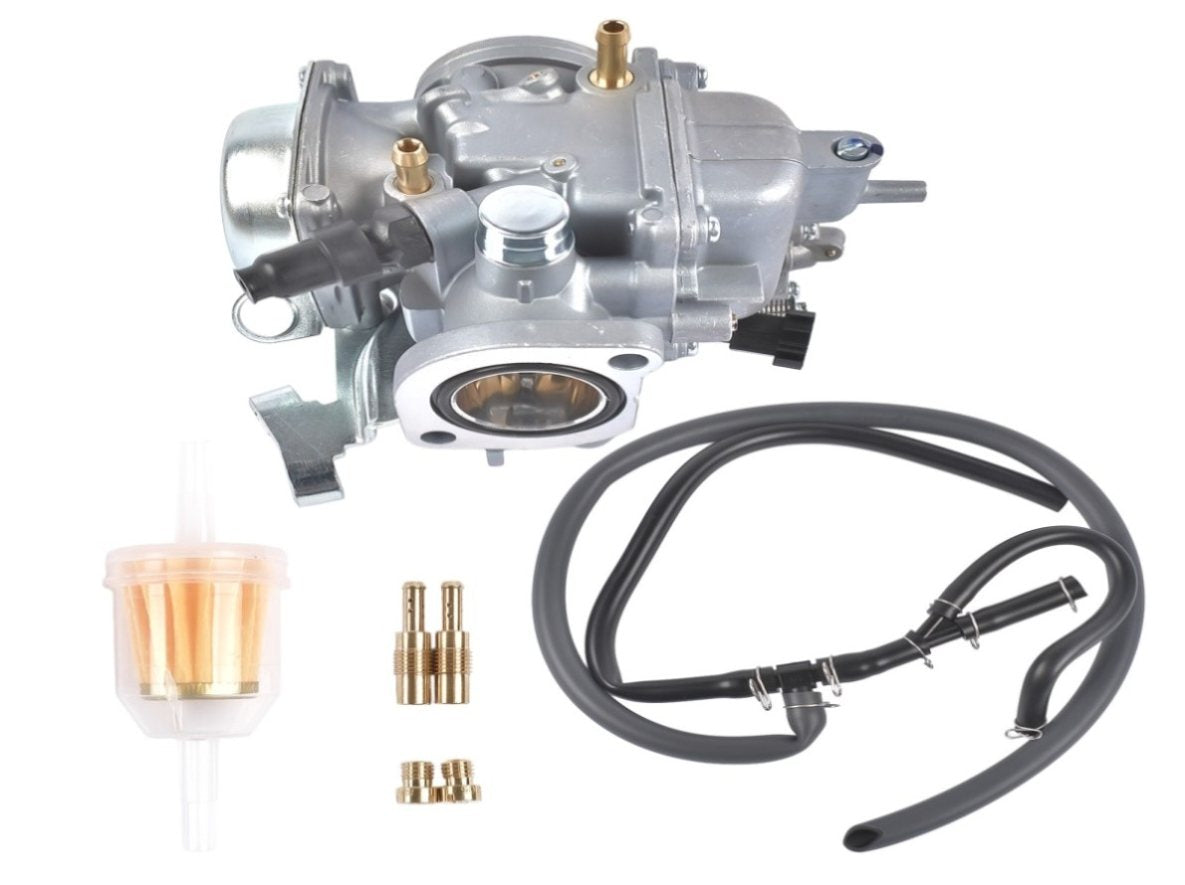

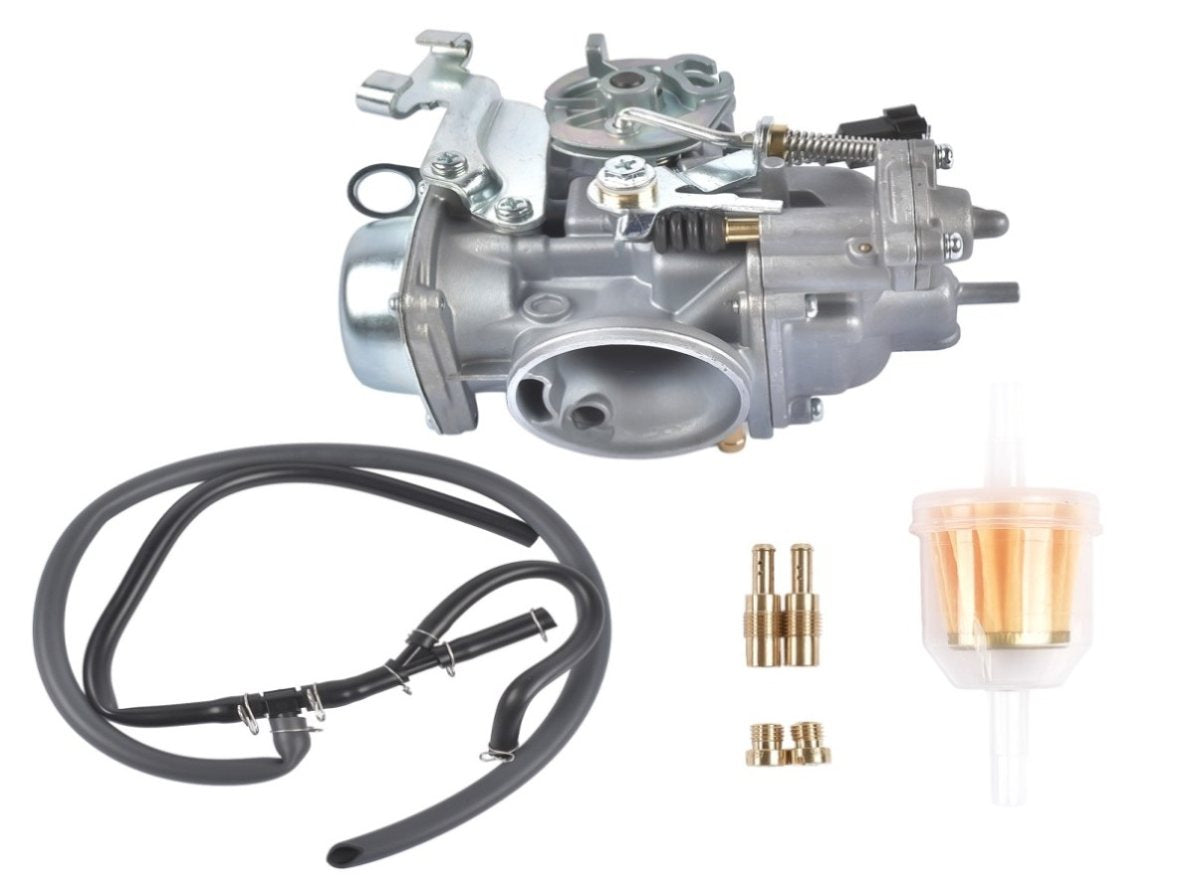

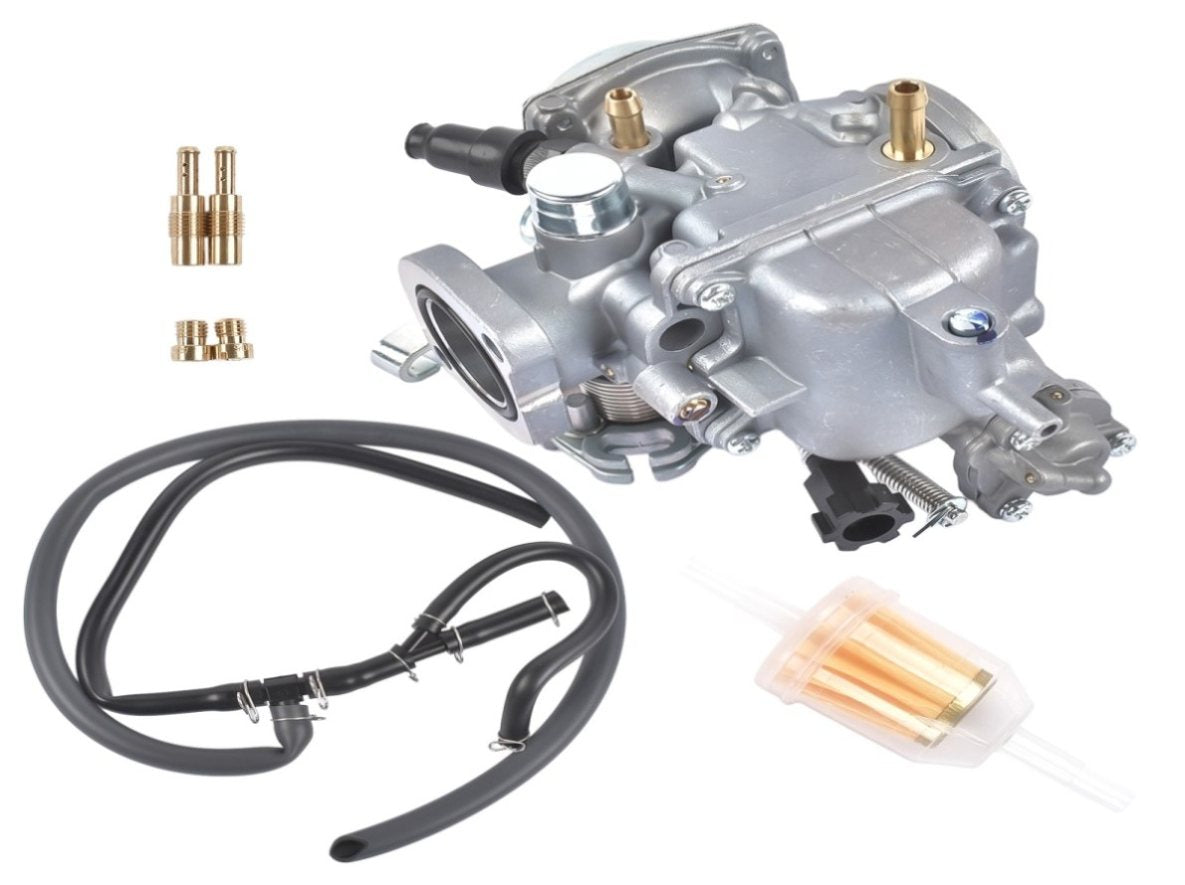

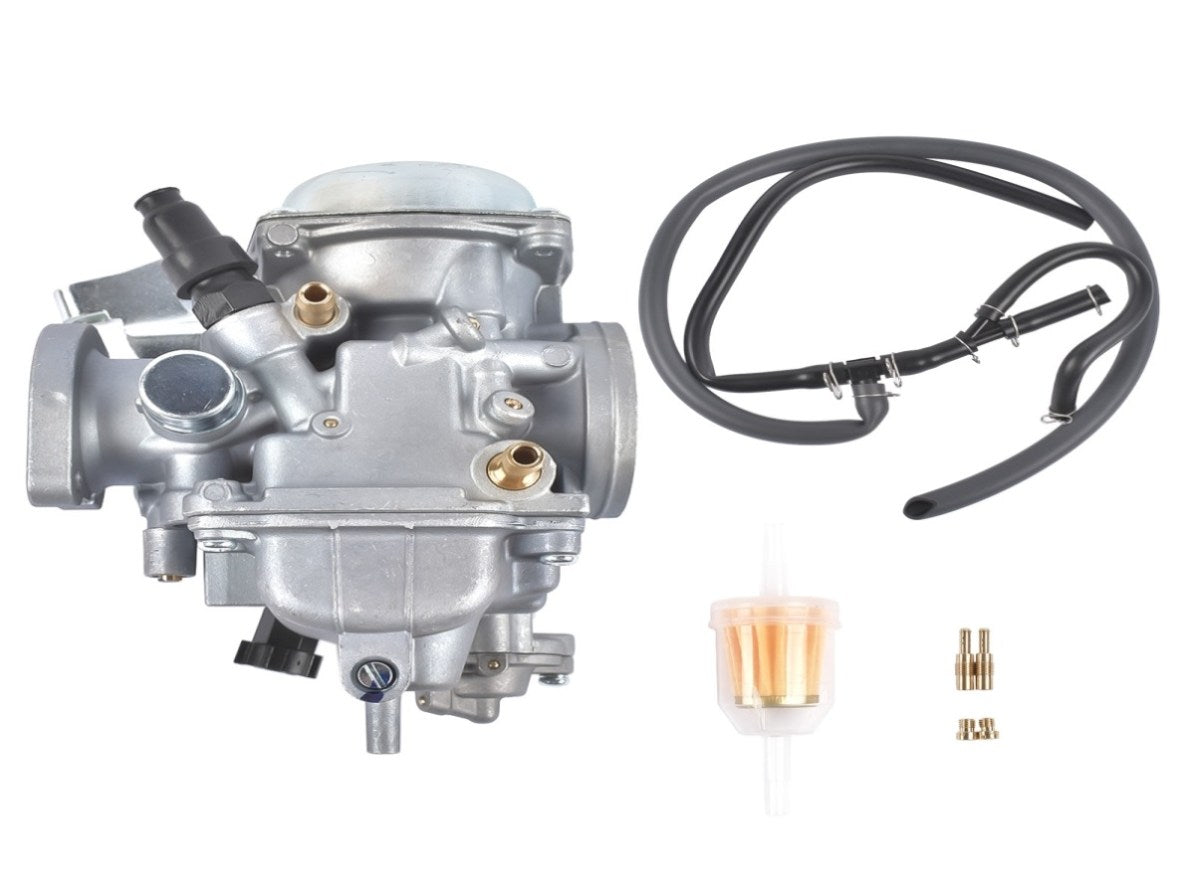

1x Carburetor (As Pics Shown)

▸Carburetor Installation Instructions

Please follow these general steps to complete carburetor installation:

① Final Overall Check Recheck all fuel hoses, wires and mounting bolts. Confirm every connection is tightened with no leaks.

② Engine Test Run Operate throttle and start the engine. Check for odd noise, fuel leakage or stalling, perform fine tuning if necessary.

③ Intake & Exhaust Inspection After installation, check intake system for air leaks. Make sure cylinders work normally and exhaust path stays unblocked.

④ Carburetor Tuning Adjust idle speed and air-fuel mixture screws based on equipment specs to get smooth engine performance.

⑤ Electronic Wiring (If fitted) For carburetors with electronic components like auto throttle control, connect wires properly and secure all terminals.

⑥ Fix Carburetor in Place Tighten mounting bolts to hold carburetor firmly on intake manifold without wobble.

⑦ Hook Up Fuel Hose Connect fuel pipe to carburetor fuel inlet, seal joint tightly against fuel seepage. Swap out fuel lines that are cracked or aged.

⑧ Fit New Carburetor Place new carburetor on original mounting location. Align accurately with intake port; do not reverse intake/exhaust ports then fasten screws.

⑨ Take Off Old Carburetor Shut engine down, disconnect fuel lines and power for electronic systems. Detach intake/exhaust hoses, remove fasteners, lift carburetor gently to avoid damage.

⑩ Mounting Surface Cleaning Clean carburetor mounting base and intake manifold, remove dust and debris that may impact performance.

⑪ Pre-installation Part Inspection Examine carburetor and accessories before assembly. Check for damage, wear or dirt to ensure all components are usable.

This is a universal installation reference. For model-specific requirements, please refer to the original manufacturer manual. Check carburetor joints for leakage or damage.
