Billet Wheel T3 Turbo fit for BMW 325CI 2.5L Turbocharger T3 & V-Band Flange 79447712

T04E T3 T04E Universal Billet Wheel Turbocharger V-Band Flange

Application :

Perfect fit for all 4 or 6 CYL, 1.5L to 2.5L engines
*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Specification :

Exhaust Inlet Flange: T3 4 bolt Flange
Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")
Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm(length)85.8mm(width)
Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: w/ Wastegate
Thrust Bearings: 270 Degrees
Hosepower:  Up to 420 HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Polished
Condition: 100% Brand New

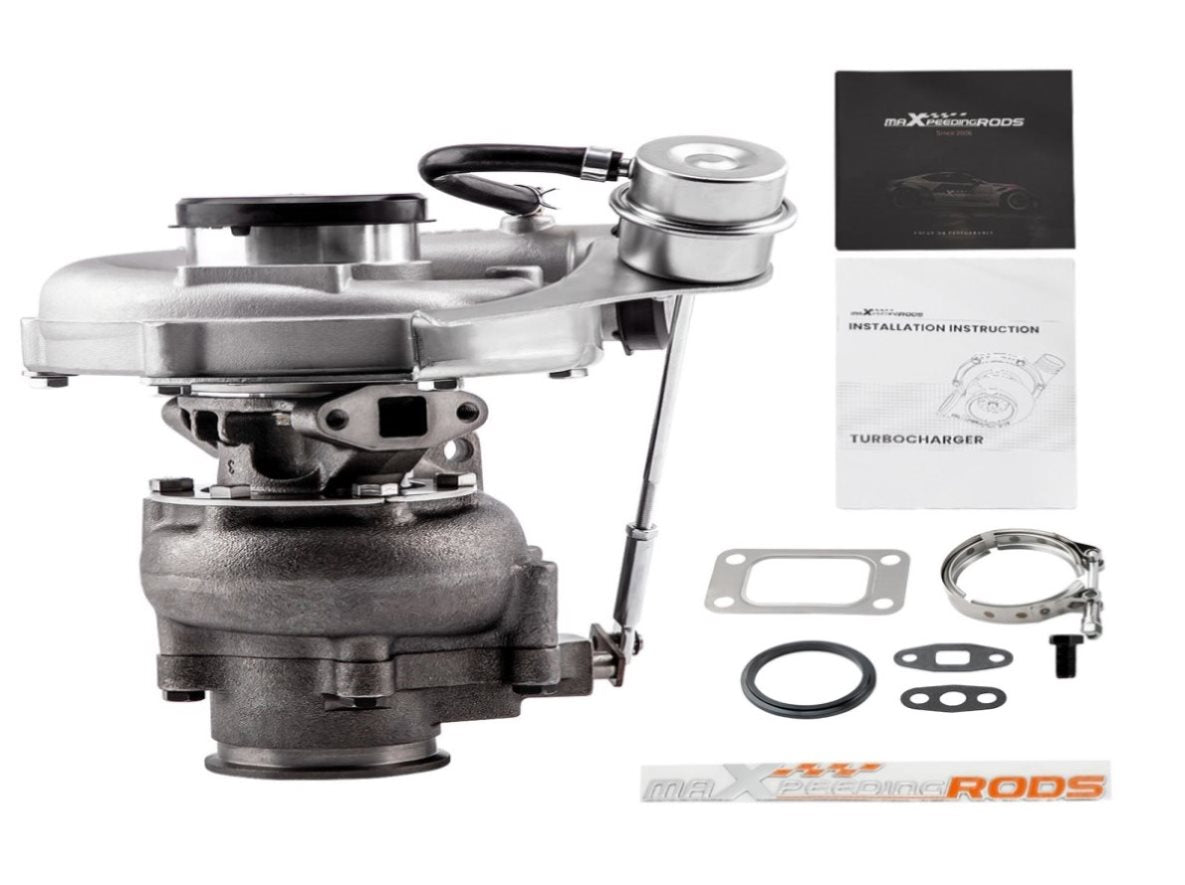

Accessories: You will get exactly as shown as picture above
Package Size:30x 28x 24 cm
Package Weight: 9180g

Features:

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown fit for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

NOTICE

 * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
