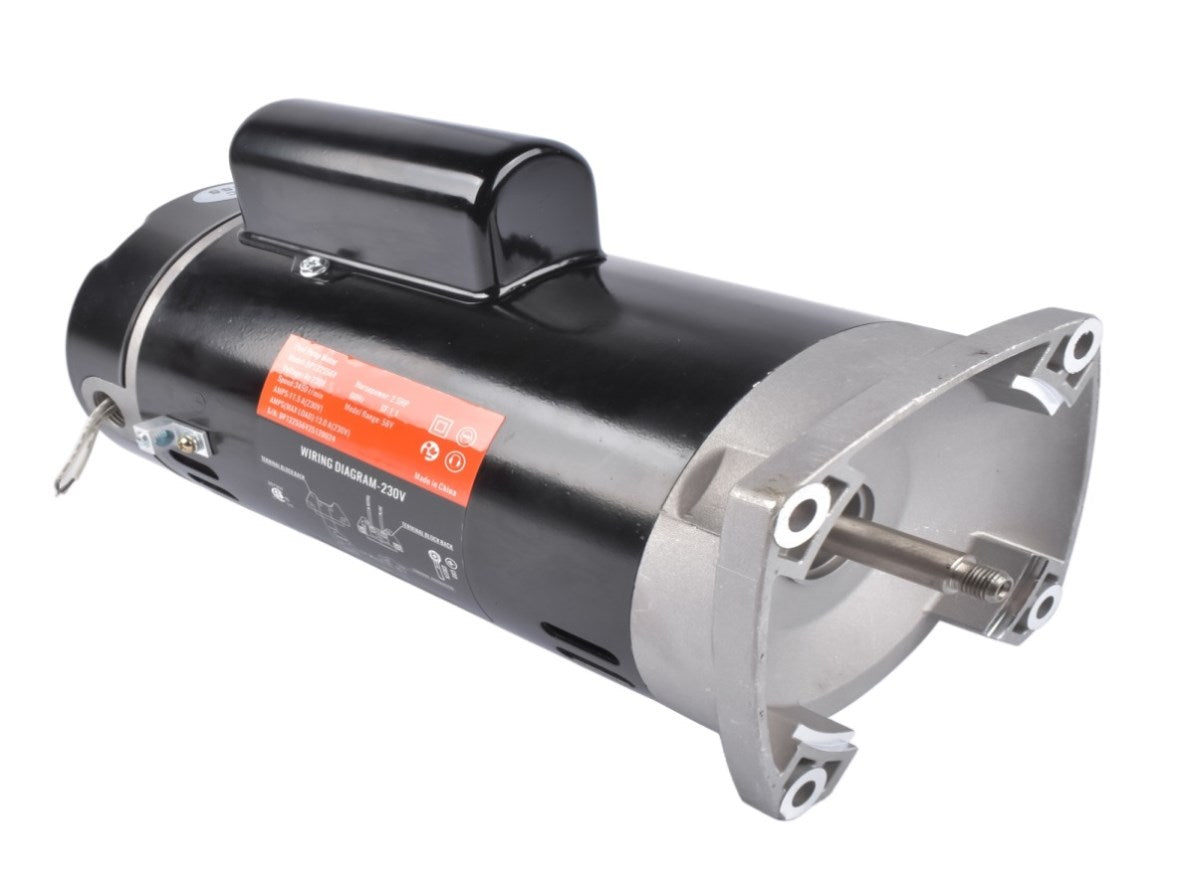

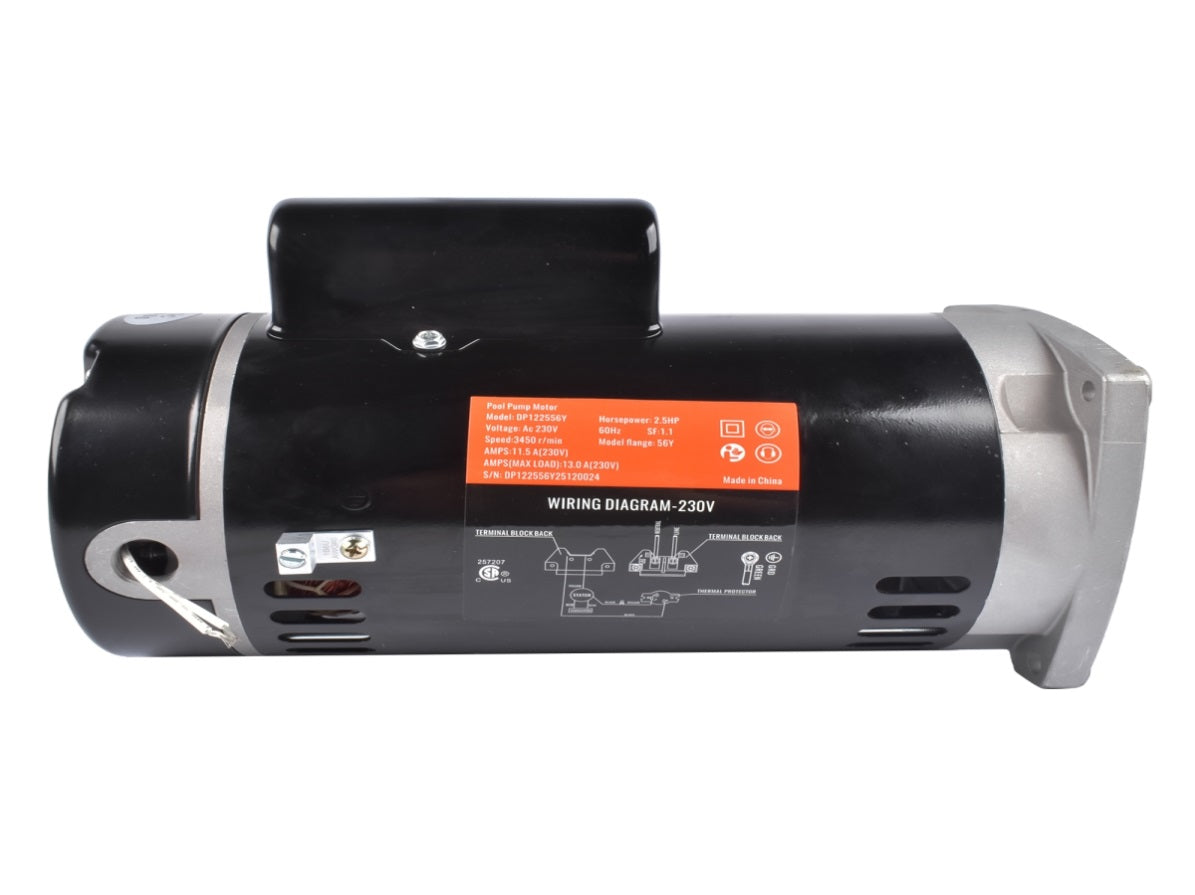

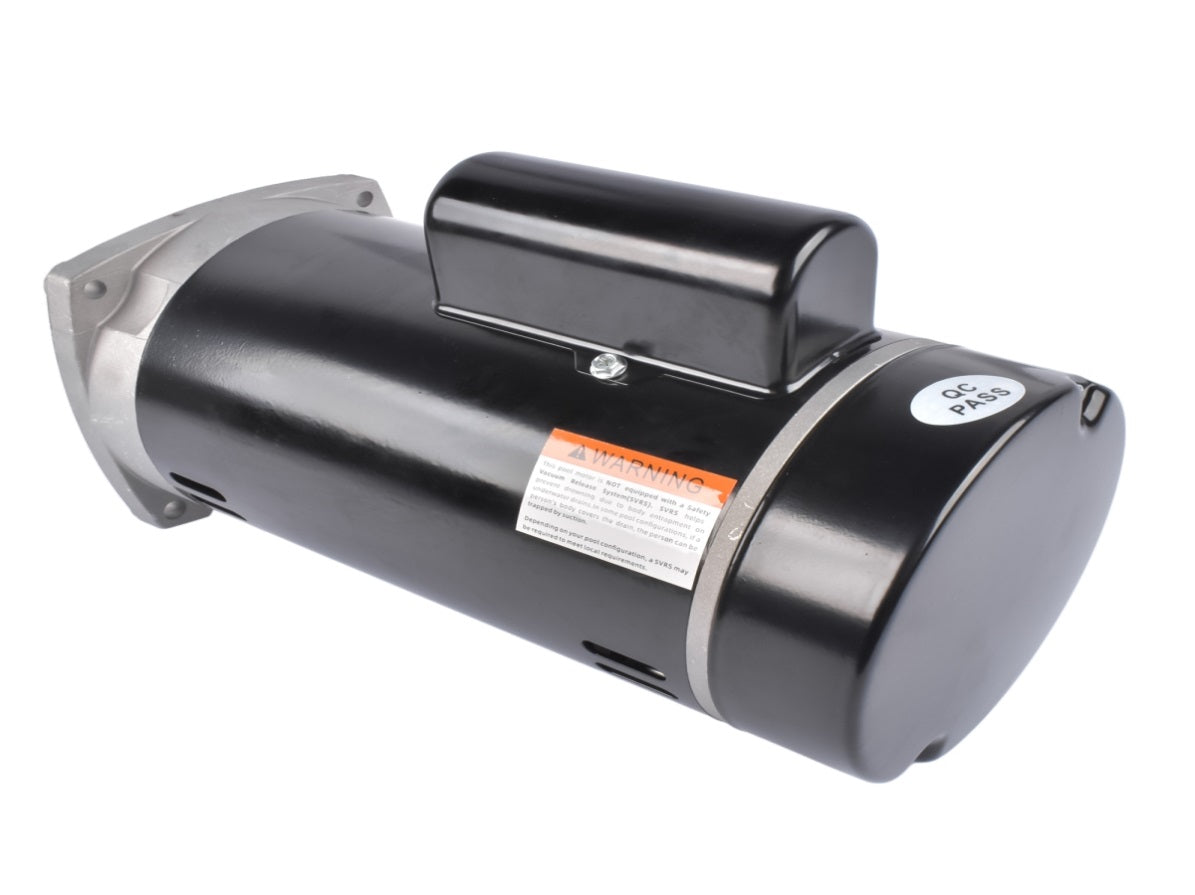

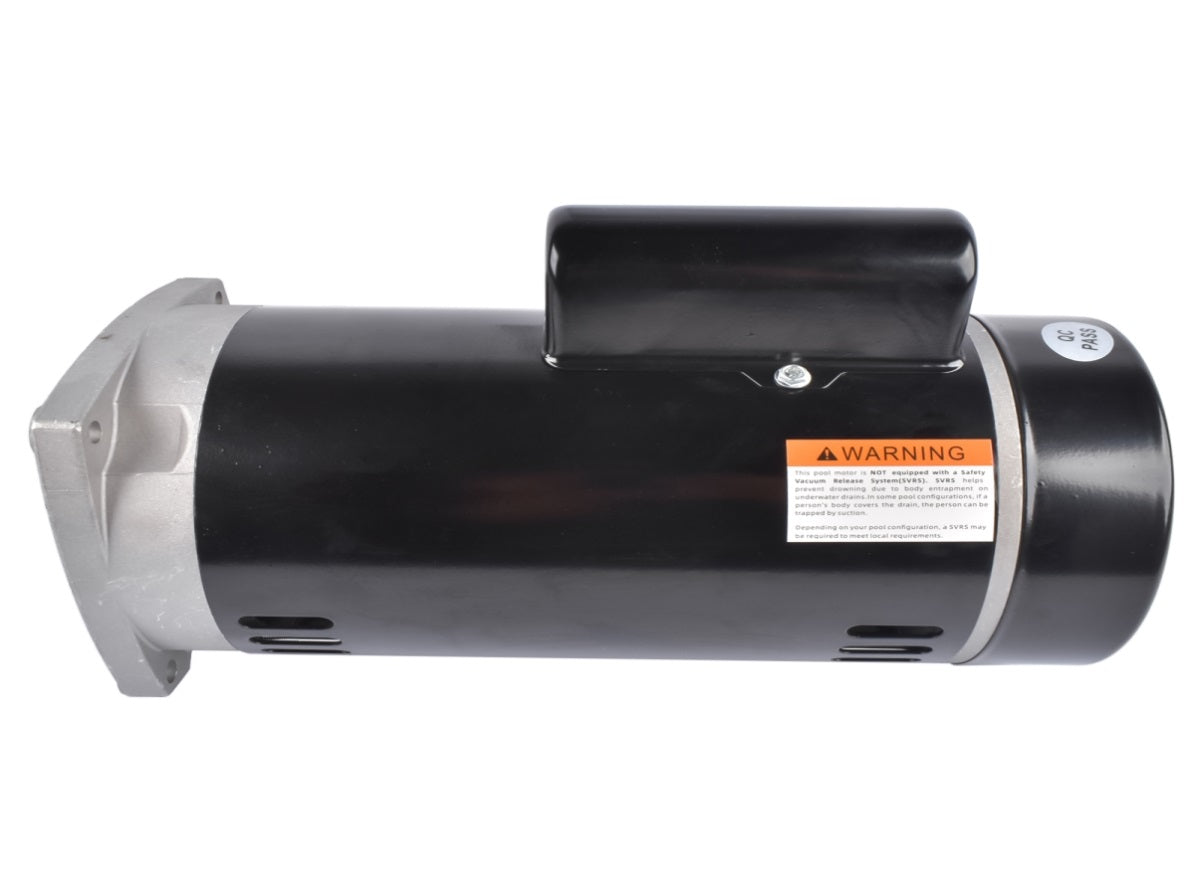

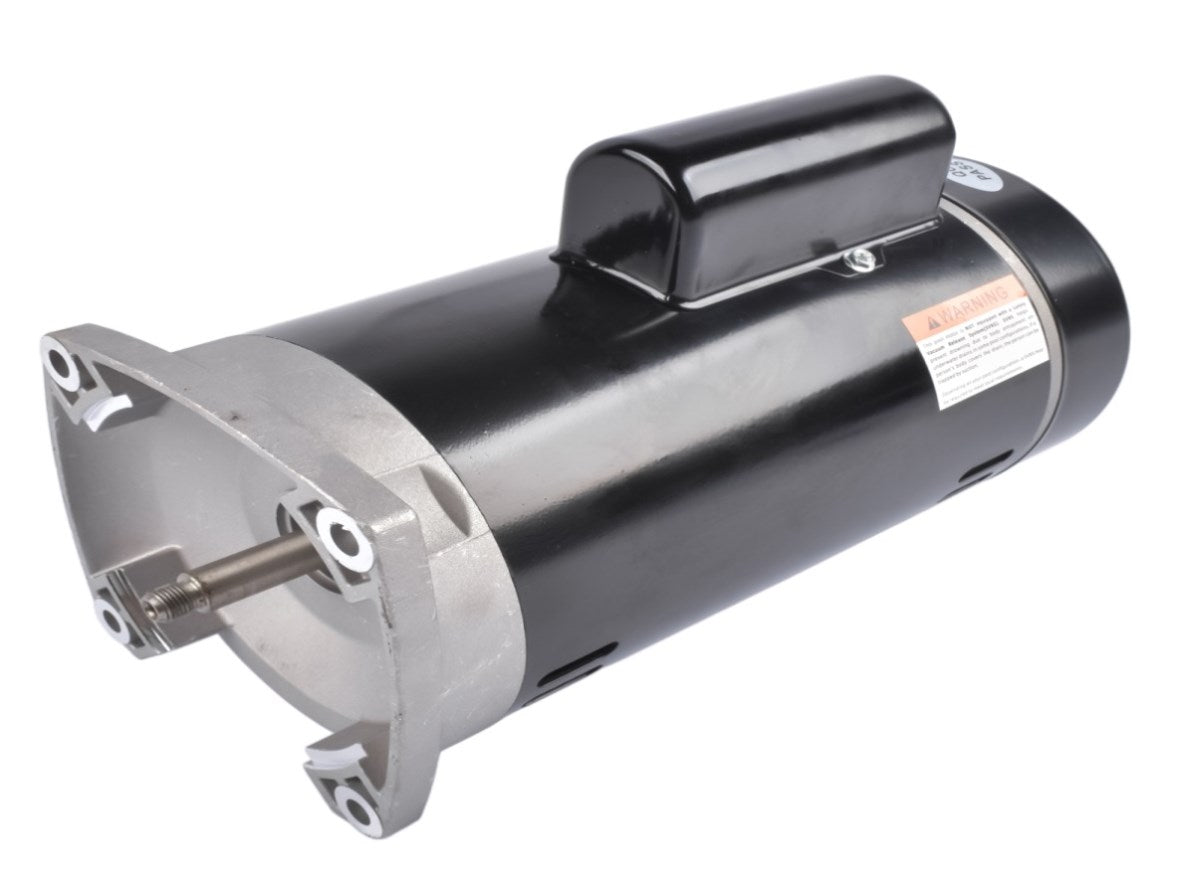

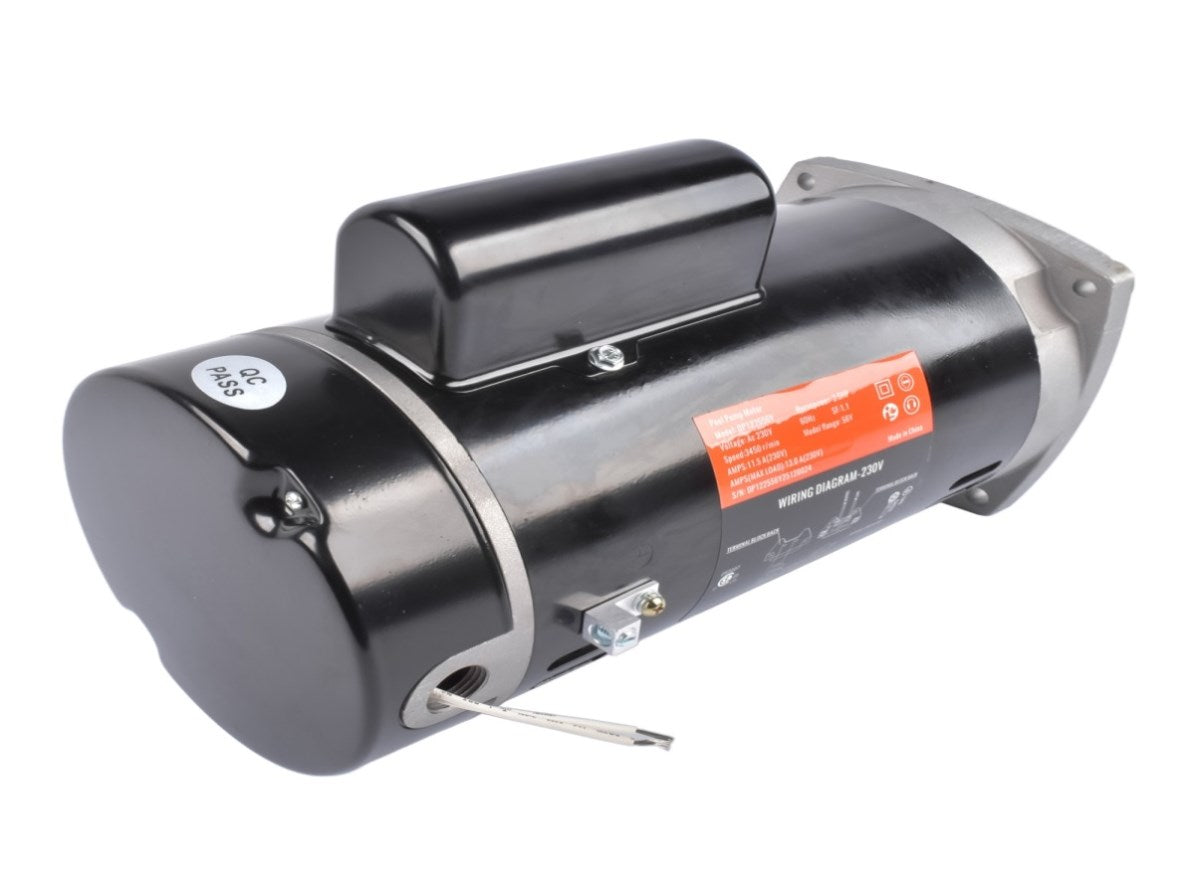

B2840 B840 2.5 HP 230V 3450 RPM Pool Pump Motor 56Y Frame Square Flange Fits for Whisperflo 49292636
GT-49292636
Out of stock
$420.16
Description: The B2840 Pool Pump Motor is a square flange style motor with a 56Y Frame and is an Up Rated 2.5 Horsepower motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded...
customers are viewing this product
Description:

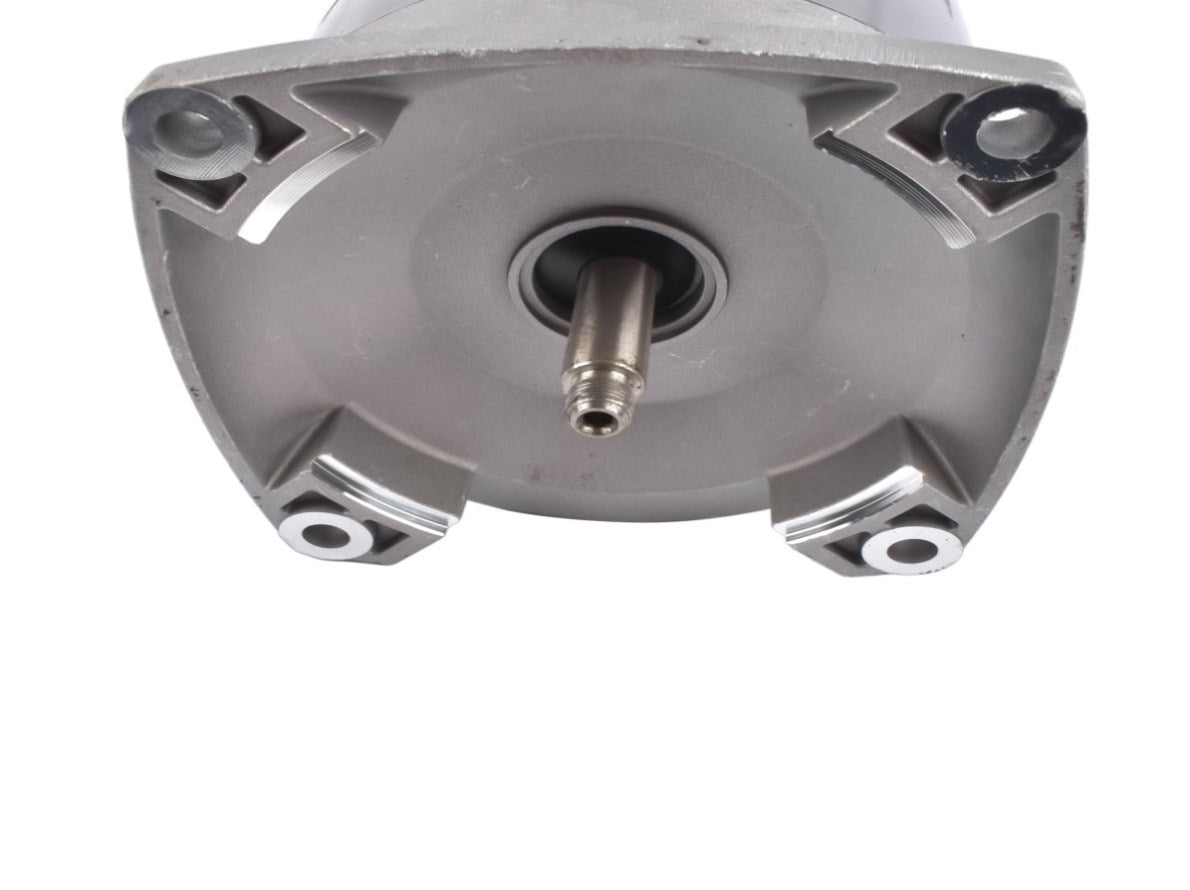

The B2840 Pool Pump Motor is a square flange style motor with a 56Y Frame and is an Up Rated 2.5 Horsepower motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.
OE Number:
B2840, B840
Specifications:
Type: Pool Pump Motor
Voltage: 230V
Frequency: 60 HZ
Output KW: 1.87 KW
Output HP: 2.5 HP
Amps: 11.5 amp
Speed: 3450 RPM
Frame: 56Y
Enclosure: Drip Proof
Ambient Temperature: 50℃
Thermal Protection: Thermally Protected
Shaft Type: 5/8" Diameter threaded shaft
Speed: Single
Mounting: Square Flange
Automatic Overload Protection - Service Factor 1.04
