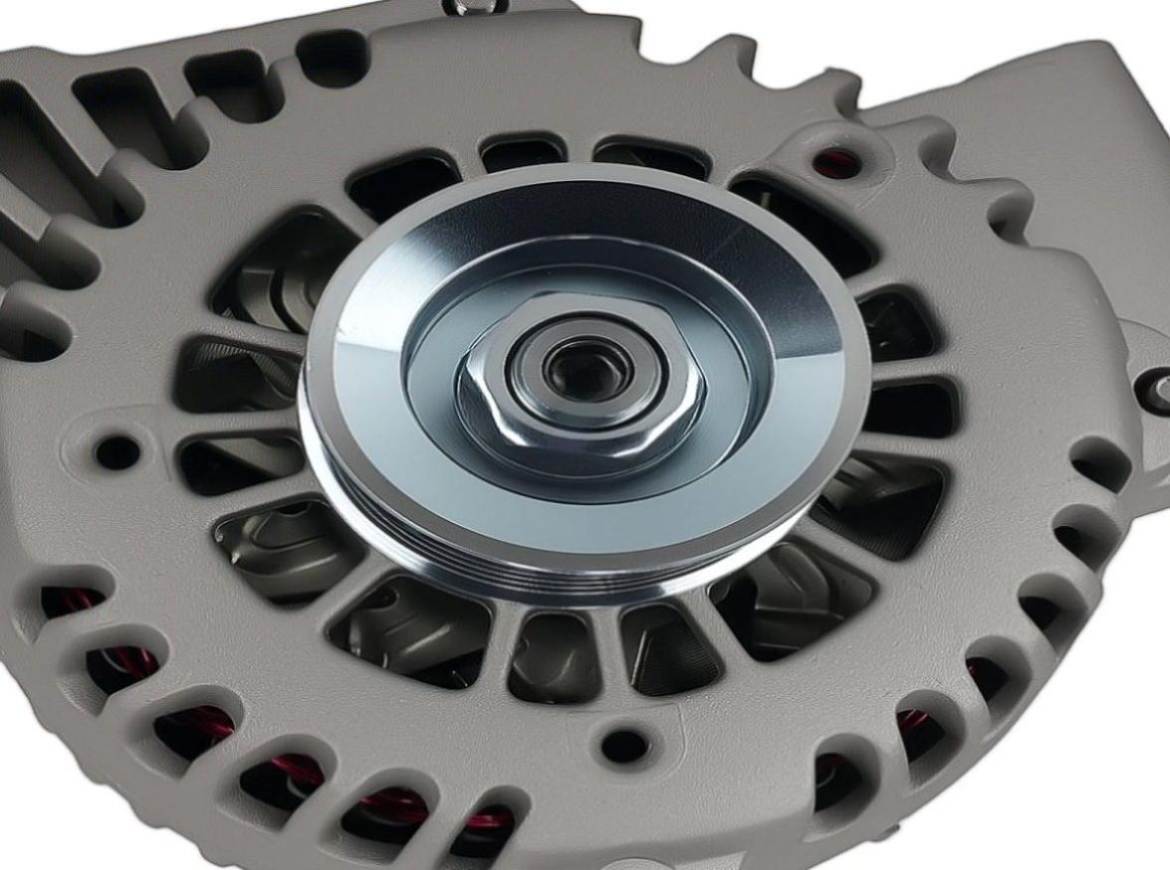

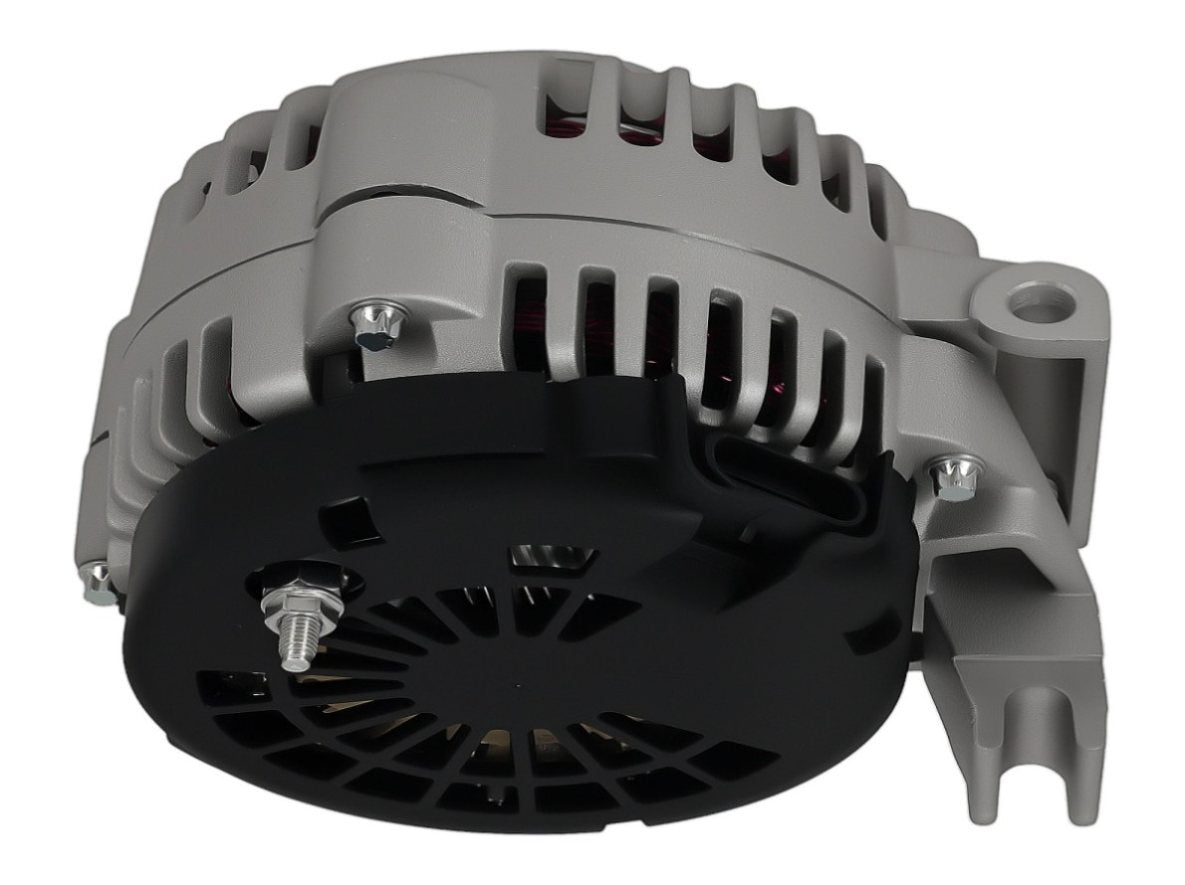

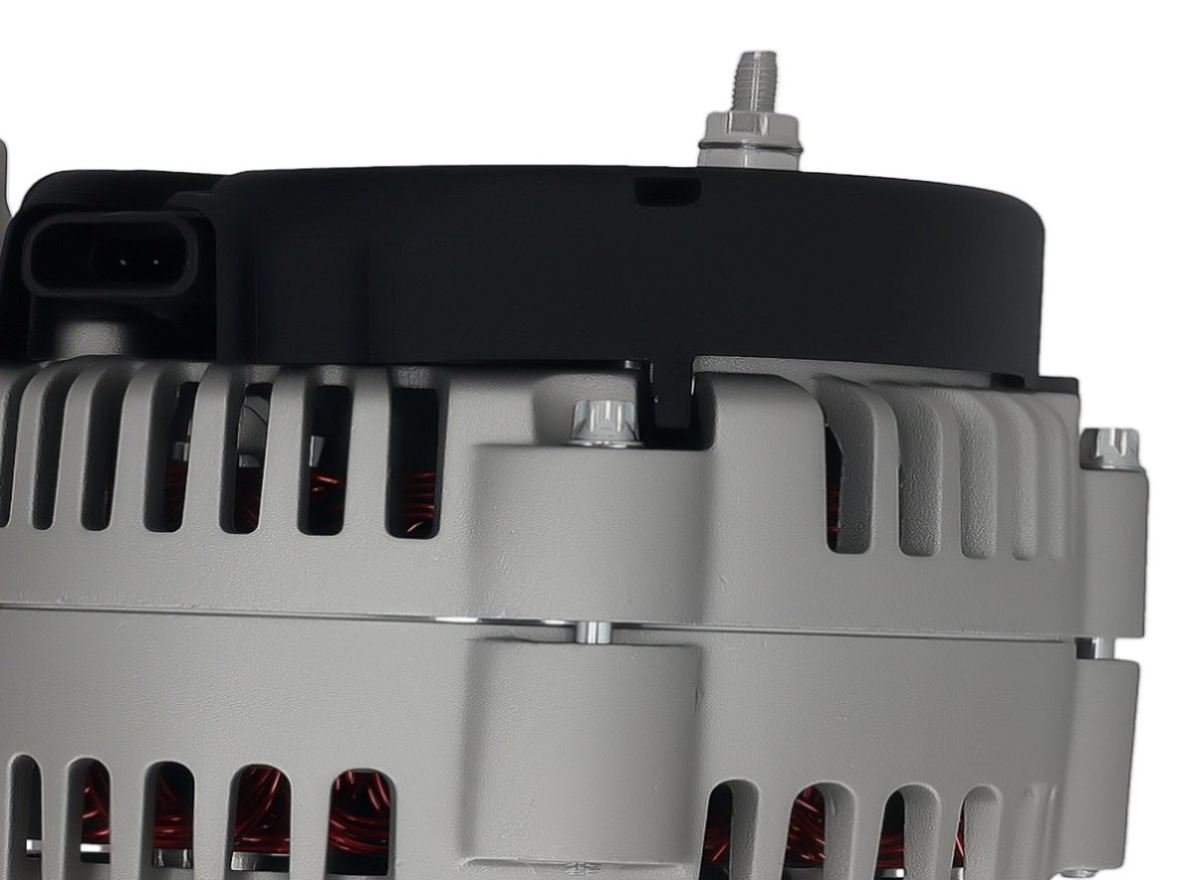

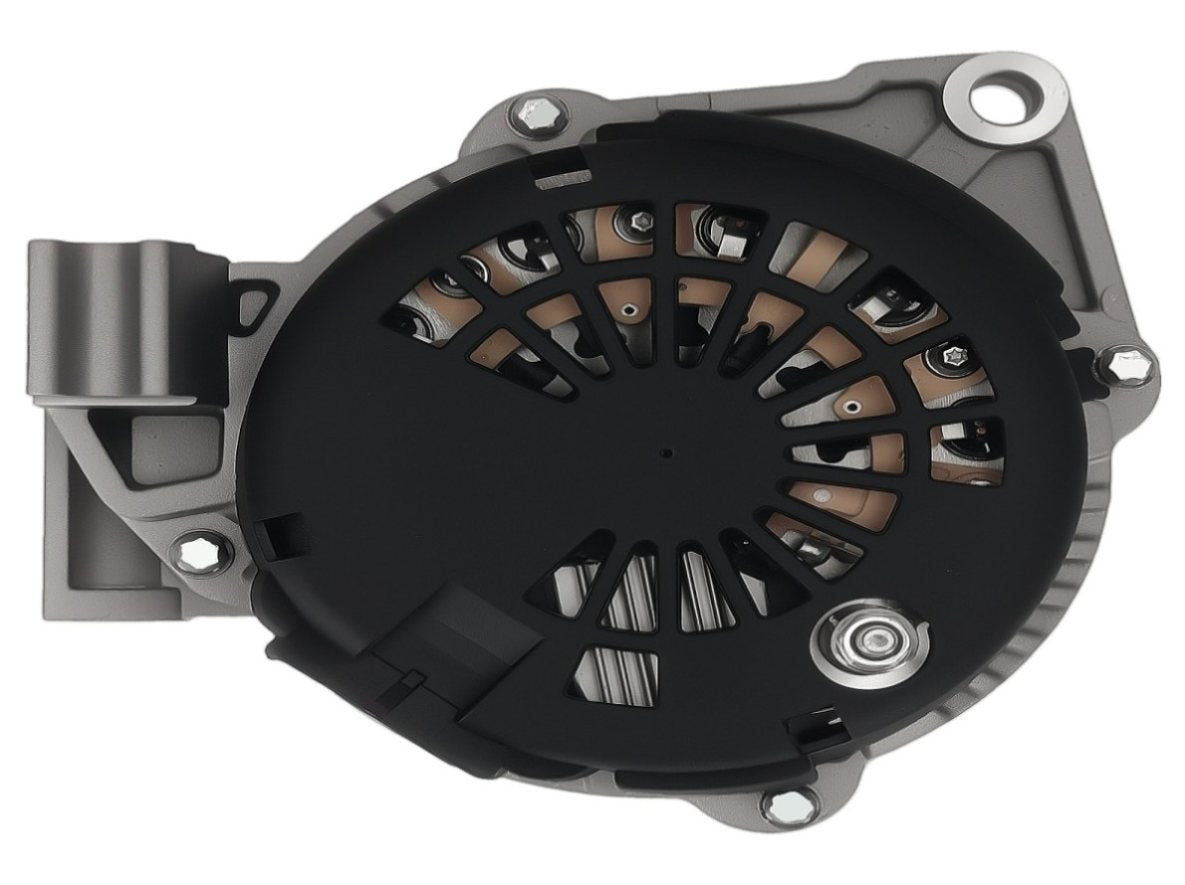

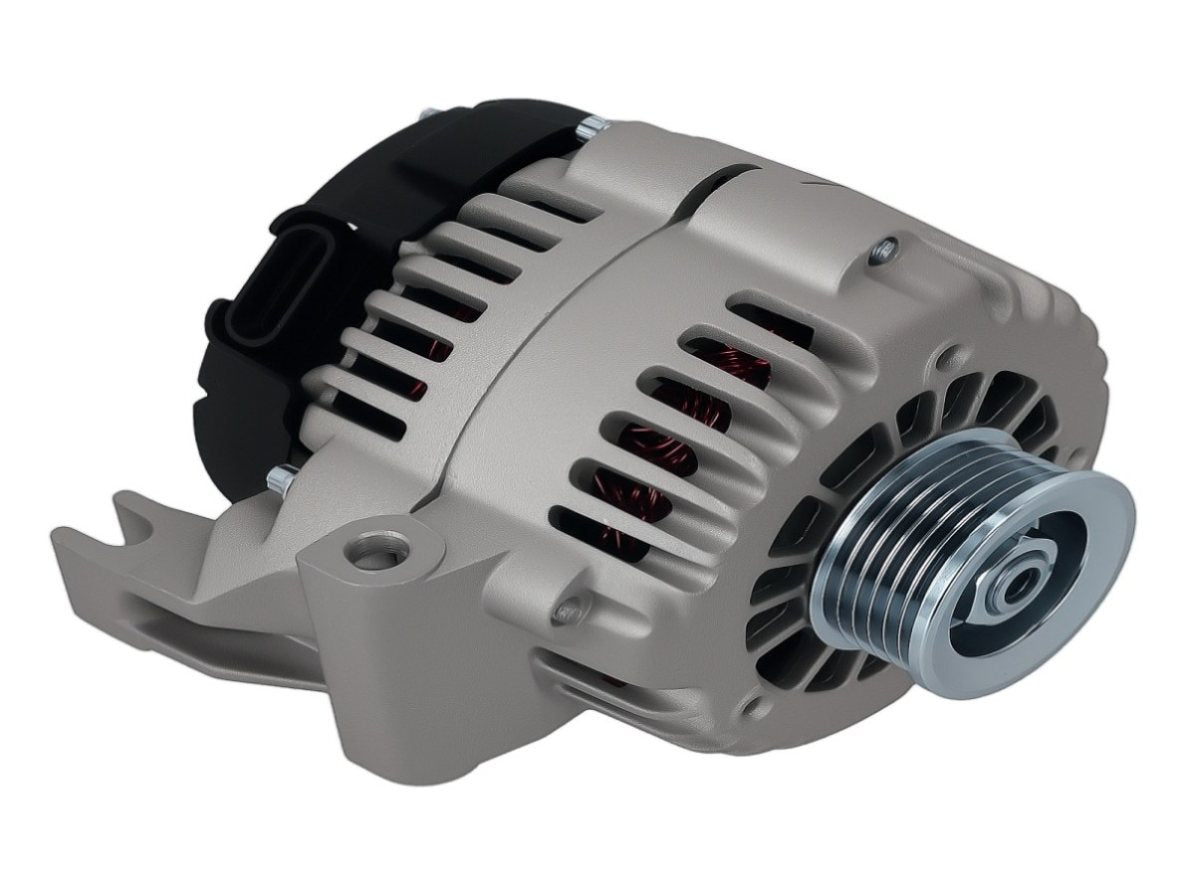

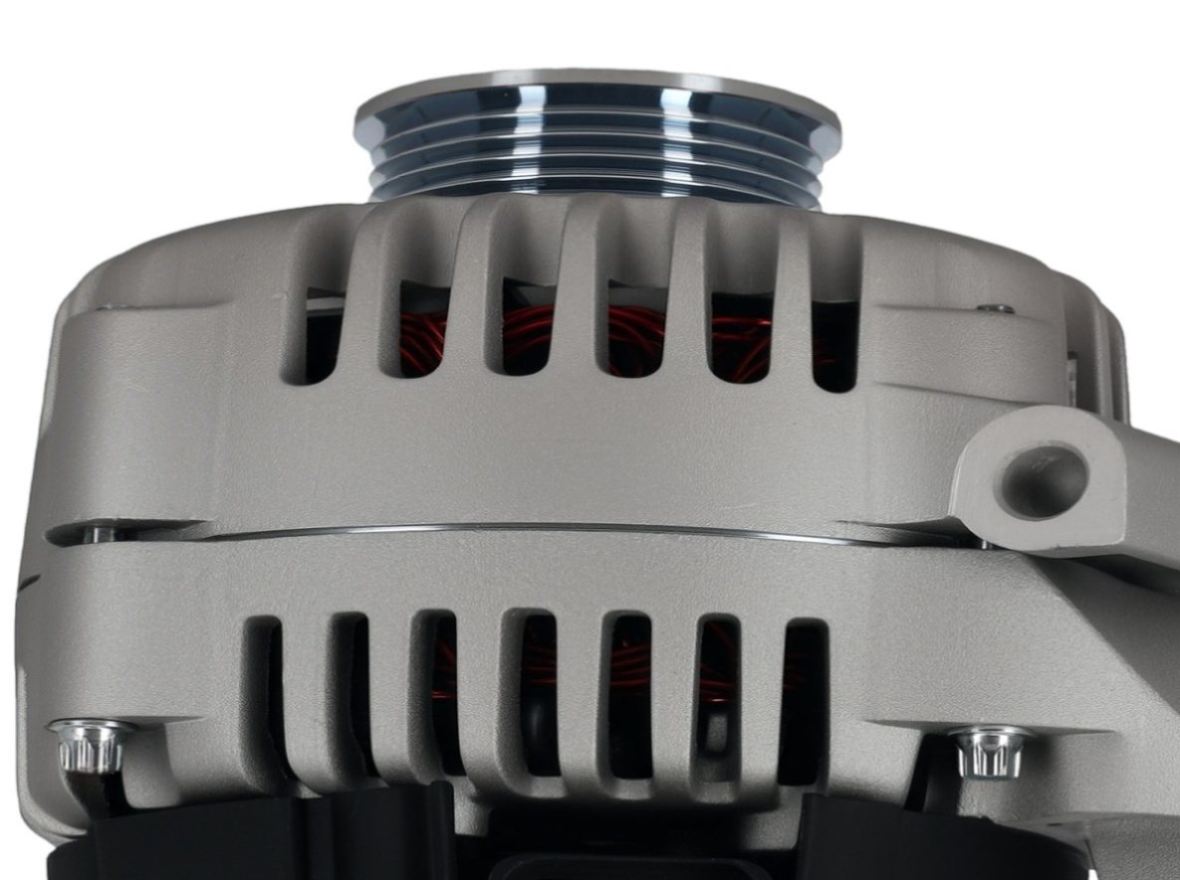

Alternator fit for Buick LeSabre Pontiac Bonneville V6 3.8L 3800cc 00-04 8285612AV 12608411

Application

fit for Buick LeSabre  V6 3.8L 3800cc 231cid 105 Amp;  2004
fit for Buick LeSabre V6 3.8L 3800cc 231cid 2000-2003
fit for Pontiac Bonneville V6 3.8L 3800cc 231cid VIN K 2001
fit for Pontiac Bonneville V6 3.8L 3800cc 231cid wo/Supercharger 2002-2003
fit for Pontiac Bonneville V6 3.8L 3800cc 231cid Delco Unit, 105 Amp  2004
fit for Pontiac Bonneville V6 3.8L 3800cc 231cid  2000

OE/Part Number
10464439, 10480241, 8285612AV, 8285N, 8245N, 36-8245, A-1551
112849, 10480411W, 10480241W, 1N-4804A, 213-4804A, 13-4804A
1-2219-01DR, 321-1799, 8245, 10480411, 25744164, 400-12150
ADR0185, ADR0270, 334-2524, 8285612, 90-01-4337, 90-01-4358
25744164W, 10464491, 400-12150R, 400-12149, 400-12149R, 334-2489
334-2524A, 321-1857, 321-1784, 15580009, 2-08245, 10464421, 21781
21799, 91601, P8245, 134809A, 134820A, 134804A, 66373, AL8775X,
AL8765X, RM1292, RM1380, 90-01-4337N, 896, 954, N8245, 1N4804A
8245AN, N4941-12-6, AL8775N

Specification

Type: Alternator
Design / Type: PMA
Voltage: 12V
Rotation:  CW
Amperage: 105A
Pulley Class: S6
Number of Grooves: 6-Groove Pulley
Regulator:  IR
Fan Type: IF
Plug Code: 314

Feature
1. MaXpeedingrods Alternator is made from 100% new components,  never Compromise on Used/Refurbished one.Our alternators provide reliable power fit for every journey—whether on main roads, country lanes, or remote tracks
2. This alternator provides high efficiency and reliability, ensuring stable power supply fit for your vehicle. It utilizes modern design and manufacturing technologies to deliver excellent performance and provide reliable power fit for various electrical equipment and charging systems.
3. The robust and precision CNC machined design to reduce friction, vibration and noise, reducing the need fit for frequent replacements. Rotors and stators are calibrated and then sealed with secondary insulating coating to help prevent shorts.
4. Built to strict quality control standards 100% factory tested, including load tests, voltage regulation, cycling tests, and heat resistance tests. Engineered with premium brushes and fault-resistant parts fit for significantly longer-lasting alternators.

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled fit for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are fit for compatibility reference only.
