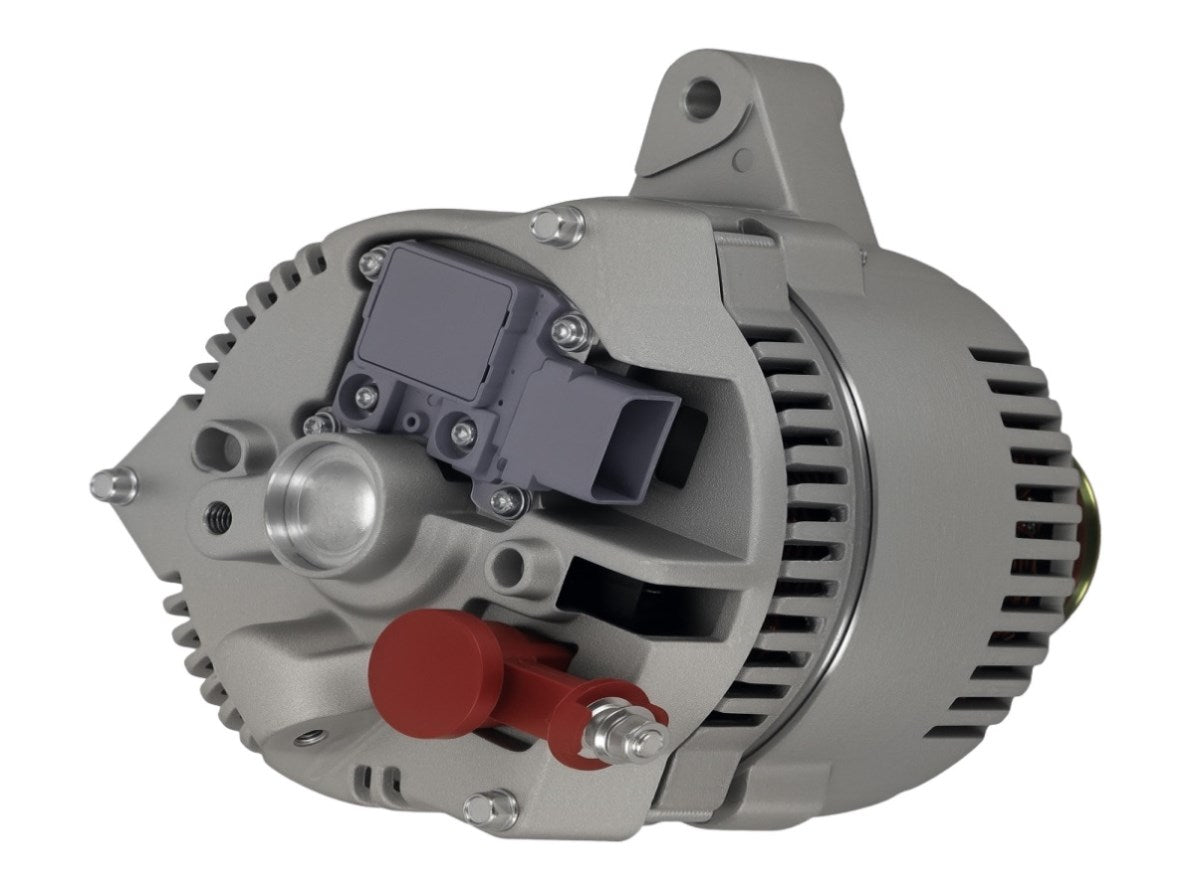

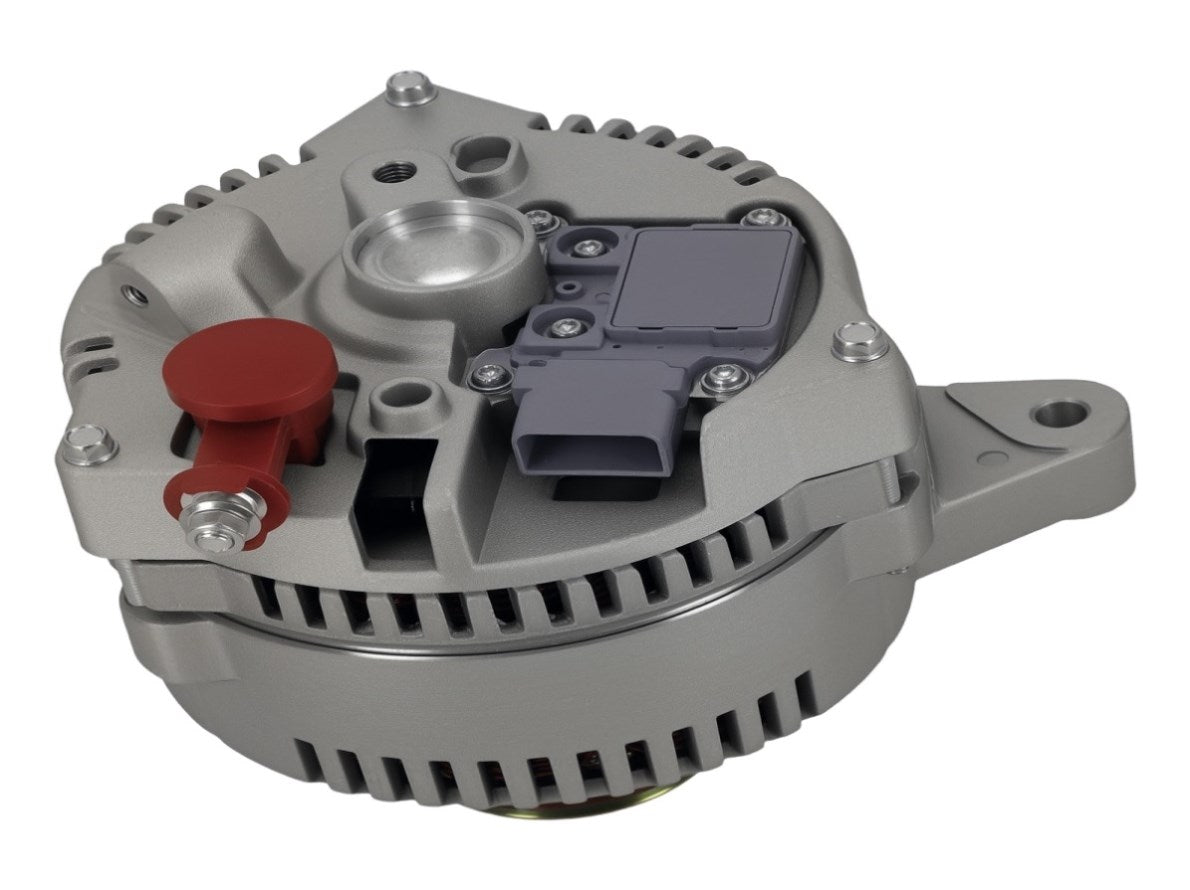

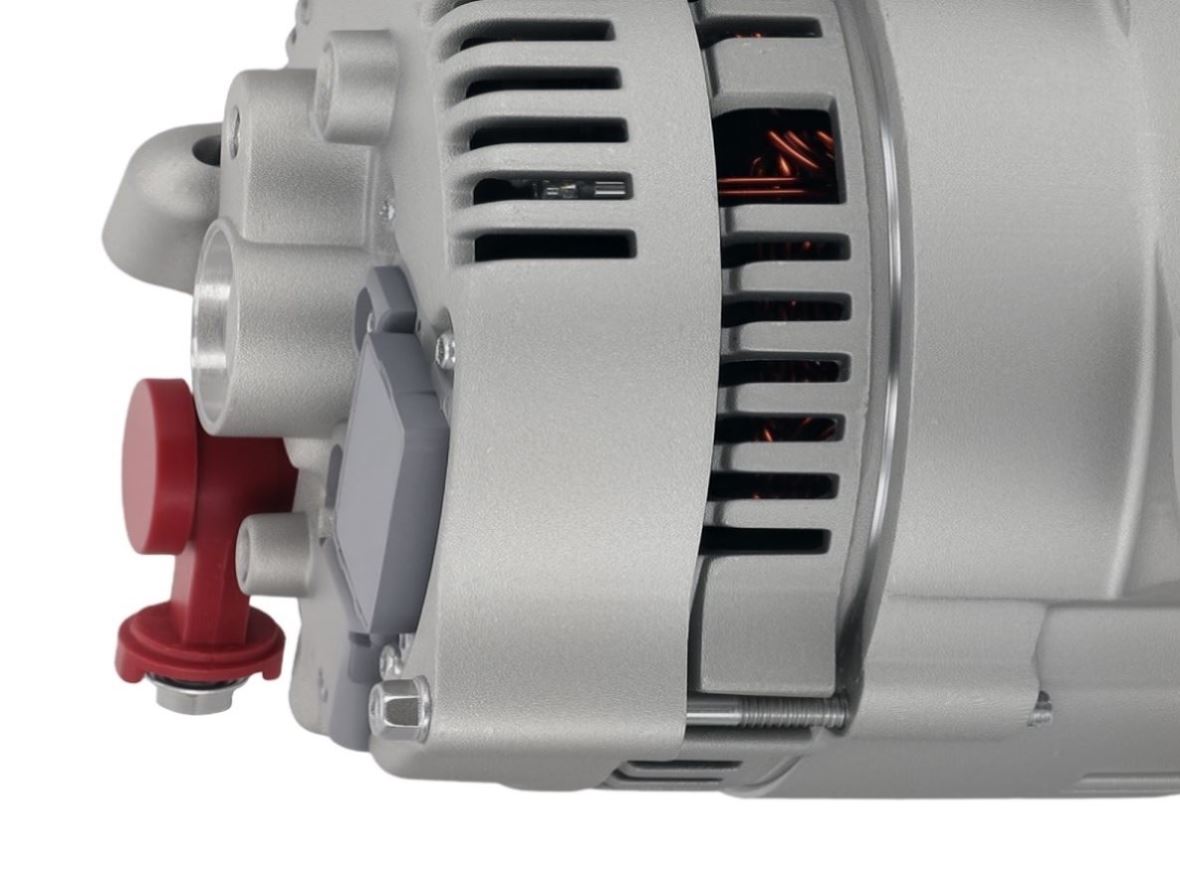

Alternator 130A fit for Ford F150 F250 F350 4.6L 5.4L 97-03 2-07791 F75U-10300-CB 69514767

Application

fit for Ford Auto and Light Truck    E-series Vans     4.6L(281) V8, Opt 130 Amp 1997-2001
fit for Ford Auto and Light Truck    E-series Vans     5.4L(330) V8, Opt 130 Amp 1997-1998
fit for Ford Auto and Light Truck    E-series Vans    6.8L(415) V10, Opt 130 Amp  1997-2001
fit for Ford Auto and Light Truck    E-series Vans    5.4L(330) V8, Opt Exc Lightning and Super Duty 130 Amp 1999
fit for Ford Auto and Light Truck    E-series Vans   5.4L(330) V8, Opt 130 Amp  2000-2001
fit for Ford Auto and Light Truck    Expedition  4.6L(281) V8, w/8-Groove Pulley 130 Amp 1997-1998
fit for Ford Auto and Light Truck    Expedition  5.4L(330) V8, w/8-Groove Pulley 130 Amp 1997-2001
fit for Ford Auto and Light Truck    Expedition  4.6L(281) V8, w/8-Groove Pulley 130 Amp  1999
fit for Ford Auto and Light Truck    Expedition  4.6L(281) V8, w/8-Groove Pulley 130 Amp 2000-2001
fit for Ford Auto and Light Truck    F-series Pickups         4.6L(281) V8, Opt 130 Amp 1997-2002
fit for Ford Auto and Light Truck    F-series Pickups   5.4L(330) V8, Opt 130 Amp 1997-1998
fit for Ford Auto and Light Truck    F-series Pickups       5.4L(330) V8, Opt Exc Lightning and Super Duty 130 Amp 1999-2001
fit for Lincoln Auto and Light Truck    Navigator  5.4L(330) V8, 130 Amp   1998
fit for Lincoln Auto and Light Truck    Navigator  5.4L(330) V8, SOHC 130 Amp 1999

OE/Part Number

F7UU-10300-BB, 250-249, 321-1772, 334-2274, AFD0035, 112585, F75U-10300-CA
F75U-10300-CB, 400-14138, 7791, GL-373, GL-417, GL-508, ALT-1719, F7PU-10346-KA
F7PZ-10346-KA, F7UU-10300-BC, A250-249N, 1-1989-30FD, 1-1989-32FD, 97082211
F6PZ-10346-KARM,  F7PZ-10346-KARM, F7PZ-10346-KARM1, F7PZ-10346-KARM2
400-14033, 400-14033R, 400-14121, 3170022, 3170023, GL-417-RM, GL-508-RM, GL-8728-RM
NGL7791N, 2-07791, 23659, 92319, P7776-10-8G,13-3118E, 13-3124D, 133124D, 213-3118E
213-3124D, 7791810, 66344, 7791A, AL7547X, RM1544, RM1594, 90-02-5202N, 759, 808, N7791
1N3118E, 1N3118ESD, 1N3124D, 1N3124D, 210-5202, A-275N, 92319, 37-7791N, N9321-10-8
N9322-10-6, AL7547N, 7791AV, 36-7791, 7791N, A-275

Specification

Condition: 100% New
Part_type: Alternator
Design: IR/IF
Rotation: CW
Voltage: 12V
Amperage: 130A
Pulley_Class: S8
Plug Clock Position: 10:00
Pulley Groove Quantity: 8

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled fit for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are fit for compatibility reference only.
