Air Suspension Conversion to Coilover fit for Cadillac Escalade ESV 2007-2013 Struts 54461980

Specifications

Adjustable height：Yes, Lowering 1-3 inch

Adjustable damper：No

Front Spring length：230 mm

Rear Spring length：255 mm

Front spring length：18 kg/mm (1008 lbs/in)

Rear spring length：6 kg/mm (336 in/lbs)

Front Coilover overall length：399mm-511mm

Rear Coilover overall length：560mm-602mm

Package Including：2 Front + 2 Rear

Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

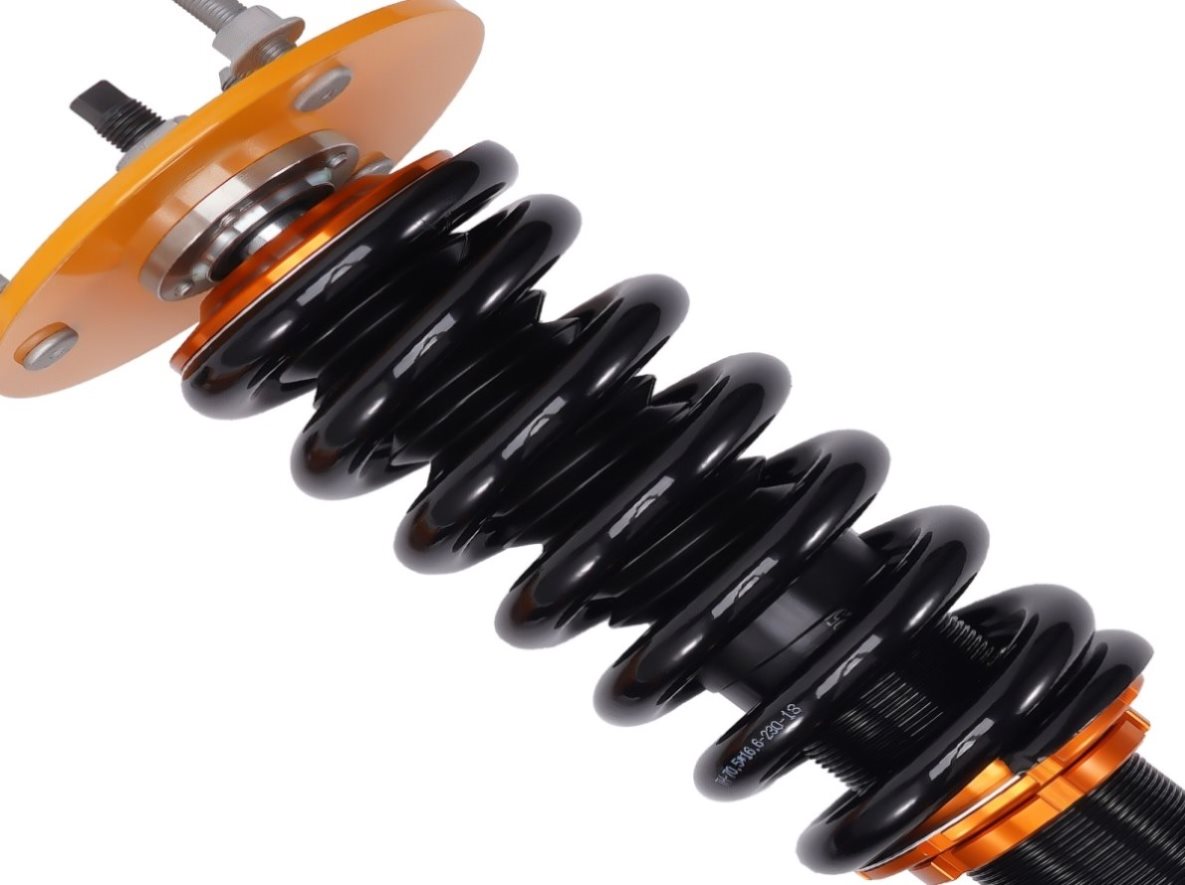

3. High Rigidity 55CrSi Steel Cold-bent Coil Springs---  600,000 times continuously test to assure it's high tensile strength.

4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

7. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

8. Anti-Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

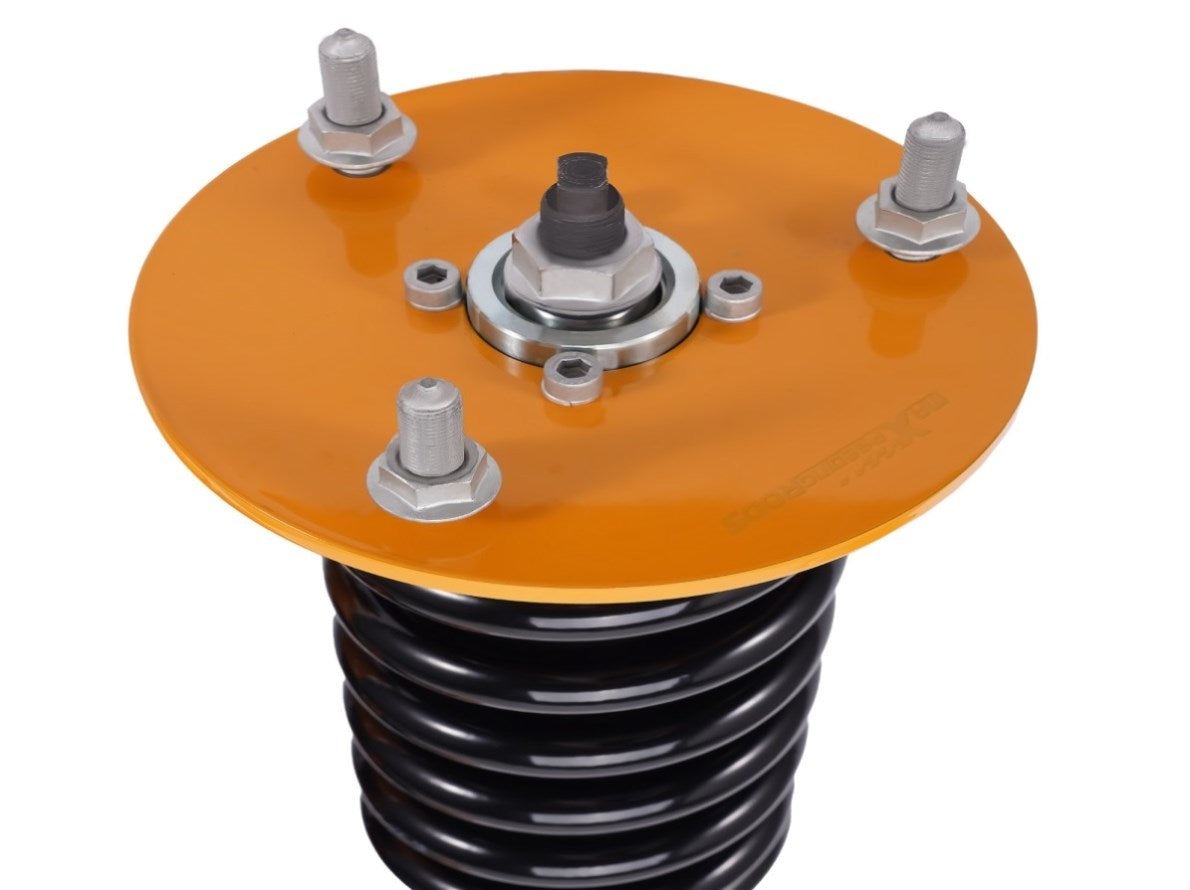

9. Pillow-Ball Top Mount Provides Sharp And Precise Handling

Application

FIT For Cadillac Escalade 2007 - 2013 Excludes Z55 FE3 sport suspension

FIT For Chevrolet  Avalanche 2007-2012 for Z55 Suspension

FIT For Chevrolet  Suburban 1500 2007-2012 for Z55 Suspension ,exclude flex fuel models

FIT For Chevrolet  Tahoe 2007-2012 for Z55 Suspension ,exclude flex fuel models

FIT For GMC  Yukon XL 1500 2007-2009 for Z55 Suspension ,exclude flex fuel models

Specifications

- Front Top mounts: rubber top mounts

- Damping: non-adjustable

- Shock type: Twin tube

- Spring rate Front: 18 kg/mm (1008 lbs/in)

- Spring rate Rear: 6 kg/mm (336 lbs/in)

- Spring length Front: 230mm

- Spring length Rear: 255mm

- Adjustable height: lowering 1-3 inch

- Coilover overall length Front: 399mm-511mm

- Coilover overall length Rear: 560mm-602mm

- Color: golden

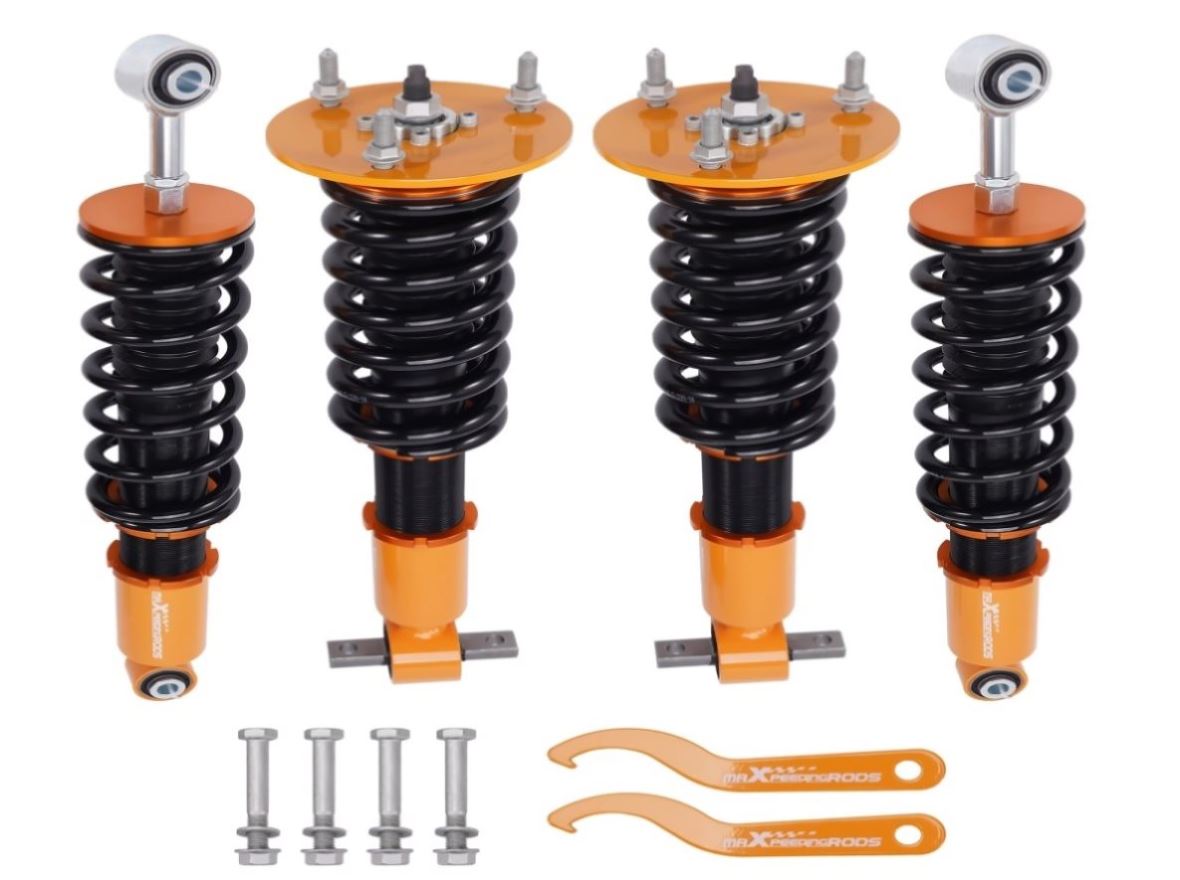

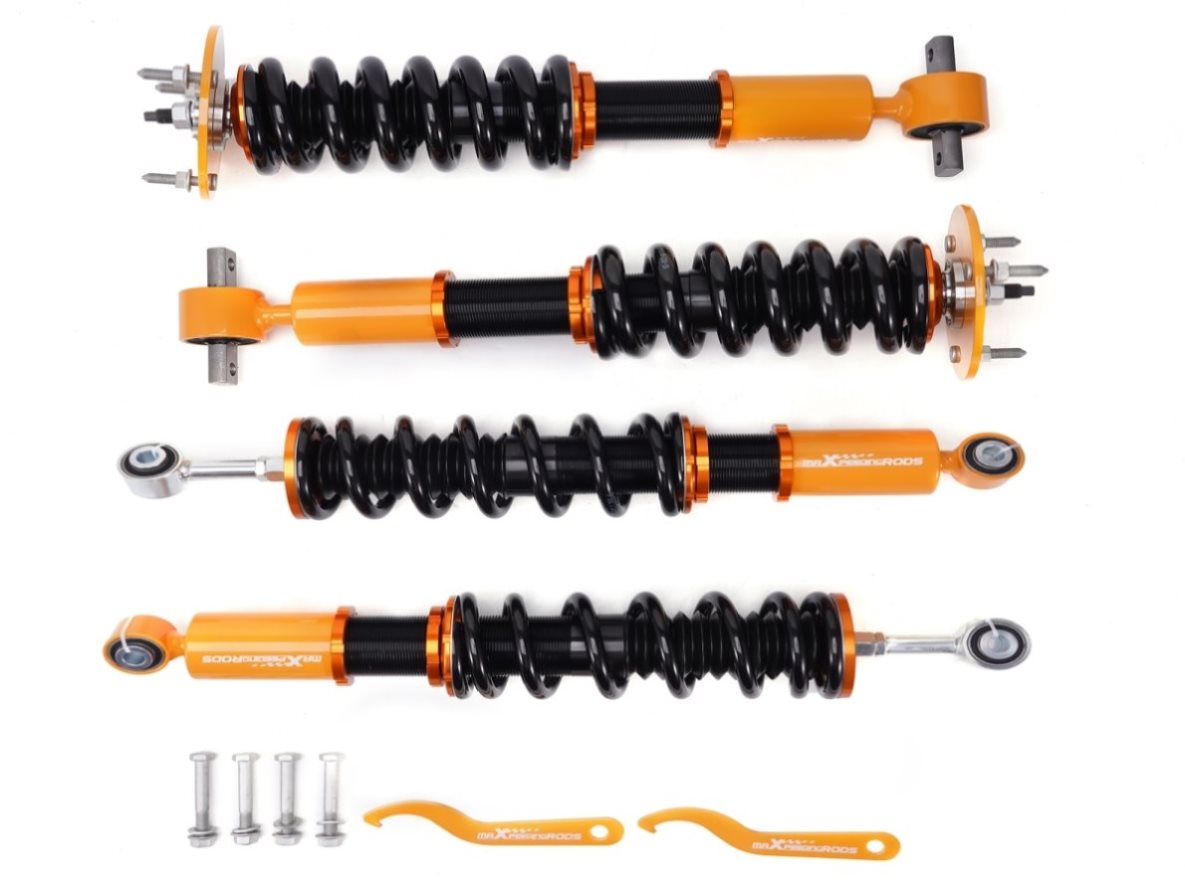

Package included

2x Front coil-overs

2x Rear coil-overs

2x C spanners
