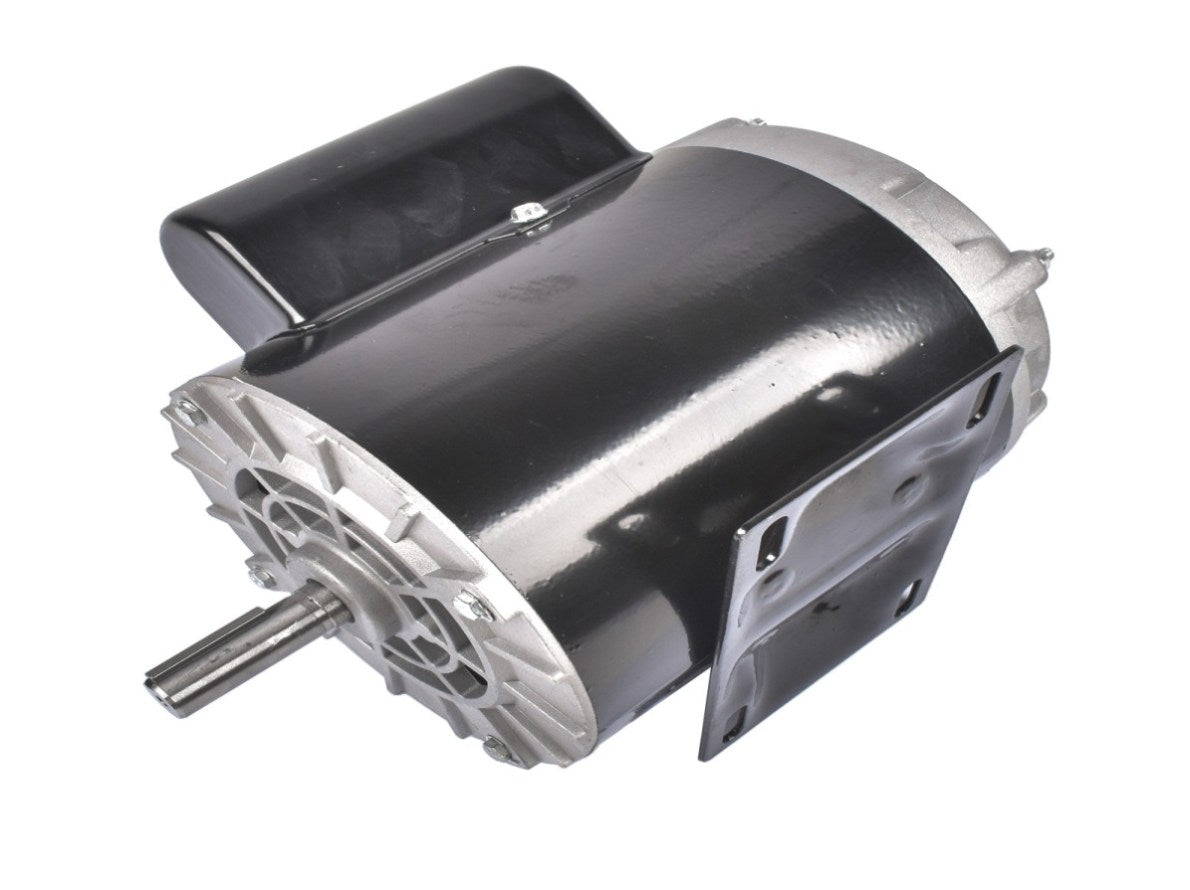

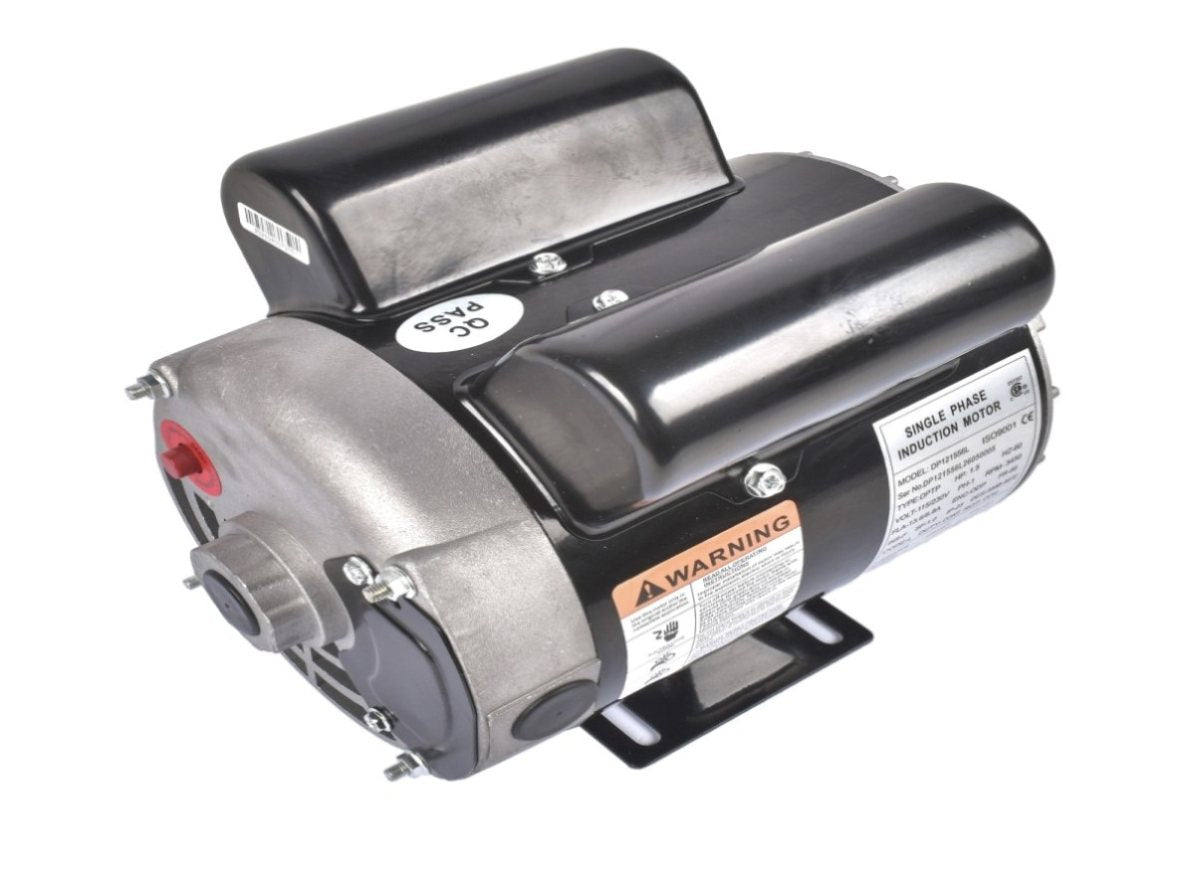

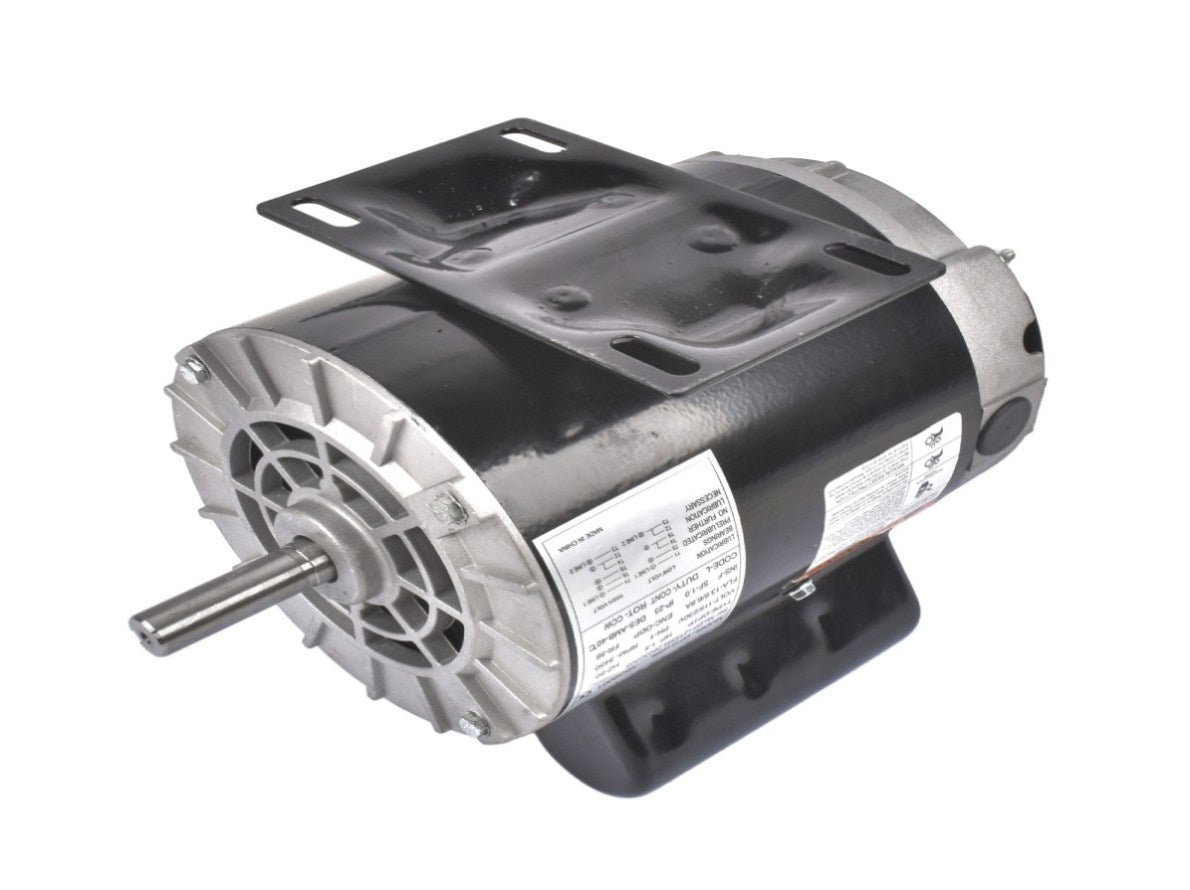

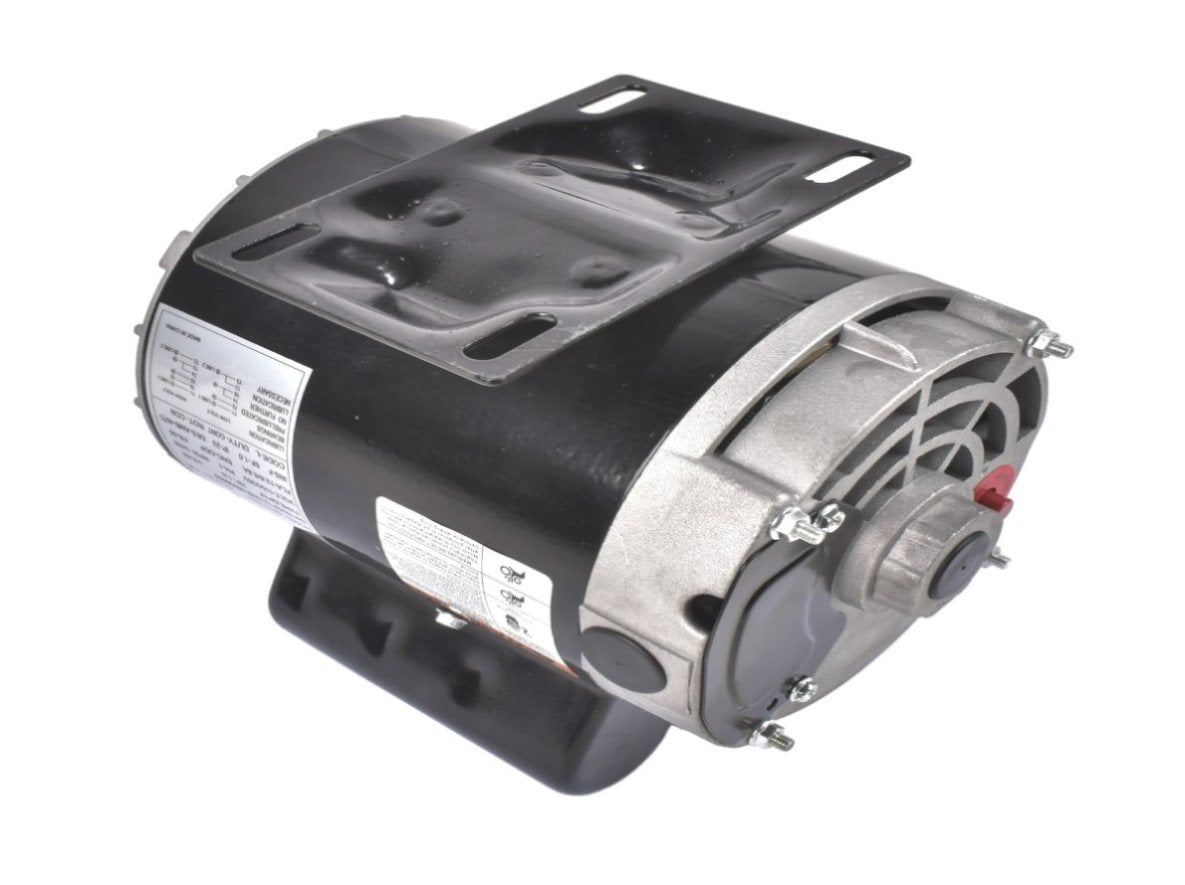

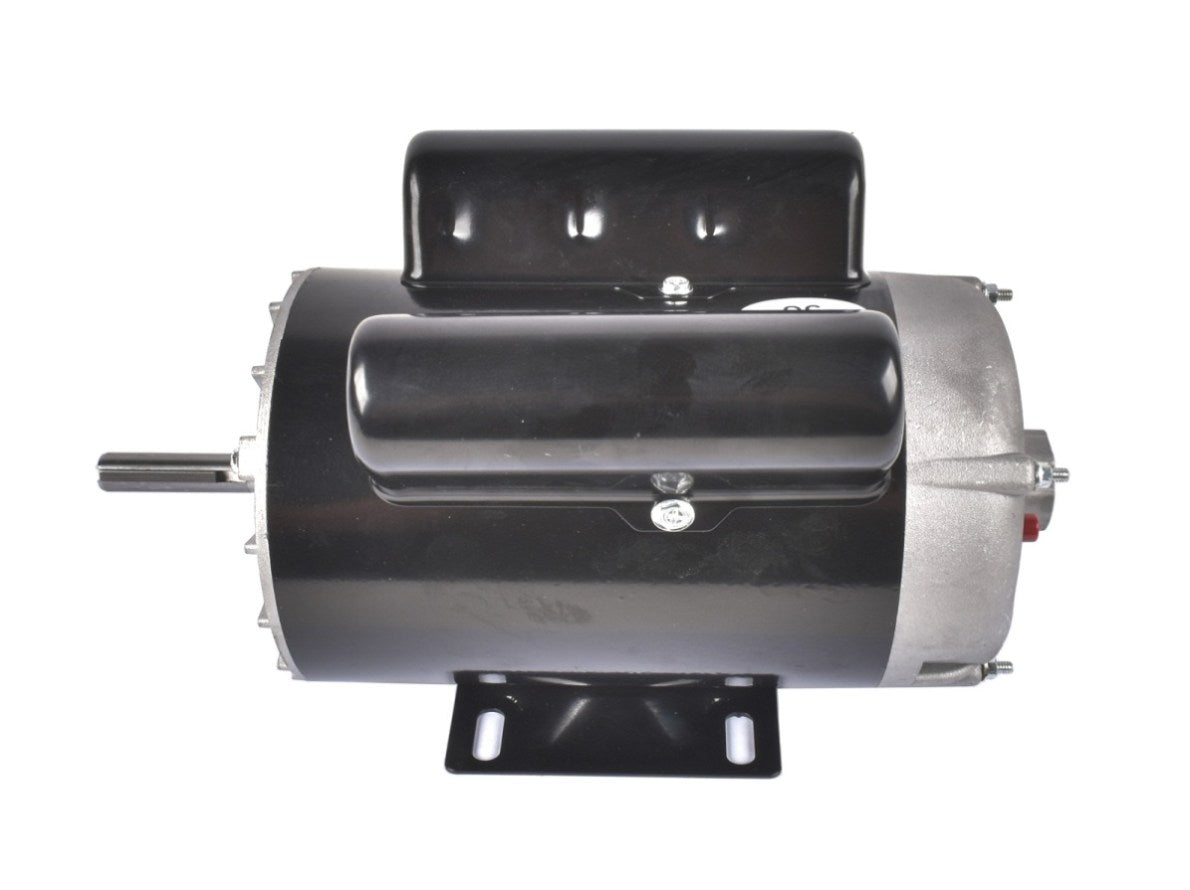

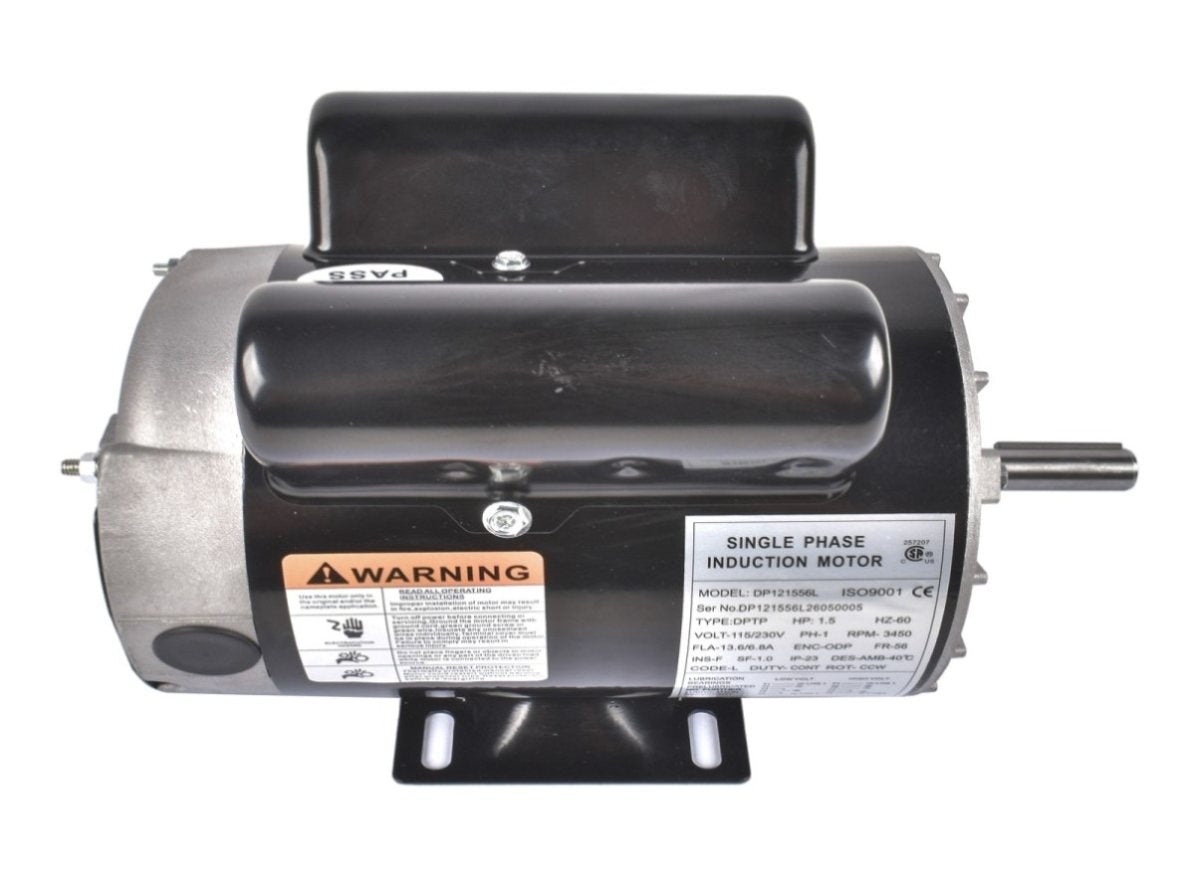

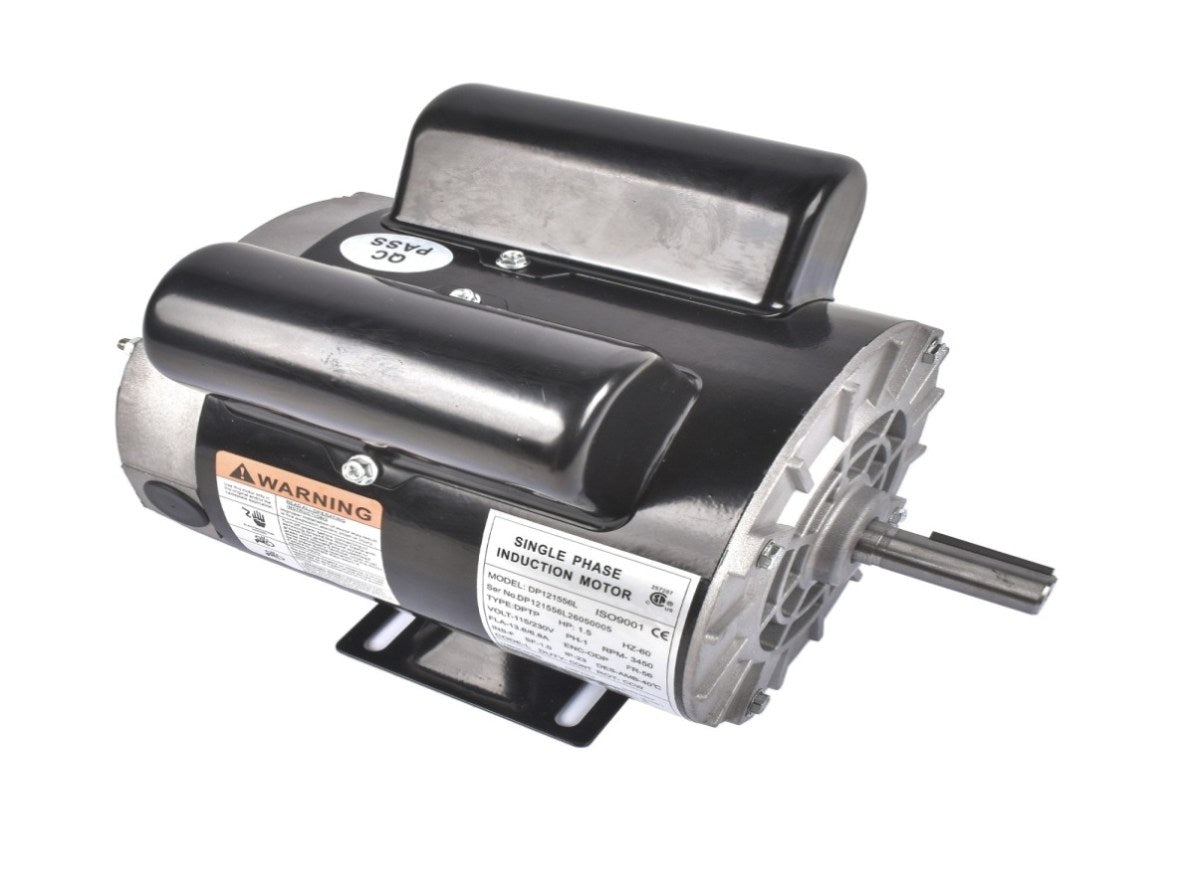

Air Compressor Motor 1.5 HP 1 Phase 3450 RPM 56 Frame 115/230 V 60 HZ CCW 41745178
GT-41745178
4 In stock
$303.68
Specifications AC Phase: 1 Phase Output HP: 1.5 HP Output KW: 1.1 KW Voltage: 115/230 Volt Speed: 3450 RPM Service Factor: 1.0 Frame: 56 Enclosure Type: ODP (Open Drip-Proof) Thermal Protection: Thermally Protected Ambient Temperature: 40 °C Frequency: 60 HZ Full Load Amps: 13.6/6.8A Duty: Continuous Insulation Class: F Rotation:...
customers are viewing this product
Specifications
AC Phase: 1 Phase
Output HP: 1.5 HP
Output KW: 1.1 KW
Voltage: 115/230 Volt
Speed: 3450 RPM
Service Factor: 1.0
Frame: 56
Enclosure Type: ODP (Open Drip-Proof)
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Frequency: 60 HZ
Full Load Amps: 13.6/6.8A
Duty: Continuous
Insulation Class: F
Rotation: CCW
Shaft Type: Keyed
Frame Material: Rolled Steel
AC Motor Type: Induction
Notes!

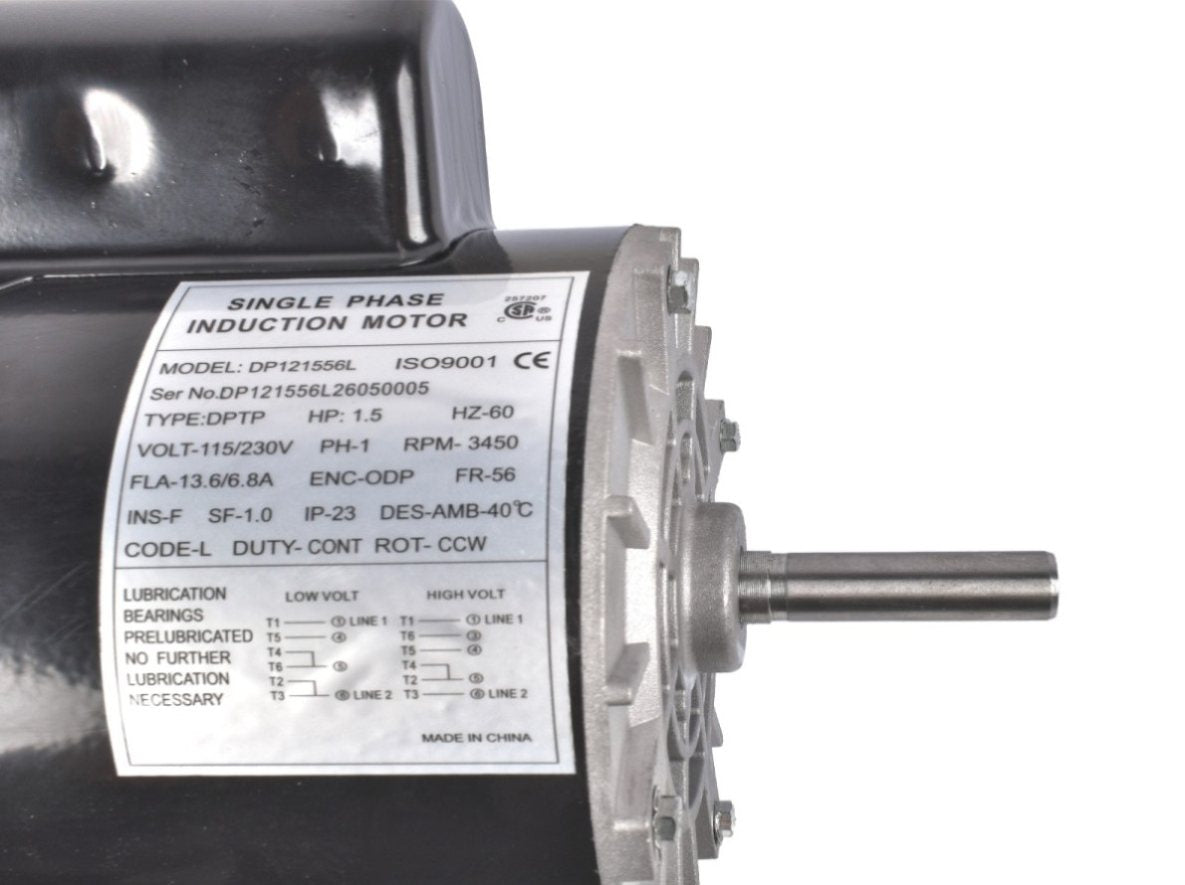

Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
