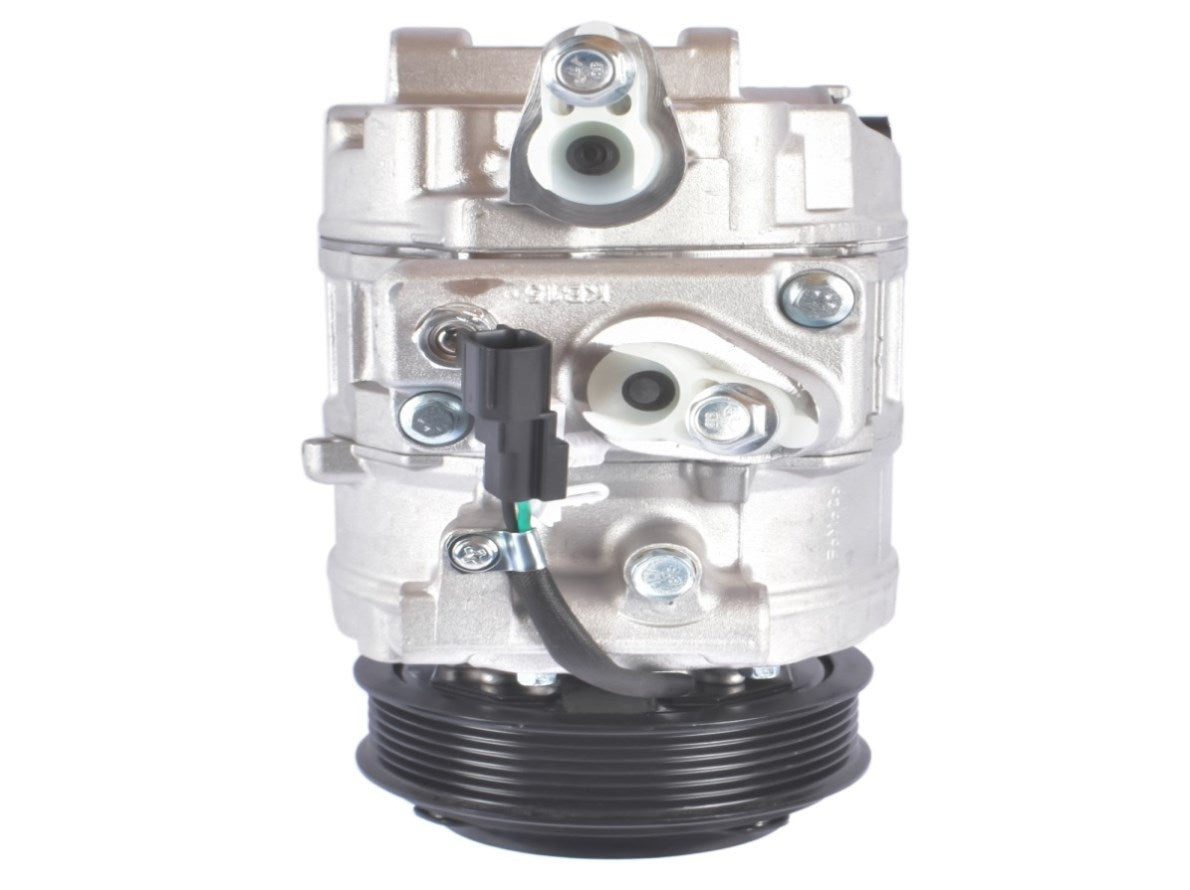

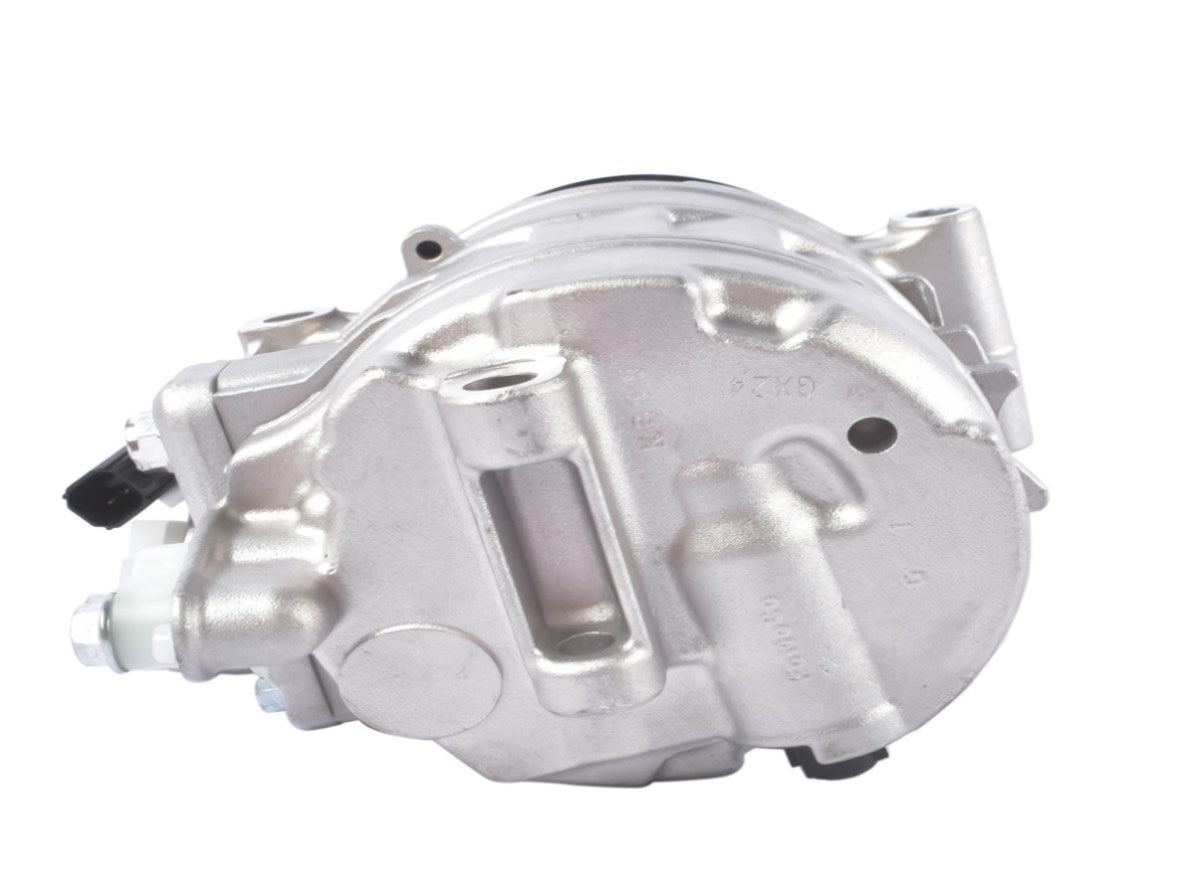

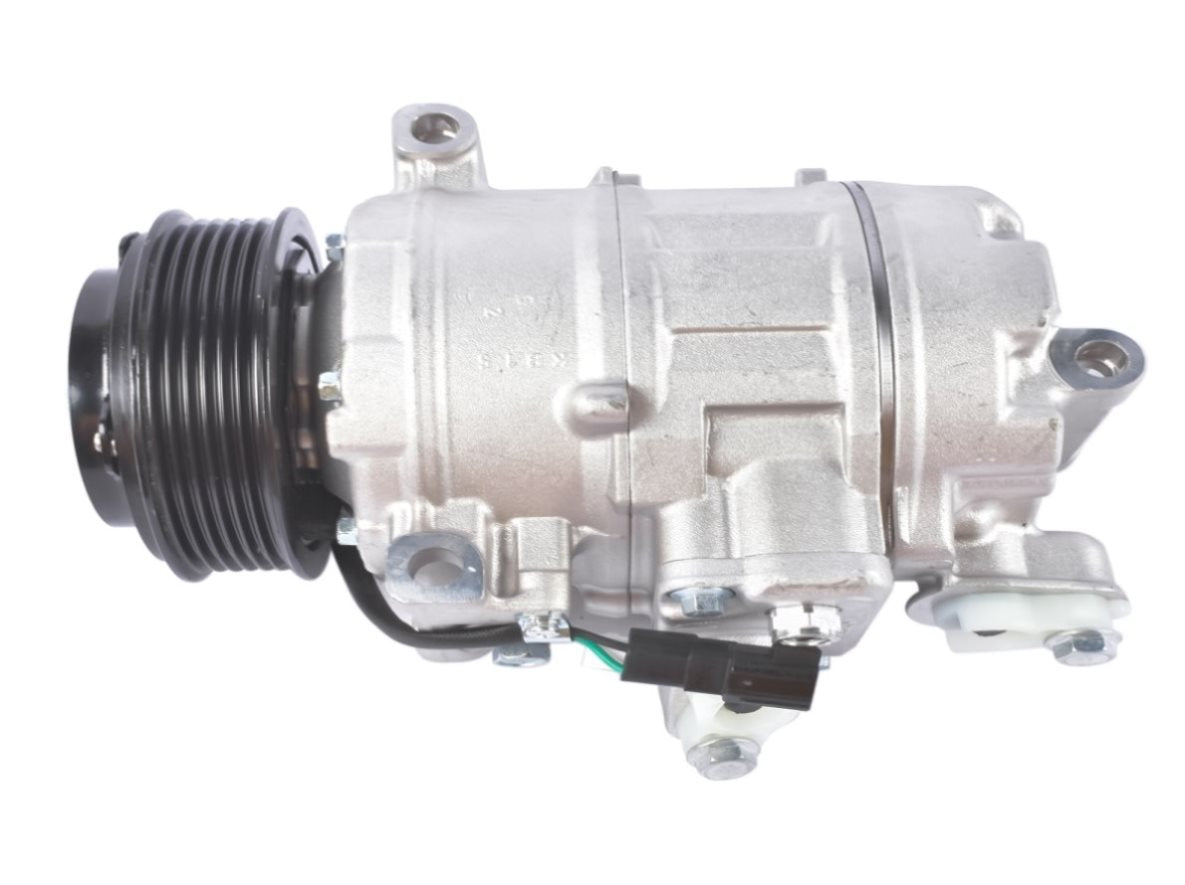

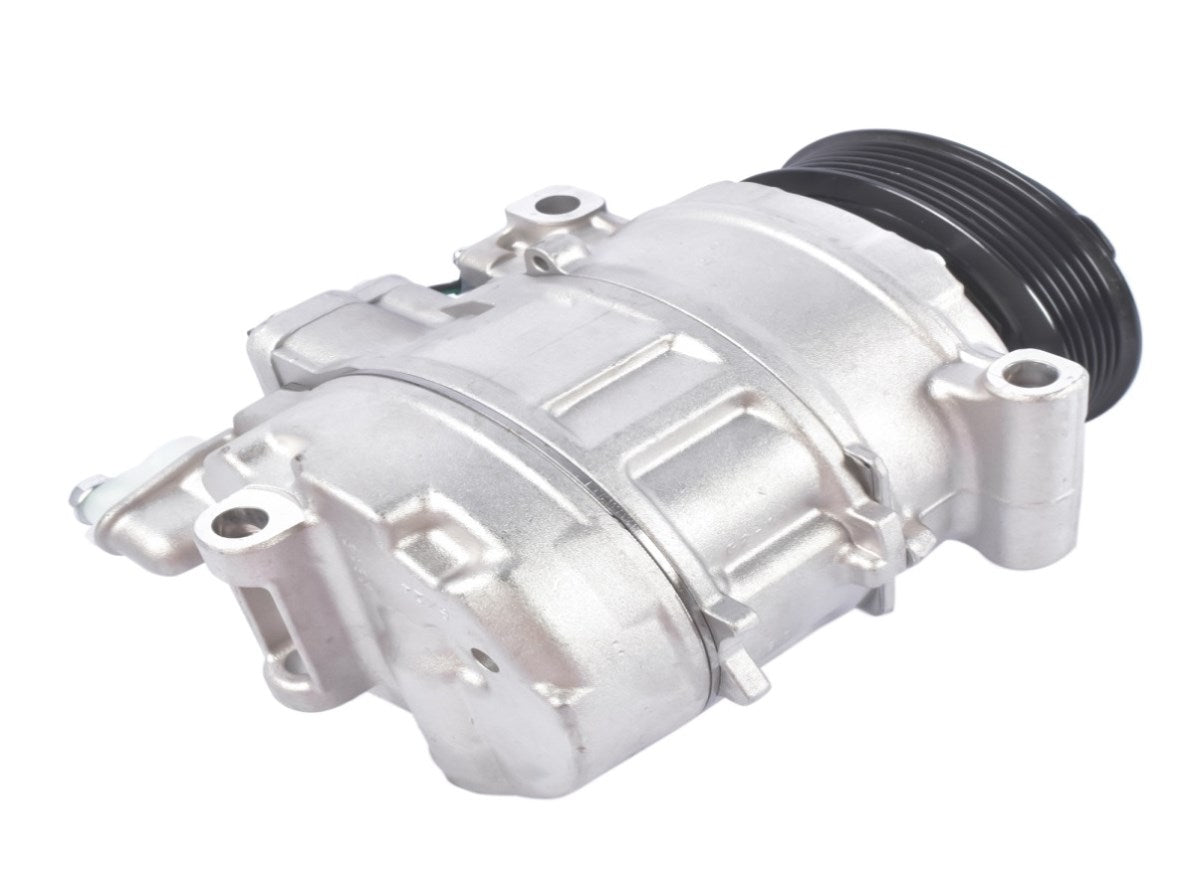

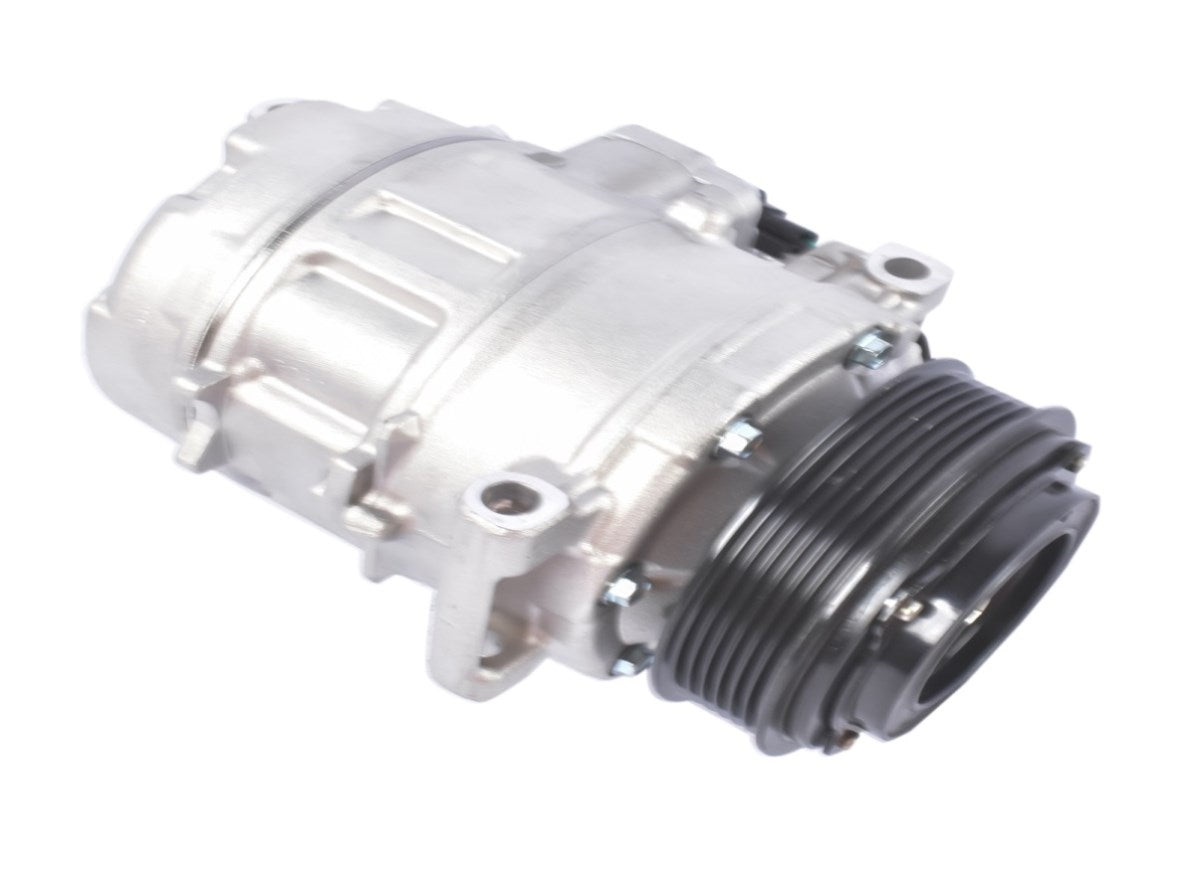

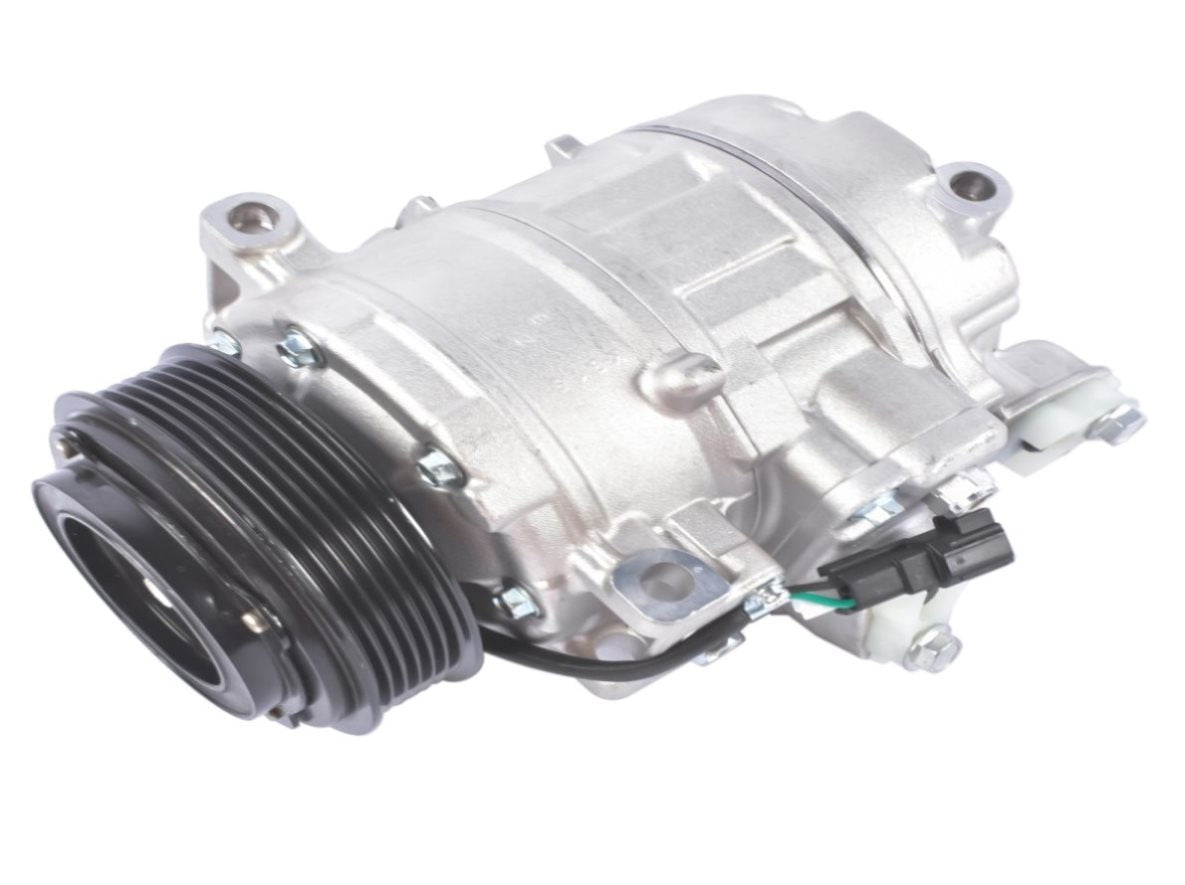

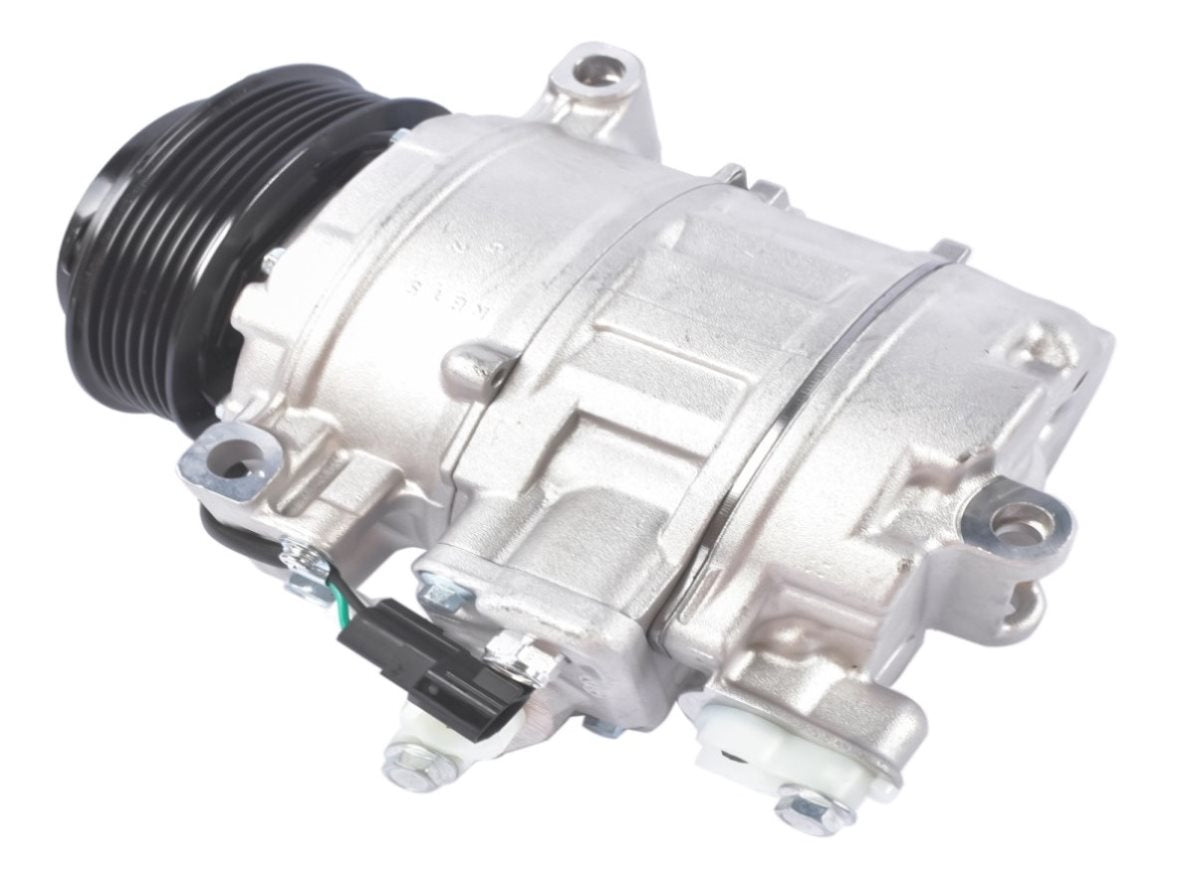

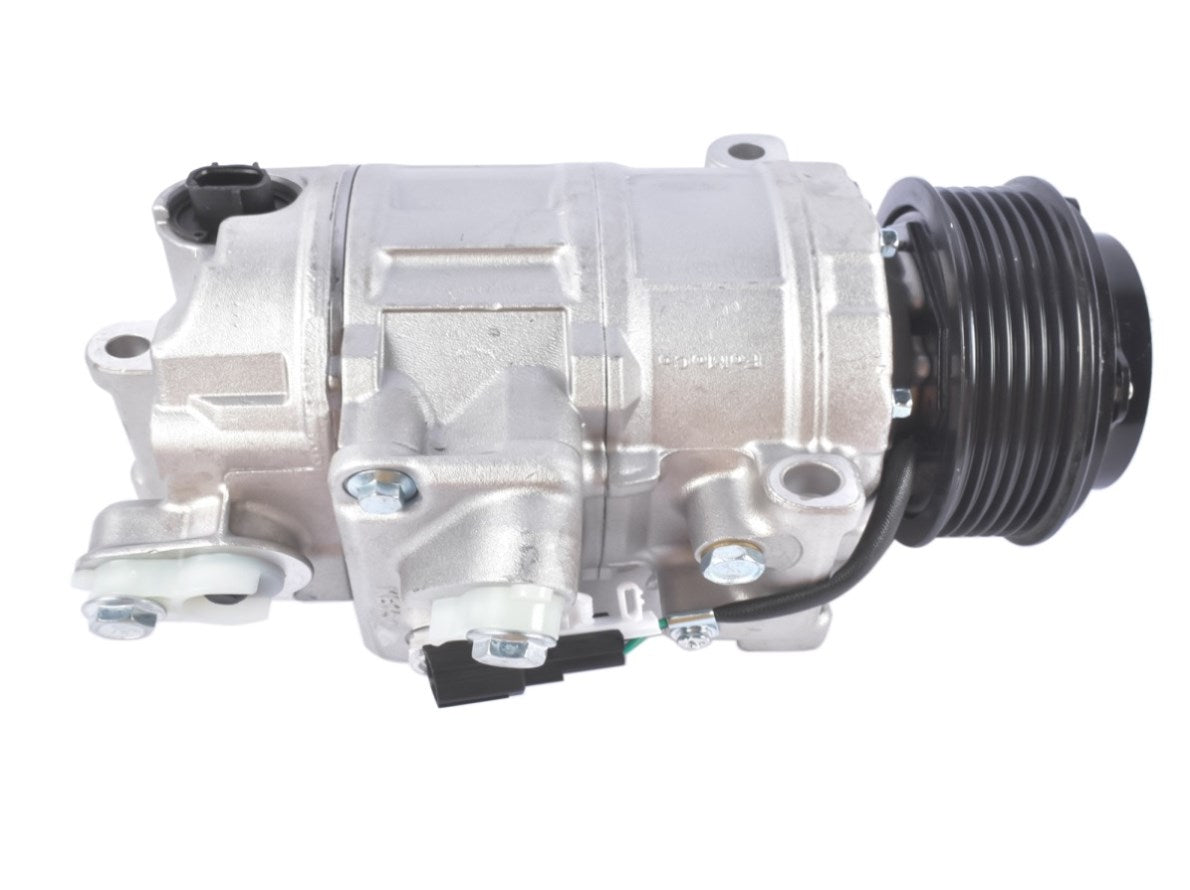

A/C Compressor W/ 6-Groove Pulley Replacement for Ford Edge 2012-2015, Explorer 2012-2013 L4 2.0L 36617677
OEM Part Number
198355, CT4Z19703B, CT4Z19703C
3023271, BB5319D629CB, BB5319D629CC, BB5319D629CD, BB5319D629CE, BB5Z19703C, 197355, 5512992, 5513020, 6512992, 6513020, 7512992, 7513020, YCC273, YCC280, YCC373, 2022535, 2022535AM, 140871, 140871C, 140871FD, 140871NC, 140871NEW, C2966
Specification
Oil Type: PAG 46
Compressor Type: 7SBH17
Pulley Groove Quantity: 6
Clutch Included: Yes
Pulley Included: Yes
Pulley Distance(in): 4.33
Belt Type: Serpentine
Coil Voltage: 12V
Suction Port Type: O-Ring
Mounting Type: Tangent Mount
Package Quantity: 1
Packaging Type: Box
Fitment: Direct Replacement
Descriptions:

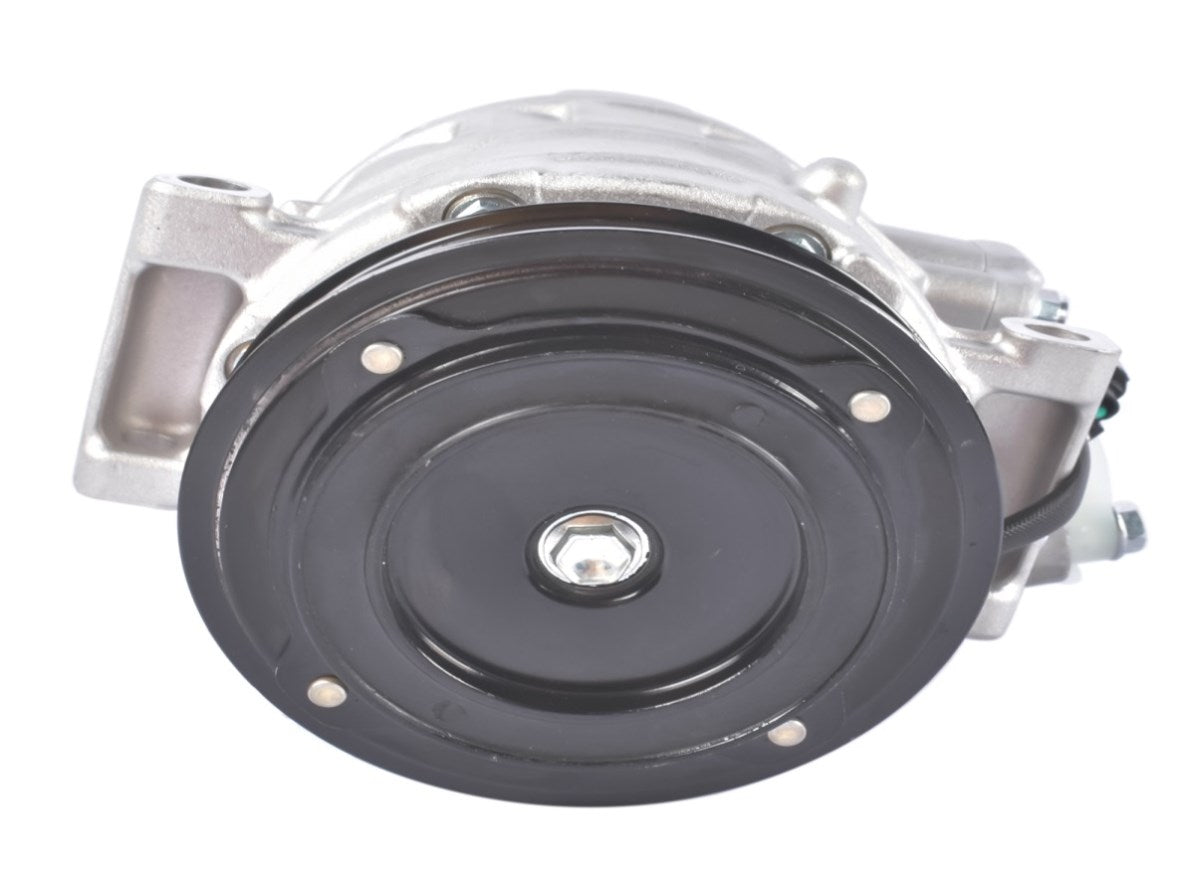

The three main parts of the compressor clutch assembly are the coil magnet, the pulley, and the clutch plate.
The clutch drive plate is splined to the input shaft of the compressor.
The compressor clutch is a large electromagnet that, when energized, draws the clutch plate into the clutch pulley.
The magnetic field holds the clutch plate tightly against the clutch pulley as long as current is supplied to it.
This in turn engages the drive pulley to the compressor input shaft, causing the shaft to spin.
Fit for the Following
For Ford Edge 2012-2015 L4 2.0L Sport Utility With 7SBH17C Compressor
For Ford Explorer 2012-2013 L4 2.0L Sport Utility With 7SBH17C Compressor
Package included
1x A/C Compressor
