A3- 6 on 5.5" Trailer Brake Hub Drum Assembly 12x2" for 5200-6000 lbs Axle Right 29304721

Trailer Brake Hub Drum Kit

This trailer brake kit is designed to meet or exceed OEM performance standards for trailer axle replacement.

Specs ⇣

F: 6 on 5.5" Trailer Brake Hub Drum Assembly 12x2" for 5200-6000 lbs Axle Right

☛ Our electric trailer brake kit includes one right-side brake assembly and one brake drum, designed specifically for trailers and RVs equipped with tapered axles and with a maximum load capacity of 5200-6000 pounds.

☛ 12"x2" trailer brake drum kit 6 on 5.5" bolt circle Replacement For Dexter/Al-Ko/Lippert/Quality and other brands 5200-6000 lbs trailer axle

☛ Replacement For 12"x2" electric or hydraulic brakes

☛ Bolt pattern: 6 on 5.5", 2 x bearing races and 6 x 9/16" studs installed

☛ Kits also include: 25580 inner cone bearing and 15123 outer cone bearing, Grease seal 2.25" x3.371", grease cap with rubber plug; 6 cone wheel nuts 9/16" thread

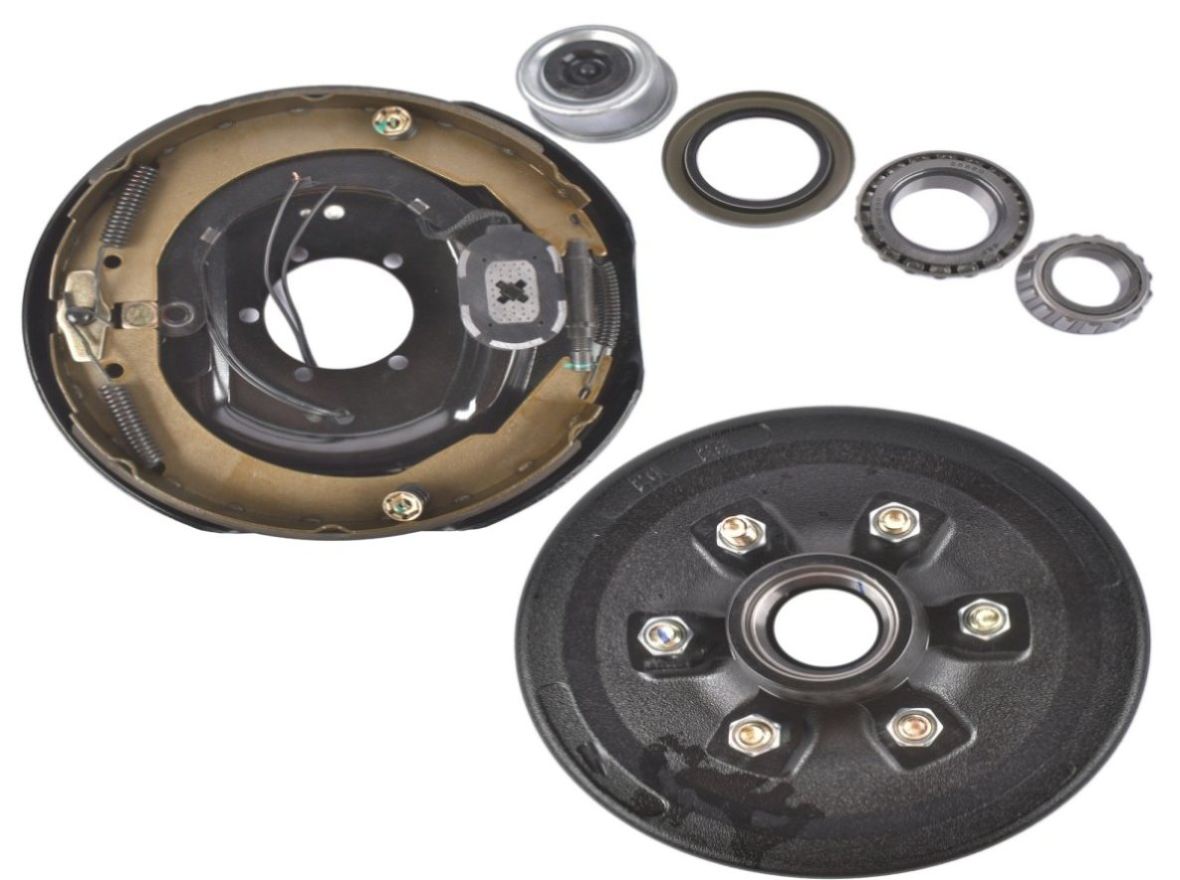

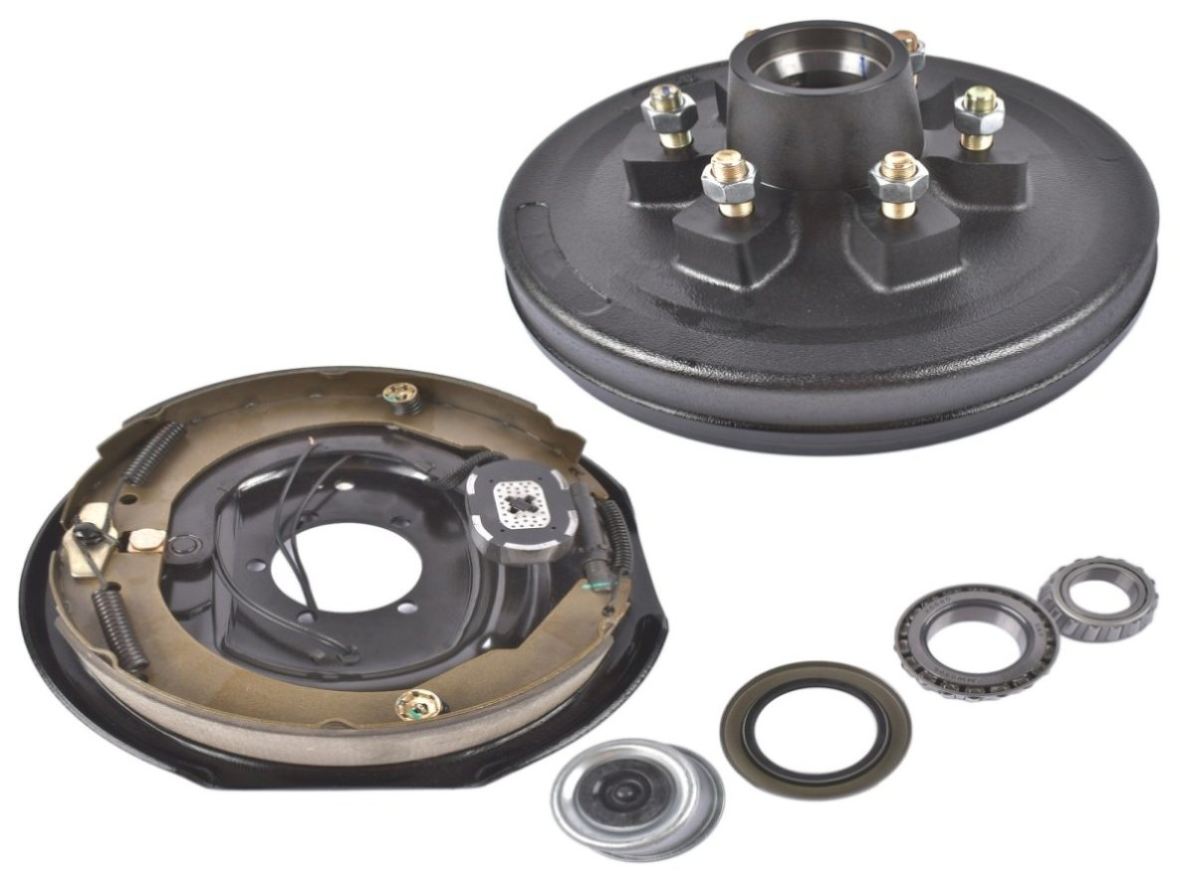

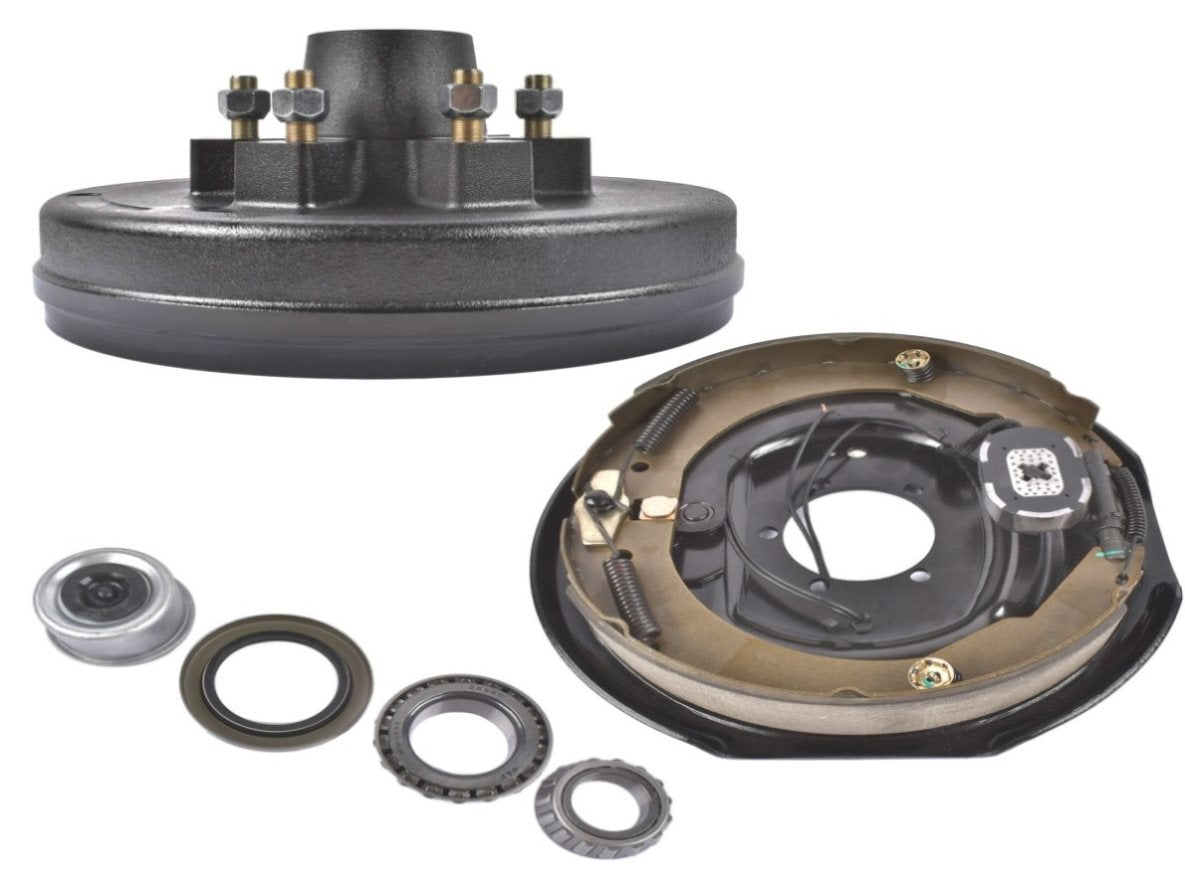

Package includes: 1 x 6 on 5.5 drum 1 x 12"x2" electric brake assembly RH 1 x 25580 inner cone bearings 1 x 15123 outer cone bearings 1 x Grease seal 2.25" x 3.371" 1 x 2.44" grease cap with rubber plug 6 x cone wheel nuts 9/16" thread

Features

▲Upgrade Your Braking System: Our electric trailer brake kits include hub and drum assemblies, specifically designed for trailers and RVs equipped with tapered axles.

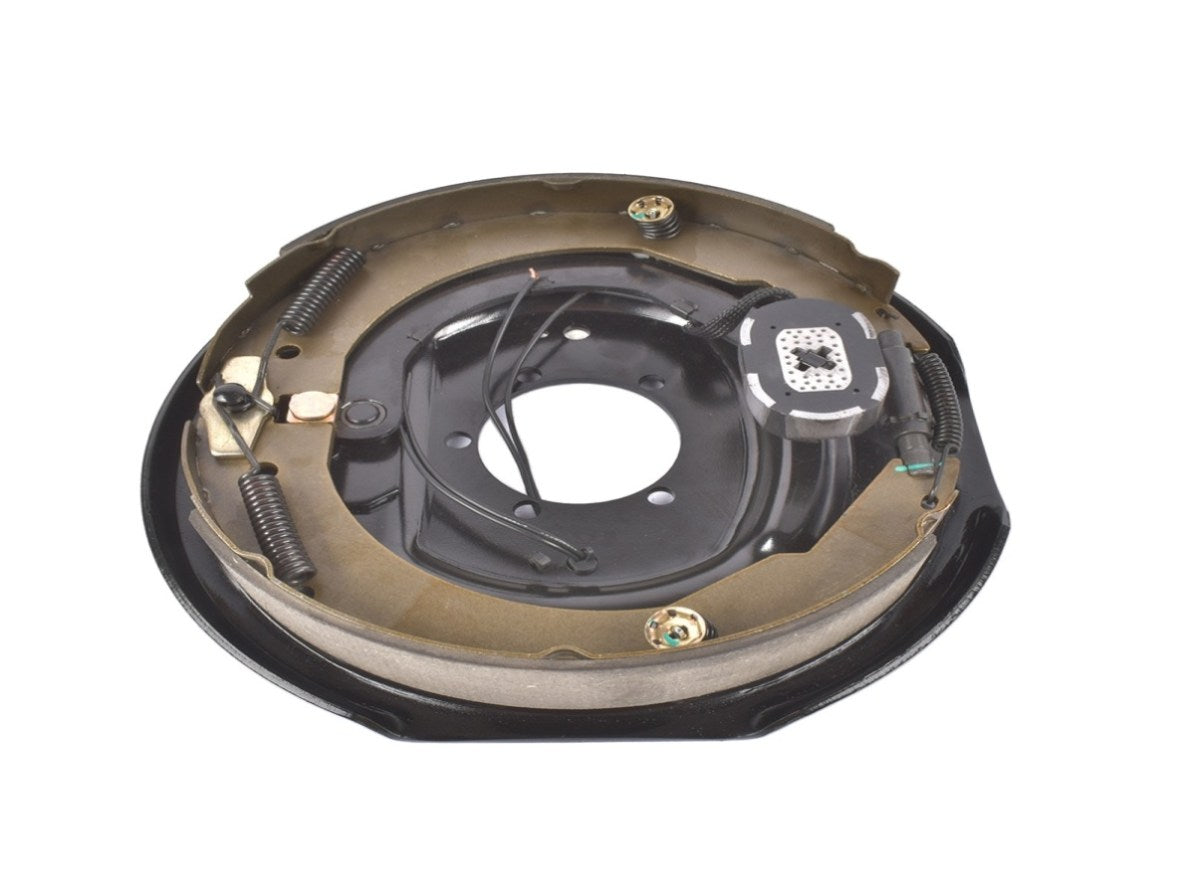

▲Automatic Brake Adjustment: No need for frequent brake inspections! The self-adjusting electric brake backplate included in the kit automatically adjusts based on wear, providing consistent braking performance and ensuring the system remains responsive over the long term, while also minimizing maintenance. Ideal for frequent braking and long-distance travel, it ensures a smooth braking experience for your trailer.

▲Easy Installation: Installing a new brake system is a breeze! Our electric trailer brake system features a simple design, and the electric trailer brake assembly comes pre-assembled with all core components already in place.

▲Designed for Long-Haul Transport: The cast-iron brake drums in this self-adjusting electric brake kit are impact-resistant and built to last. The trailer brake shoes are heat-resistant, durable, and designed to reduce noise—making them ideal for heavy loads, downhill driving, and frequent braking. The dust covers effectively block debris from entering, ensuring the safety of the braking system. Designed specifically to meet the daily driving needs of trailers, this kit helps you tackle long-haul journeys.

▲Wide Compatibility: This trailer brake kit has a wide range of applications, including towing trailers, freight transport, and camping trips. The kit is highly versatile and compatible with Al-Ko, Dexter, Lippert, and Quality Trailer brands, as well as other trailer axles.

▲Superior Performance: This kit is crafted from high-quality materials and features a precision design, ensuring a secure and long-lasting installation that delivers exceptional braking safety and performance even under demanding conditions.

?NOTE:

Please confirm bolt pattern, brake size and axle weight capacity before purchase.
