8000W Battery Welding Machine, Portable Mini DIY Spot Welding Machine, 18650 Battery 56643341
- ?【8000W Battery Spot Welder】:The upgraded spot welder with Dual Pulse Output,foot pedal welding mode which can easily weld 0.1-0.3mm thick nickel sheets, you can finish the welding work easily and efficiently, the welding spot is nice and elegant. Can be used for spot welding of batteries, hardware, and electronic components.
- ?【1-9 Level Knob Adjustment】:The adjustable spot welder can weld thousands of points continuously on nickel sheet after full charge,the solder pins of the adjustable spot welding machine can be removed and replaced, easy installation and operation.The mini spot welder with 9 Level output power adjustment design, you can adjust the output power 0-800A by turn the knob, the larger the value, the higher the output.
- ?【Easy to Use】:The solder pins of the adjustable spot welding machine can be removed and replaced, easy installation and operation.The DIY battery spot welder machine is foot switch controls welding, spot welding is more arbitrary. Just press the nickel belt with two soldering pens and step on the foot switch. Wait for about 0.5 seconds for output spot welding,then release the foot switch.suitable for precise welding.
- ?【Warm Tips for Beginner】: LCD Screen Display,The battery voltage level is the key factor affecting the spot welding effect.Our spot welder screen can display the internal voltage of the product in real time,it is very convenient for you to check and charge in time.The product should be fully charged before first use, please charge when the voltage on the screen falls below 7.3V.
- ?【Wide Application & Warranty】 The spot welder with large output power can be used to connect nickel strips of 18650 lithium battery, or spot welding iron sheets, stainless steel sheets. And it is also suitable for welding 0.1-0.15mm nickel plated steel sheet and 0.1mm pure nickel sheet quickly. In the process of using the spot welder, please feel free to contact us if you have any quest.
Specification:
Color: Black
Input: 100-240V
Output: 8.4V
Battery type: lithium battery
Spot welding current：1200A
Power：8000W
Included battery capacity: 9600mA
Maximum output voltage: 8.4V
Maximum output power：8000W
Spot welding nickel tape thickness: 0.1, 0.15, 0.2, 0.25, 0.3mm (can not spot welding copper / aluminum / gold / silver)
Machine size: about 15 long * width 9.8 * height 5cm
Spot welding pen length about : 47cm
Feature:
8000W high power intelligent double pulse spot welder with rechargeable internal battery, good performance and long service life.
The battery welder is designed for welding 18650 batteries and can also be used to weld nickel strips with thickness of 0.1, 0.15, 0.2, 0.25, 0.3mm.
It comes with a soldering pen with good conductivity and low contact resistance.
ABS shell material with surface anodizing technology, wear-resistant and safe to use.
Small and portable design, easy to carry around.
Note:
The products are divided into automatic models and foot switch models, which can be selected according to your own needs.
The charger plug is divided into US regulations, and European regulations can be selected according to your needs
Our products are "rechargeable spot welders" not transformers.
The spot welding machine is used for spot welding the connecting nickel strips of 18650 lithium batteries, or spot welding iron sheets, stainless steel sheets, but not copper and aluminum.
Nickel strips are divided into nickel-plated and pure nickel. The spot welding thickness of spot welding machine is the thickness of nickel-plated, and the unit is mm (mm)
The difference between automatic and foot switch:
The automatic model has no foot switch, and the spot welding is output about 0.5 seconds after the welding pen touches the nickel tape.
For the foot switch model, you need to step on the switch with your foot. After the welding pen touches the nickel tape, it will output spot welding for about 0.5 seconds, and then release the foot switch to complete a spot welding.

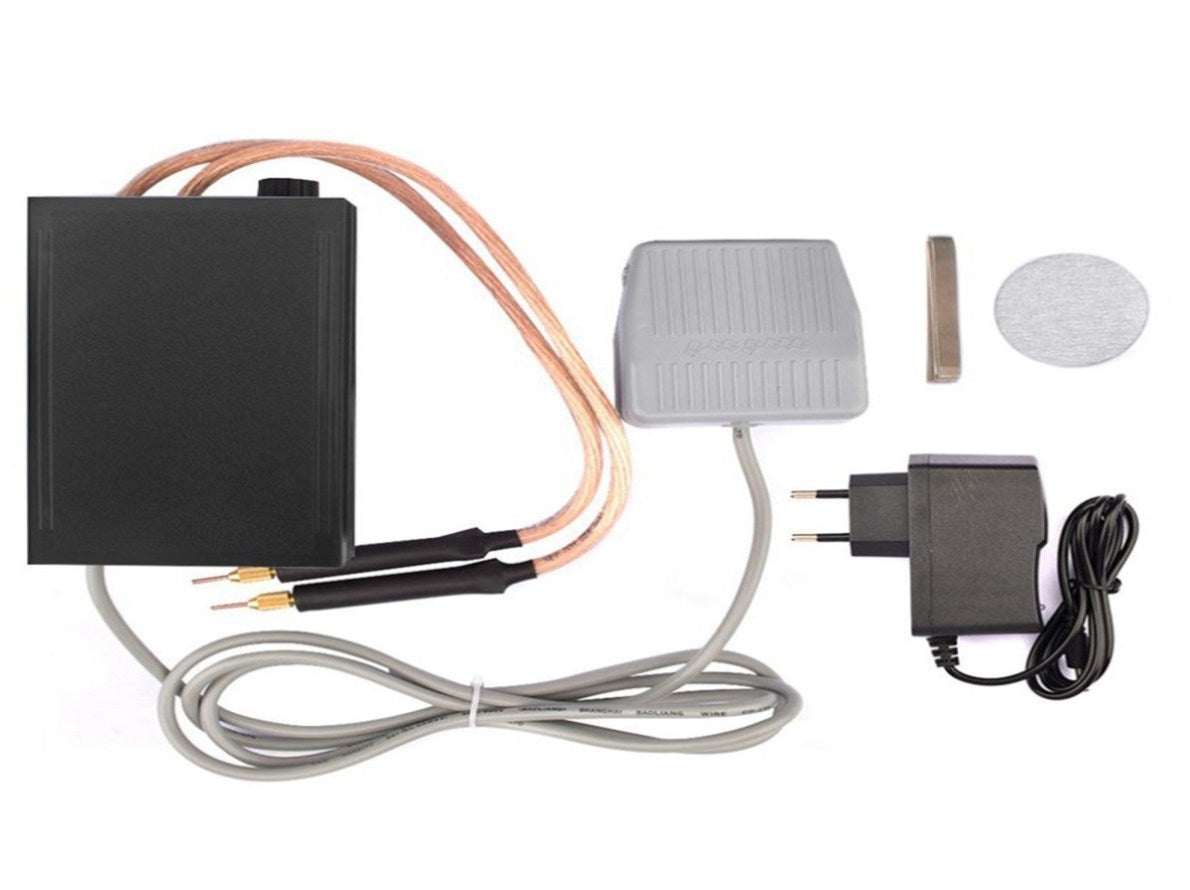

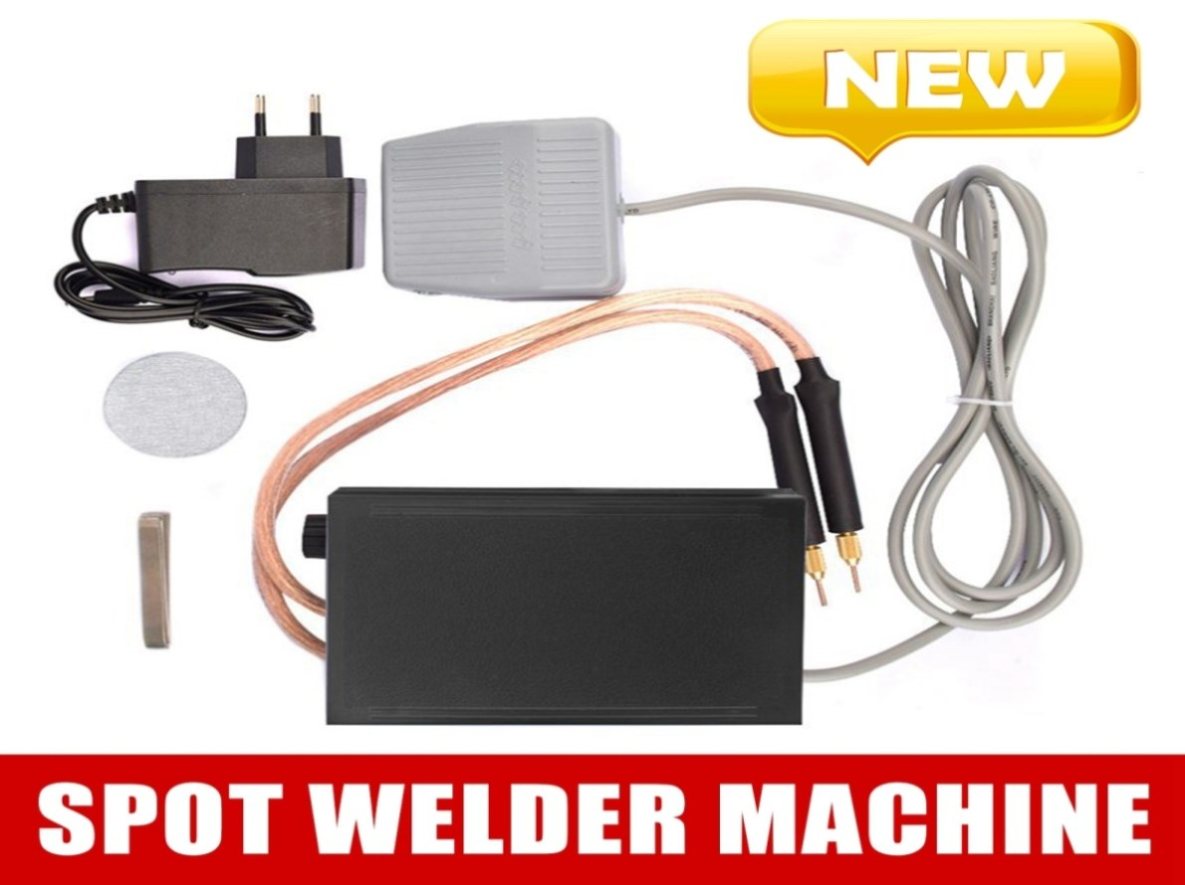

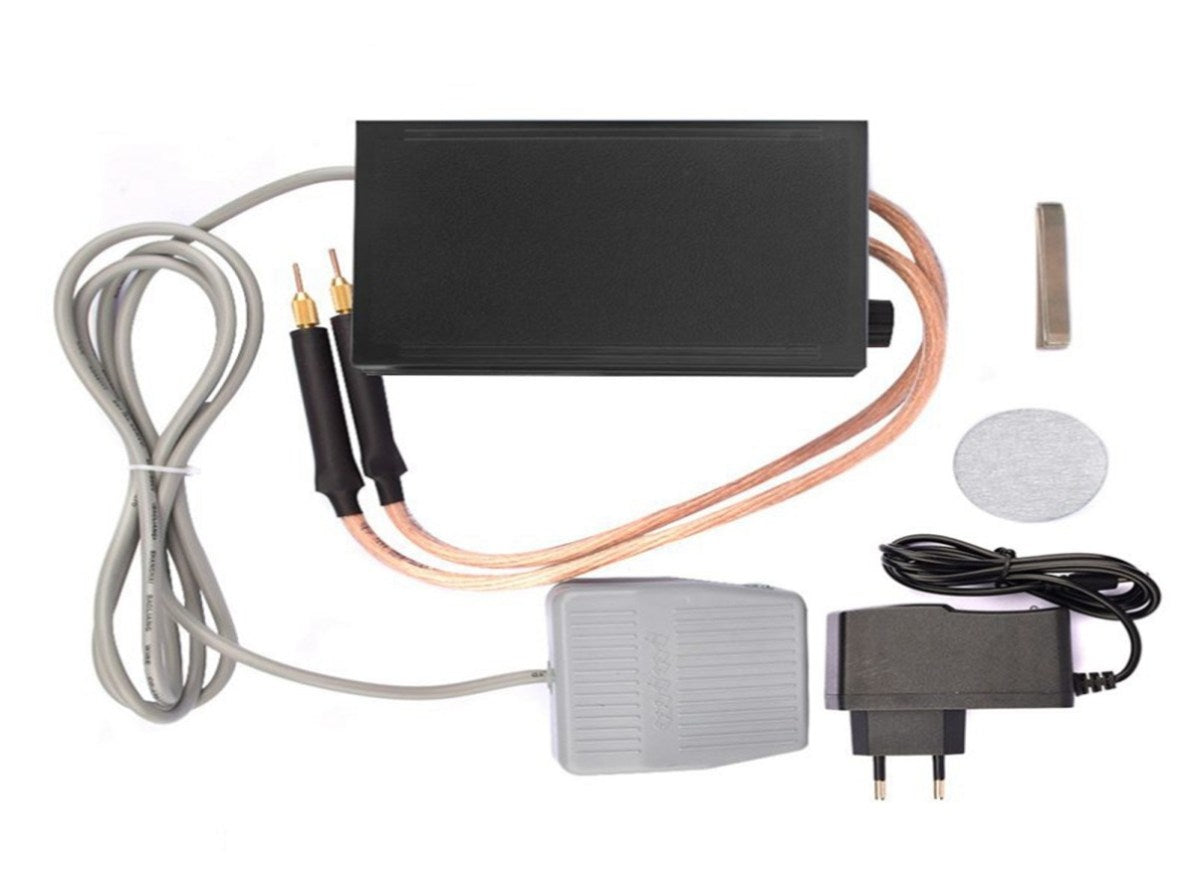

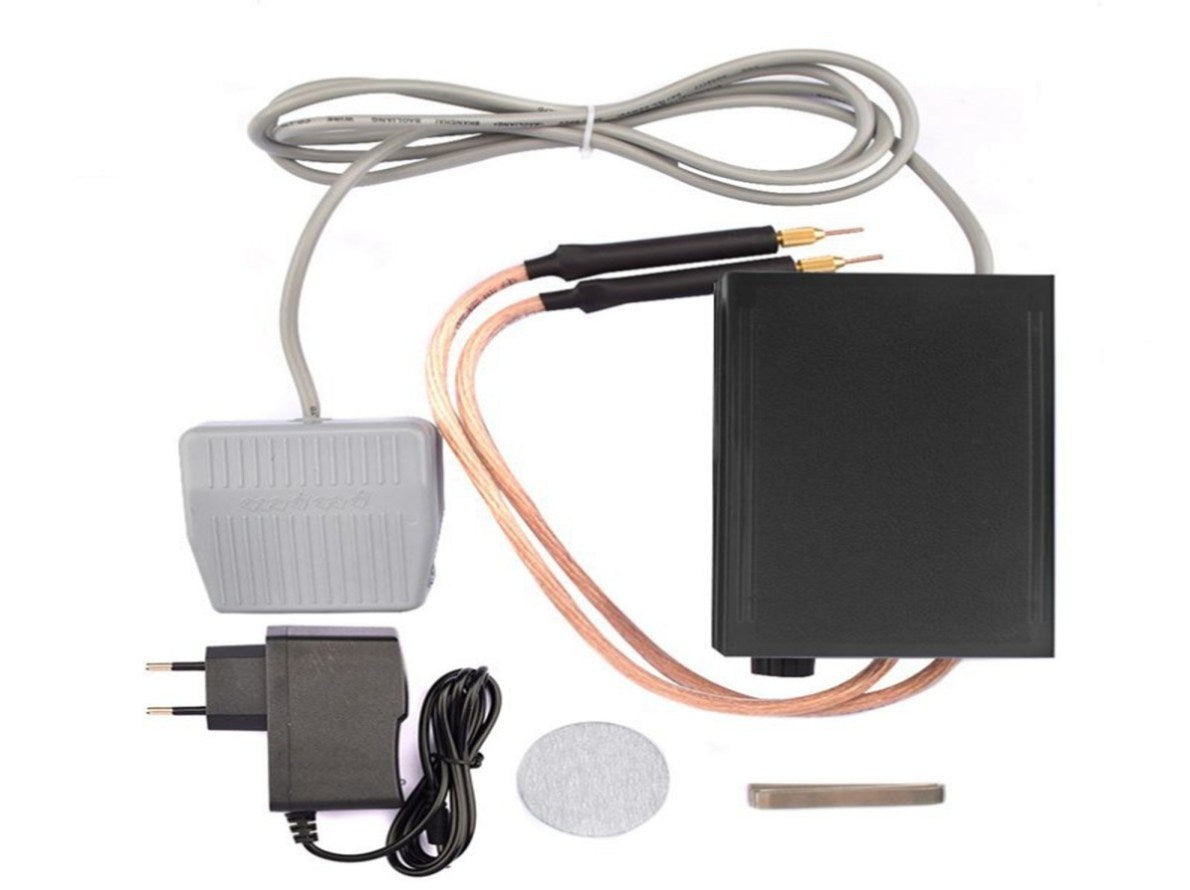

Package includes:
1x Spot welder
1x Power adapter
1x Nickel tape 1m
1x Sandpaper
1x Foot Switch
