72mm Big Bore Cylinder Piston Gasket Top End Kit fit for Honda TRX250EX Recon 250 53472798

Note

*Please follow the steps below to confirm that the product is suitable fit for your vehicle.
*If you are not sure, please contact us, Please have your vehicle VIN number, year, and car model ready when contacting us.
*The VIN code is a 17-digit number composed of letters and numbers. It is usually behind the car's windshield or on the car's nameplate.
*No Instruction Included, professional installation is highly recommended.

Application


fit for Honda TRX250EX Sportrax 2001-2008
fit for Honda TRX250X 2009-2020
fit for Honda TRX250X1 2021-2022
fit for Honda TRX250TE Recon 250 2002-2021
fit for Honda TRX250TE1 Recon 250 2019-2022
fit for Honda TRX250TM Recon 250 2002-2021
fit for Honda TRX250TM1 Recon 250 2019-2022

OE/Part number

12100-HN6-000, 12191-HM8-000, 12251-HN6-000, 13101-HM8-A40, 13011-HM8-003, 13111-425-000, 94601-15000,12100HN6000,12191HM8000,12251HN6000,13101HM8A40,13011HM8003,13111425000,9460115000

Specification

Material: Aluminum
Type: Cylinder Piston Kit
Fitment Type: Direct Replacement
Displacement: 253.2cc
Bore Type: Big Bore
Bore Size: 72mm
Pin Diameter: 15mm

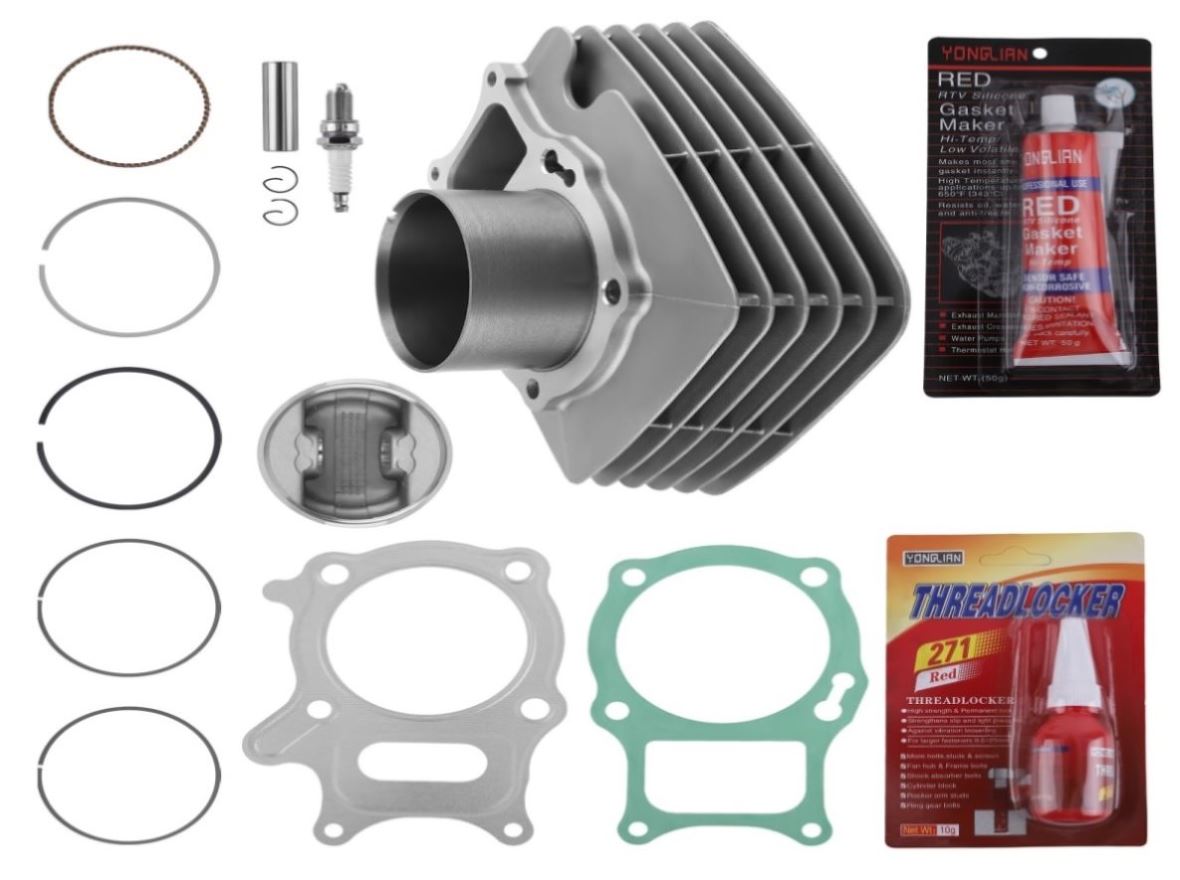

Package Includes:

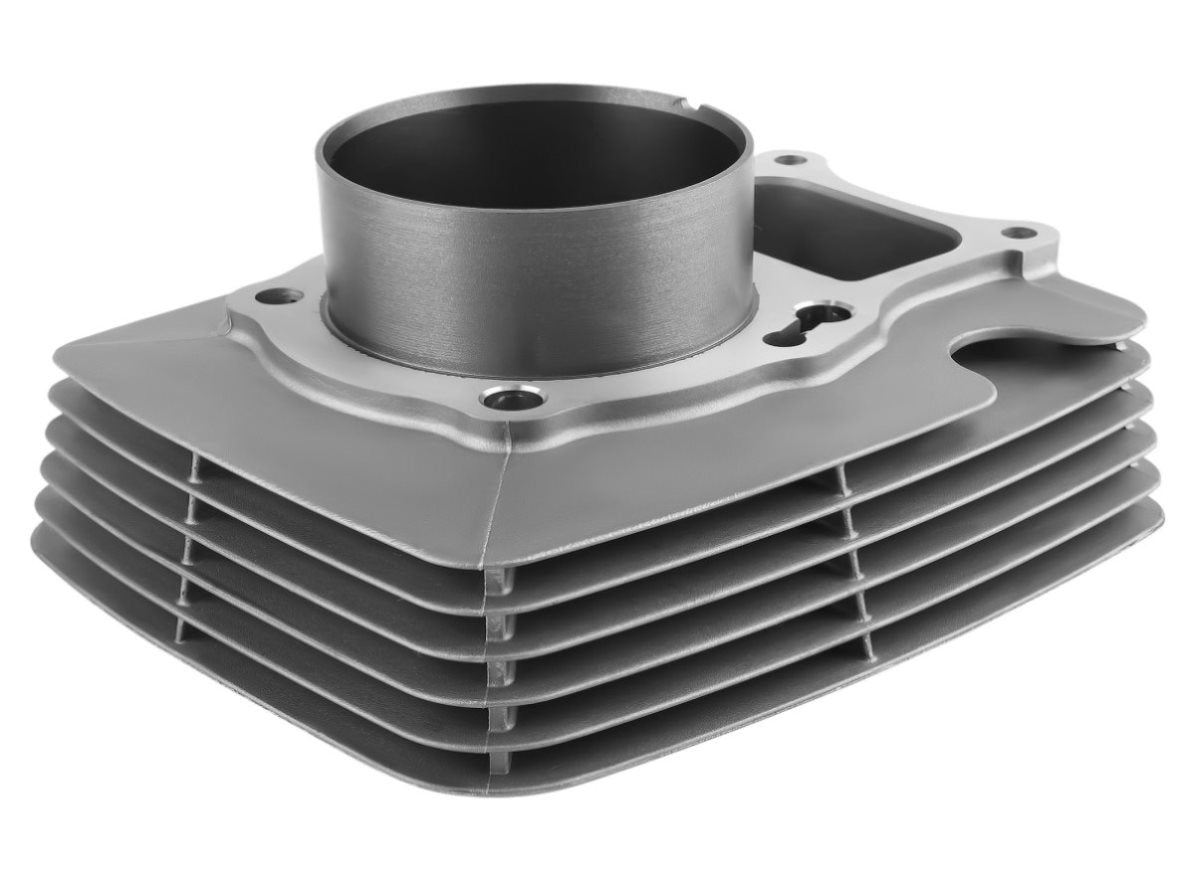

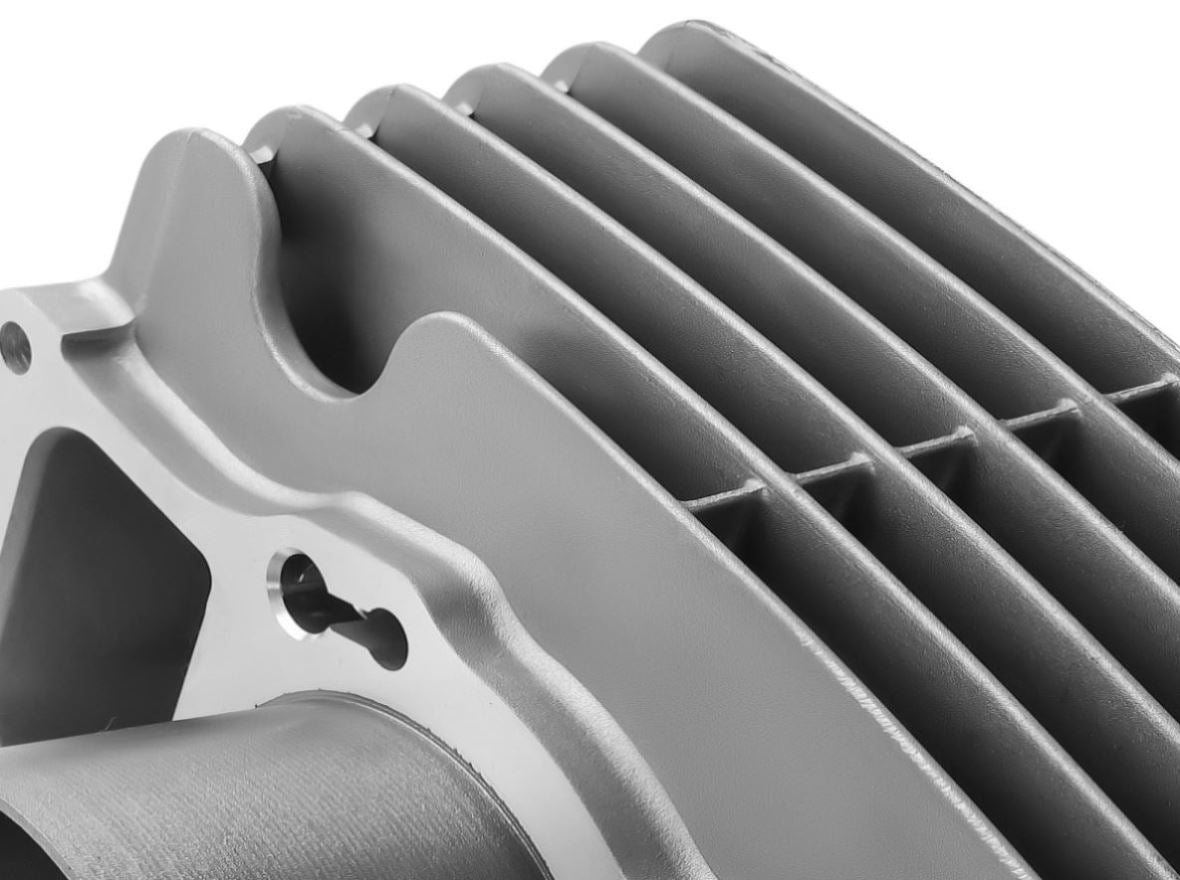

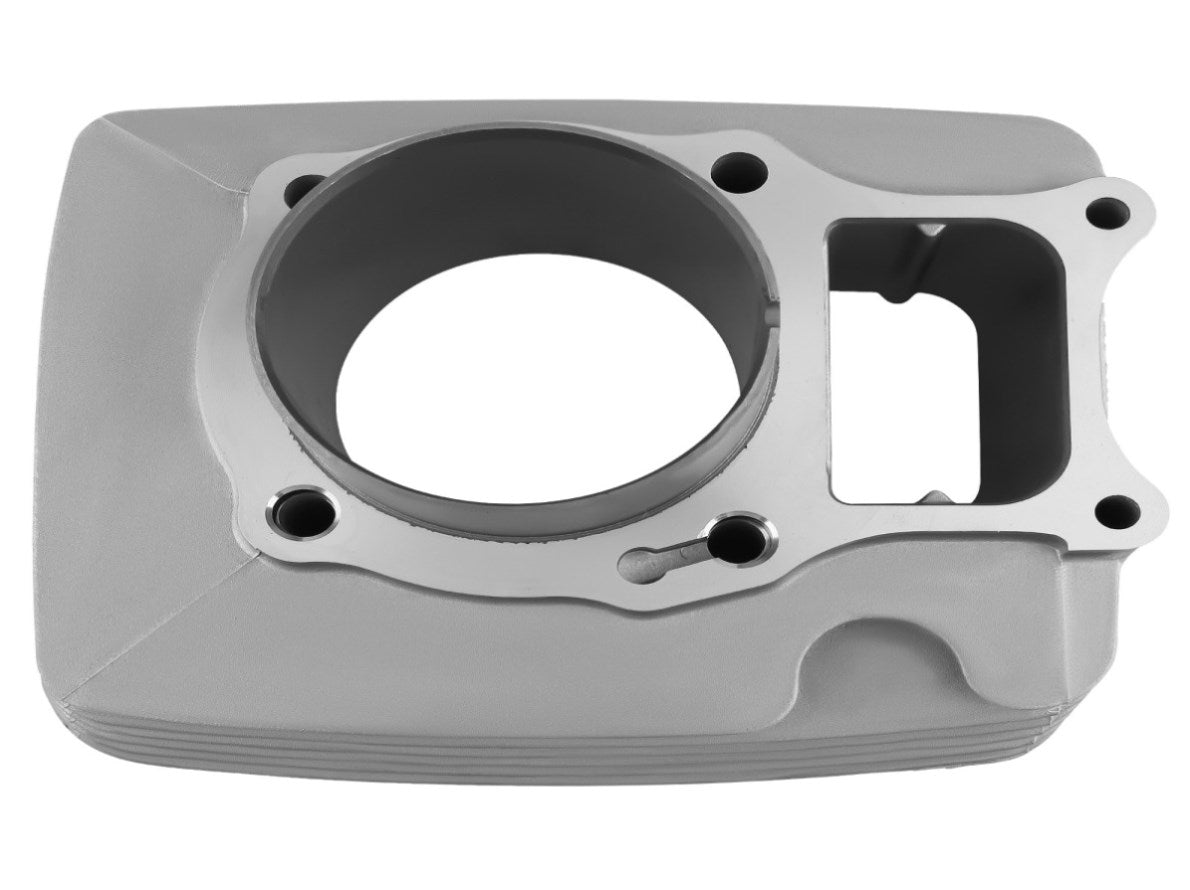

1* Cylinder
1* Piston
1* Piston ring set
1* Wristpin
2* Circlips

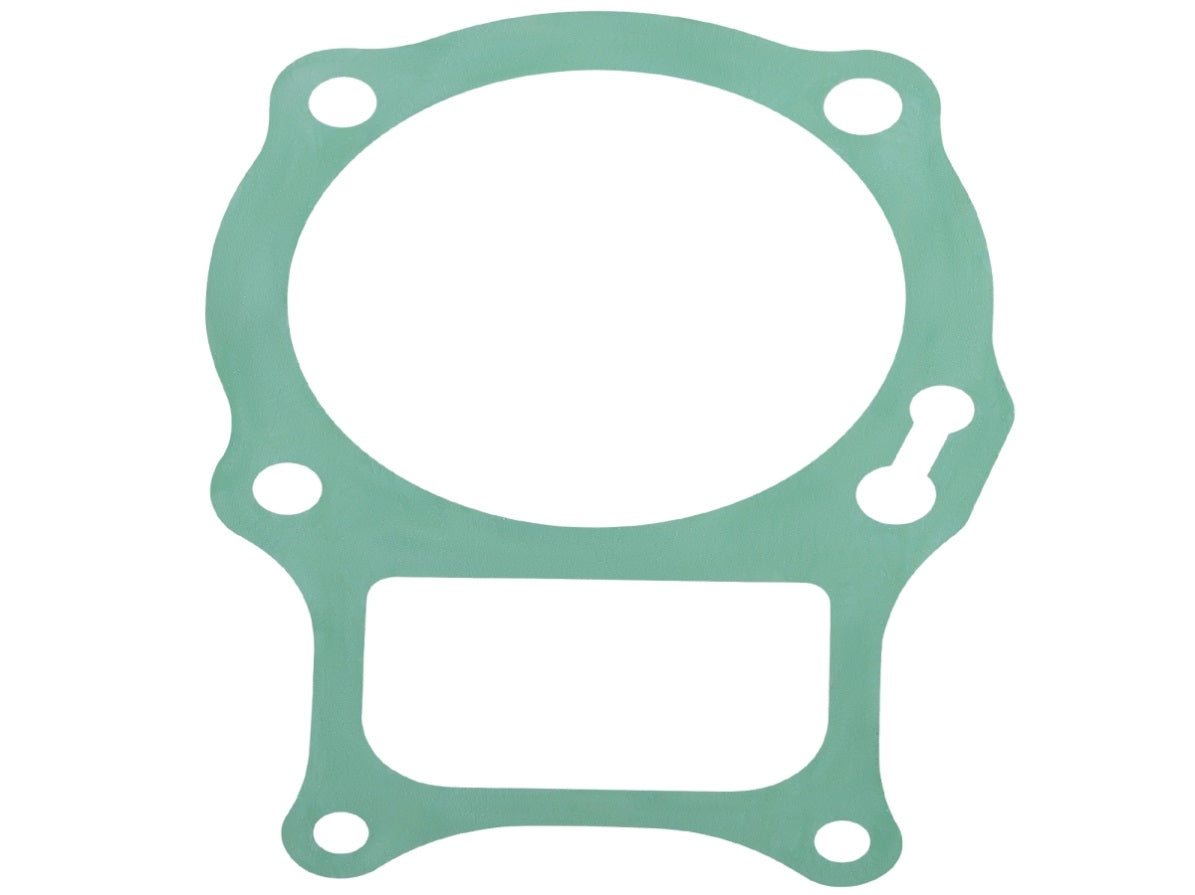

1* Cylinder base gasket

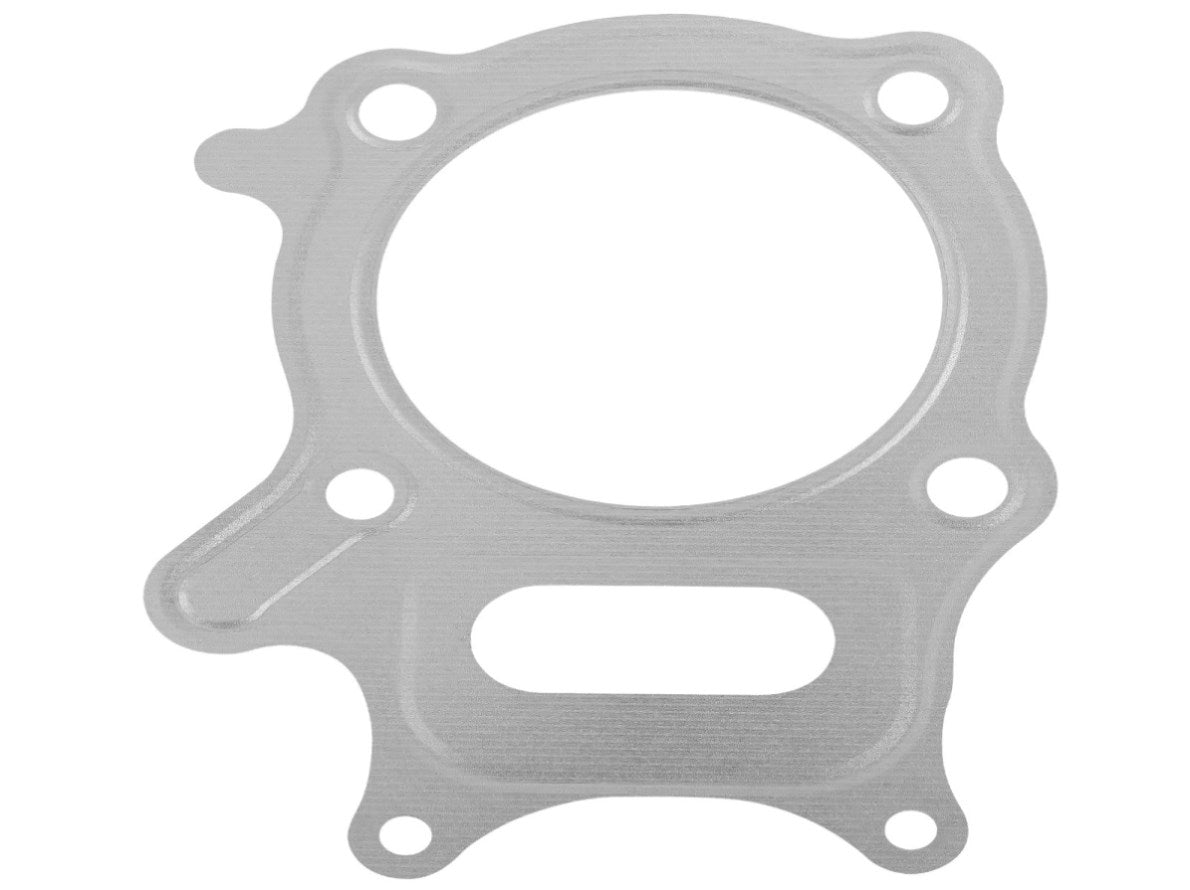

1* Cylinder head gasket
（Show as the picture.）

Feature

1. If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right fit for you to upgrade.
2. The 253.2ccm cylinder kit help to noticeably better pull from the lower speed ranges.
3. The stock carburetor can still be used, but should be equipped with a larger main 15-25% is sufficient when using the stock air filter.
4. This kit is excellent as a low-cost replacement fit for defects in the original cylinder.
