5 on 4-1/2 Disc Brake Kit Fit for Ford 1937-48 with Rotors Calipers Pads Set 72933676

Specifications:

Sold in Quantity: Kit
Rotor Diameter: 11 Inch
Caliper Pistons: One
Minimum Recommended Wheel Diameter: 15 Inch
Hardware Included: Yes
Race Included: Yes
Stud Diameter: 0.44"
Thread Pitch: 1/2"-20
Finish: Natural
Rotor Material Type: Cast Iron
Front Rotor Diameter: 11 Inch
Bolt Pattern: 5 on 4.5"
Position: Front
Rotor Type: Vented
Caliper Finish: Natural
Rotor Shape: Round
Rotor Thickness: 1"
Stud Length: 1.50
Centerline of Holes: 5.5"
Front Suspension Type: Straight Axle
Front Rotor Included: Yes
Front Caliper Included: Yes
Brake Hoses Included: Yes
Bolt Pattern: 5 on 4.5"

Fitment

Fit for Ford all 1937-1948 car and 1937-1947 truck spindles
For Example:
Fit for Ford Deluxe 1939-1948
Fit for Ford Sedan Delivery 1937-1947
Fit for For Ford 1/2 Ton Pickup 1946-1947
Fit for  Ford Standard 1939-1940

Works on all 1937-1948 car and 1937-1947 truck spindles
Brake kit fits 1937-1941 round back style spindle with zero modifications
Also fits 1942-1948 square back style spindles with minor grinding of the spindle
This kit works with both cast in and bolt-on steering arms without issue
Works perfectly with Speedway Motors spindles which utilize 1937-1941 round back styling

Installation Tips:
1. For GM "Metric" single-piston floating calipers (2-3/8" piston)
2. Rotors feature standard for Ford small car 5x4.5 inch bolt pattern.
3. Caliper brackets fit for Ford spindles 1937-1948:
Direct fit for 1937-1941 "round back" spindles.
Requires minor clearance work for 1942-1948 "square back" spindles.
4. Minimum 14 Inch "disc brake" wheel required; 15-inch wheel recommended with a minimum 2.80 Inch hub I.D. and must be lug-centric for proper clearance.

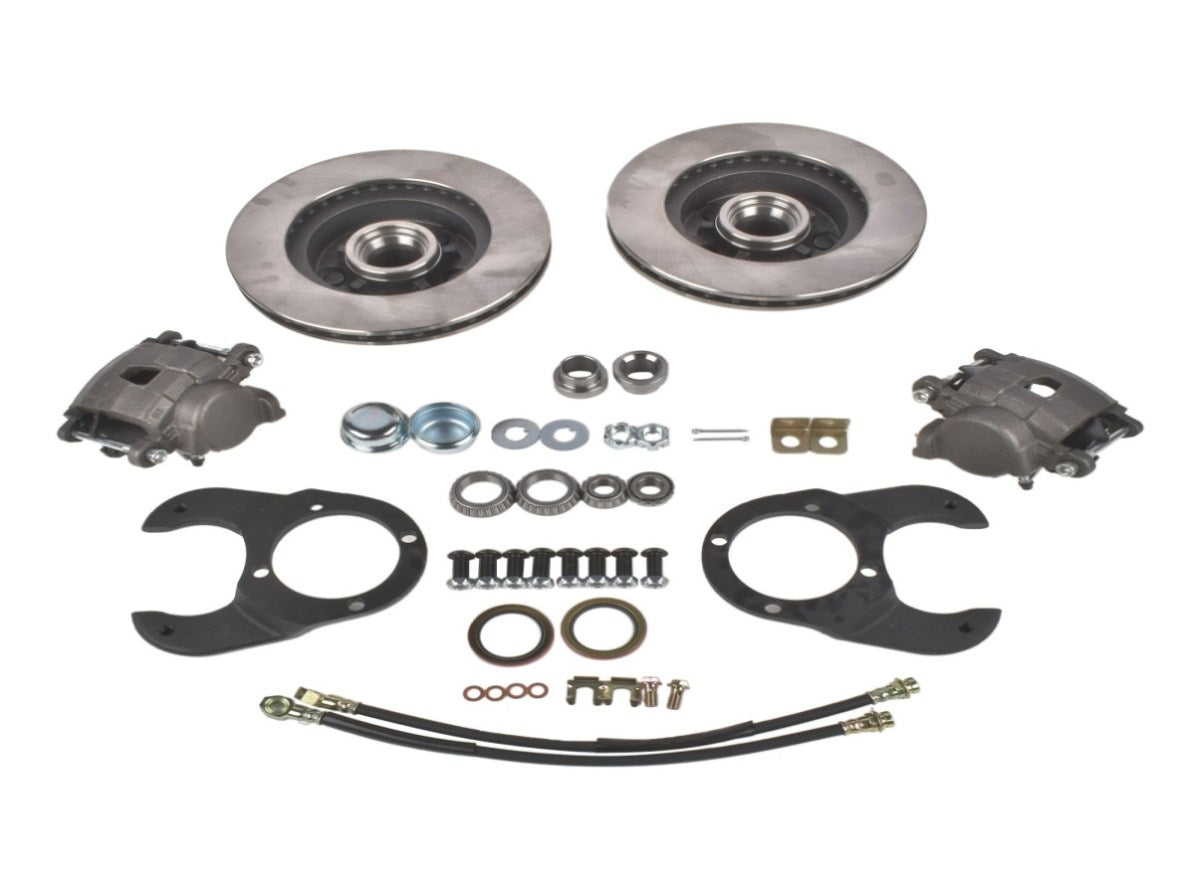

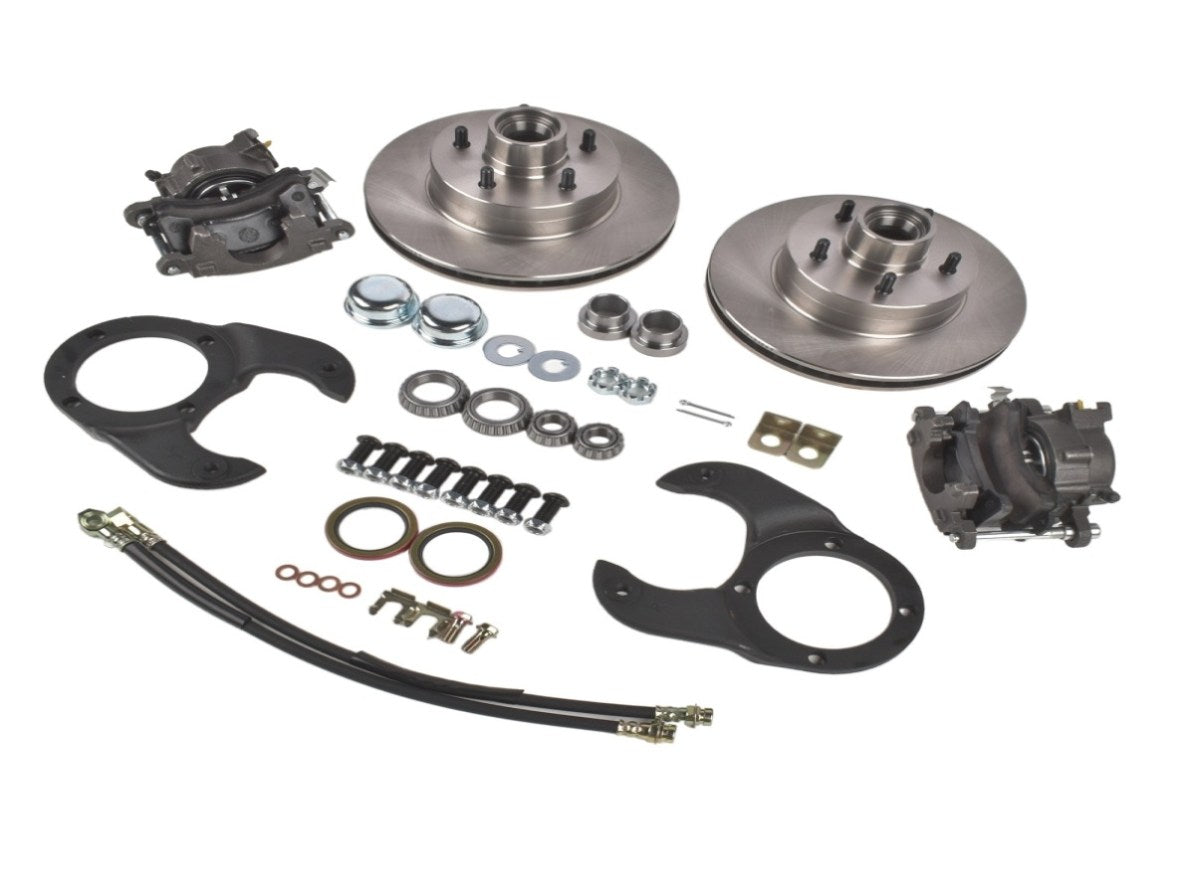

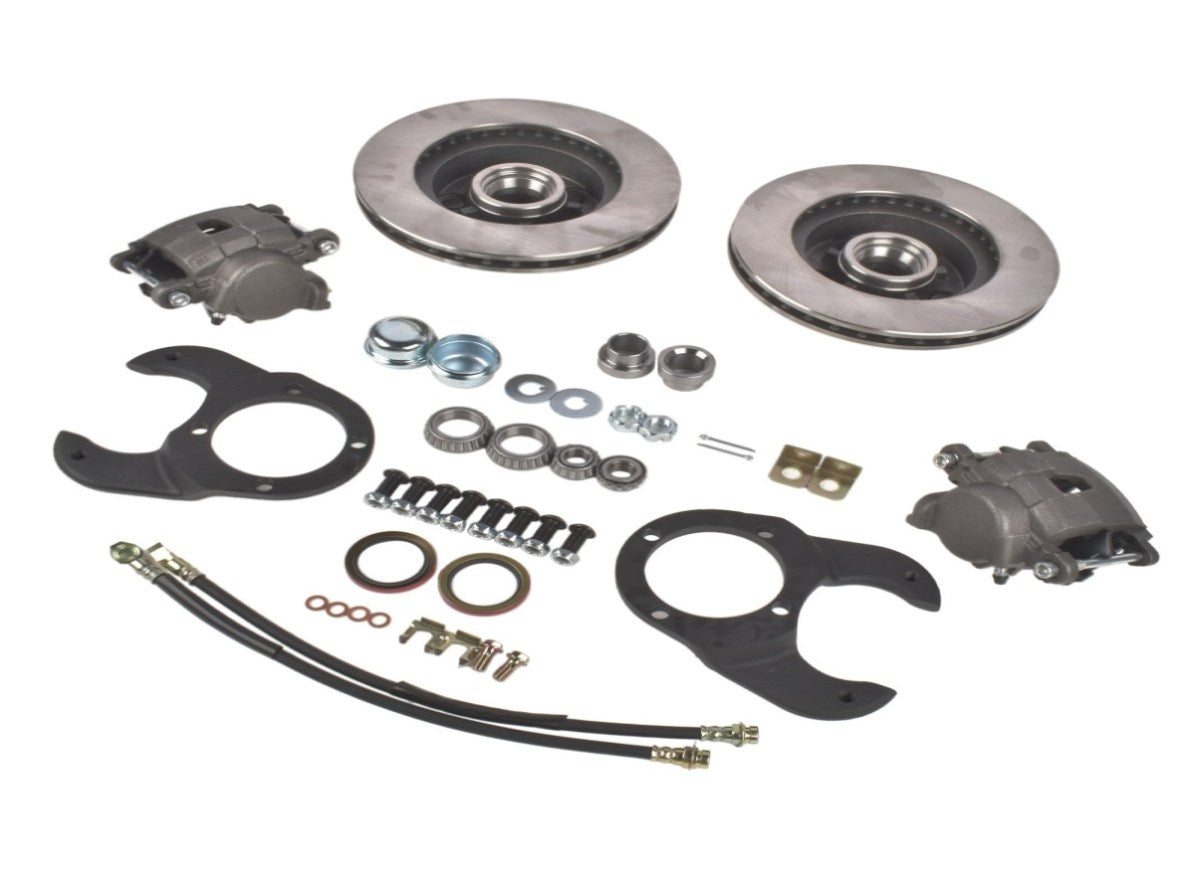

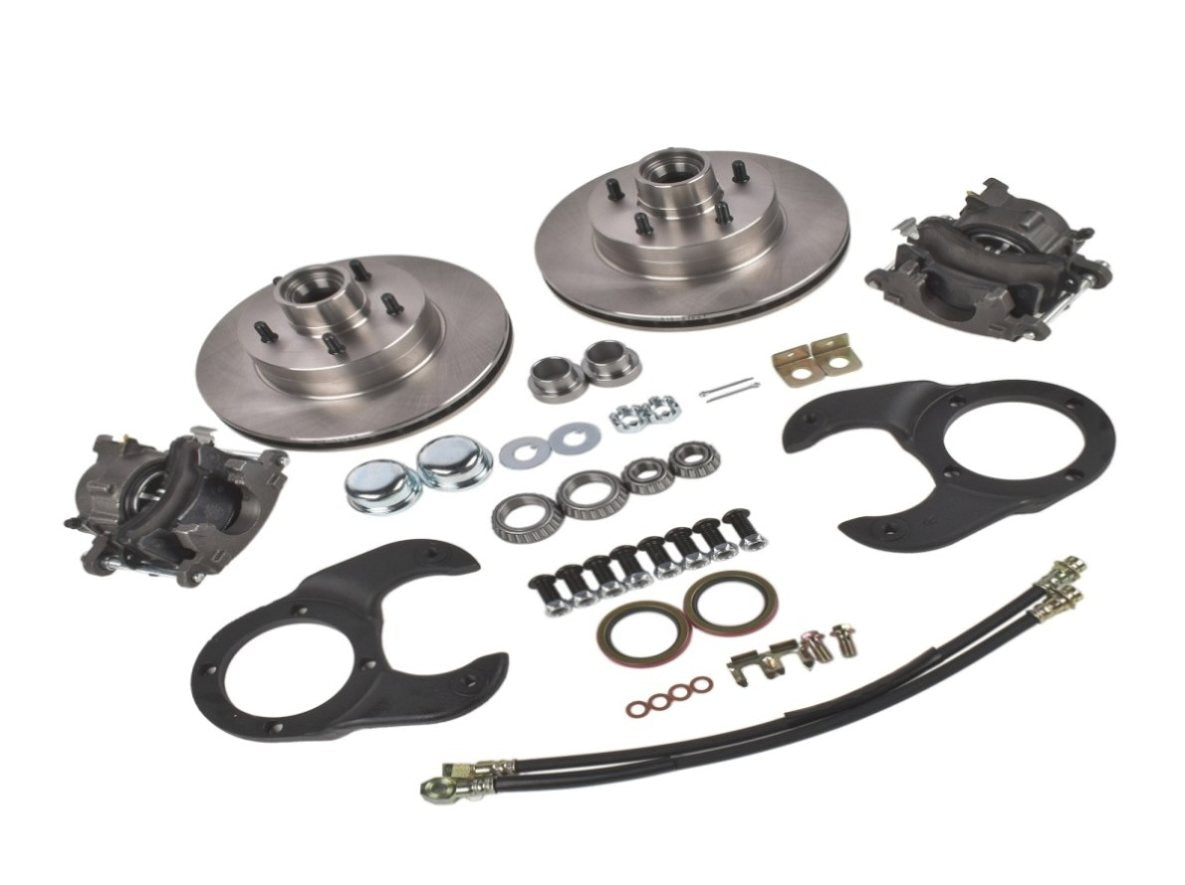

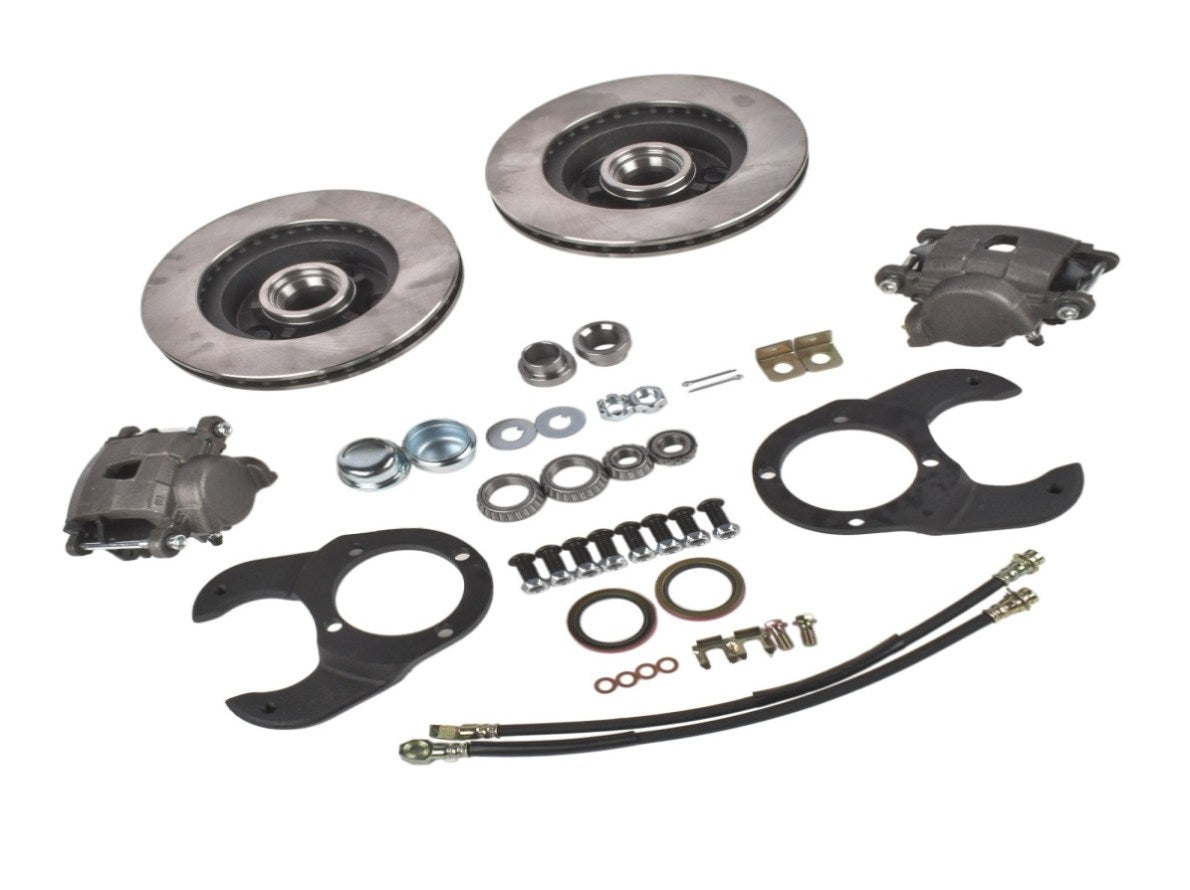

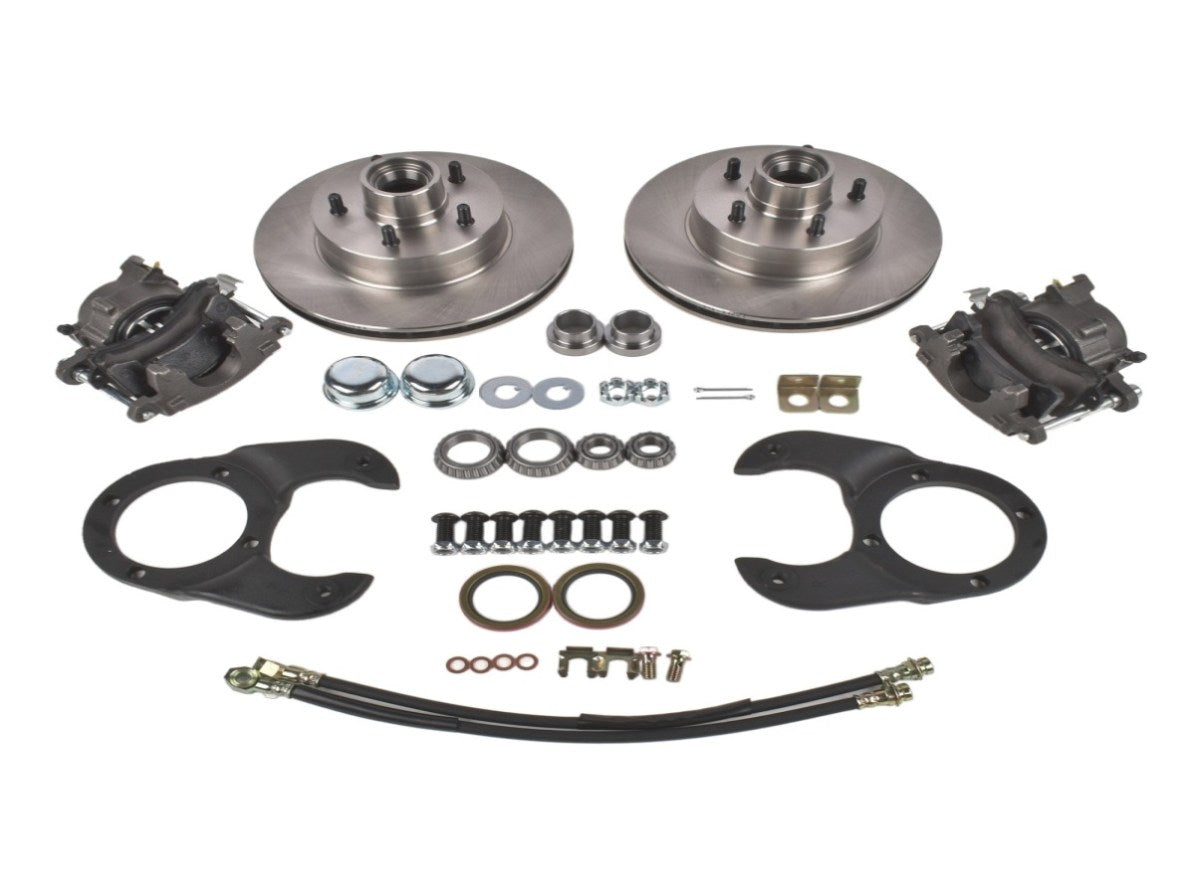

Package includes:
(Showing as the picture)

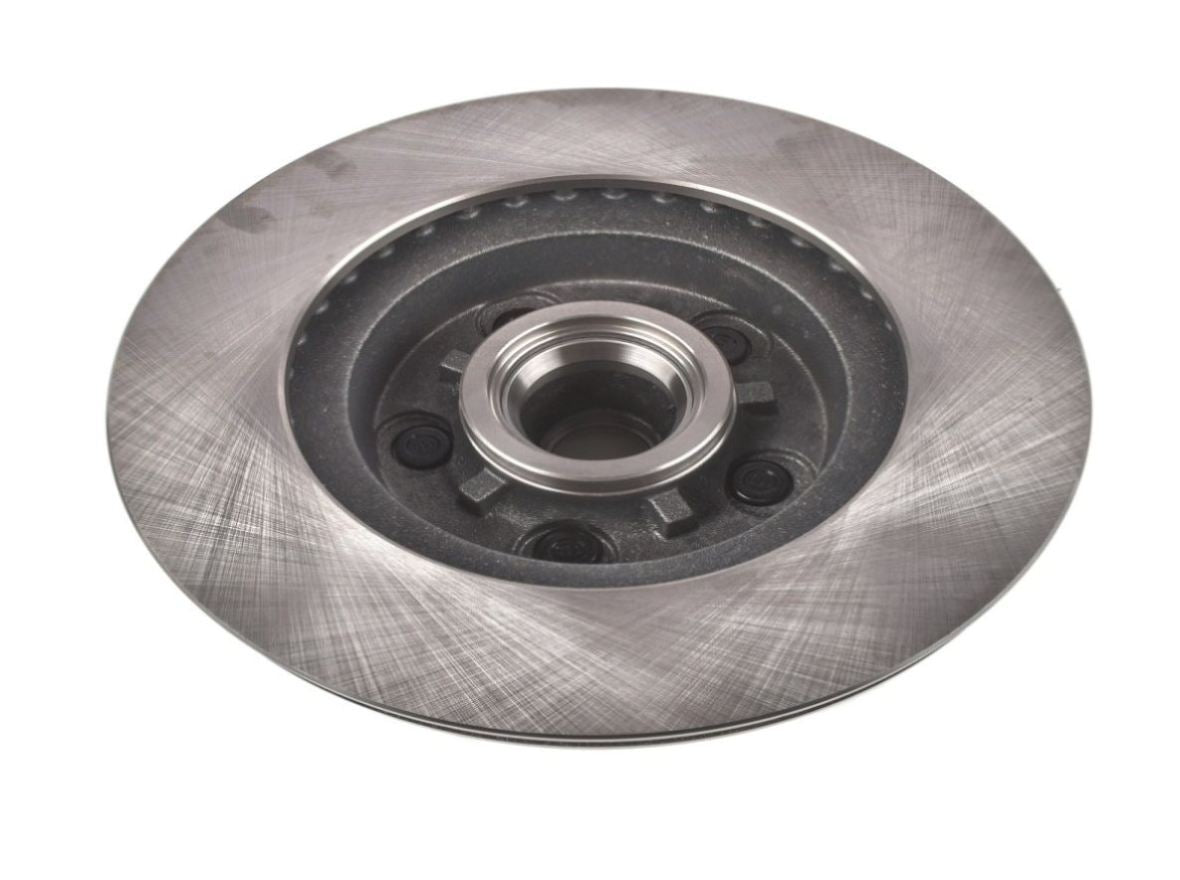

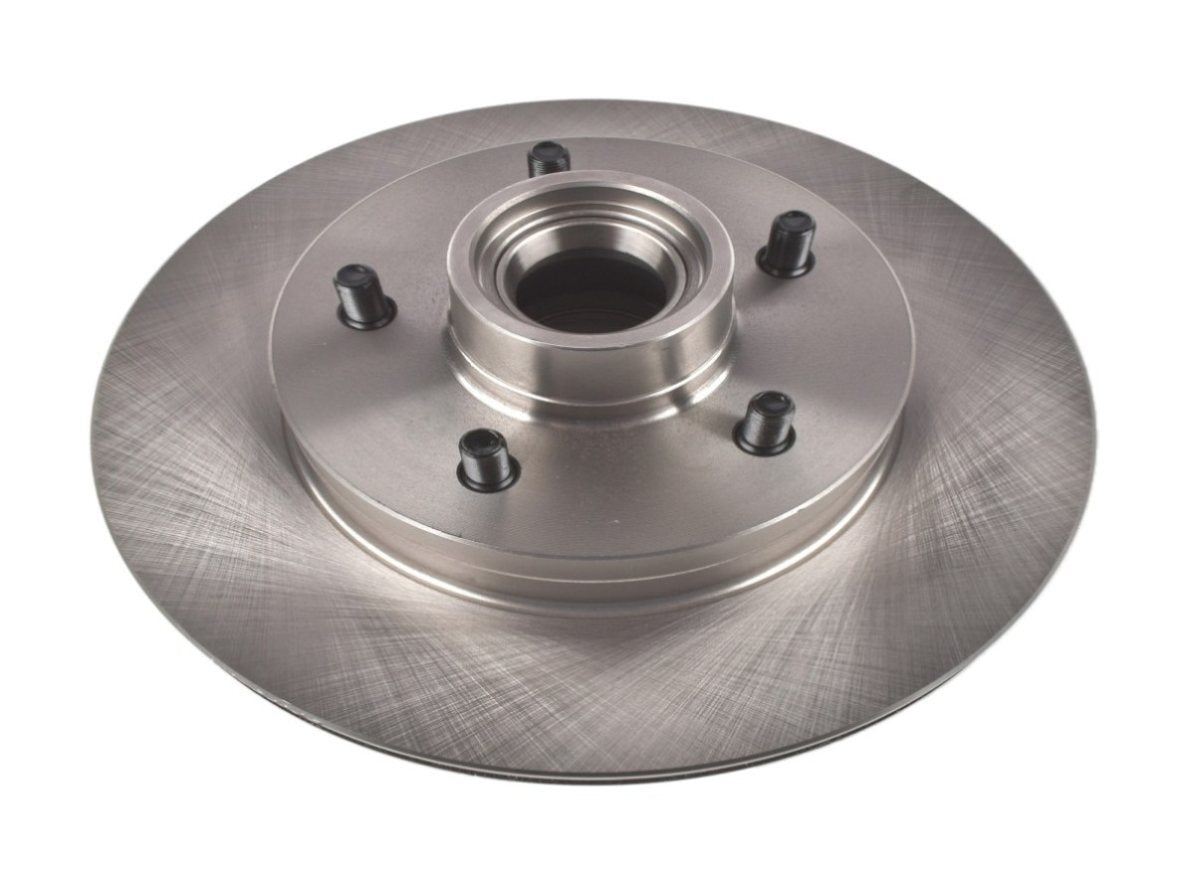

2x 11 Inch Brake Rotors
1x Brake Pad Set

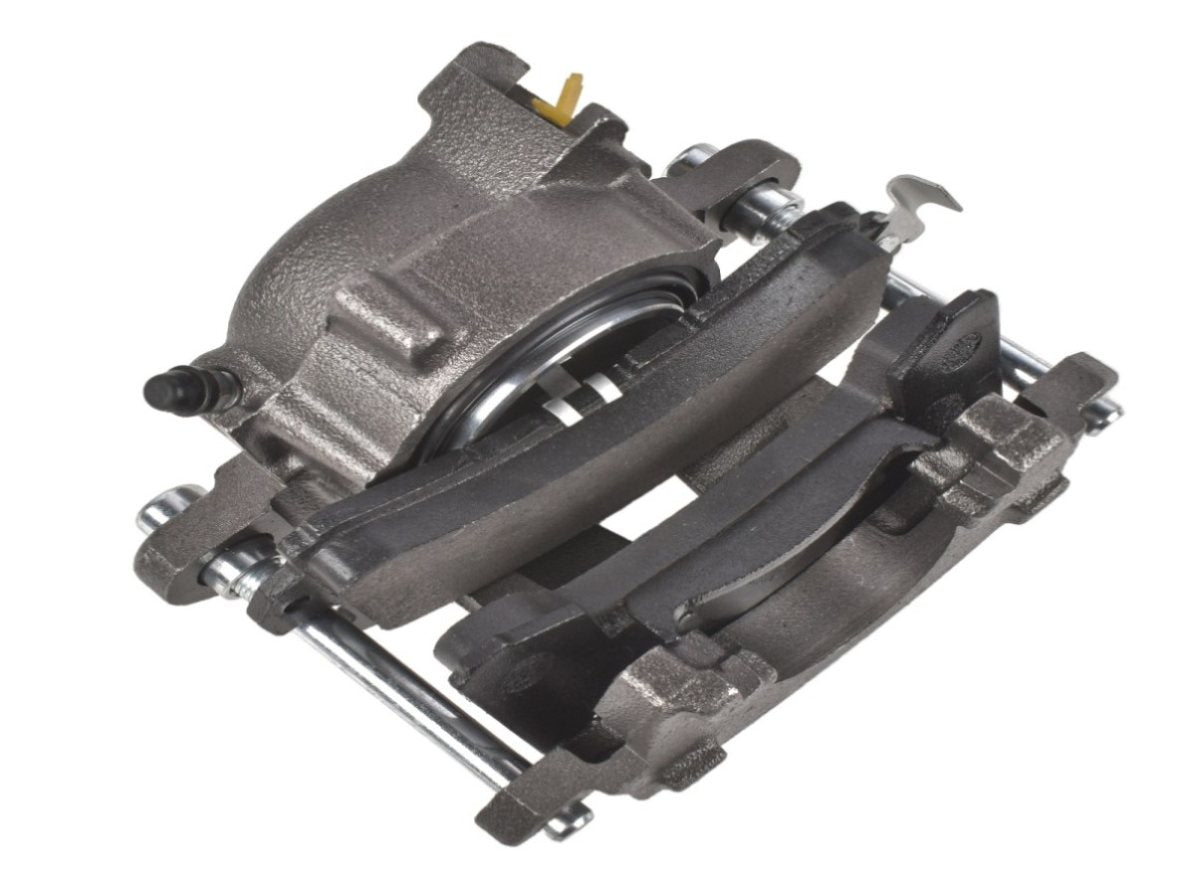

1x LH Metric Caliper
1x RH Metric Caliper

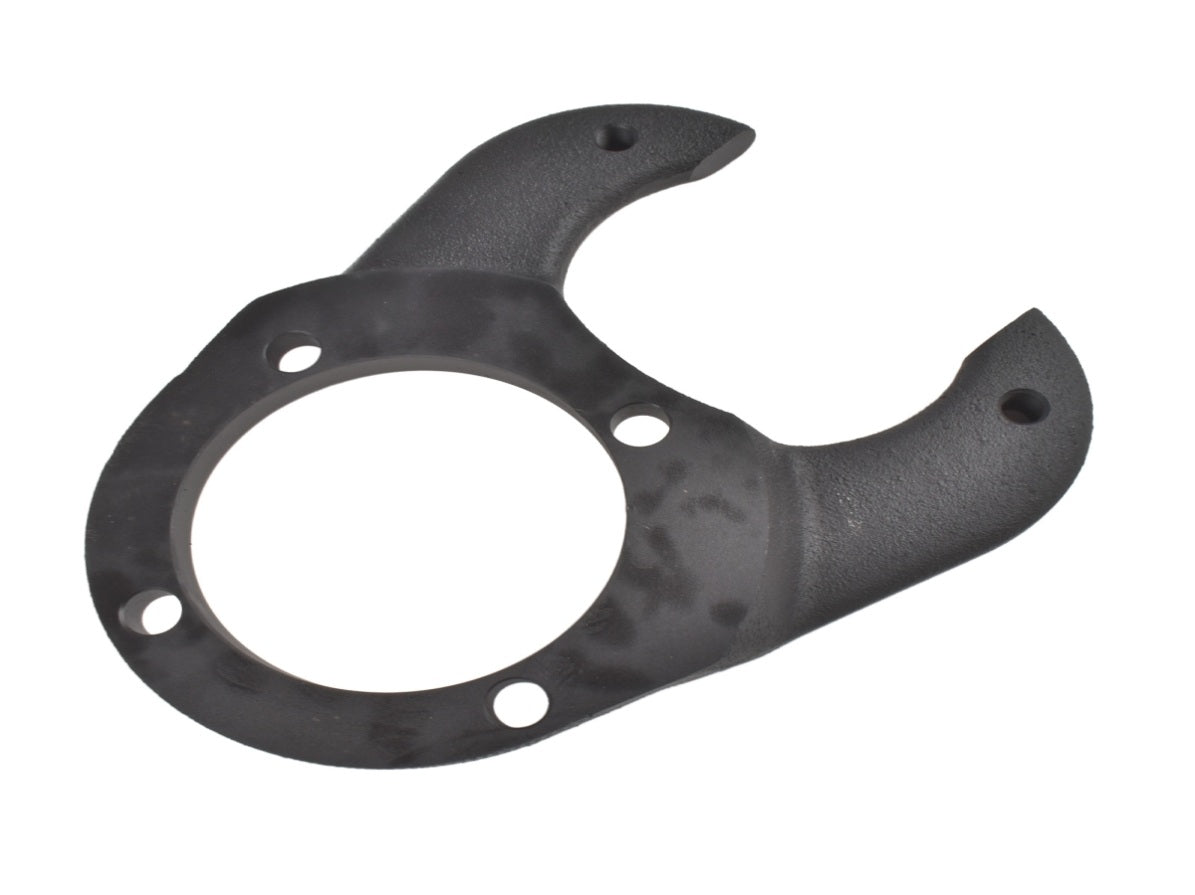

1x Disc Brake Kit For 37-48 Ford Spindle

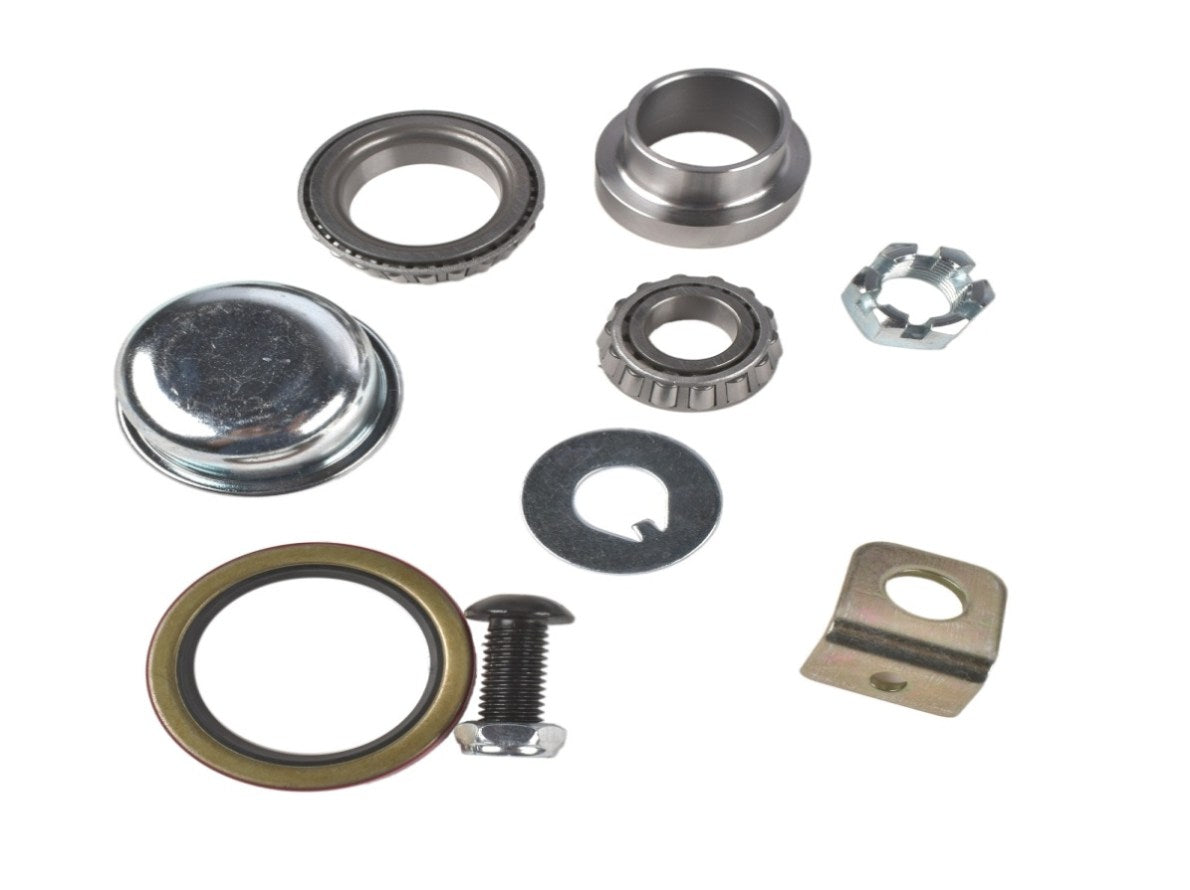

2x Outer Wheel Bearings
1x Bolt Kit for Ford Spindle Flat Steering Arms
1x Spindle Nut Kit
1x Front Hardware Kit

Professional installation is recommended.
