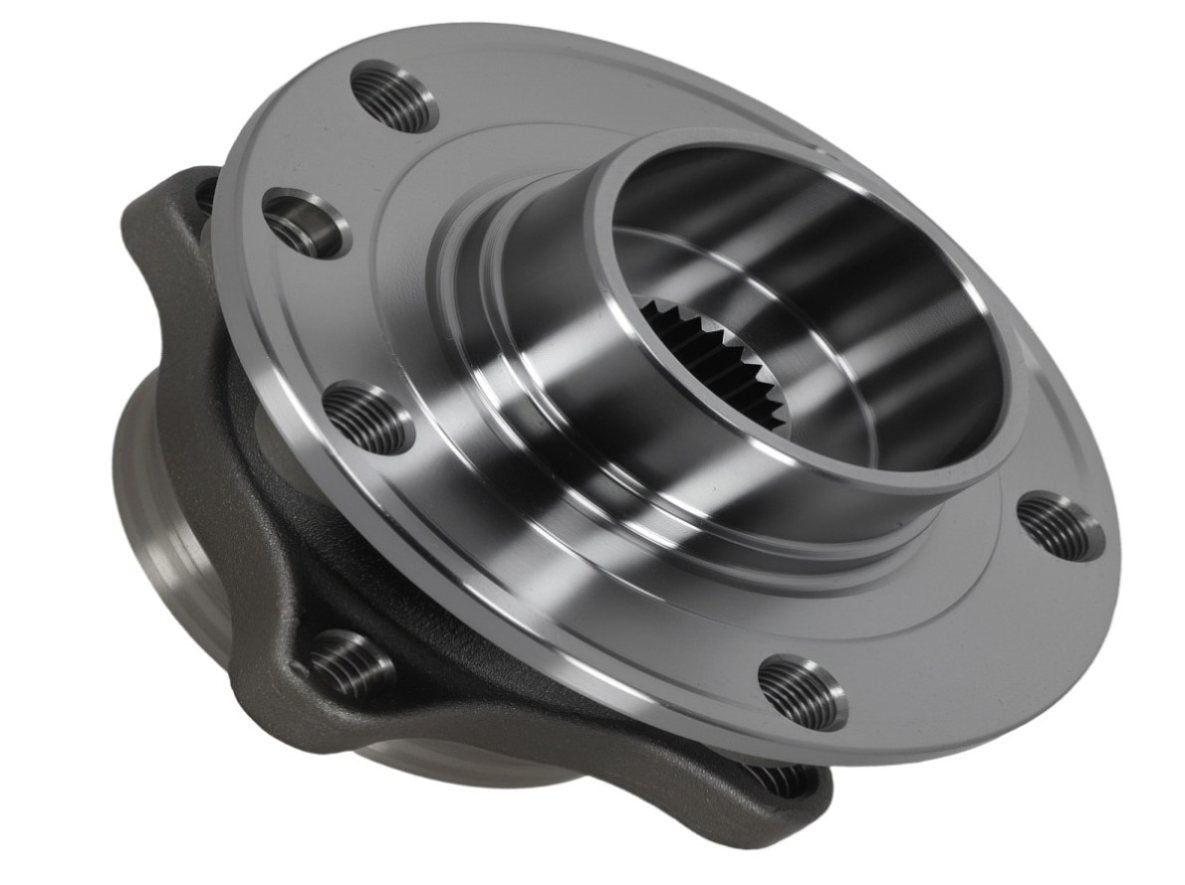

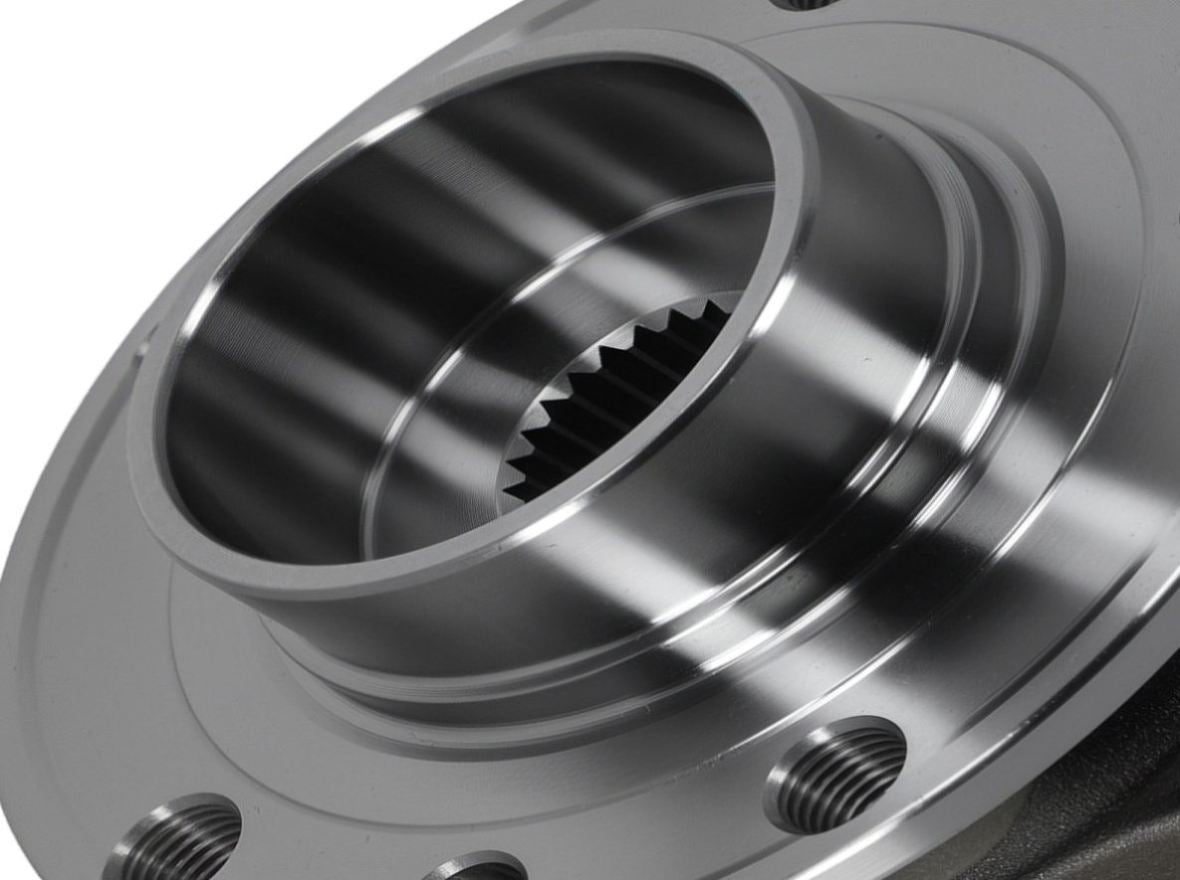

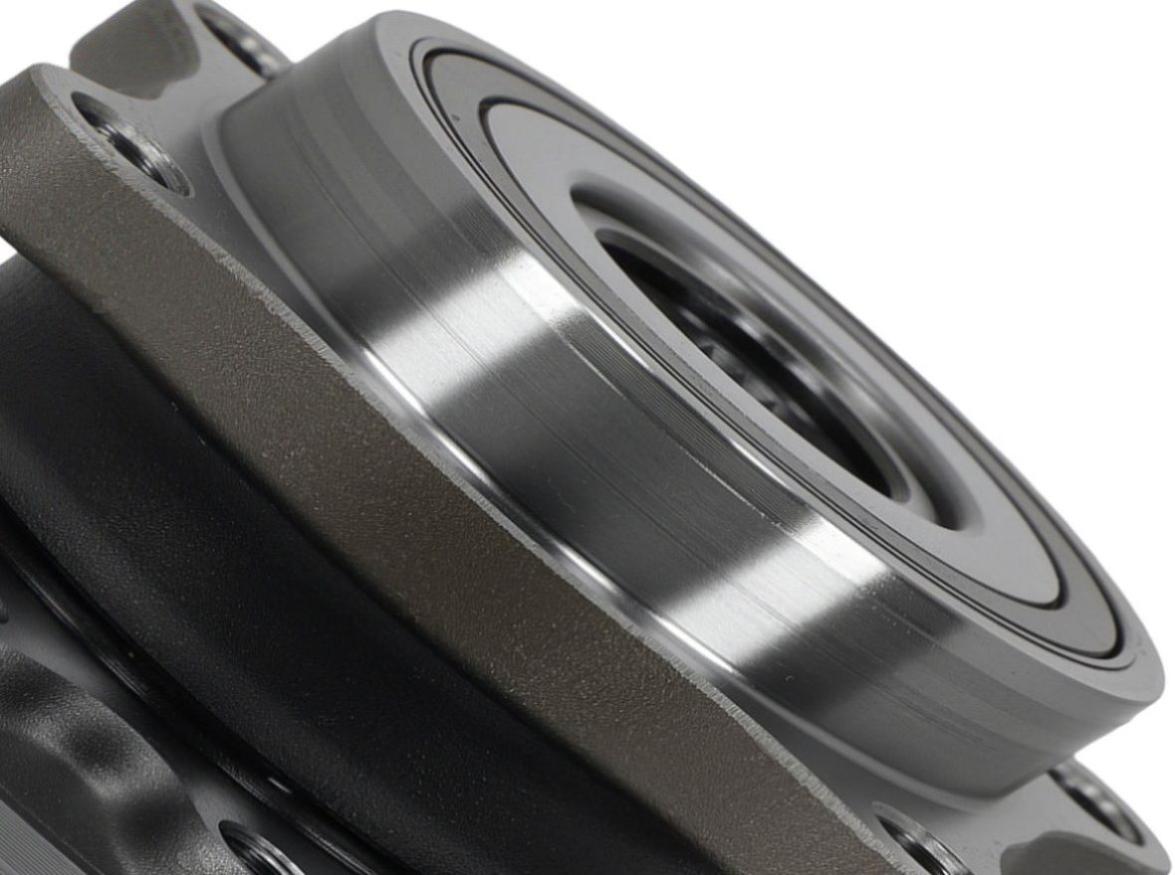

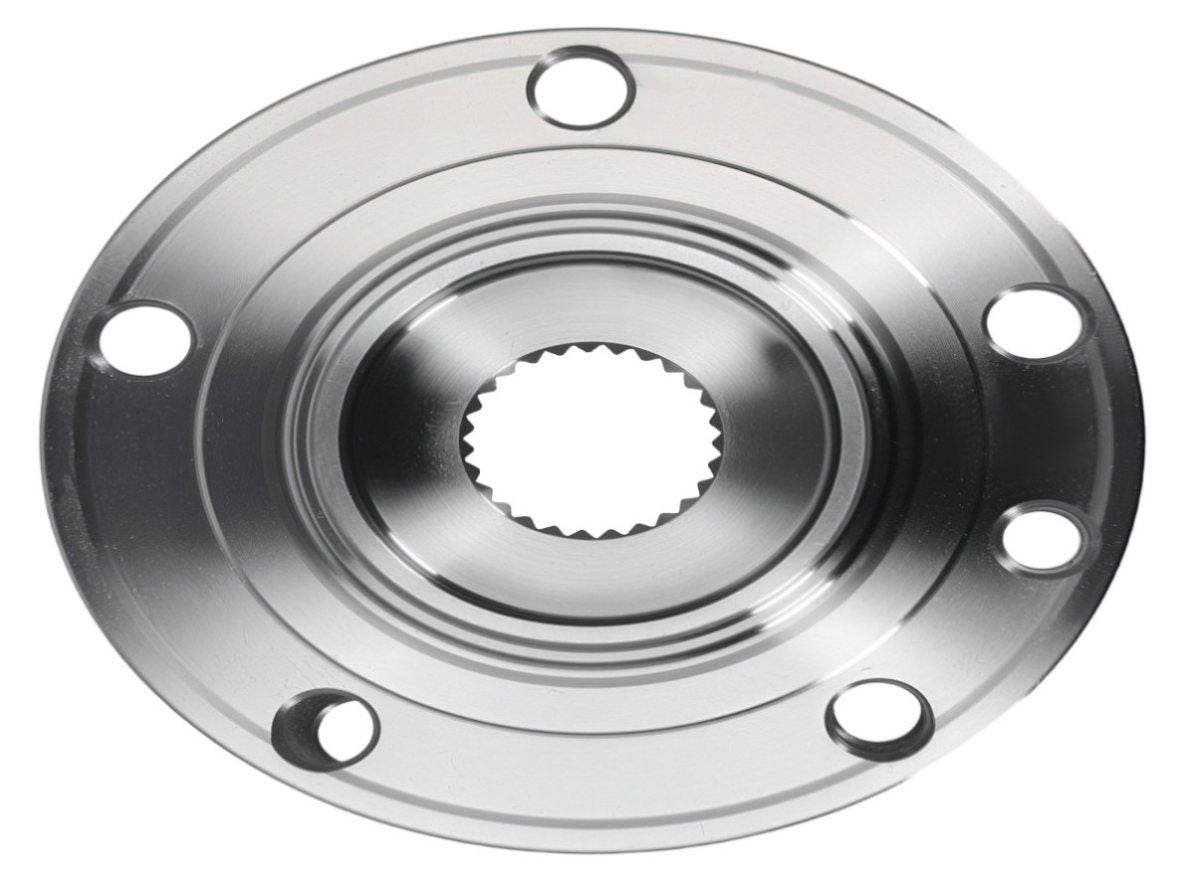

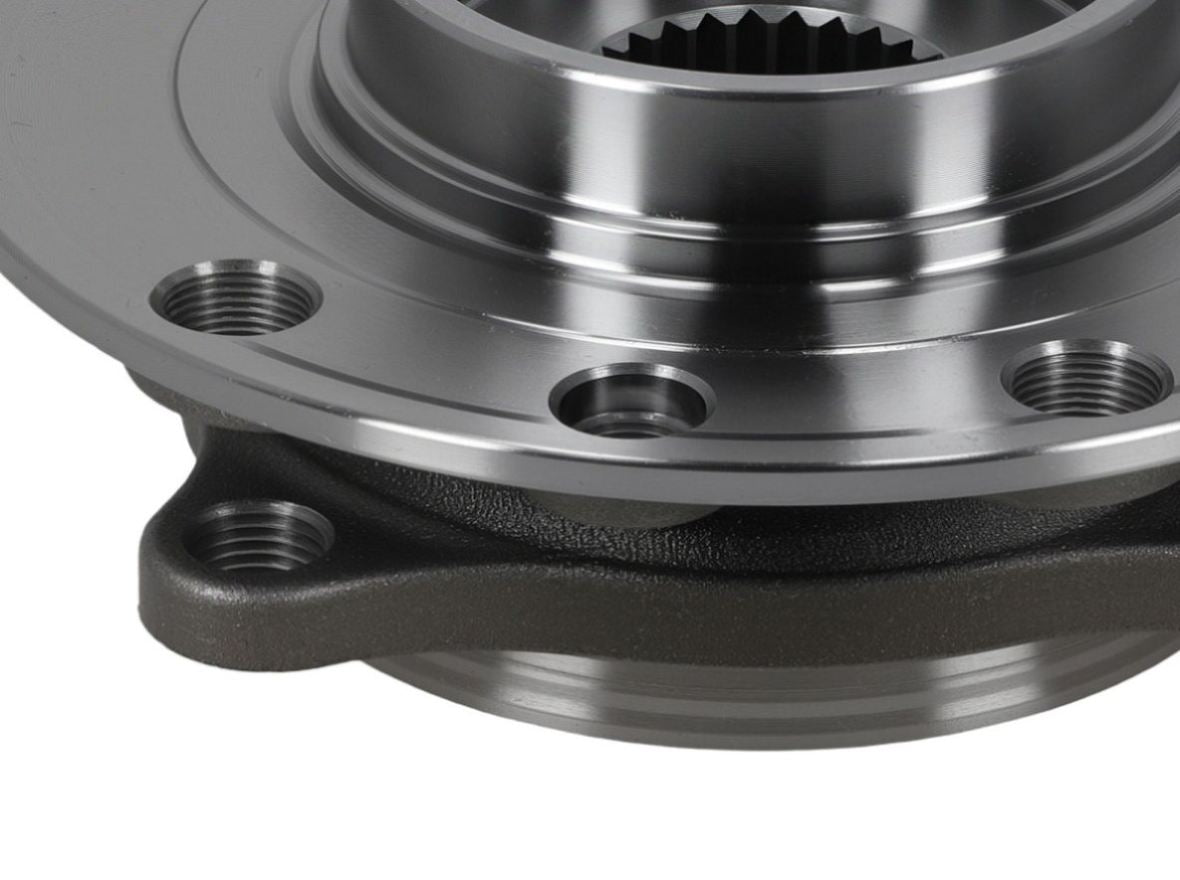

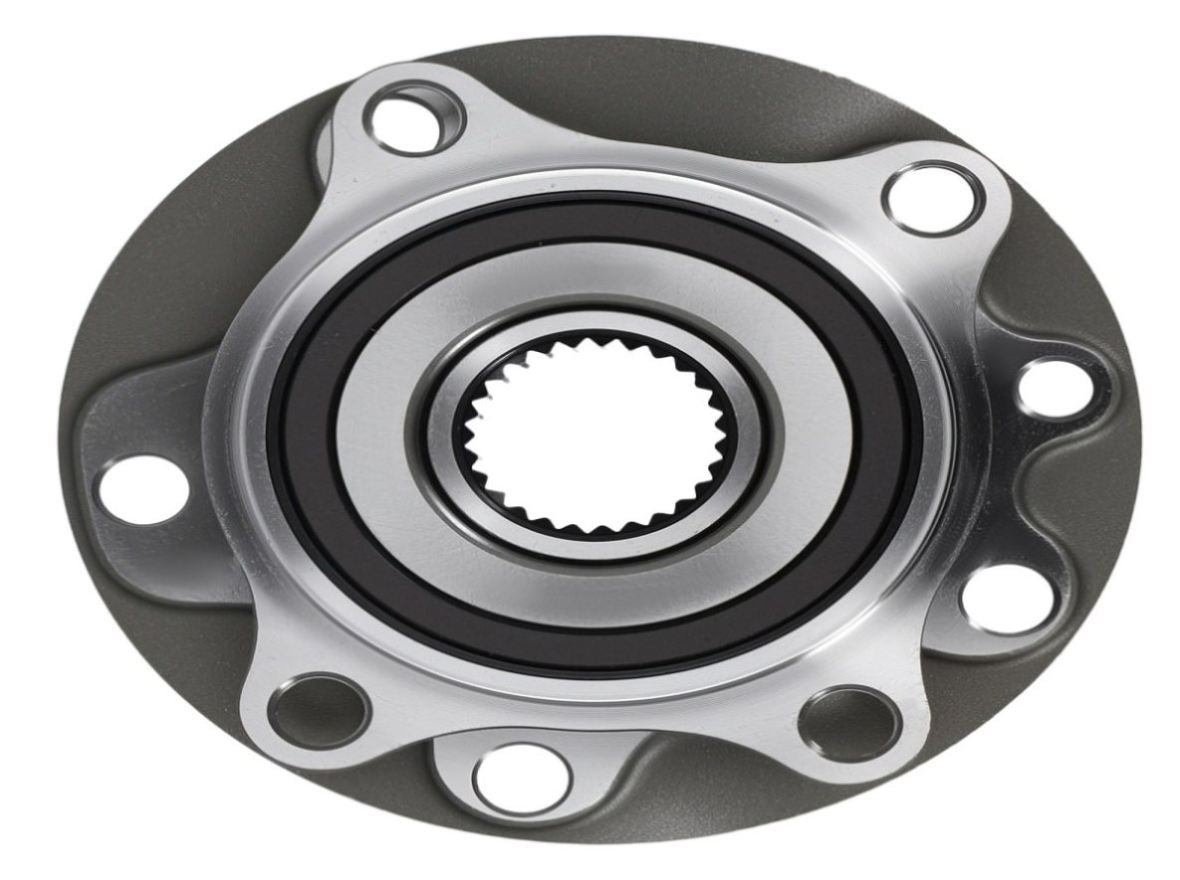

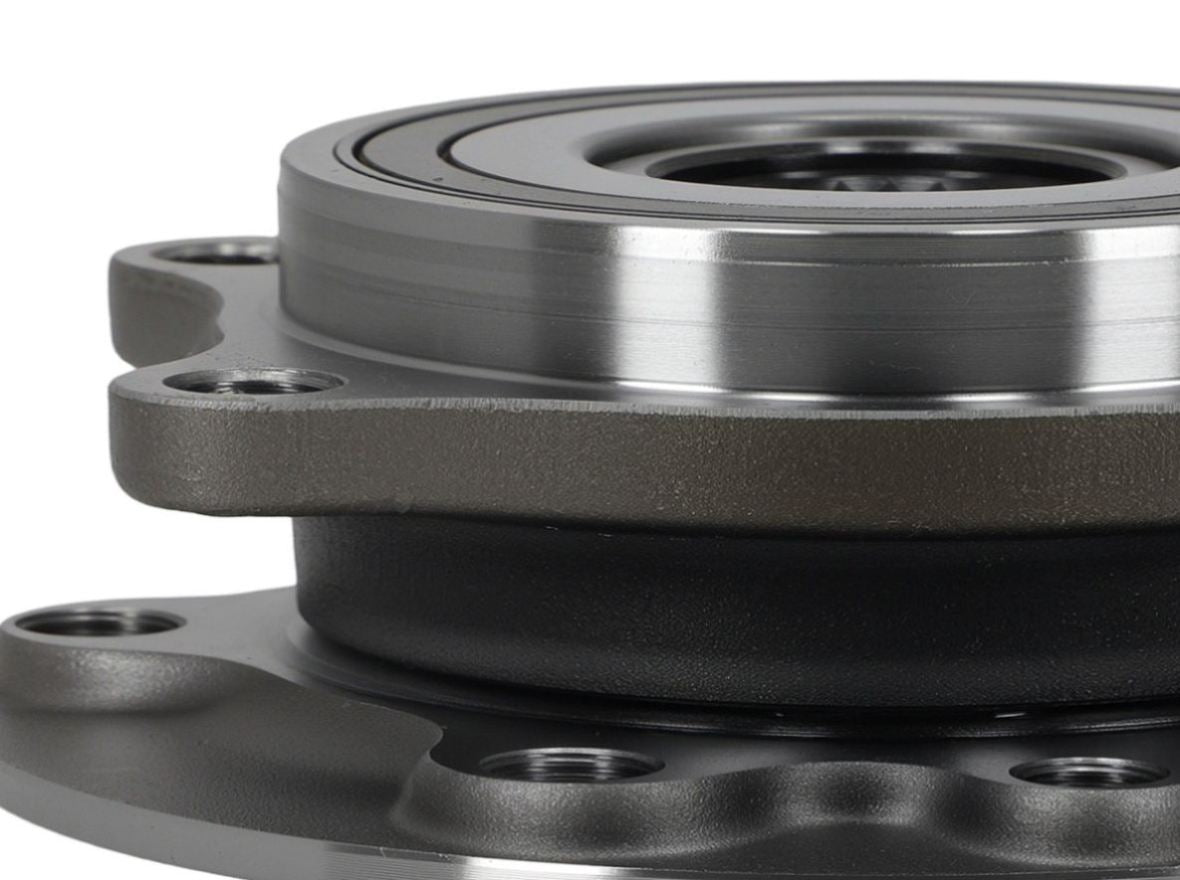

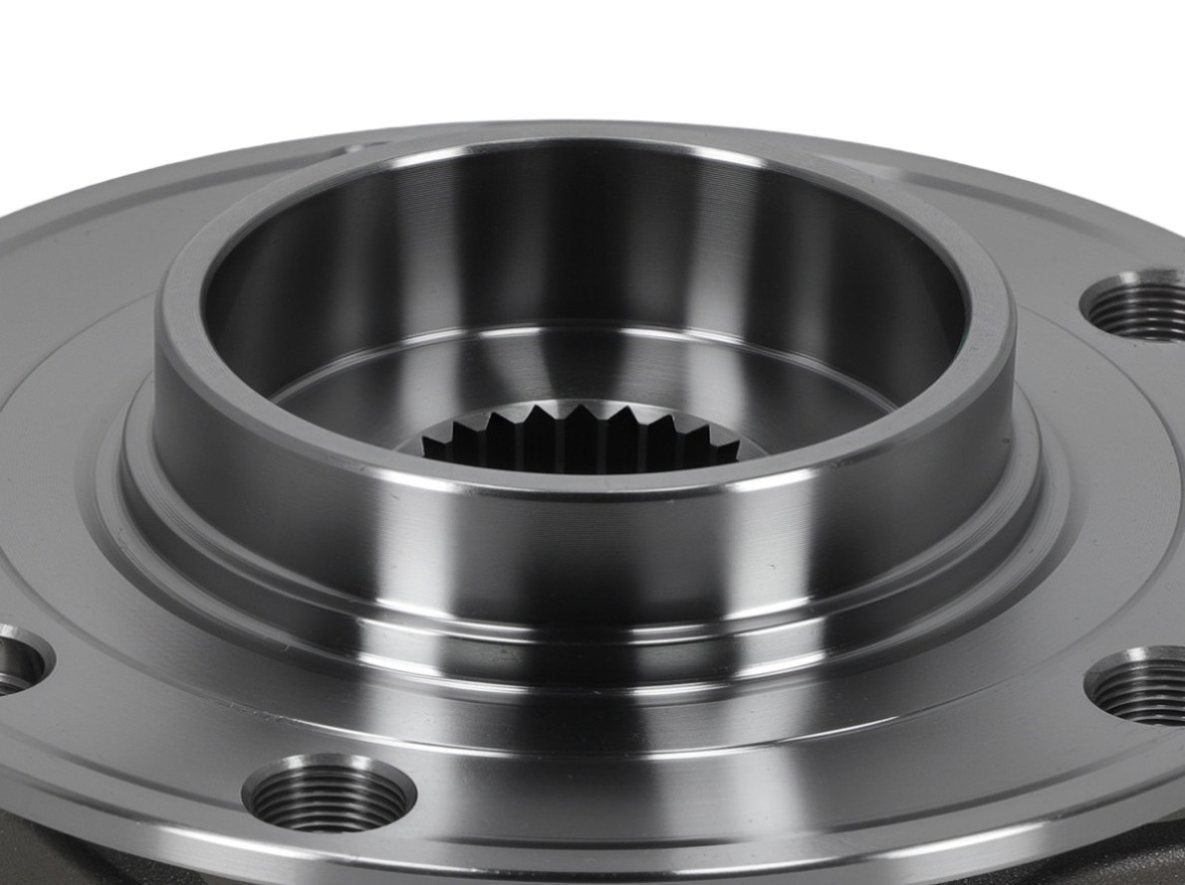

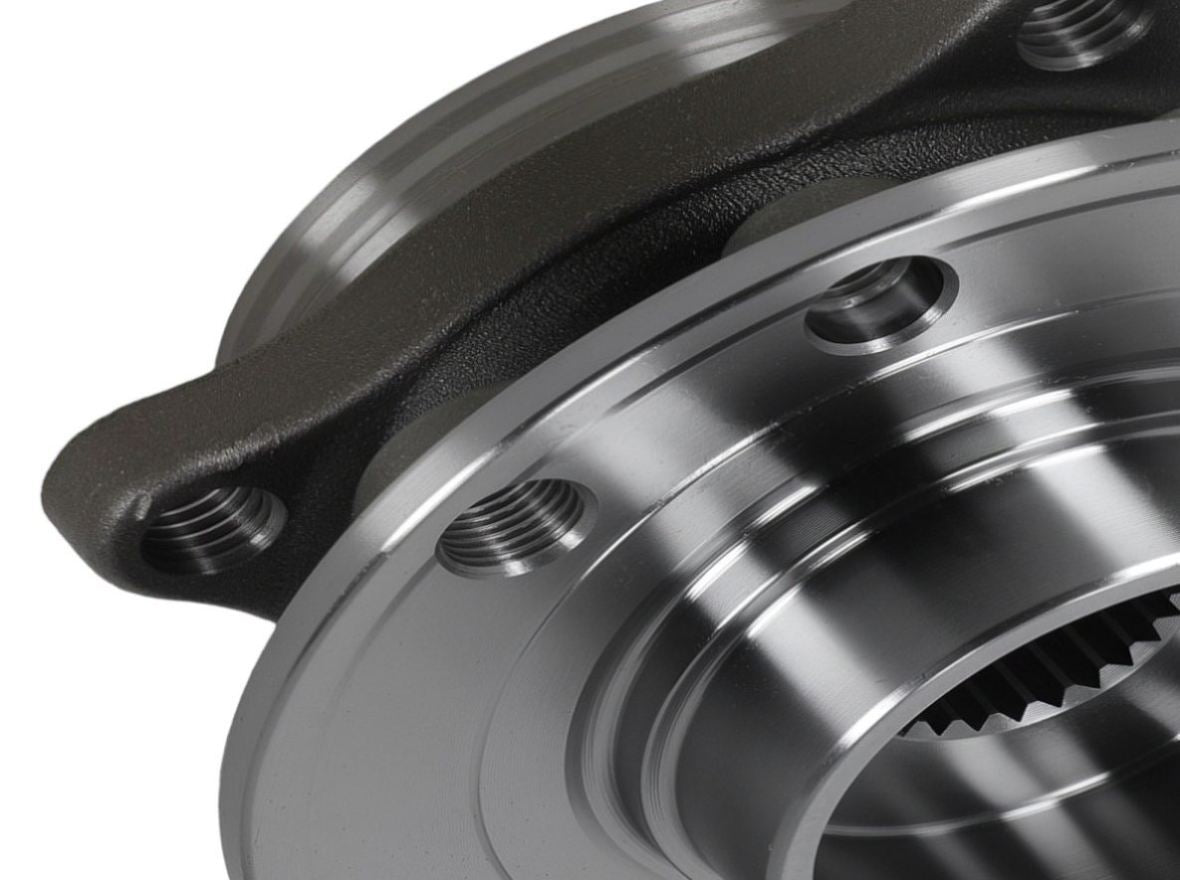

5 Lugs Front Wheel Hub Bearing fit for Chrysler 200 Dodge Dart 513348 WA513348 w/ABS 13200638
Application:
fit for CHRYSLER 200 All Models 2015 - 2017
fit for DODGE DART All Models 2013 - 2016
OE/Part number:
513348, 68137552AB, 68137552AA, WA513348, WH590473, 40163004E, BR930881, HA590473, WE60615, MB25312, BHA54147
Specification:
Position: Front
Lugs: 5 Bolt
ABS on Hub: Yes
Bolt Circle Diameter (mm): 110.100
Brake Pilot Diameter (mm): 69.800
Flange Diameter (IN): 5.110
Flange Diameter (mm): 129.900
Flange Offset (IN): 1.638
Flange Offset (mm): 41.600
Flange Shape: Trapezoid
Height (IN): 6.25
Hub Pilot Diameter (mm): 83.800
Length (IN): 7.25
Weight (lb): 5.8
Wheel Pilot Diameter (mm): 65.000
Width (IN): 6.5
Type: Wheel Hub & Bearing Assembly
Package included:
1x Front Wheel Hub and Bearing Assembly - 513348
Feature:
・OEM Standard Specifications
Meet OE performance standards
・High-Quality Steel Materials
Provide optimal performance and durability
・Bolt Design
Balance force better, boost safety
・Built-In Seals
Stop contaminants and keep lubrication
Note:
Professional installation is highly recommended.
Please double confirm the compatibility as well as the OEM number before purchasing
