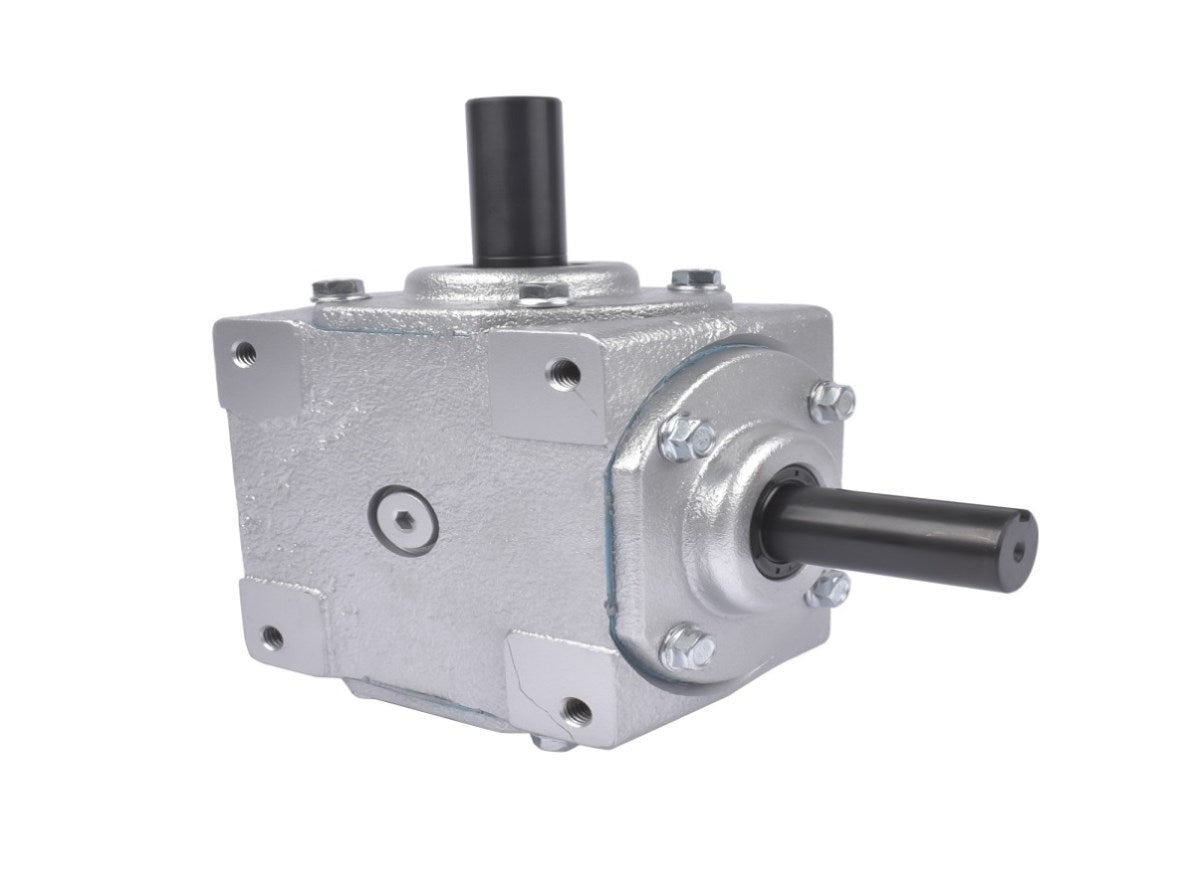

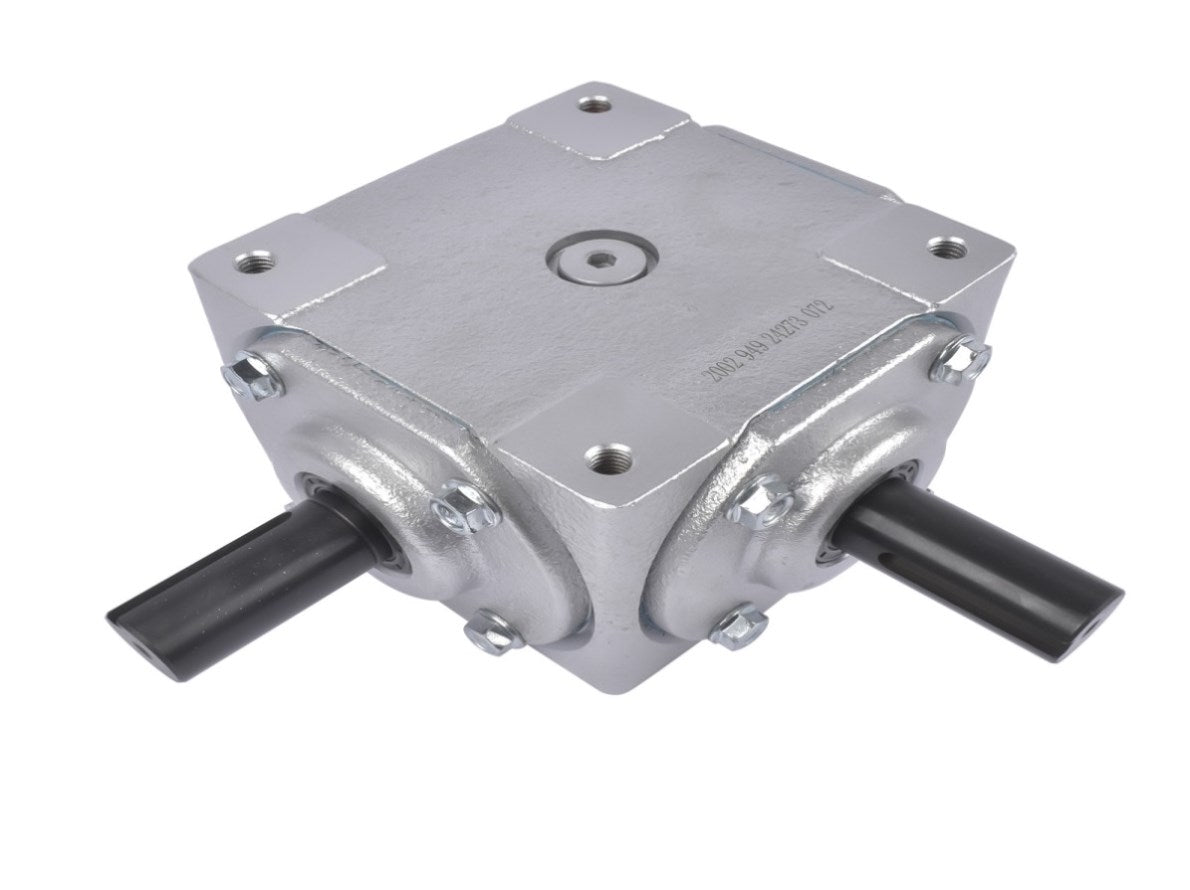

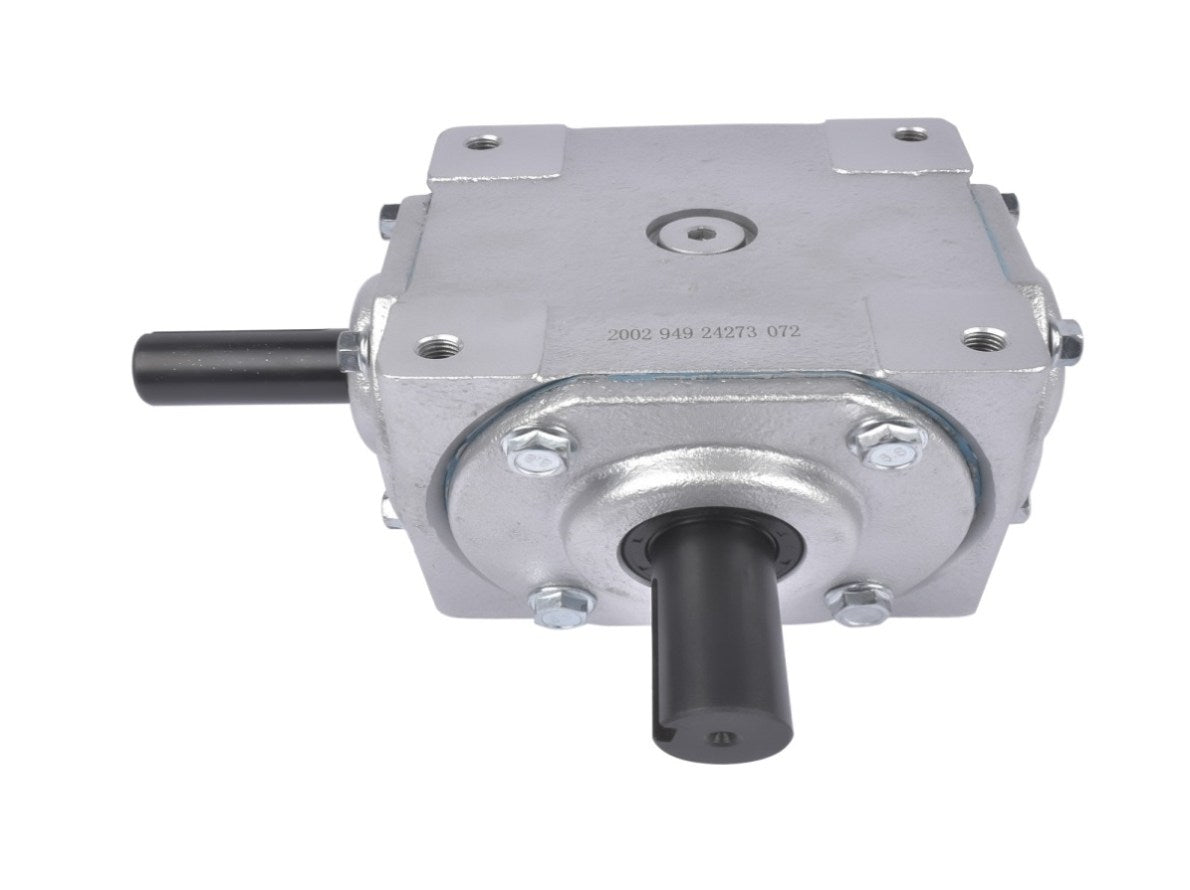

40 HP Right Angle Bevel Gearbox with 2 Keyed Shafts CW/CW 11 19455-SR-KW-KW-GR 61881872
GT-61881872
Out of stock
$266.24
Description: Right angle gearbox with 1" keyed shafts. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W)Gearbox is drilled and tapped with the same bolt pattern on...
customers are viewing this product
Description:
Right angle gearbox with 1" keyed shafts. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W)
Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).
Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).
Specifications:

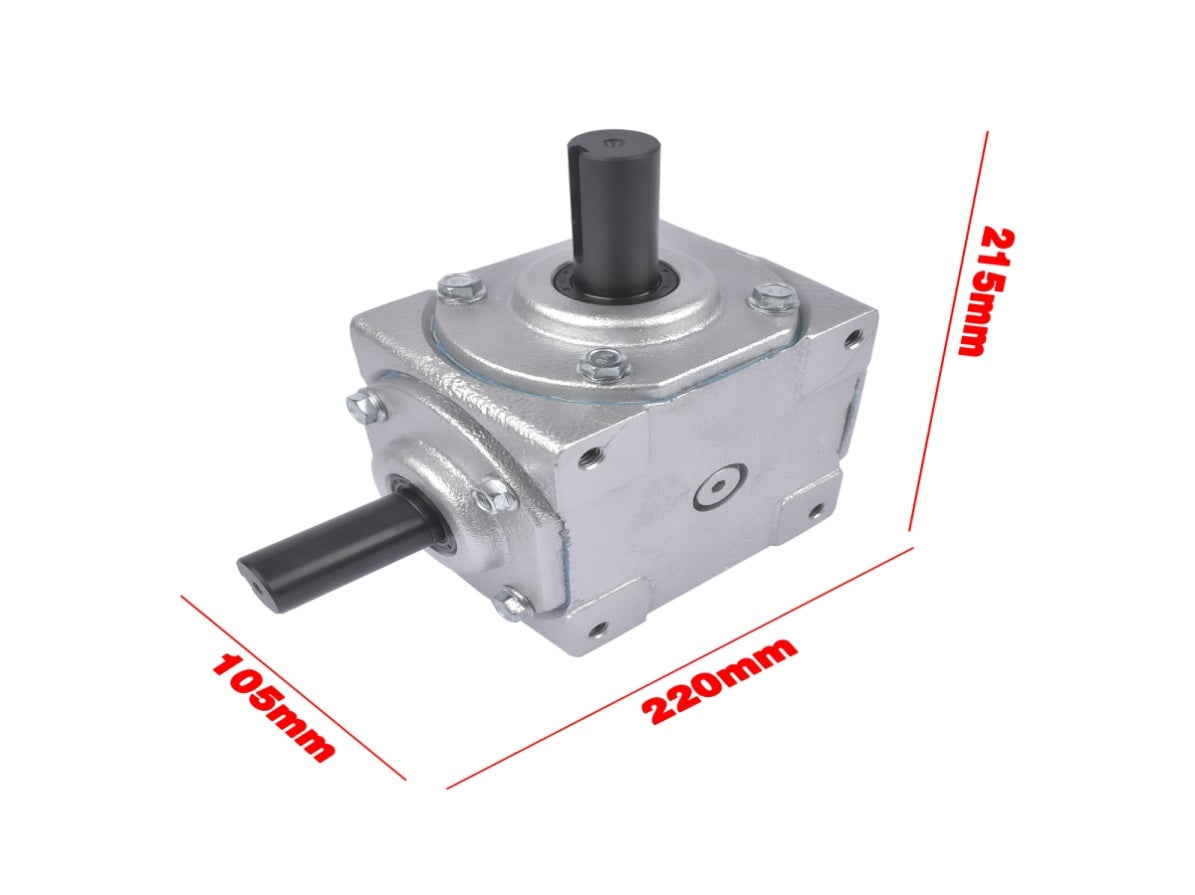

Dimensions: 5-7/8" X 6-1/4" X 4-1/8"

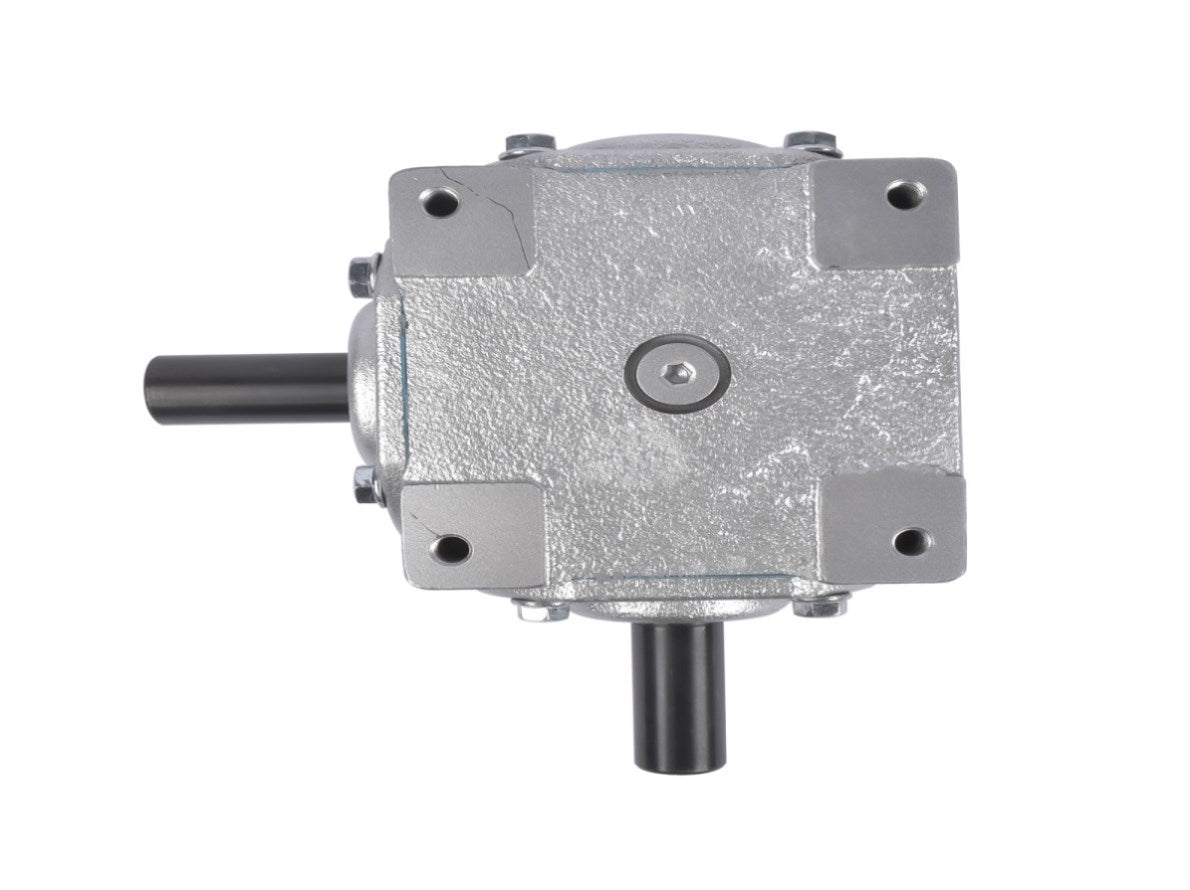

Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes

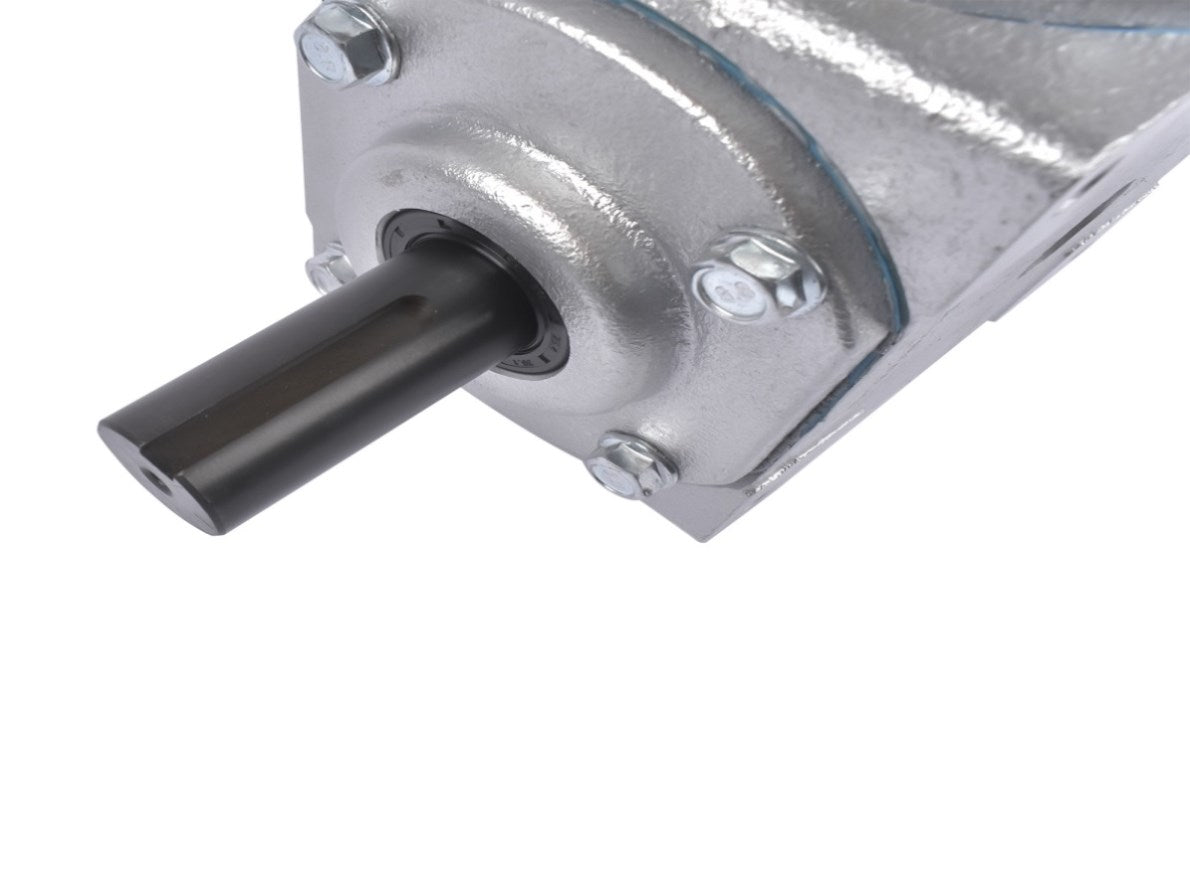

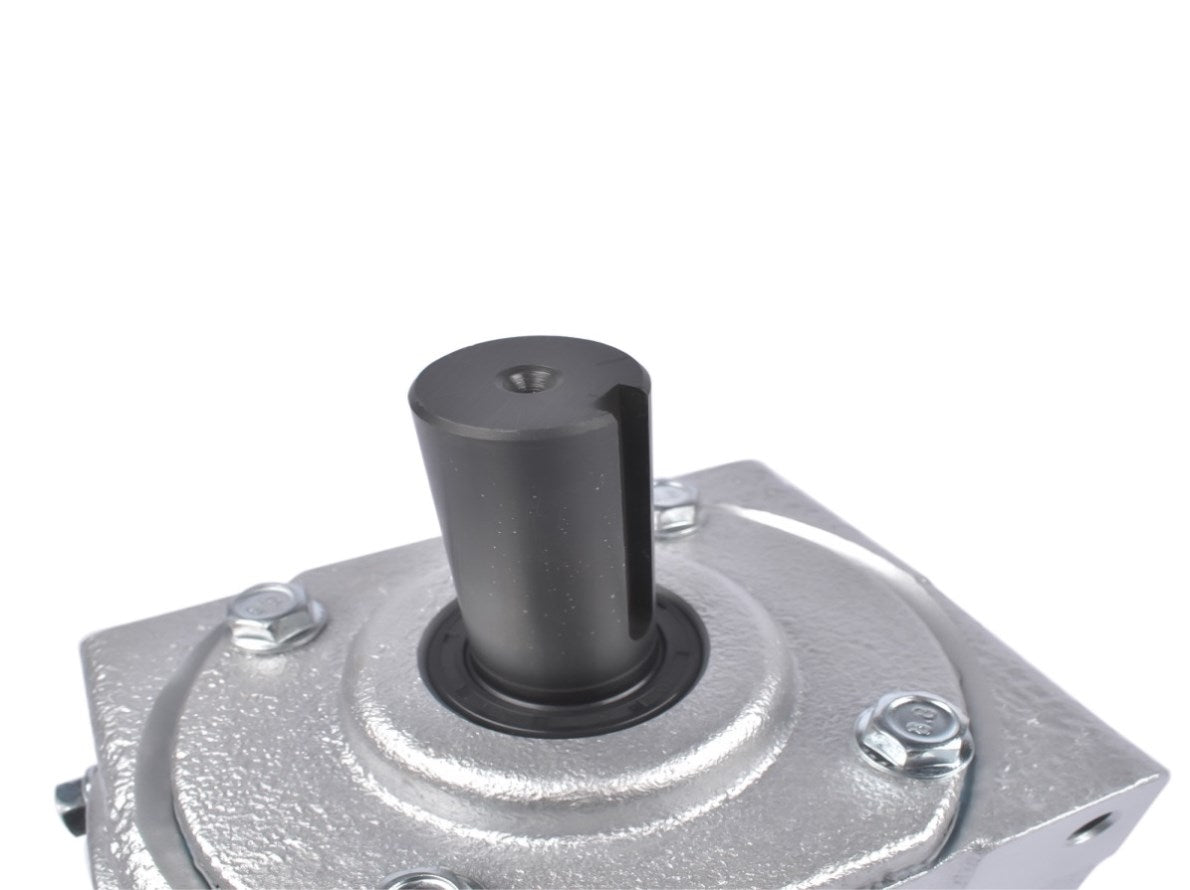

Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW with 1:1 Ratio
Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW with 1:1 Ratio
Package Includes:

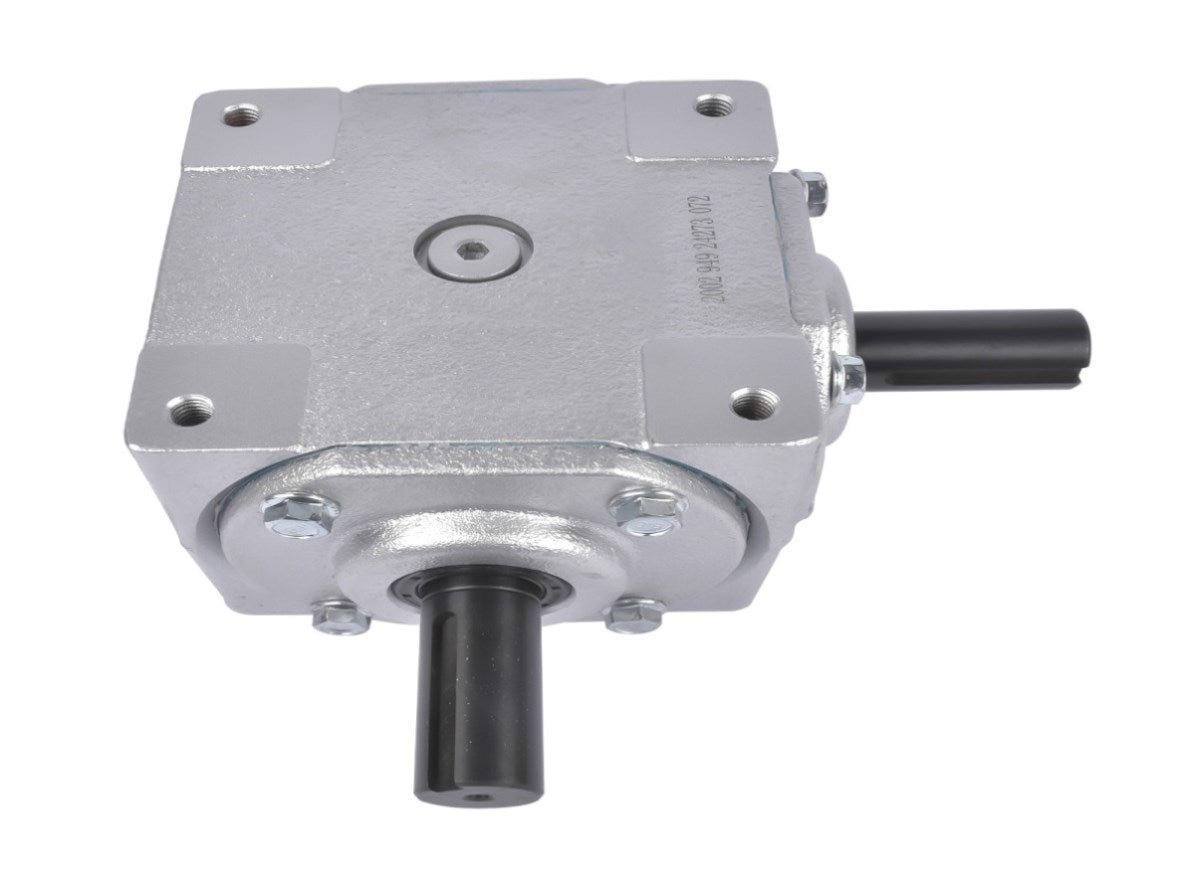

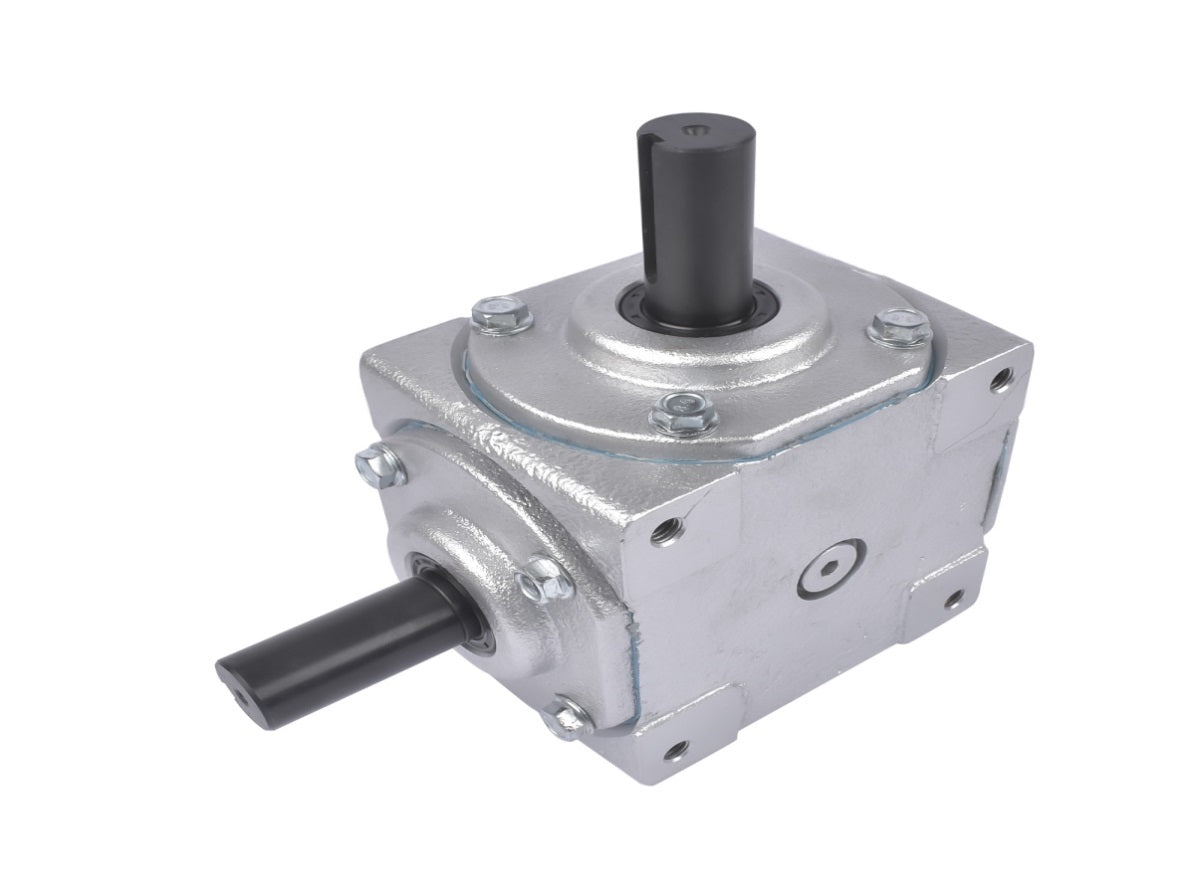

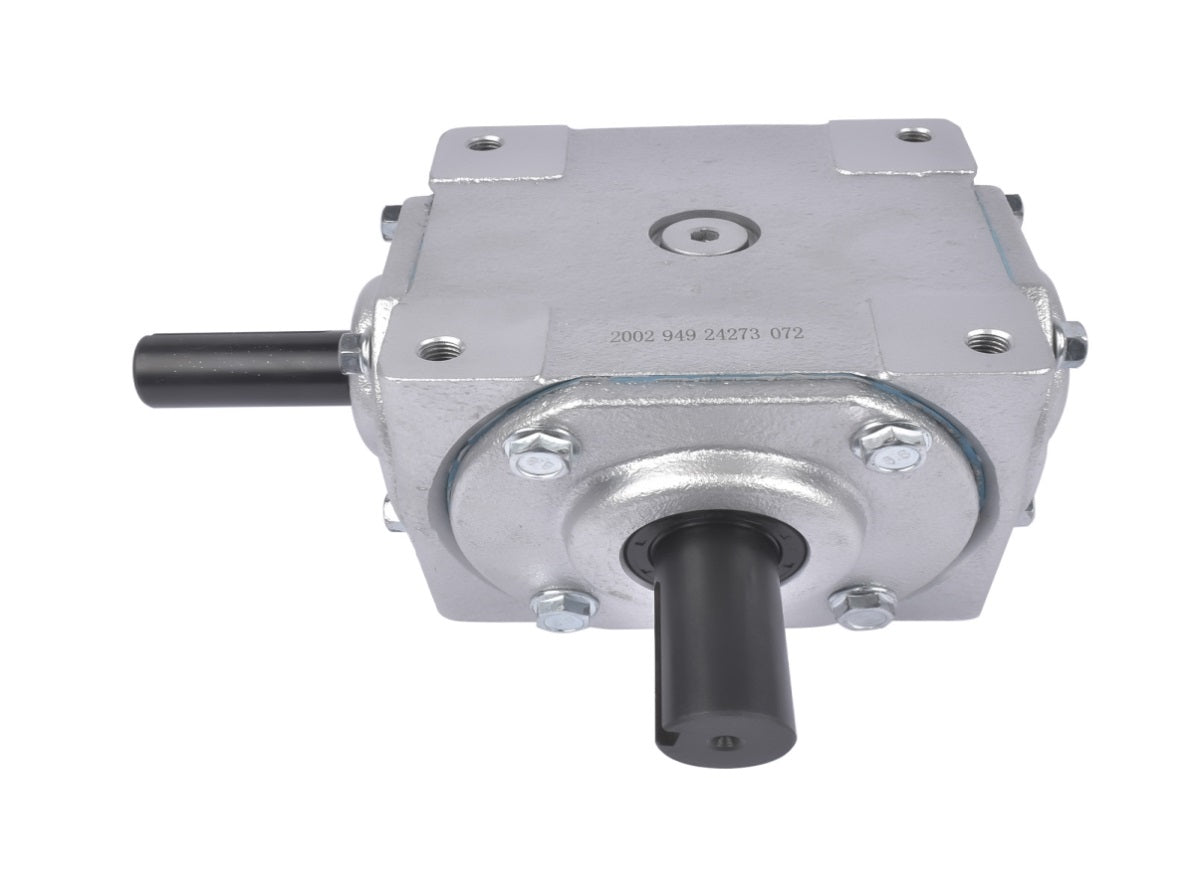

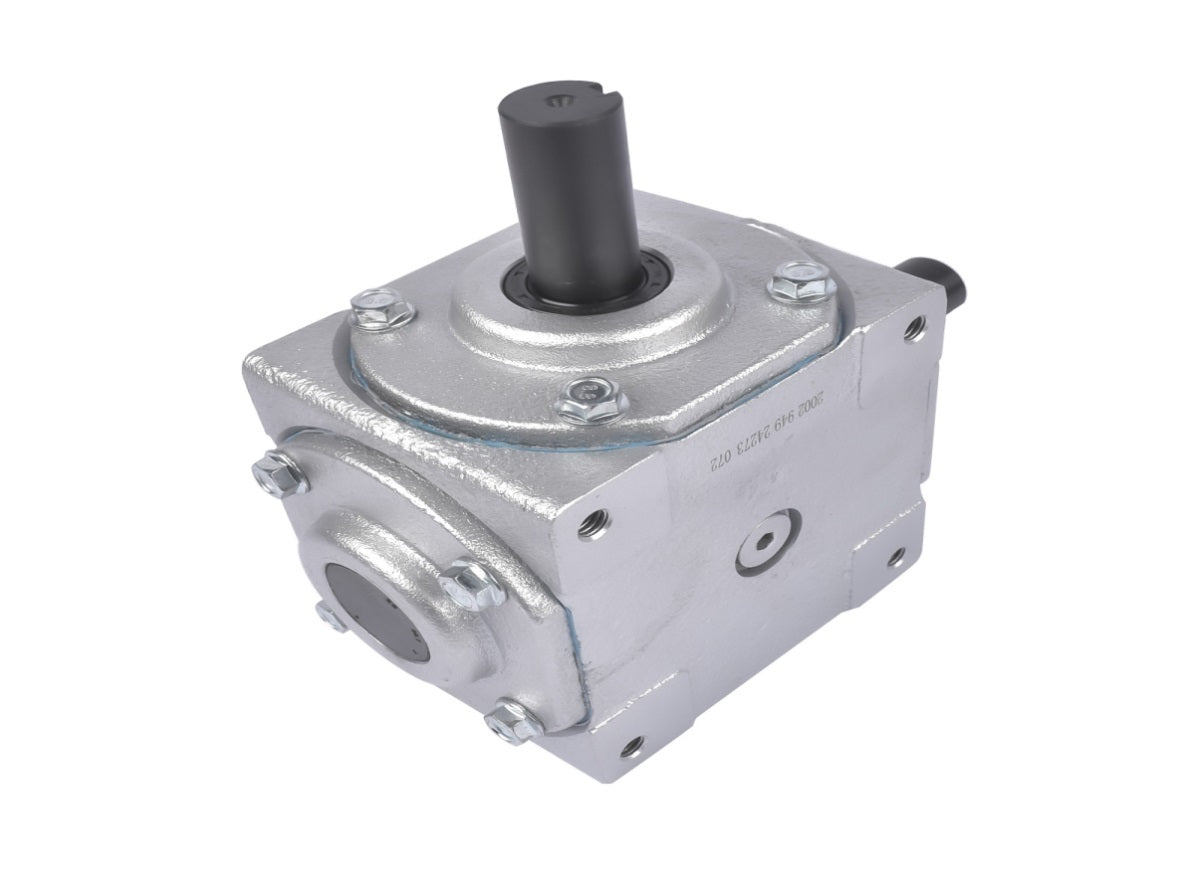

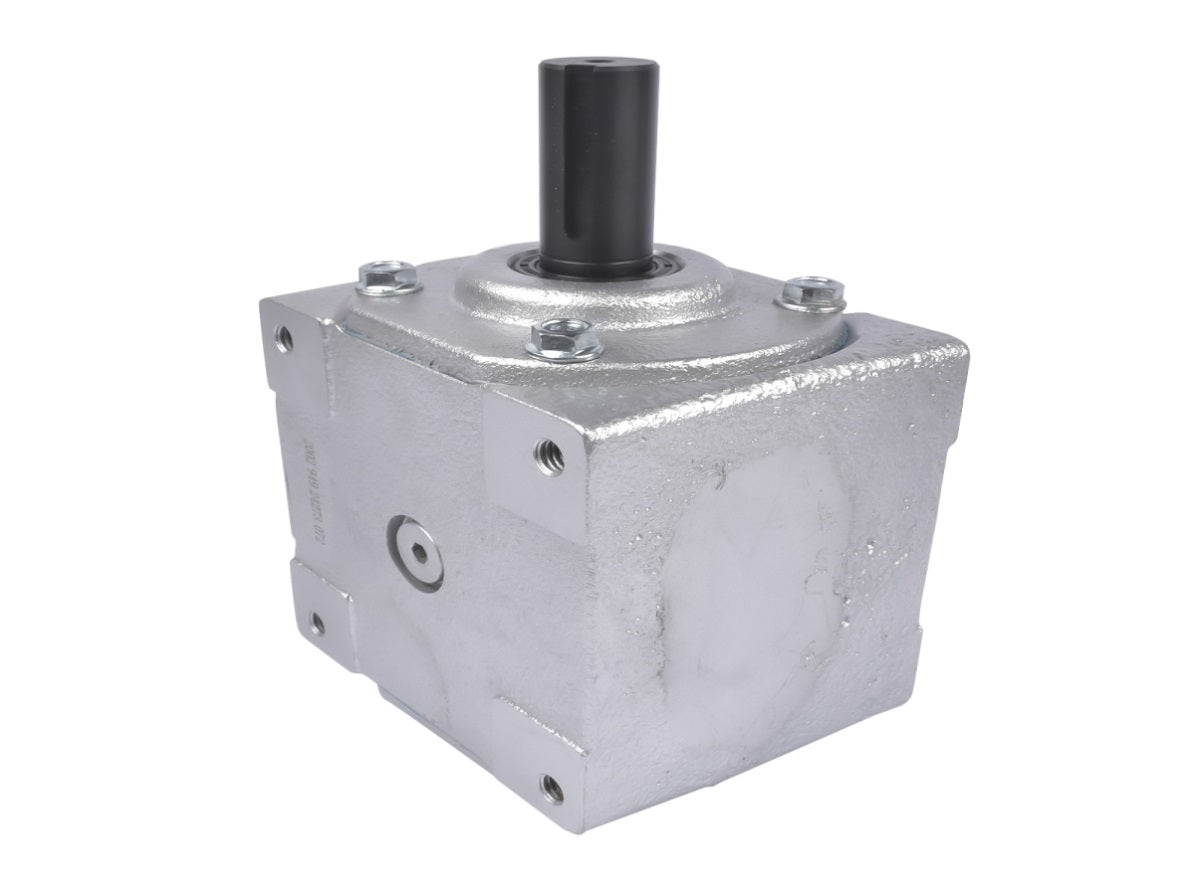

1x Bevel Gearbox (As Pics Shown)
