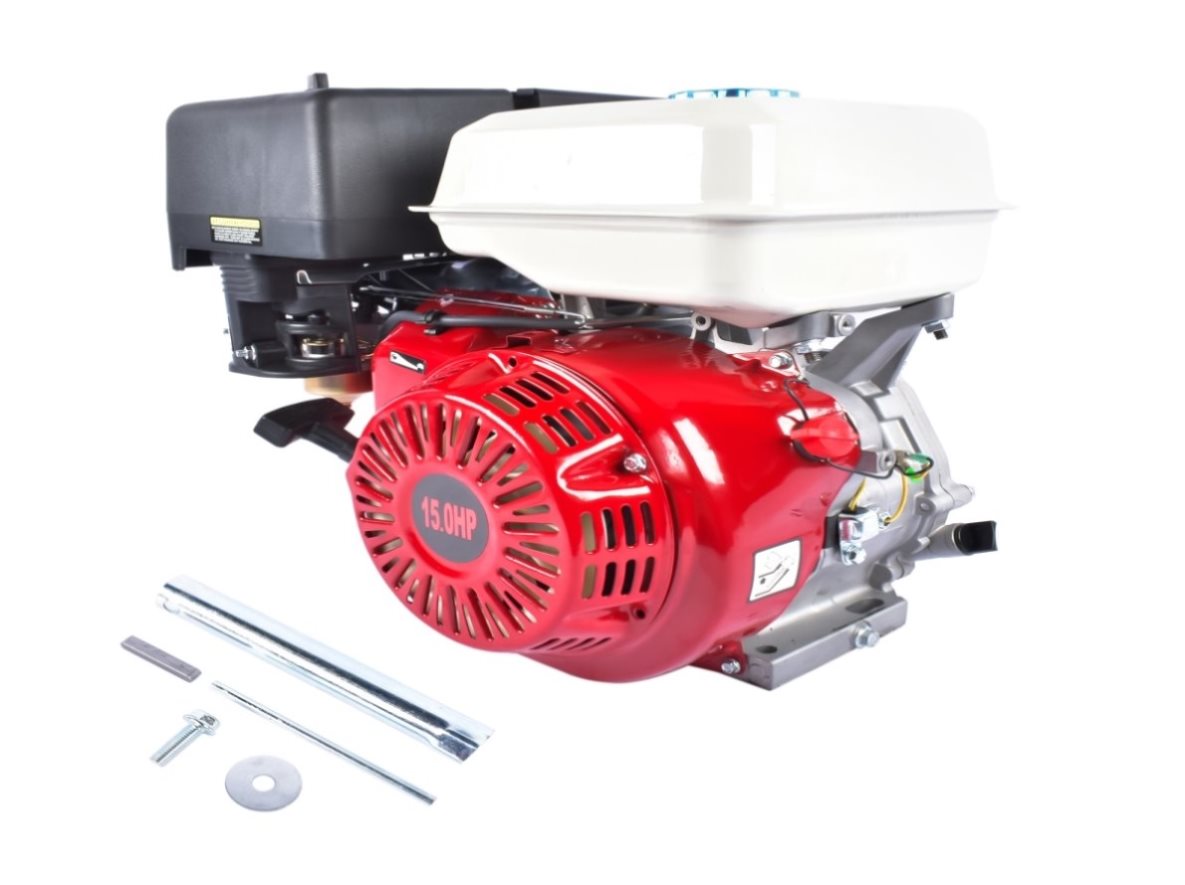

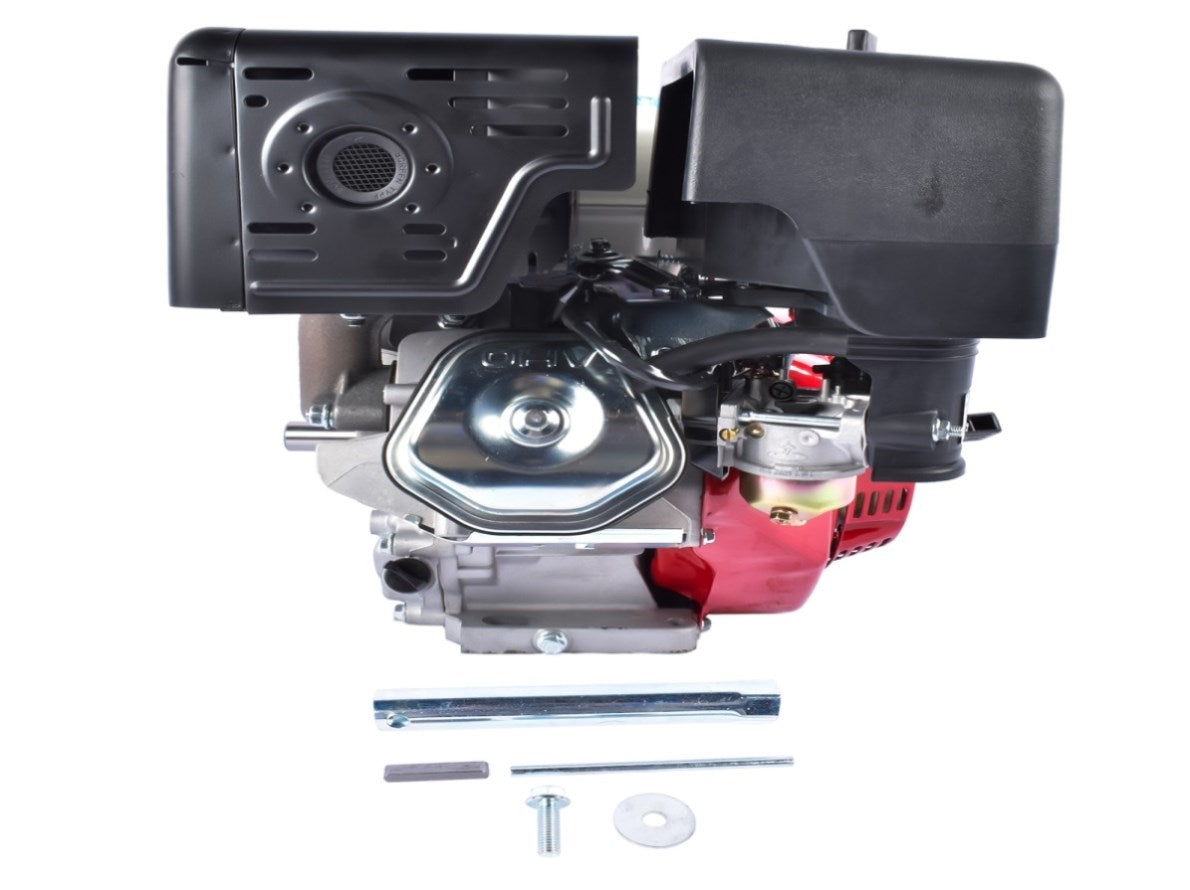

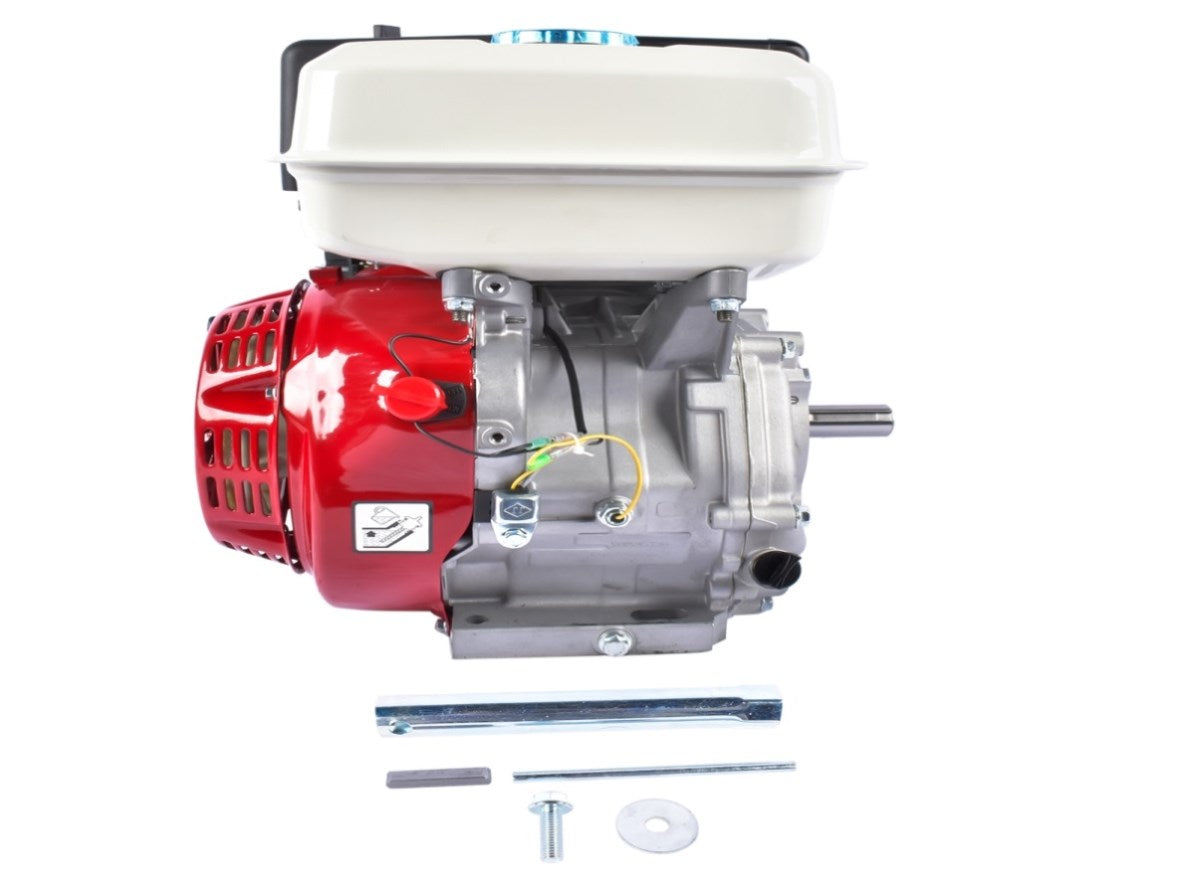

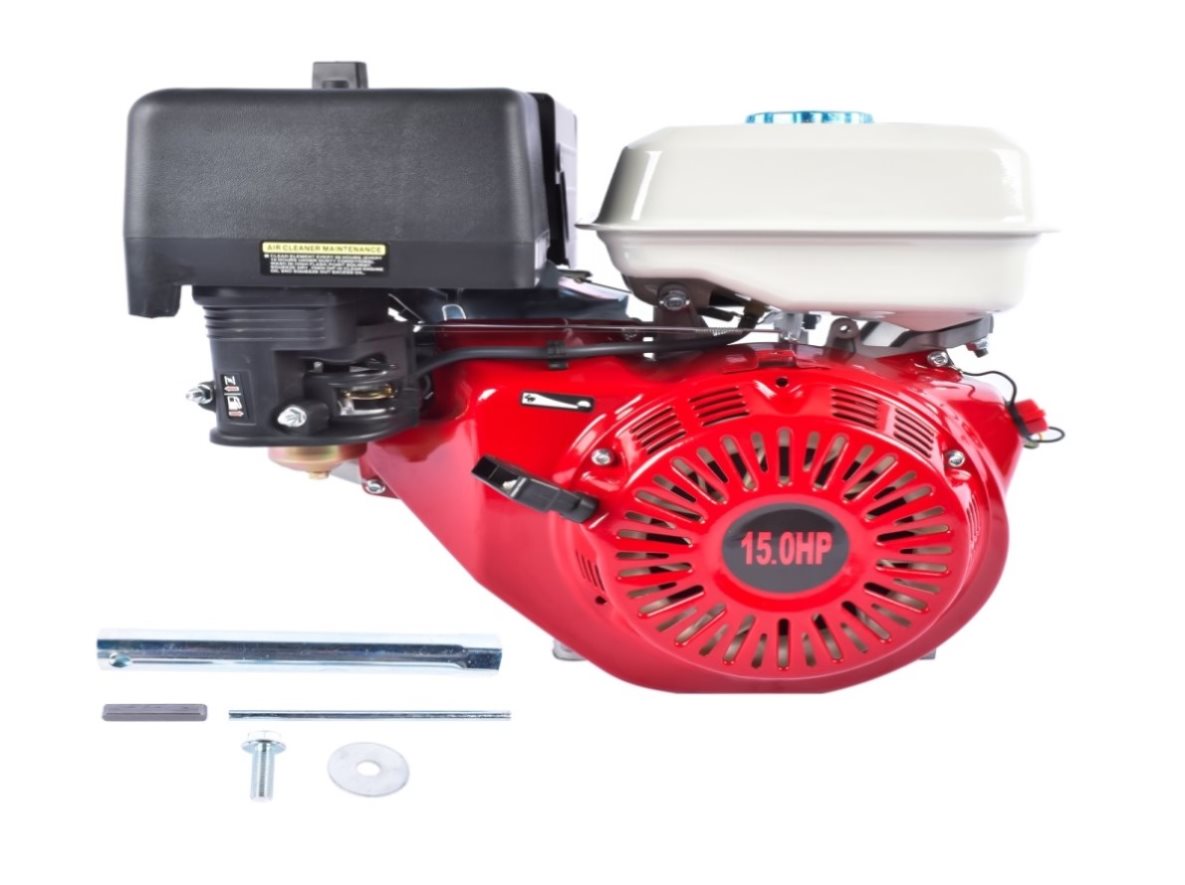

4 Stroke 15HP 420cc Gas Engine, Horizontal Shaft OHV Gas, Shaft 1" Diameter, Go Kart 81722643
Specification
Type: Single Cylinder, 4-stroke
Color: Red
Material: Aluminium, Iron
Surface Treatment: Shot Blasting, Color Galvanizing, and Plastic Spraying
Power Source: Gasoline
Engine Cooling Type: Air Cooling
Maximum Torque: 28N.m
Bore Stroke: 90*68mm/3.54*2.68inch
Crankshaft Diameter: 25mm/0.98inch
Crankshaft Length: 100.5mm/3.98inch
Displacement: 420cc
Horsepower: 15hp
Rated Power: 9600W
Maximum Power: 11000W
Rotational Speed: 3600rpm
Lubrication Oil Capacity: 1.1L/0.29 Gallon
Fuel Tank Capacity: 6.5L/1.7 Gallons
Fuel Consumption Rate: ≤325g/ kw. h

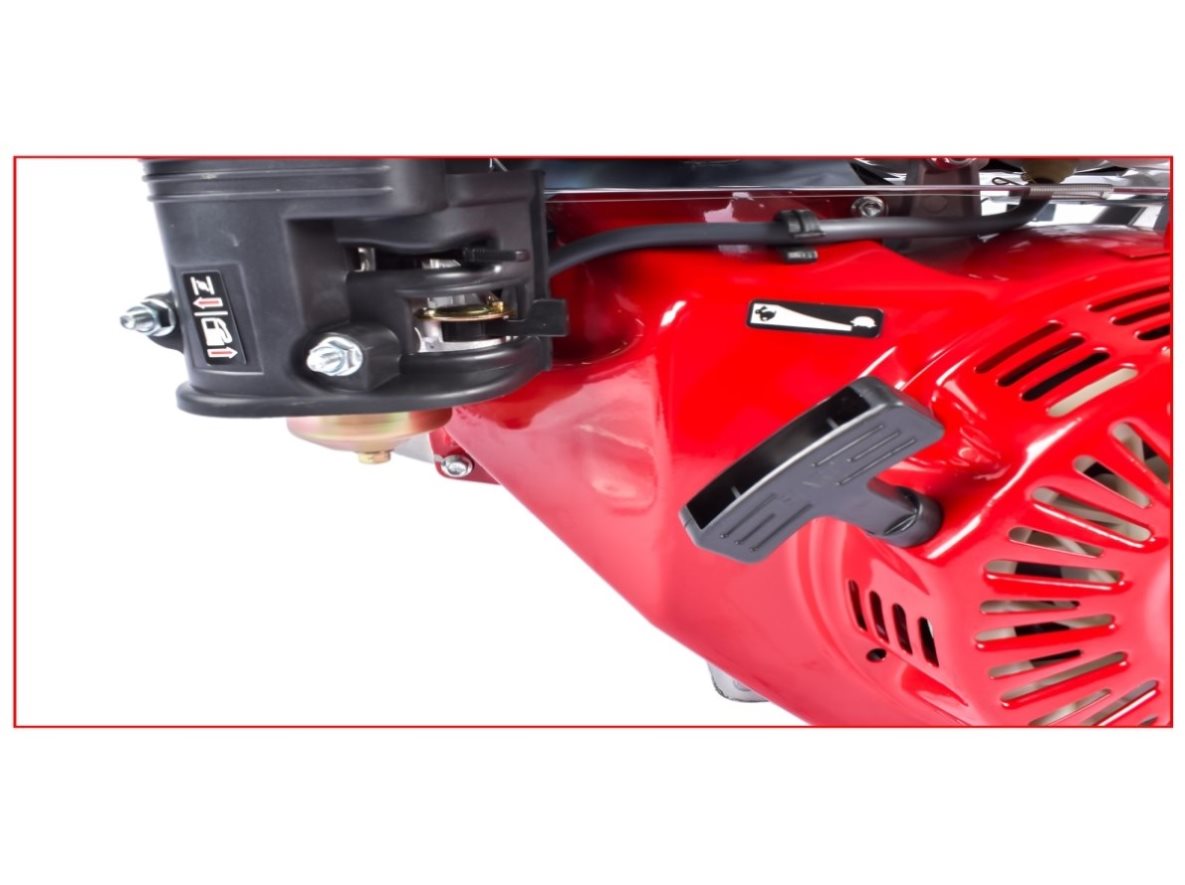

Starter System: Hand Start
Gross Weight: 31kg/68.34lbs
Net Weight: 28.5kg/62.83Ibs

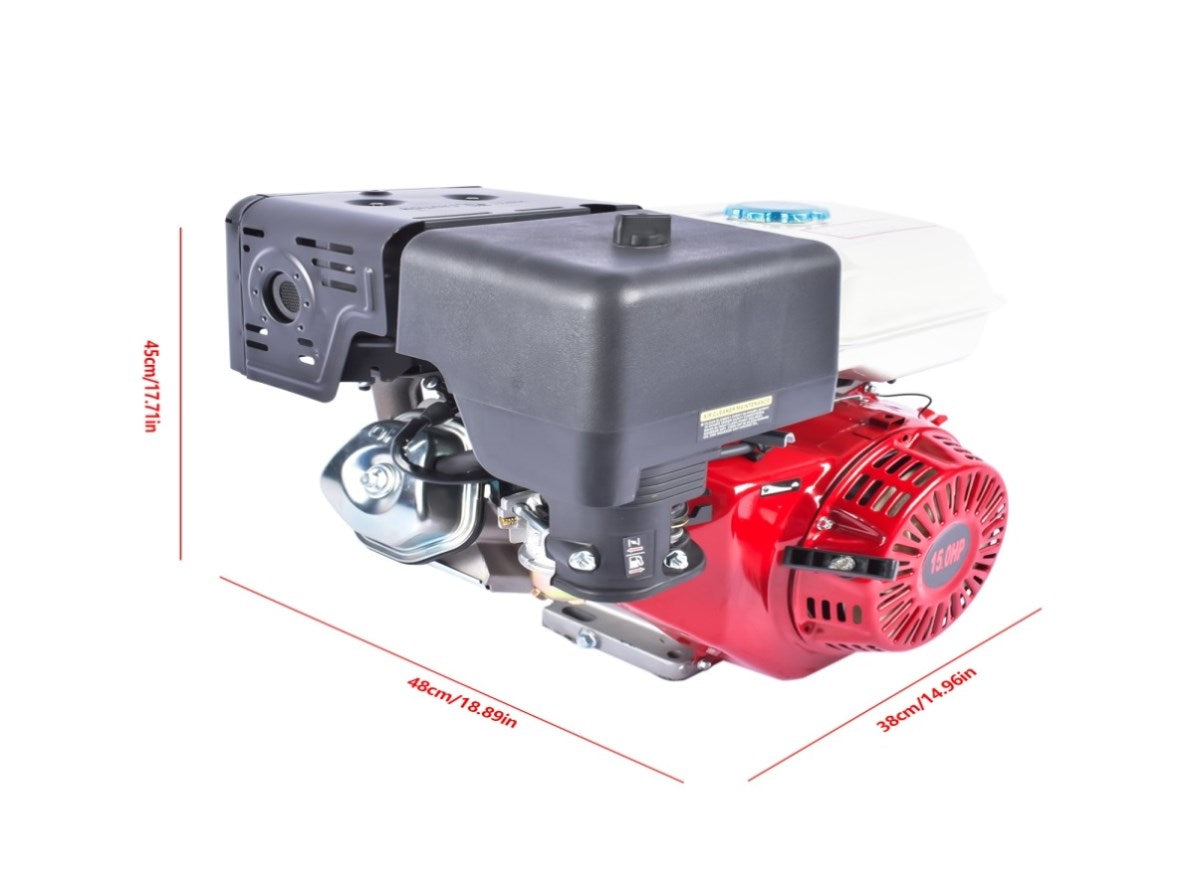

Product Size: 48*38*45cm/18.89*14.96*17.71inch
Package Size: 52*42*49cm/20.47*16.53*19.29inch
Description:

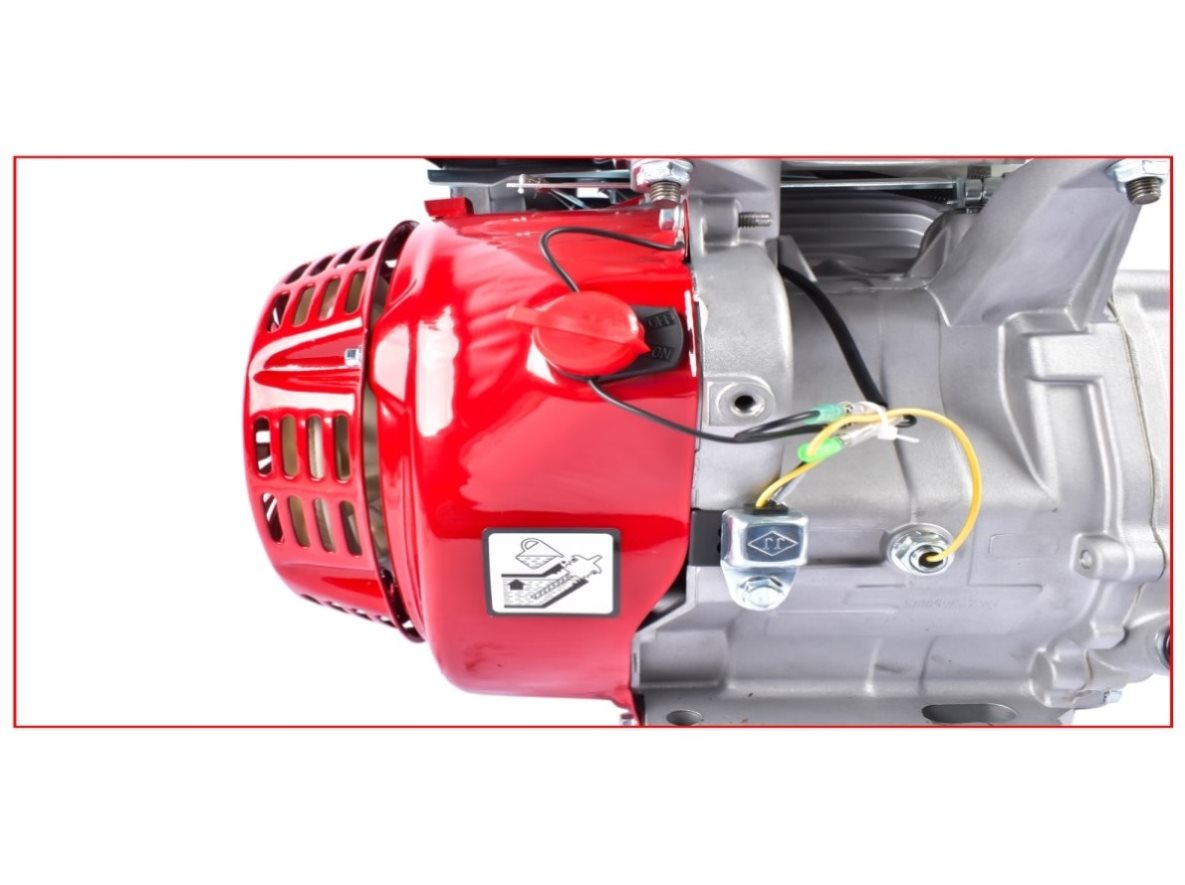

▲AHIGH SAFETY:The product is equipped with an oil alarm. If enough oil is not added before starting, the machine will automatically turn off to protect the machine. Thus the machine will not be easily damaged and has a longer service life.

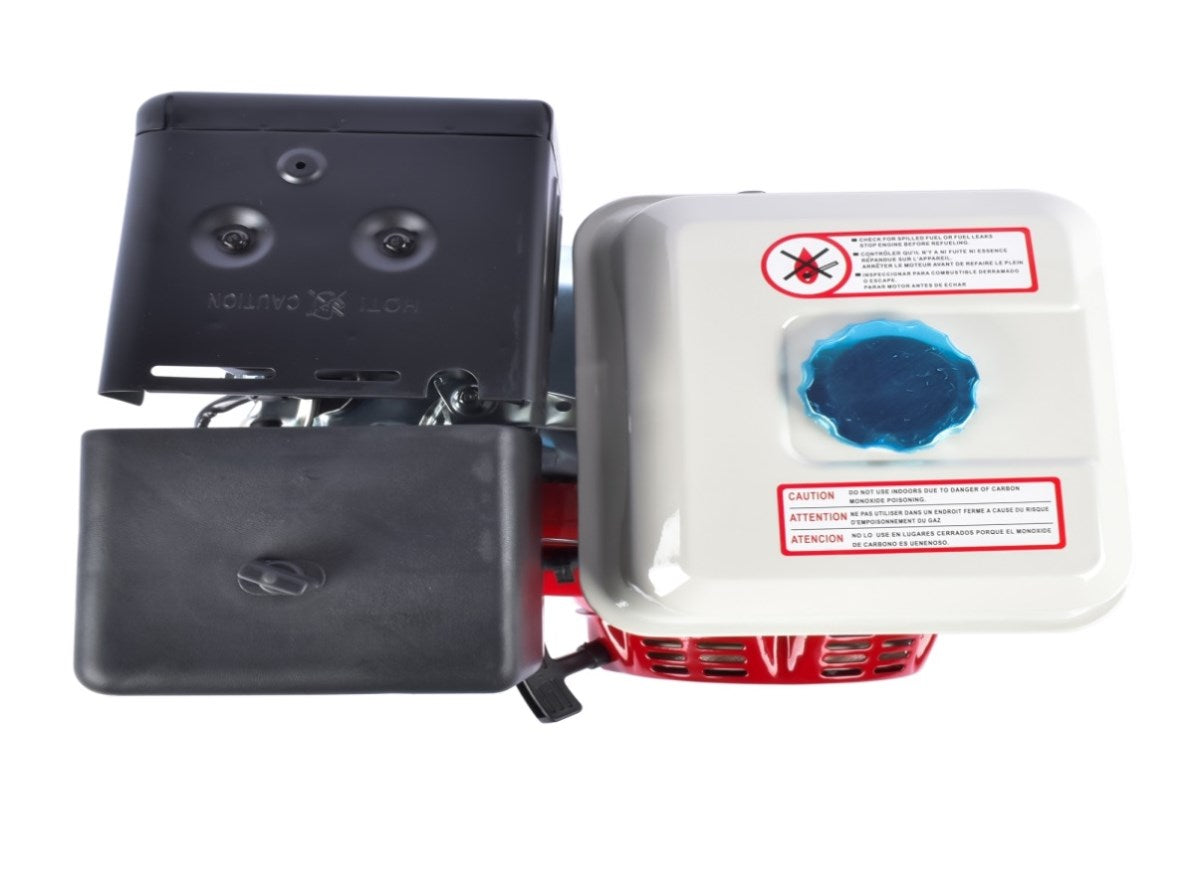

▲LOW FUEL CONSUMPTION&LOW NOISE: The overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings. Air filter also improves air filtration performance and reduce wear. Both can help you save a lot of money on fuel costs,The product adopts a silencer, which has a good noise reduction effect. This engine works hard to create a quiet working environment for you.
▲APPLICABLE SCENARIOS:This product is widely used in can be applied to go-karts, compressors, trenchers, generators, high-pressure washers, cement mixers, etc, as long as the crankshaft matches.
▲STRONG POWER&LARGE CAPACITY: The gasoline engine boasts a robust 15HP/13HP horsepower, a displacement of 420cc/389cc and a rotating speed of 3600RPM, which provides you with strong power and ensures that your work can be completed quickly and easily,The engine has a large 1.7 gallon (6.5L) fuel tank for long hours of operation. You don't need to refuel as often, which is very convenient.
▲STABLE RUNNING&EFFICIENT COOLING SYSTEM: The engine is equipped with metal cam, forged crankshaft and cast iron cylinder liner, ensuring superior performance and a longer lifespan. Manually starting the engine/Electric start engine ,The built-in forced air cooling system and ventilated heat sink are designed to keep the motor cool and provide high reliability and durability.

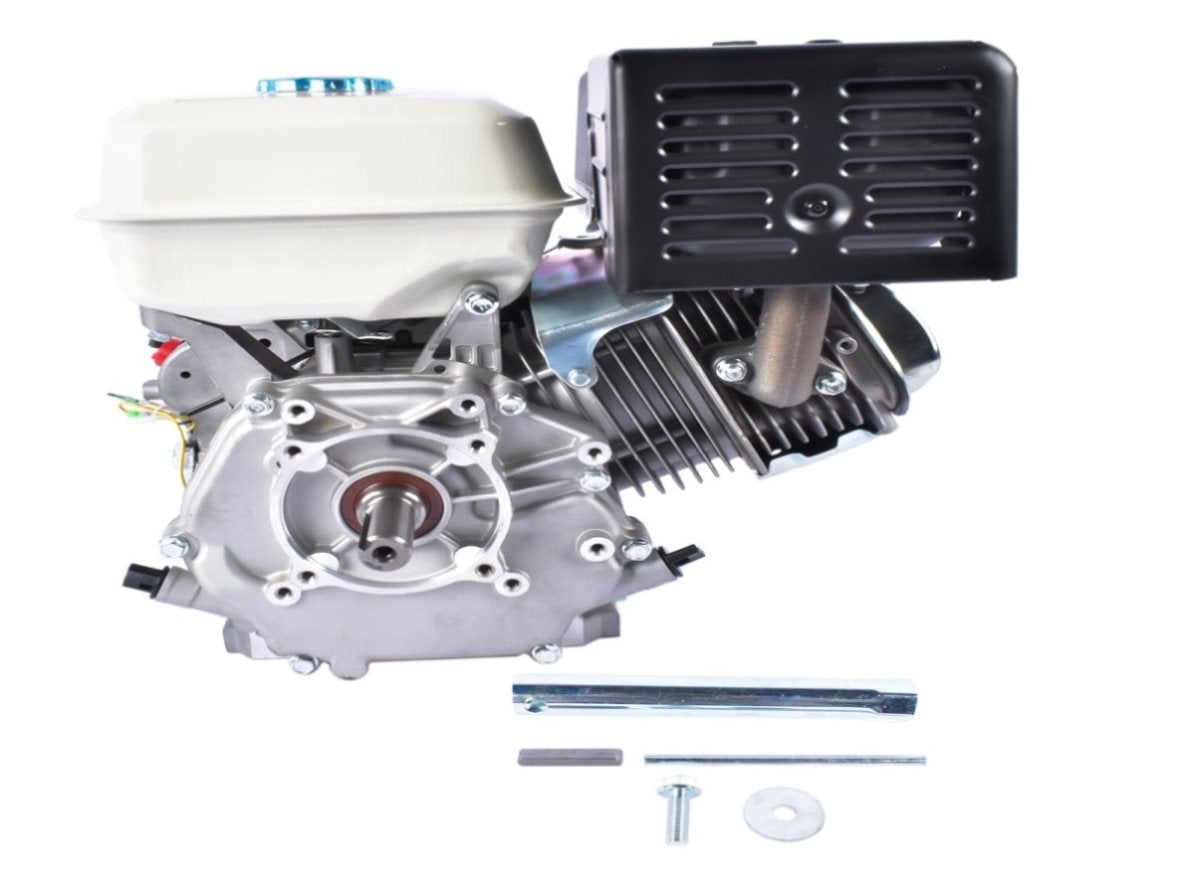

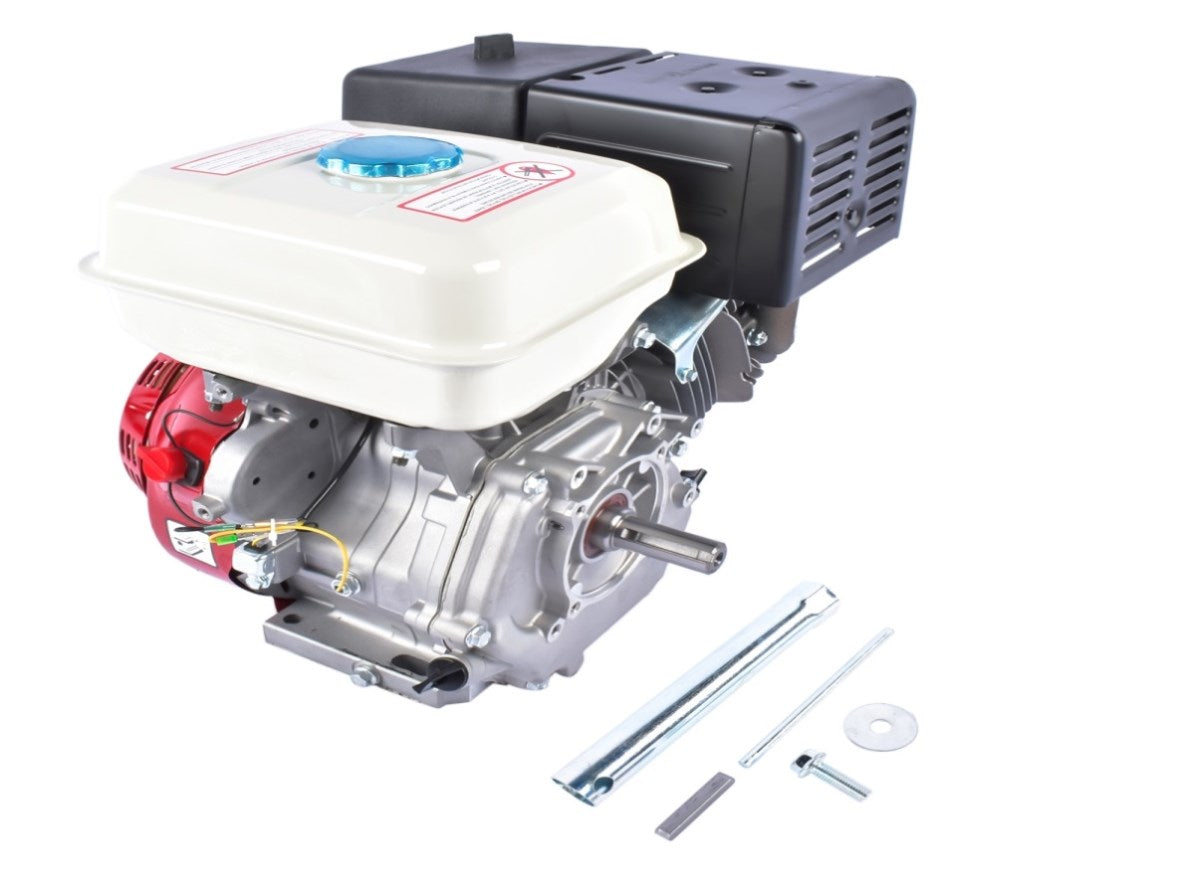

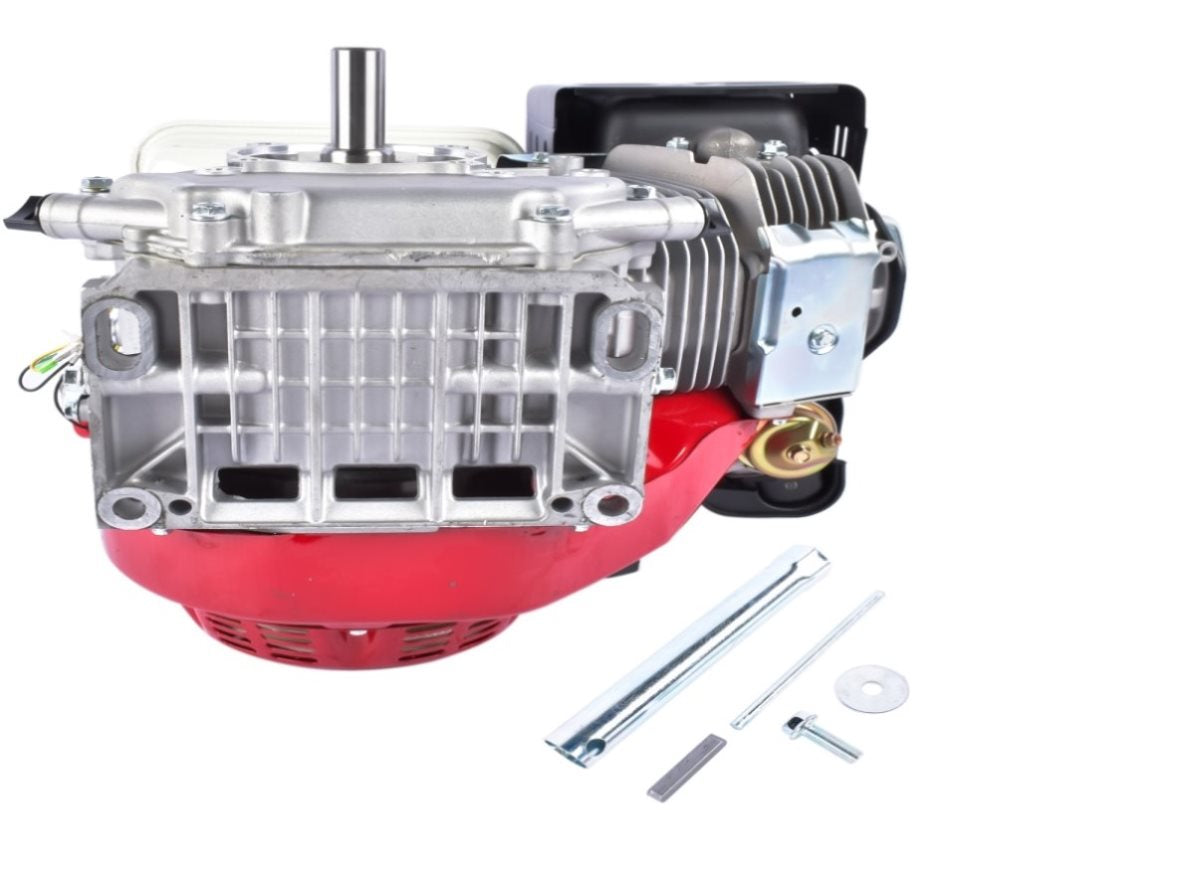

Package Included:
1* Gasoline Engine
1* Multilingual Manual
All Accessories for Assembly
