4 Link Weld On Parallel Rear Suspension fit for Rod Rat Truck Classic Car Air Ride 06825880

Application:

fit for universal Rod Rat Truck Car Air Ride;
fit for Truck Classic Car Air Ride

Feature:

1. Lightly easier to visualize and install (bar mounts are built together)
2. Can be installed beside frame-rail, inboard or outboard
3. May allow more room fit for exhaust (no angled upper bars)
4. High Strength Material，Corrosion-resistant Steel Plated Material
5. Uiversal Compatibility

Specification:

Package dimensions：71*20.5*20cm
Package Weight: 19.7kg
Placement: Rear,Left,Right

Dimension:

All Four Bars Measure 24.00" ；
DOM Tubing Has 1.25" Outside Diameter & .156" Thick Wall.

4 Link Bar Dimensions:
DOM Tubing Has 1.25" Outside Diameter & .156" Thick Wall
All Four Bars Measure 24.00"
(Center To Center Adjusted All The Way In)

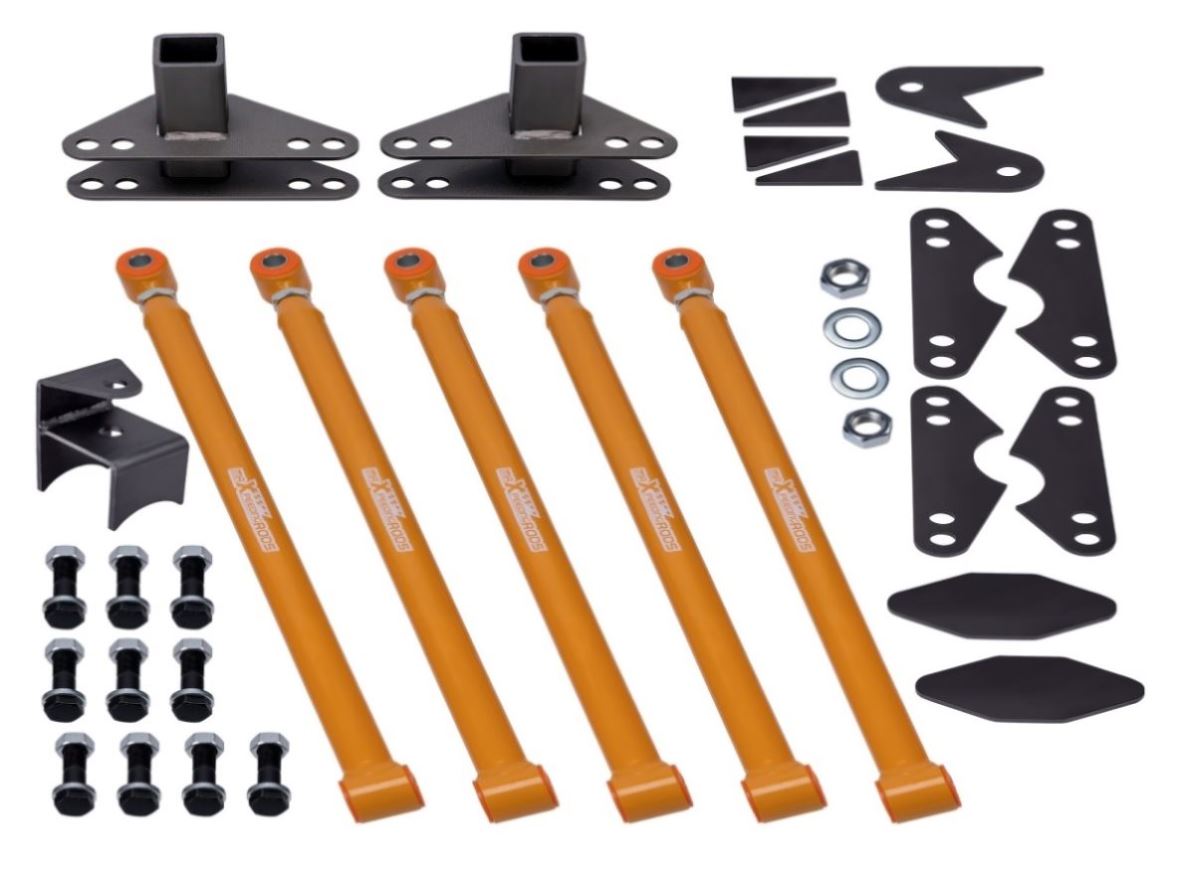

Package Includes:
4x Heavy Duty 24" Steel Bars
4x Zinc Plated Steel Rod Ends W/ Urethane Bushings
2x Steel, Weld-On Axle Mounts
2x Steel, Weld-On Fame Mounts
4x Steel, Weld-On Center Link Axle Mounts
10x Hex Head Bolts with Nuts<
1x Pan Hard Bar 24.00" Long
1x Weld-On Axle Mount fit for PanHard Bar
2x Weld-On Frame Mounts fit for PanHard Bar

Notice:

Instructions Are Not Included

We Recommend Professional Installation

fit for any questions,please contact us freely.
