4" Complete Kit fit for Jeep Wrangler Unlimited Rubicon 2007-2017 w/ Shocks Springs 05188372

Application:

fit for Jeep Wrangler Unlimited Sport 4WD/RWD 2010-2017
fit for Jeep Wrangler Unlimited Sahara 4WD/RWD 2007 - 2017
fit for Jeep Wrangler Unlimited Rubicon 4WD 2007 - 2017
fit for Jeep Wrangler Unlimited X 4WD/RWD 2007 - 2010
fit for Jeep Wrangler Unlimited Sport S 4WD 2016
fit for Jeep Wrangler Unlimited 75th Anniversary 4WD 2016
fit for Jeep Wrangler Unlimited 70th Anniversary 4WD 2011

NOTE: only fit for fit for 4-door models, not fit for 2-door models

fit for 2012-2018 models require exhaust modifications to clear the front driveshaft

if using stock wheels 1.5in wheel spacers are required.

On Automatic Transmission equipped vehicles an aftermarket smaller diameter front driveshaft may be needed.

Important Notes:

This kit does not include the Pitman arm , you need to buy it yourself.

Wheels/Tires:35x12.50 R17 4.5"-4.75" BS

Specification:

product type: suspension lift kit

lift height: 4"

Finish: Powder coated

Bushing material: Rubber

Diameter of piston rod: F&R 18mm/0.70"

Piston diameter：F&R 35mm/1.38"

Outer cylinder diameter: F&R 54mm/2.13"

Travel: F: 255mm/10.04" R: 250mm/9.84"

extended length: F: 672mm/26.46" R: 710mm/27.95"

collapsed length:F: 417mm/16.42" R: 460mm/18.11"

Nitrogen charged：yes

Dust cover equipped:Yes

Spring rate: F: 3kg/mm (167.99lbs/in)，R: 4kg/mm(223.99lbs/in)

spring length: F: 500mm/19.68" R: 400mm/15.78"

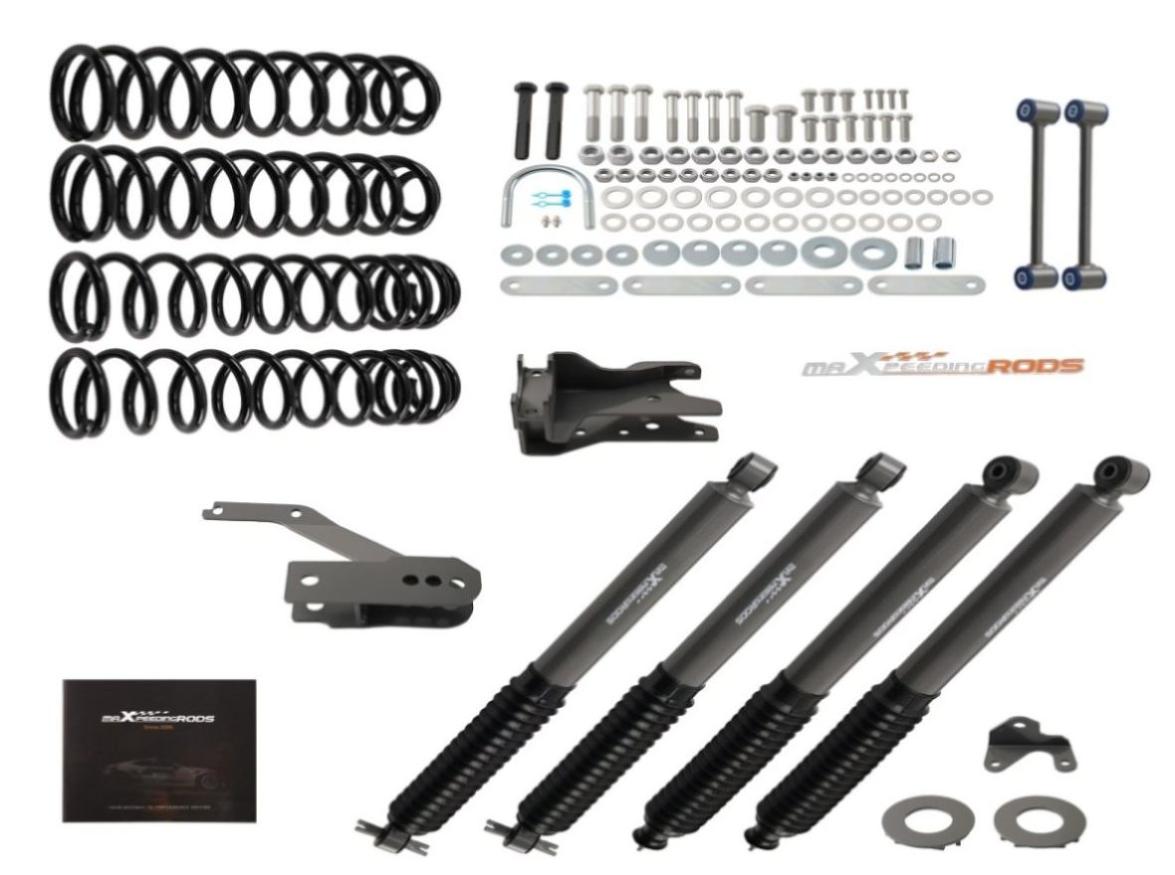

Package included:

Front:

2x Lifted coil springs

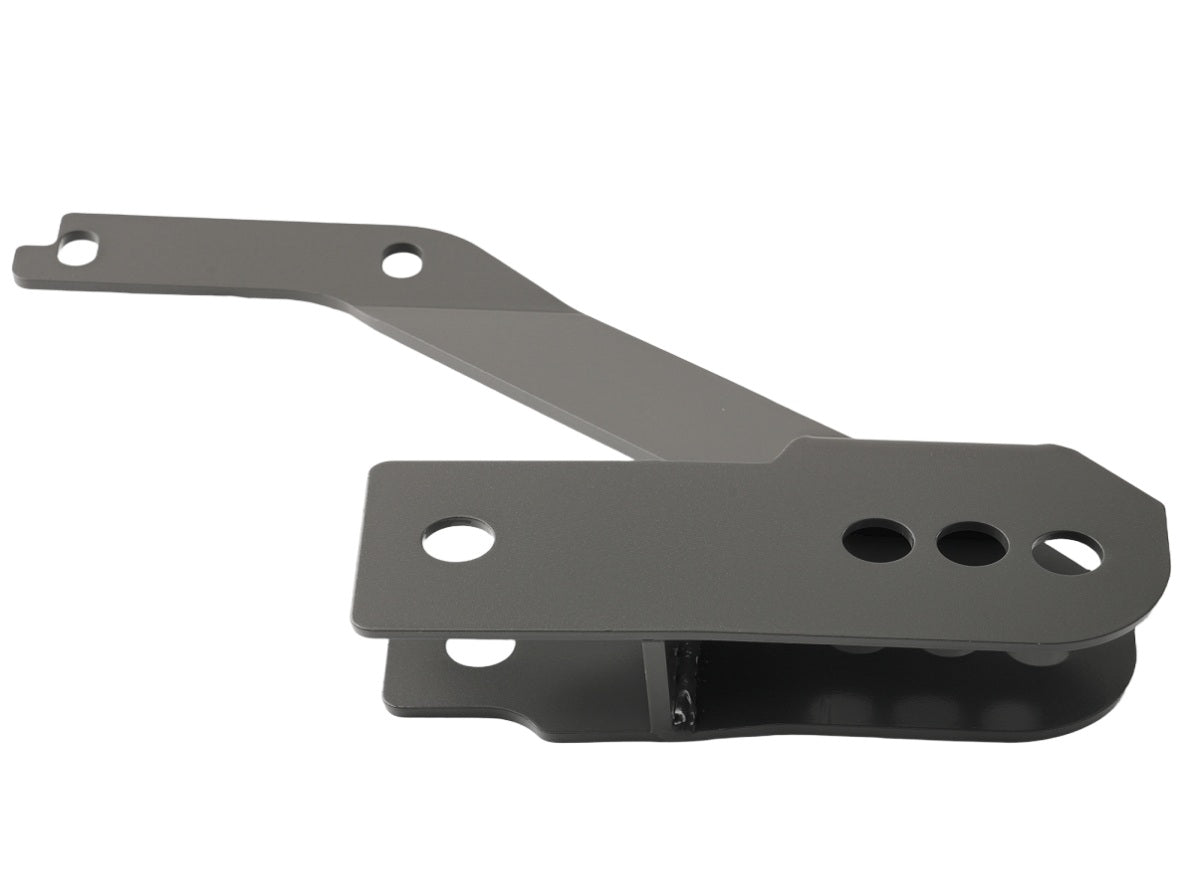

1x Track bar drop bracket

2x Brake line relocation brackets

1x Stabilizer mount

Cam bolts

Necessary Hardware

Rear:

2x Lifted coil springs

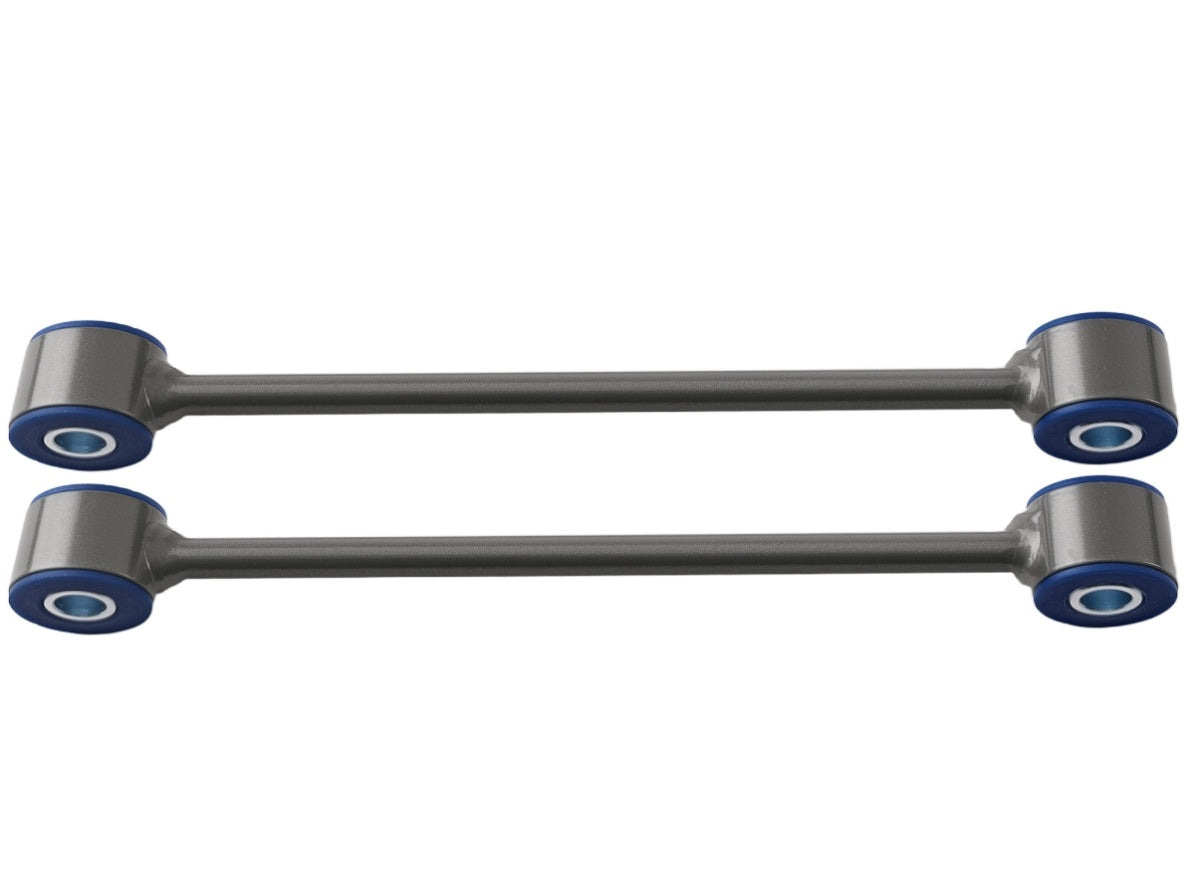

2x Extended sway-bar links

2x Coil correction plates

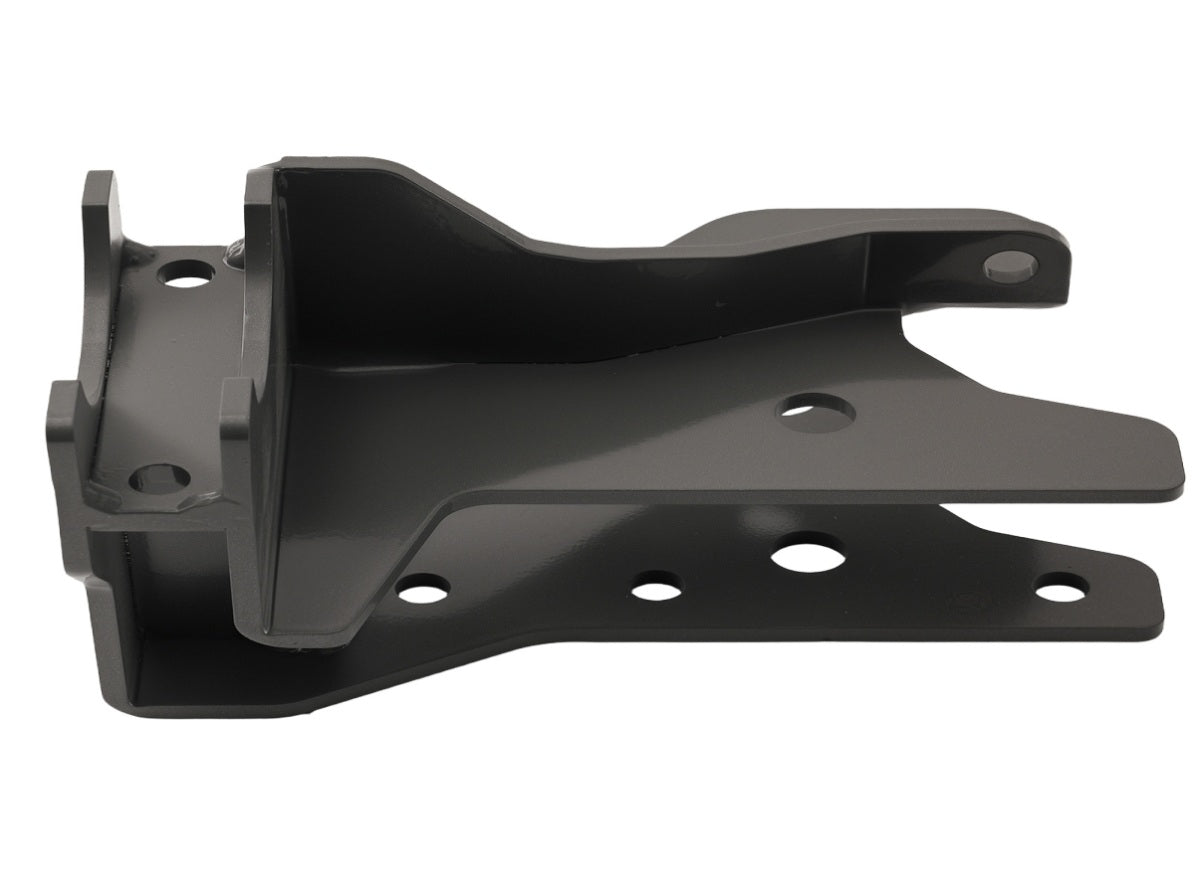

1x Track bar drop bracket

2x Brake line relocation brackets

Necessay Hardware

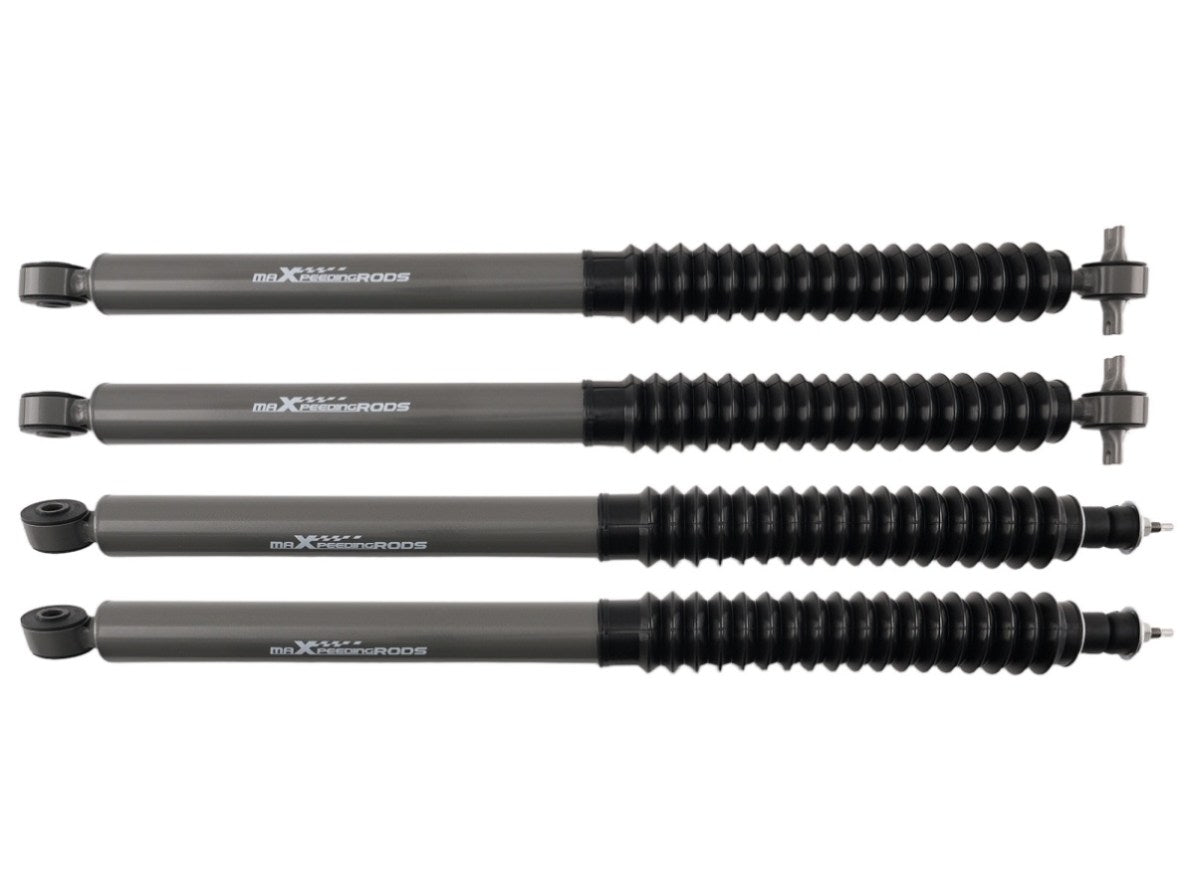

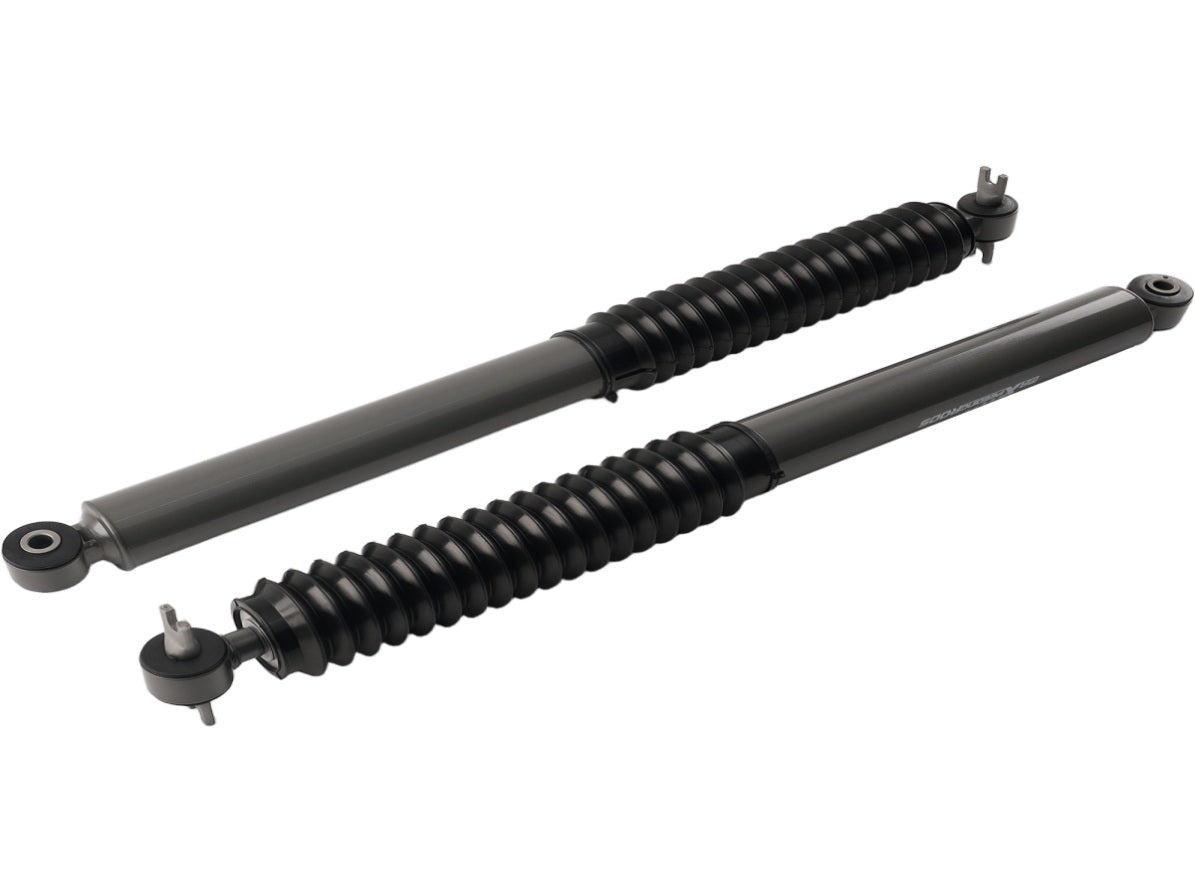

Shocks:

(4) Shocks front and rear

Due to the overweight, you will recieve 2 packages

Feature:

High-pressure nitrogen charged twin-tube shock absorber with high durability.

Rubber bushings fit for better absorption.

18mm Chromed Hardened Piston Rod.

35mm Diameter Sintered Iron Piston.

54mm Shock Body help Heat dissipation

36KN Tensile Strength.

Precision Welding.

Power coated surface provides superior corrosion resistance.

High Tensile Strength Carbon Steel fit for optimal durability and fitment.

Dust cover included prevent the shaft rod and oil seal from damaging.

Chromium-silicon cold-wound structure with high tensile strength and resilience.

High tensile spring——600,000 times continuously test to assure its high tensile strength.

Lower the center of gravity, reduce cornering roll, and increase vehicle stability.

Give your vehicle an aggressive standce.
