4 Barrel Carburetor w/ Gasket Kit fit for 1905 AVS2 Series 650CFM, Manual Choke 16059280

Application:
fit for 1905 AVS2 Series 650CFM Carburetor

OE/Part Number:

1905

Specification:
Choke Type: Manual Choke
Secondary Type: Mechanical
Material: Aluminum Alloy
Barrel Quantity: 4 Barrel
Fuel Inlet: Dual
CFM: 650 CFM
Carburetor Flange: Square Bore
Bolt Hole Spacing Length & Width: 142.5× 131 mm (Center To Center)
Intake Side Inner Diameter: 36.5 mm
Intake Side Outer Diameter: 44.4 mm
Air Filter Side Inner Diameter:120 mm
Air Filter Side Outer Diameter:127 mm
Primary Jets Size: 101
Secondary Jets Size: 98
Flange Type: Square
Main Jets: 0.101"
Secondary Jets: 0.098"
Primary Bore: 1.44"
Secondary Bore: 1.75"
Metering Rod Size .070" x .037"
Secondary Jets Diameter: 0.098"
Main Venturi Diamete: 1.19"
Body Height: 3.25"
Bore Diameter Primary Bore: 1.44"
Secondary Bore: 1.75"
Spring Force: 5" Hg
Fitment: fit for Series AVS2
Fitment Type: Direct Replacement

Features:
- Drive Type:  Manual Choke
- Aftermarket brand new, ensure superior and reliable quality.
- High hardness and corrosion resistance, longer usage life.
- Compact size, less fuel consumption, energy saving and economical.
- Let your vehicles speed up in a short time, better driving experience.
- Control the speed of engine under stable condition, effective operation.
- Change jets, adjust floats and replace needles/seats without draining fuel or removing carb.

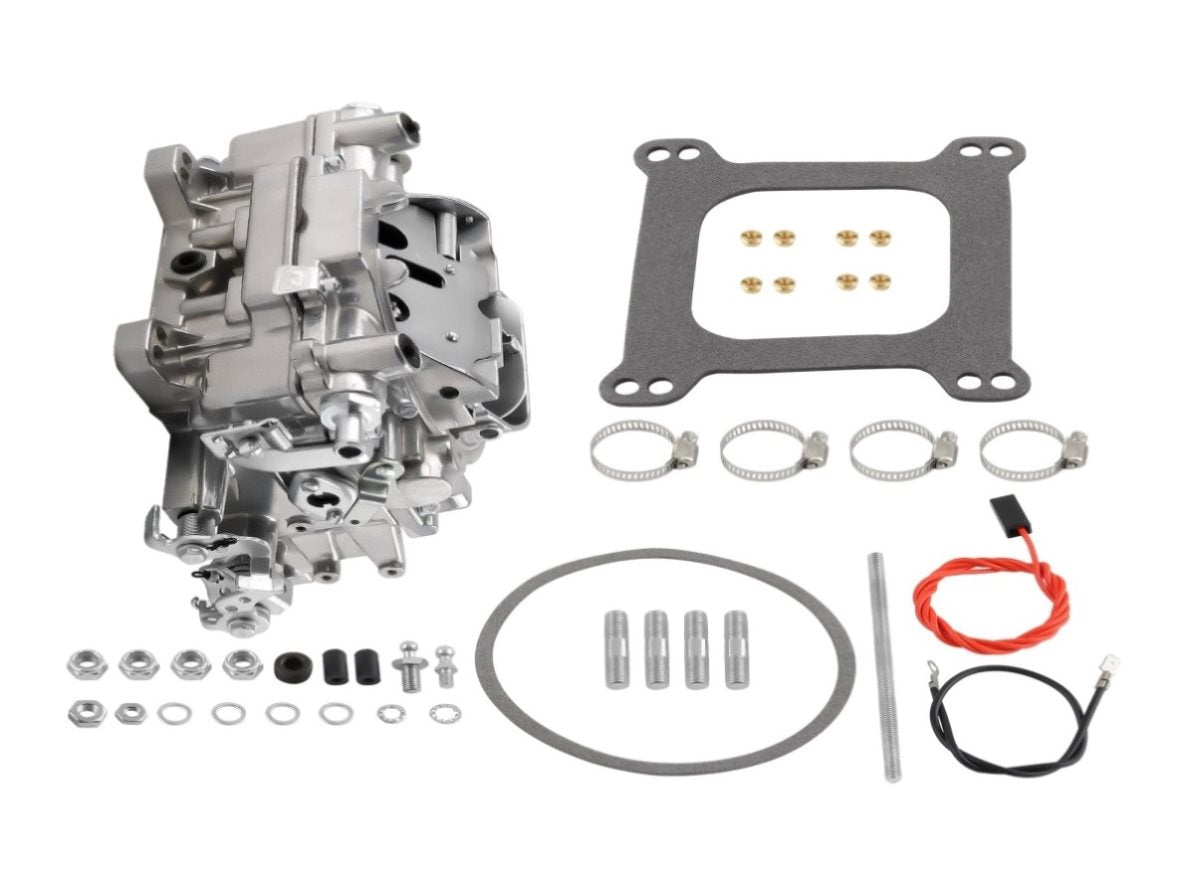

Package Included:
1x 1905 Carburetor Kit
Mounting Hardware
(As shown in the picture)

Note:
- No Instructions Include, Professional Installation.
- Compatability Is Just fit for Reference, Please Confirm Your Oem Number.
- Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.
