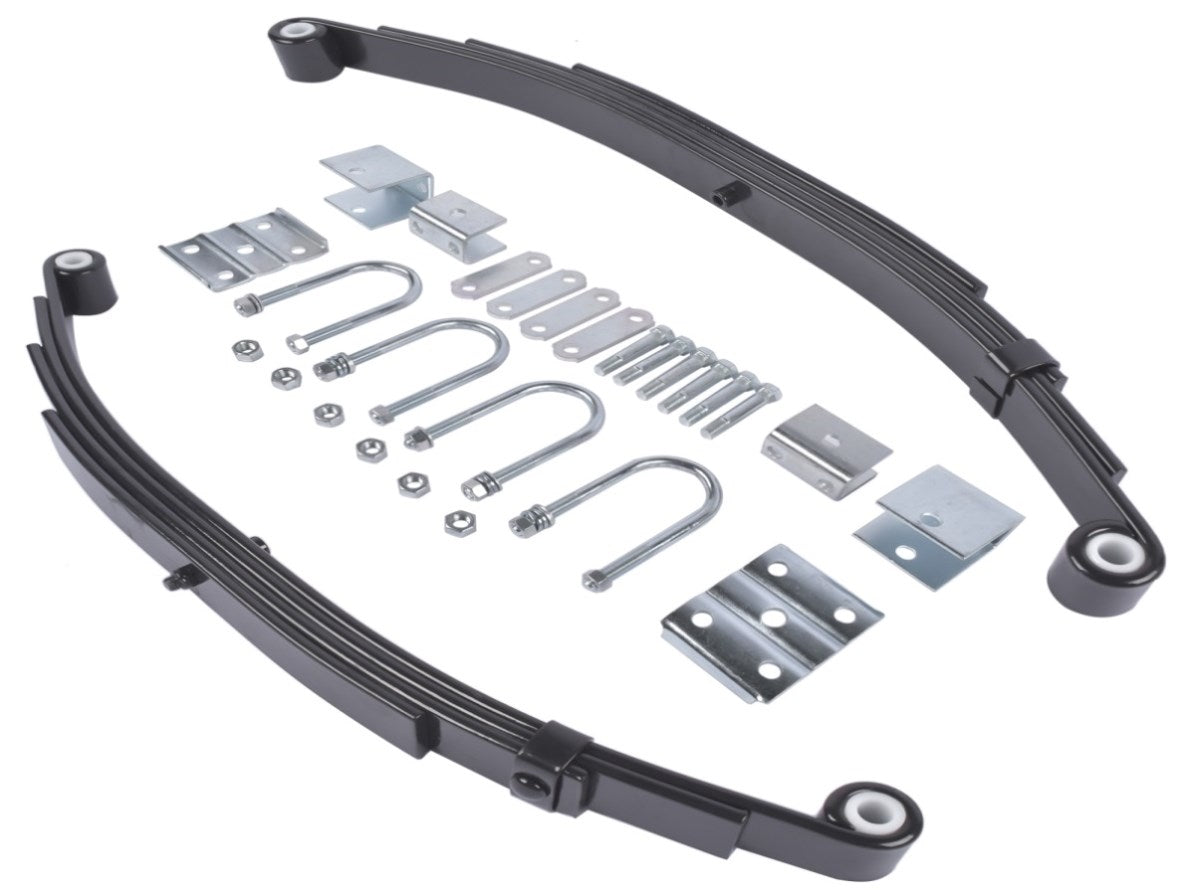

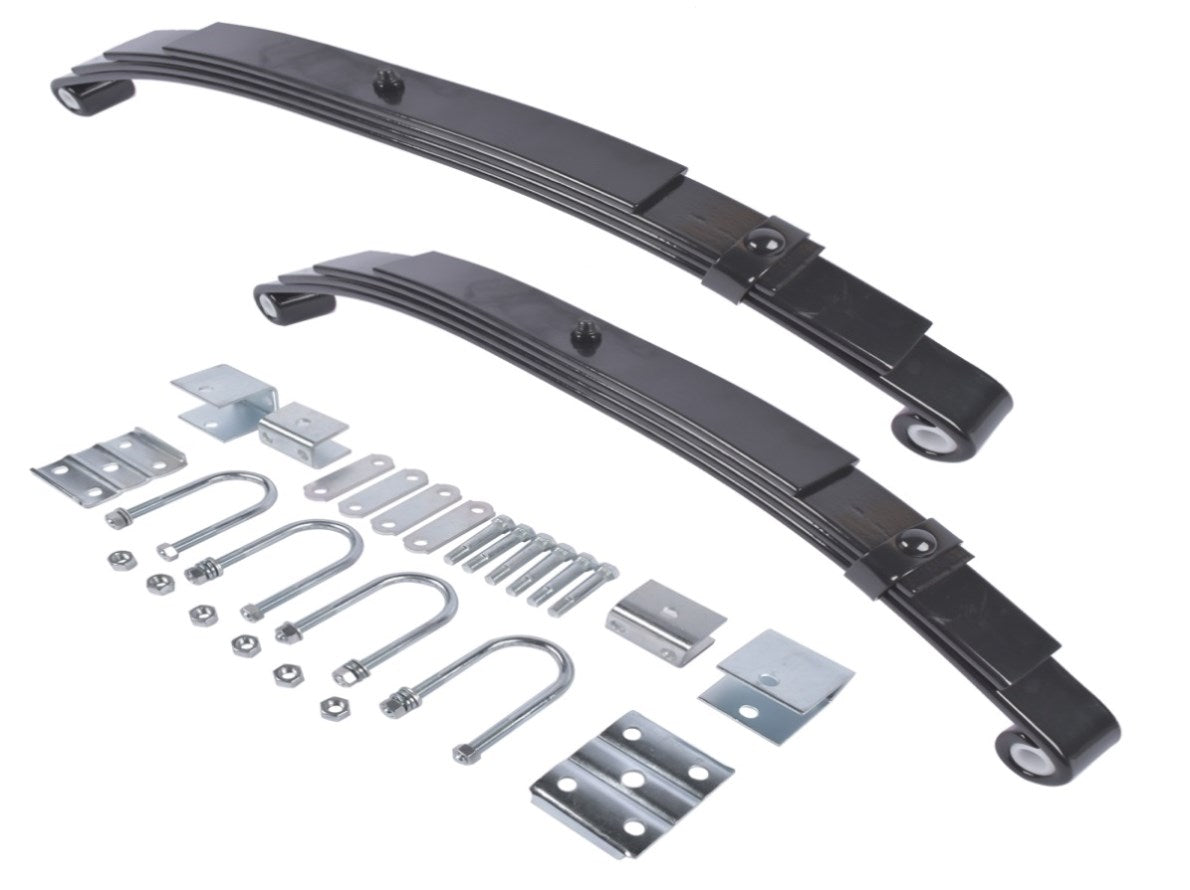

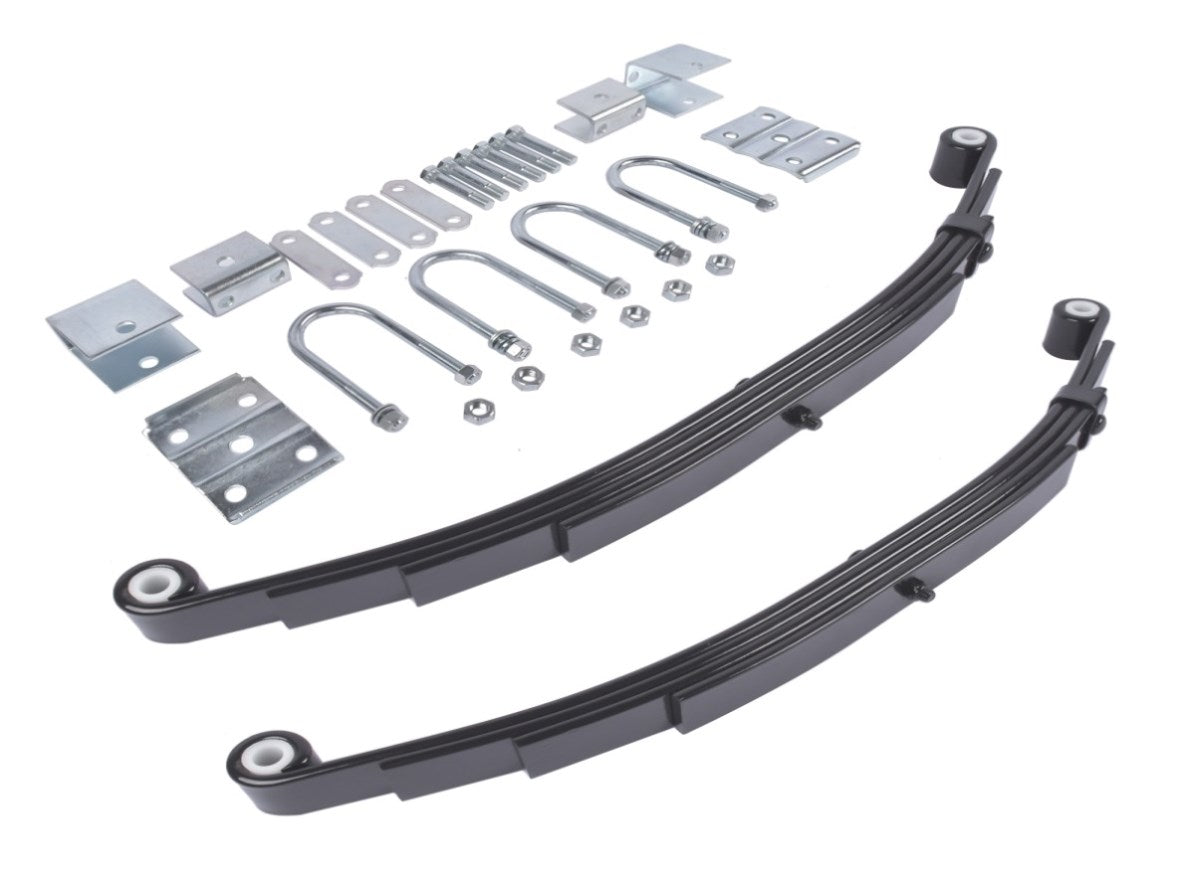

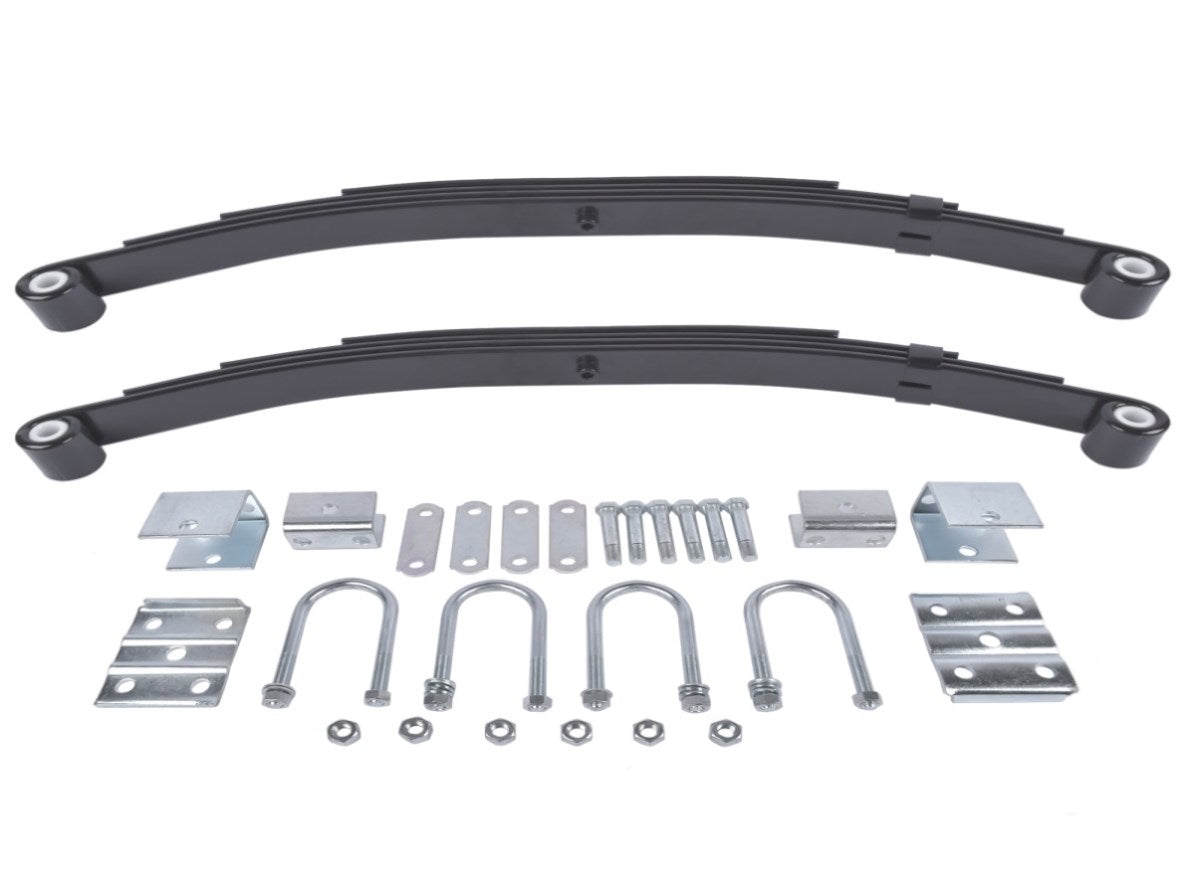

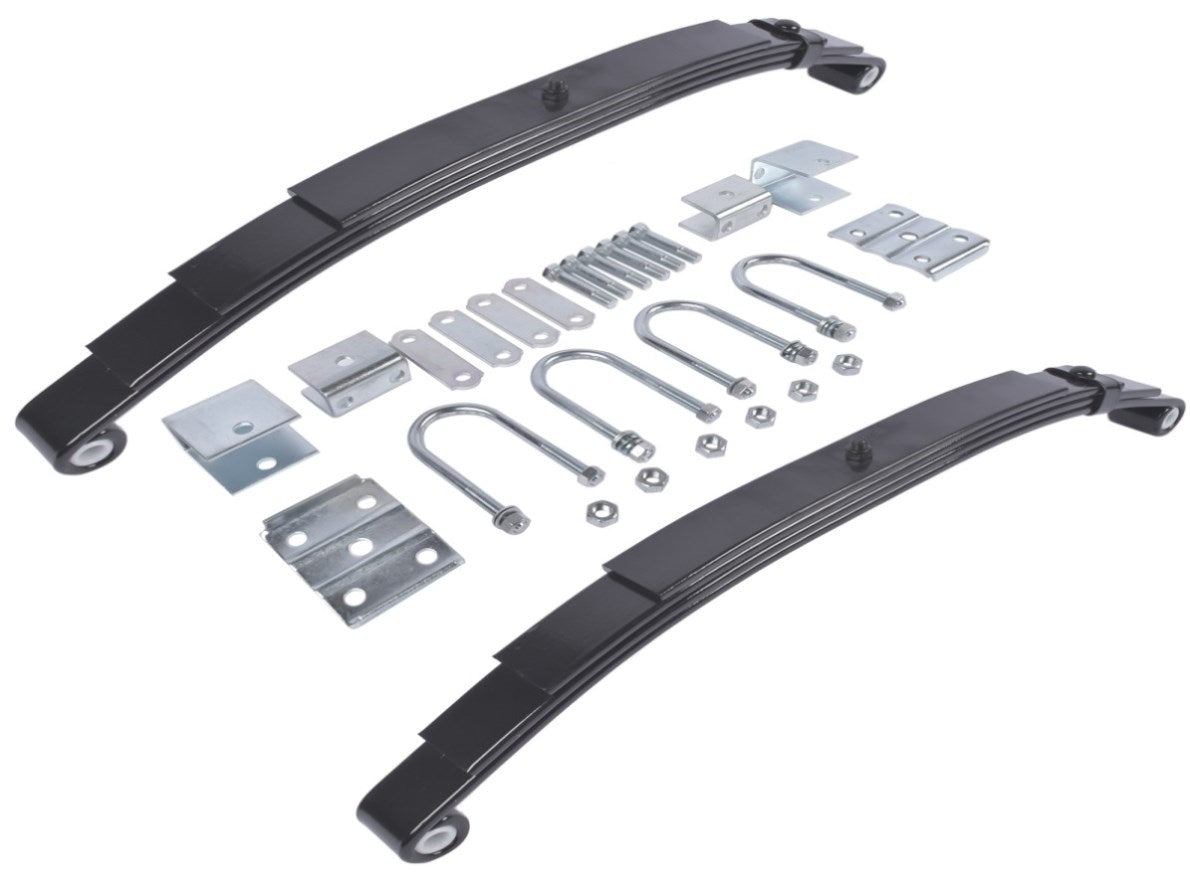

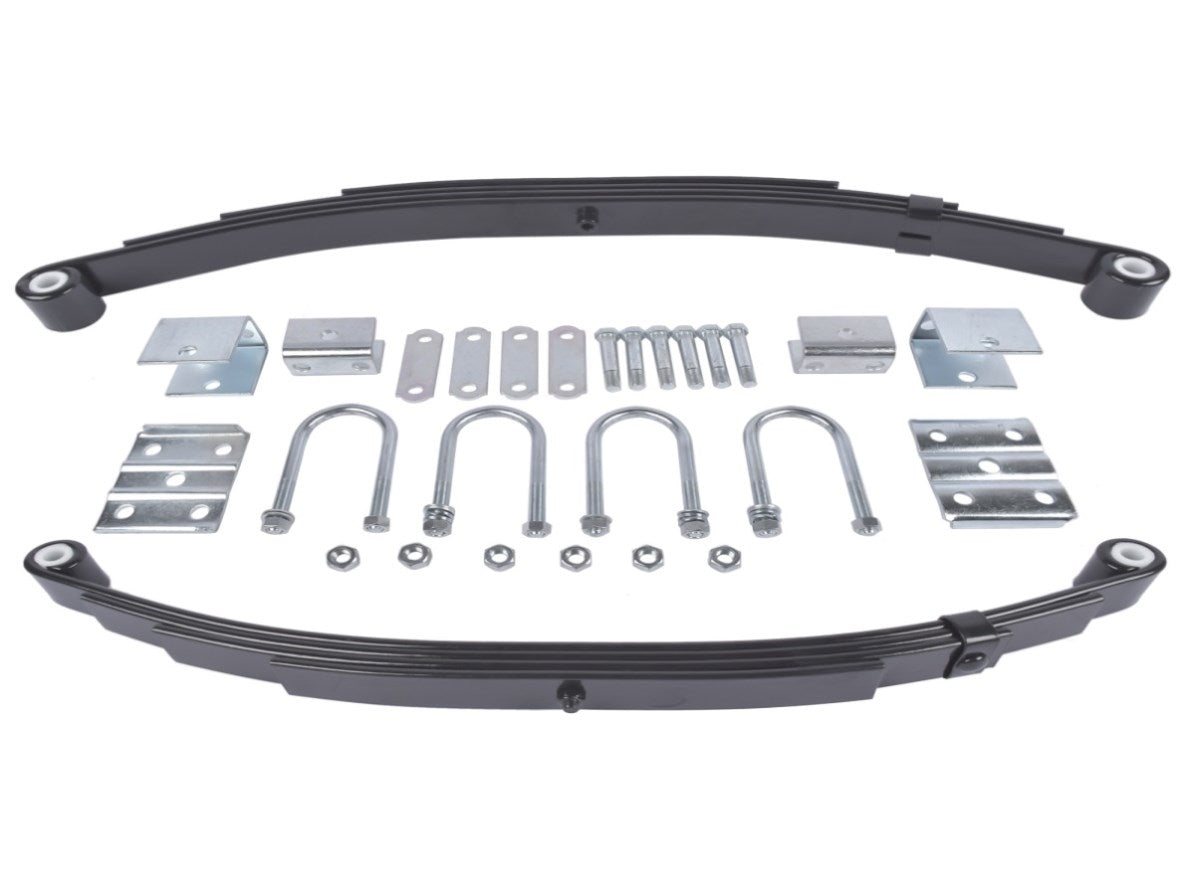

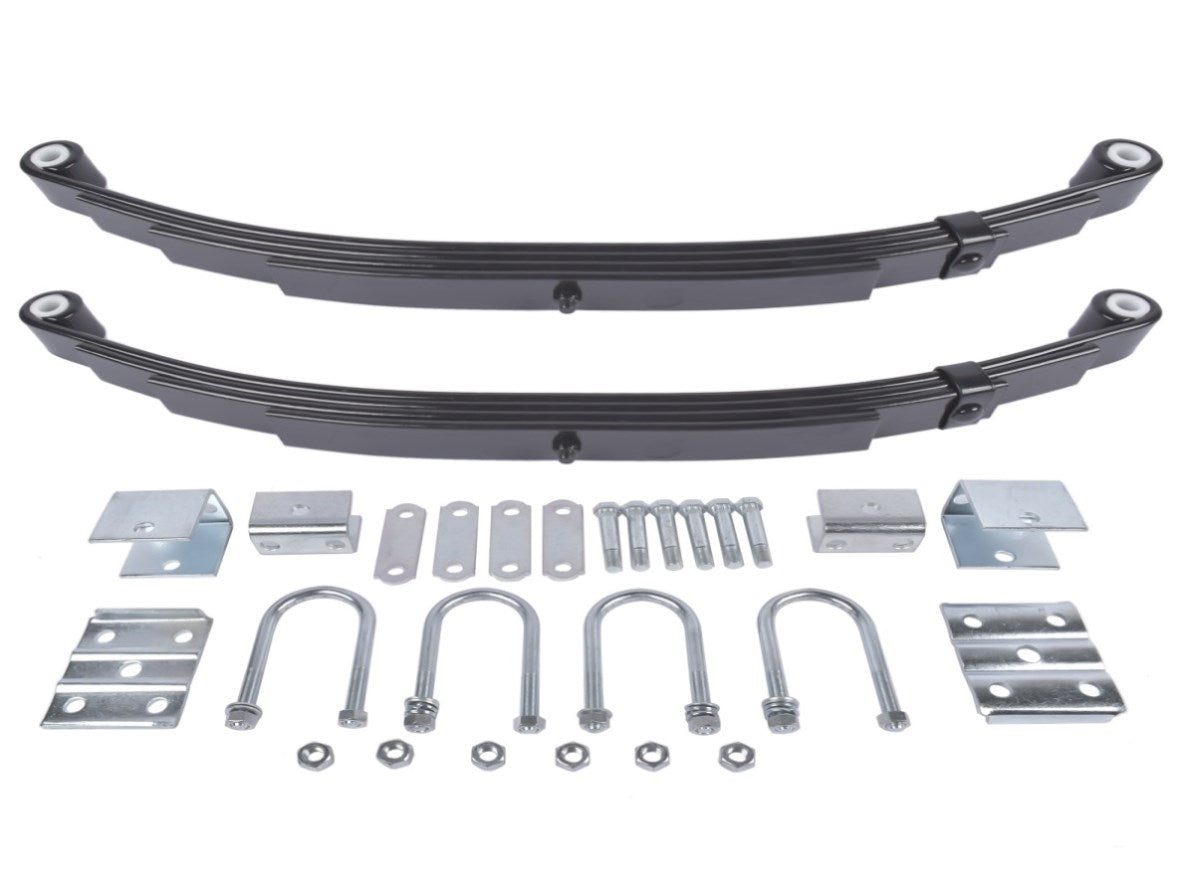

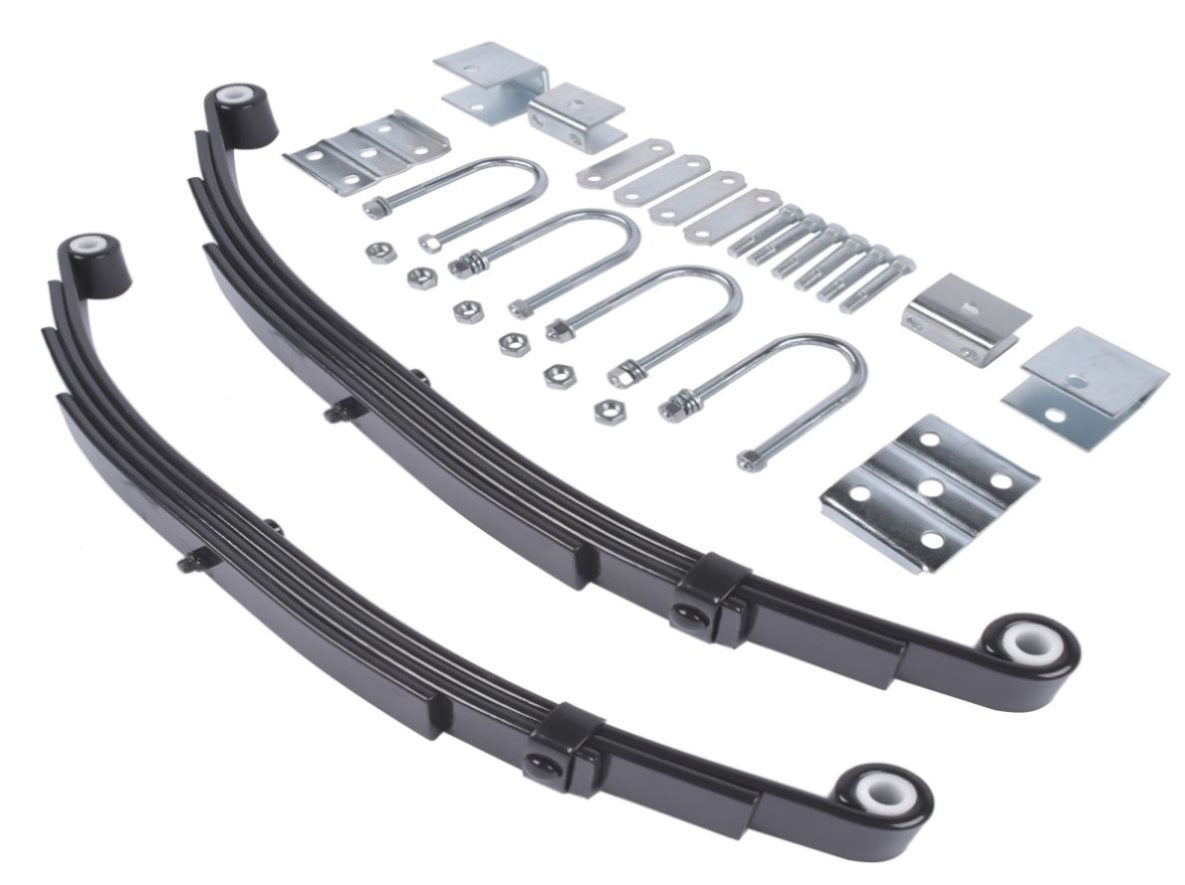

3500lb Single Trailer Axle Suspension Kit Leaf Spring U-bolt & Hanger Kit Include Complete tandem 43641908

Product Description

FEATURES:
--1750 lb Capacity Per Spring for 3500 lbs Trailers
--Eye to Eye Length: 25-1/4 inch
--Width of Leaf: 1-3/4 inch
--Number of leaves: 4
--9/16 inch Bushing Dia, 2 nylon Bushings Installed for Each Spring
--Leaf Thickness: 5/16 inch

----------------------------------------------------------------------------------------
Include 3500lbs axle U-bolt kit for 2-3/8" dia round trailer axles：
4* 5-1/2" long U bolts, U bolts dia. 1/2"
2* tie plates for 1-3/4" leaf springs;
8* 1/2"-20 hex nuts
----------------------------------------------------------------------------------------
Include Complete tandem trailer axle hanger kit for 1-3/4" leaf springs：
2* 3" tall hangers,
2* 2.1" tall hangers,
4* shackle straps (eye to eye 3.09"),
6* 9/16"-18 x 3" long shackle bolts and locknuts

----------------------------------------------------------------------------------------

Includes 2 @ 1,750 lb - 4 - leaf springs,
3,500 lb each axle, 1 3/4" wide and 25 1/4" eye to eye center,
Eye to eye springs include nylon bushing already installed.

Package Contents:

1 Set Trailer Axle Suspension Kit
