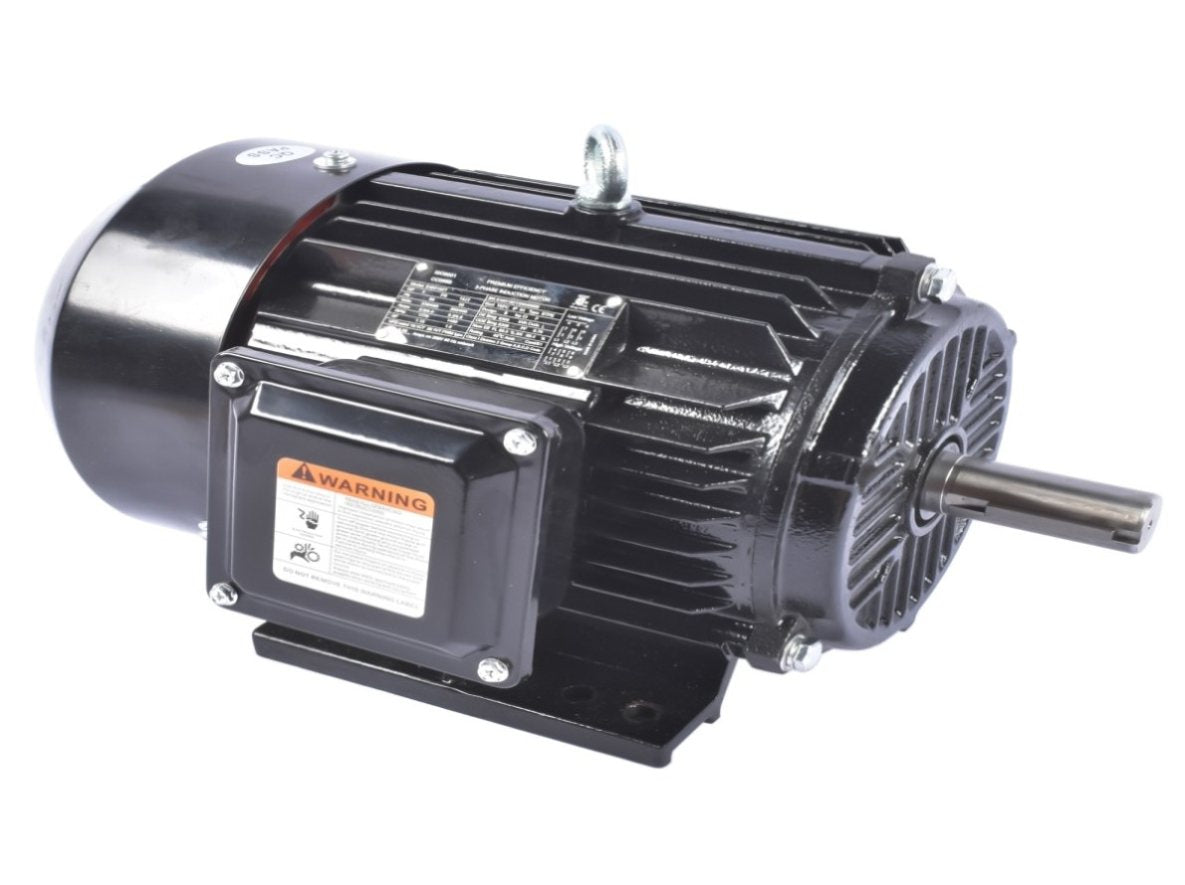

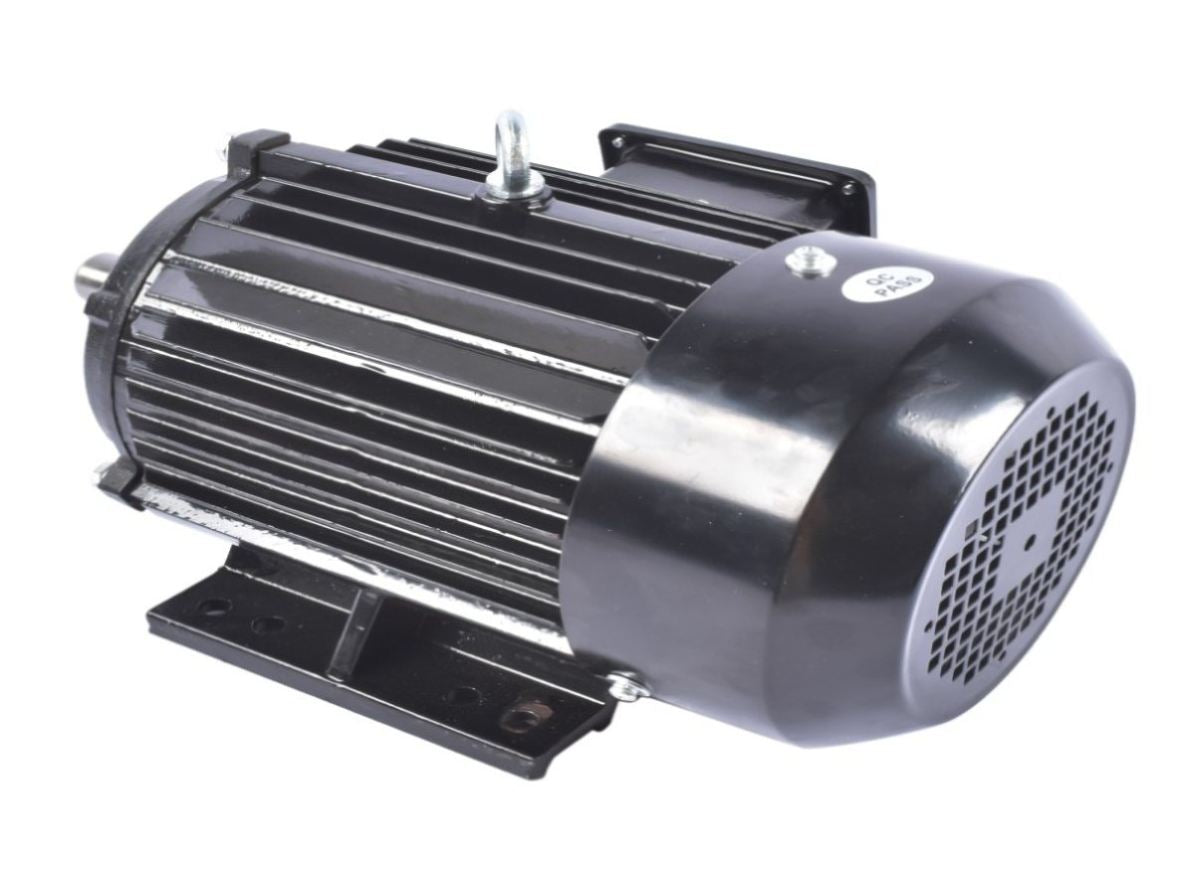

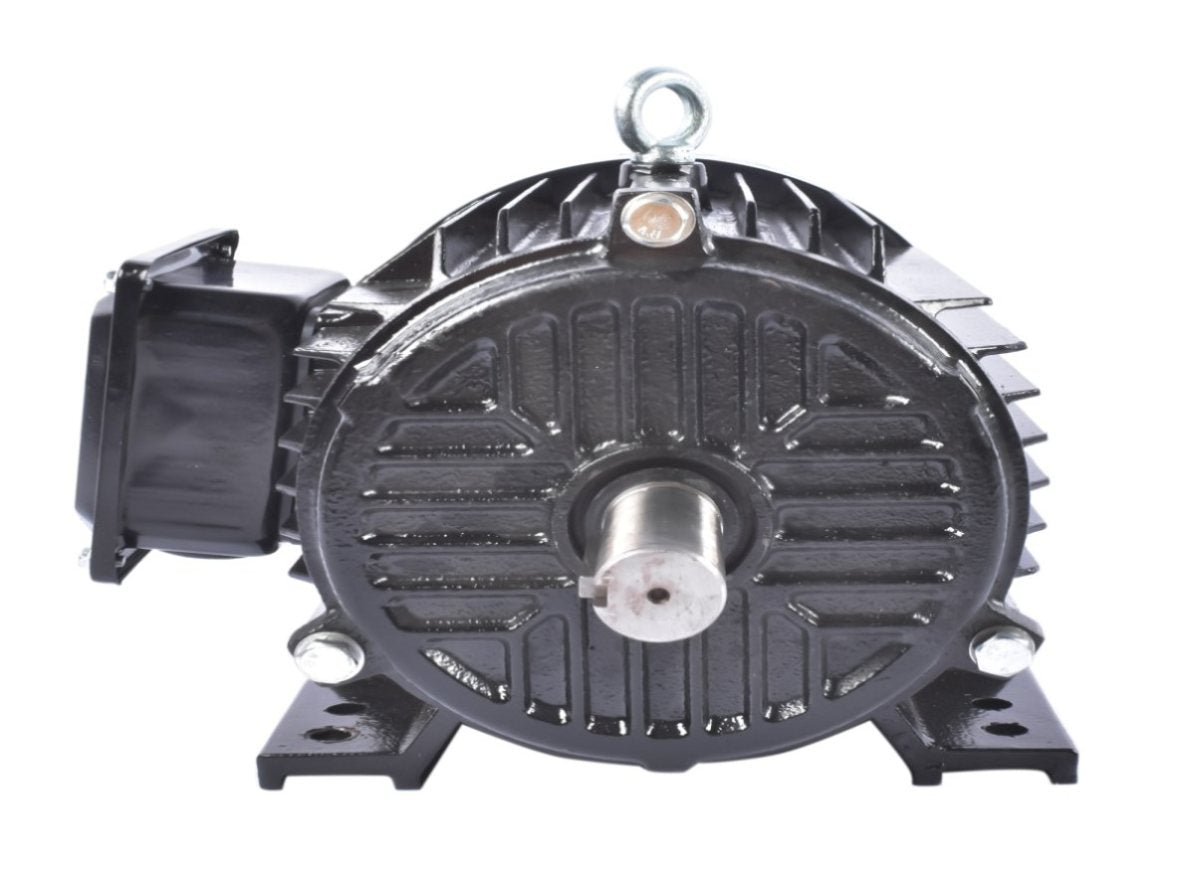

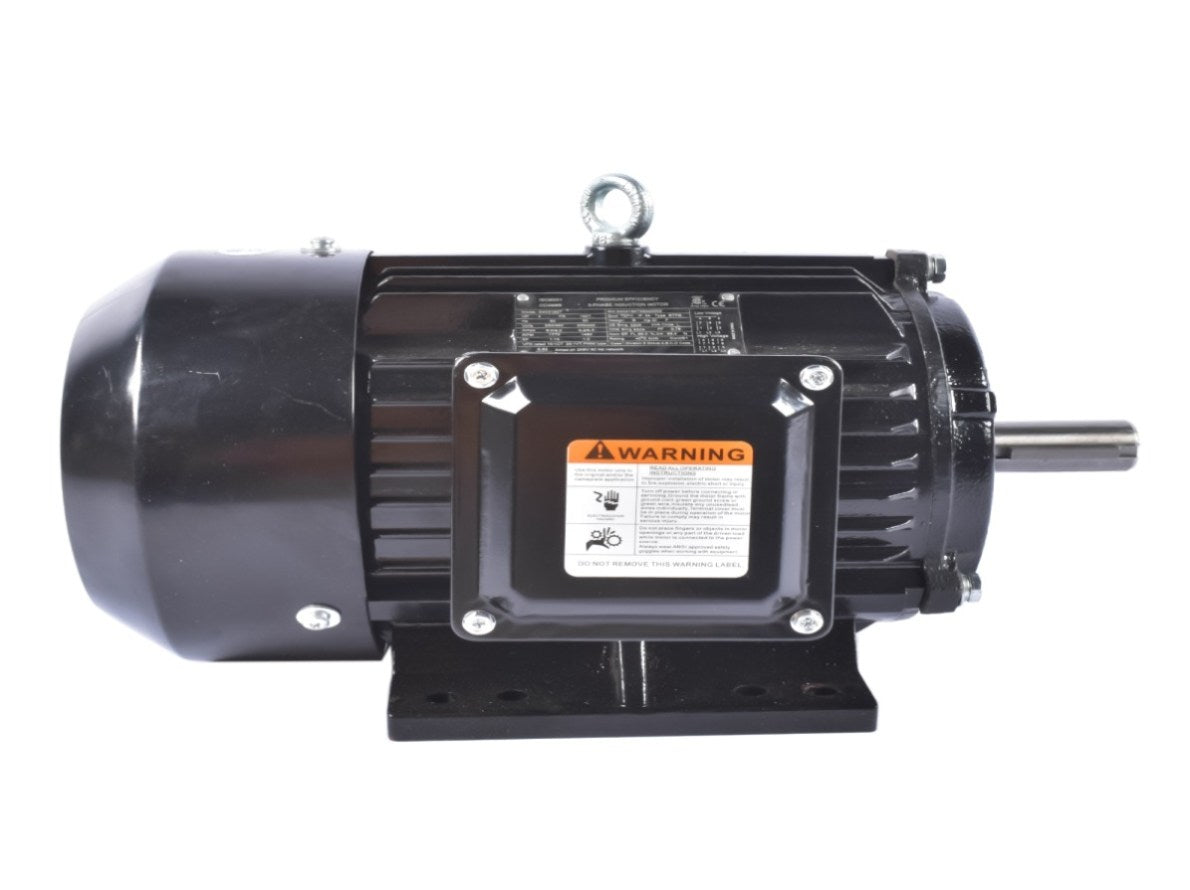

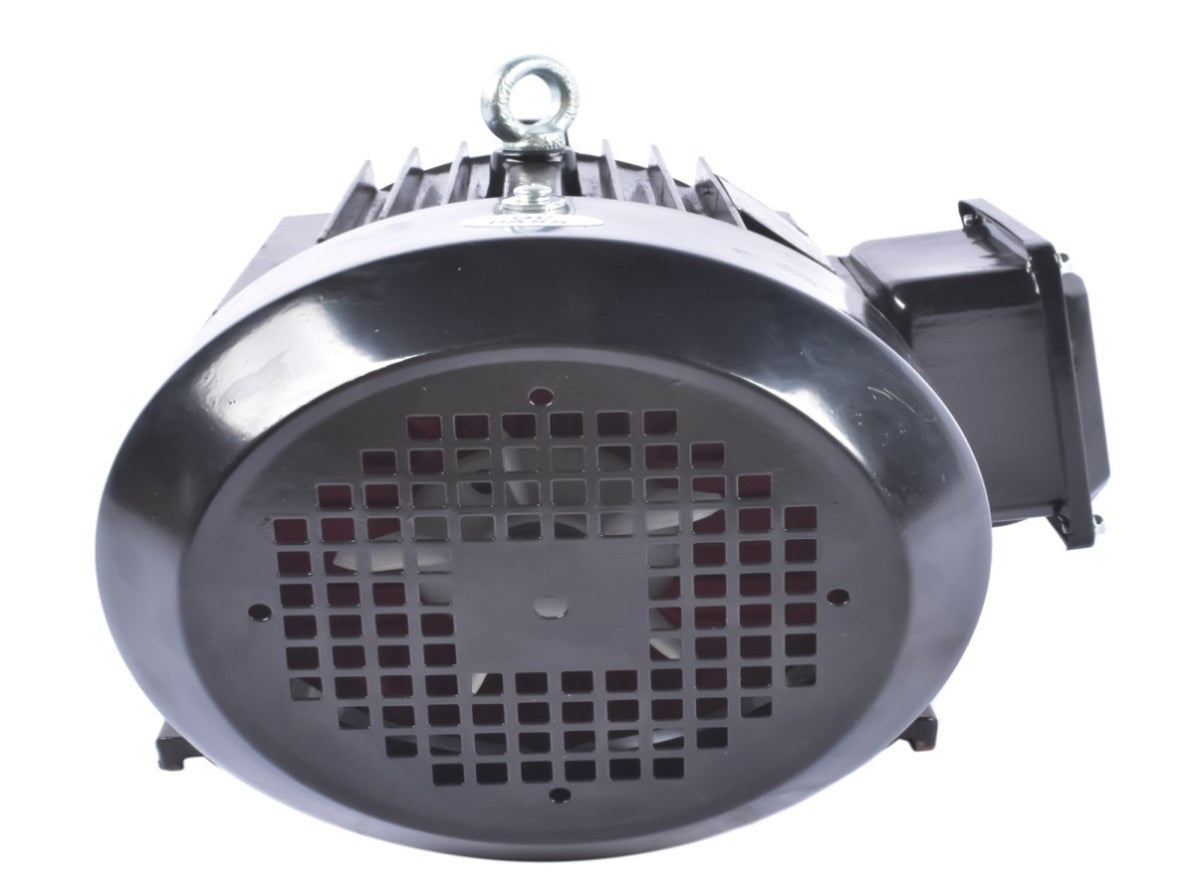

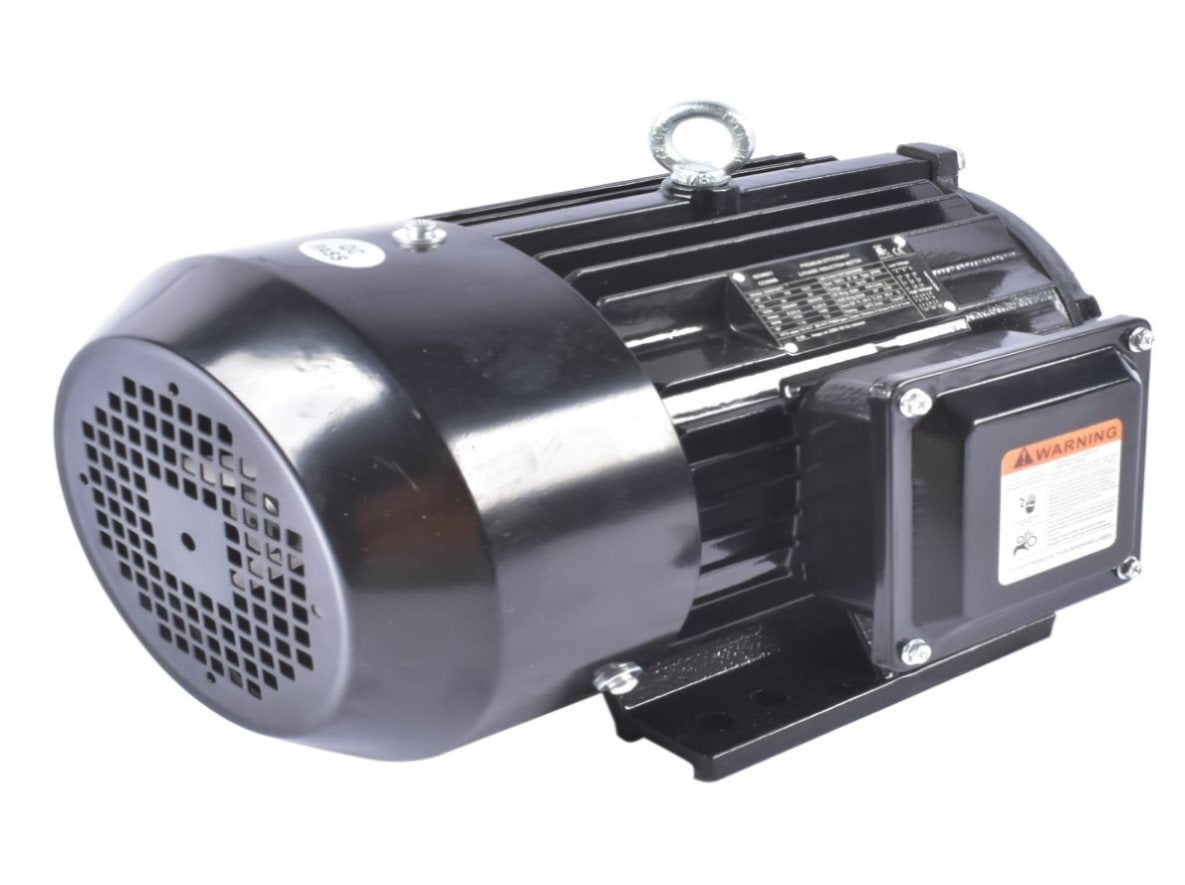

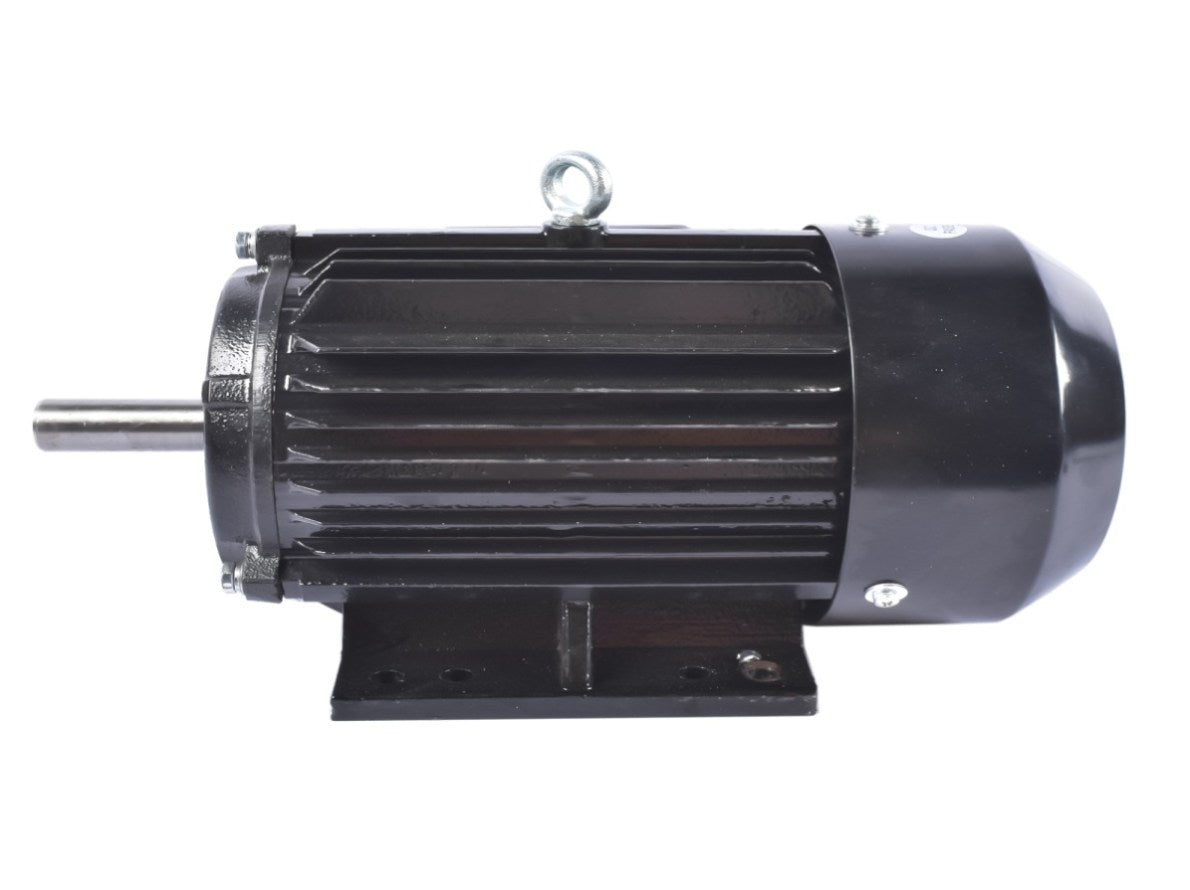

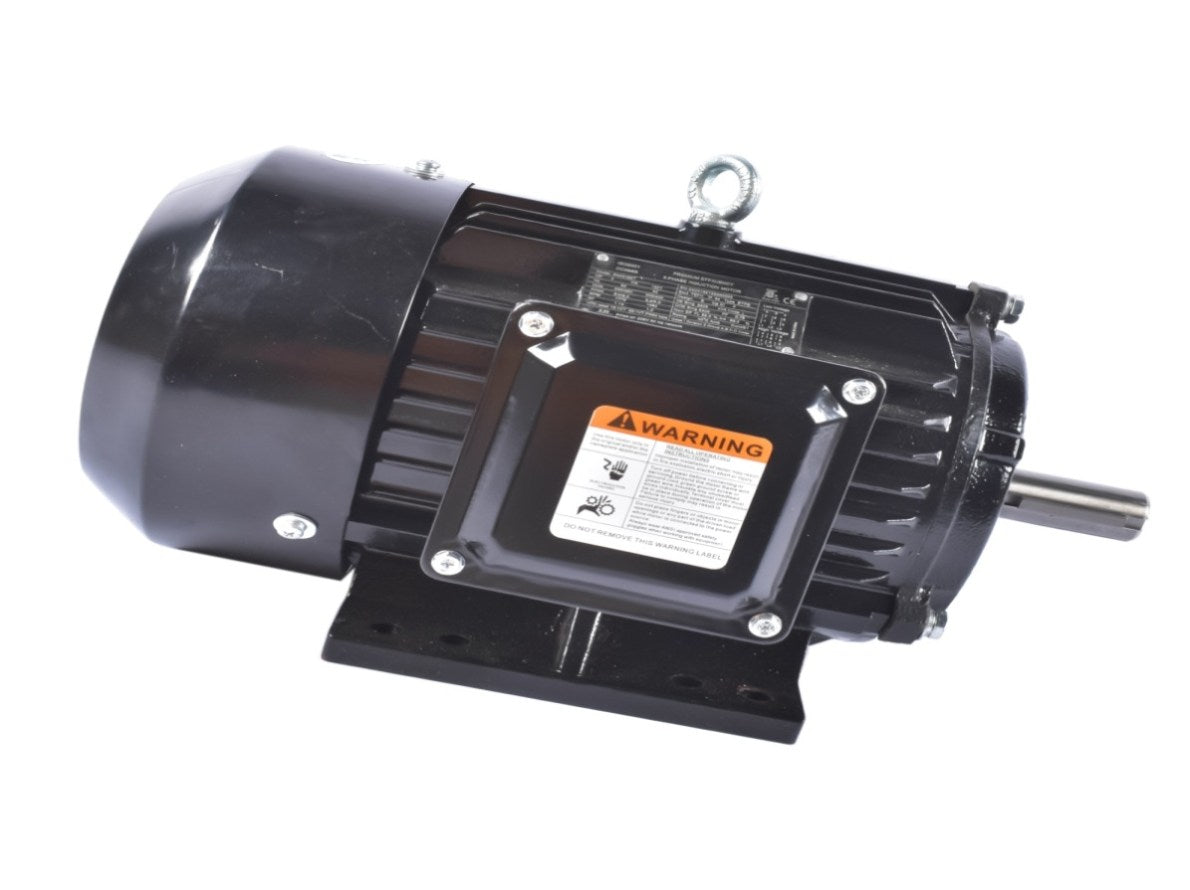

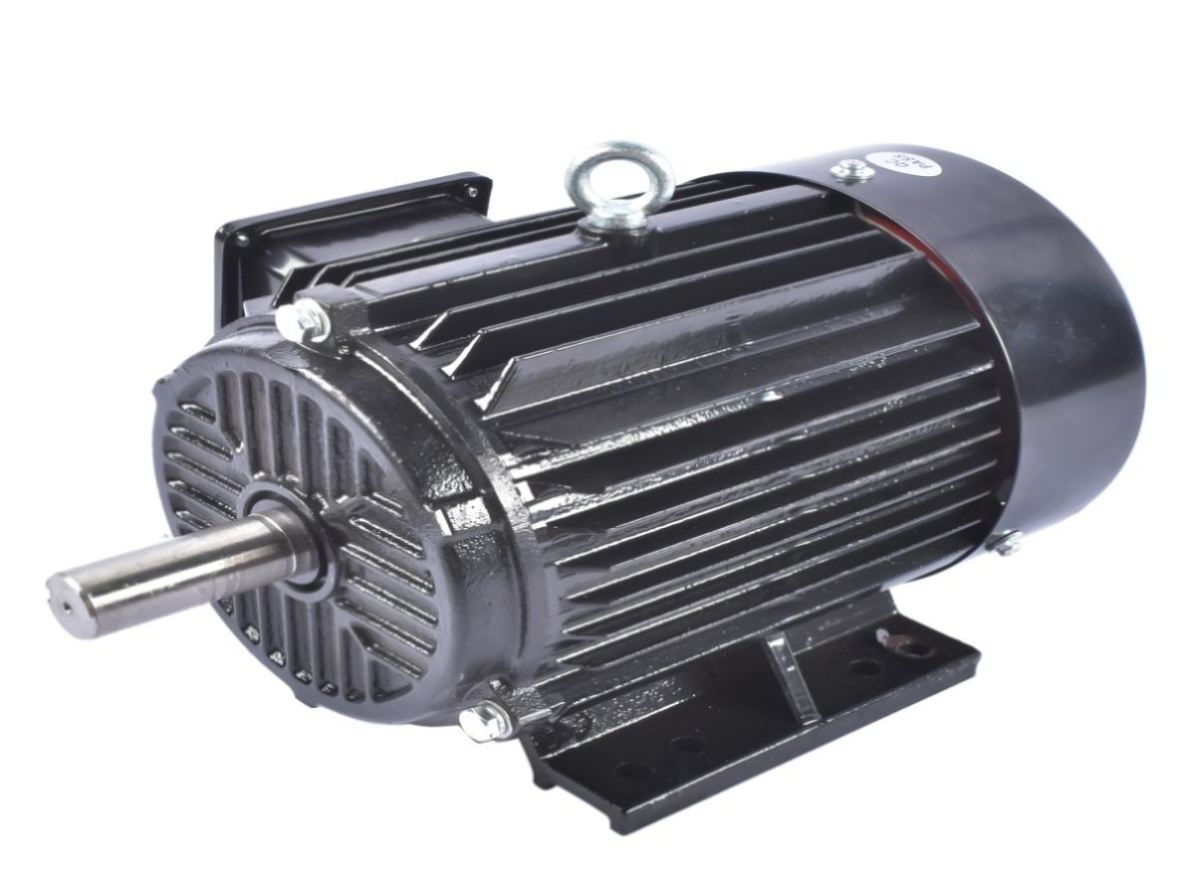

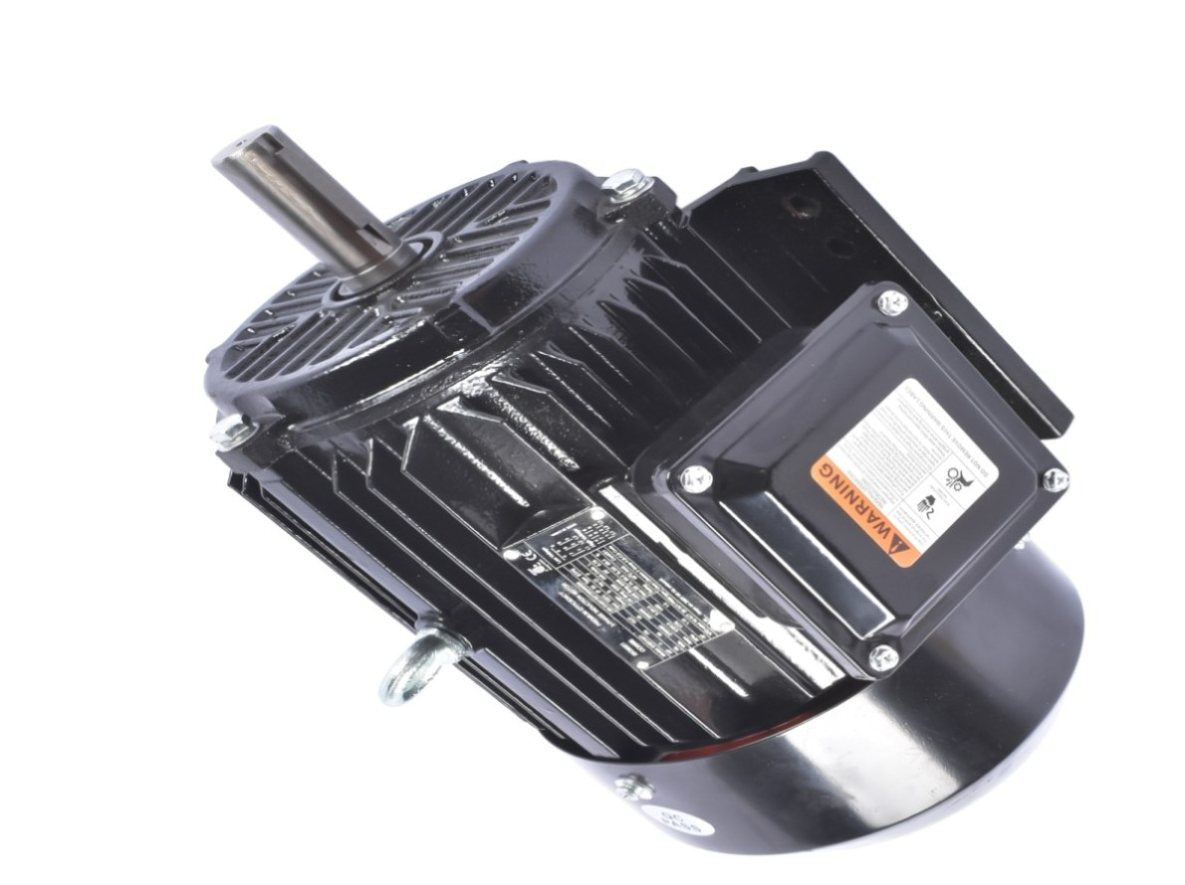

3 Phase 3 HP 1800RPM Electric Motor 230/460 Volt 182T 60HZ TEFC / IP55 Enclosure 53541899
GT-53541899
8 In stock
$748.80
☛Specifications Rated Load: 3 HPAC Phase: 3 PhaseRPM: 1800Frame: 182T Service Factor 1.25Class F Insulation Rated Input Voltage: 230/460 VoltShaft Length: Approximately 2 7/8"Keyed 1 1/8" Diameter ShaftCurrent: ACFull Load Amps: 8.05/4.02AC Frequency Rating: 60 HZShaft Material: 1045 Carbon Steel Enclosure Type: TEFC (Totally Enclosed Fan Cooled)Nema Design BMax Temp: 40 Degrees C TEFC /...
customers are viewing this product
☛Specifications
Rated Load: 3 HP
AC Phase: 3 Phase
RPM: 1800
Frame: 182T
AC Phase: 3 Phase
RPM: 1800
Frame: 182T
Service Factor 1.25
Class F Insulation
Class F Insulation
Rated Input Voltage: 230/460 Volt
Shaft Length: Approximately 2 7/8"
Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 8.05/4.02
AC Frequency Rating: 60 HZ
Shaft Material: 1045 Carbon Steel
Shaft Length: Approximately 2 7/8"
Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 8.05/4.02
AC Frequency Rating: 60 HZ
Shaft Material: 1045 Carbon Steel
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Nema Design B
Max Temp: 40 Degrees C
Nema Design B
Max Temp: 40 Degrees C
TEFC / IP55 Enclosure
Insulation Class: F (Max 311°F)
Mounting Type: Base-Mounted
IP Rating: IP55
Shaft Type: Keyed
☛Notes!
Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
When the motor is received,
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal.
3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal.
3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.
