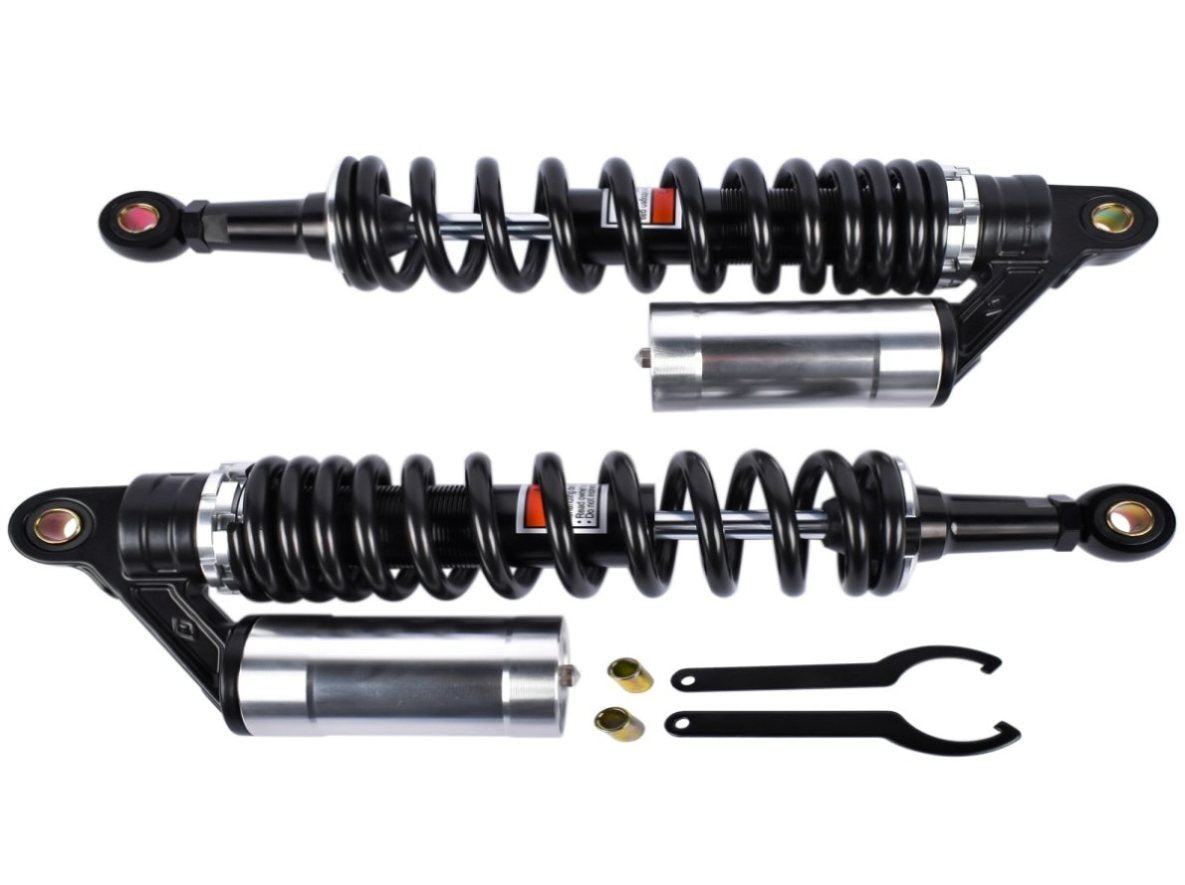

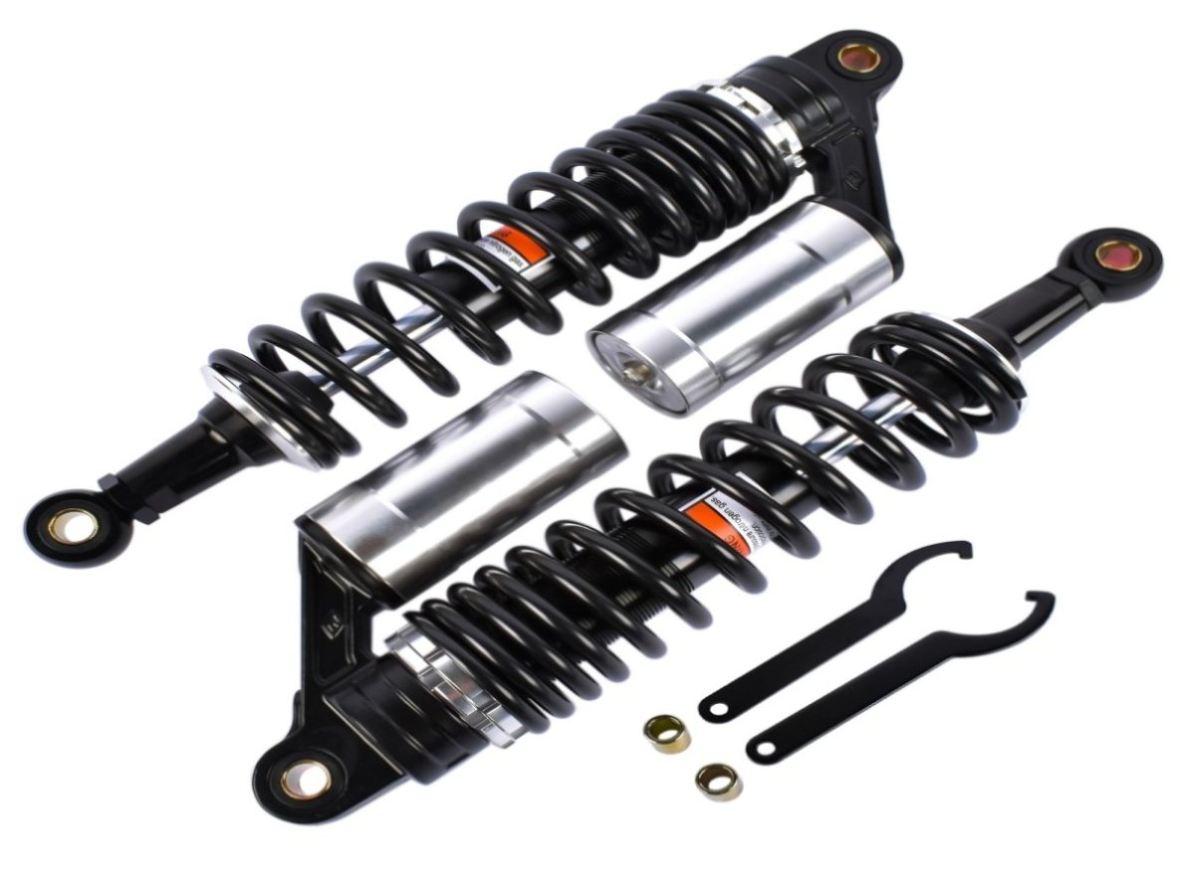

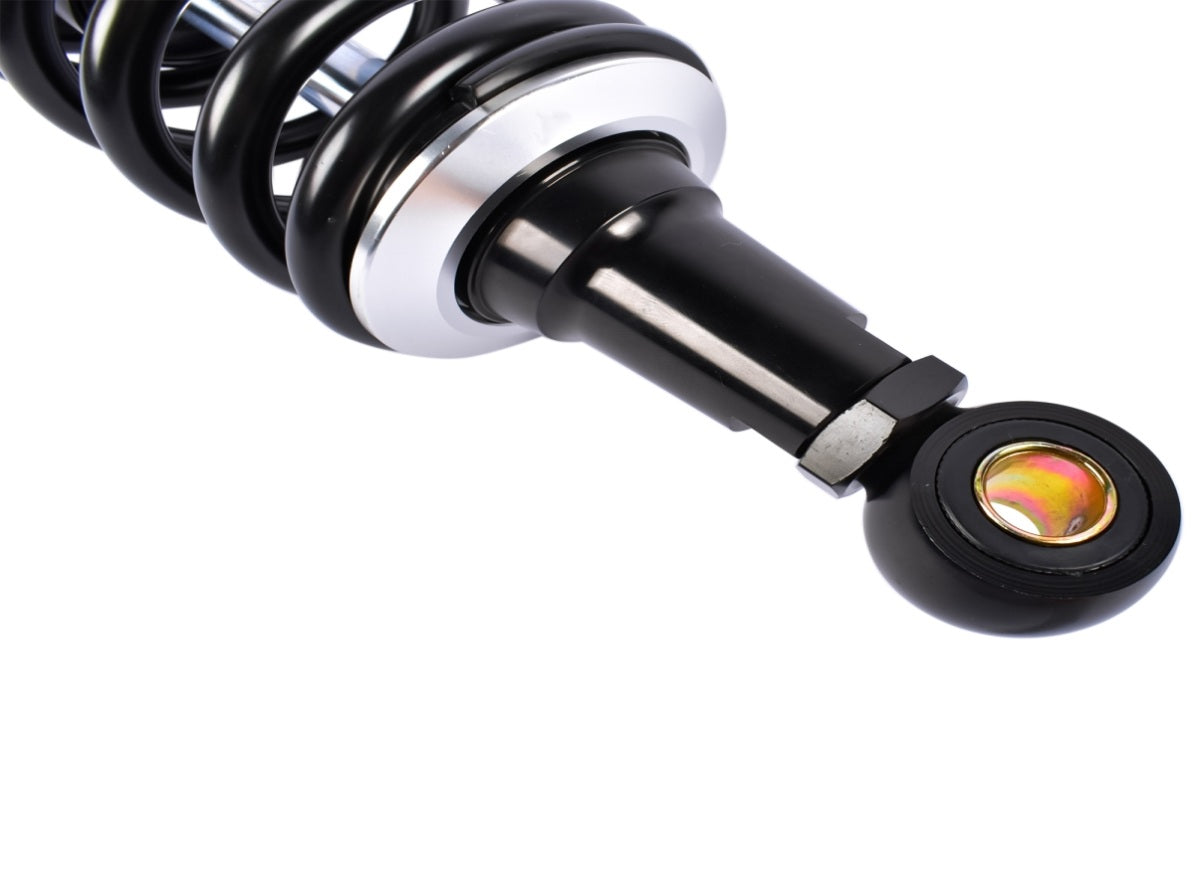

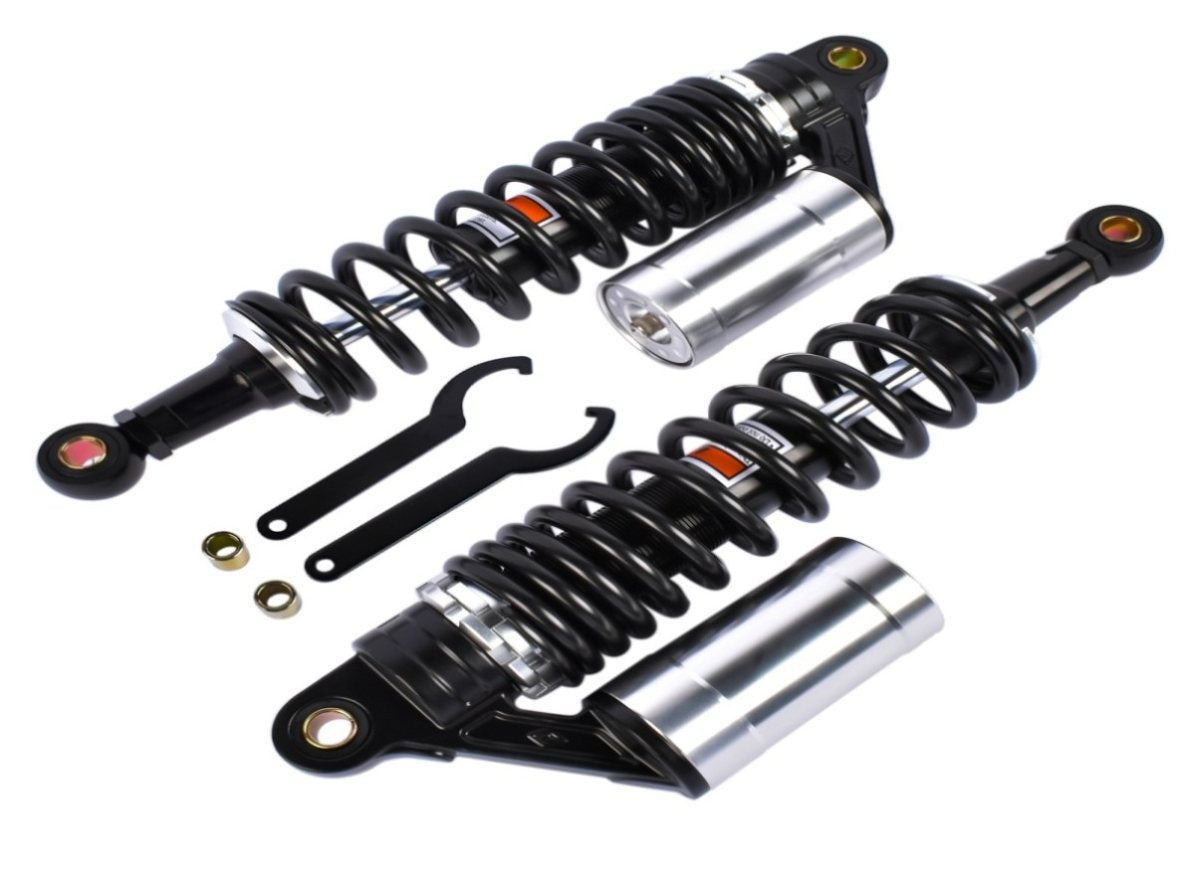

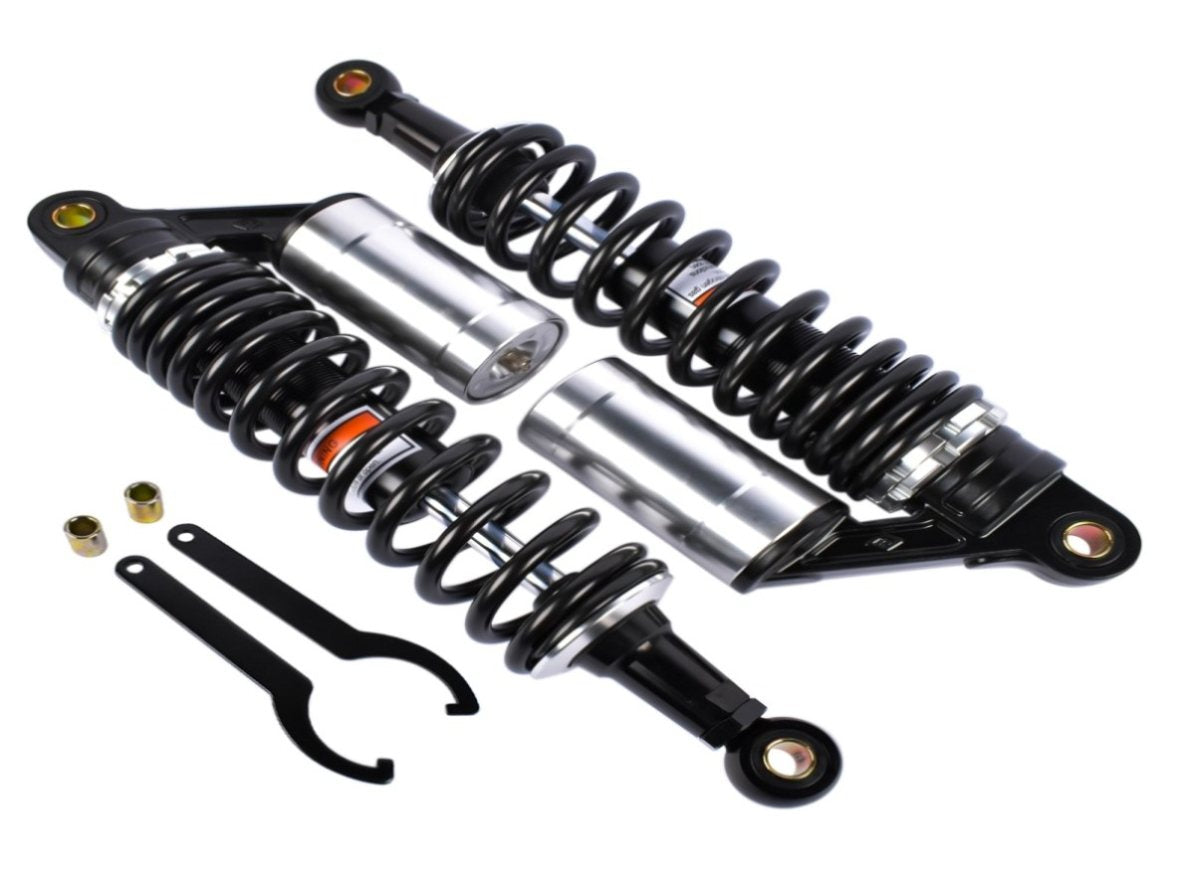

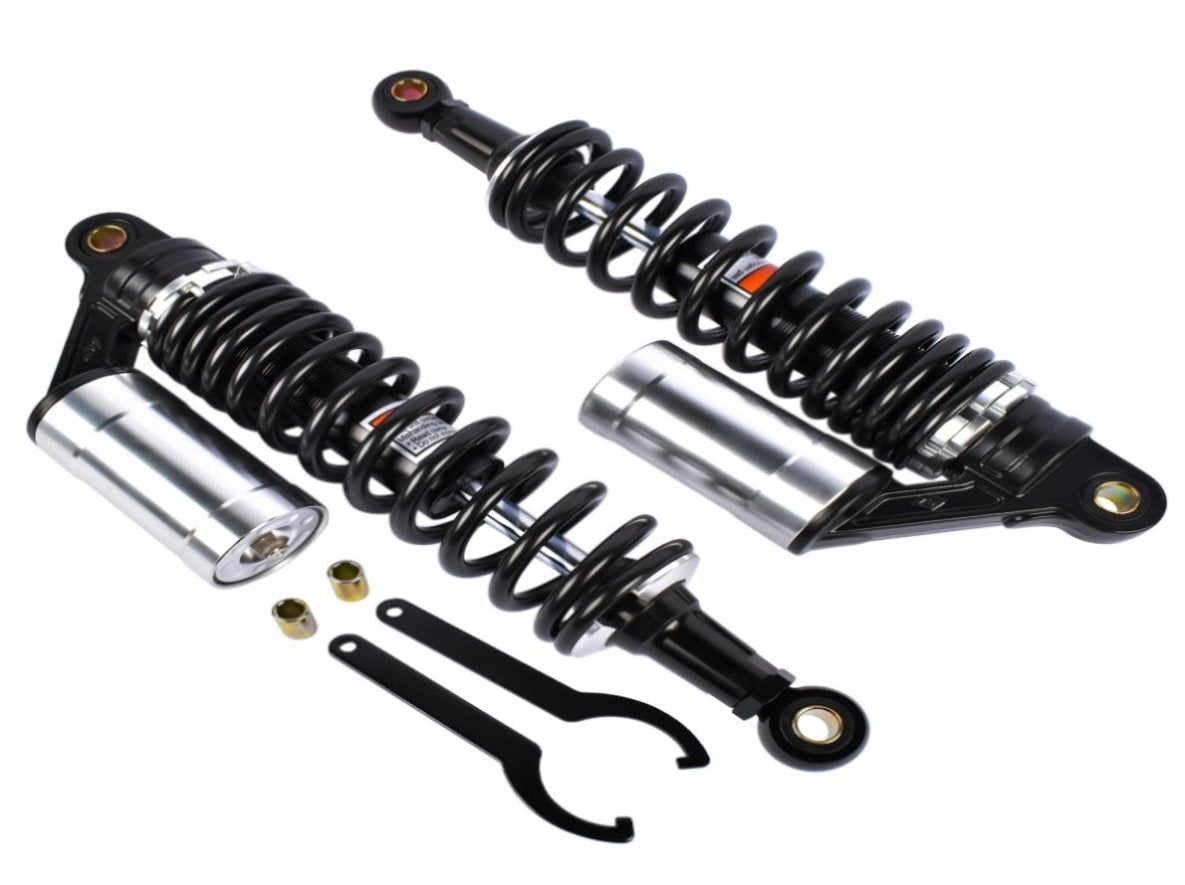

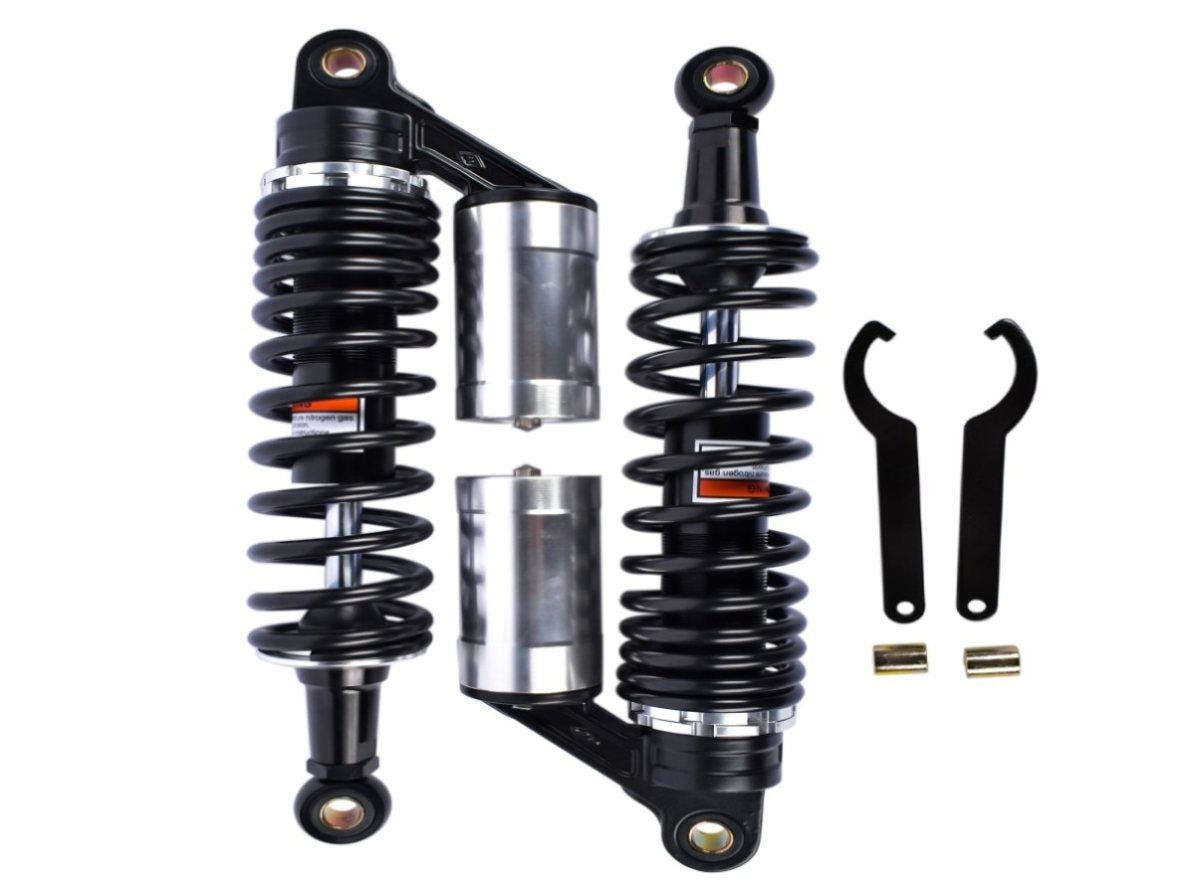

2x 13.5" 340mm Motorcycle Rear Air Shock Absorbers Suspension Compatible with Harley Sportster 883 92511414
Specification:
1. Material: Solid Steel + Aluminium Alloy
2. Installation Type: Eye to Eye
Color: Black & Silver
Dimension:
Total Length: 370mm (14 3/4")
Length of Eye to Eye Core: 340mm(13 3/8")
Eye Diameter(with bushing): 12mm
Eye Diameter(with bushing removed): 16mm
Eye Thickness: 21mm
Eye Maximum Tensile Strength: 2,000 Kgf
Spring Thickness: 8mm
Spring Width: 60mm
Working Stroke: 68mm
Spring Stiffness: 110 kg
Maximum load: 300 kg (≈660 lbs)
Air Reservoir: Adjustable
Factory Air Pressure: 0.4 Mpa
Maximum Air Pressure: 0.5 Mpa
Will fit Following Models
Fitment
Fits For bikes with shocks of 340mm eye to eye distance.
Fit on most 150cc~750cc Sport bikes and Dirt Bikes, Go-kart and Moped Quad
*Fitting manual is not included. Installed by qualified mechanic is recommended.
Package Includes:
1 Pair Shock Absorbers
