2"in Front Leveling Struts kit fit for Ford F-150 4WD 14-24 56919497
GT-56919497
5 In stock
$602.78
Introduction: Our Nitrogen Filled, Loaded Struts add superior ride quality to your truck while maintaining the factory ride height. Each strut includes a pre-assembled coil fit for quick installation without complicated strut removal. Our struts have a massive bore and chrome-hardened piston rod with leak-proof piston seals fit for extreme...
customers are viewing this product
Introduction:
Our Nitrogen Filled, Loaded Struts add superior ride quality to your truck while maintaining the factory ride height. Each strut includes a pre-assembled coil fit for quick installation without complicated strut removal.
Our struts have a massive bore and chrome-hardened piston rod with leak-proof piston seals fit for extreme durability in off-road use.
Each strut is tuned fit for its specific application and includes a variable damping system fit for excellent handling and control in all road conditions.
These high performance struts provide better tire-to-road contact fit for improved stability and performance.
These struts are designed to fit perfectly in every intended application and feature pre-assembled coil springs fit for easy installation without the need to remove the strut.
Simply remove your stock struts and replace them with this simple, convenient system.
Add this upgrade to your lift kit to improve ride quality and mimic the responsiveness and handling of the stock struts.
Fitment:
fit for Ford F150 2014-2024 4WD only
Note: Allows 33x12.50 on factory 20x9 wheels
Cannot be installed in conjunction with strut spacers
Does not fit 2WD, Raptor models or models equipped with CCD system or Blue Cruise
Feature:
High-pressure nitrogen charged twin-tube shock absorber with high durability.
Rubber bushings fit for better absorption
35KN Tensile Strength.
Power coated surface：provides superior corrosion resistance.
Increase ground clearance to level the front with the rear of the vehicle
Specification:
Product type: leveling kit
Height: lift front 2"
Material: High Tensile Strength Steel
Finish: Powder coated
Bushing material: Rubber
Diameter of piston rod: 20mm/0.78"
Piston diameter： 32mm/1.25"
Outer cylinder diameter: F&R 50mm/1.95"
Travel range: 138mm/5.43"
Extended length: 632mm/24.88"
Collapsed length: 494mm/19.44"
Nitrogen charged：yes
Spring length: 420mm/ 16.53"
Spring rate: 9.5 kg/mm /531.97lb/in
Height: lift front 2"
Material: High Tensile Strength Steel
Finish: Powder coated
Bushing material: Rubber
Diameter of piston rod: 20mm/0.78"
Piston diameter： 32mm/1.25"
Outer cylinder diameter: F&R 50mm/1.95"
Travel range: 138mm/5.43"
Extended length: 632mm/24.88"
Collapsed length: 494mm/19.44"
Nitrogen charged：yes
Spring length: 420mm/ 16.53"
Spring rate: 9.5 kg/mm /531.97lb/in

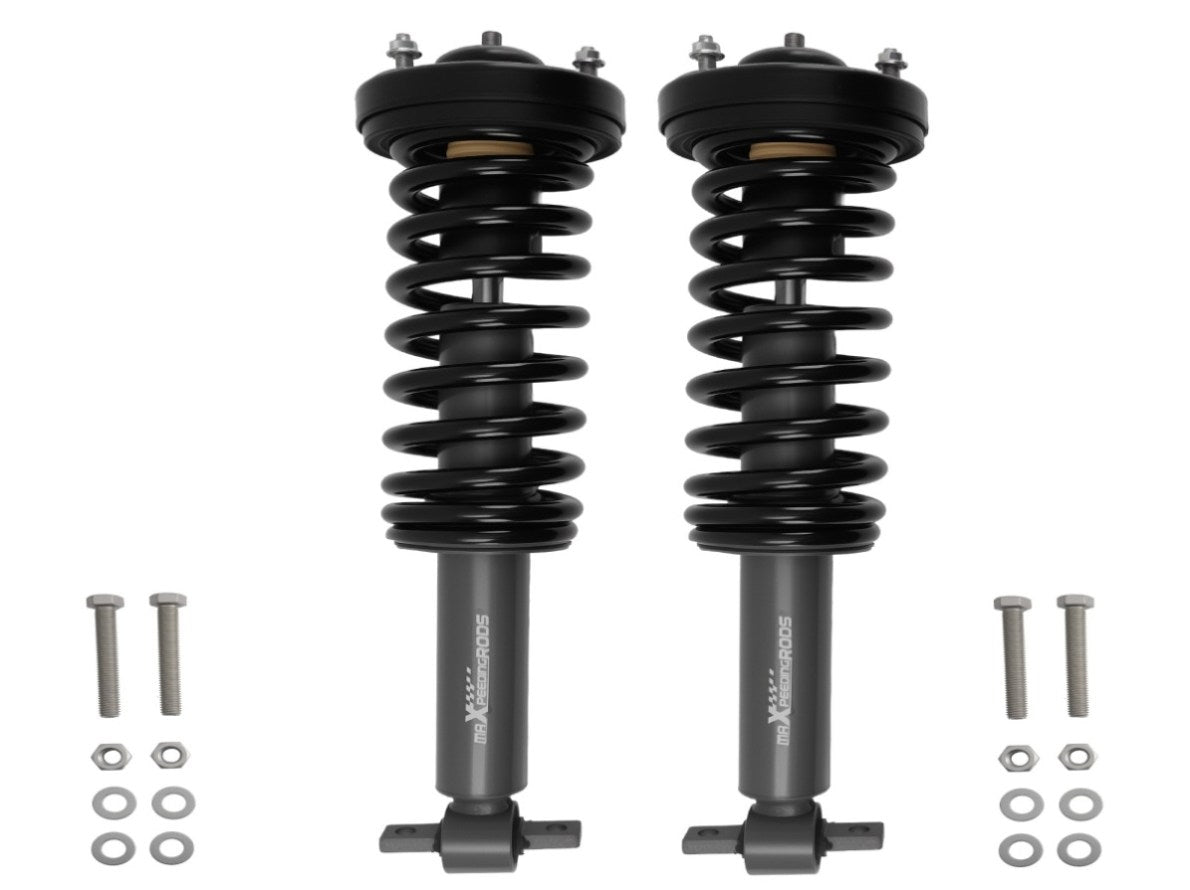

Package Includes:
2x Front strut
Package dimensions: 73*28*23cm
Weight: 25.8kg
Package dimensions: 73*28*23cm
Weight: 25.8kg
Note:
Allows 33x12.50 on factory 20x9 wheels
Cannot be installed in conjunction with strut spacers
Does not fit 2WD, Raptor models or models equipped with CCD system or Blue Cruise
