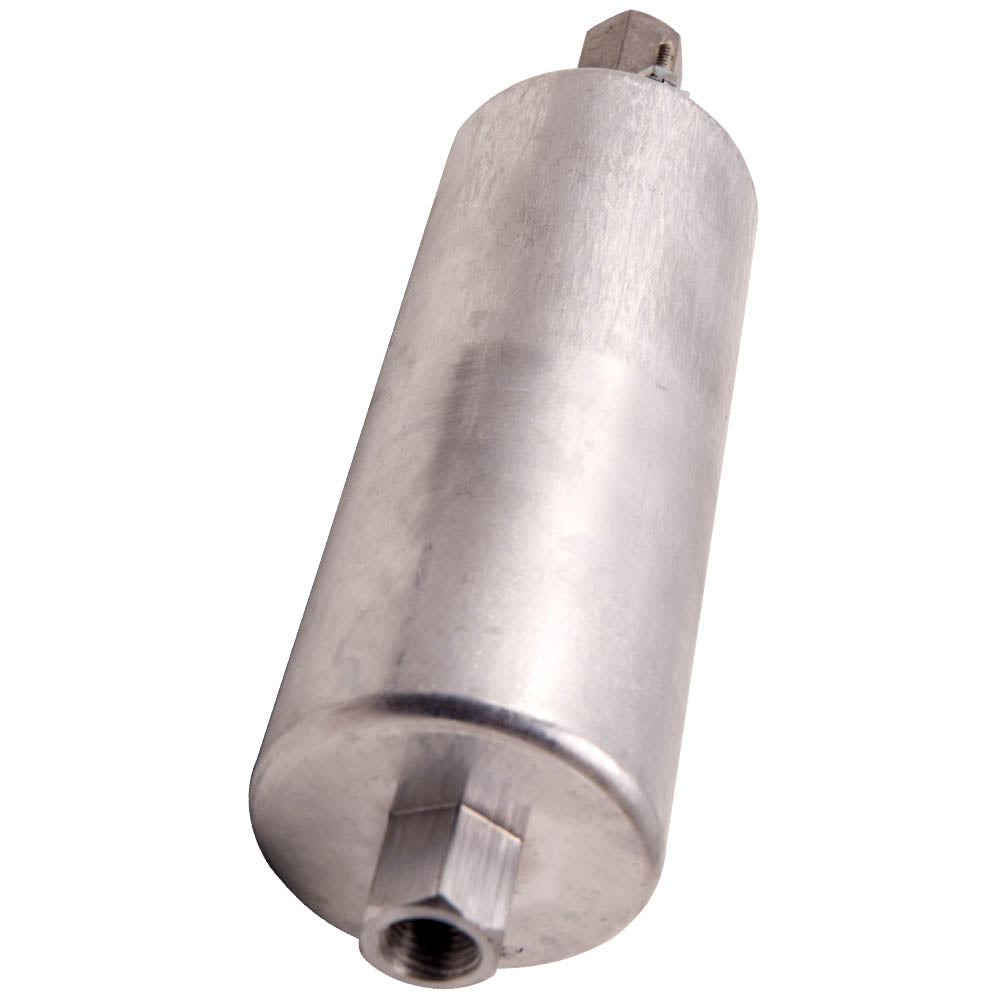

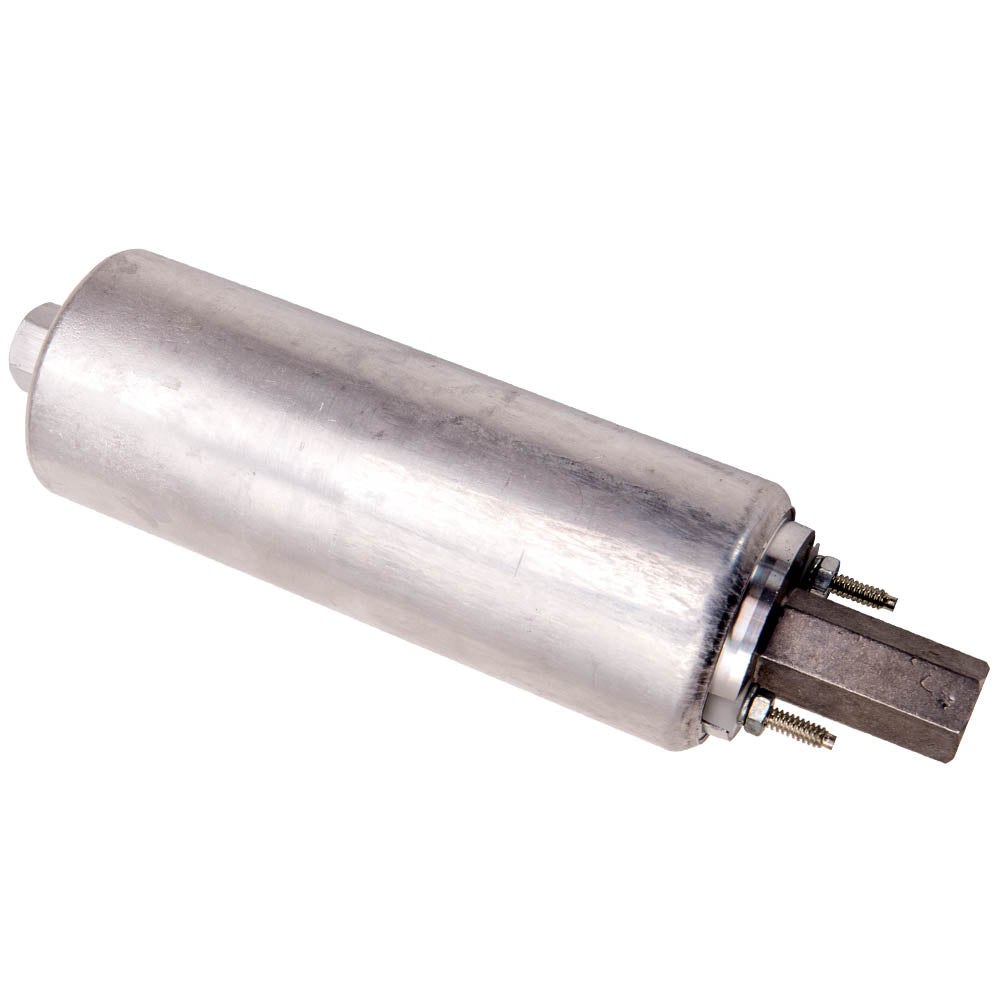

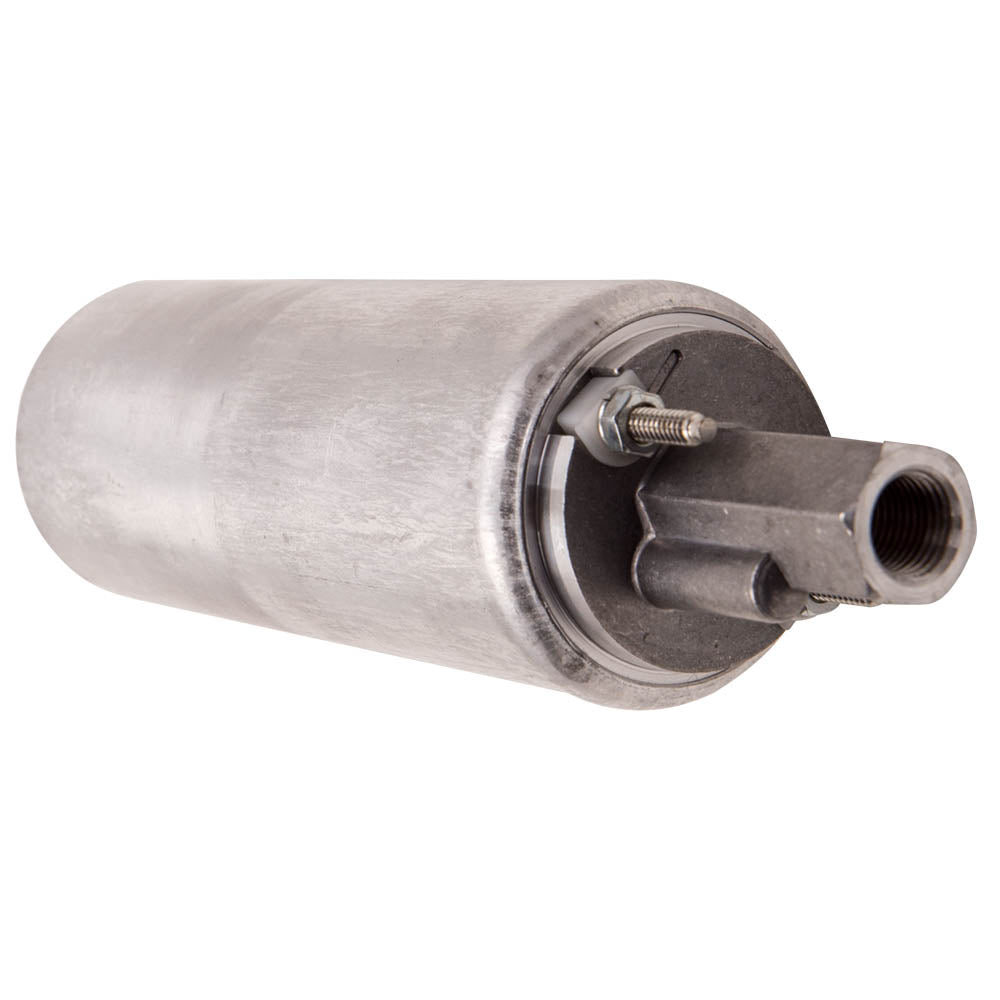

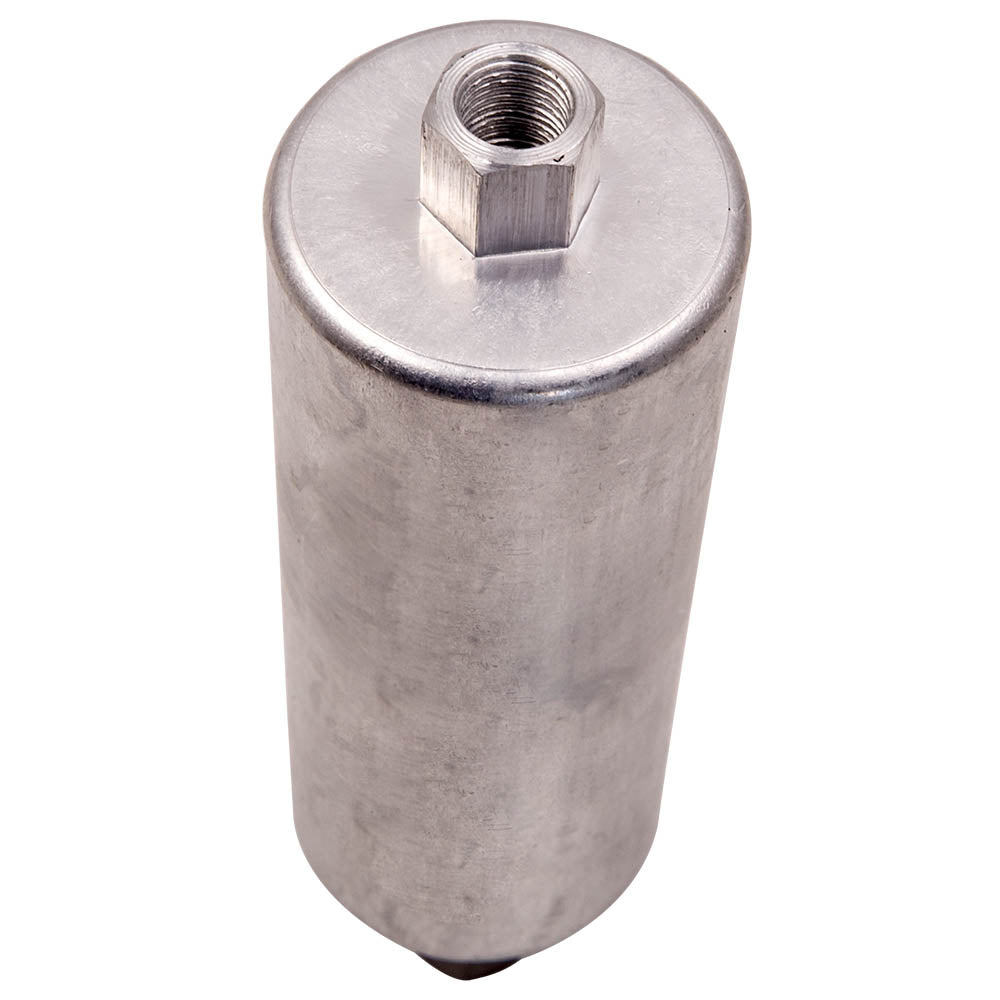

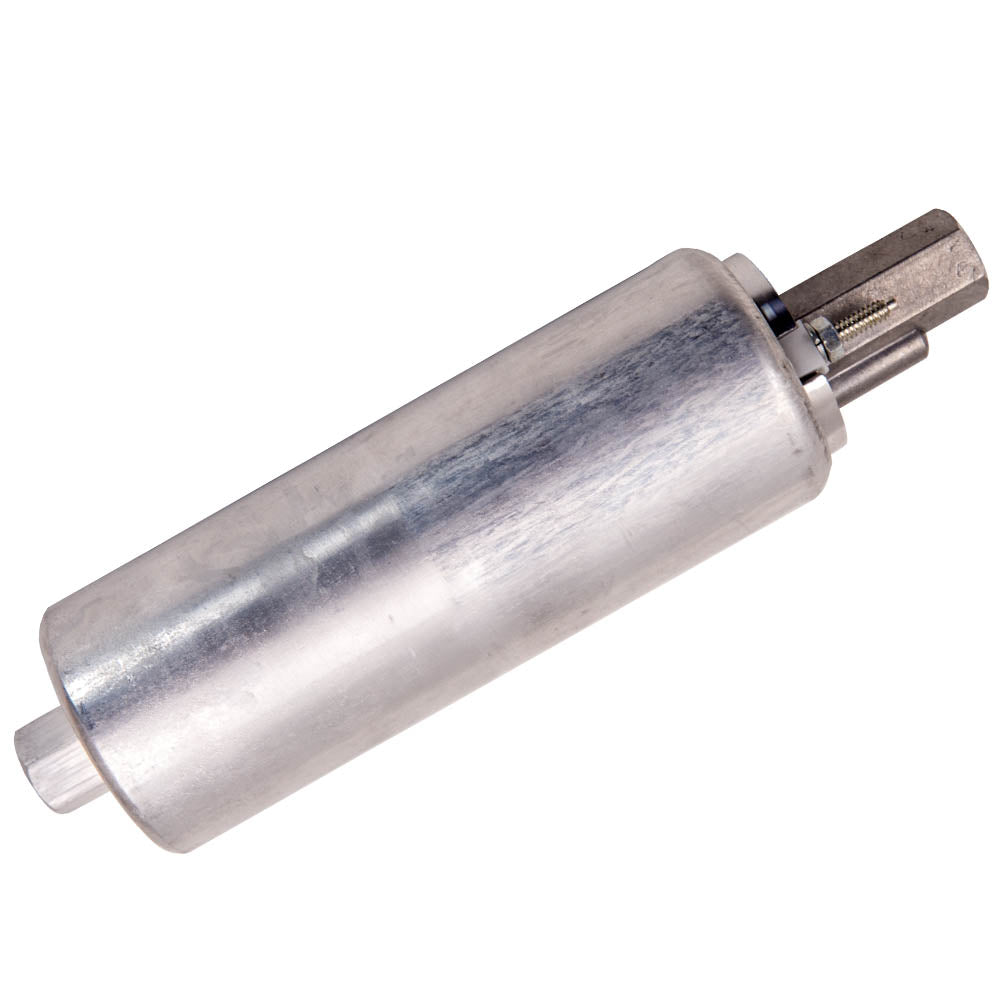

255LPH 12V Inline / External High Pressure Fuel Pump Set GSL392 Universal 81633452

Introductions:

Fuel pump is a professional term in the auto parts industry. It is one of the basic components of the EFI automobile fuel injection system. It is located inside the vehicle fuel tank. The fuel pump works when the engine is started and the engine is running. If the engine stops and the ignition switch is still ON, the HFM-SFI control module turns off the fuel pump power. To avoid accidental ignition.

The function of the fuel pump is to suck fuel out of the fuel tank, pressurize it and deliver it to the fuel supply pipe, and cooperate with the fuel pressure regulator to establish a certain fuel pressure.

Feature:

Condition: Brand New

Warranty: 1 Year

Specification:

Condition： Brand New

Quntity：As picture shown

Warranty： 2 years

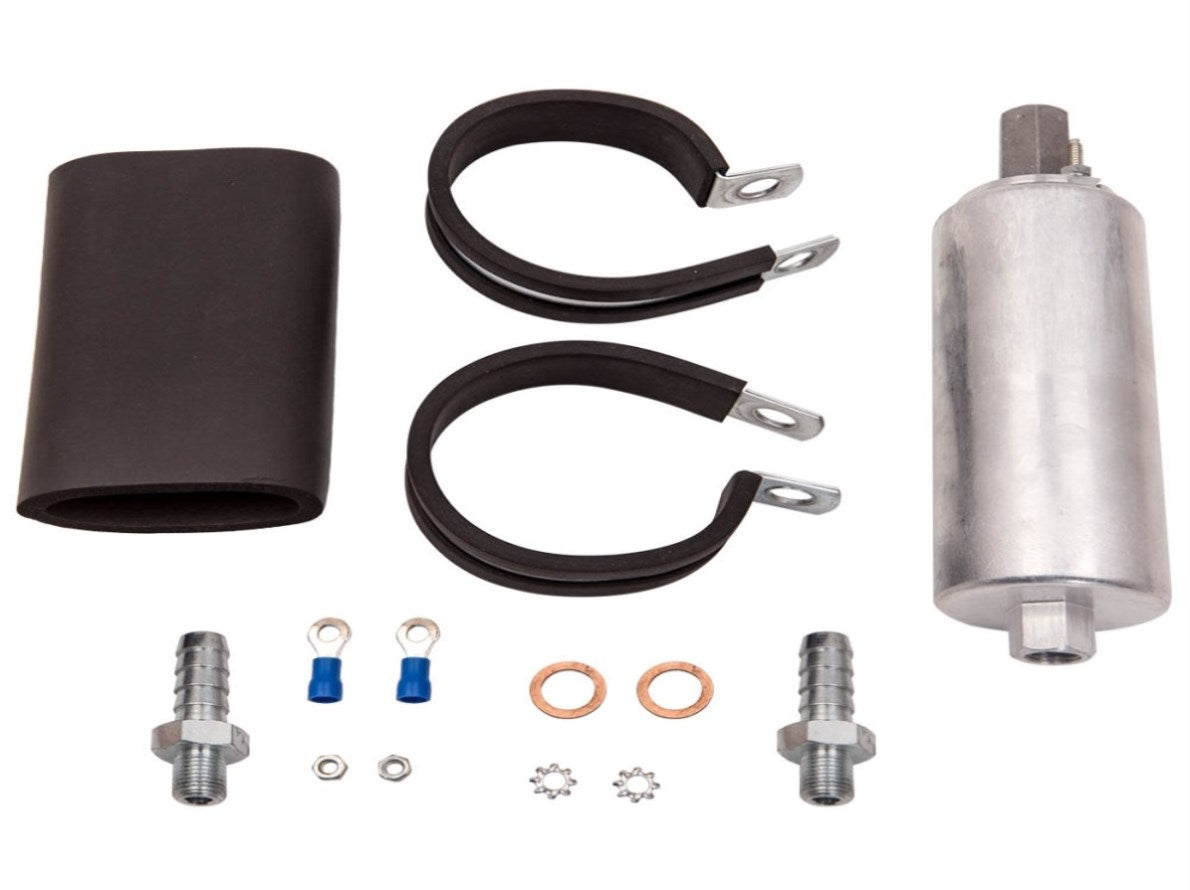

Packing：

* 1 xGSL392 external fuel pump with400-939 install kit

* 2 x Walbro 3/8 hose barb fuel fitting

* 2 x crush washers

* 2 x electrical connections.

* 2 x starlock washers

* 2 x nuts

* 2 x mounting clamps

* 1 x mounting cushion

Placement on Vehicle：Rear

Design: Inline/ External (Mounts Outside of Tank)、

Operating Pressure: 15-120 PSI (final fuel pressure set by regulator)

Flow: 255LPH at 43PSI & 12V

Fuel Pump Type：Electrical

Minimum Voltage: 12V

Part Number: GSL392400-939 0580254044 A1000 QFS-606FT 、

              GCL611-2 400-929 400-920 128-920 128-929

Feature：

It is designed to be run in a Return Style Fuel System

It works well between 25 psiand70 psi.

It can supply enough fuel for 600hp normally aspirated or 500hp in supercharged applications.

Package Includes:
1x Fuel pump

Notice：California Prop 65 Warning

Code:MGGRP

Authority ID：MXR02FXSY

Notice：California Prop 65 Warning
