24 Way Damper Coilovers Suspension Lowering Kit fit for Scion TC 2011-2016 Struts 31107786

Features

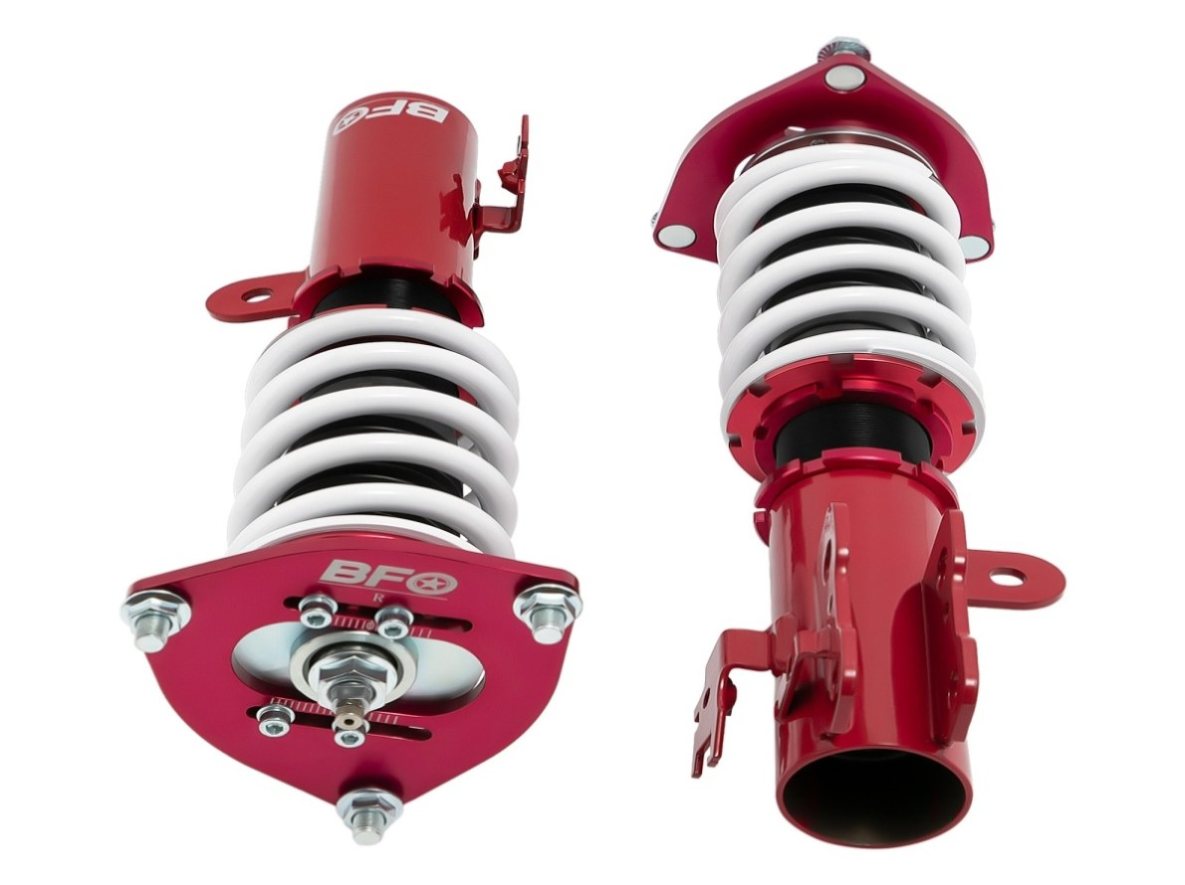

Front camber plates with pillowball mount fit for camber adjustment
Spring rates: Front: 8 kg/mm / Rear: 8 kg/mm
24 precise levels of damper adjustment
Anodized shock body
Lightweight aluminum shock body and 6061-T6 forged aluminum / carbon steel brackets
Independent ride height and spring preload adjustments
1 Year Warranty from Date of Purchase

Fitment

fit for Scion TC 2011-2016 AGT20
fit for Toyota Zelas 2011-2016

Specification

- Spring Rate Front: 8kg/mm(448 lbs/in)
- Spring Rate Rear: 8kg/mm (448 lbs/in)

- Spring length Front: 180mm
- Spring length Rear: 183mm
- Adjustable height: lowering 1-3inch
- Coilover overall length Front: 500-590mm
- Coilover overall length Rear: 550-650mm

- Brand: BFO
- Condition: 100% Brand New
- Warranty: 1 Year

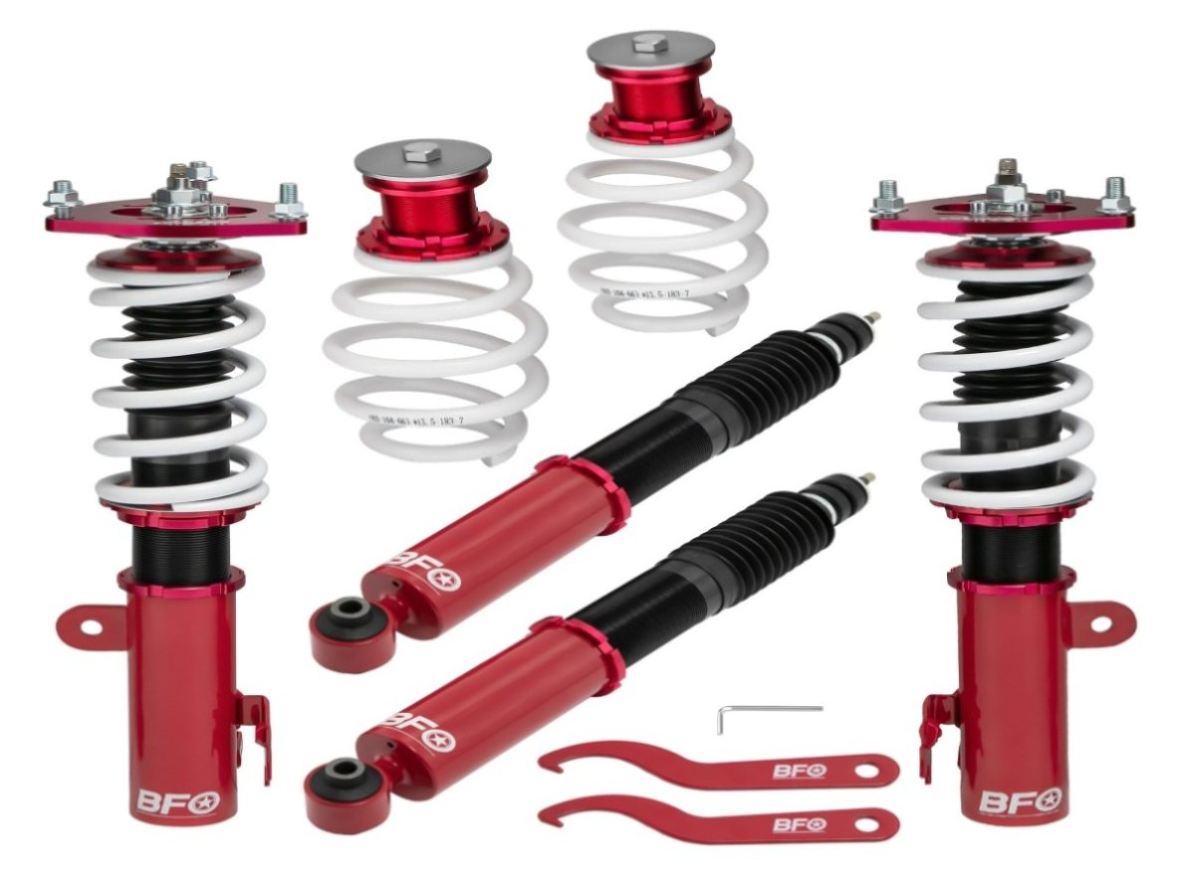

Package included

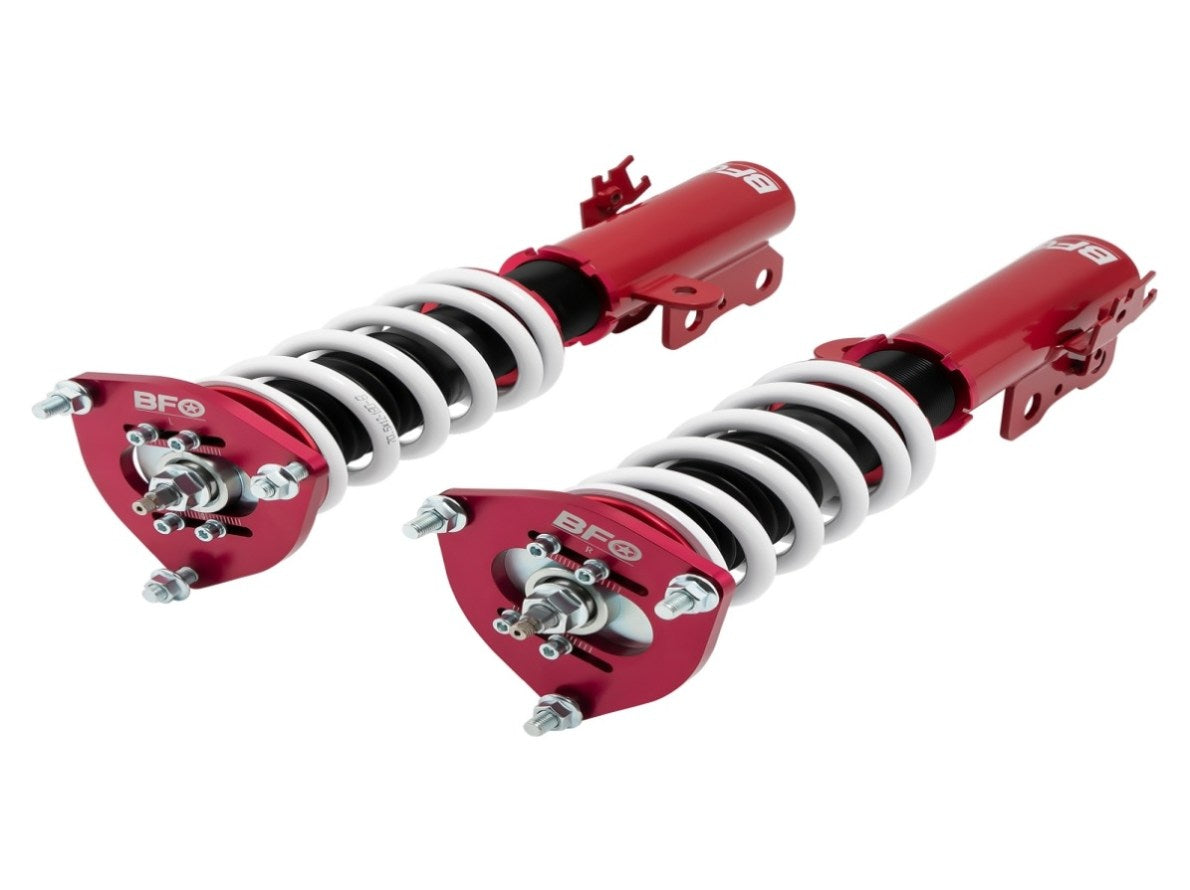

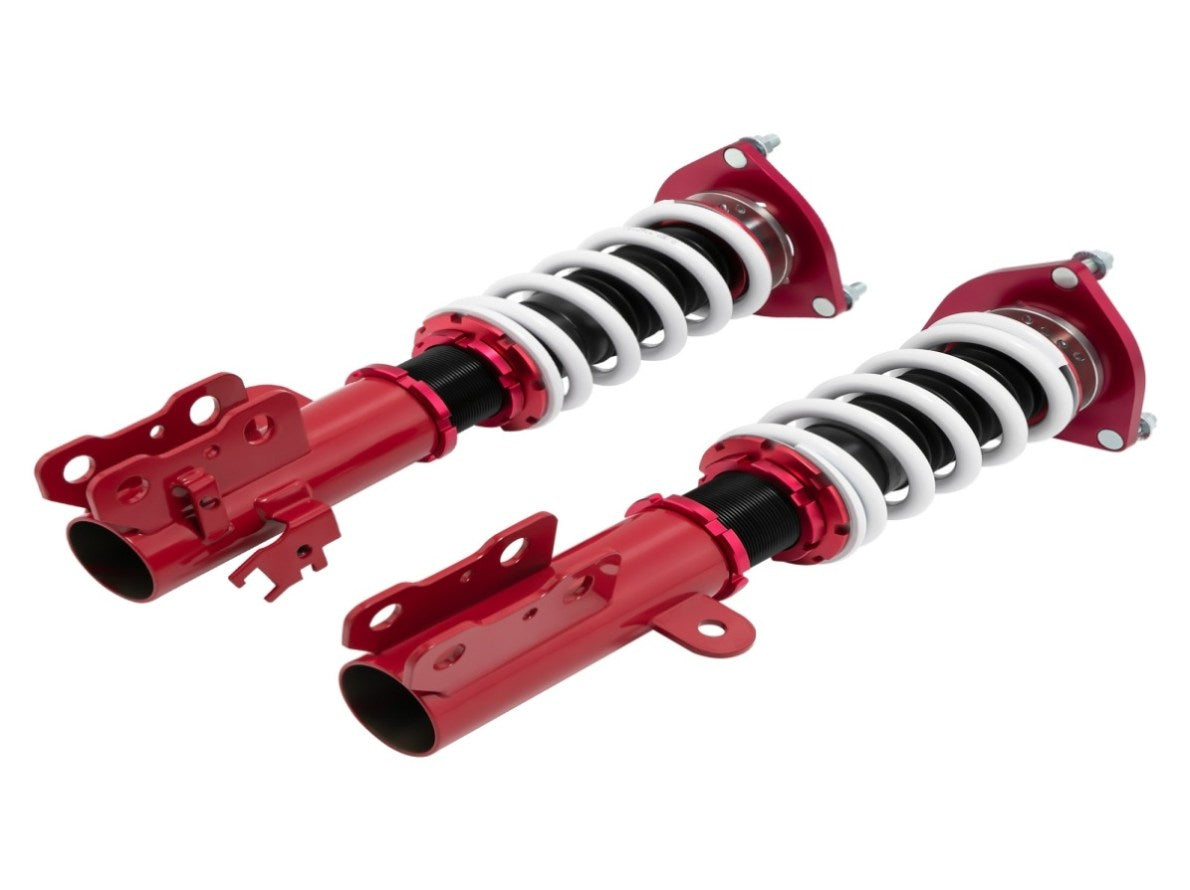

2x front coil-overs

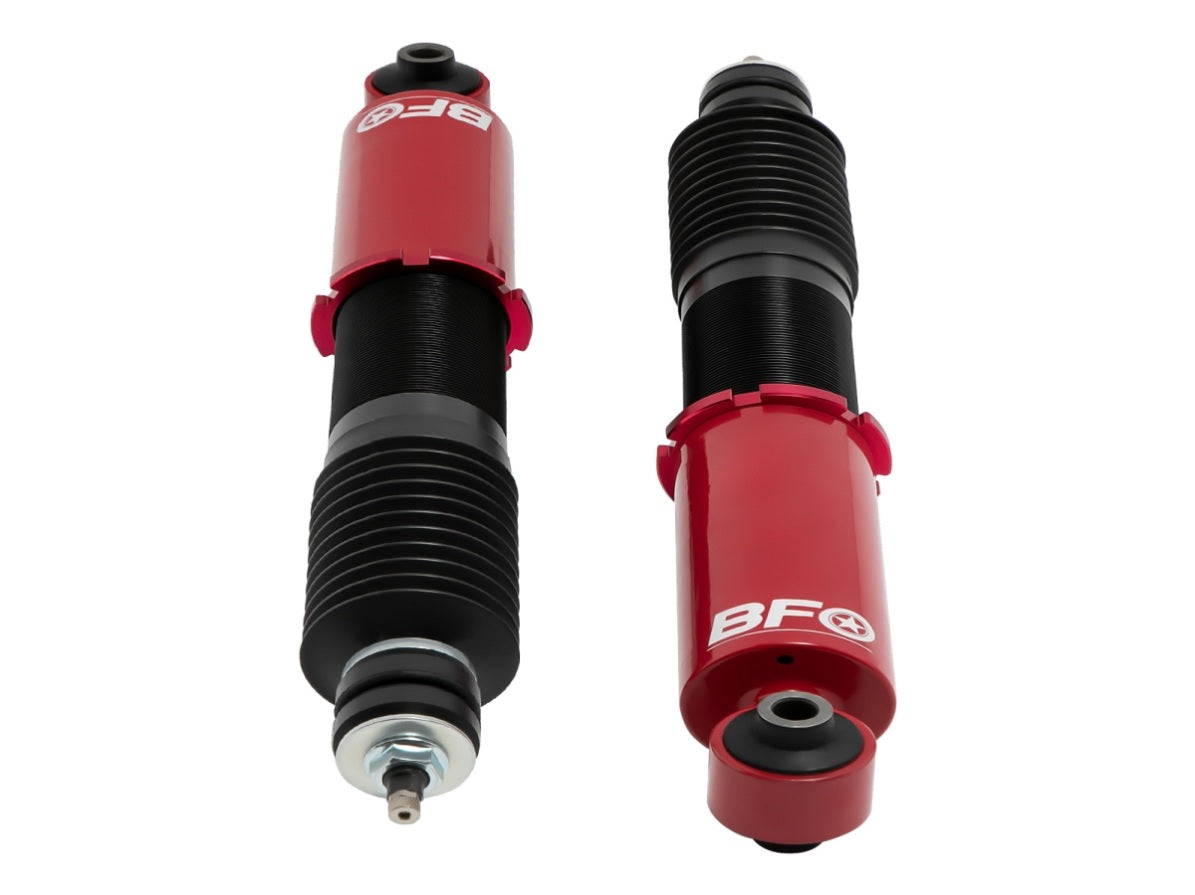

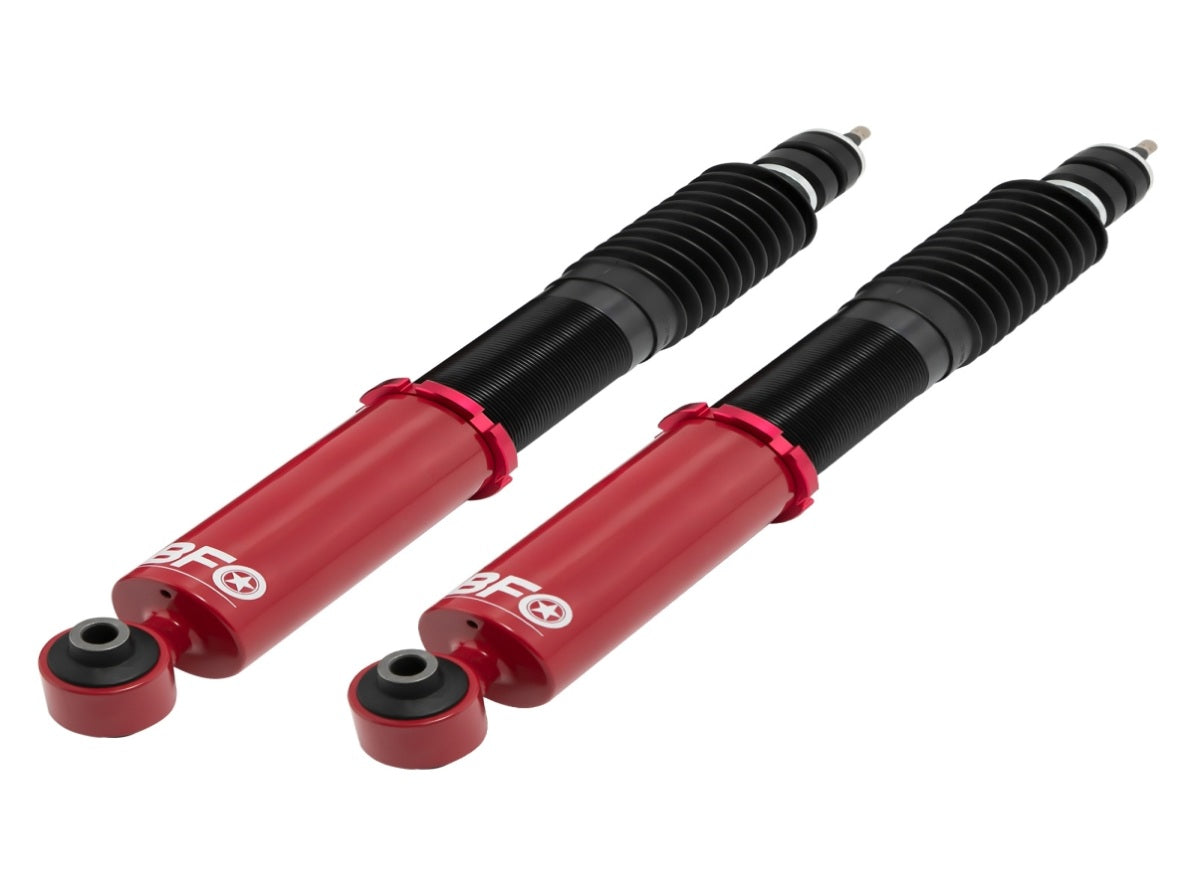

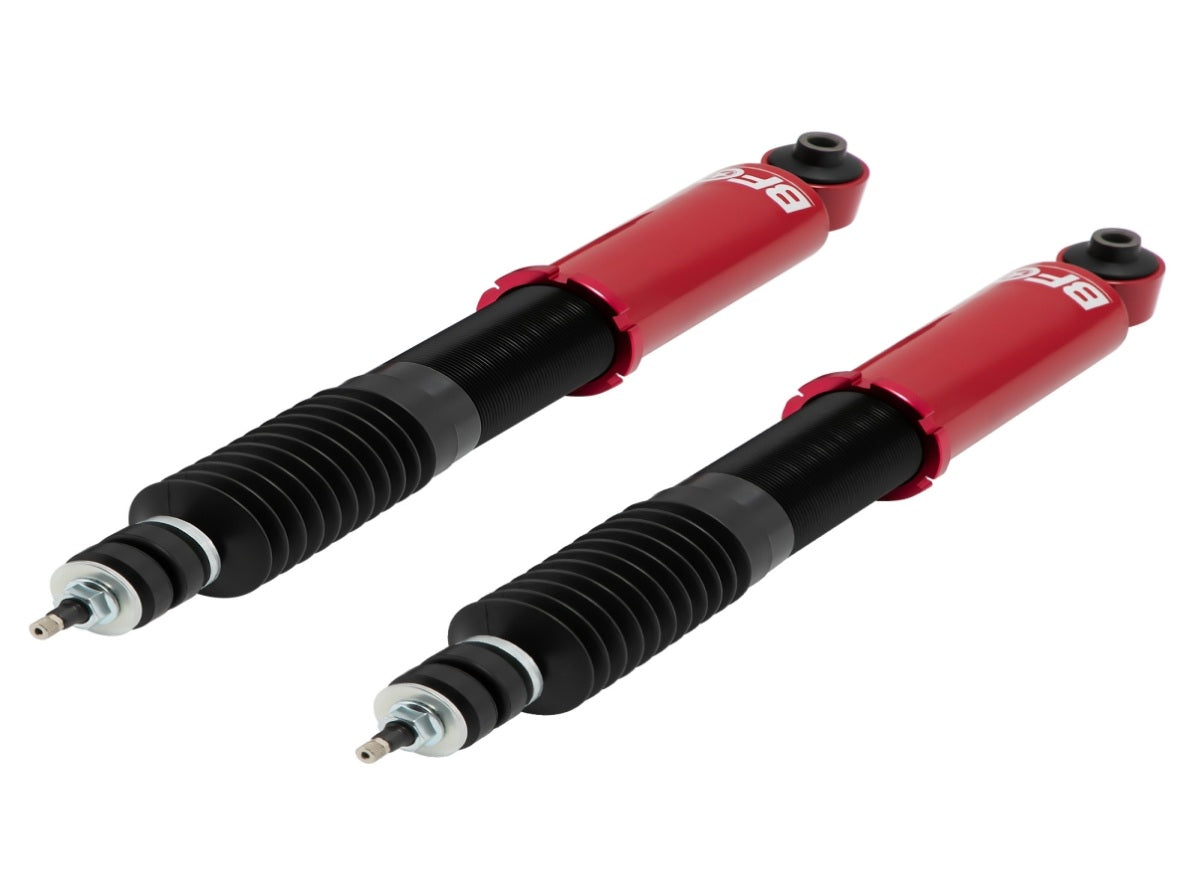

2x rear  coil-overs

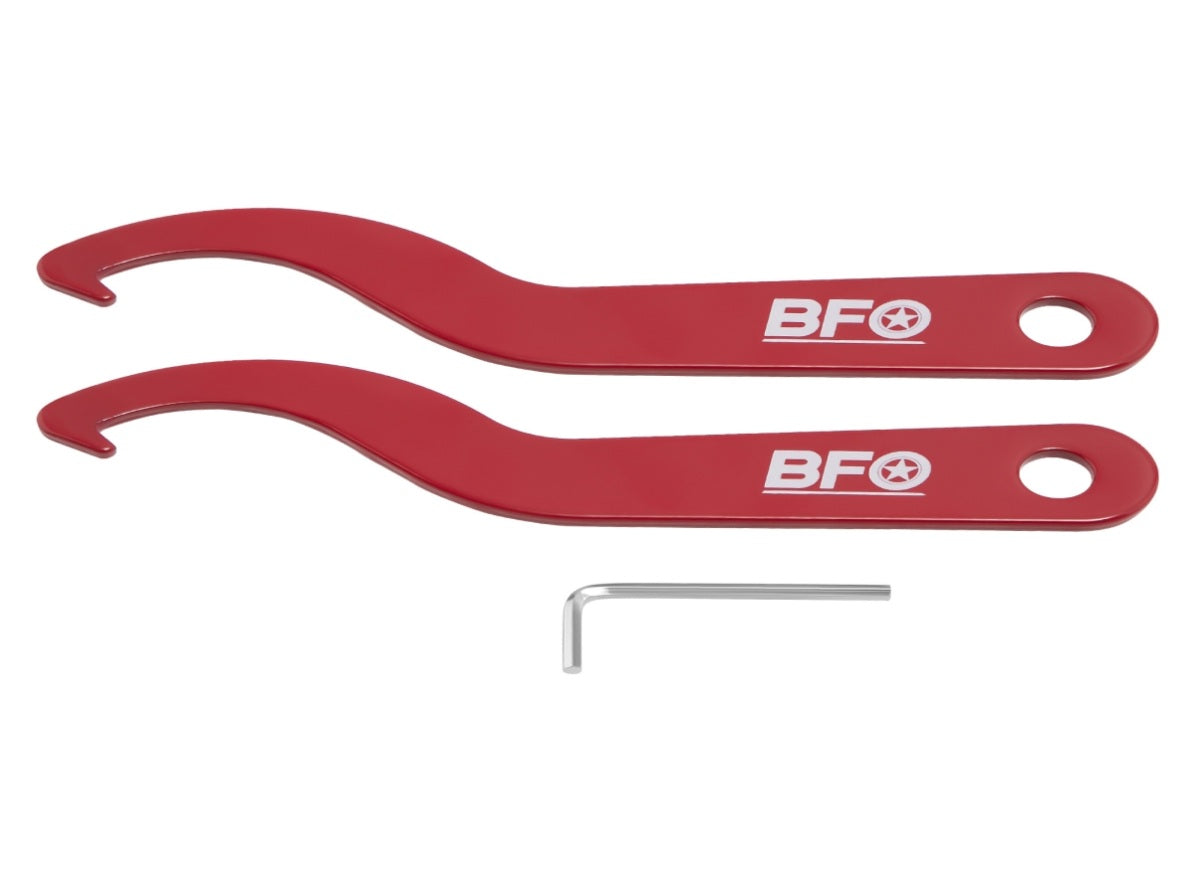

1x Allen wrench
2x C spanners

Notes

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance fit for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

★ 30-day Money Back & 12-Month Replacement Guarantee. .
