24 Way Damper Coilover Suspension Kit fit for Honda CR-V 1996 1997 1998 1999 2000 01 31480015

Features

1. Self-design structure and new manufacturing system to give more customers good coil-overs without breaking the bank.
2. Height adjustable---lower your car 25-75mm (depending on vehicle models) to get a performance ride
3. Independent Ride Height and Spring Pre-load Adjustments
4. Twin-Tube System fit for Comfortable Ride on Streets
5. Coated finish to avoid rust

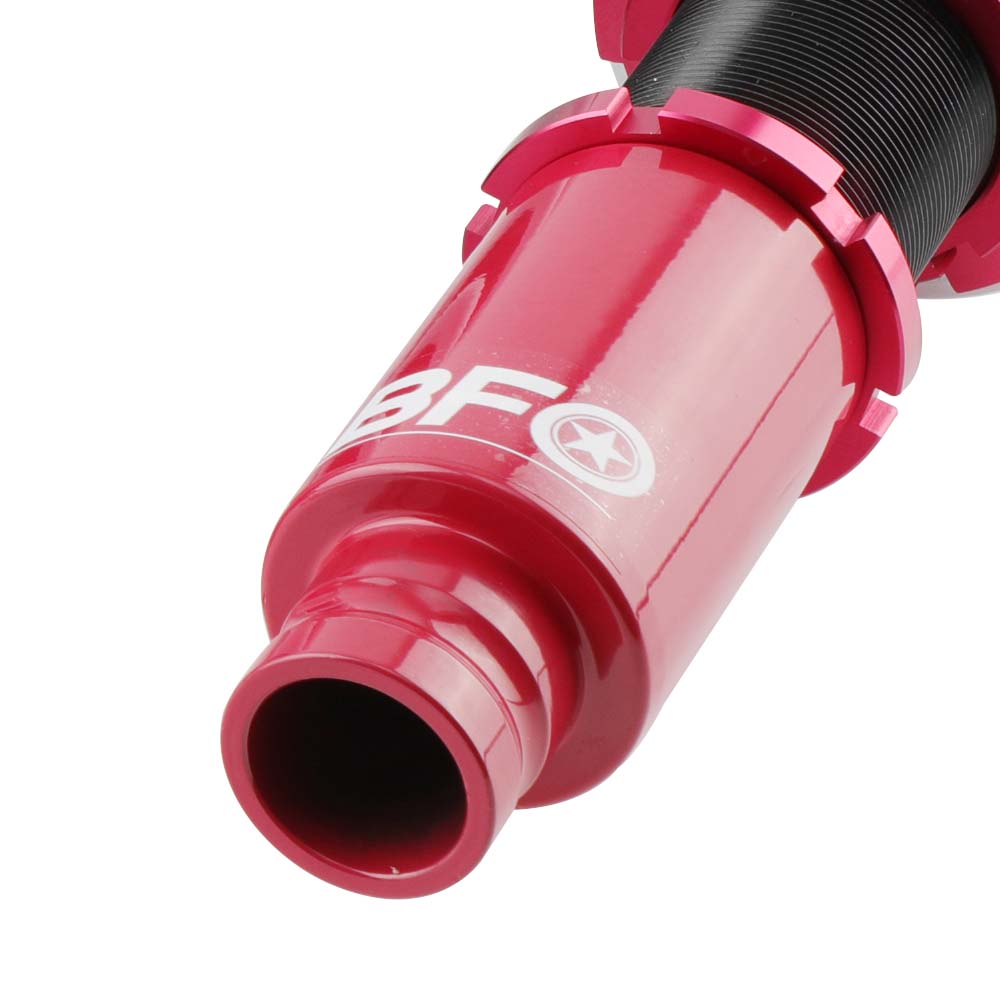

6. Heavy Duty Steel Lower Mounts
7. Simple install, easy to adjust.

Fitment

fit for Honda CR-V 1996-2001 1st Gen. RD1-RD3  FWD & AWD

Specification

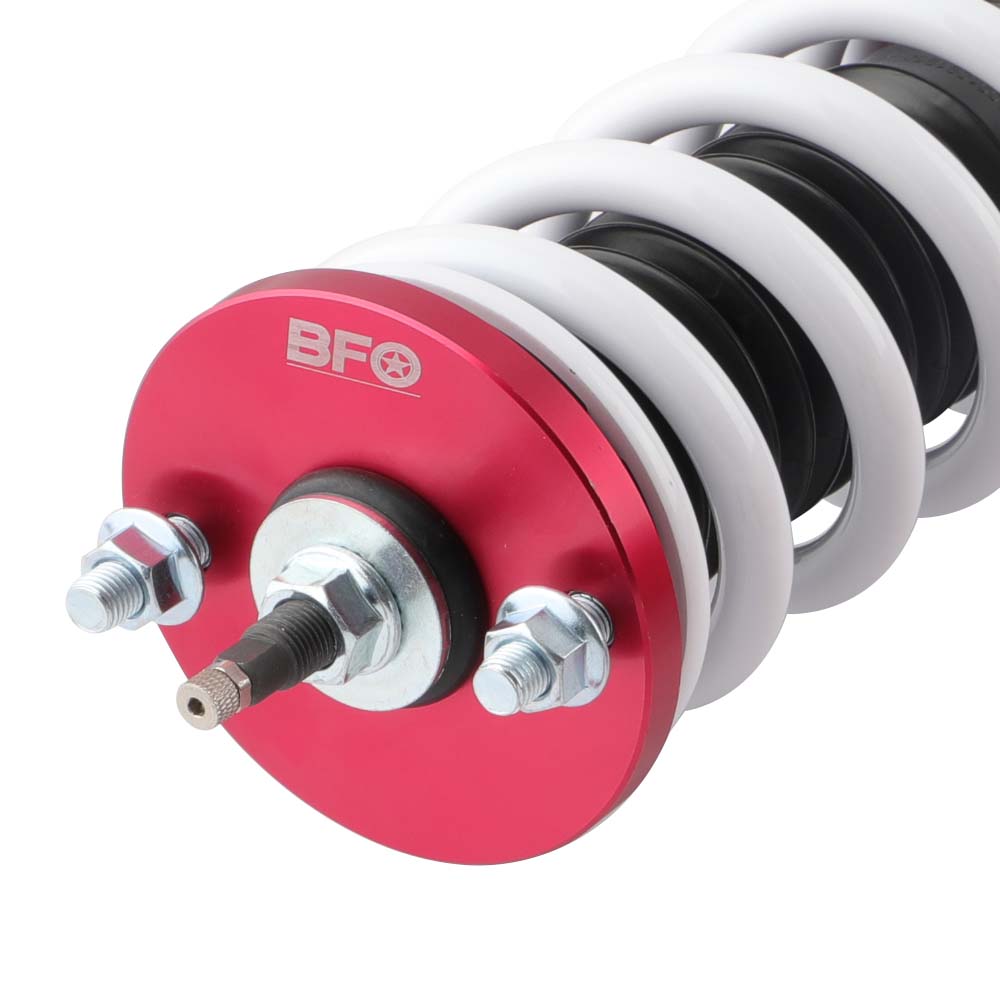

Front top mount: Rubber
Rear top mount: Rubber
Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 200 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Damping rod diameter Front: Φ 12.5 mm
Damping rod diameter Rear: Φ 12.5 mm
Damping  thread Front:  M55×2mm
Damping  thread Rear: M55×2 mm
Twin -tube Diameter Front: 55 mm
Twin -tube Diameter Rear: 55 mm
Rod End Thread Front: M12×1.25 mm
Rod End Thread Rear: M12×1.25 mm
Front Collapsed Length: 450 mm / 17.72"
Front Extended Length: 490 mm / 19.29"
Rear Collapsed Length: 500 mm / 19.69"
Rear Extended Length: 605 mm / 23.82"

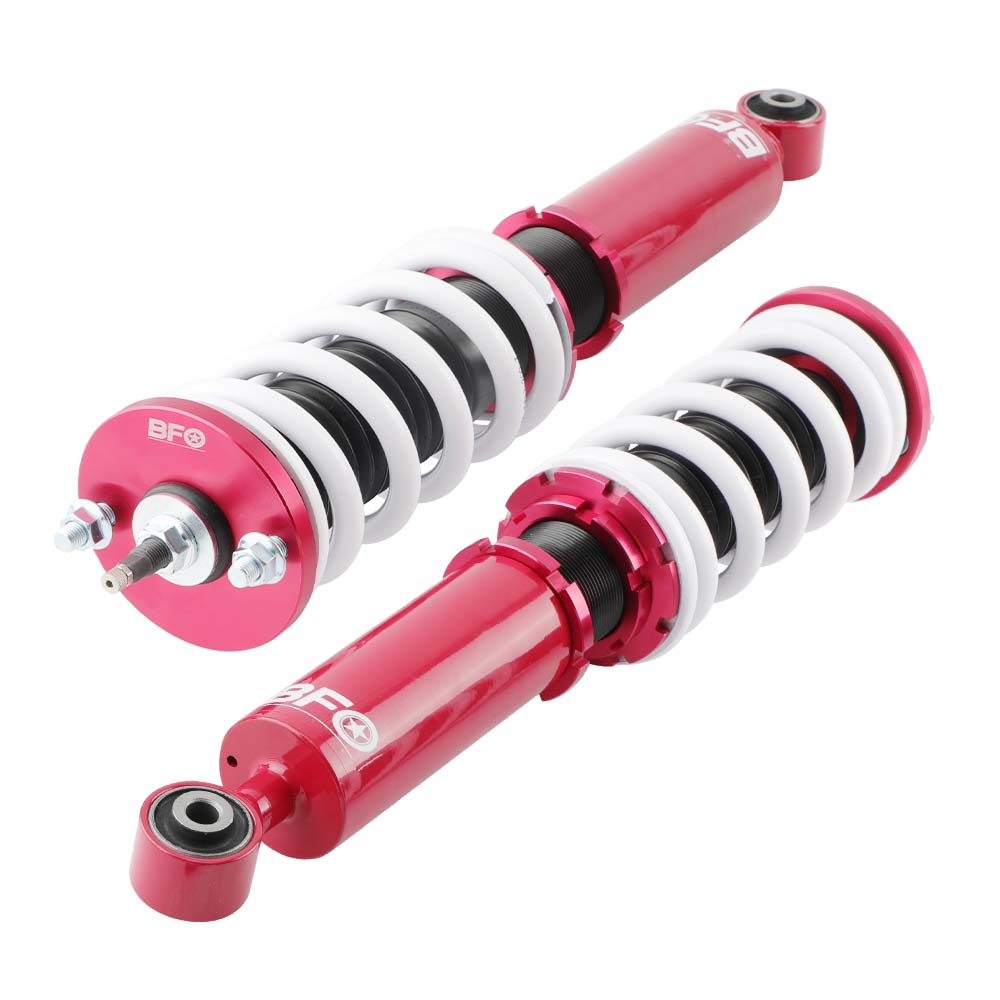

Color: Red body with white spring

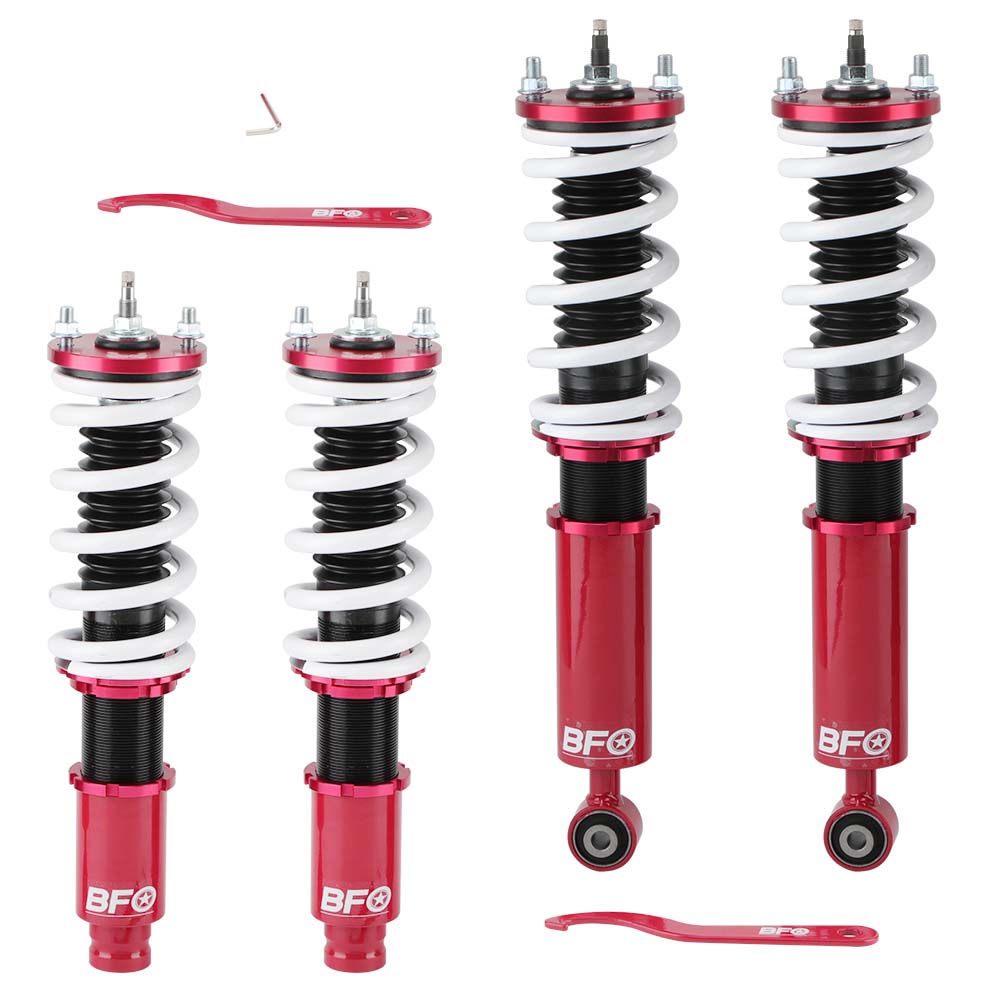

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench

★ 30-day Money Back & 12-Month Replacement Guarantee. .
