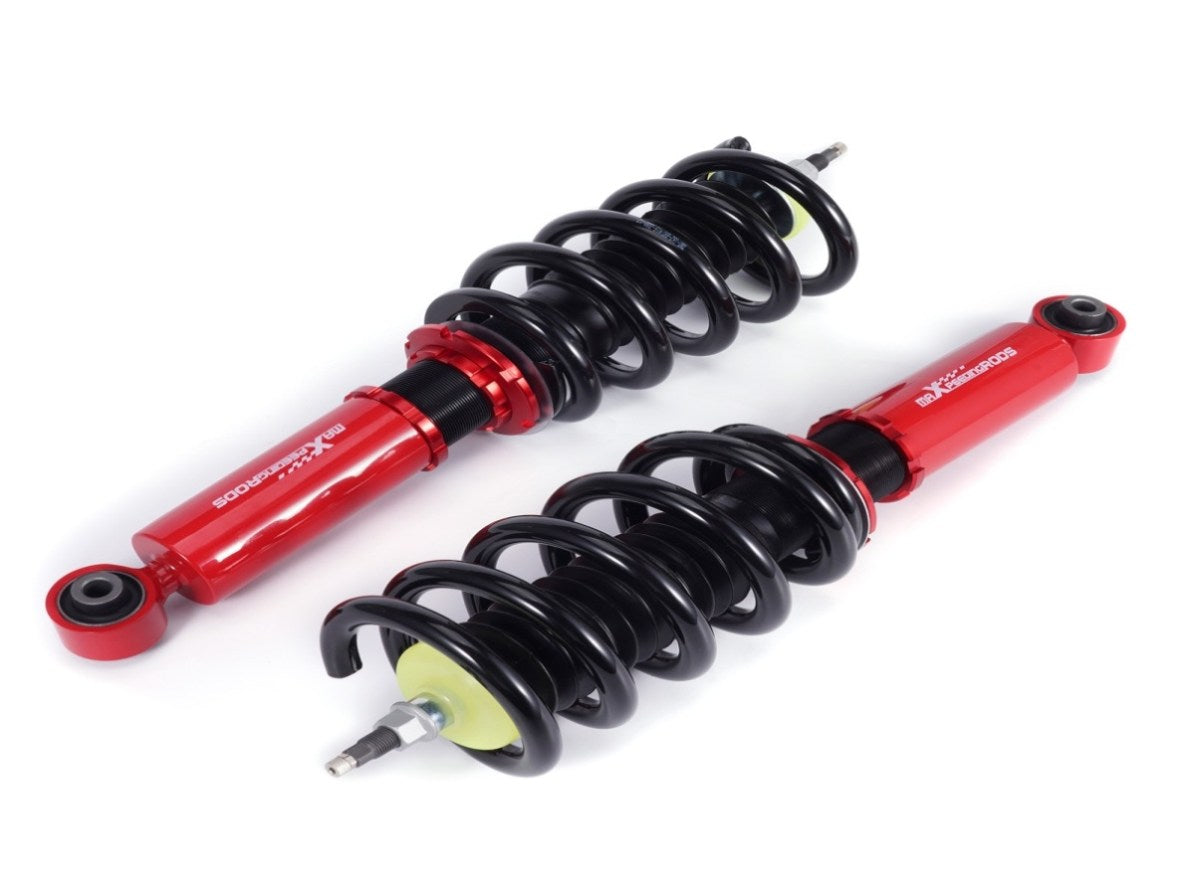

24 Level Damping Coilovers Suspension Lowering Kit fit for fit for Porsche Cayenne 11-18 17997194

Features

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows fit for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

- Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize fit for various purposes and achieve desired ride comfort.

- 55mm Large Diameter Damper Body: Features high oil capacity fit for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

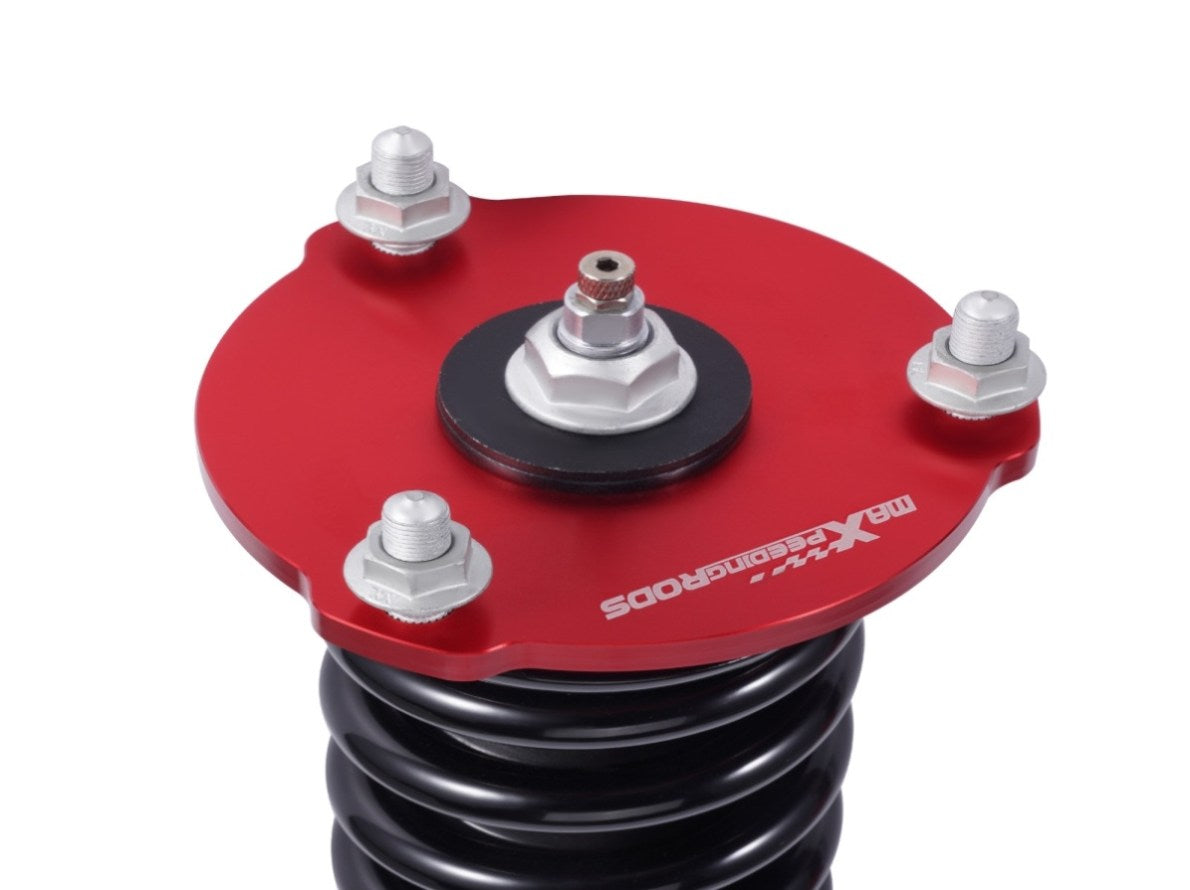

- Reinforced Rubber Bushing Upper Mount: Specifically designed fit for each vehicle, enhances silence and comfort. Adjustable camber angle fit for certain strut mechanism suspension cars.

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.

Application

fit for VW Touareg (7P5, 7P6) 2010-2018
fit for Porsche Cayenne (92A/Type 958) 2011-2018

Specifications

Front top mount: Rubber
Rear top mount: OE
Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 13.6 kg/mm (761.6 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62-89 mm
Spring length Front: 220 mm
Spring length Rear: 220 mm
Spring Preload advised: 7-10 mm
Damping rod diameter Front: Φ 22 mm
Damping rod diameter Rear: Φ 20 mm
Damping  thread Front: M55×2 mm
Damping  thread Rear: M50×1.5 mm
Twin -tube Diameter Front: 55 mm
Twin -tube Diameter Rear: 50 mm
Rod End Thread Front: M14×1.5 mm
Rod End Thread Rear: M12×1.25 mm
Front Collapsed Length: 630 mm / 24.8"
Front Extended Length: 700 mm / 27.56"
Rear Collapsed Length: 495 mm / 19.49"
Rear Extended Length: 575 mm / 22.64"
Color: Red body with black spring

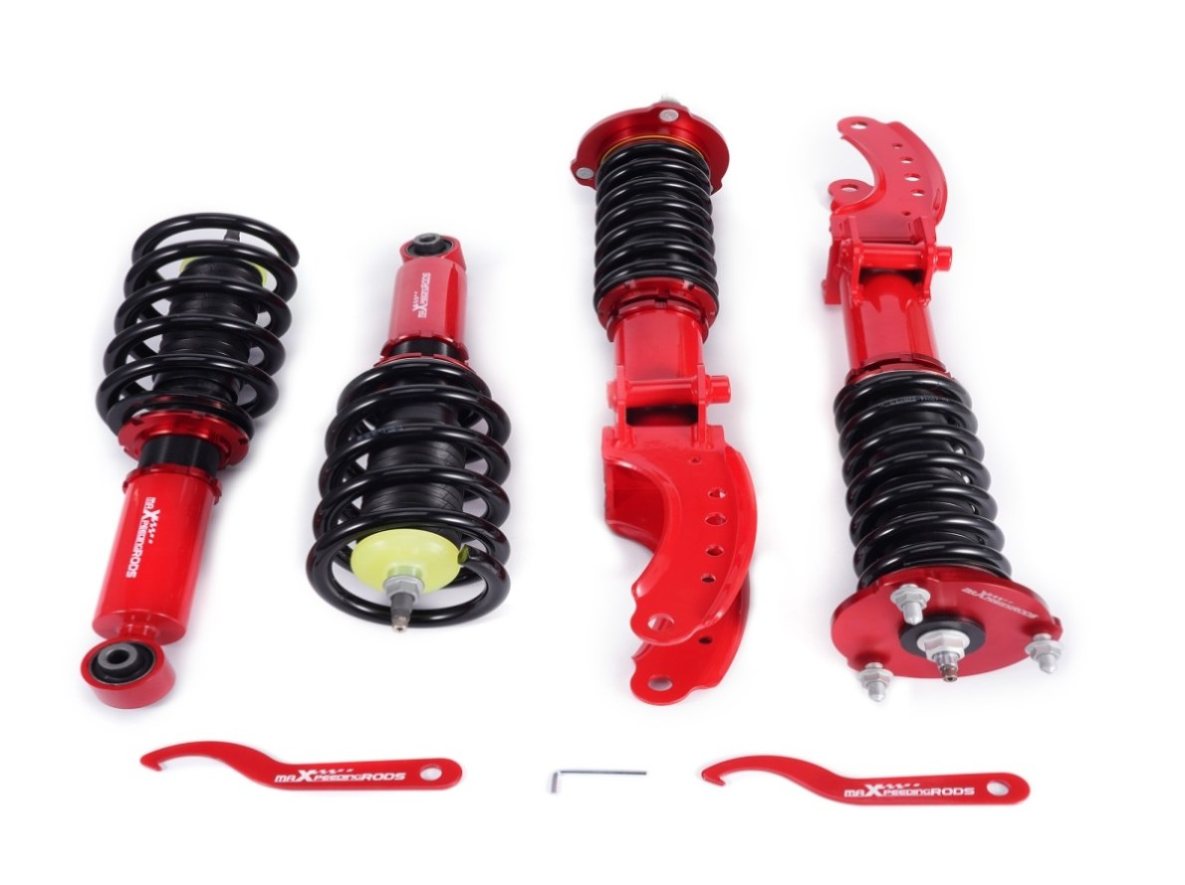

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench
