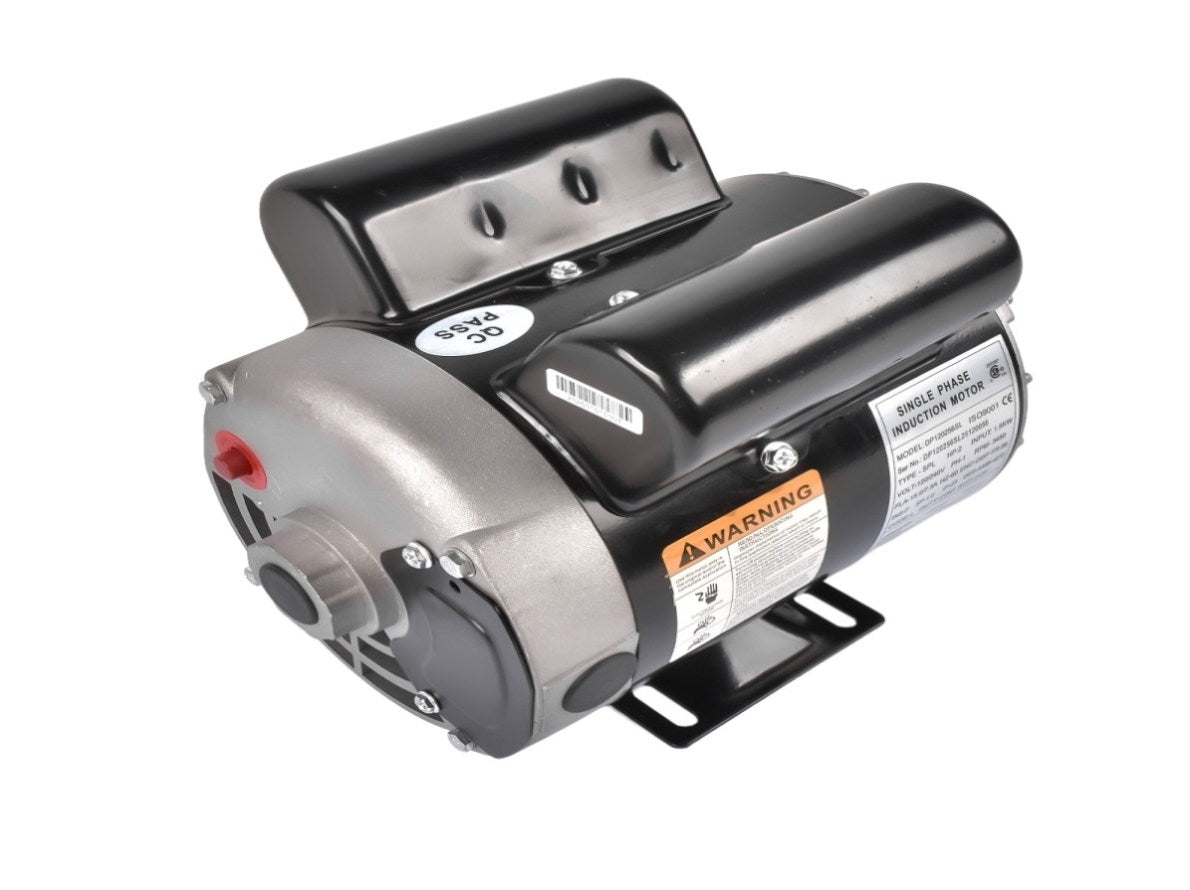

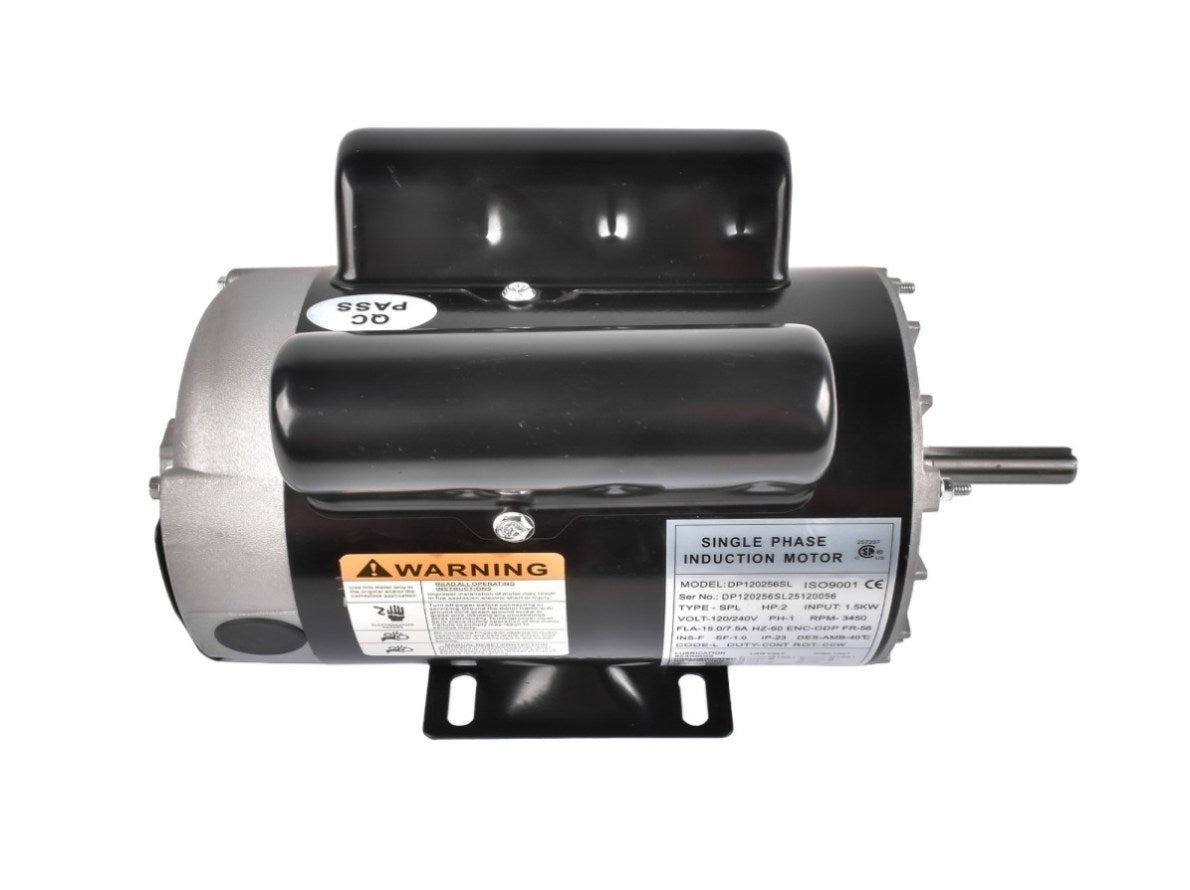

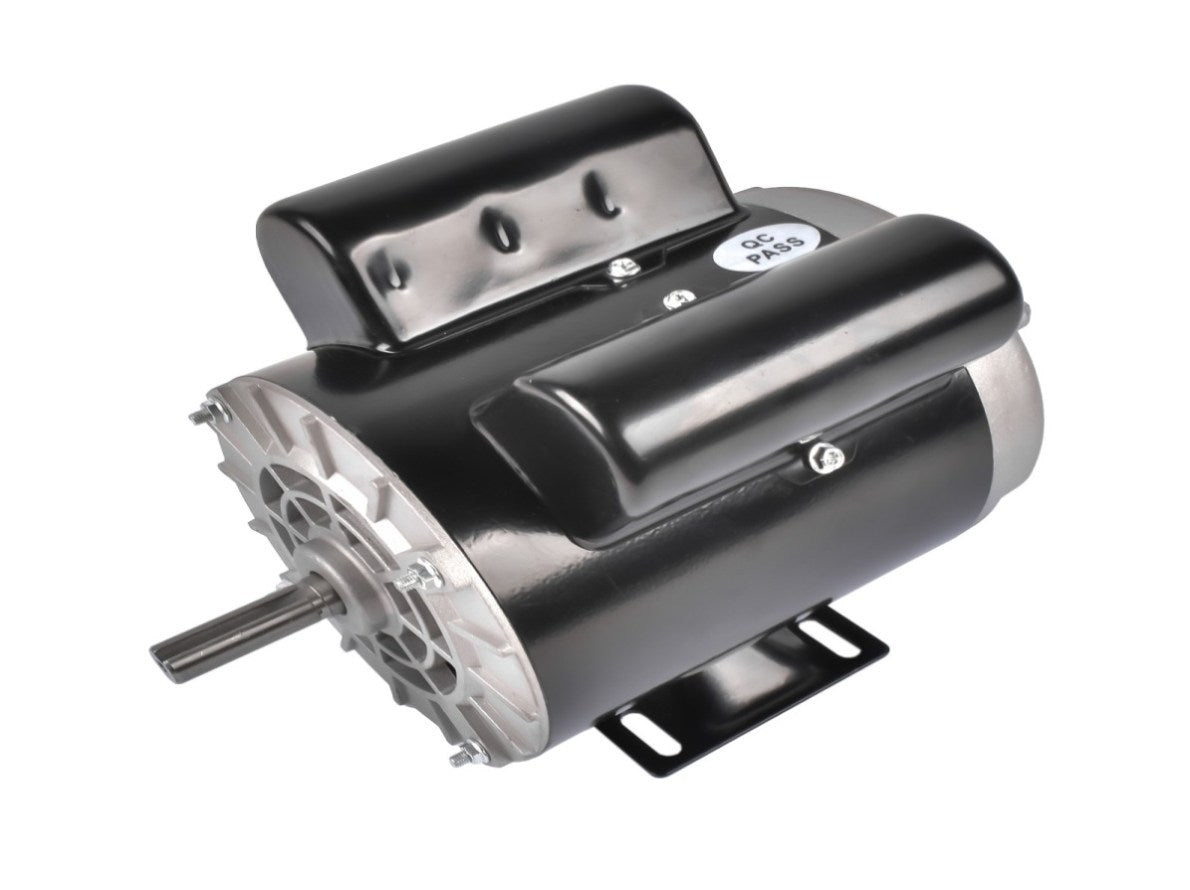

2 HP Air Compressor Motor, Single Phase Electric Motor, 3450 RPM 56 Frame 60 HZ 10290472
2 HP SPL 3450 RPM Single Phase Air Compressor Motor
Steel Housing
Fast Heat Dissipation

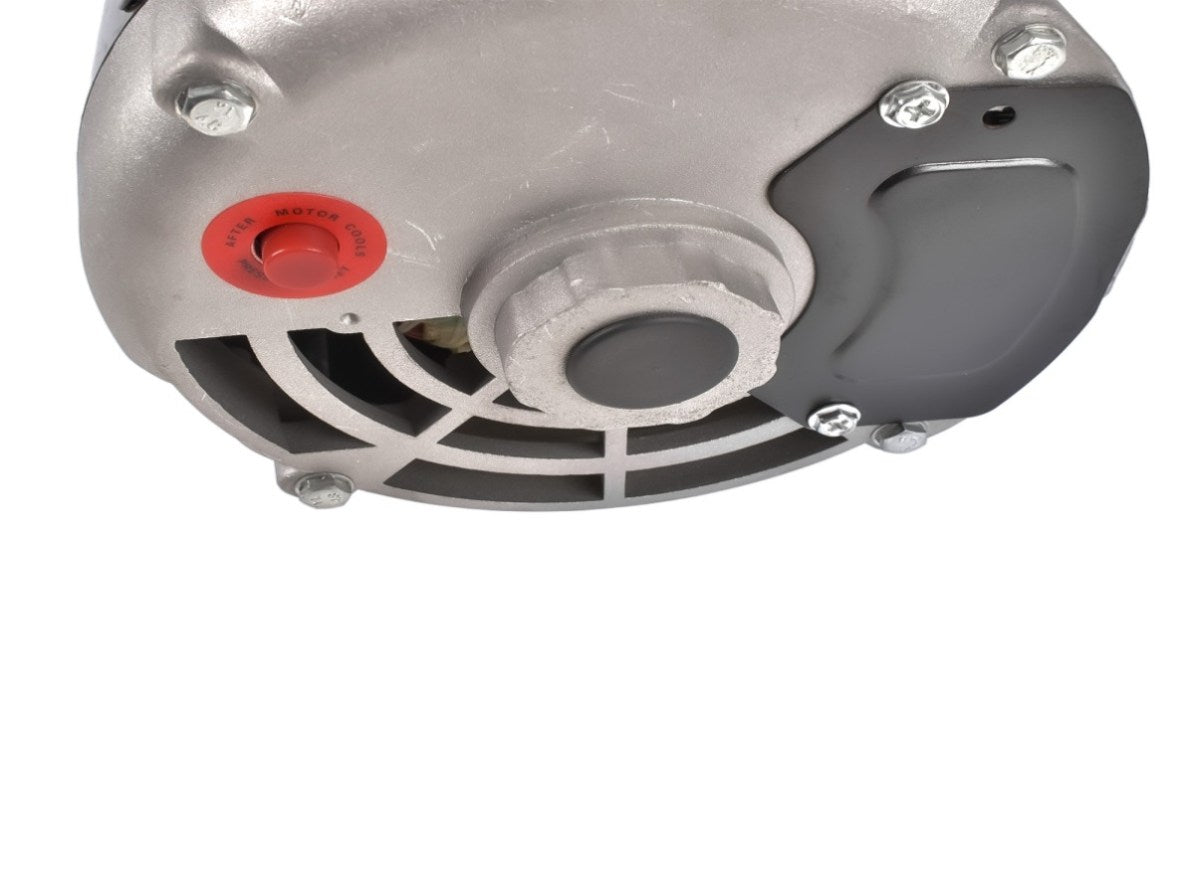

Overload Protector
CCW Rotation

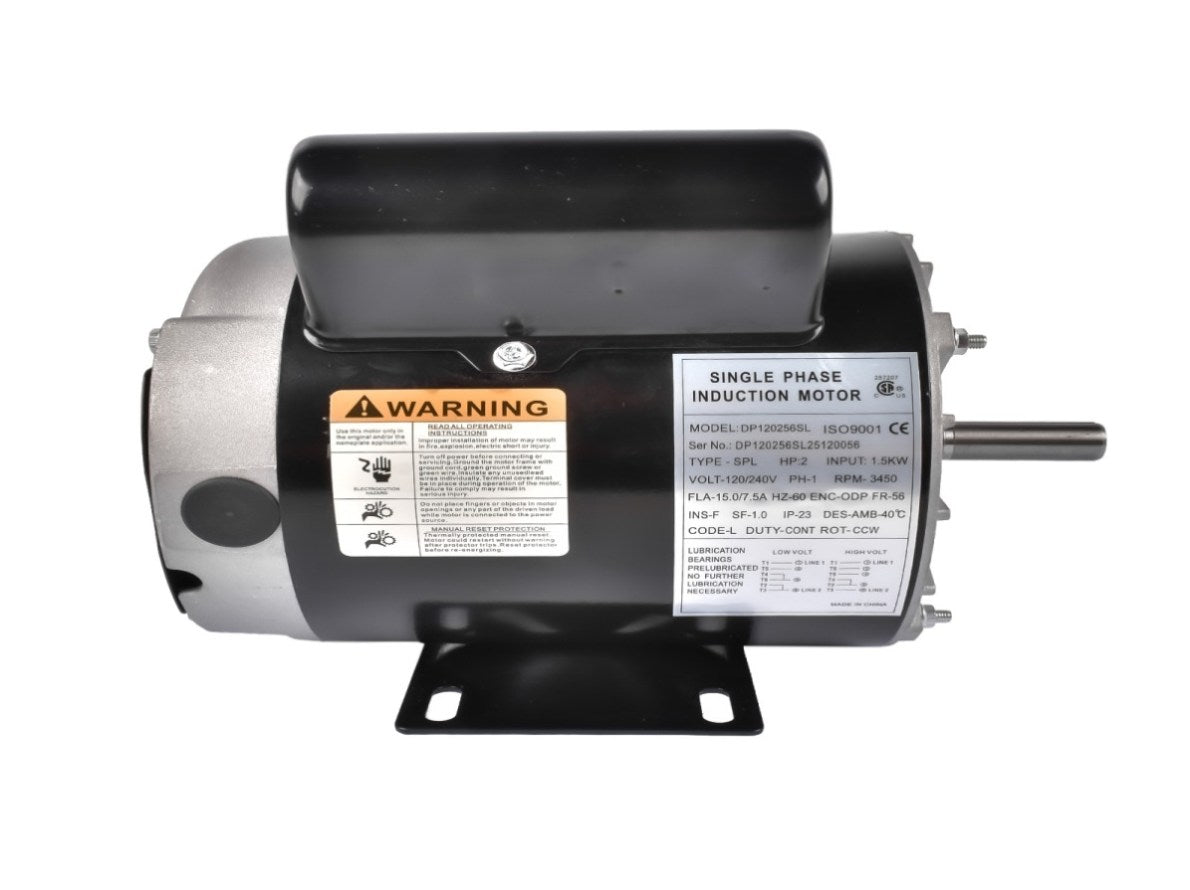

Specifications
Voltage: 120/240V
Amps: 15.0/7.5A
Input: 1.5KW
HP: 2
Service Factor: 1.0
Frequency: 60HZ
Frame: 56
Rated RPM: 3450 RPM

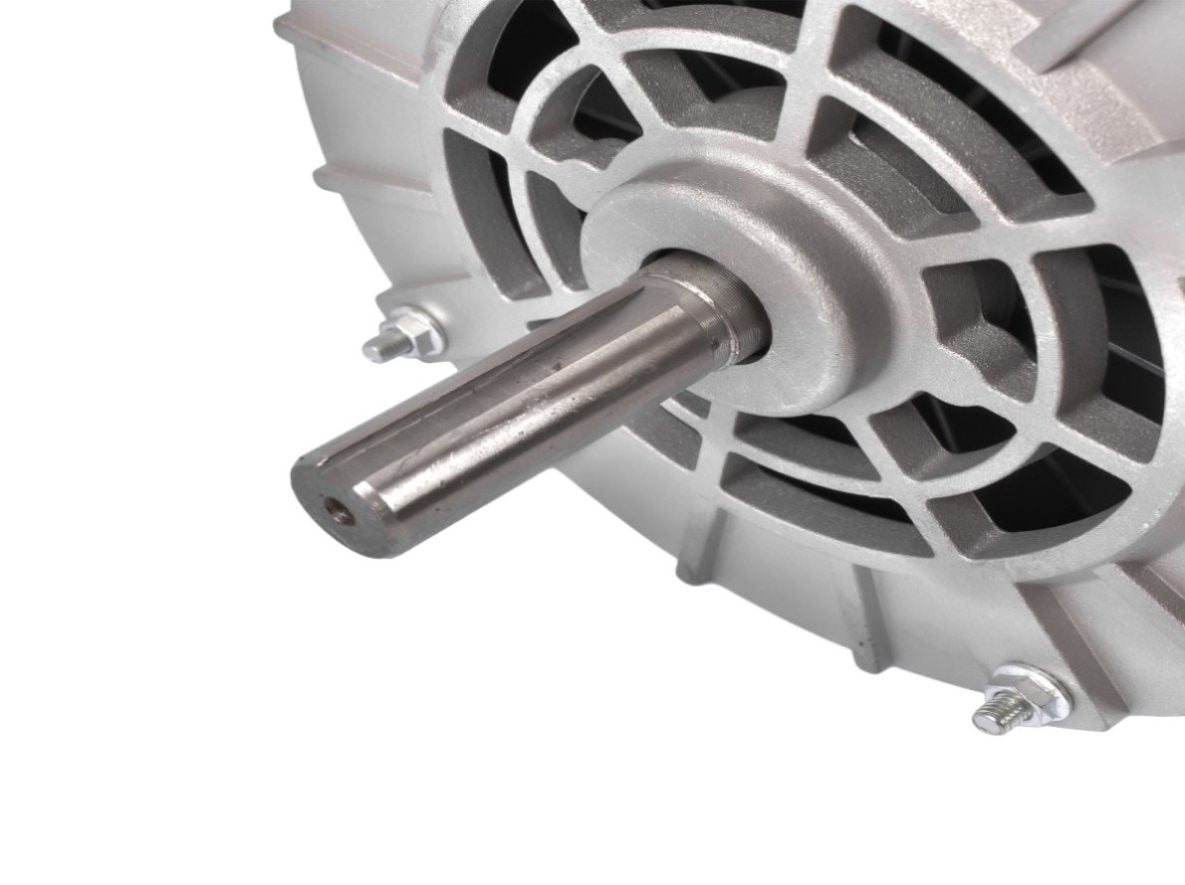

Shaft Diameter: 5/8"
AC Phase: Single Phase
Rotation: CCW
Enclosure Type: ODP
INS: F
IP Rating: 23
Features
Quality Material
The electric motor is made of the rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life.
Open Drip-Proof
Be used in relatively clean and dry environment. The motor has a number of heat dissipation holes, which can dissipate heat quickly during operation.
High Efficiency
Compact structure and small size, electric motor can run at the maximum speed of 3450 rpm, high working efficiency. The rated horsepower,voltage,current should be checked before the motor is put into operation to ensure that it is used in the correct environment.
Widely Application
The electric motor has protector. A perfect addition to air compressors, industrial and commercial needs. Please purchase the motor according to the specific requirements of the air compressor.
Package Includes
1x Air Compressor Motor (As Pics Shown)
