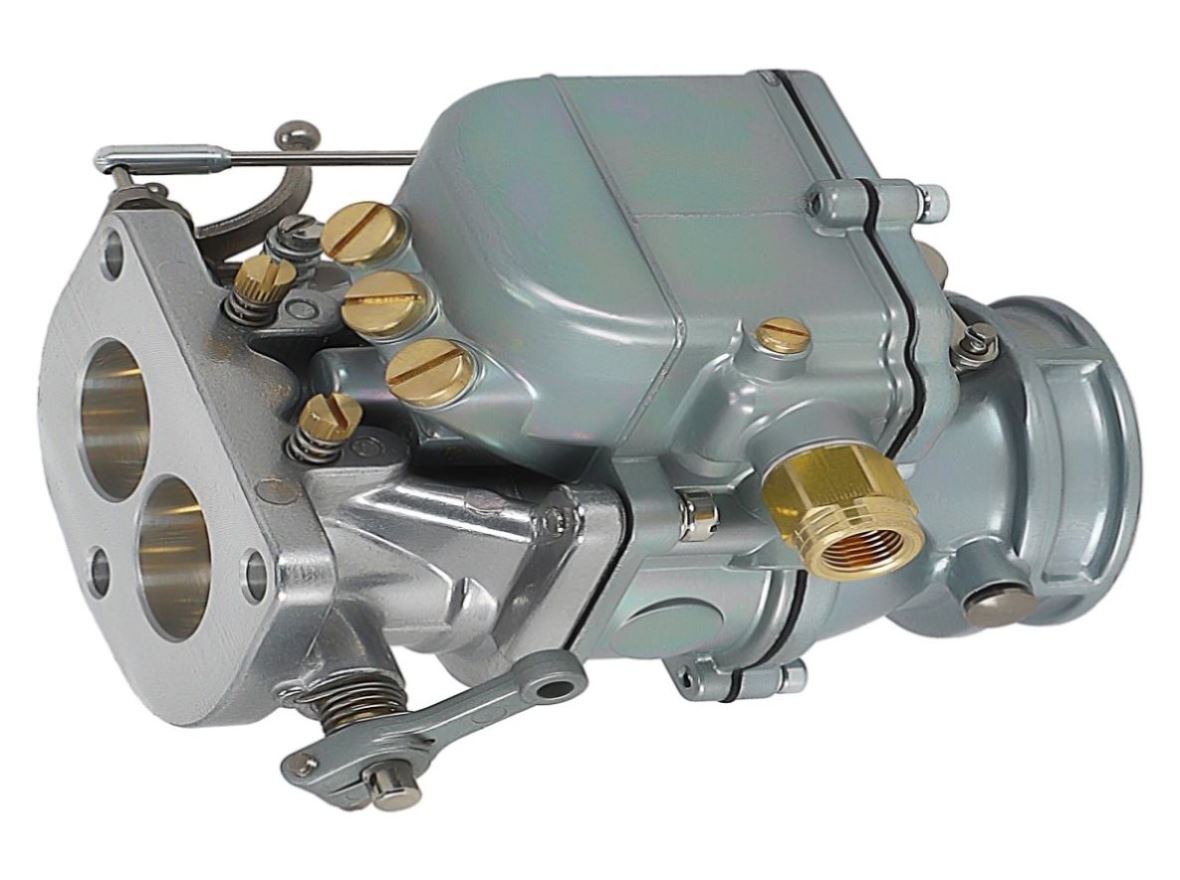

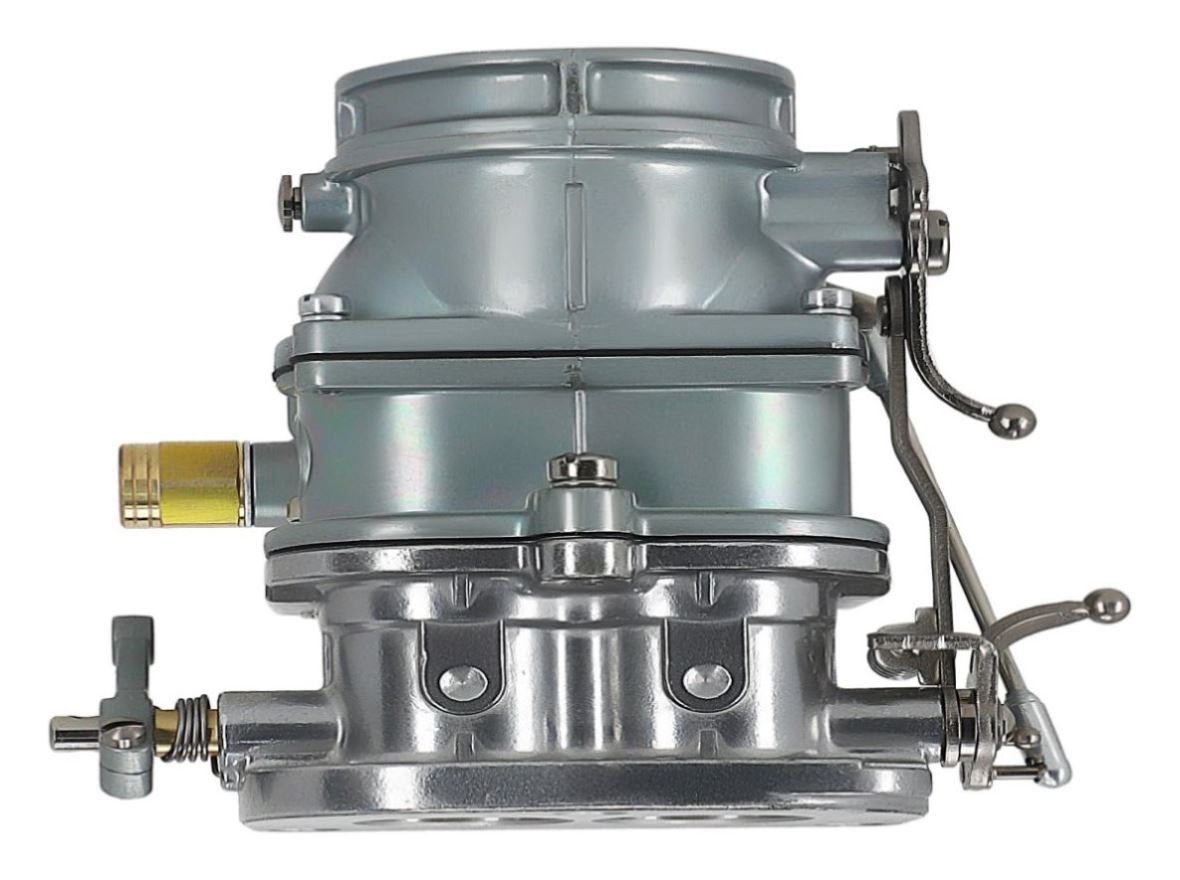

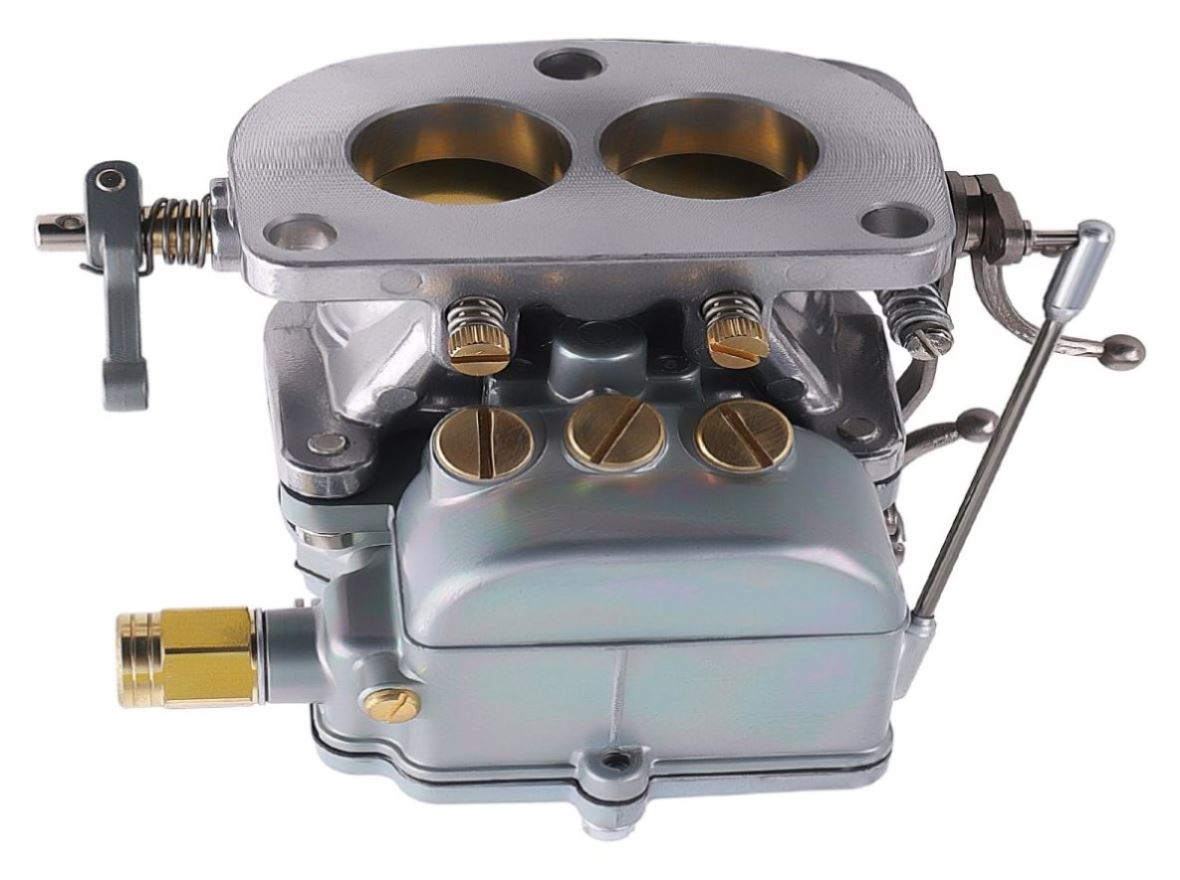

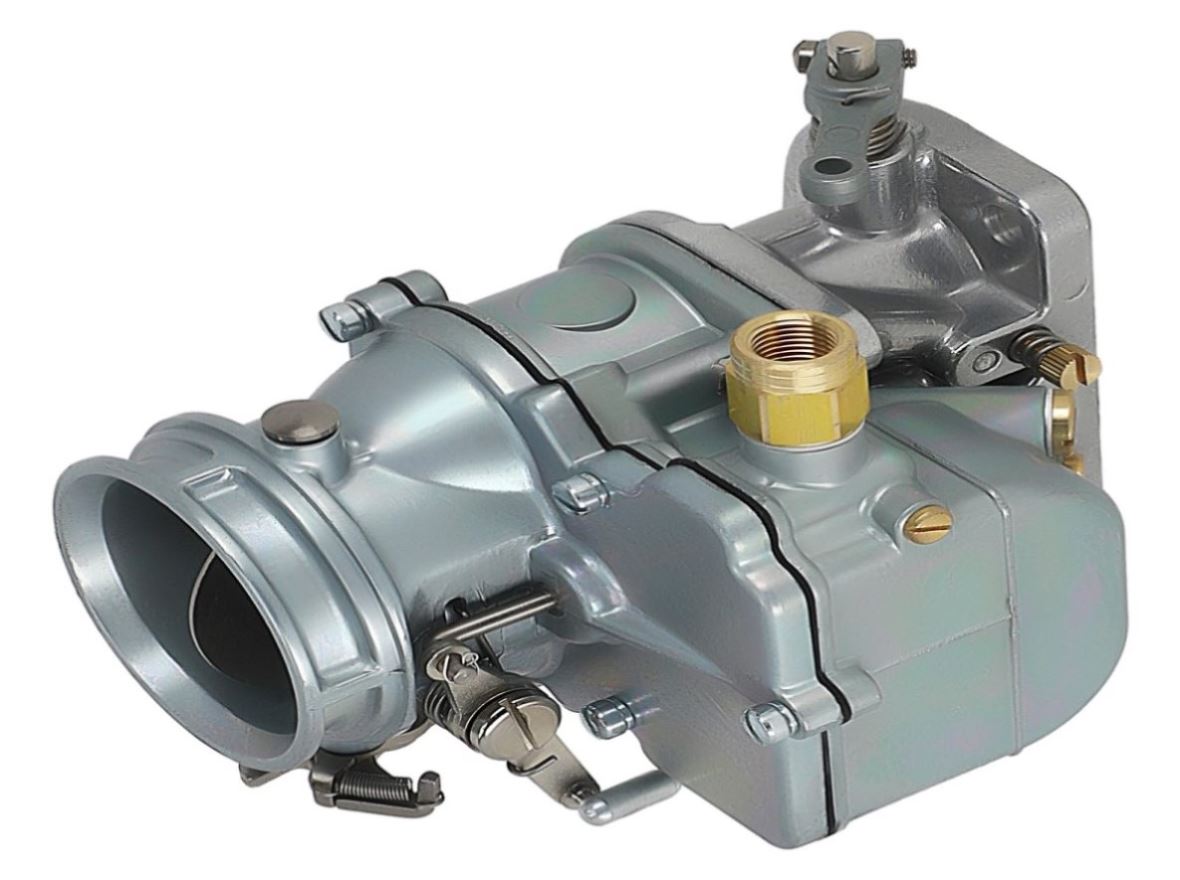

2-Barrel Carburetor Manual Choke fit for Ford Mercury engines 1949-1953 NEW 40716715
GT-40716715
92 In stock
$275.18
Application: fit for 3-Bolt Type Manual choke Carburetor fit for Ford & fit for Mercury Engines 1949-1953 (need an alternative place to connect the vacuum line) (There are no provisions fit for a vacuum advance line) OE/Part number: 182-9510A, 91511655, 91011543, 91011542 Specification:...
customers are viewing this product
Application:
fit for 3-Bolt Type Manual choke Carburetor
fit for Ford & fit for Mercury Engines 1949-1953
(need an alternative place to connect the vacuum line)
(There are no provisions fit for a vacuum advance line)
OE/Part number:
182-9510A, 91511655,
91011543, 91011542
Specification:
| Choke Type | Manual Choke |
| Fuel Type | Gasoline |
| Mounting Studs Diameter | 79 mm x 48 mm |
| Intake Side Diameter | 30.2 mm (two same) |
| Choke Air Horn Inner Diameter | 54 mm |
| Choke Air Horn Outer Diameter | 66 mm |
| Venturi Diameter | 26 mm |
| Barrel Count | 2 Barrel |
| Flange Type | 3-Bolt |
| Gasket(s) Included | Yes |
| fit for Main Metering-jet | 115 |
| fit for Main AIr Jet | 95 |
| fit for Idle Jet | 78 |
| Needle Valve | 2.1 |
| CFM Range | 100-199 CFM |
- Jets-access plug gasket Replacement # 91011542.
- Needle seats gasket Replacement # 91011543.
- Fuel pressure: 1-1/2 to 4 psi range (A fuel regulator such as # 560-585000).

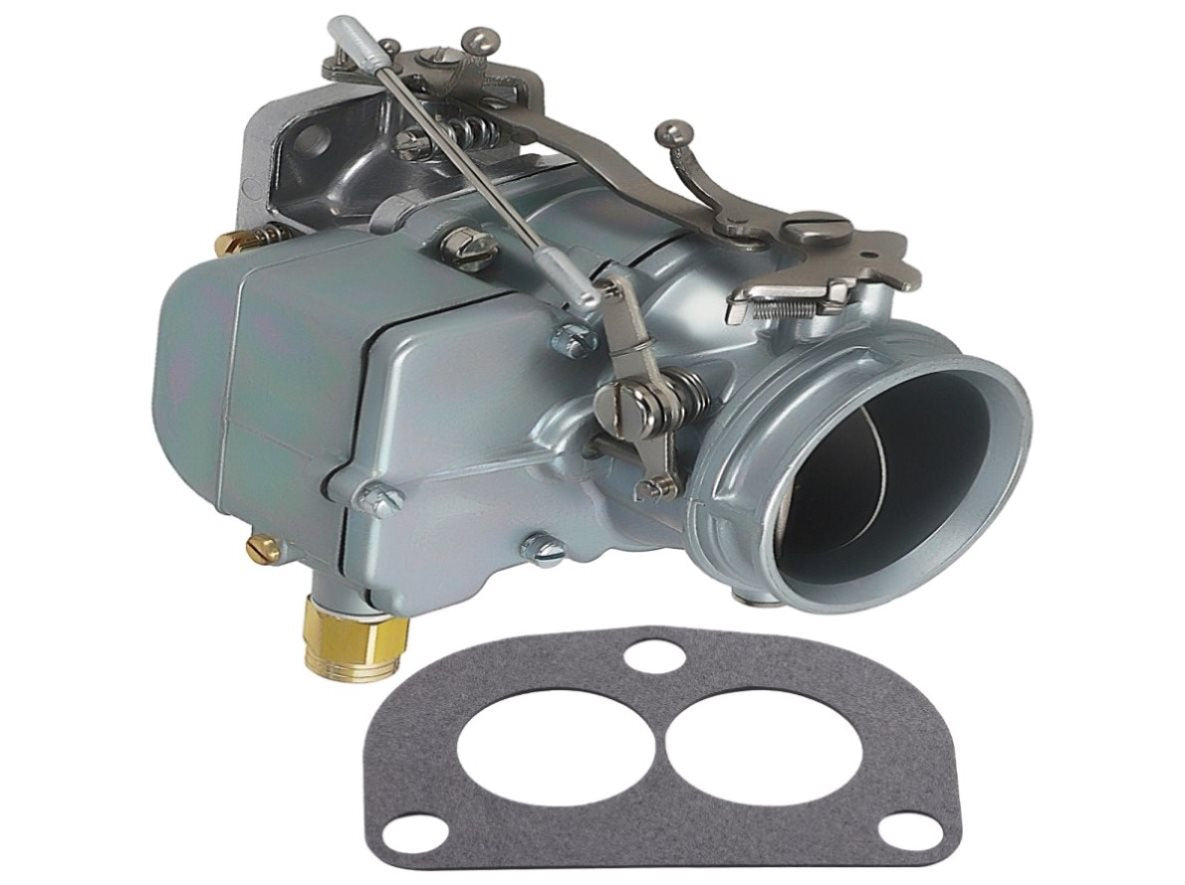

Package Included:
1x Carburetor

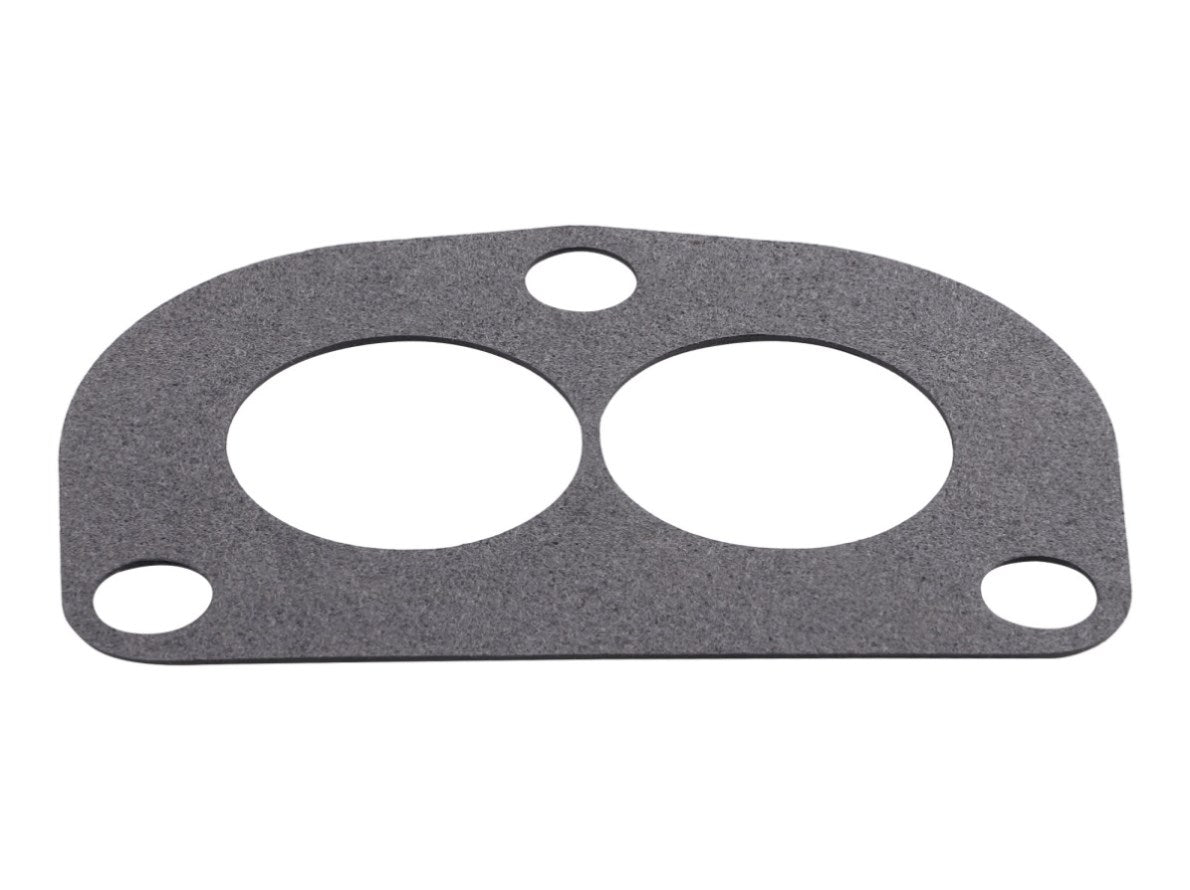

1x Gasket (just as the picture show)
Note:
- Aftermarket high performance engine carburetor replacement.
- Professional installation required.
- Instructions not included
