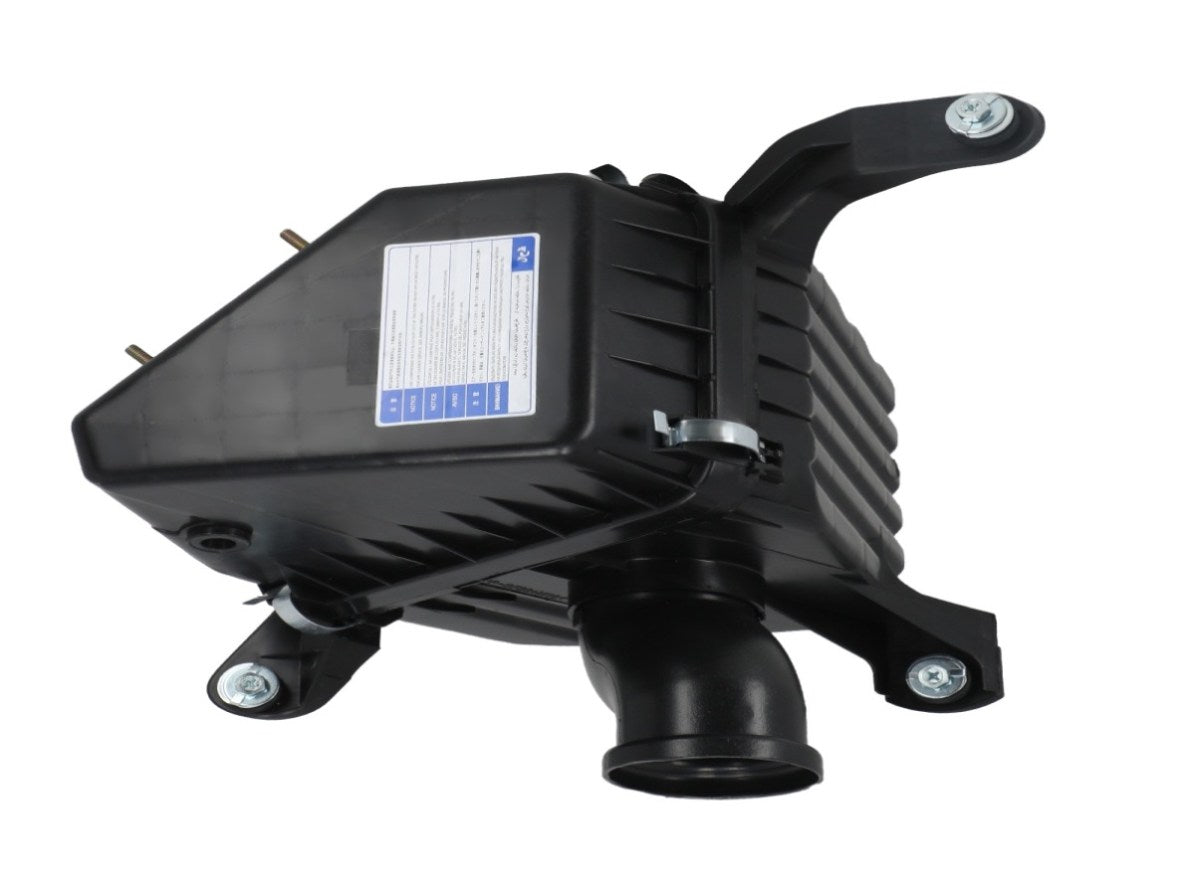

1x Air Cleaner Filter Box W/O Air Filter fit for Toyota Tacoma 95-04 4Runner 96-00 74038209
Application:
fit for Toyota 4Runner 1996-2000
fit for Toyota Tacoma 1995-2004
OE/Part number:
17700-0C010, 17700-0C020, 177000C010, 177000C020
Specification:
Fitment Type: Direct Replacement
Placement on Vehicle: Front
Material: Plastic
Package included:
1 Air Cleaner Filter Box W/O Air Filter
Feature:
1. To avoid this part from cracking or breaking, please install with caution.
2. Easy to install Direct replacement fit for a proper fit Manufactured to strict engineering quality standards
Note: The air filter housing can be replaced as follows:
1. Disconnect and removing the upper air resonator assembly.
2. Disconnect the MAF sensor wiring harness
3. Remove the MAF sensor pipe clamp-to-frame bolt
4. Remove the 8 screws and the Left hand fender well splash shield
5. Remove the air inlet tube bolt
6. Loosen the clamp and remove the inlet pipe
7. Remove the rearward air cleaner-to-frame bolts
8. Remove the forward air cleaner-to-frame bolt
9. Remove the sealed air cleaner housing and MAF sensor pipe as an assembly
