13 Row AN10 Engine Racing Trust Oil Cooler w/ Thermostat Oil Filter Adapter Kit 56199406

Introductions:

For ease of installation on aluminum racing fuel cells we have put together our braided fuel line kit to adapt to your existing fuel system. The braided cover greatly increases the resistance of the hose to internal pressure and retains it form.

Feature:

Condition: Brand New

Warranty: 1 Year

Specification:

Application

Suits all Japan car (the filter thread size is 3/4*16 or m20*1.5)

Specific

Made with High Quality T-6061 Aluminum

10-AN Male Fitting and 0.875” x 12.125” Bolt Pattern

Inlet / Outlet Size: AN-10 / M20XP1.5 Female Fitting+ 3/4-16 Female Fitting

Core Size: 11.53 x 3.6 x 2.00

Overall Size: 13.00 x 4.0 x 2.00

Center Adapter: M20 x 1.5 3/4 x 16 UNF Thread

Supports Oil Filters That Has M20 Thread M20 Block Fitting

Oil Line Lengths: 1.4M + 1.6M

Bolt Pattern: 0.875” x 12.125”

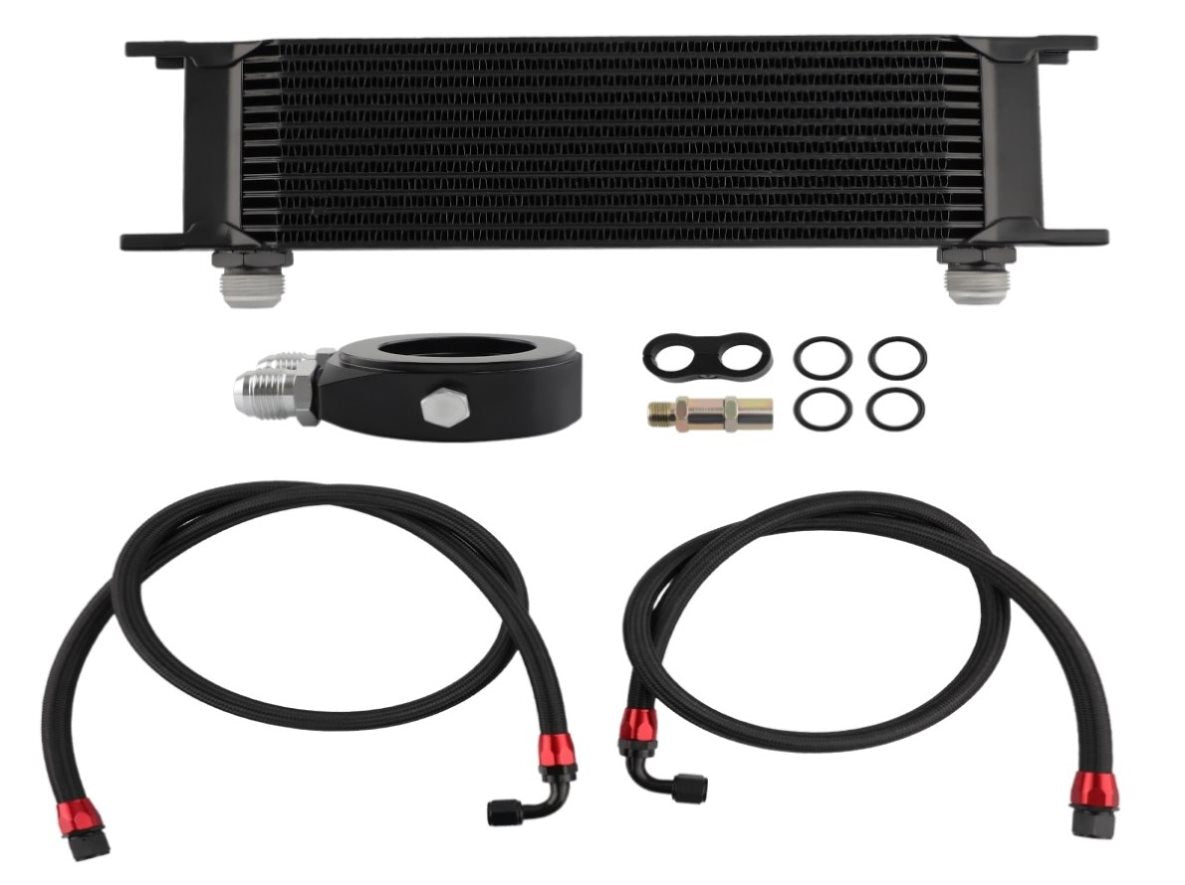

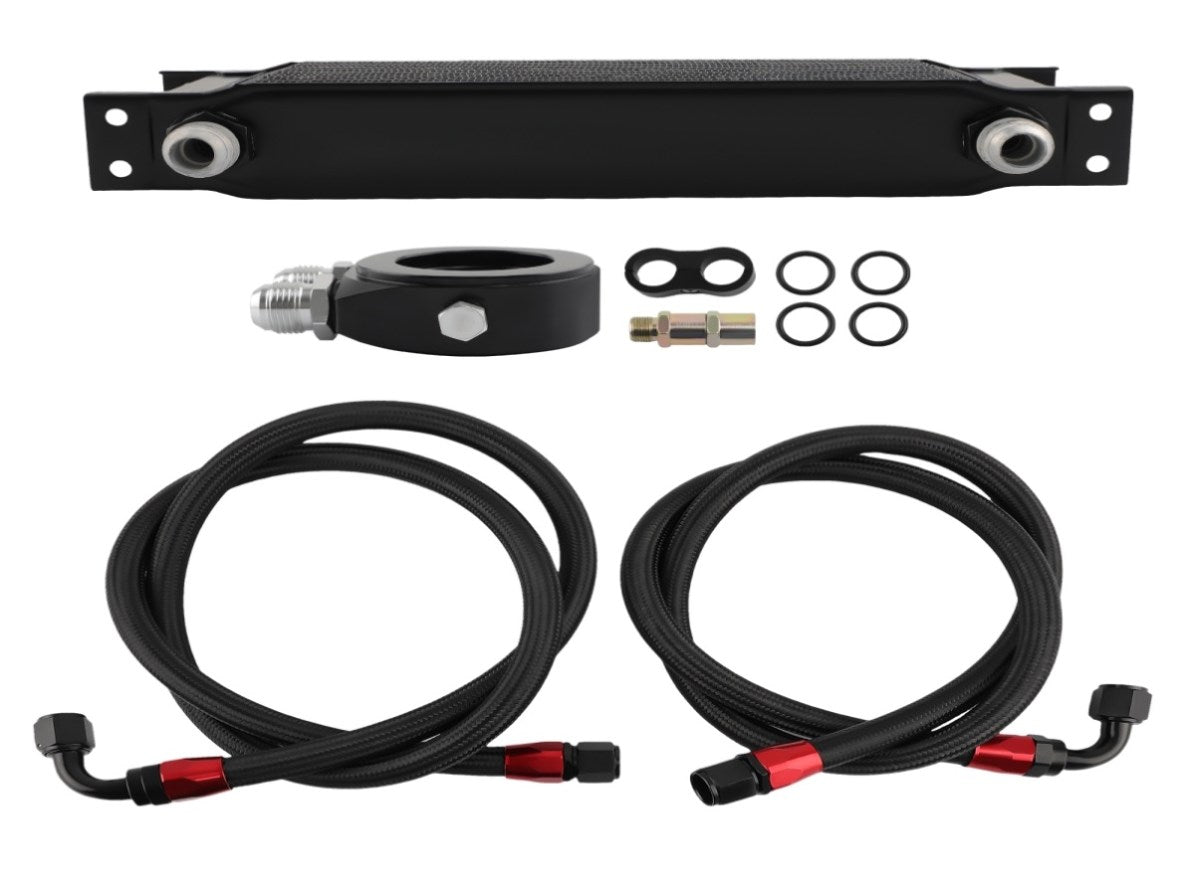

Package Includes:

1 x Straight Tube Pipe

1x 3/4-16 Female Fitting

1x M20XP 1.5 Female Fitting

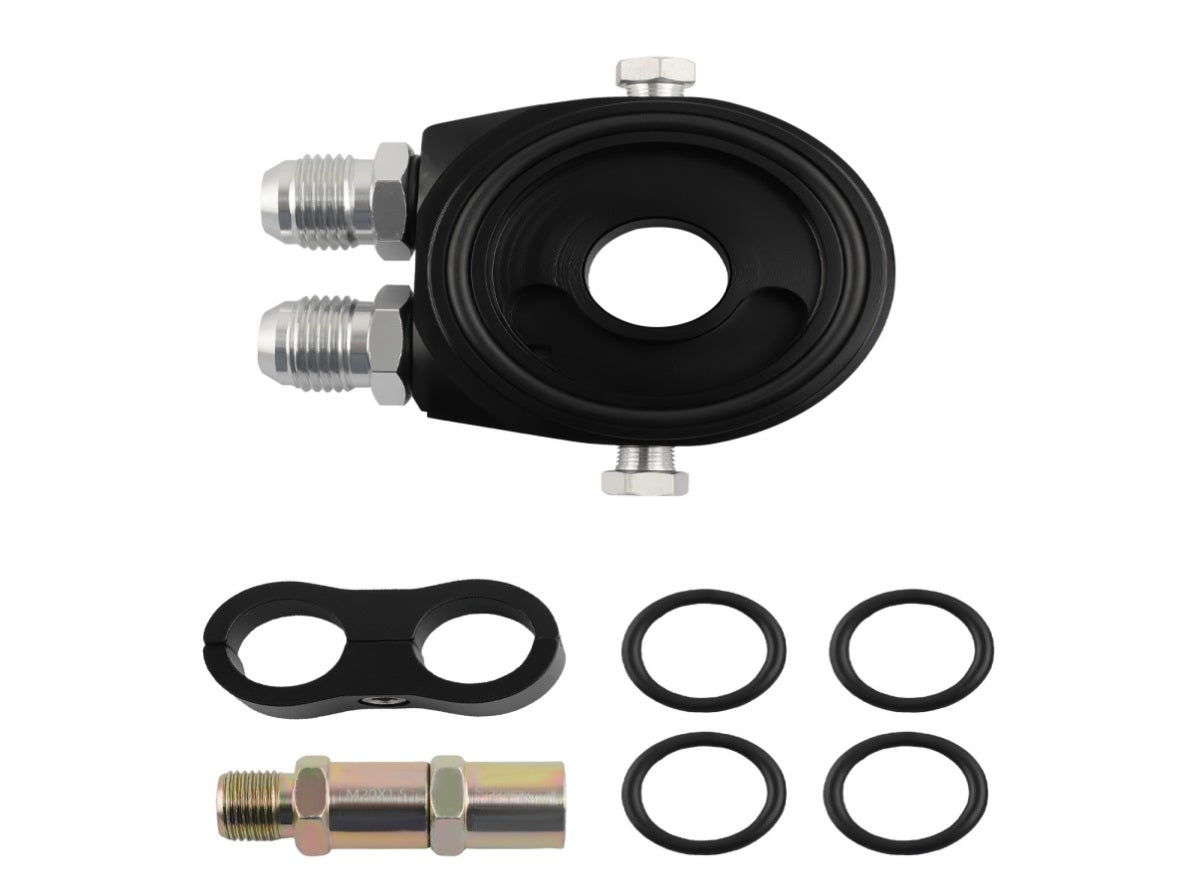

1x Oil Filter Adapter

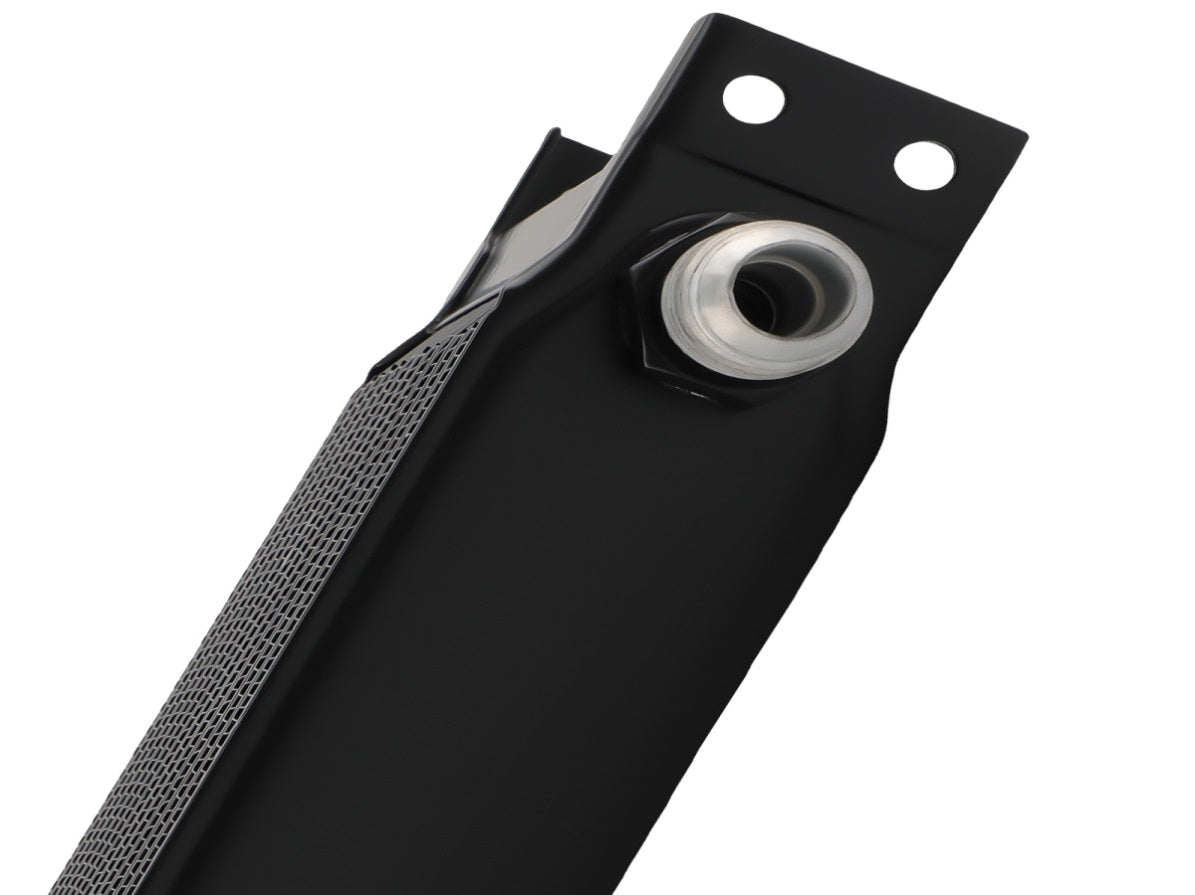

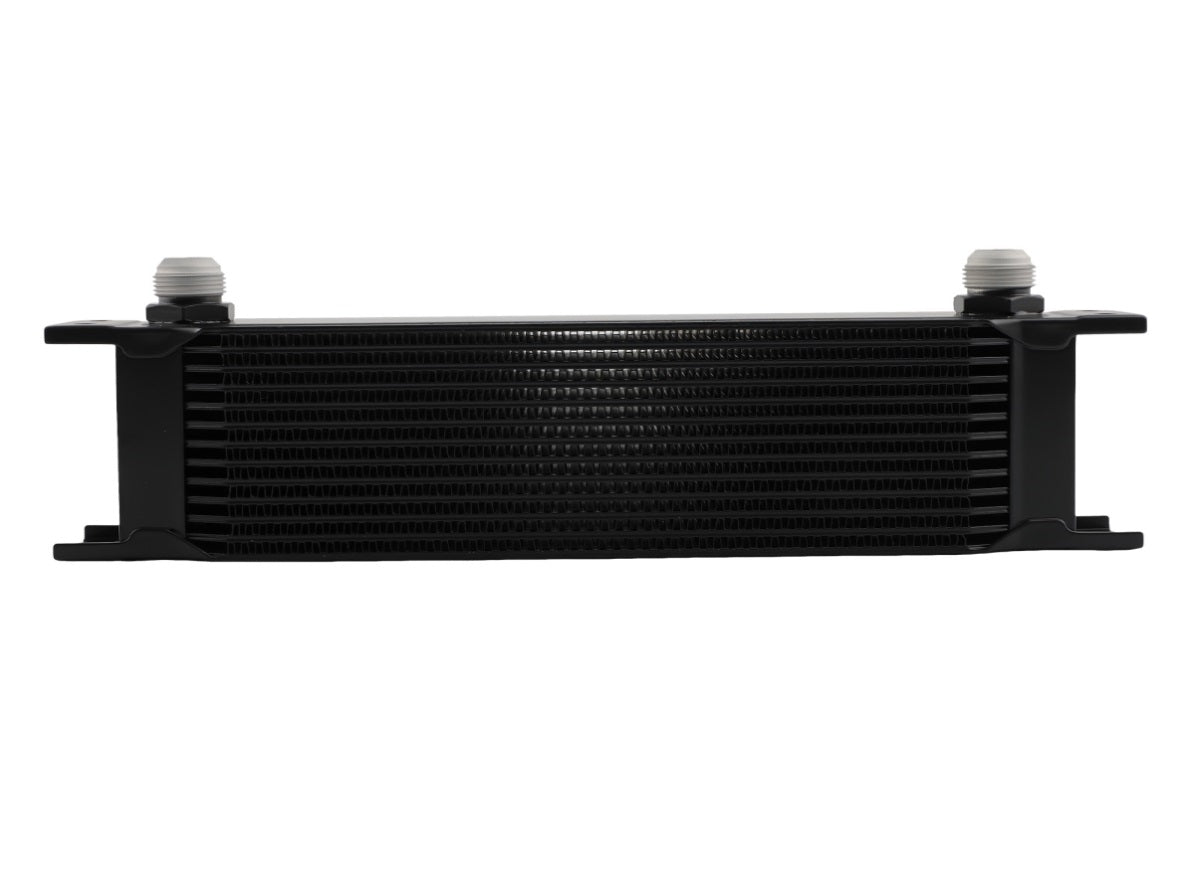

1x Aluminum Oil Cooler

1x 10-AN Hose Line Separator

2x 10-AN 0 Degree Swivel Aluminum Hose End

2x 10-AN 90 Degree Swivel Aluminum Hose End

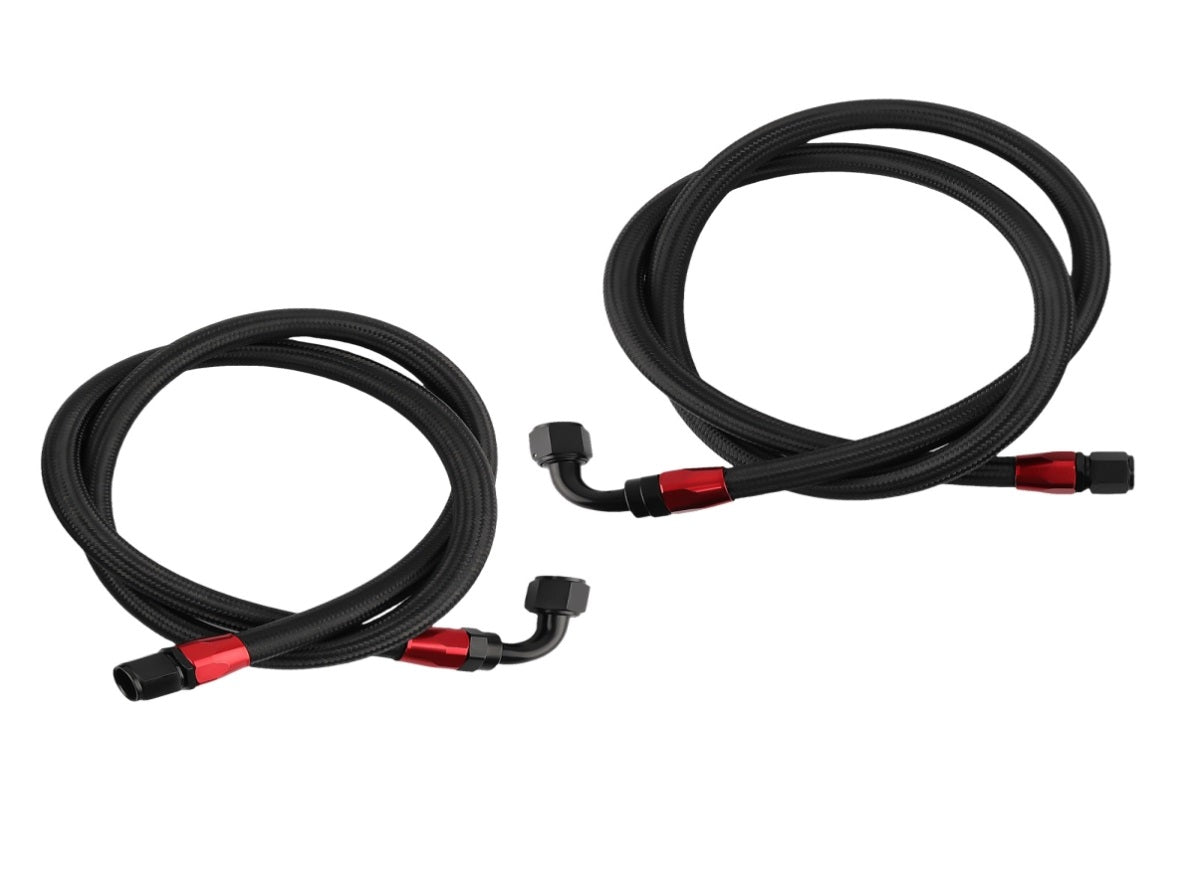

2x Braided Nylon Hose ( 56 *1 + 62 *1 )

Code:MGGRP

Authority ID：MXR02FXSY

Notice：California Prop 65 Warning
