12" Dual Spring Design Press Brake Attachment for 12 or 20 Ton Hydraulic Shop Presses Black 72333515

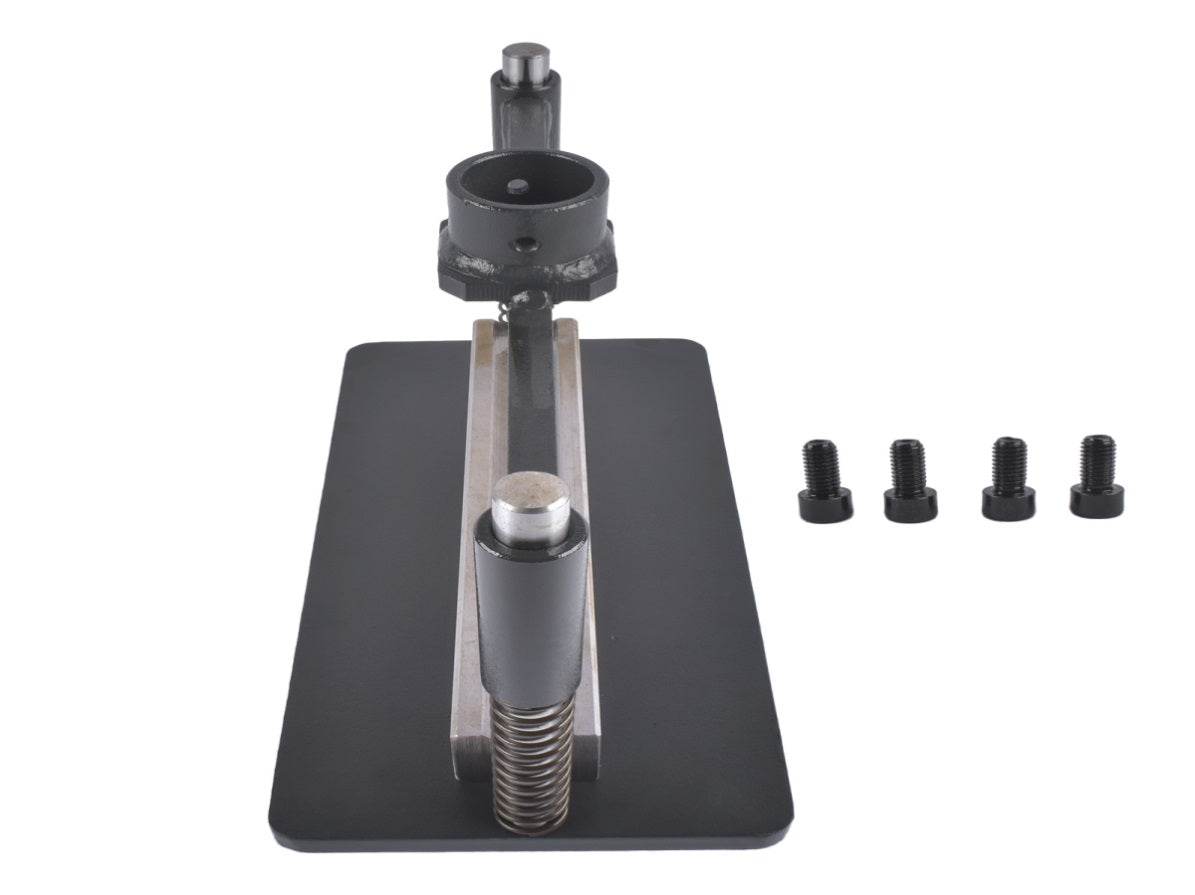

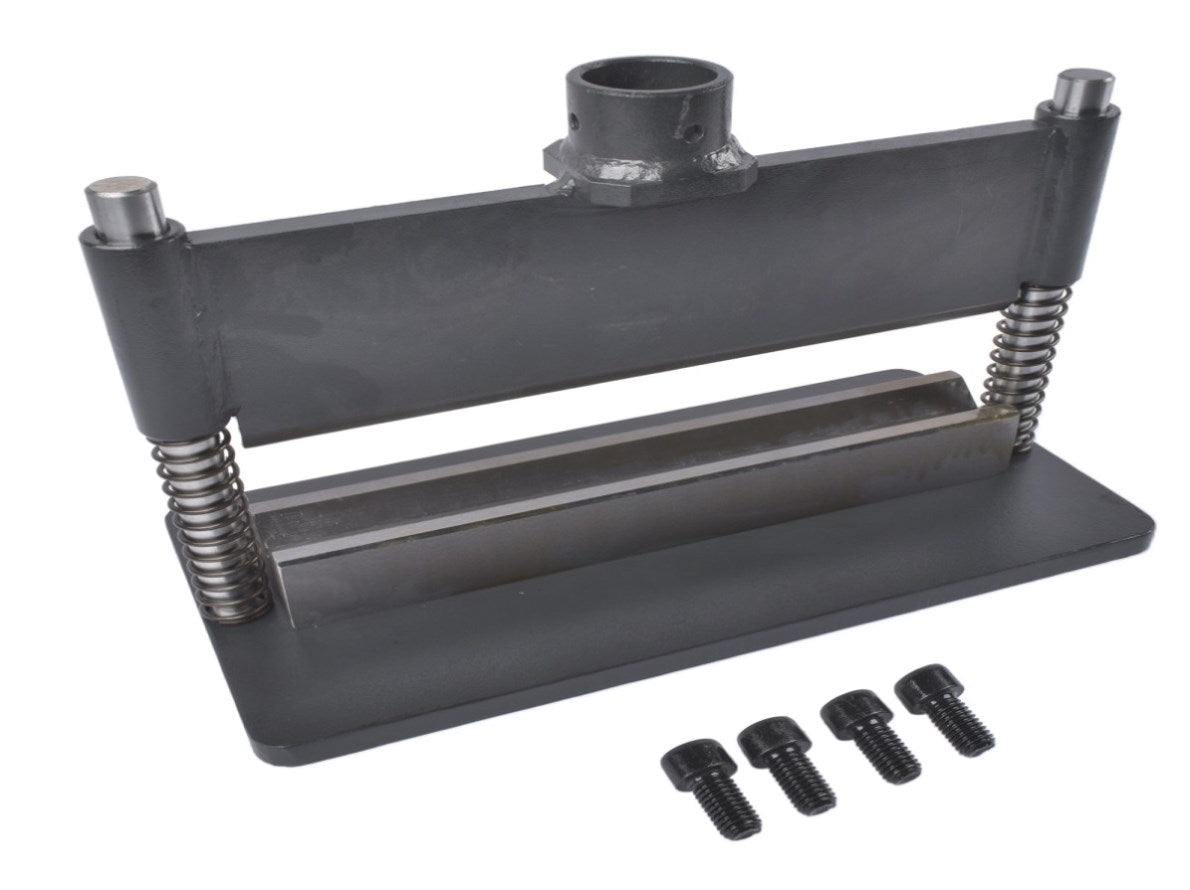

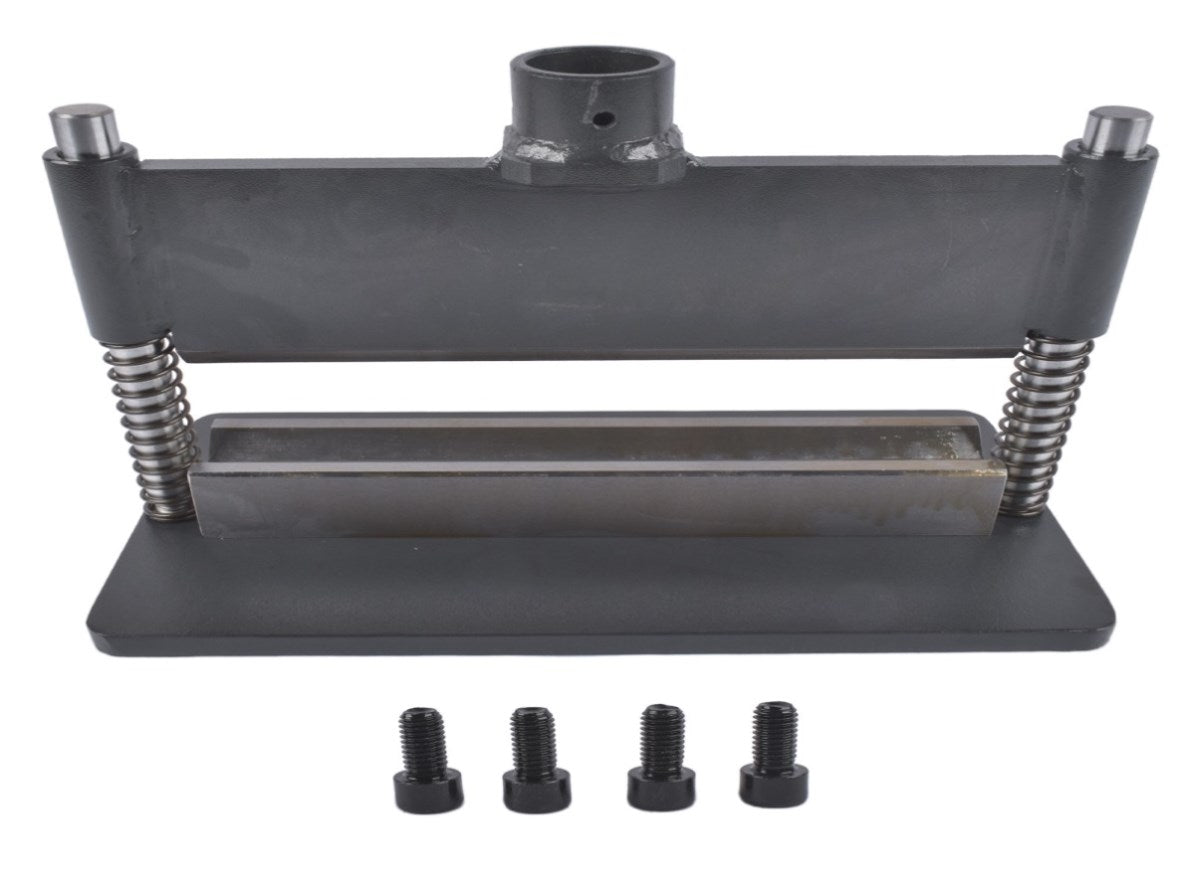

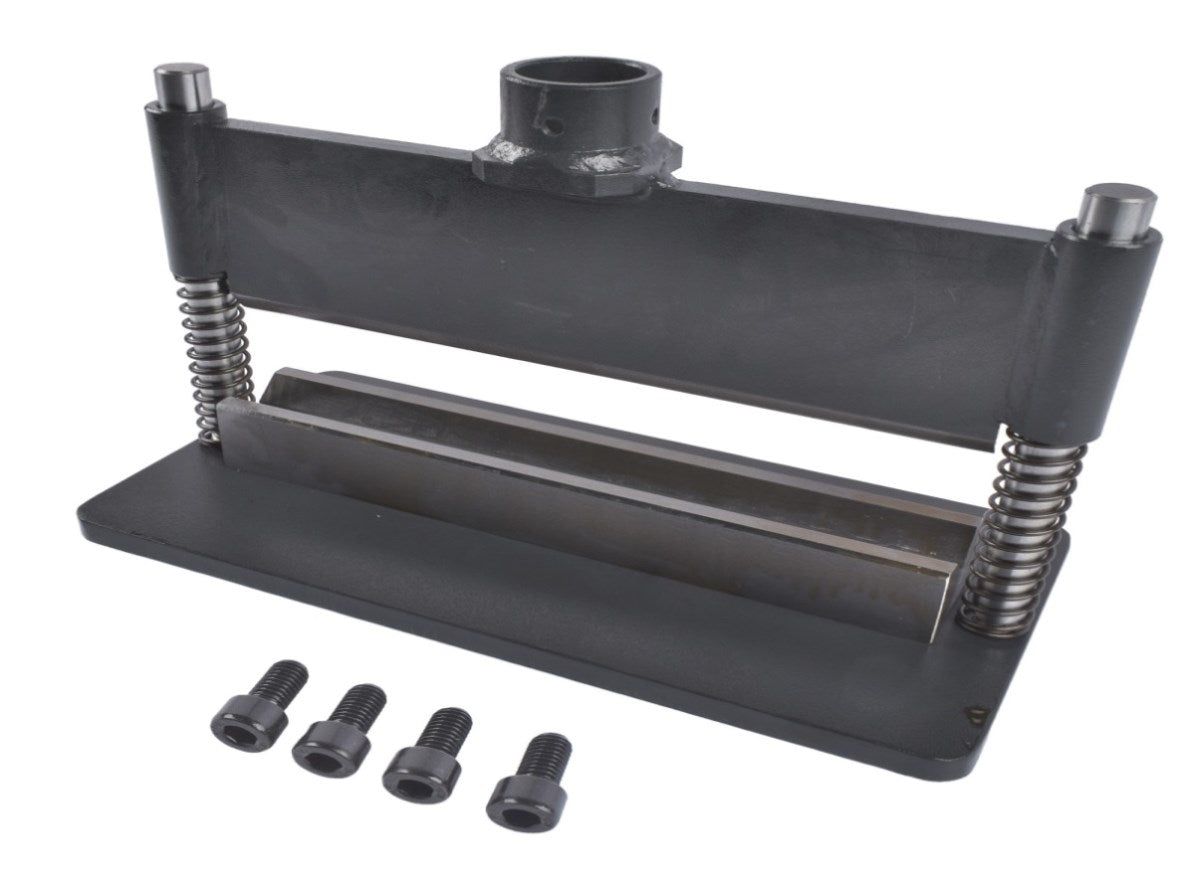

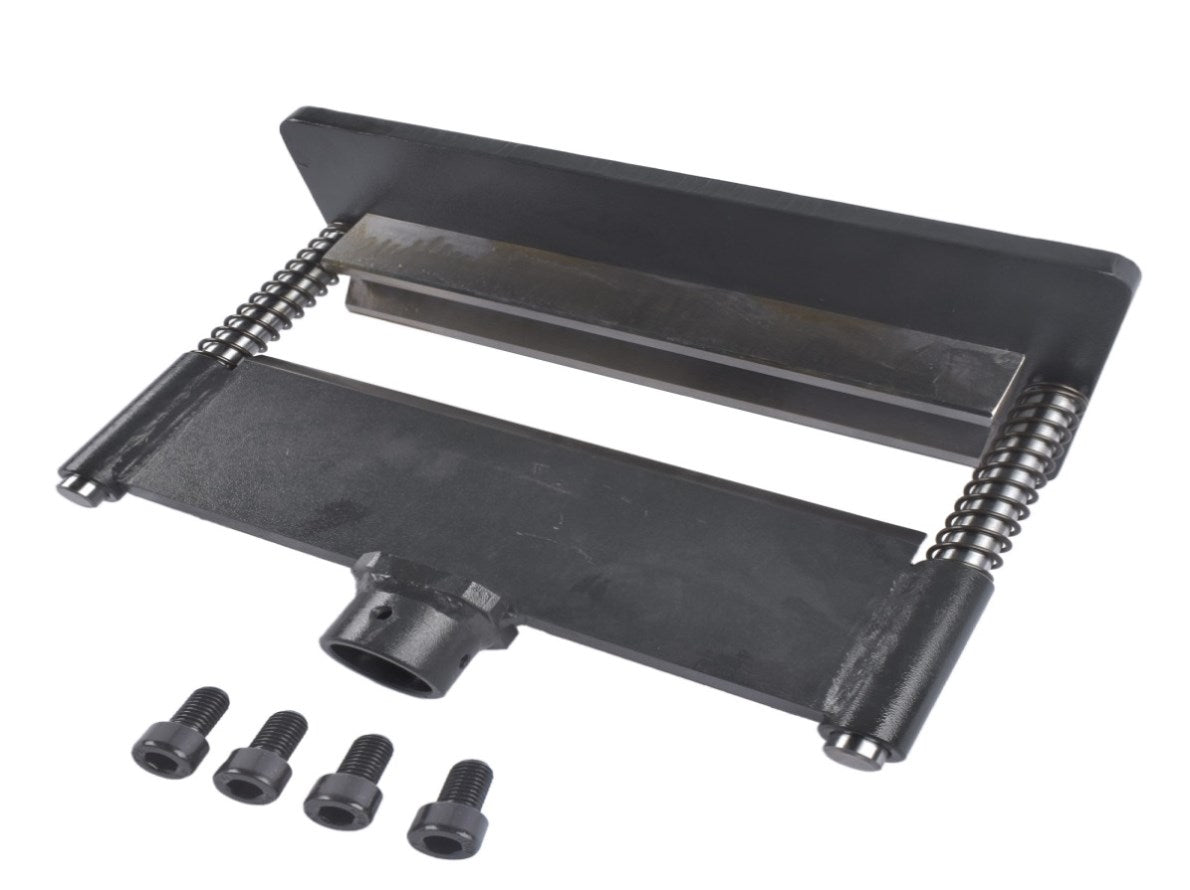

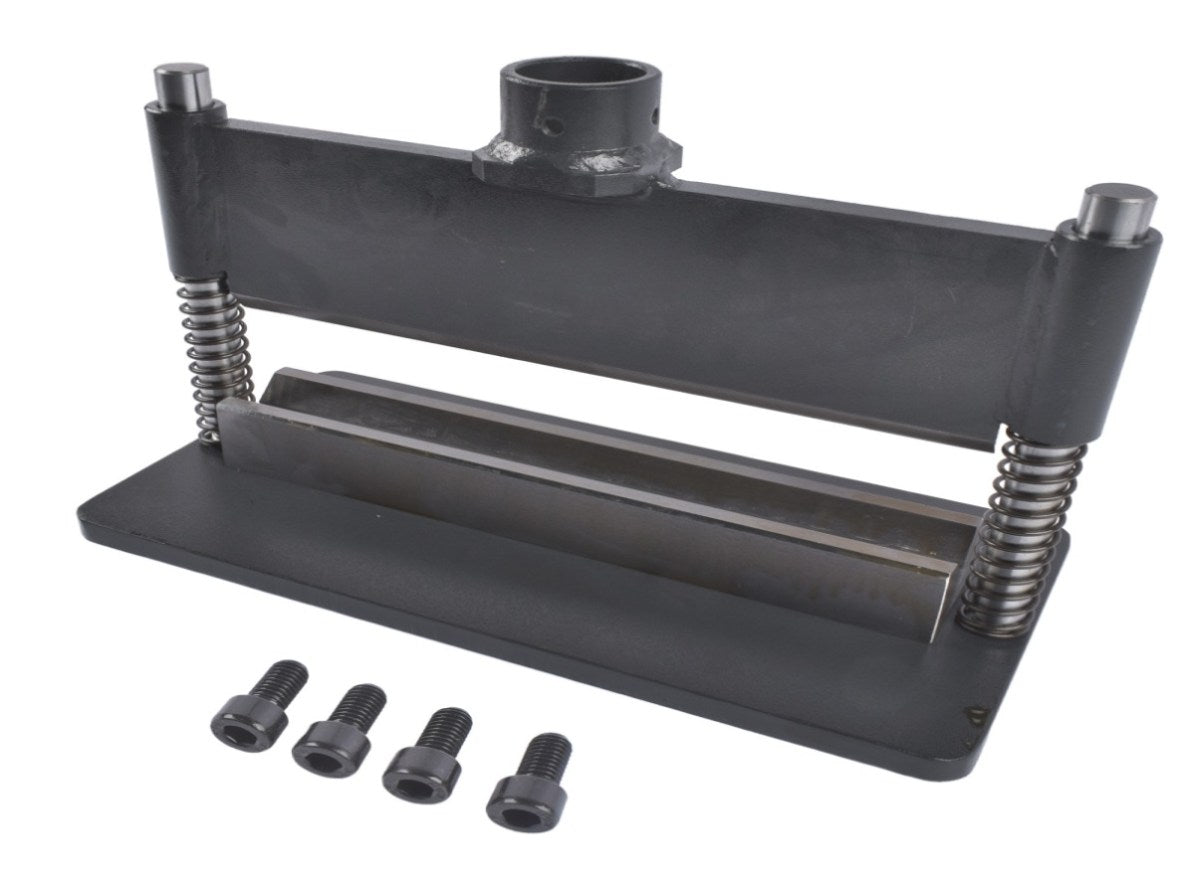

12" Press Brake Attachment

Specifications:

Bending Length Max: 12"

Brake Range: 0-90°

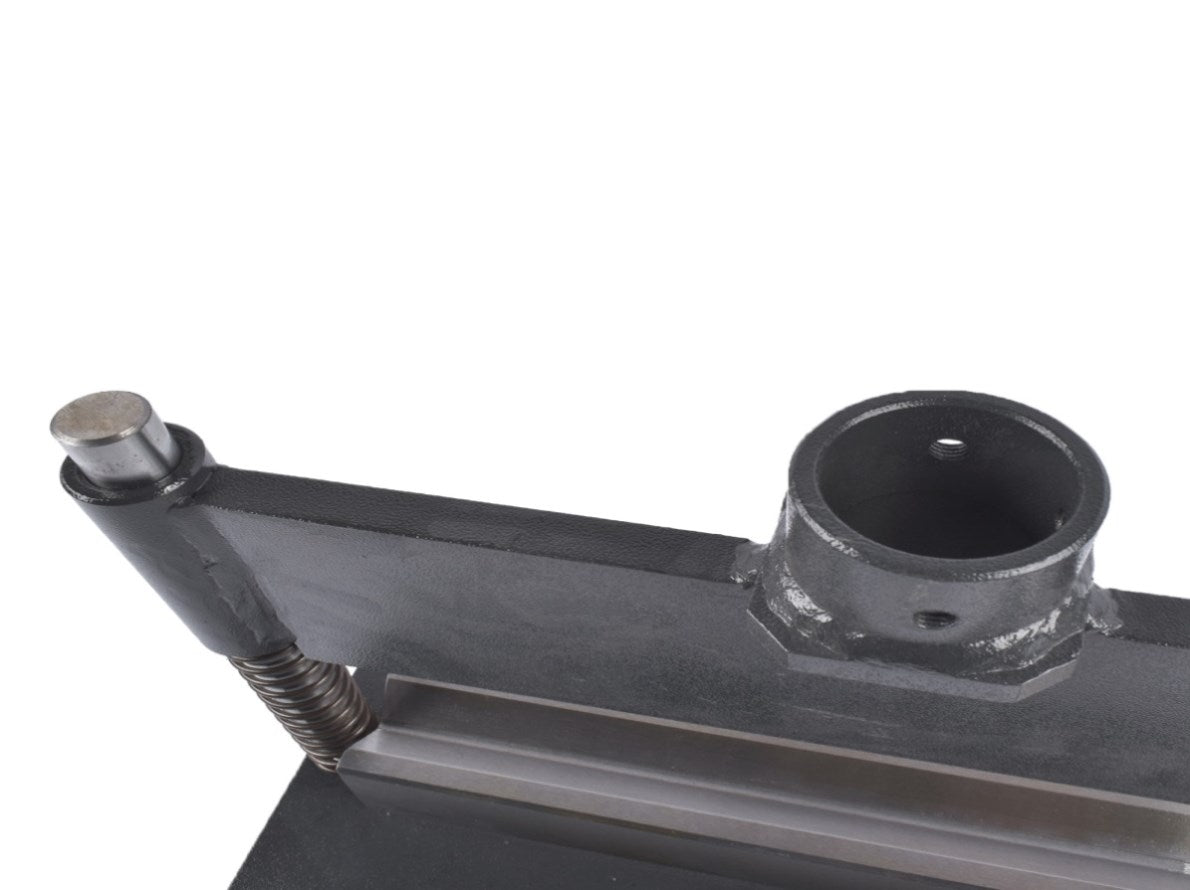

Upper die mounting cup inside diameter: 1.65''/42mm

Overall Dimensions: 14.5" Wide X 7.5" Deep X 10" High

Bottom Die Overall width: 2.1 in

Bottom Die Overall Height: 1.65 in

Max Thickness (mild steel):

3/16" x 12" Width

1/4" x 6" Width

5/16" x 2" Width

Application

Attaches to Most Standard 12 or 20 Ton Hydraulic Shop Presses.

Create complex shapes such as floor reinforcement channels and ribs, sections of corrugated pickup bed floors; truck bedside panels, inner fender structures, suspension brackets, engine/transmission mounts and much more all with one convenient accessory tool.

Features:

Material: It is made of high-class 45# steel, with a surface treated with plastic spraying and blackening technology, which is impact-resistant, pressure-resistant, wear-resistant, rust-proof, sturdy, and ensures a long service life.

Excellent Performance: The Press Brake Attachment is a precision engineered metal working tool designed to produce accurate, variable length bends in angles up to 90° in mild steel and aluminum in widths up to 12'' and thicknesses up to 3/8''.

Labor-saving Cleaning: It has a smooth surface and simple structure that is easy to wipe and clean on a daily basis to keep your equipment in good condition.

Practical Spring: The dual spring design can buffer the pressure during the bending process, help the workpiece or plate to be processed accurately.

Round Corner: It can prevent scratches and improve your safety during use and installation.

Package Includes:

1x Press Brake Attachment
