10-50V 100A 5000W Reversible DC Motor Speed Controller PWM Control Soft Start 60345801
Feature:
Larger current, max current up to 100A, continuous operating
current of up to 60A.
Reversing control motor, dual relay control, can withstand higher
current.
Programmable to meet subsequent extensions.
With soft start to reduce the shock of large current when the
motor starting.
With brake when the power off or change the rotation of the motor.
Specifications:
Power requirement: DC 10-50V
Rated current: 60A (Max output current: 100A)
Frequency: 15kHZ
Control Motor Power: 0.01-5000W,
12V: 1200W(max),24V: 2400W(max) ,36V: 3600W(max),48V: 4800W(max),
50V: 5000W(max).
Quiescent Current: 0.04A
Regulation range: 0-100%
Size: 145x78x38mm
Package include:

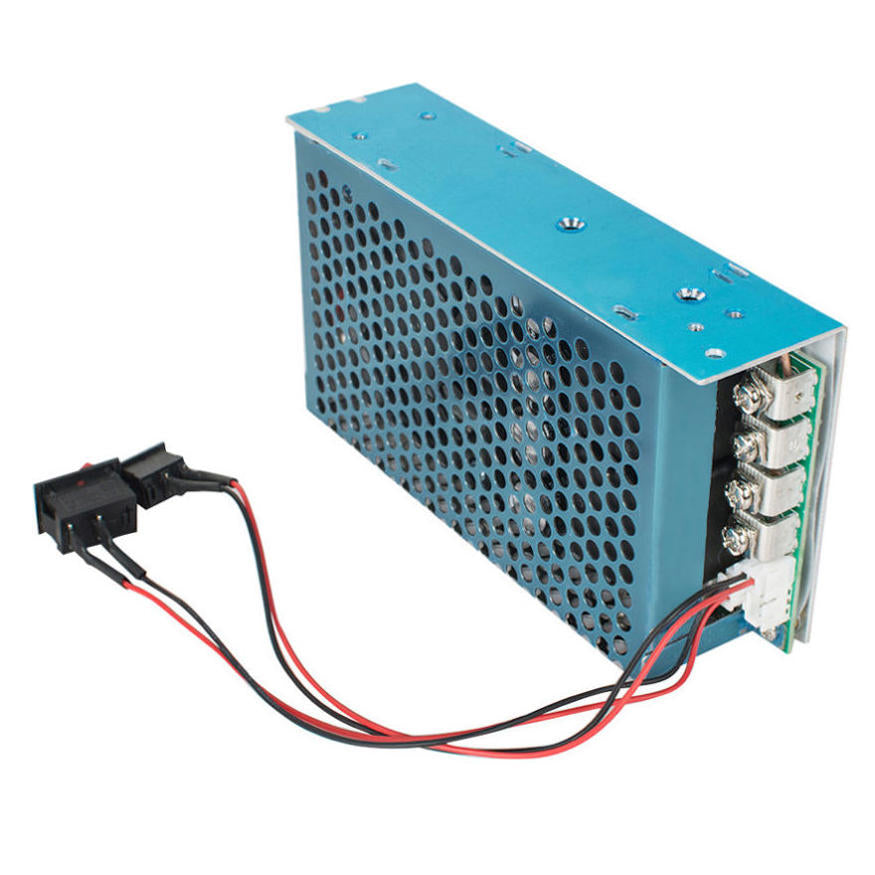

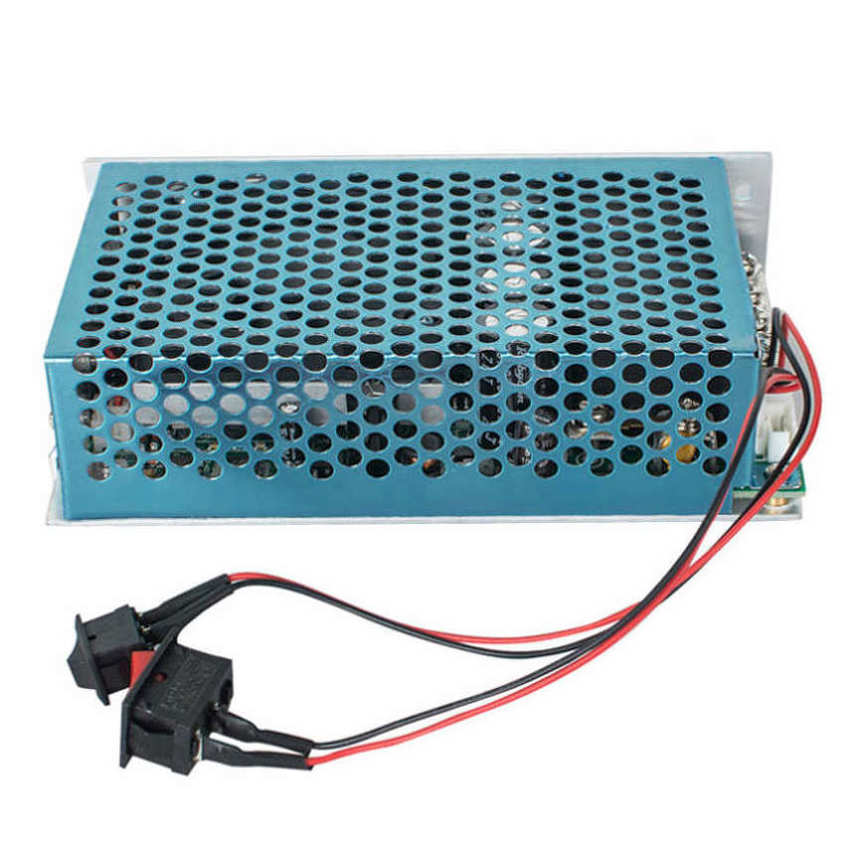

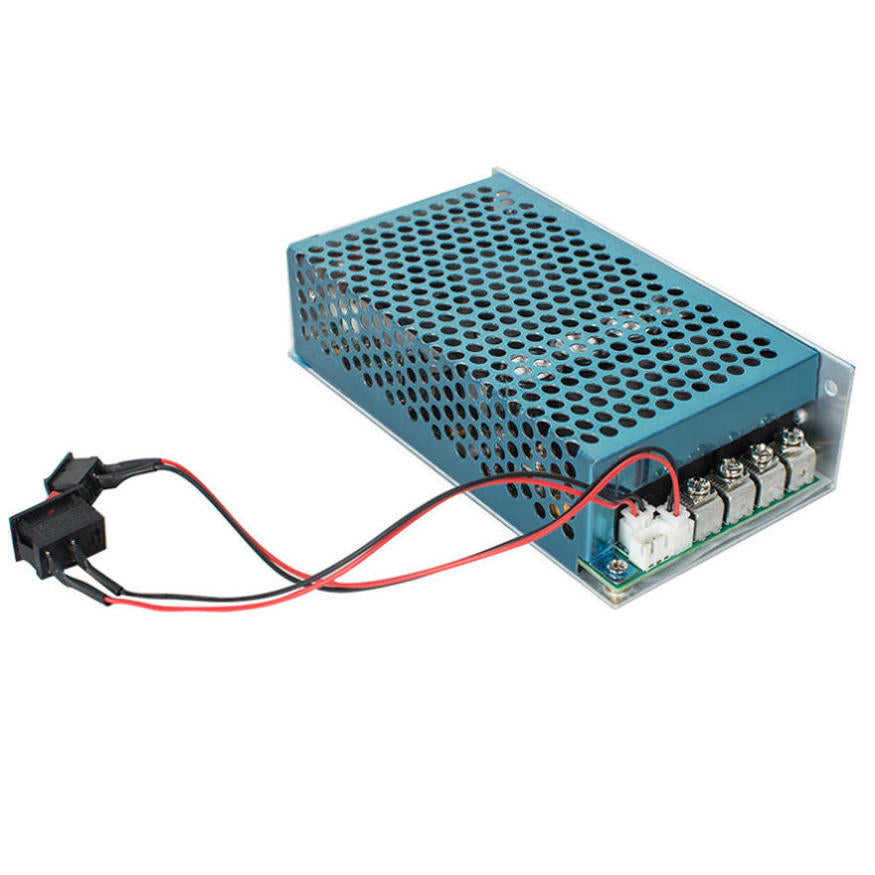

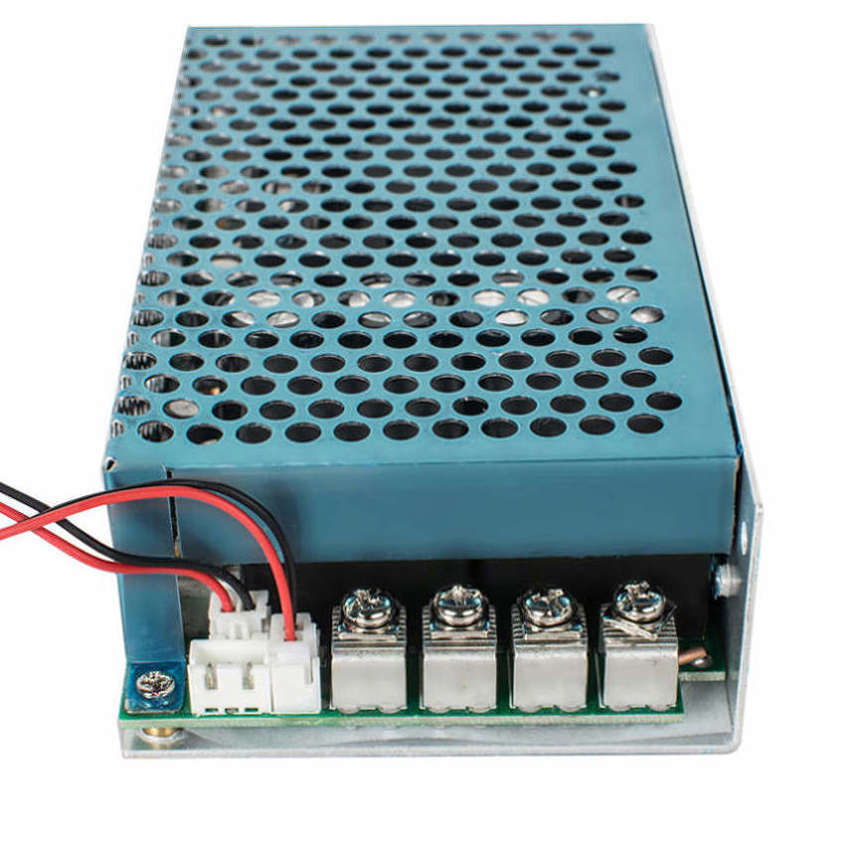

1 X Reversible DC Motor Speed Controller

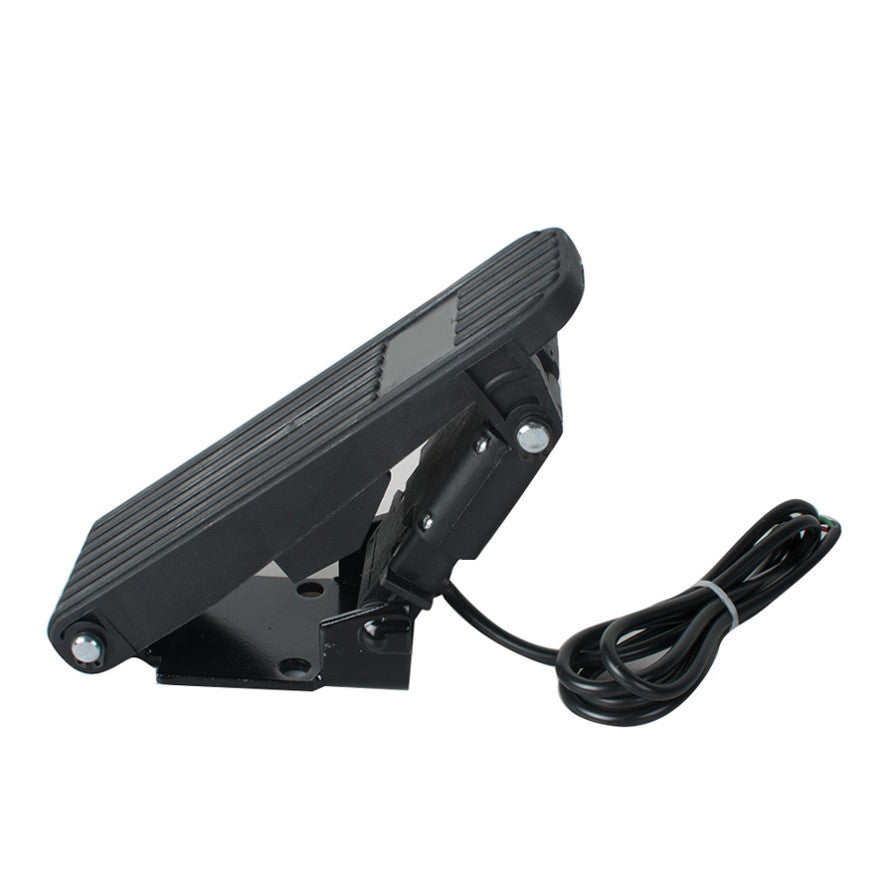

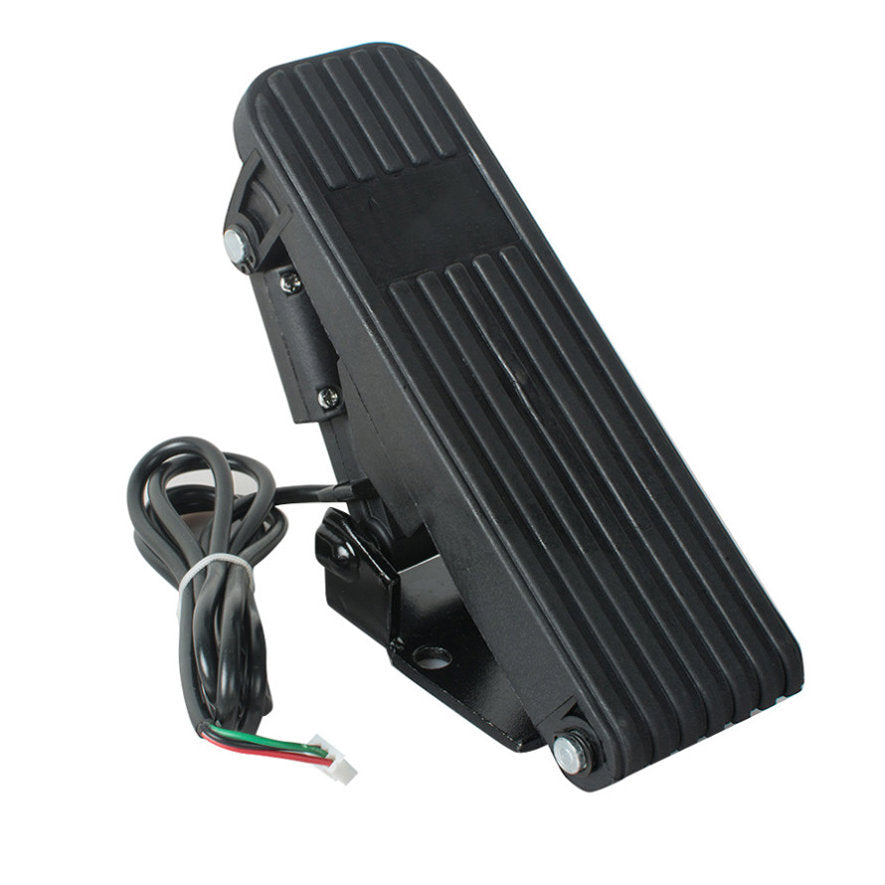

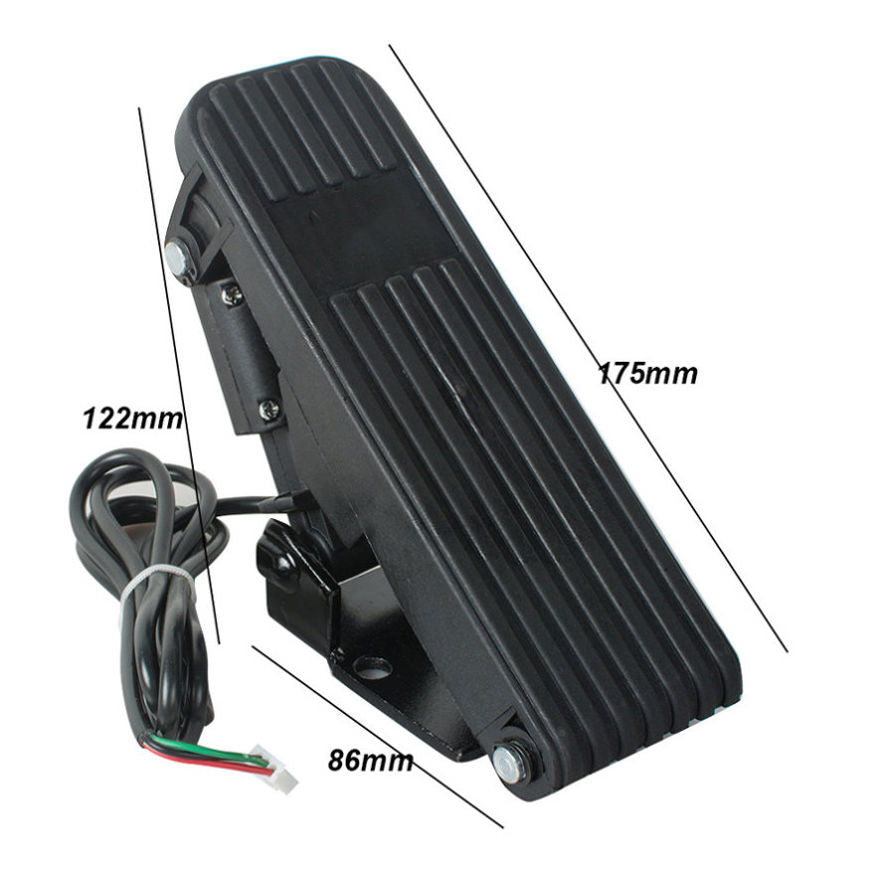

1 X Pedal Accelerator
How to use:

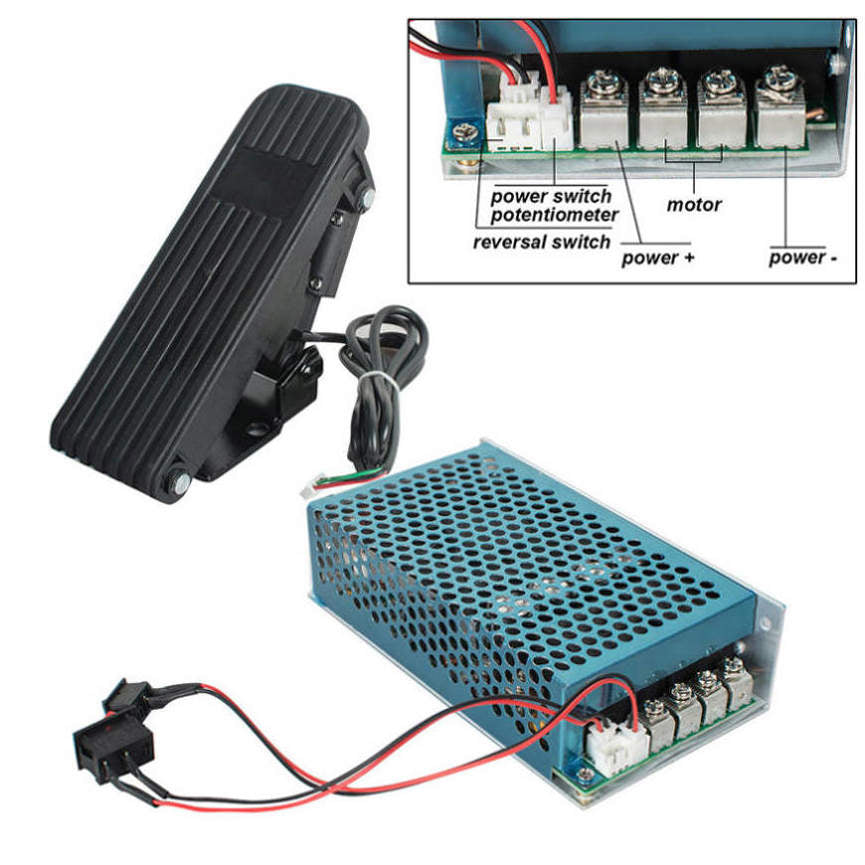

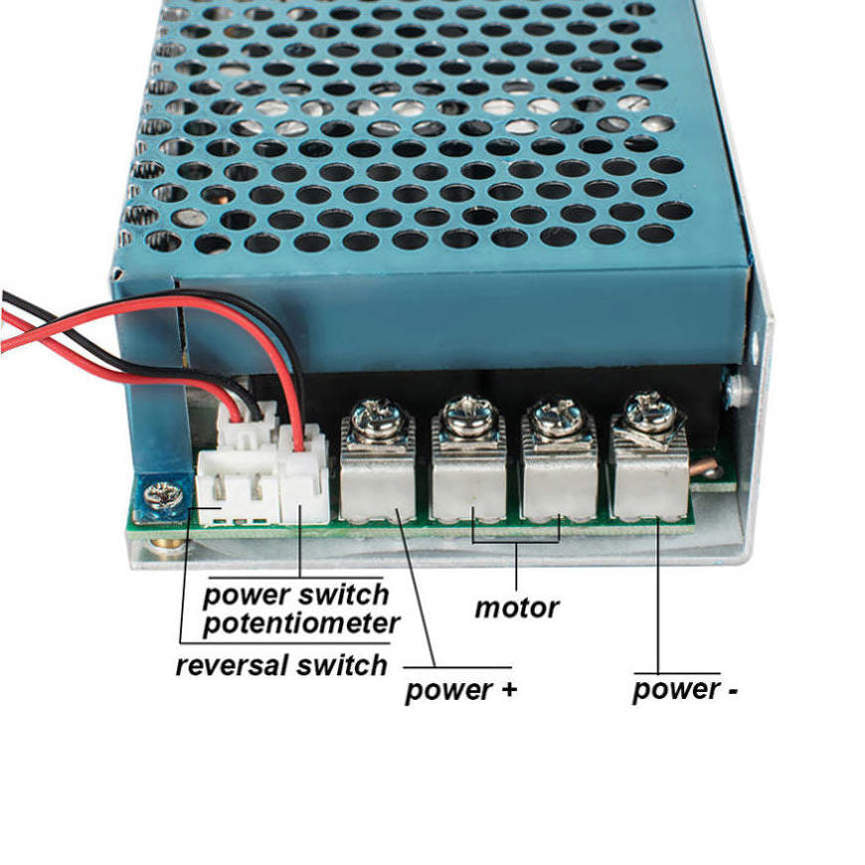

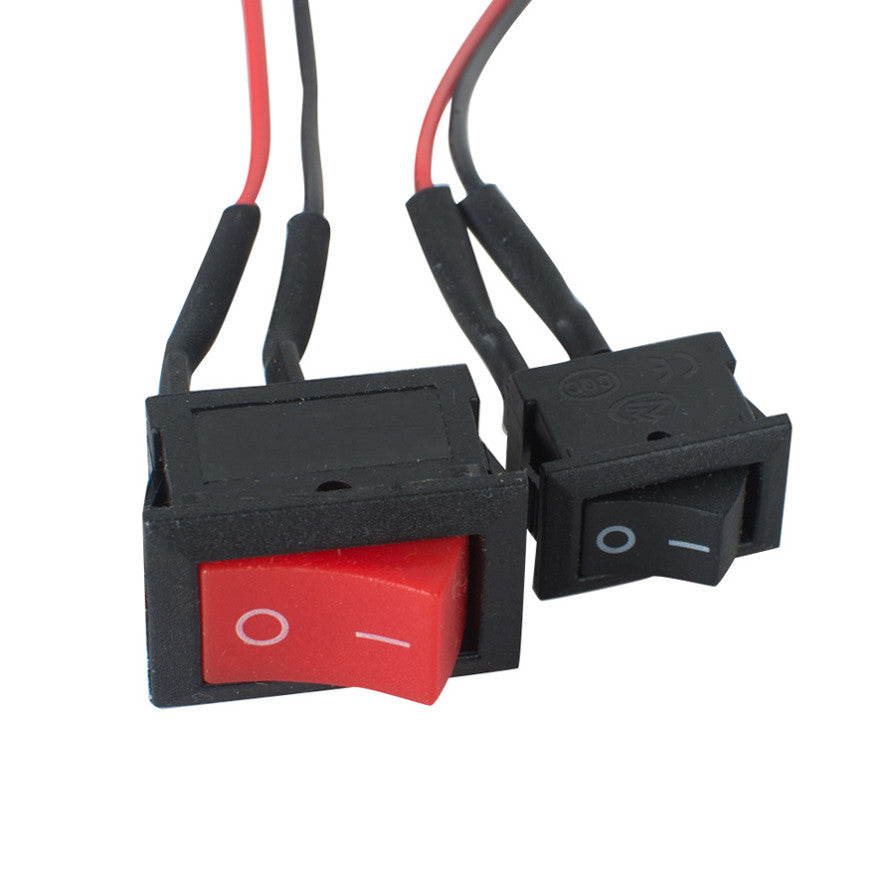

There are two ON/OFF switch and one pedal accelerator on the
controller. One OF/OFF is a reversal switch, another is power
switch. Power on, then press the pedal, the motor will be
accelerated.
The power switch is on, the controller is powered on. The power
switch off, the motor will be brake.
The reversal switch on, the motor forward, the switch off, the
motor backward. When the motor change the direction of the
rotation, the motor will be braked and soft start to the setted
speed.
