ZNTS 2 Packs Air Ride Suspension Bag Standard 2500 lb 1/2"npt Single Port Heavy Duty 21345426

Introduction:

Air Bag

Car air suspension spring bag is one of the most popular suspension kits available, it delivers some of the greatest performance benefits and convenience for all types of vehicles. Air bag suspension kits raise the vehicle high enough to compensate for any extra weight. This helps to keep the vehicle level while towing and hauling and prevents rear sagging, bottoming out, and excessive pressure on your tires.

Maxpeedingrods provide a full assortment of air suspension spring bags for all your suspension needs!

Features:

-;These air;suspension bags are aftermarket ones. They will replace the original rear air springs.

-Instruction is not included. Professional installation is recommended

Specification:

Fits for

Universal Air Suspension Bags for Ford F150/F250, for GMC Sierra, for Chevrolet Silverado, for Dodge Ram 1500 2500 3500, etc.

For most brand trucks

Please double check dimension before purchasing.

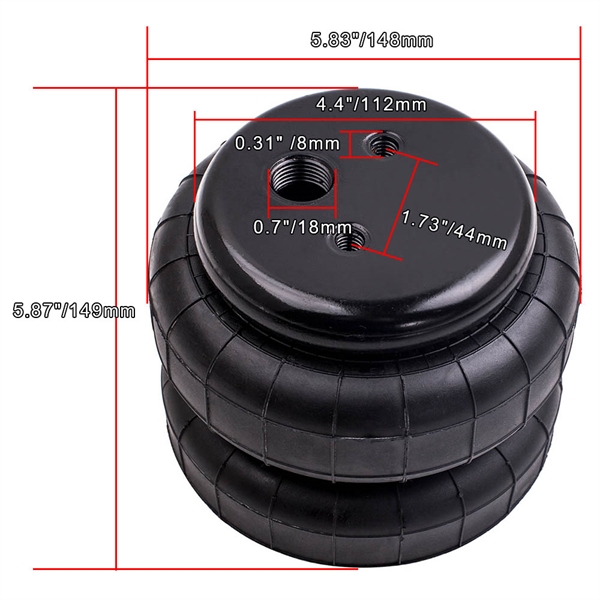

Item Specifications

Min height: 65mm

Max height: 175mm

Working stroke: 110mm

Loading cap. at 3.0bar:1.48KN

Loading cap. at 7.0bar:6.23KN

Single air port size: 1/2NPT

Install hole size:3/8-16UNC

Top plate diameter:113mm

Air bag body diameter:145mm

Air spring bag capacity:; 2500LBS;;

Max pressure:;2.6Mpa

Package Includes:

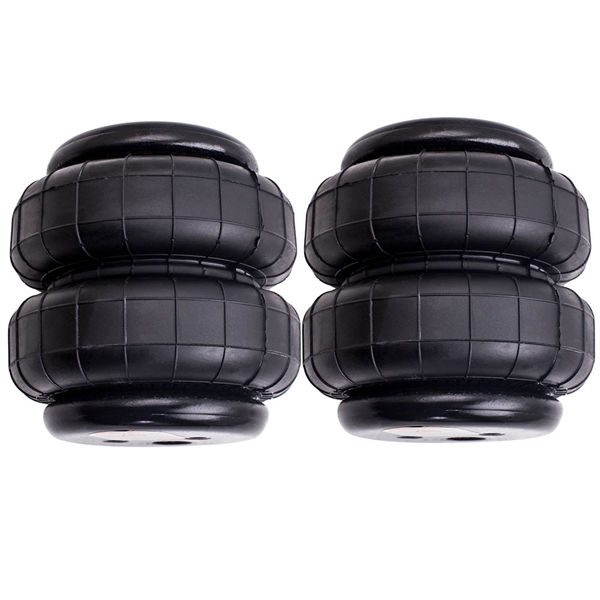

2x 100% brand new standard 2500 lbs air suspension
