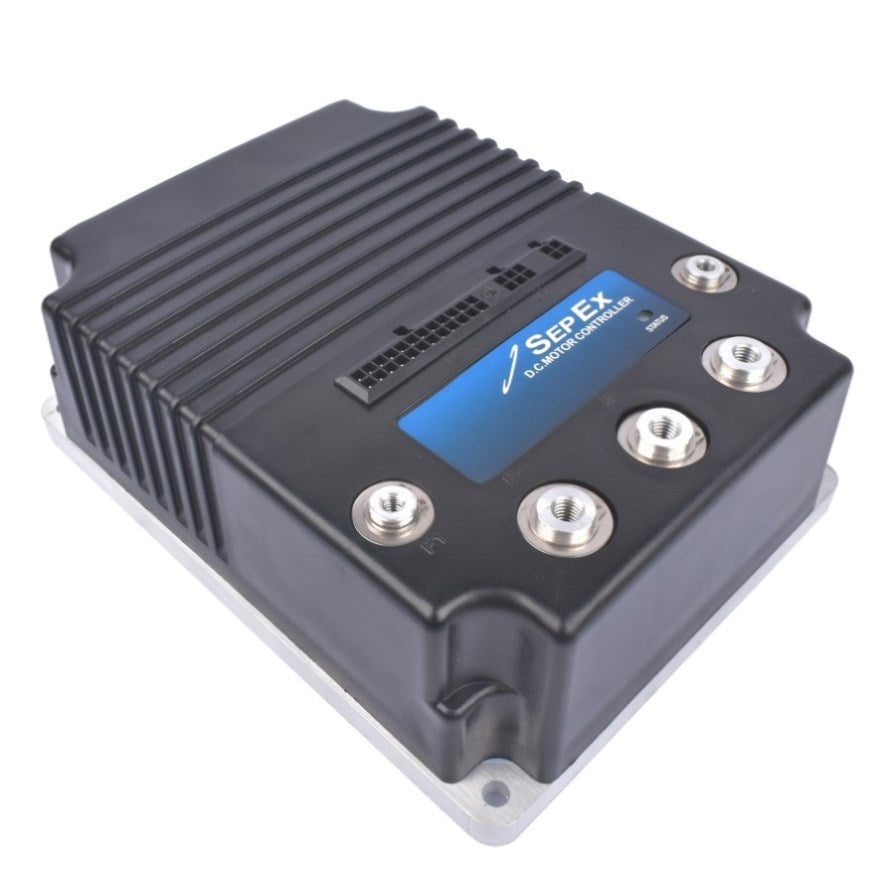

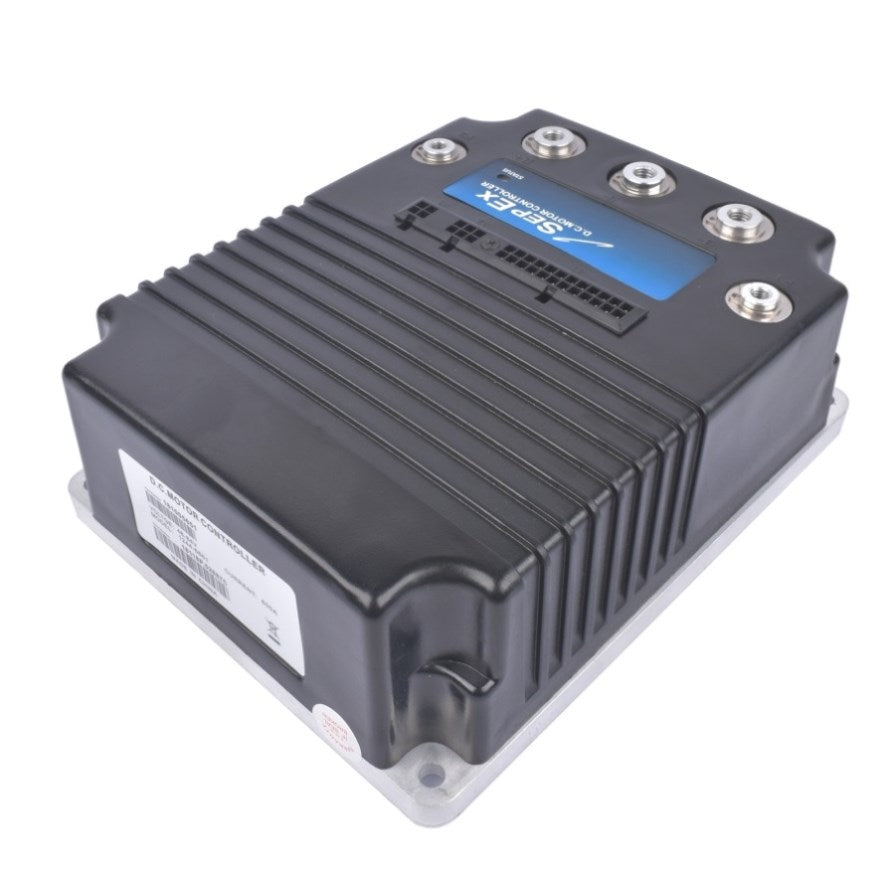

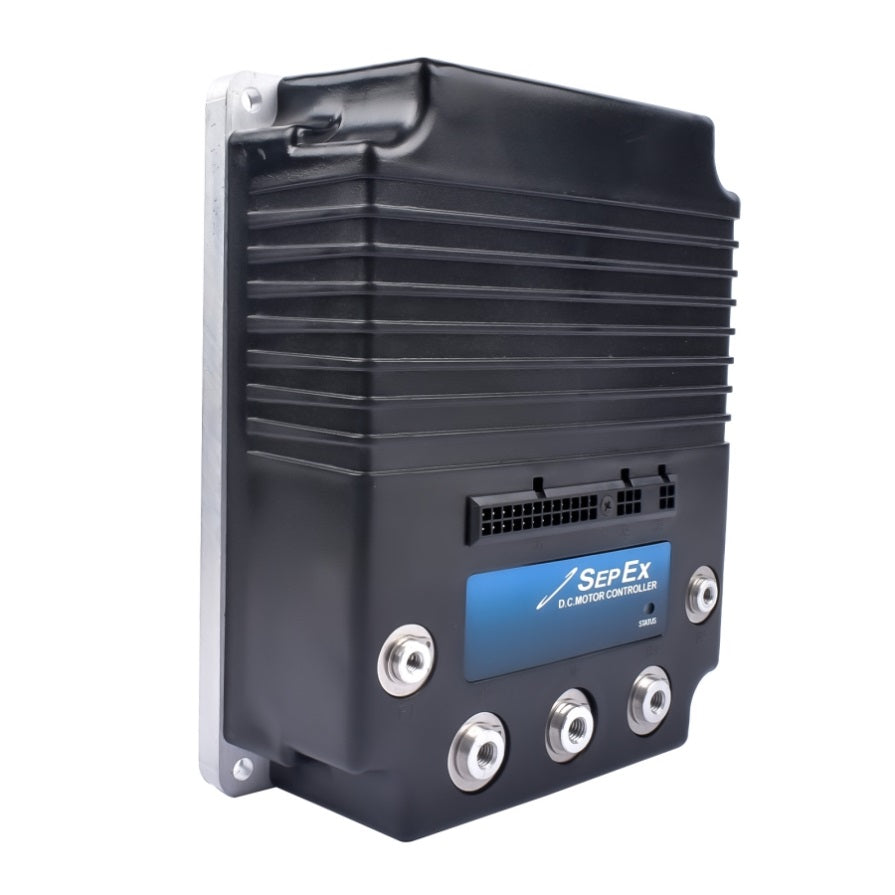

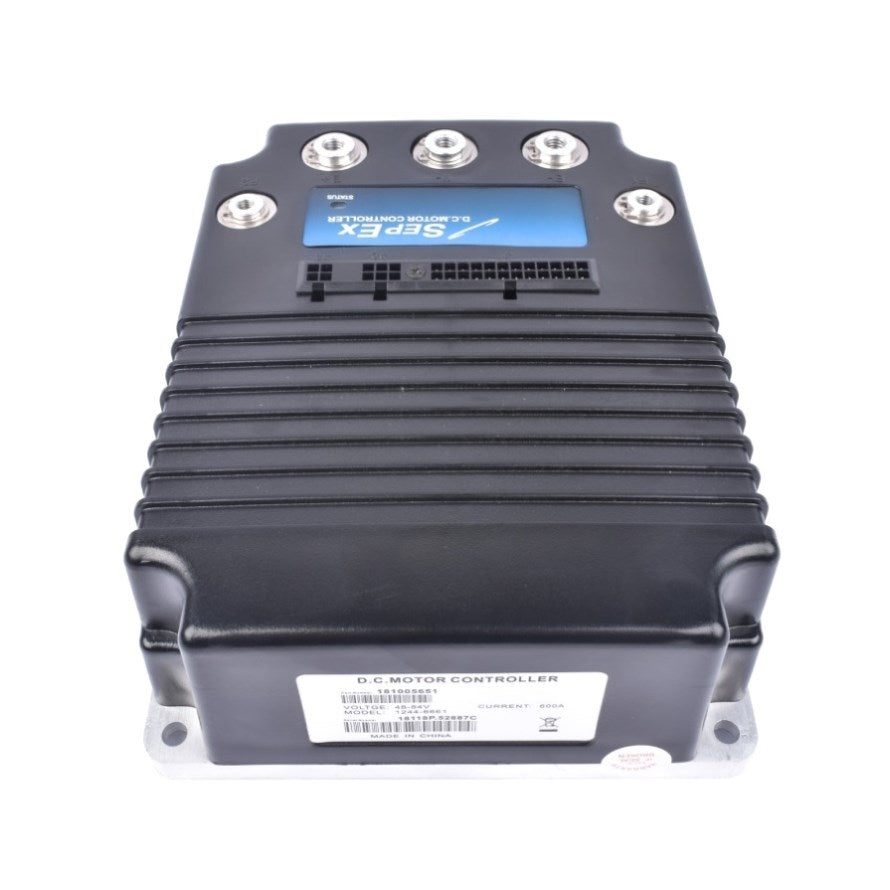

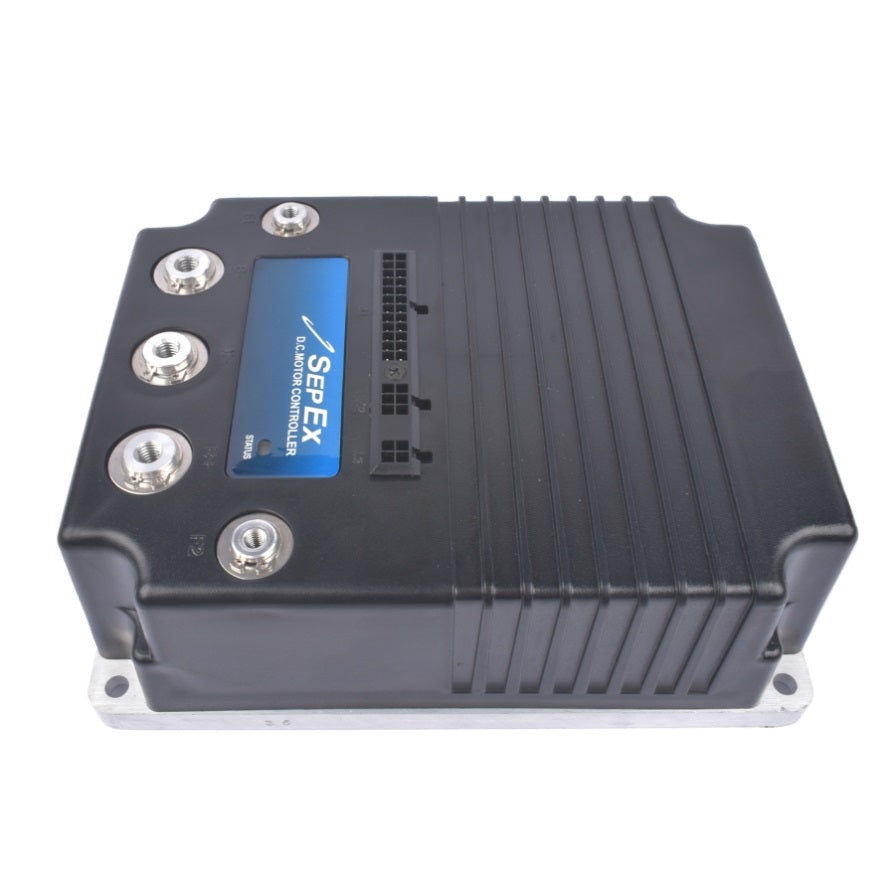

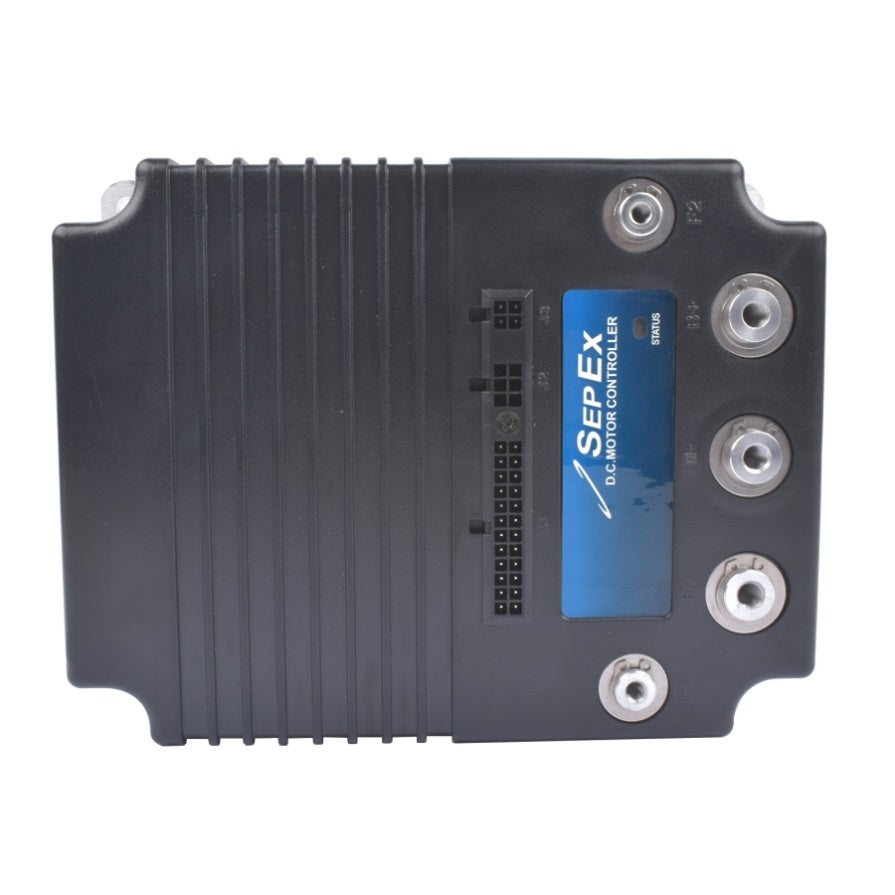

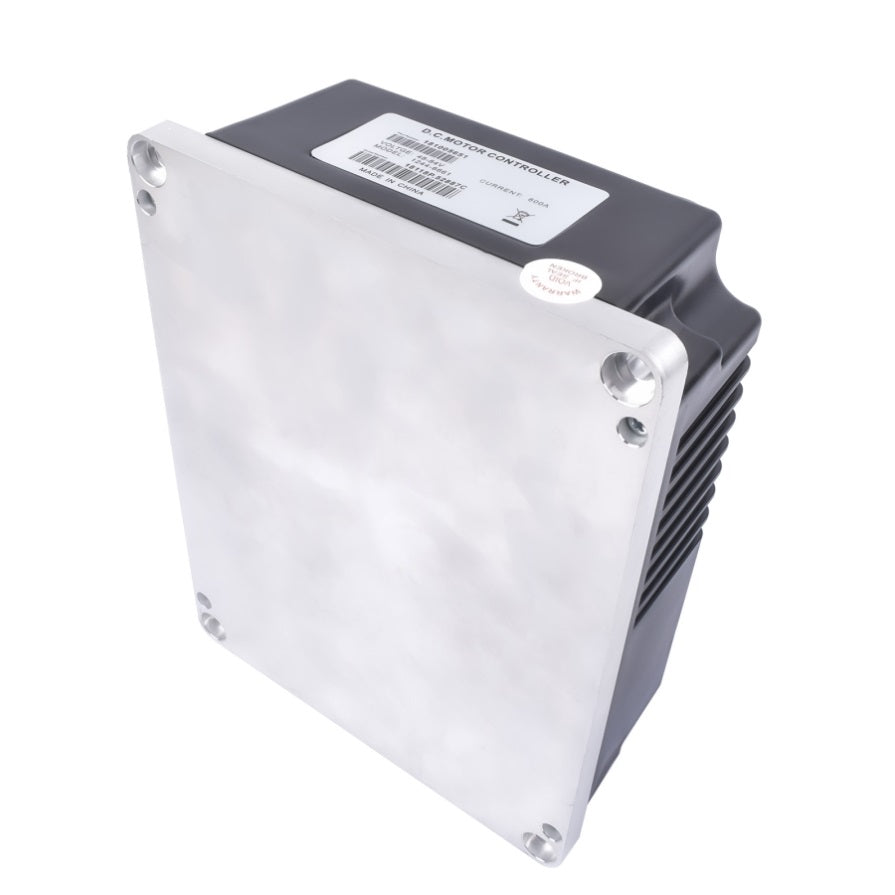

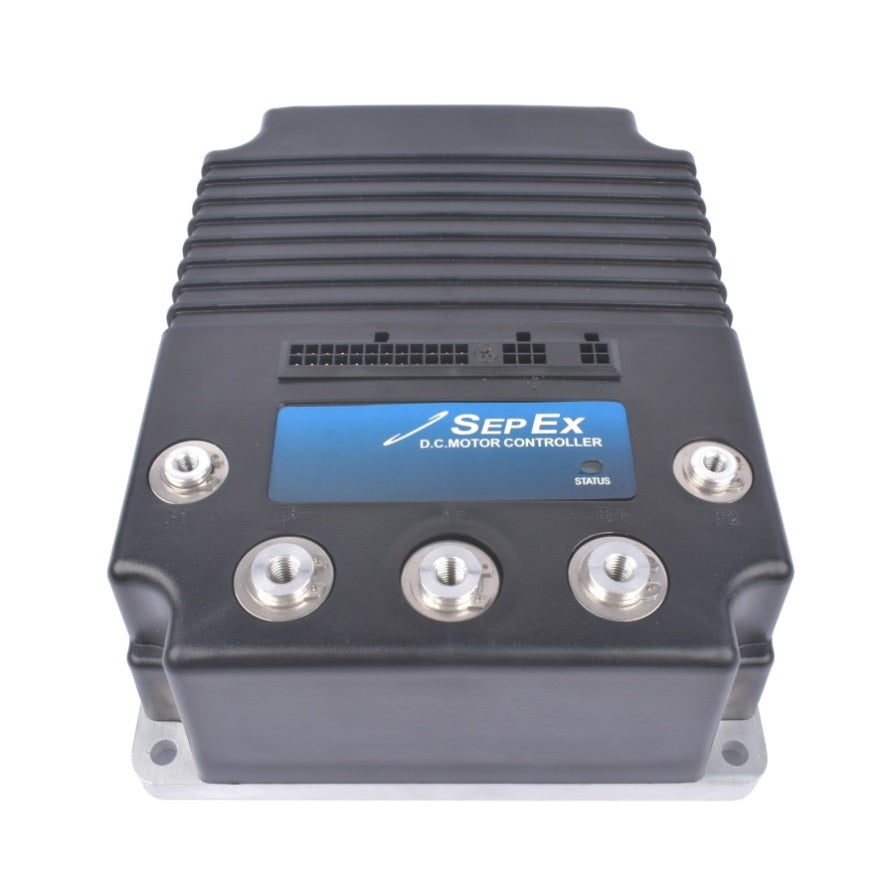

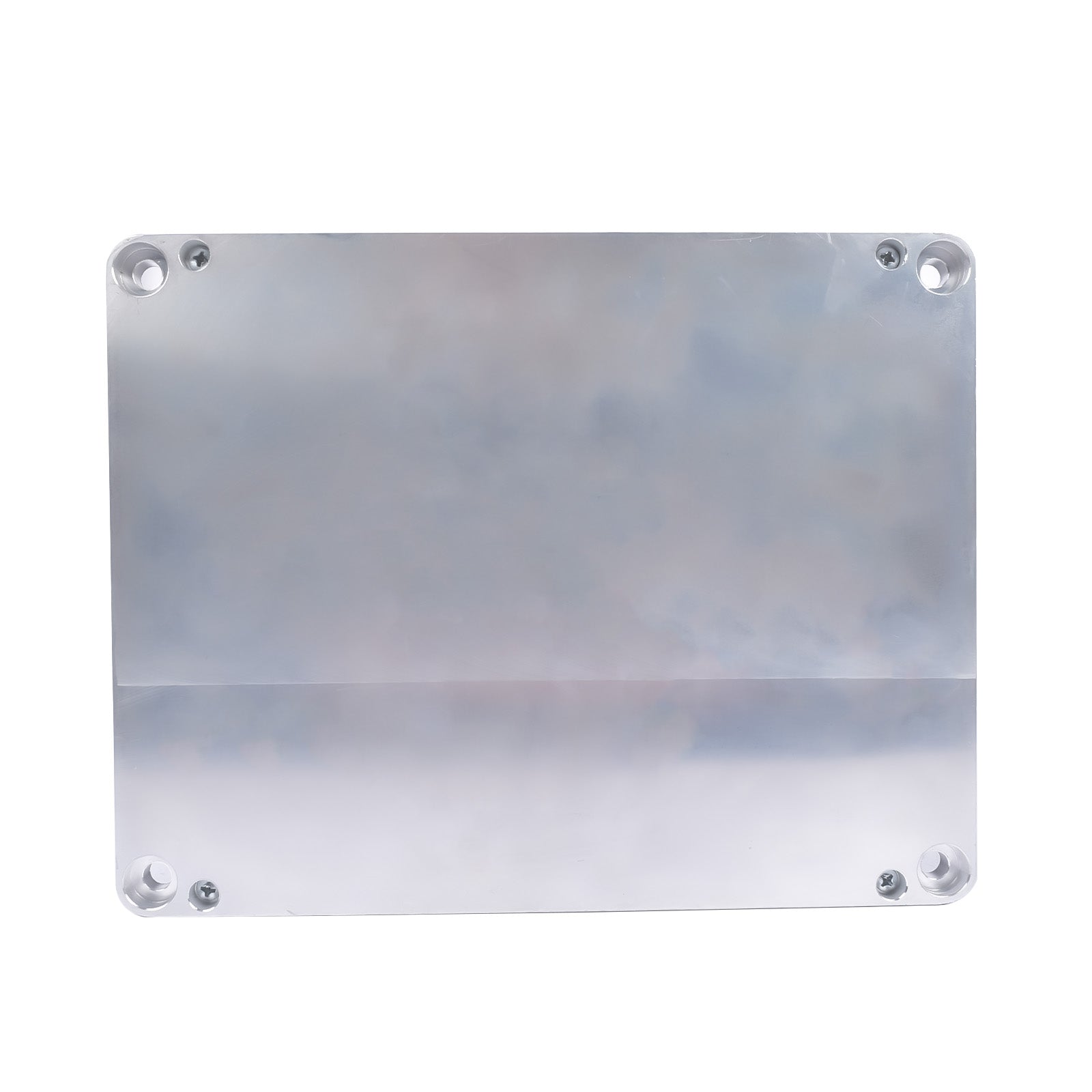

For 1244-6661 Motor Speed Controller Forklift Curtis 1244 series 1311 1313 1314 32842067
GT-32842067
Out of stock
$876.00
$1,007.40
Features: Curtis Model: 1244-6661Norminal Battery Voltage (Volts): 72V (default setting), 84V, 60V or 48VAmature Current Limit (amps): 600Amature 1 Minute Current Rating (amps): 600Amature 1 Hour Current Rating (amps): 140Field 2 Minute Current Rating (amps): 50Net Weight: 3.9 kg Specifications: - PWM operating frequency: 16 kHz- Electrical isolation to heatsink...
customers are viewing this product
Features:
Curtis Model: 1244-6661
Norminal Battery Voltage (Volts): 72V (default setting), 84V, 60V or 48V
Amature Current Limit (amps): 600
Amature 1 Minute Current Rating (amps): 600
Amature 1 Hour Current Rating (amps): 140
Field 2 Minute Current Rating (amps): 50
Net Weight: 3.9 kg
Specifications:
- PWM operating frequency: 16 kHz
- Electrical isolation to heatsink (min.):500 VAC
- KSI input current (no contactors engaged):160 mA without programmer;200 mA with programmer
- Logic input voltage:>7.5 V High;<1 V Low
- Logic input current: 10 mA
- Operating ambient temperature range: -40°C to 50°C
- Heatsink overtemperature cutback: 85°C
- Heatsink undertemperature cutback: -25°C
- Package environmental rating:IP64/IP67
Package Includes:
1X Motor Speed Controller
